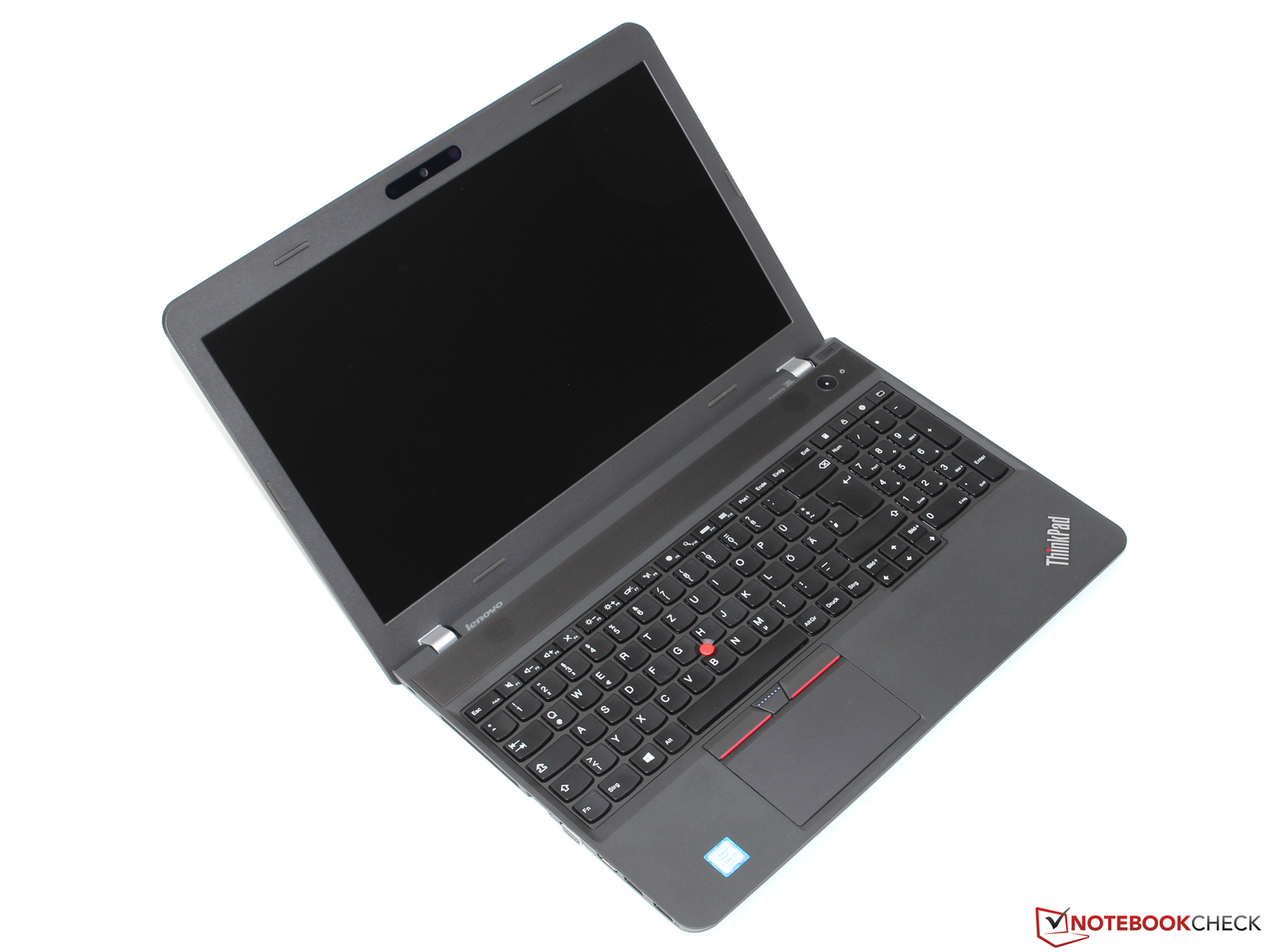

Kısa inceleme: Lenovo ThinkPad E560 (Core i7, Radeon R7 M370) Notebook

Name: Lenovo ThinkPad E560-20EWS00000
Brand: Lenovo

Başarılı evrim. İlk defa Lenovo, E500 serisinden bir ThinkPad modelini yüksek kaliteli IPS ekran ve hızlı GGDR5 belleğe sahip grafik kartı ile donatıyor.

Till Schönborn, ✓ Tanja Hinum, Published 12/25/2015 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Skylake Windows

Test device courtesy of campuspoint.de

Download your licensed rating image as PNG / SVG

E560 20EWS00000 (ThinkPad E560 Seri)

İşlemci

Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake

Grafik kartı

AMD Radeon R7 M370 - 2048 MB VRAM, Çekirdek: 875 MHz, Bellek: 3600 MHz, GDDR5, 15.201.1101.0, Enduro

Bellek

8 GB

, 1x 8 GB DDR3L-1600, 1 of 2 slots occupied

Görüntü

15.60 inç 16:9, 1920 x 1080 pixel, Lenovo LP156WF6-SPK2, IPS-Panel, LED-Backlight, parlak: hayır

Anakart

Intel Skylake-U Premium PCH

Harddisk

Samsung CM871 MZ7LF192HCGS, 192 GB

, 158 GB Boş

Ses kartı

Intel Skylake-U/Y PCH - High Definition Audio

Bağlantılar

3 USB 3.0, 1 VGA, 1 HDMI, 1 Kensington Lock, 1 Docking Station Portu, Ses çıkışları: Headset port (3.5 mm jack), Kart okuyucular: SD, MMC

Network

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Optik okuyucu

HL-DT-ST DVDRAM GUC0N

Boyut

yükseklik x genişlik x derinlik (mm): 27.1 x 377 x 256

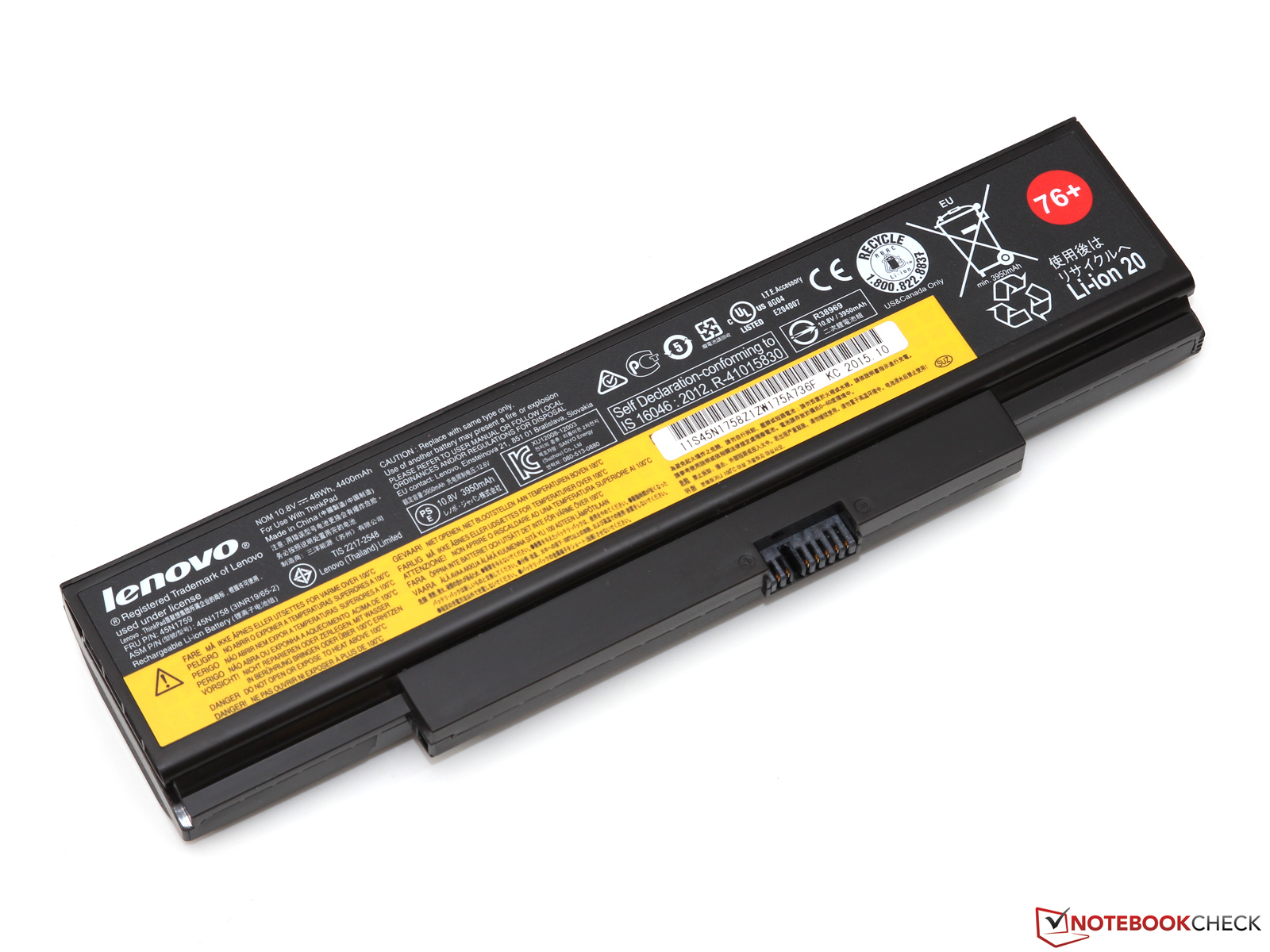

Batarya

48 Wh Lithium-Ion, 6 cells

İşletim sistemi

Microsoft Windows 10 Home 64 Bit

Camera

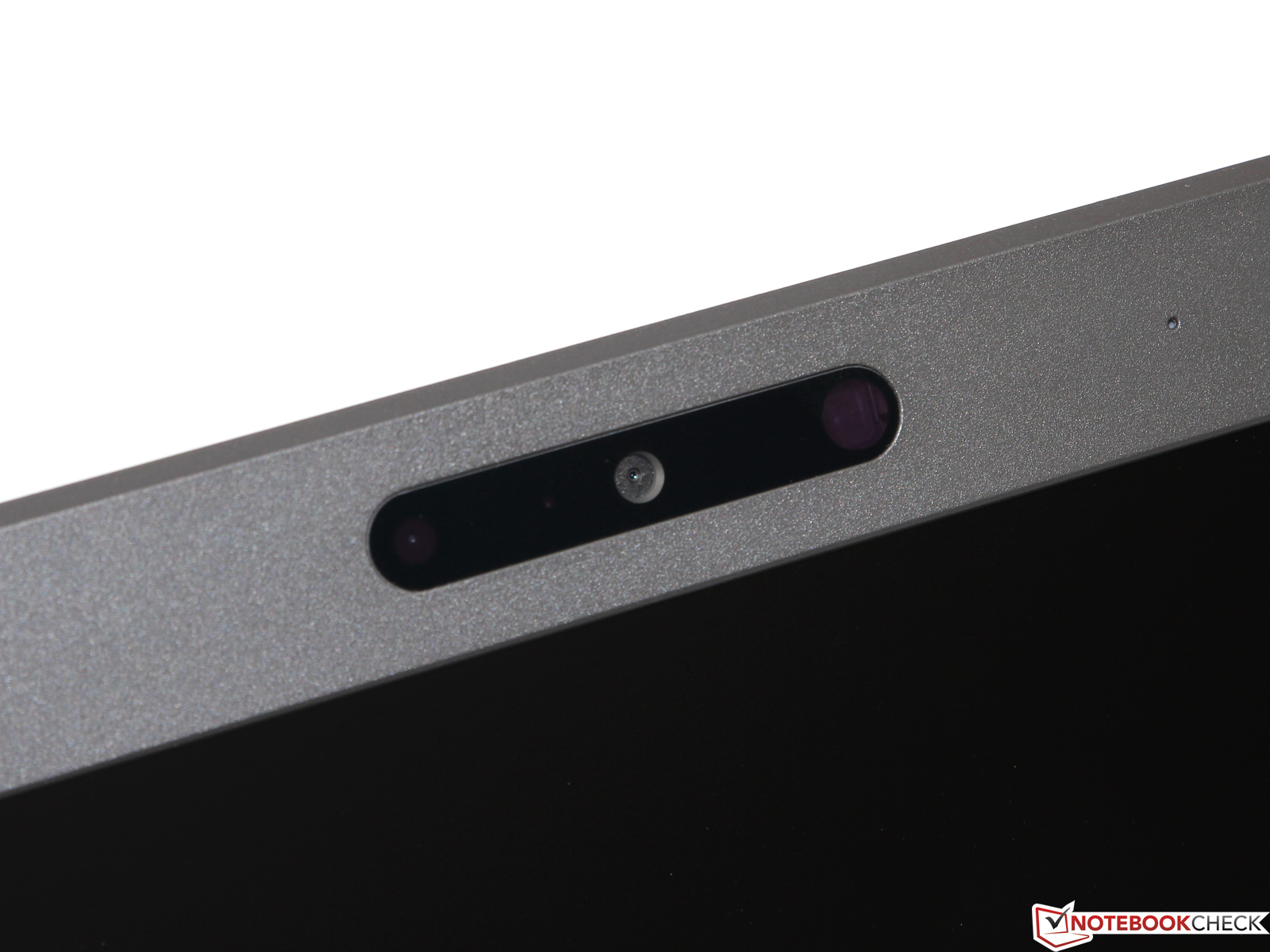

Webcam: Intel RealSense 3D Camera (2x 1080p)

Ek özellikler

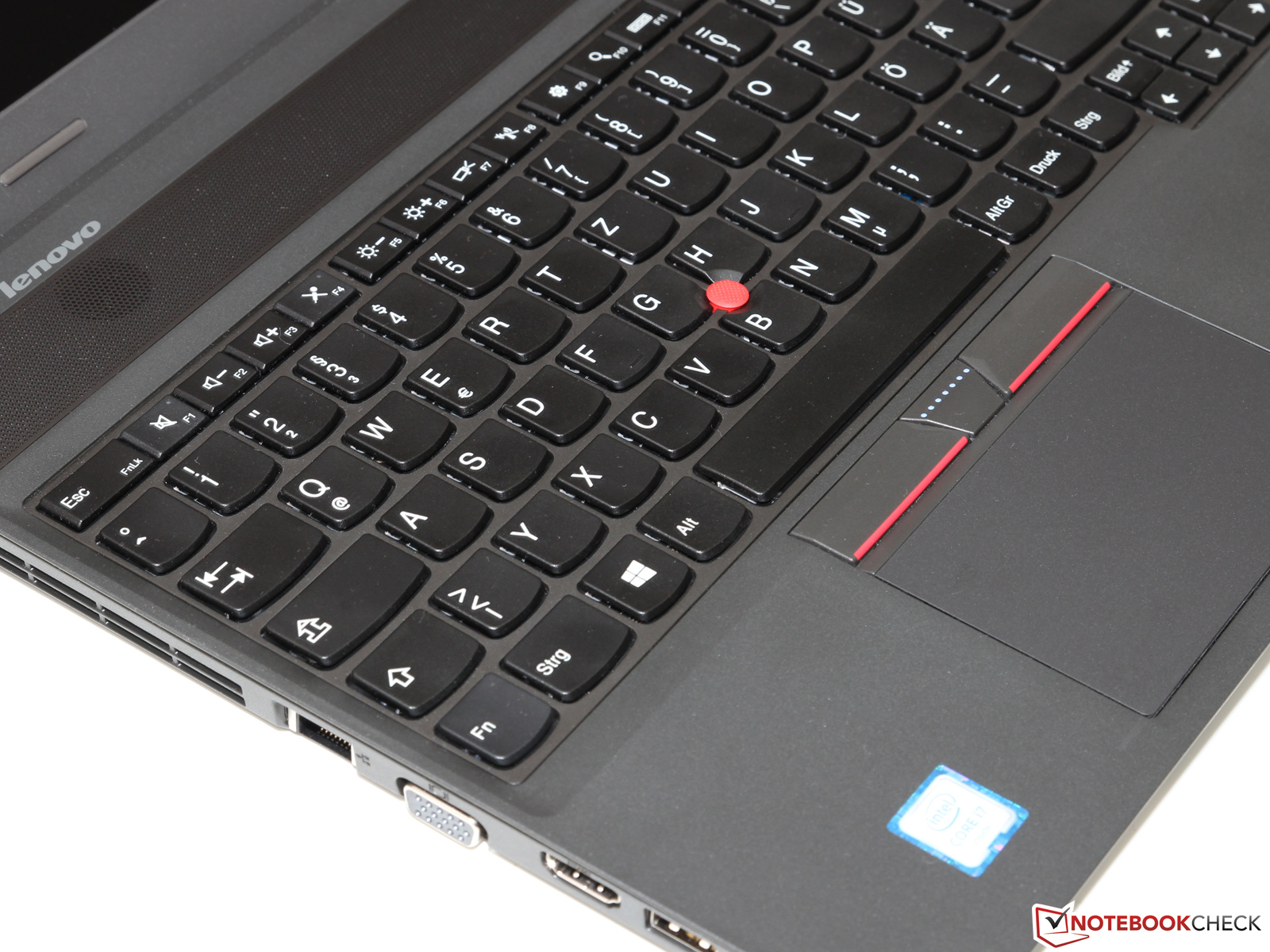

Hoparlörler: JBL Stereo (2x 2W), Klavye: Chiclet, Klavye ışığı: hayır, 65-Watt PSU, Lenovo Solution Center, 12 Ay Garanti

Ağırlık

2.35 kg, Güç kaynağı: 220 g

Fiyat

930 Euro

Bağlantılar

Lenovo anasayfa

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

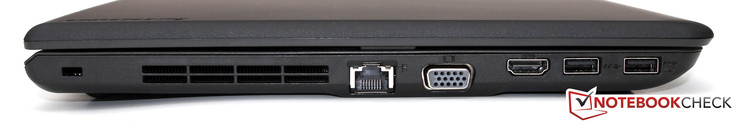

Left side: Kensington lock, Gbit-LAN, VGA, HDMI, 2x USB 3.0

Right side: headset port, DVD burner, USB 3.0, power/OneLink

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17942 (minimum: 5 - maximum: 3846000) Hz was measured.


238 cd/m²	230 cd/m²	222 cd/m²
249 cd/m²	257 cd/m²	239 cd/m²
228 cd/m²	229 cd/m²	214 cd/m²

Parlaklığın yayılımı

Lenovo LP156WF6-SPK2 tested with X-Rite i1Pro 2

Maksimum: 257 cd/m² (Nits) Ortalama: 234 cd/m²
Aydınlatma: 83 %
Batarya modunda parlaklık: 255 cd/m²
Kontrast: 952:1 (Siyah: 0.27 cd/m²)
ΔE Color 7.16 | 0.5-29.43 Ø5
ΔE Greyscale 6.28 | 0.57-98 Ø5.3
57.3% sRGB (Argyll 1.6.3 3D)
36.6% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
57.5% sRGB (Argyll 2.2.0 3D)
38.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.44

Download ICC Dosyası (X-Rite i1Pro 2)

	Lenovo ThinkPad E560-20EWS00000 1.920 x 1.080 IPS-Panel	Lenovo ThinkPad E550-20DF00CNGE 1.920 x 1.080 TN-Panel	HP ProBook 450 G3 1.920 x 1.080 TN-Panel	Dell Latitude 15 3550-0123 1.920 x 1.080 IPS-Panel
Display		3%	-1%	55%
Display P3 Coverage	38.5	39.84 3%	38.1 -1%	64.3 67%
sRGB Coverage	57.5	59.3 3%	57.3 0%	83.3 45%
AdobeRGB 1998 Coverage	39.8	41.2 4%	39.37 -1%	60.9 53%
Response Times			-16%
Response Time Grey 50% / Grey 80% *	38.4 ?(13.2, 25.2)		41.2 ?(22.4, 18.8) -7%
Response Time Black / White *	22.4 ?(6.4, 16)		28 ?(10, 18) -25%
PWM Frequency
Screen		-28%	-23%	29%
Brightness middle	257	195 -24%	211 -18%	353 37%
Brightness	234	188 -20%	214 -9%	335 43%
Brightness Distribution	83	90 8%	91 10%	88 6%
Black Level *	0.27	0.46 -70%	0.43 -59%	0.31 -15%
Contrast	952	424 -55%	491 -48%	1139 20%
Colorchecker dE 2000 *	7.16	9.92 -39%	9.25 -29%	4.59 36%
Greyscale dE 2000 *	6.28	10.06 -60%	9.83 -57%	3.73 41%
Gamma	2.44 ^90%	2.37 ^93%	2.82 ^78%	2.42 ^91%
CCT	6806 ^96%	11552 ^56%	10890 ^60%	6268 ^104%
Color Space (Percent of AdobeRGB 1998)	36.6	38 4%	36.4 -1%	55 50%
Color Space (Percent of sRGB)	57.3	59.3 3%	57.3 0%	83 45%
Total Average (Program / Settings)		-13% / -20%	-13% / -18%	42% / 36%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

↔ Response Time Black to White
22.4 ms ... rise ↗ and fall ↘ combined	↗ 6.4 ms rise
22.4 ms ... rise ↗ and fall ↘ combined	↘ 16 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 44 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (21.5 ms).
↔ Response Time 50% Grey to 80% Grey
38.4 ms ... rise ↗ and fall ↘ combined	↗ 13.2 ms rise
38.4 ms ... rise ↗ and fall ↘ combined	↘ 25.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 52 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.8 ms).

Cinebench R11.5 | Cinebench R15 | X264 HD Benchmark 4.0 | Geekbench 3

Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	1.45 Points
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	1.3 Points -10%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	1.42 Points -2%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	1.51 Points +4%
HP ProBook 450 G3 Intel Core i5-6200U	1.32 Points -9%
Dell Latitude 15 3550-0123 Intel Core i7-5500U	1.41 Points -3%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	3.55 Points
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	3.23 Points -9%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	3.13 Points -12%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	3.31 Points -7%
HP ProBook 450 G3 Intel Core i5-6200U	3.21 Points -10%
Dell Latitude 15 3550-0123 Intel Core i7-5500U	3.29 Points -7%

Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	124 Points
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	114 Points -8%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	123 Points -1%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	130 Points +5%
HP ProBook 450 G3 Intel Core i5-6200U	116 Points -6%
Dell Latitude 15 3550-0123 Intel Core i7-5500U	124 Points 0%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	319 Points
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	290 Points -9%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	282 Points -12%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	302 Points -5%
HP ProBook 450 G3 Intel Core i5-6200U	288 Points -10%
Dell Latitude 15 3550-0123 Intel Core i7-5500U	299 Points -6%

X264 HD Benchmark 4.0
Pass 1 (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	107.6 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	97.6 fps -9%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	89.6 fps -17%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	102.4 fps -5%
Pass 2 (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	20.95 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	18.97 fps -9%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	17.31 fps -17%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	18.72 fps -11%

Geekbench 3
64 Bit Single-Core Score (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	2902 Points
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	2702 Points -7%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	2839 Points -2%
64 Bit Multi-Core Score (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U	6403 Points
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	5801 Points -9%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	5794 Points -10%

Cinebench R10 Shading 32Bit

7921

Cinebench R10 Rendering Multiple CPUs 32Bit

11004

Cinebench R10 Rendering Single 32Bit

4871

Cinebench R10 Shading 64Bit

7835 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

14045 Points

Cinebench R10 Rendering Single CPUs 64Bit

6343 Points

Cinebench R11.5 CPU Single 64Bit

1.45 Points

Cinebench R11.5 OpenGL 64Bit

52.9 fps

Cinebench R11.5 CPU Multi 64Bit

3.55 Points

Cinebench R15 OpenGL 64Bit

51.3 fps

Cinebench R15 CPU Single 64Bit

124 Points

Cinebench R15 CPU Multi 64Bit

319 Points

Cinebench R15 Ref. Match 64Bit

98 %

Yardım

... kıyaslama

HD Tune

CrystalDiskMark 3.0

AS SSD

Samsung CM871 MZ7LF192HCGS

Maksimum transfer hızı: 280.8 MB/s

Minimum transfer hızı: 399.1 MB/s

Ortlama transfer hızı: 388.8 MB/s

Erişim hızı: 0.2 ms

Yakma hızı: 126.7 MB/s

İşlemci kullanımı: 3.1 %

PCMark 7 | PCMark 8

PCMark 7 - Score (sort by value)
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	5102 Points
Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	2819 Points -45%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3075 Points -40%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	2714 Points -47%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	4293 Points -16%

PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	3595 Points
Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	3960 Points +10%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	2910 Points -19%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	3152 Points -12%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	3090 Points -14%
Creative Score Accelerated v2 (sort by value)
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	4049 Points
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3460 Points -15%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	3443 Points -15%
Work Score Accelerated v2 (sort by value)
Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	4650 Points
Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	4020 Points -14%
HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	3901 Points -16%
Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	3873 Points -17%
Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD	3979 Points -14%

PCMark 7 Score		5102 puan
PCMark 8 Home Score Accelerated v2		3595 puan
PCMark 8 Creative Score Accelerated v2		4049 puan
PCMark 8 Work Score Accelerated v2		4650 puan
Yardım

... kıyaslama

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU (sort by value)
Lenovo ThinkPad E560-20EWS00000 AMD Radeon R7 M370	2522 Points
Lenovo ThinkPad T450s-20BWS1UT00 NVIDIA GeForce 940M	2313 Points -8%
Lenovo ThinkPad E550-20DF00CNGE AMD Radeon R7 M265	2073 Points -18%
Lenovo ThinkPad E460-20EUS00000 AMD Radeon R7 M360	1989 Points -21%
Dell Latitude 15 3550-0123 NVIDIA GeForce 830M	1961 Points -22%
HP ProBook 430 G3 P5T00ES Intel HD Graphics 520	1318 Points -48%
HP ProBook 450 G3 Intel HD Graphics 520	1165 Points -54%

3DMark - 1920x1080 Fire Strike Graphics (sort by value)
Lenovo ThinkPad E560-20EWS00000 AMD Radeon R7 M370	1760 Points
Lenovo ThinkPad T450s-20BWS1UT00 NVIDIA GeForce 940M	1627 Points -8%
Lenovo ThinkPad E550-20DF00CNGE AMD Radeon R7 M265	1397 Points -21%
Lenovo ThinkPad E460-20EUS00000 AMD Radeon R7 M360	1109 Points -37%
Dell Latitude 15 3550-0123 NVIDIA GeForce 830M	1360 Points -23%
HP ProBook 430 G3 P5T00ES Intel HD Graphics 520	861 Points -51%
HP ProBook 450 G3 Intel HD Graphics 520	608 Points -65%

3DMark 06 Standard Score		12983 puan
3DMark Vantage P Result		8513 puan
3DMark 11 Performance		2689 puan
3DMark Ice Storm Standard Score		34736 puan
3DMark Cloud Gate Standard Score		7083 puan
3DMark Fire Strike Score		1654 puan
3DMark Fire Strike Extreme Score		822 puan
Yardım

... kıyaslama

Crysis 3
1024x768 Low Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	54.1 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	39.1 fps -28%
1366x768 Medium Preset AF:16x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	32.6 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	25.4 fps -22%
1366x768 High Preset AA:FX AF:16x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	20.2 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	18.1 fps -10%

Tomb Raider
1024x768 Low Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	105.5 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	104.5 fps -1%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	73.2 fps -31%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	52 fps -51%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	50.1 fps -53%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	74.2 fps -30%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	108.7 fps +3%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	130.8 fps +24%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	123.2 fps +17%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	128.8 fps +22%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	71.8 fps -32%
1366x768 Normal Preset AA:FX AF:4x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	55.4 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	51.5 fps -7%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	38.7 fps -30%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	26.8 fps -52%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	26.6 fps -52%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	39.4 fps -29%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	55.3 fps 0%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	66.1 fps +19%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	58 fps +5%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	61.5 fps +11%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	36.6 fps -34%
1366x768 High Preset AA:FX AF:8x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	42.7 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	34.6 fps -19%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	29.7 fps -30%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	15.1 fps -65%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	15.3 fps -64%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	24.5 fps -43%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	31.1 fps -27%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	36.4 fps -15%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	33.4 fps -22%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	33.5 fps -22%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	24.4 fps -43%

BioShock Infinite
1280x720 Very Low Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	86.7 fps
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	51.4 fps -41%
1366x768 Medium Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	48.4 fps
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	27.9 fps -42%
1366x768 High Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	46.7 fps
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	24.1 fps -48%

Metro: Last Light
1024x768 Low (DX10) AF:4x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	51.9 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	46.4 fps -11%
1366x768 Medium (DX10) AF:4x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	38.2 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	36.4 fps -5%
1366x768 High (DX11) AF:16x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	21.8 fps
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	22.5 fps +3%

Battlefield 4
1024x768 Low Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	68 fps
1366x768 Medium Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	46.7 fps
1366x768 High Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	33.2 fps

Thief
1024x768 Very Low Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	30.3 fps
1366x768 Normal Preset AA:FX (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	21 fps
1366x768 High Preset AA:FXAA & Low SS AF:4x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	18 fps

Sims 4
1024x768 Low Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	172.7 fps
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	164.8 fps -5%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	176.8 fps +2%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	161.1 fps -7%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	184.5 fps +7%
1366x768 Medium Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	58.6 fps
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	40.5 fps -31%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	49.4 fps -16%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	66.2 fps +13%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	90.1 fps +54%
1920x1080 High Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	35 fps
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	16.6 fps -53%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	25.3 fps -28%
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	35.7 fps +2%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	40.1 fps +15%

Middle-earth: Shadow of Mordor
1280x720 Lowest Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	37.4 fps
1344x756 Medium Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	27.8 fps
1920x1080 High Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	15.7 fps

Dragon Age: Inquisition
1024x768 Low Graphics Quality (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	58.6 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	42 fps -28%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	17.2 fps -71%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	28.6 fps -51%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	44.7 fps -24%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	40.9 fps -30%
1366x768 Medium Graphics Quality (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	34.9 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	28.7 fps -18%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	11.7 fps -66%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	18.9 fps -46%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	29.7 fps -15%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	25.1 fps -28%
1920x1080 High Graphics Quality (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	11.7 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	10.7 fps -9%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	4.5 fps -62%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	10.3 fps -12%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	16.1 fps +38%

Battlefield Hardline
1024x768 Low Graphics Quality (DX11) (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	72.4 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	53.3 fps -26%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	30.6 fps -58%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	47.7 fps -34%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	65.2 fps -10%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	71.7 fps -1%
1366x768 Medium Graphics Quality (DX11) (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	52.5 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	42 fps -20%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	21.7 fps -59%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	33.5 fps -36%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	46.1 fps -12%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	50.2 fps -4%
1920x1080 High Graphics Quality (DX11) (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	19.4 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	17.3 fps -11%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	7.3 fps -62%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	11.9 fps -39%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	16.7 fps -14%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	18 fps -7%

Dirt Rally
1024x768 Ultra Low Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	116.8 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	136.6 fps +17%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	91.8 fps -21%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	71.3 fps -39%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	70.6 fps -40%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	113.3 fps -3%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	165.4 fps +42%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	183.2 fps +57%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	95 fps -19%
1366x768 Medium Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	47.6 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	40.6 fps -15%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	34 fps -29%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	20 fps -58%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	19.9 fps -58%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	25.7 fps -46%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	45.6 fps -4%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	45.1 fps -5%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	23.6 fps -50%
1920x1080 High Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	25.6 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	21.3 fps -17%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	18.4 fps -28%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	12.5 fps -51%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	12.5 fps -51%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	12.5 fps -51%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	25.5 fps 0%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	22.6 fps -12%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	12.7 fps -50%

The Witcher 3
1024x768 Low Graphics & Postprocessing (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	27.6 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	22.9 fps -17%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	24.5 fps -11%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	27 fps -2%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	29 fps +5%
1366x768 Medium Graphics & Postprocessing (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	18 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	15.9 fps -12%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	15 fps -17%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	16.7 fps -7%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	17.6 fps -2%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	9.5 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	8.8 fps -7%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	7.3 fps -23%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	9 fps -5%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	9.2 fps -3%

Batman: Arkham Knight
1280x720 Low / Off AF:Trilinear (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	29 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	25 fps -14%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	23 fps -21%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	26 fps -10%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	25 fps -14%
1366x768 Normal / Off AF:4x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	23 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	17 fps -26%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	19 fps -17%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	21 fps -9%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	21 fps -9%
1920x1080 High / On (Interactive Smoke & Paper Debris Off) AA:SM AF:8x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	10 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	7 fps -30%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	7 fps -30%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	10 fps 0%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	12 fps +20%

Metal Gear Solid V
1024x768 Low / Off (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	57.1 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	60 fps +5%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	28.6 fps -50%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	45 fps -21%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	60 fps +5%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	60 fps +5%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	58 fps +2%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	43.7 fps -23%
1366x768 Medium / Off (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	43.3 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	48.7 fps +12%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	18.3 fps -58%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	28.2 fps -35%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	48.2 fps +11%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	40.5 fps -6%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	39.9 fps -8%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	28.3 fps -35%
1920x1080 High / On (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	20.2 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	18.3 fps -9%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	16.9 fps -16%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	16.4 fps -19%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	16.1 fps -20%
Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520	11.5 fps -43%

Mad Max
1366x768 Normal Preset AF:2x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	38.4 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	32.4 fps -16%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	32 fps -17%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	34.5 fps -10%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	34.4 fps -10%
1920x1080 High Preset AF:6x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	17.1 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	16 fps -6%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	15.7 fps -8%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	16.4 fps -4%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	17 fps -1%

World of Warships
1366x768 Low Preset AF:Trilinear (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	51 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	83.2 fps +63%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	46.5 fps -9%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	45.2 fps -11%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	69.2 fps +36%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	48.4 fps -5%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	102.6 fps +101%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	103.4 fps +103%
1366x768 Medium Preset AF:Trilinear (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	35.6 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	56.4 fps +58%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	36.7 fps +3%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	32.1 fps -10%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	47 fps +32%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	37.6 fps +6%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	75.3 fps +112%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	78.1 fps +119%
1920x1080 High Preset AF:8x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	17.7 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	28.1 fps +59%
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	17.2 fps -3%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	15.9 fps -10%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	22 fps +24%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	20.2 fps +14%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	34.7 fps +96%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	36.6 fps +107%

FIFA 16
1280x720 Low Preset (sort by value)
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	69 fps
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	36.9 fps
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	63.5 fps
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	92.6 fps
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	99.7 fps
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	88.5 fps
1366x768 High Preset AA:2x MS (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	27.9 fps
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U, AMD Radeon R7 M265	49.1 fps +76%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	25 fps -10%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	39.7 fps +42%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	50 fps +79%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	57.8 fps +107%
Lenovo Flex 2 Pro-15 Intel Core i7-4510U, NVIDIA GeForce 840M	57.9 fps +108%

Anno 2205
1024x768 Low Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	35.4 fps
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	8.2 fps -77%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	40.6 fps +15%
1366x768 Medium Preset AA:2x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	19.8 fps
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	5.3 fps -73%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	22.3 fps +13%
1920x1080 High Preset AA:4x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	8.7 fps
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	9.7 fps +11%

Call of Duty: Black Ops 3
1024x768 Low / Off (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	44.2 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	33.9 fps -23%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	17.2 fps -61%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	22 fps -50%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	46.7 fps +6%
1366x768 Medium / Off (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	28 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	20.6 fps -26%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	9.7 fps -65%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	12 fps -57%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	29.2 fps +4%
1920x1080 High / On AA:FX (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	11.4 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	8.5 fps -25%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	13.1 fps +15%

Fallout 4
1280x720 Low Preset AA:FX (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	34 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	21.4 fps -37%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	13.2 fps -61%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	13.6 fps -60%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	18.8 fps -45%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	32.3 fps -5%
1366x768 Medium Preset AA:T AF:16x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	21.1 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	14.5 fps -31%
HP ProBook 450 G3 Intel Core i5-6200U, Intel HD Graphics 520	8.6 fps -59%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	9.1 fps -57%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	11.4 fps -46%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	19.8 fps -6%
1920x1080 High Preset AA:T AF:16x (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	11.5 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	7.5 fps -35%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	11.1 fps -3%

Star Wars Battlefront
1024x768 Low Preset (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	52.1 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	23.5 fps -55%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	46.2 fps -11%
1366x768 Medium Preset AA:FX (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	32.8 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	16.5 fps -50%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	28.5 fps -13%
1920x1080 High Preset AA:FX (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	16 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	8.9 fps -44%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	12.8 fps -20%

Assassin's Creed Syndicate
1024x768 Low Preset AA:FX (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	19.3 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	12 fps -38%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	21.8 fps +13%
1366x768 Medium Preset AA:FX (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	15.8 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	10 fps -37%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	17.3 fps +9%
1920x1080 High Preset AA:FX (sort by value)
Lenovo ThinkPad E560-20EWS00000 Intel Core i7-6500U, AMD Radeon R7 M370	8.9 fps
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	5.9 fps -34%
HP Envy 15-w103ng x360 Intel Core i5-6200U, NVIDIA GeForce 930M	9.6 fps +8%

	düşük	orta	yüksek	ultra
Crysis 3 (2013)	54.1	32.6	20.2	7.4
Tomb Raider (2013)	105.5	55.4	42.7	18.6
BioShock Infinite (2013)	86.7	48.4	46.7	16.1
Metro: Last Light (2013)	51.9	38.2	21.8	10.1
Battlefield 4 (2013)	68	46.7	33.2	12.8
Thief (2014)	30.3	21	18	9.8
Sims 4 (2014)	172.7	58.6	35	25
Middle-earth: Shadow of Mordor (2014)	37.4	27.8	15.7	11.7
Dragon Age: Inquisition (2014)	58.6	34.9	11.7	7.6
Battlefield Hardline (2015)	72.4	52.5	19.4	12.8
Dirt Rally (2015)	116.8	47.6	25.6	13.4
The Witcher 3 (2015)	27.6	18	9.5	5.7
Batman: Arkham Knight (2015)	29	23	10
Metal Gear Solid V (2015)	57.1	43.3	20.2	12.7
Mad Max (2015)		38.4	17.1	13.8
World of Warships (2015)	51	35.6	17.7	13.3
FIFA 16 (2015)			27.9	15.6
Anno 2205 (2015)	35.4	19.8	8.7	4.1
Call of Duty: Black Ops 3 (2015)	44.2	28	11.4	6.5
Fallout 4 (2015)	34	21.1	11.5	8.4
Star Wars Battlefront (2015)	52.1	32.8	16	13.5
Assassin's Creed Syndicate (2015)	19.3	15.8	8.9

	Lenovo ThinkPad E560-20EWS00000 Radeon R7 M370, 6500U, Samsung CM871 MZ7LF192HCGS	Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	Dell Latitude 15 3550-0123 GeForce 830M, 5500U, Toshiba MQ01ABD100	HP ProBook 450 G3 HD Graphics 520, 6200U, Seagate ST500LM021-1KJ15	Acer TravelMate P257-M-56AX HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
Noise		-2%	-18%	-0%	-7%
Idle Minimum *	29.2	29.8 -2%	32.5 -11%	29.7 -2%	31.8 -9%
Idle Average *	29.2	29.8 -2%	32.5 -11%	29.7 -2%	31.8 -9%
Idle Maximum *	29.2	31.1 -7%	32.5 -11%	29.7 -2%	31.8 -9%
Load Average *	33.6	33.1 1%	43.5 -29%	33.1 1%	35 -4%
Load Maximum *	35.5	35.6 -0%	45.3 -28%	34.2 4%	37.6 -6%

* ... smaller is better

Ses yüksekliği

Boşta		29.2 / 29.2 / 29.2 dB
Çalışırken		33.6 / 35.5 dB

	30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü
min: , med: , max: Voltcraft SL-451 (15 cm uzaklık)

Maksimum yük

Bekleme


40.3 °C	41.5 °C	28.6 °C
37.3 °C	45 °C	26.8 °C
29.9 °C	36.6 °C	24.1 °C

Maksimum: 45 °C
Ortalama: 34.5 °C


26.8 °C	39.8 °C	31.9 °C
25.8 °C	38.9 °C	36.8 °C
23.9 °C	33.8 °C	30.6 °C

Maksimum: 39.8 °C
Ortalama: 32 °C

Güç kaynağı 50.6 °C | Oda sıcaklığı 19.1 °C | Fluke 62 Max

(±) The average temperature for the upper side under maximal load is 34.5 °C / 94 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(±) The maximum temperature on the upper side is 45 °C / 113 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 39.8 °C / 104 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.1 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 36.6 °C / 97.9 F.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-8.9 °C / -16 F).

Anlık tüketim

Kapalı / Bekleme modu	0.25 / 0.4 Watt
Boşta	4.2 / 7.5 / 8.2 Watt
Çalışırken	49.6 / 65.8 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Lenovo ThinkPad E560-20EWS00000 48 Wh	Lenovo ThinkPad E550-20DF00CNGE 48 Wh	HP ProBook 450 G3 44 Wh	Dell Latitude 15 3550-0123 58 Wh	Acer TravelMate P257-M-56AX 37 Wh
Battery Runtime		-21%	-19%	10%	-15%
Reader / Idle	884	663 -25%	575 -35%	775 -12%	703 -20%
H.264	413	311 -25%	337 -18%	474 15%
WiFi v1.3	342	293 -14%	309 -10%	379 11%	321 -6%
Load	104	82 -21%	90 -13%	129 24%	83 -20%

Batarya ömrü

Boşta (WLAN kapalı, minimum parlaklık)		14h 44min
WiFi Websurfing		5h 42min
Big Buck Bunny H.264 1080p		6h 53min
Çalışırken (maksimum parlaklık)		1h 44min

Artılar

+ Makul kasa kalitesi

+ Harika klavye

+ Opsiyonel docking çözümleri

+ Yüksek kontrast ve çözünürlüklü IPS ekran ve geniş bakış açıları

+ Çok iyi uygulama performansı

+ Düşük ses üretimi

+ İyi fiyat/performans oranı

Eksiler

- Ekranın ortalama renk üretimi

- Limitli güncelleme oranı

- Maksimum yoğun kullanımda ufak tıkanmalar

- Sadece 12 aylık garanti

In review: Lenovo ThinkPad E560. Test model courtesy of Campuspoint.

ThinkPad E460 modelinin mükemmel sonuçlarından sonra E560 serisi de iyi performansı ve Lenovo marka değerini sürdürüyor. Genel olarak harika klavyenin yanı sıra yeni IPS ekran sadece çok iyi aydınlatma değil, aynı zamanda daha iyi kontast ve bakış açısı değerleri sunuyor. Performans SSD, 8 GB bellek ve Core i7 işlemci ile oldukça iyi. Tabi i5 işlemci ile de fiyatı düşürüp devam etmeniz mümkün. Harici Radeon R7 M370, GGDR5 belleğe sahip ve makul bir oyun performansı sunuyor. Elbette dahili HD Graphics 520 de ofis ve multimedia işleri için yeterli olacaktır.

ThinkPad E560 modelini alarak bir hata yapmazsınız, sadece gerçekten Core i7 işlemci ve Radeon grafik kartına ihtiyacınız var mı sorusuna yanıt vermeniz gerekli.

Herhangi bir ciddi sorun bulamadığımızı belirtmiştik, ancak gelecek jenerasyon için elbette daha iyi yapılabilecek şeyler mevcut. Boş bir M.2 slotu, fana daha rahat erişim ve soğutma çözümü, ekranın renk sunumu iyileştirilebilecekler arasında. Sadece 12 aylık garanti de aslında fiyatın düşük olmasından kaynaklı. Lenovo hala daha pahalı L ve T serilerini satmak istiyor.

Yazının orjinali için tıklayın.

Lenovo ThinkPad E560-20EWS00000 - 2016-02-26 02/26/2016 v5^(old)
Till Schönborn

İşcilik

80 / 98 → 82%

Klavye

87%

Mouse

83%

Bağlanılabilirlik

53 / 80 → 66%

Ağırlık

61 / 20-67 → 87%

Batarya

87%

Görüntü

83%

Oyun performansı

62 / 68 → 91%

Uygulama performansı

81 / 92 → 88%

Isınma

90%

Ses

93%

Audio

69%

Camera

58 / 85 → 68%

Ortalama

76%

84%

Office - Ortalama Ağırlık

Read about the changes in the new rating version 5

Pricecompare

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1611 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Kısa inceleme: Lenovo ThinkPad E560 (Core i7, Radeon R7 M370) Notebook

Till Schönborn, 2015-12-25 (Update: 2015-12-25)
