Kısa inceleme: Lenovo ThinkPad T460s (Core i7, WQHD) Ultrabook

Till Schönborn, 03/19/2016

Mükemmeliyete doğru? Lenovo'nun T460s modeli T450s gibi bir cihazın bile iyileştirilebileceğinin göstergesi. T4x0s serisinden hiçbir cihaz bu kadar hafif ve güçlü olmamıştı.

Lenovo ThinkPad T460s-20FA003GGE (ThinkPad T460s Seri)
İşlemci
Intel Core i7-6600U 2.6 GHz
Grafik kartı
Intel HD Graphics 520, Çekirdek: 300 - 1050 MHz, Bellek: 1066 MHz, 20.19.15.4380
Bellek
12288 MB
, DDR4-2133, 4 GB integrated + 1x 8 GB module, 1 of 1 slot occupied
Görüntü
14 inç 16:9, 2560x1440 pixel, VVX14T058J02, IPS-Panel, LED-Backlight, parlak: hayır
Anakart
Intel Skylake-U Premium PCH
Harddisk

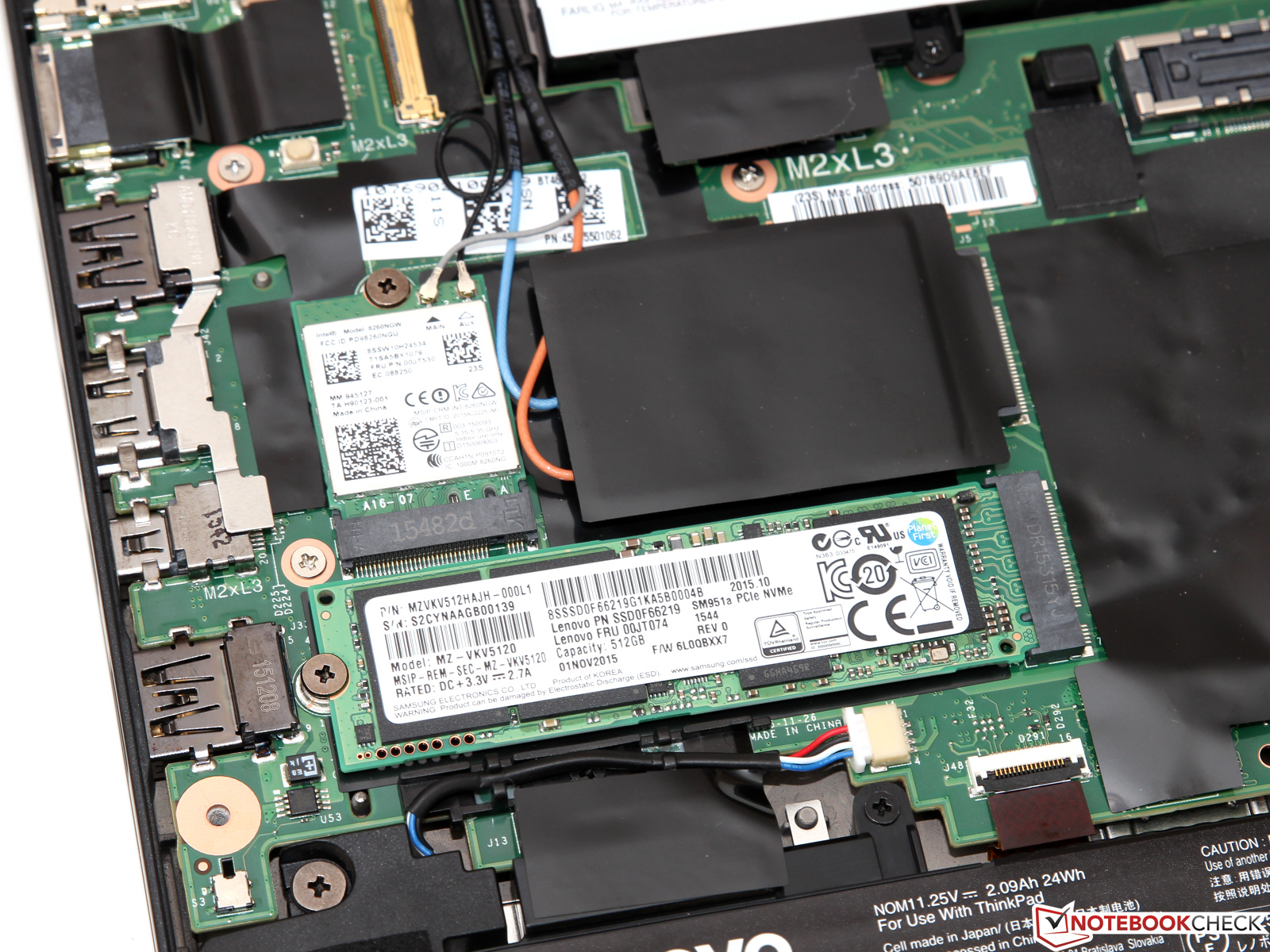

Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512), 512 GB
Ses kartı
Intel Skylake-U/Y PCH - High Definition Audio
Bağlantılar
3 USB 3.0, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Portu, Ses çıkışları: Headset port (3.5 mm jack), Kart okuyucular: MMC, SD, SDHC, SDXC, 1 SmartCard, 1 Parmak izi okuyucu, Brightness Sensor
Network
Intel Ethernet Connection I219-LM (10/100/1000MBit), Intel Dual Band Wireless-AC 8260 (a/b/g/n/ac), Bluetooth 4.2, Huawei Mobile Broadband ME906s (UMTS/HSPA/LTE + GNSS), LTE, GPS
Boyut
yükseklik x genişlik x derinlik (mm): 18.8 x 331 x 227
Batarya

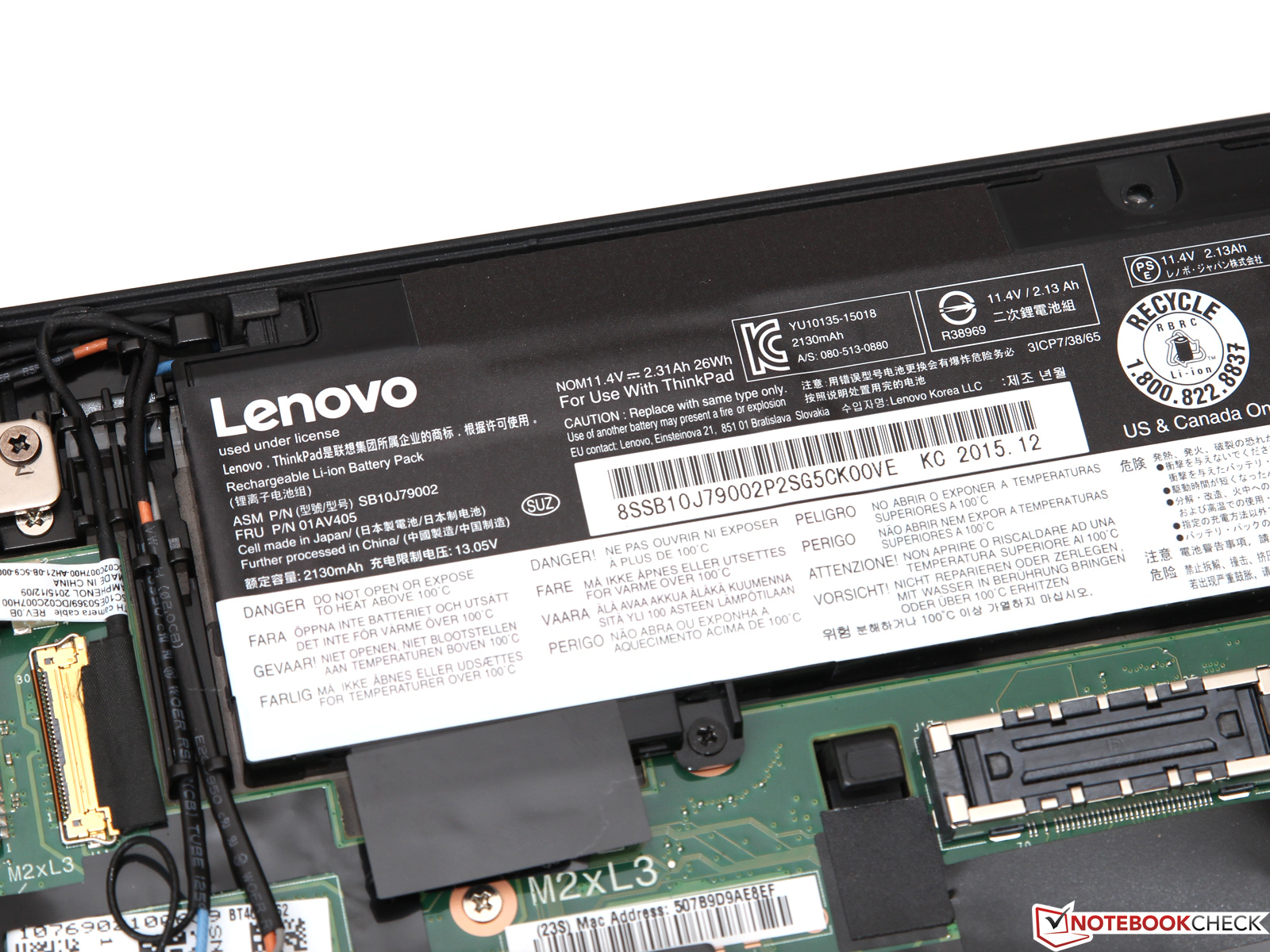

49 Wh Lithium-Ion, 23 Wh + 26 Wh (both internal)
İşletim sistemi
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p, fixed focus
Ek özellikler

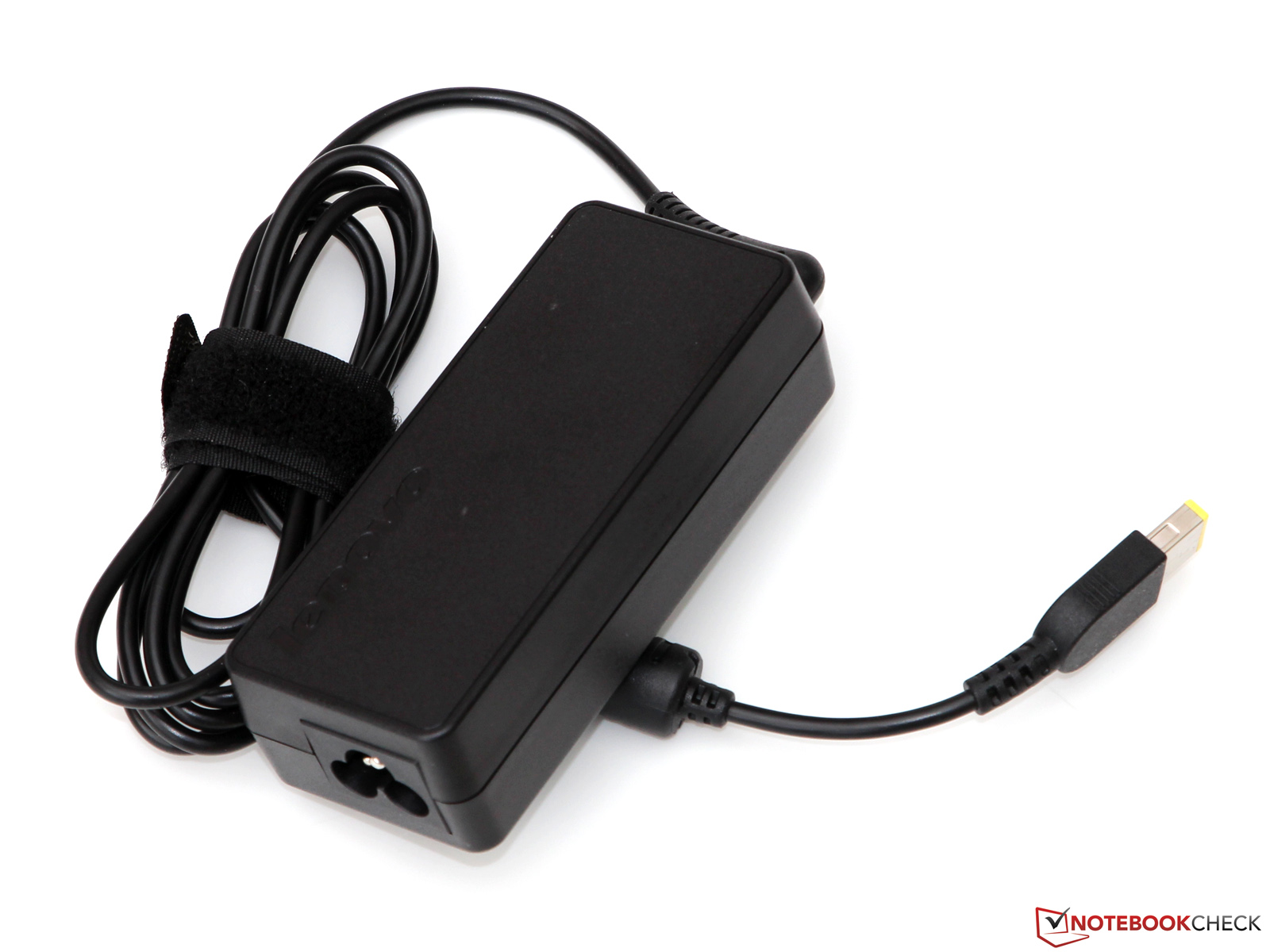

Hoparlörler: Stereo (2x 1 W), Klavye: Chiclet, 65-Watt PSU, Lenovo ThinkVantage Tools, Lenovo PowerEngage, Lenovo Companion, 36 Ay Garanti
Ağırlık
1.345 kg, Güç kaynağı: 346 g
Fiyat
2350 Euro
Bağlantılar



Front: no ports
Front: no ports

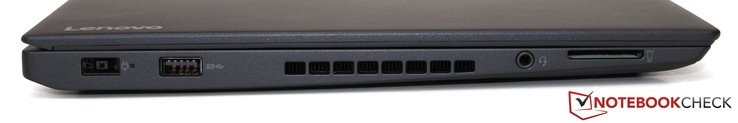

Left: power, USB 3.0, fan exhaust, headset port, card reader
Left: power, USB 3.0, fan exhaust, headset port, card reader
Rear: no ports
Rear: no ports
Right: SmartCard reader, USB 3.0, Mini-DisplayPort, HDMI, USB 3.0, Gbit-LAN, SIM-slot, Kensington lock
Right: SmartCard reader, USB 3.0, Mini-DisplayPort, HDMI, USB 3.0, Gbit-LAN, SIM-slot, Kensington lock

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 220 Hz90 % brightness setting

The display backlight flickers at 220 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 220 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 59 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 655 (minimum: 43 - maximum: 28740) Hz was measured.

252
cd/m²
250
cd/m²
246
cd/m²
243
cd/m²
257
cd/m²
255
cd/m²
241
cd/m²
242
cd/m²
248
cd/m²
Parlaklığın yayılımı
X-Rite i1Pro 2
Maksimum: 257 cd/m² Ortalama: 248.2 cd/m² Minimum: 3 cd/m²
Aydınlatma: 94 %
Batarya modunda parlaklık: 255 cd/m²
Kontrast: 988:1 (Siyah: 0.26 cd/m²)
ΔE Color 4.59 | - Ø
ΔE Greyscale 6.38 | - Ø
98% sRGB (Argyll) 65% AdobeRGB 1998 (Argyll)
Gamma: 2.51
Lenovo ThinkPad T460s-20FA003GGE
2.560 x 1.440 IPS-Panel
Lenovo ThinkPad T460s-20F9003SGE
1.920 x 1.080 IPS-Panel
Lenovo ThinkPad T450s-20BWS1UT00
1.920 x 1.080 IPS-Panel
HP EliteBook 840 G3 T9X59ET#ABD
1.920 x 1.080 TN-Panel
Dell Latitude 14 7000 Series E7470
1.920 x 1.080 IPS-Panel
Response Times
-9%
-5%
-14%
Response Time Grey 50% / Grey 80% *
35.6
42
-18%
43
-21%
48
-35%
Response Time Black / White *
29.2
29.2
-0%
25
14%
27
8%
PWM Frequency
220
204
-7%
Screen
-14%
5%
-53%
17%
Brightness
248
211
-15%
281
13%
336
35%
354
43%
Brightness Distribution
94
89
-5%
94
0%
87
-7%
81
-14%
Black Level *
0.26
0.22
15%
0.286
-10%
0.65
-150%
0.26
-0%
Contrast
988
1027
4%
1007
2%
563
-43%
1462
48%
Colorchecker DeltaE2000 *
4.59
6.44
-40%
4.35
5%
10.26
-124%
3.11
32%
Greyscale DeltaE2000 *
6.38
5.87
8%
3.7
42%
11.51
-80%
4.35
32%
Gamma
2.51 96%
2.37 101%
2.68 90%
2.4 100%
2.37 101%
CCT
6238 104%
6856 95%
6076 107%
12725 51%
6771 96%
Color Space (Percent of AdobeRGB 1998)
65
39.58
-39%
54.7
-16%
47
-28%
62
-5%
Color Space (Percent of sRGB)
98
61.15
-38%
74
-24%
96
-2%
Total Average (Program / Settings)
-12% / -13%
5% / 5%
-29% / -40%
2% / 11%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

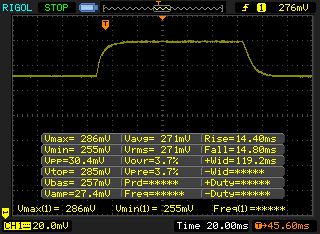

       Response Time Black to White
29.2 ms ... rise ↗ and fall ↘ combined↗ 14.4 ms rise
↘ 14.8 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 68 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (27.4 ms).
       Response Time 50% Grey to 80% Grey
35.6 ms ... rise ↗ and fall ↘ combined↗ 17.2 ms rise
↘ 18.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 26 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (44.5 ms).
Cinebench R15
CPU Single 64Bit
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
145 Points ∼100% +3%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
142 Points ∼98% +1%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
141 Points ∼97%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
130 Points ∼90% -8%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
124 Points ∼86% -12%
Dell Latitude 14 E5470
Intel Core i5-6300U
124 Points ∼86% -12%
HP EliteBook 840 G3 T9X59ET#ABD
Intel Core i7-6500U
119 Points ∼82% -16%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
116 Points ∼80% -18%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
113 Points ∼78% -20%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
111 Points ∼77% -21%
CPU Multi 64Bit
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
513 Points ∼100% +48%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
347 Points ∼68%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
334 Points ∼65% -4%
HP EliteBook 840 G3 T9X59ET#ABD
Intel Core i7-6500U
322 Points ∼63% -7%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
319 Points ∼62% -8%
Dell Latitude 14 E5470
Intel Core i5-6300U
311 Points ∼61% -10%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
302 Points ∼59% -13%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
290 Points ∼57% -16%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
288 Points ∼56% -17%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
255 Points ∼50% -27%
Cinebench R11.5
CPU Single 64Bit
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
1.66 Points ∼100% +6%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
1.61 Points ∼97% +3%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
1.57 Points ∼95%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
1.51 Points ∼91% -4%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
1.45 Points ∼87% -8%
Dell Latitude 14 E5470
Intel Core i5-6300U
1.42 Points ∼86% -10%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
1.31 Points ∼79% -17%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
1.29 Points ∼78% -18%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
1.28 Points ∼77% -18%
CPU Multi 64Bit
Lenovo ThinkPad T460p
Intel Core i5-6440HQ
5.91 Points ∼100% +54%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
3.83 Points ∼65%
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U
3.58 Points ∼61% -7%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
3.55 Points ∼60% -7%
Dell Latitude 14 E5470
Intel Core i5-6300U
3.44 Points ∼58% -10%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
3.31 Points ∼56% -14%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
3.23 Points ∼55% -16%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U
3.18 Points ∼54% -17%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
2.77 Points ∼47% -28%
X264 HD Benchmark 4.0
Pass 2
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
22.62 fps ∼100%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
20.95 fps ∼93% -7%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
19.04 fps ∼84% -16%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
18.72 fps ∼83% -17%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
16.19 fps ∼72% -28%
Pass 1
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U
120.37 fps ∼100%
Lenovo ThinkPad E560-20EWS00000
Intel Core i7-6500U
107.55 fps ∼89% -11%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U
102.36 fps ∼85% -15%
Lenovo ThinkPad T560-20FH001FGE
Intel Core i5-6200U
97.96 fps ∼81% -19%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U
86.62 fps ∼72% -28%
Cinebench R10 Shading 32Bit
9052
Cinebench R10 Rendering Multiple CPUs 32Bit
11798
Cinebench R10 Rendering Single 32Bit
5264
Cinebench R11.5 OpenGL 64Bit
41.71 fps
Cinebench R11.5 CPU Multi 64Bit
3.83 Points
Cinebench R11.5 CPU Single 64Bit
1.57 Points
Cinebench R15 Ref. Match 64Bit
97.9 %
Cinebench R15 OpenGL 64Bit
43.93 fps
Cinebench R15 CPU Multi 64Bit
347 Points
Cinebench R15 CPU Single 64Bit
141 Points
Yardım
Lenovo ThinkPad T460s-20FA003GGE
Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
Lenovo ThinkPad T460s-20F9003SGE
Samsung CM871 MZ7LF192HCGS
Lenovo ThinkPad T450s-20BWS1UT00
Samsung SSD PM871 MZ7LN256HCHP
Lenovo ThinkPad T450s-20BWS03F00
Intel SSD Pro 2500 Series SSDSC2BF360A5L
Dell Latitude 14 7000 Series E7470
Samsung SSD PM851 M.2 2280 256GB
AS SSD
-82%
-50%
-75%
-57%
Score Total
2439
296
-88%
1086
-55%
546
-78%
913
-63%
4K-64 Write
366.01
33.4
-91%
272.25
-26%
83.47
-77%
170
-54%
4K-64 Read
968.26
85.38
-91%
379.99
-61%
210.12
-78%
336.08
-65%
4K Write
114.4
34.38
-70%
84.62
-26%
14.61
-87%
85.05
-26%
4K Read
45.41
14.18
-69%
33.27
-27%
22.19
-51%
30.91
-32%
Seq Write
1407.23
163.29
-88%
285.16
-80%
264.51
-81%
283.73
-80%
Seq Read
2039.37
470.97
-77%
502.69
-75%
489.64
-76%
495.53
-76%
Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
Maksimum transfer hızı: 1063.7 MB/s
Minimum transfer hızı: 1167.5 MB/s
Ortlama transfer hızı: 1161.7 MB/s
Erişim hızı: 0 ms
Yakma hızı: 254 MB/s
İşlemci kullanımı: 3.9 %
PCMark 8
Work Score Accelerated v2
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
4543 Points ∼100% +2%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4442 Points ∼98%
Lenovo ThinkPad T450s-20BWS03F00
HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L
4394 Points ∼97% -1%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
4275 Points ∼94% -4%
Lenovo ThinkPad T460s-20F9003SGE
HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS
4121 Points ∼91% -7%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
4097 Points ∼90% -8%
Lenovo ThinkPad T460p
HD Graphics 530, 6440HQ, Toshiba MQ01ACF050
4072 Points ∼90% -8%
Creative Score Accelerated v2
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
4338 Points ∼100%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
3945 Points ∼91% -9%
Lenovo ThinkPad T460s-20F9003SGE
HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS
3644 Points ∼84% -16%
Lenovo ThinkPad T450s-20BWS03F00
HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L
3613 Points ∼83% -17%
Home Score Accelerated v2
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
3542 Points ∼100%
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
3344 Points ∼94% -6%
Lenovo ThinkPad T450s-20BWS03F00
HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L
3270 Points ∼92% -8%
HP EliteBook 840 G3 T9X59ET#ABD
HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP
3231 Points ∼91% -9%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
3128 Points ∼88% -12%
Lenovo ThinkPad T460p
HD Graphics 530, 6440HQ, Toshiba MQ01ACF050
3088 Points ∼87% -13%
Lenovo ThinkPad T460s-20F9003SGE
HD Graphics 520, 6200U, Samsung CM871 MZ7LF192HCGS
3024 Points ∼85% -15%
PCMark 7 - Score
Dell Latitude 14 7000 Series E7470
HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB
5194 Points ∼100% 0%
Lenovo ThinkPad T460s-20FA003GGE
HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)
5190 Points ∼100%
Lenovo ThinkPad T450s-20BWS1UT00
GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP
4995 Points ∼96% -4%
Lenovo ThinkPad T450s-20BWS03F00
HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L
4797 Points ∼92% -8%
Lenovo ThinkPad T460p
HD Graphics 530, 6440HQ, Toshiba MQ01ACF050
3002 Points ∼58% -42%
PCMark 7 Score
5190 puan
PCMark 8 Home Score Accelerated v2
3542 puan
PCMark 8 Creative Score Accelerated v2
4338 puan
PCMark 8 Work Score Accelerated v2
4442 puan
Yardım
3DMark 11 - 1280x720 Performance GPU
Microsoft Surface Pro 4 Core i7
Intel Core i7-6650U, Intel Iris Graphics 540
2450 Points ∼100% +73%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
2313 Points ∼94% +63%
Toshiba Satellite L50-C-275
Intel Core i5-6200U, NVIDIA GeForce 930M
2138 Points ∼87% +51%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
1416 Points ∼58%
Lenovo ThinkPad X260-20F60041GE
Intel Core i5-6200U, Intel HD Graphics 520
1210 Points ∼49% -15%
Lenovo ThinkPad T460p
Intel Core i5-6440HQ, Intel HD Graphics 530
1162 Points ∼47% -18%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
1156 Points ∼47% -18%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
1117 Points ∼46% -21%
3DMark - 1920x1080 Fire Strike Graphics
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
1627 Points ∼100% +74%
Toshiba Satellite L50-C-275
Intel Core i5-6200U, NVIDIA GeForce 930M
1497 Points ∼92% +60%
Microsoft Surface Pro 4 Core i7
Intel Core i7-6650U, Intel Iris Graphics 540
1477 Points ∼91% +58%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
935 Points ∼57%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
797 Points ∼49% -15%
Lenovo ThinkPad X260-20F60041GE
Intel Core i5-6200U, Intel HD Graphics 520
727 Points ∼45% -22%
Lenovo ThinkPad T460p
Intel Core i5-6440HQ, Intel HD Graphics 530
672 Points ∼41% -28%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
597 Points ∼37% -36%
SPECviewperf 12
1900x1060 Solidworks (sw-03)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
22.64 fps ∼100%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
15.6 fps ∼69% -31%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
14.65 fps ∼65% -35%
1900x1060 Siemens NX (snx-02)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
2.95 fps ∼100%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
2.47 fps ∼84% -16%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
1.81 fps ∼61% -39%
1900x1060 Showcase (showcase-01)
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
6.05 fps ∼100% 0%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
6.05 fps ∼100%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
4.79 fps ∼79% -21%
1900x1060 Medical (medical-01)
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
5.72 fps ∼100% +236%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
1.7 fps ∼30%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
1.02 fps ∼18% -40%
1900x1060 Maya (maya-04)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
10.89 fps ∼100%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
2.09 fps ∼19% -81%
1900x1060 Energy (energy-01)
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
0.08 fps ∼100% +33%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
0.06 fps ∼75% 0%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
0.06 fps ∼75%
1900x1060 Creo (creo-01)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
10.15 fps ∼100%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
8.99 fps ∼89% -11%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
6.68 fps ∼66% -34%
1900x1060 Catia (catia-04)
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
11.62 fps ∼100%
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
9.71 fps ∼84% -16%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
9.69 fps ∼83% -17%
3DMark 06 Standard
9685 puan
3DMark Vantage P Result
5859 puan
3DMark 11 Performance
1600 puan
3DMark Ice Storm Standard Score
58178 puan
3DMark Cloud Gate Standard Score
6097 puan
3DMark Fire Strike Score
863 puan
Yardım
Tomb Raider
1366x768 High Preset AA:FX AF:8x
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
36.4 fps ∼100% +42%
Toshiba Satellite L50-C-275
Intel Core i5-6200U, NVIDIA GeForce 930M
33.2 fps ∼91% +29%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo) (Dual-Channel)
27.8 fps ∼76% +8%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
25.7 fps ∼71%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)
19.6 fps ∼54% -24%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
19.3 fps ∼53% -25%
Lenovo ThinkPad X260-20F60041GE
Intel Core i5-6200U, Intel HD Graphics 520
16.8 fps ∼46% -35%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
13.3 fps ∼37% -48%
1366x768 Normal Preset AA:FX AF:4x
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
66.1 fps ∼100% +61%
Toshiba Satellite L50-C-275
Intel Core i5-6200U, NVIDIA GeForce 930M
58.4 fps ∼88% +42%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
41.1 fps ∼62%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo) (Dual-Channel)
38.5 fps ∼58% -6%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
30.4 fps ∼46% -26%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)
27.5 fps ∼42% -33%
Lenovo ThinkPad X260-20F60041GE
Intel Core i5-6200U, Intel HD Graphics 520
25.5 fps ∼39% -38%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
21.1 fps ∼32% -49%
1024x768 Low Preset
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
130.8 fps ∼100% +57%
Toshiba Satellite L50-C-275
Intel Core i5-6200U, NVIDIA GeForce 930M
121.4 fps ∼93% +46%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo) (Dual-Channel)
86.5 fps ∼66% +4%
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
83.1 fps ∼64%
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
61.8 fps ∼47% -26%
HP EliteBook 745 G3
AMD Pro A12-8800B, AMD Radeon R7 (Carrizo)
54.7 fps ∼42% -34%
Lenovo ThinkPad X260-20F60041GE
Intel Core i5-6200U, Intel HD Graphics 520
48.3 fps ∼37% -42%
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
39.3 fps ∼30% -53%
düşük orta yüksek ultra
Counter-Strike: GO (2012) 156.310160.931.2fps
Tomb Raider (2013) 83.141.125.710.9fps
BioShock Infinite (2013) 55.729.824.57.3fps
Battlefield 4 (2013) 40.429.618.85.9fps
Sims 4 (2014) 182.646.721.815.6fps
Rise of the Tomb Raider (2016) 14.19.65.3fps
Lenovo ThinkPad T460s-20FA003GGE
Intel Core i7-6600U, Intel HD Graphics 520
Lenovo ThinkPad T460s-20F9003SGE
Intel Core i5-6200U, Intel HD Graphics 520
Lenovo ThinkPad T450s-20BWS1UT00
Intel Core i5-5200U, NVIDIA GeForce 940M
Lenovo ThinkPad T450s-20BWS03F00
Intel Core i7-5600U, Intel HD Graphics 5500
HP EliteBook 840 G3 T9X59ET#ABD
Intel Core i7-6500U, Intel HD Graphics 520
Dell Latitude 14 7000 Series E7470
Intel Core i7-6600U, Intel HD Graphics 520
Noise
2%
3%
2%
-7%
0%
Idle Minimum *
29.2
29.1
-0%
29.1
-0%
29.1
-0%
31.2
-7%
31.2
-7%
Idle Average *
29.2
29.1
-0%
29.1
-0%
29.1
-0%
32.1
-10%
31.2
-7%
Idle Maximum *
29.2
29.1
-0%
29.1
-0%
29.1
-0%
33.1
-13%
31.2
-7%
Load Average *
33.7
32.3
4%
33.1
2%
34.3
-2%
36.2
-7%
31.9
5%
Load Maximum *
38.5
36.6
5%
34.3
11%
34.8
10%
37.8
2%
31.9
17%

* ... smaller is better

Ses yüksekliği

Boşta
29.2 / 29.2 / 29.2 dB
Çalışırken
33.7 / 38.5 dB



30 dB
sessiz
40 dB(A)
duyulabilirlik
50 dB(A)
gürültülü

min: dark, med: mid, max: light   ECM8000 + Voltcraft SL-451 (15 cm uzaklık)   environment noise: 29.2 dB(A)
Maksimum yük
 33.8 °C31.8 °C28 °C
 40.8 °C36.5 °C27.8 °C
 30.3 °C29.1 °C27 °C
Maksimum: 40.8 °C
Ortalama: 31.7 °C
28.4 °C31.8 °C32 °C
28.5 °C40.3 °C35.2 °C
28.3 °C33.6 °C30.7 °C
Maksimum: 40.3 °C
Ortalama: 32.1 °C
Güç kaynağı  45.2 °C | Oda sıcaklığı 20.6 °C | Fluke 62 Max
 27.4 °C27.6 °C27.3 °C
 27.4 °C26.8 °C26.7 °C
 25.5 °C26.2 °C25.8 °C
Maksimum: 27.6 °C
Ortalama: 26.7 °C
26.7 °C27.5 °C27.3 °C
27.4 °C28.7 °C27.2 °C
26.2 °C26.8 °C26.6 °C
Maksimum: 28.7 °C
Ortalama: 27.2 °C
Güç kaynağı  28.3 °C | Oda sıcaklığı 20.6 °C | Fluke 62 Max
Anlık tüketim
Kapalı / Bekleme modudarklight 0.28 / 0.6 Watt
Boştadarkmidlight 3.8 / 7.1 / 7.8 Watt
Çalışırken midlight 36.3 / 46 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo ThinkPad T460s-20FA003GGE
49 Wh
Lenovo ThinkPad T460s-20F9003SGE
49 Wh
Lenovo ThinkPad T450s-20BWS1UT00
96 Wh
Lenovo ThinkPad T450s-20BWS03F00
48 Wh
Battery Runtime
37%
156%
-1%
Reader / Idle
833
915
10%
1857
123%
774
-7%
Load
62
116
87%
259
318%
88
42%
WiFi
336
WiFi v1.3
340
395
16%
648
91%
276
-19%
H.264
397
534
35%
757
91%
322
-19%
Batarya ömrü
Boşta (WLAN kapalı, minimum parlaklık)
13h 53min
WLAN açıkken v1.3
5h 40min
Big Buck Bunny H.264 1080p
6h 37min
Çalışırken (maksimum parlaklık)
1h 02min

Artılar

+ Sağlam ve oldukça hafif kasa
+ Sağlam ekran menteşeleri
+ Klavye
+ Hızlı Wi-Fi performansı
+ Dahili LTE
+ Geniş bakış açılı ve yüksek çözünürlüklü ekran
+ Çok iyi uygulama performansı
+ Düşük ses ve sıcaklık üretimi
+ Birçok güvenlik özelliği
+ Makul batarya süreleri
+ 3 yıl garanti

Eksiler

- Limitli güncelleme
- USB-C yok
- Ortalama ekran aydınlatması
- Yüksek fiyat
In review: Lenovo ThinkPad T460s. Test model courtesy of Notebooksandmore.
In review: Lenovo ThinkPad T460s. Test model courtesy of Notebooksandmore.

Yaklaşık 1 haftalık kapsamlı testin ardından, ThinkPad T460s modelinin eski T450s üzerine sıkıcı bir güncellemeden daha fzlası olduğunu ve hali hazırda 2016nın en iyi iş laptopu olduğunu söyleyebiliriz.

Tasarım neredeyse hiç değişmemiş olsa da, T460s daha hafif ve ince bir yapıya sahip. Yapım kalitesi ve stabilite yüksek fiyatlı bir cihazdan beklendiği gibi. Aynısı arayüzler için de geçerli.

Uygulama performansına tekrar vurgu yapmak istiyoruz. Cıre i7-6600U çok iyi sonuçlar veriyor, üstelik sistem emisyon değerlerini de çok fazla etkilemiyor. SSD ile kullanıldığında ve 12 GB RAM düşünüldüğünde en kompleks uygulamalar bile kolaylıkla çalıştırılabiliyor. Dahili grafik kartı da eski oyunlarda kabul edilebilir değerler ve küçük CAD modellerinde kullanım imkanı sunuyor.

Eleştiri olarak daha büyük bir batarya veya 2.5 inçlik diske yer olmamasını gösterebiliriz. Modern USB-C portu veya biraz daha parlak bir ekran kullanılabilirdi. Bu genel izlenimimizi elbette değiştirmiyor, ama daha iyisi olunabilirdi demek istiyoruz sadece.

Yazının orjinali için tıklayın.

Lenovo ThinkPad T460s-20FA003GGE - 03/09/2016 v5
Till Schönborn

İşcilik
93 / 98 → 95%
Klavye
94%
Mouse
87%
Bağlanılabilirlik
74 / 80 → 92%
Ağırlık
71 / 67 → 100%
Batarya
87%
Görüntü
87%
Oyun performansı
57 / 68 → 84%
Uygulama performansı
89 / 92 → 97%
Isınma
92%
Ses
95%
Audio
69%
Camera
53 / 85 → 62%
Ortalama
81%
91%
Office - Ortalama Ağırlık

Pricecompare

> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Kısa inceleme: Lenovo ThinkPad T460s (Core i7, WQHD) Ultrabook
Till Schönborn, 2016-03-19 (Update: 2016-03-19)
