Kısa inceleme: MSI WS60 Workstation

İnce ve güçlü. MSI'ın yeni çalışma istasyonu mevcut ince notebook kasası trendini takip ediyor. Makul bir performans mobil ve hafif bir kasa ile birleştirilmiş.
302
cd/m²
321
cd/m²
315
cd/m²
324
cd/m²
336
cd/m²
321
cd/m²
327
cd/m²
305
cd/m²
318
cd/m²
Parlaklığın yayılımı
Samsung SDC324C, 156HL01-102 tested with X-Rite i1Pro 2
Maksimum: 336 cd/m² (Nits) Ortalama: 318.8 cd/m²
Aydınlatma: 90 %
Batarya modunda parlaklık: 343 cd/m²
Kontrast: 933:1 (Siyah: 0.36 cd/m²)
ΔE Color 3.48 | 0.5-29.43 Ø5
ΔE Greyscale 4.59 | 0.57-98 Ø5.3
63.27% AdobeRGB 1998 (Argyll 1.6.3 3D)
Gamma: 2.19
Cinebench R10 Rendering Single 32Bit
4940
Cinebench R10 Rendering Multiple CPUs 32Bit
19460
Cinebench R10 Shading 32Bit
6205
Cinebench R11.5 CPU Single 64Bit
1.54 Points
Cinebench R11.5 CPU Multi 64Bit
7.02 Points
Cinebench R11.5 OpenGL 64Bit
55.7 fps
Cinebench R15 CPU Single 64Bit
135 Points
Cinebench R15 CPU Multi 64Bit
645 Points
Cinebench R15 OpenGL 64Bit
66.2 fps
Yardım
PCMark 7 Score
4680 puan
PCMark 8 Work Score Accelerated v2
4558 puan
Yardım
Toshiba HG6 THNSNJ128G8NU
Sequential Read: 512MB/s
Sequential Write: 85.2MB/s
4K Read: 21.36MB/s
4K Write: 54.1MB/s
4K-64 Read: 361.9MB/s
4K-64 Write: 104.2MB/s
Access Time Read: 0.176ms
Access Time Write: 0.048ms
Copy ISO: 397.7MB/s
Copy Program: 140.5MB/s
Copy Game: 260MB/s
Score Read: 435Points
Score Write: 167Points
Score Total: 808Points
SPECviewperf 12
1900x1060 Solidworks (sw-03) (sort by value)
MSI WS60 2OJ8H11W7P
31.6 fps
Dell Precision M2800
37.52 fps +19%
HP ZBook 14
24.59 fps -22%
Toshiba Tecra W50-A-104
36.02 fps +14%
1900x1060 Siemens NX (snx-02) (sort by value)
MSI WS60 2OJ8H11W7P
21.95 fps
Dell Precision M2800
23.52 fps +7%
HP ZBook 14
16.58 fps -24%
Toshiba Tecra W50-A-104
20.86 fps -5%
1900x1060 Showcase (showcase-01) (sort by value)
MSI WS60 2OJ8H11W7P
10.61 fps
Dell Precision M2800
12.75 fps +20%
HP ZBook 14
3.93 fps -63%
Toshiba Tecra W50-A-104
10 fps -6%
1900x1060 Medical (medical-01) (sort by value)
MSI WS60 2OJ8H11W7P
5.69 fps
Dell Precision M2800
5.84 fps +3%
HP ZBook 14
0.99 fps -83%
Toshiba Tecra W50-A-104
5.88 fps +3%
1900x1060 Maya (maya-04) (sort by value)
MSI WS60 2OJ8H11W7P
17.77 fps
Dell Precision M2800
22.75 fps +28%
HP ZBook 14
5.4 fps -70%
Toshiba Tecra W50-A-104
18.1 fps +2%
1900x1060 Energy (energy-01) (sort by value)
MSI WS60 2OJ8H11W7P
0.32 fps
Dell Precision M2800
0.35 fps +9%
HP ZBook 14
0.06 fps -81%
Toshiba Tecra W50-A-104
0.34 fps +6%
1900x1060 Creo (creo-01) (sort by value)
MSI WS60 2OJ8H11W7P
19.88 fps
Dell Precision M2800
18.8 fps -5%
HP ZBook 14
13.97 fps -30%
Toshiba Tecra W50-A-104
20.47 fps +3%
1900x1060 Catia (catia-04) (sort by value)
MSI WS60 2OJ8H11W7P
21.2 fps
Dell Precision M2800
19.33 fps -9%
HP ZBook 14
13.43 fps -37%
Toshiba Tecra W50-A-104
20.81 fps -2%

Legend


MSI WS60 2OJ8H11W7P Intel Core i7-4710HQ, NVIDIA Quadro K2100M, Toshiba HG6 THNSNJ128G8NU

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

HP ZBook 14 Intel Core i7-4600U, AMD FirePro M4100, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000

Toshiba Tecra W50-A-104 Intel Core i7-4800MQ, NVIDIA Quadro K2100M, Toshiba MQ01ABD100
SPECviewperf 11
1920x1080 Siemens NX (sort by value)
MSI WS60 2OJ8H11W7P
30.48 fps
Dell Precision M3800 QHD+ Display
24.01 fps -21%
HP ZBook 15
20.54 fps -33%
MSI GT70-20Li716121B
43.38 fps +42%
Dell Precision M2800
25.04 fps -18%
HP ZBook 14
21.28 fps -30%
Eurocom Panther 5
8.5 fps -72%
1920x1080 Tcvis (sort by value)
MSI WS60 2OJ8H11W7P
35.1 fps
Dell Precision M3800 QHD+ Display
28.04 fps -20%
HP ZBook 15
26.47 fps -25%
MSI GT70-20Li716121B
47.86 fps +36%
Dell Precision M2800
9.81 fps -72%
HP ZBook 14
13.56 fps -61%
Eurocom Panther 5
2.3 fps -93%
1920x1080 SolidWorks (sort by value)
MSI WS60 2OJ8H11W7P
42.18 fps
Dell Precision M3800 QHD+ Display
37.78 fps -10%
HP ZBook 15
35.16 fps -17%
MSI GT70-20Li716121B
47.65 fps +13%
Dell Precision M2800
47.75 fps +13%
HP ZBook 14
37.88 fps -10%
Eurocom Panther 5
16.2 fps -62%
1920x1080 Pro/ENGINEER (sort by value)
MSI WS60 2OJ8H11W7P
15.53 fps
Dell Precision M3800 QHD+ Display
13.55 fps -13%
HP ZBook 15
13.93 fps -10%
MSI GT70-20Li716121B
15.88 fps +2%
Dell Precision M2800
11 fps -29%
HP ZBook 14
8.87 fps -43%
Eurocom Panther 5
2.1 fps -86%
1920x1080 Maya (sort by value)
MSI WS60 2OJ8H11W7P
51.6 fps
Dell Precision M3800 QHD+ Display
46.91 fps -9%
HP ZBook 15
42.44 fps -18%
MSI GT70-20Li716121B
56.8 fps +10%
Dell Precision M2800
68.4 fps +33%
HP ZBook 14
37.65 fps -27%
Eurocom Panther 5
13.6 fps -74%
1920x1080 Lightwave (sort by value)
MSI WS60 2OJ8H11W7P
47.96 fps
Dell Precision M3800 QHD+ Display
48 fps 0%
HP ZBook 15
49.06 fps +2%
MSI GT70-20Li716121B
51.7 fps +8%
Dell Precision M2800
71.6 fps +49%
HP ZBook 14
48.54 fps +1%
Eurocom Panther 5
19.6 fps -59%
1920x1080 Ensight (sort by value)
MSI WS60 2OJ8H11W7P
23.89 fps
Dell Precision M3800 QHD+ Display
17.84 fps -25%
HP ZBook 15
14.67 fps -39%
MSI GT70-20Li716121B
47.91 fps +101%
Dell Precision M2800
19.94 fps -17%
HP ZBook 14
11.29 fps -53%
Eurocom Panther 5
100 fps +319%
1920x1080 Catia (sort by value)
MSI WS60 2OJ8H11W7P
41.31 fps
Dell Precision M3800 QHD+ Display
31.89 fps -23%
HP ZBook 15
28.72 fps -30%
MSI GT70-20Li716121B
47.1 fps +14%
Dell Precision M2800
26.24 fps -36%
HP ZBook 14
25.05 fps -39%
Eurocom Panther 5
18 fps -56%

Legend


MSI WS60 2OJ8H11W7P Intel Core i7-4710HQ, NVIDIA Quadro K2100M, Toshiba HG6 THNSNJ128G8NU

Dell Precision M3800 QHD+ Display Intel Core i7-4702HQ, NVIDIA Quadro K1100M, Liteonit LMT-256M6M

HP ZBook 15 Intel Core i7-4800MQ, NVIDIA Quadro K610M, Hitachi Travelstar Z7K500 HTS725050A7E630

MSI GT70-20Li716121B Intel Core i7-4800MQ, NVIDIA Quadro K4100M, Toshiba THNSNS128GMCP

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

HP ZBook 14 Intel Core i7-4600U, AMD FirePro M4100, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000

Eurocom Panther 5 Intel Core i7-4960X, NVIDIA GeForce GTX 980M SLI,
LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
MSI WS60 2OJ8H11W7P
73 Samples/s
MSI GT70-20Li716121B
138 Samples/s +89%
Dell Precision M2800
256 Samples/s +251%
HP ZBook 14
187 Samples/s +156%
Sala GPUs-only (sort by value)
MSI WS60 2OJ8H11W7P
154 Samples/s
MSI GT70-20Li716121B
305 Samples/s +98%
Dell Precision M2800
462 Samples/s +200%
HP ZBook 14
306 Samples/s +99%

Legend


MSI WS60 2OJ8H11W7P Intel Core i7-4710HQ, NVIDIA Quadro K2100M, Toshiba HG6 THNSNJ128G8NU

MSI GT70-20Li716121B Intel Core i7-4800MQ, NVIDIA Quadro K4100M, Toshiba THNSNS128GMCP

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

HP ZBook 14 Intel Core i7-4600U, AMD FirePro M4100, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000
3DMark 11 Performance
2553 puan
3DMark Ice Storm Standard Score
58903 puan
3DMark Cloud Gate Standard Score
9809 puan
3DMark Fire Strike Score
1645 puan
Yardım
Unigine Heaven 3.0
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
MSI WS60 2OJ8H11W7P
21.1 fps
MSI GT70-20Li716121B
47.6 fps +126%
Dell Precision M3800 QHD+ Display
16.9 fps -20%
Dell Precision M2800
17.6 fps -17%
HP ZBook 14
8.6 fps -59%
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
MSI WS60 2OJ8H11W7P
22.8 fps
MSI GT70-20Li716121B
48.1 fps +111%
Dell Precision M3800 QHD+ Display
17.5 fps -23%
Dell Precision M2800
22.4 fps -2%
HP ZBook 14
10.9 fps -52%

Legend


MSI WS60 2OJ8H11W7P Intel Core i7-4710HQ, NVIDIA Quadro K2100M, Toshiba HG6 THNSNJ128G8NU

MSI GT70-20Li716121B Intel Core i7-4800MQ, NVIDIA Quadro K4100M, Toshiba THNSNS128GMCP

Dell Precision M3800 QHD+ Display Intel Core i7-4702HQ, NVIDIA Quadro K1100M, Liteonit LMT-256M6M

Dell Precision M2800 Intel Core i7-4810MQ, AMD FirePro W4170M, SK hynix SH920

HP ZBook 14 Intel Core i7-4600U, AMD FirePro M4100, Samsung SSD 840 Pro 256GB MZ7PD256HAFV-0Z000
düşük orta yüksek ultra
World of Warcraft (2005) 253 208 58 31
Anno 2070 (2011) 198 62 38 19
Diablo III (2012) 176 124 98 64

Ses yüksekliği

Boşta
30.4 / 30.4 / 30.4 dB
Çalışırken
36.6 / 42.3 dB
  red to green bar


30 dB
sessiz
40 dB(A)
duyulabilirlik
50 dB(A)
gürültülü

min: dark, med: mid, max: light   PCE 322A (15 cm uzaklık)
Maksimum yük
 31.8 °C35.1 °C32.1 °C
 30.7 °C34.3 °C31.6 °C
 26.5 °C27.8 °C28.8 °C
Maksimum: 35.1 °C
Ortalama: 31 °C
38.9 °C47.7 °C43.1 °C
31.6 °C41.9 °C37 °C
28.1 °C31.2 °C30.2 °C
Maksimum: 47.7 °C
Ortalama: 36.6 °C
Güç kaynağı  55 °C | Oda sıcaklığı 20 °C | Fennel Firt 550
(+) The average temperature for the upper side under maximal load is 31 °C / 88 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(+) The maximum temperature on the upper side is 35.1 °C / 95 F, compared to the average of 38.1 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 47.7 °C / 118 F, compared to the average of 41.3 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 27.6 °C / 82 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.1 °C / 84.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (-1.3 °C / -2.4 F).
Anlık tüketim
Kapalı / Bekleme modudarklight 0.1 / 0.3 Watt
Boştadarkmidlight 8.8 / 12.4 / 22.4 Watt
Çalışırken midlight 89 / 111.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 870 Iso kalibriert
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Batarya ömrü
Boşta (WLAN kapalı, minimum parlaklık)
5h 55min
WLAN açıkken
3h 45min
Big Buck Bunny H.264 1080p
2h 55min
Çalışırken (maksimum parlaklık)
1h 03min

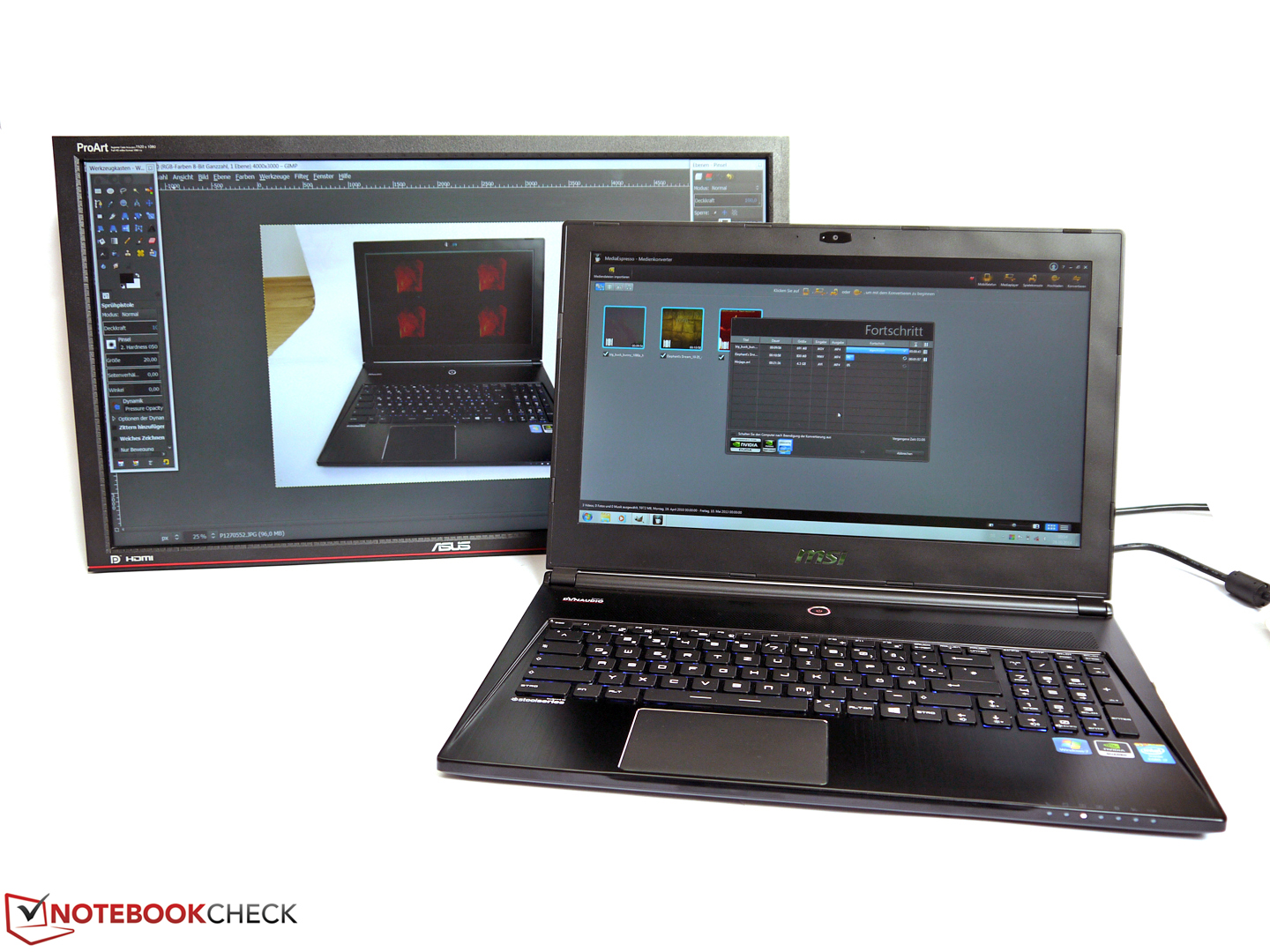

MSI WS60 mobile workstation
MSI WS60 mobile workstation

MSI çalışma istasyonlarına kendine has dokunuşunu yapıyor. Makul bir fiyata bir çalışma istasyonunda olması gereken özelliklere odaklanarak bir model sunuyor.

Özellikler ve performans makul ve çoğu pahalı rakibine göre ideal. Eğer daha çok performans arayışı içindeyseniz daha pahalı bir modelle bu ihtiyacınızı da gidermeniz mümkün.

Performansın dışında mat Full HD ekran bir diğer satış noktası. Panele yönelik neredeys hiçbir sorun bulamıyoruz. Sadece bazı profesyonel kullanıcılar için sorun olabilecek bir nokta var o da sRGB renk aralığının tamamen kapsanmaması.

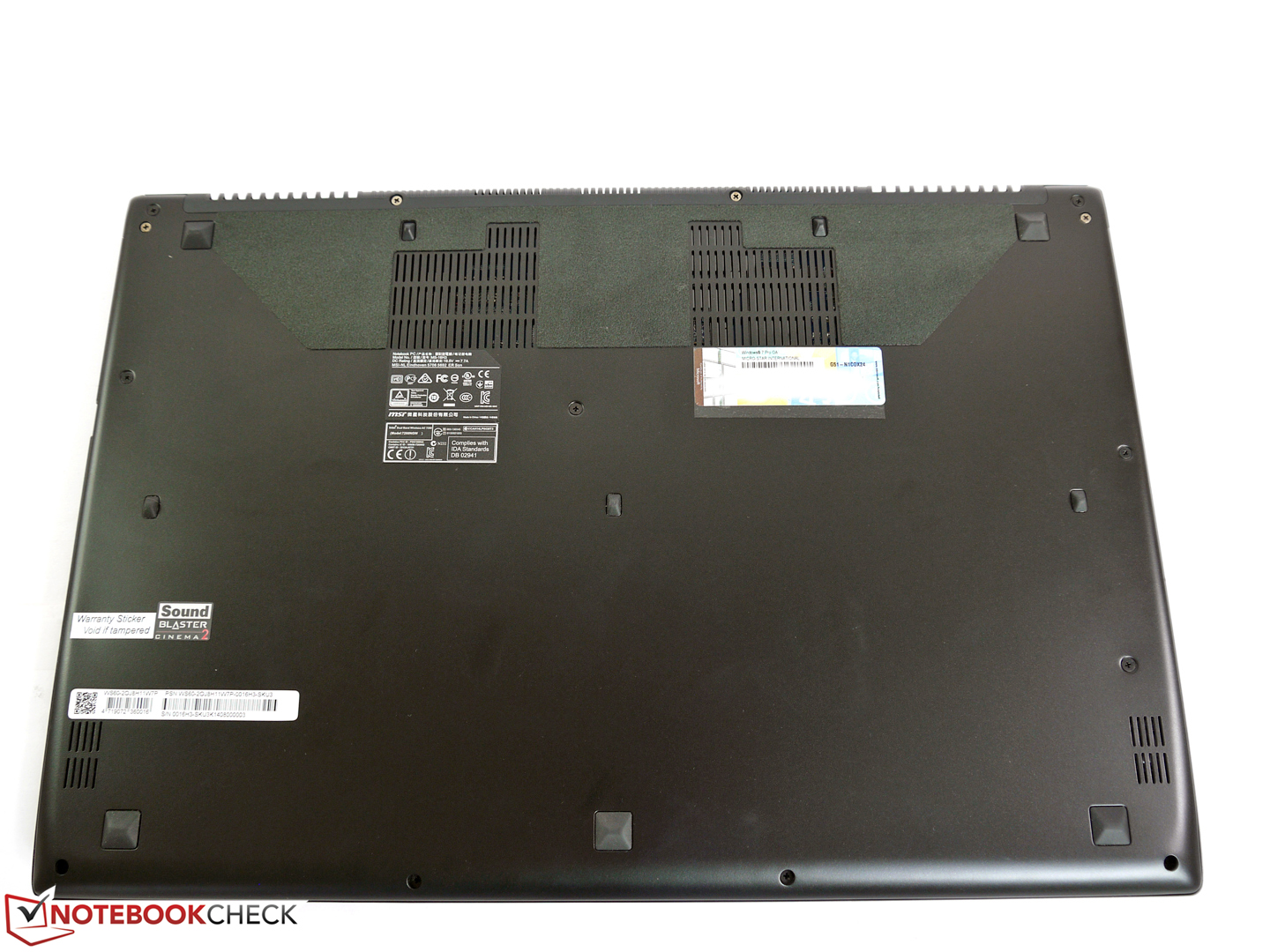

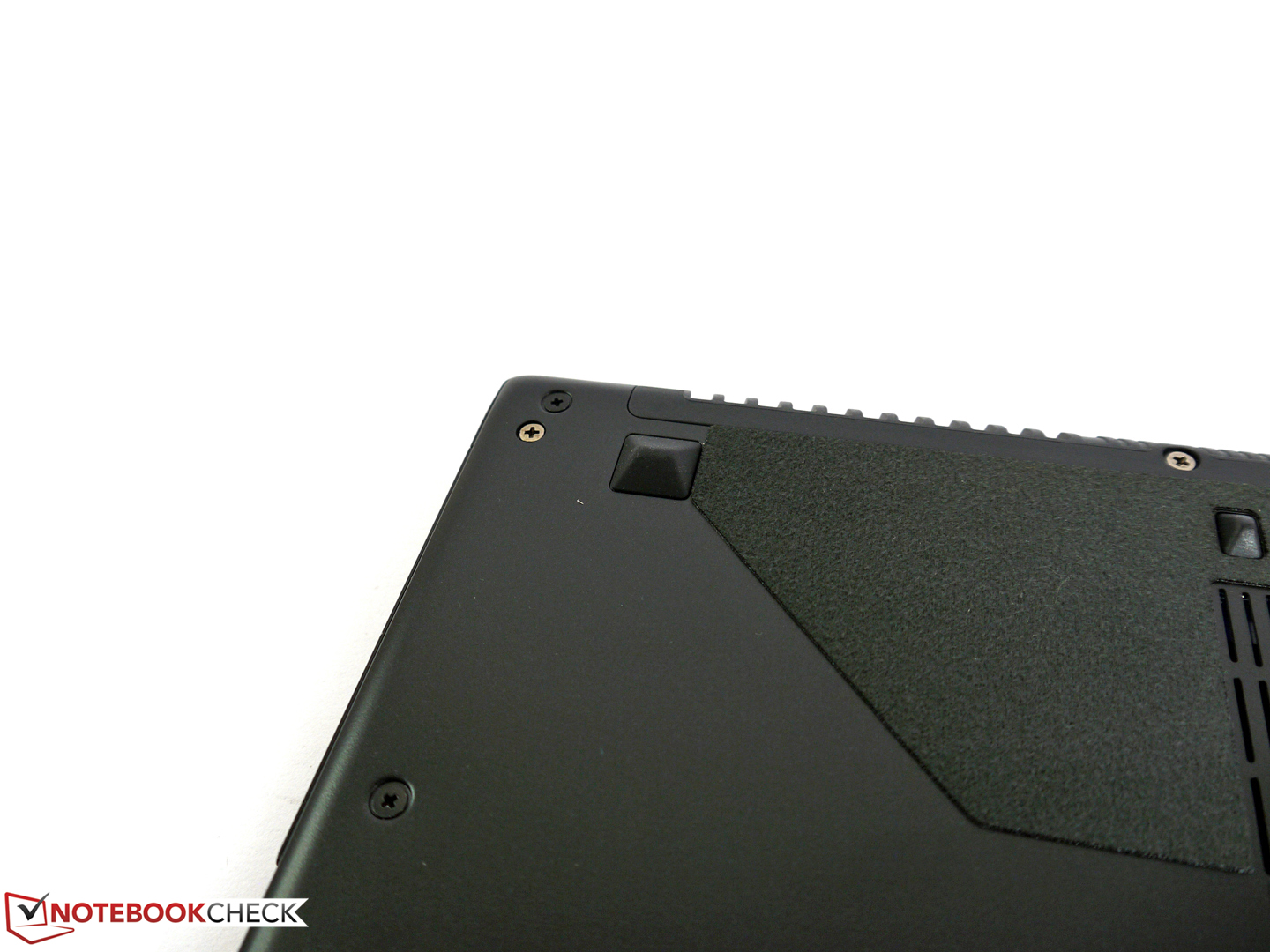

İnce kasa hoşumuza gidenler arasında. Ancak bakım imkanlarının limitli oluşu ve yüksek emisyon değerleri dezavantajları arasında.

Yazının orjinal için tıklayın.

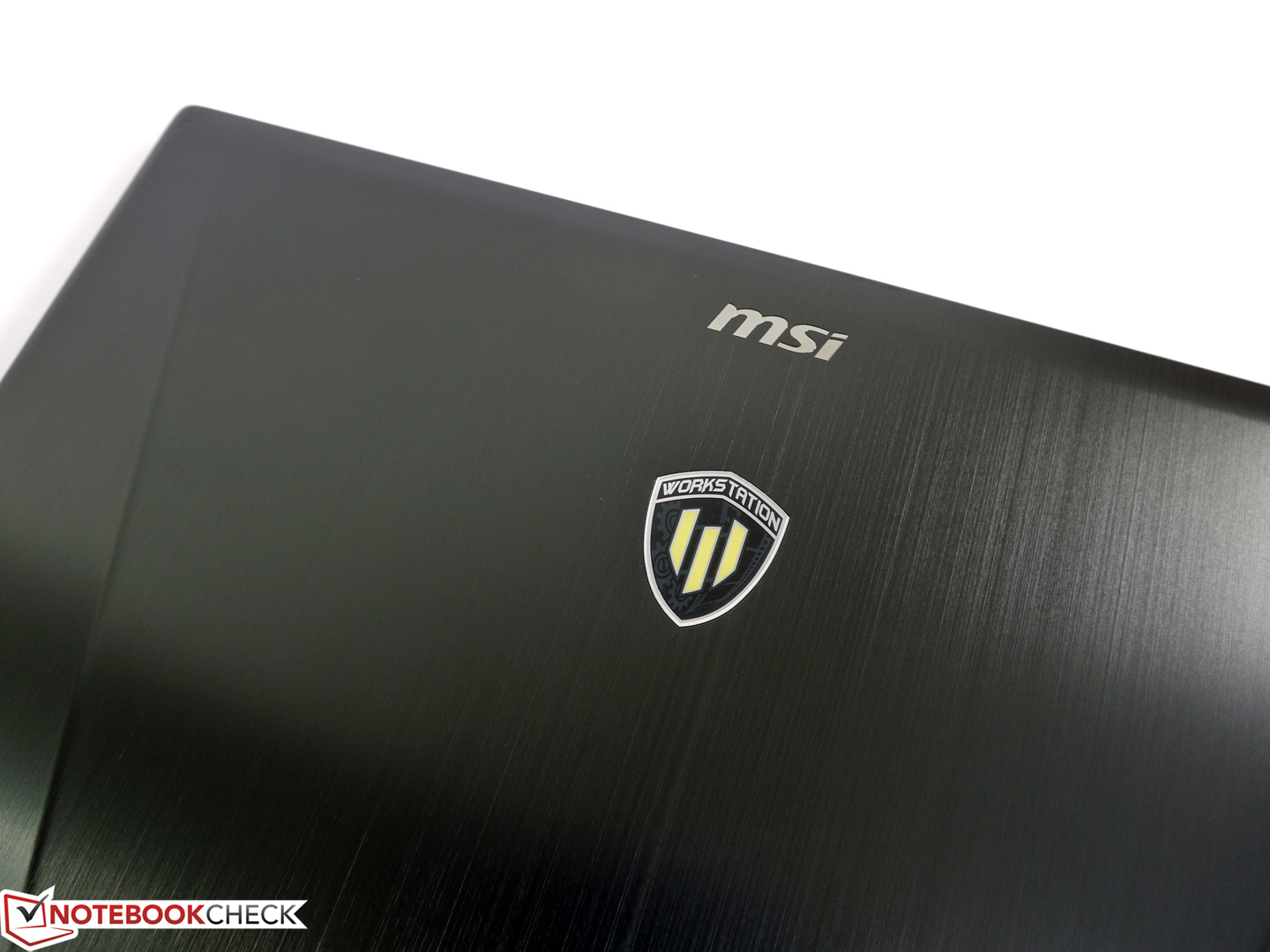

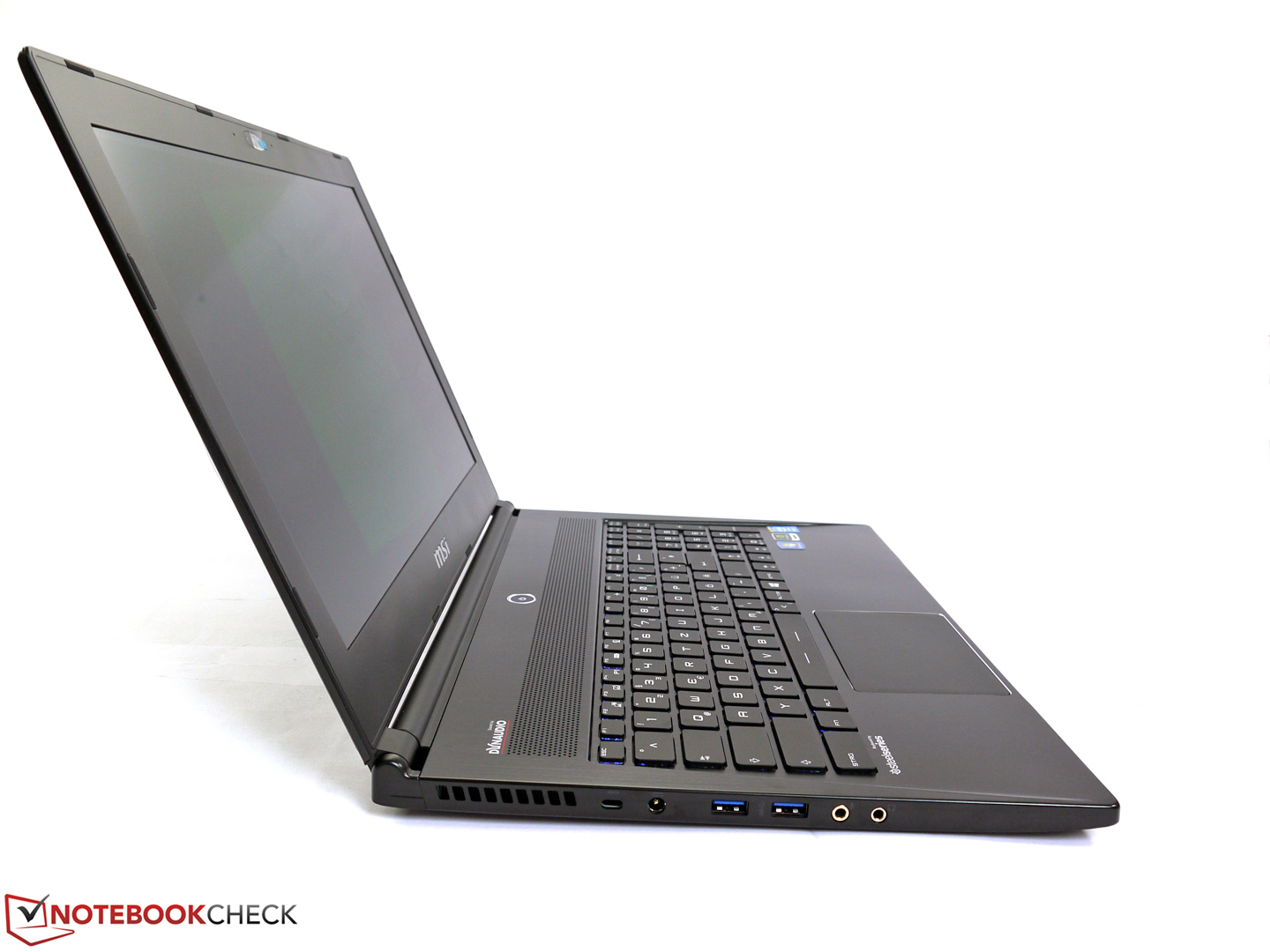

MSI WS60 - İnce çalışma istasyonu
MSI WS60 - İnce çalışma istasyonu

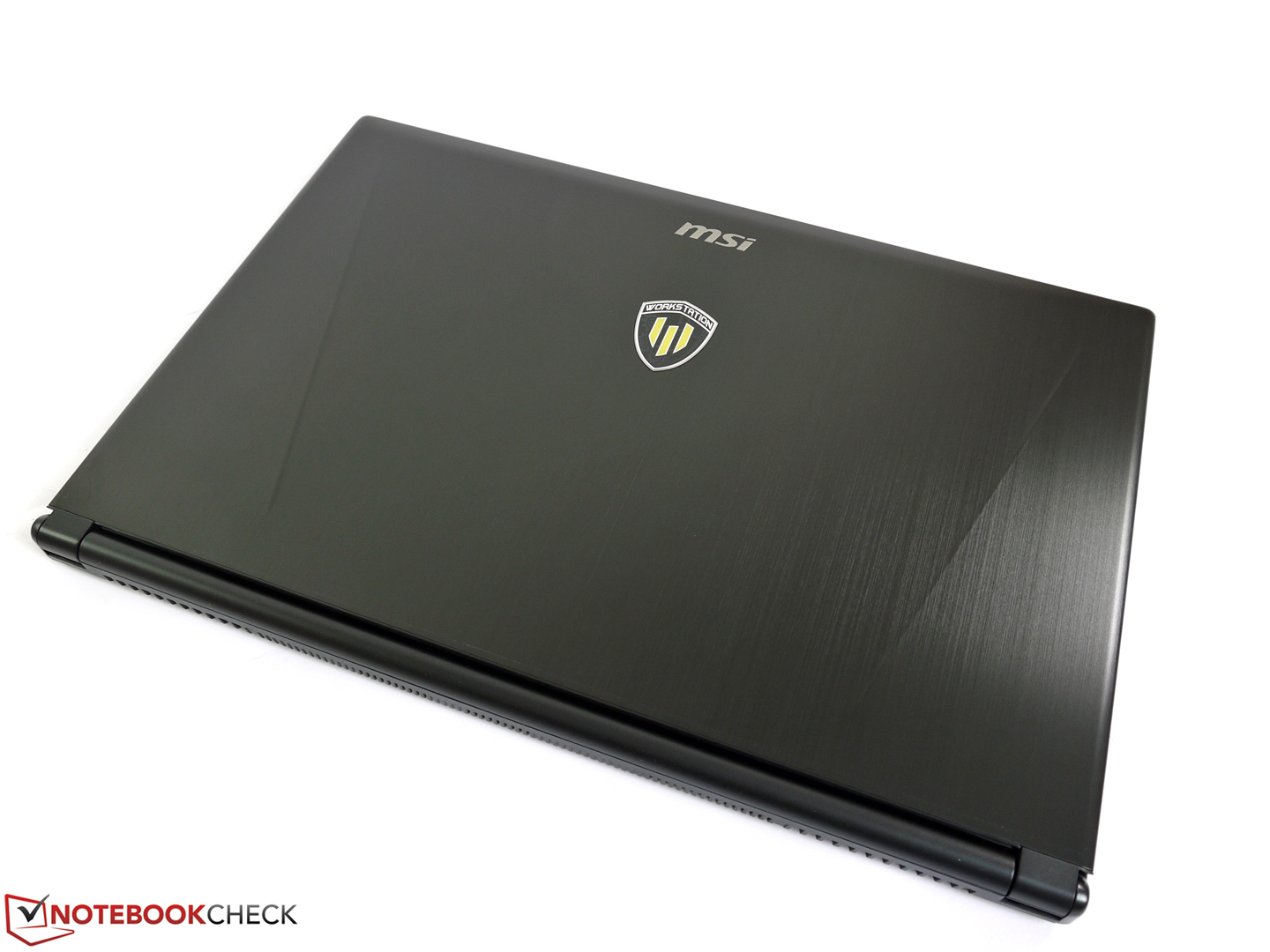

İnce kasa
İnce kasa
ve iyi performansın kombinasyonuyla
ve iyi performansın kombinasyonuyla
makul fiyat/performansı sunan model ilgi çekici.
makul fiyat/performansı sunan model ilgi çekici.

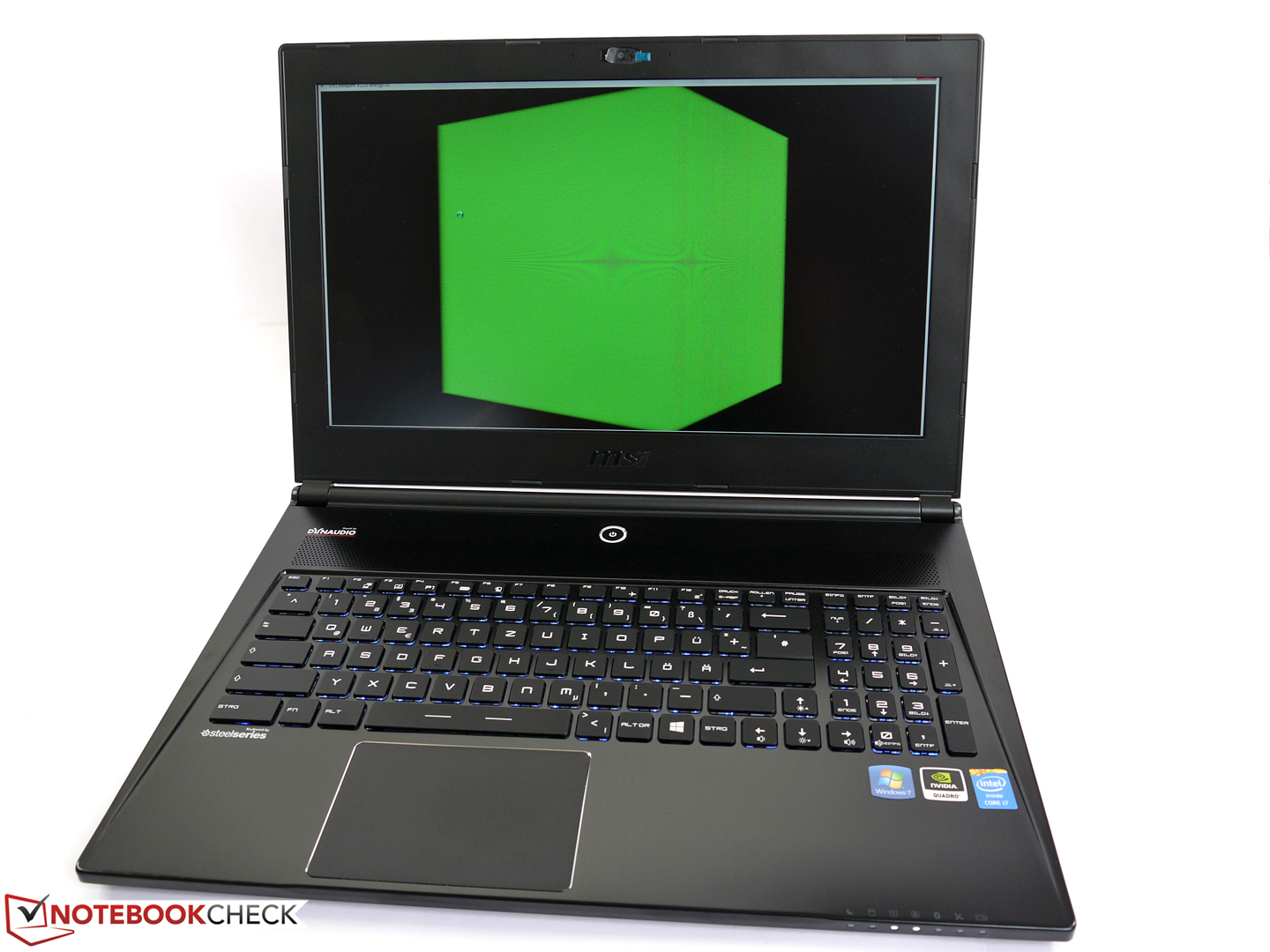

Kasa oyun modeli olan MSI GS60
Kasa oyun modeli olan MSI GS60
En büyük fark ise Nvidia'nın profesyonel Quadro K2100M grafik kartının kullanılmış oluşu
En büyük fark ise Nvidia'nın profesyonel Quadro K2100M grafik kartının kullanılmış oluşu
Geri kalan birçok özellik benzer
Geri kalan birçok özellik benzer

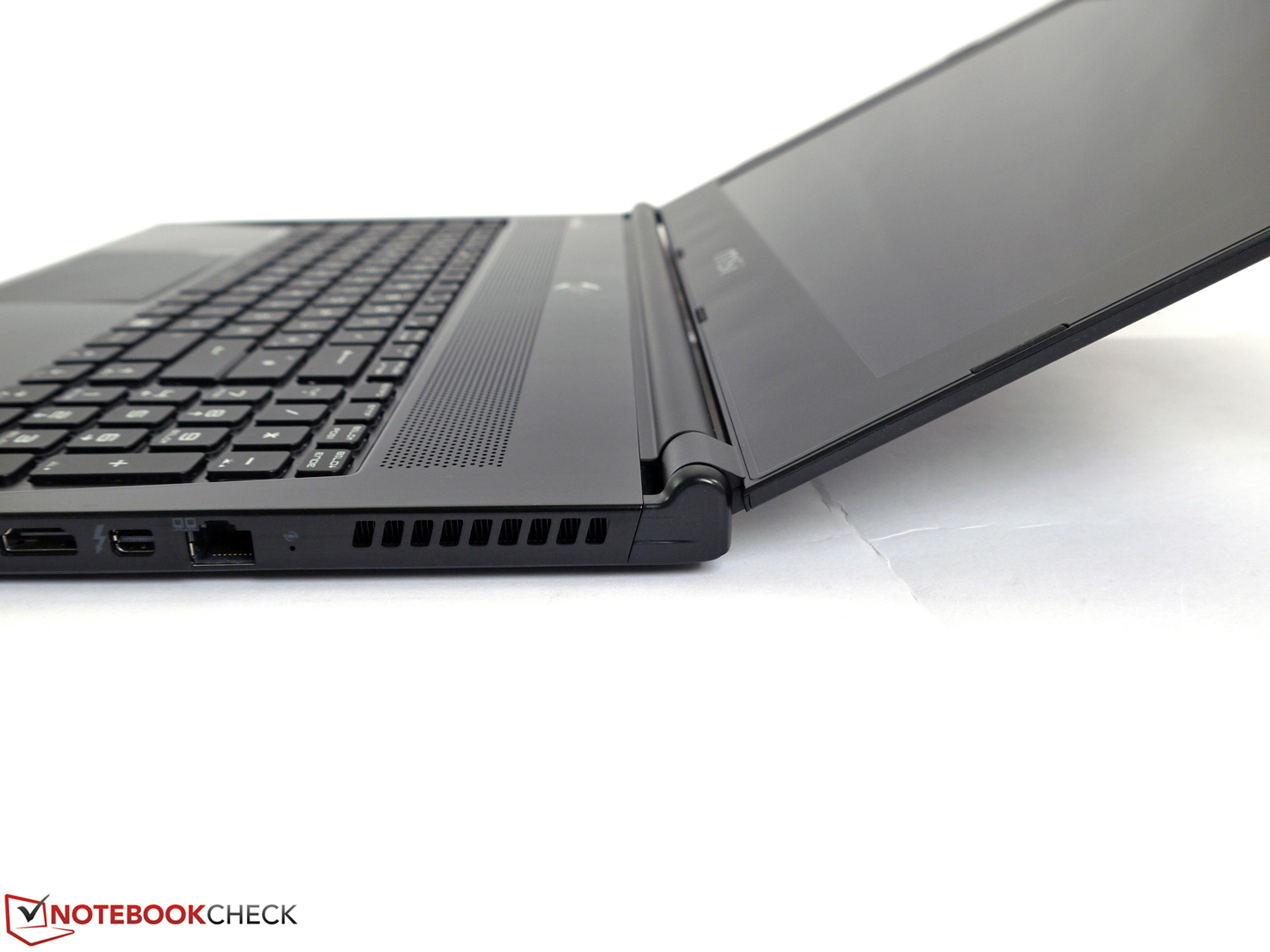

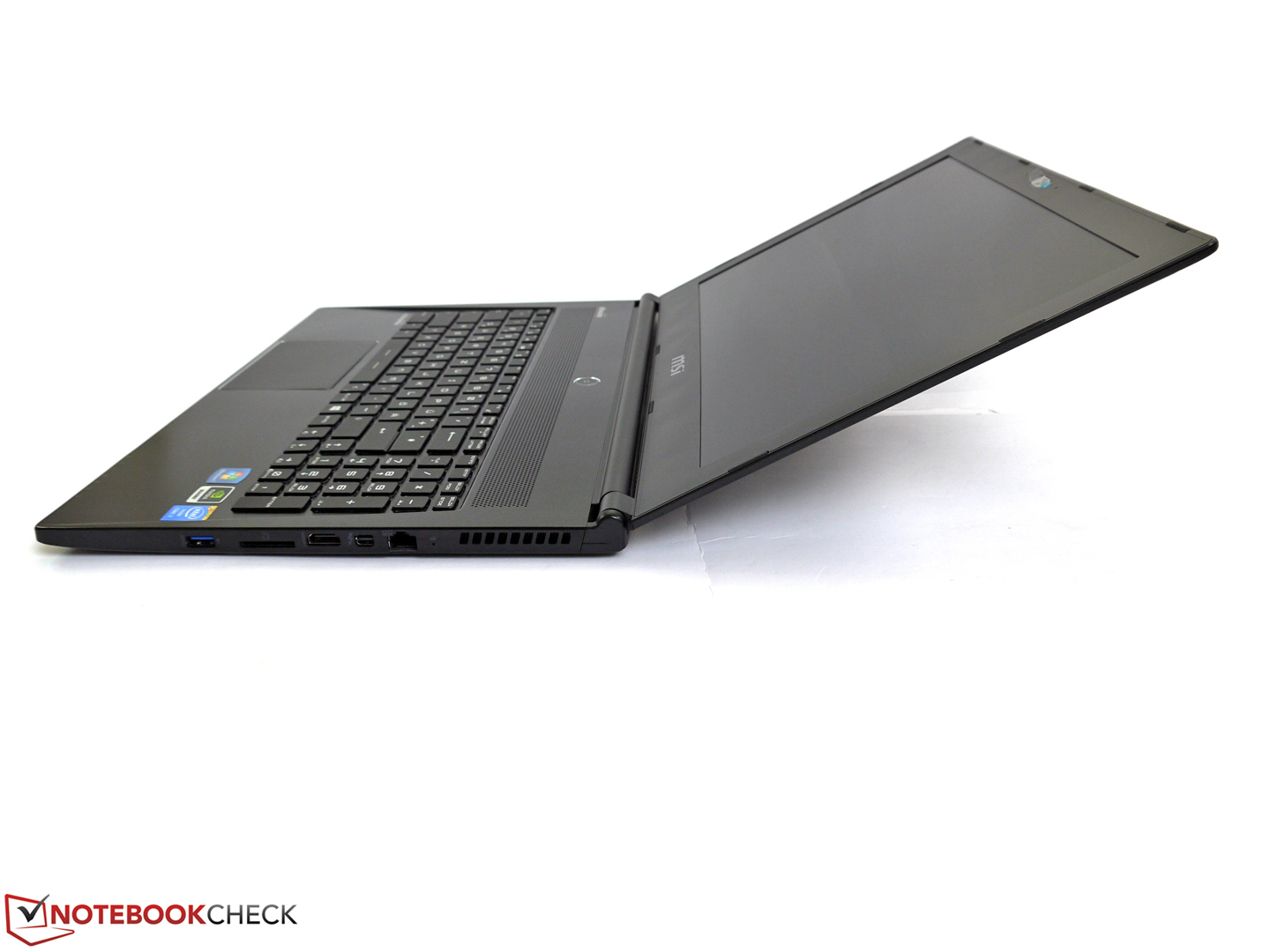

Maksimum ekran açılışı yeterli
Maksimum ekran açılışı yeterli

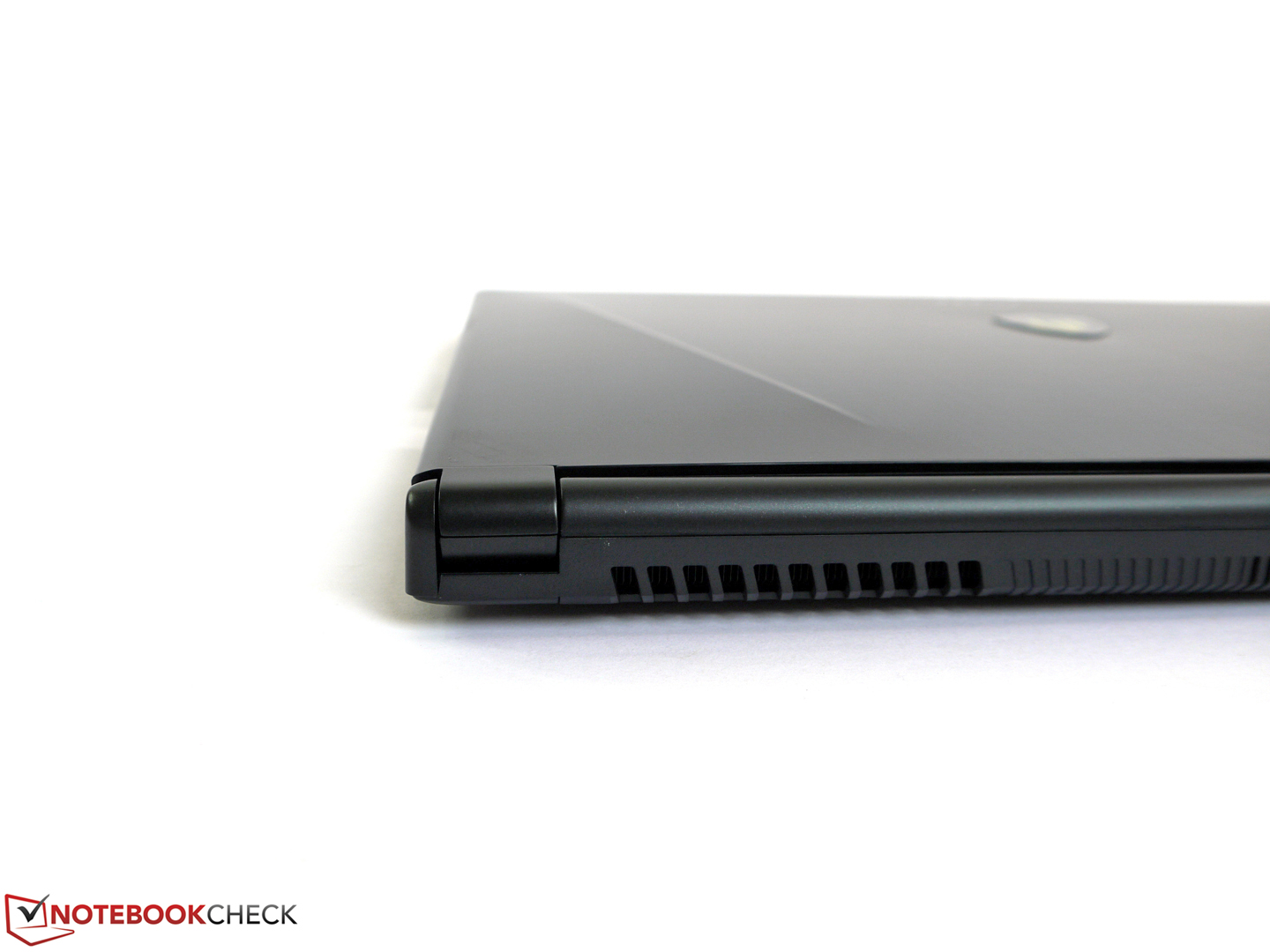

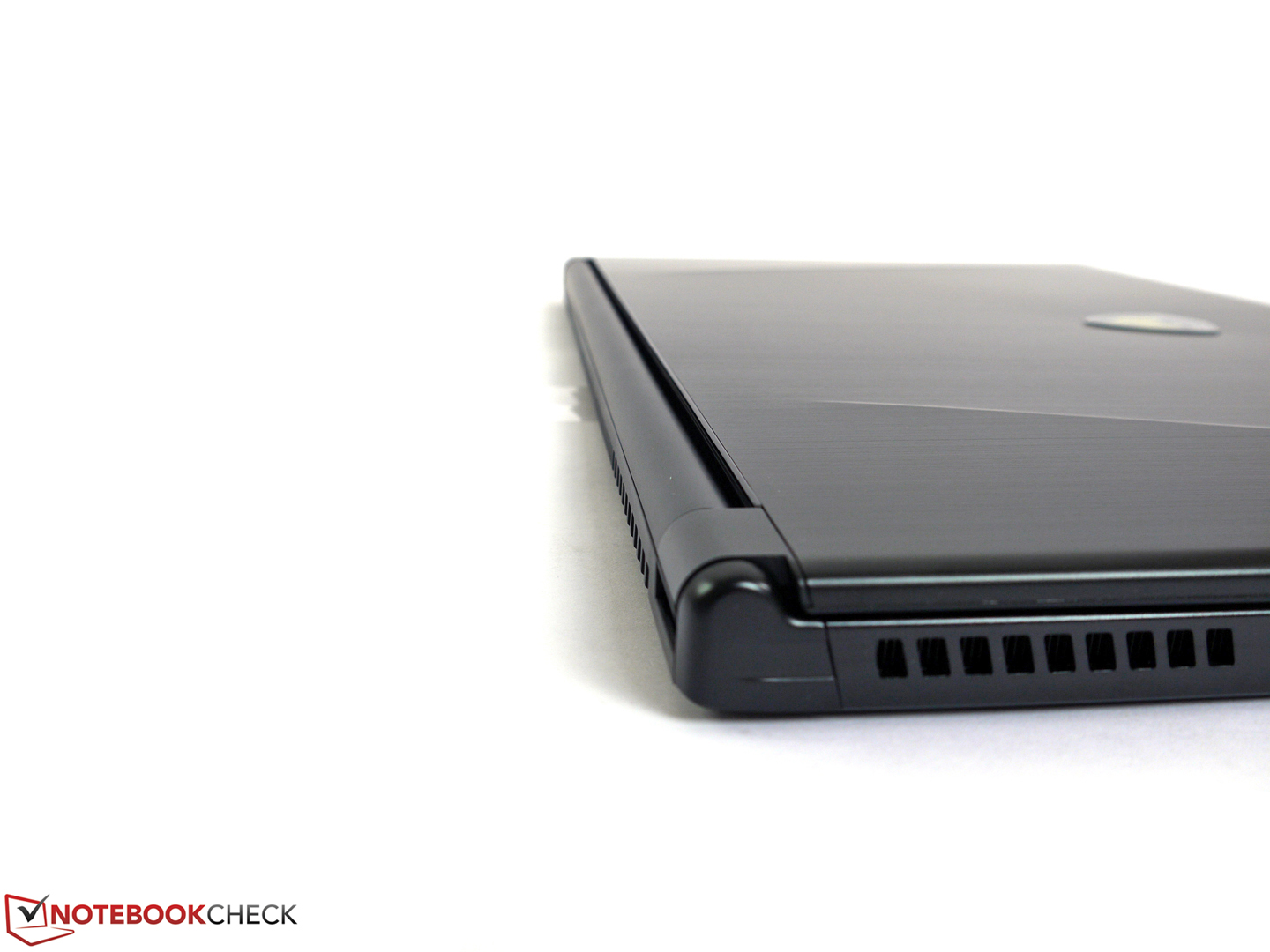

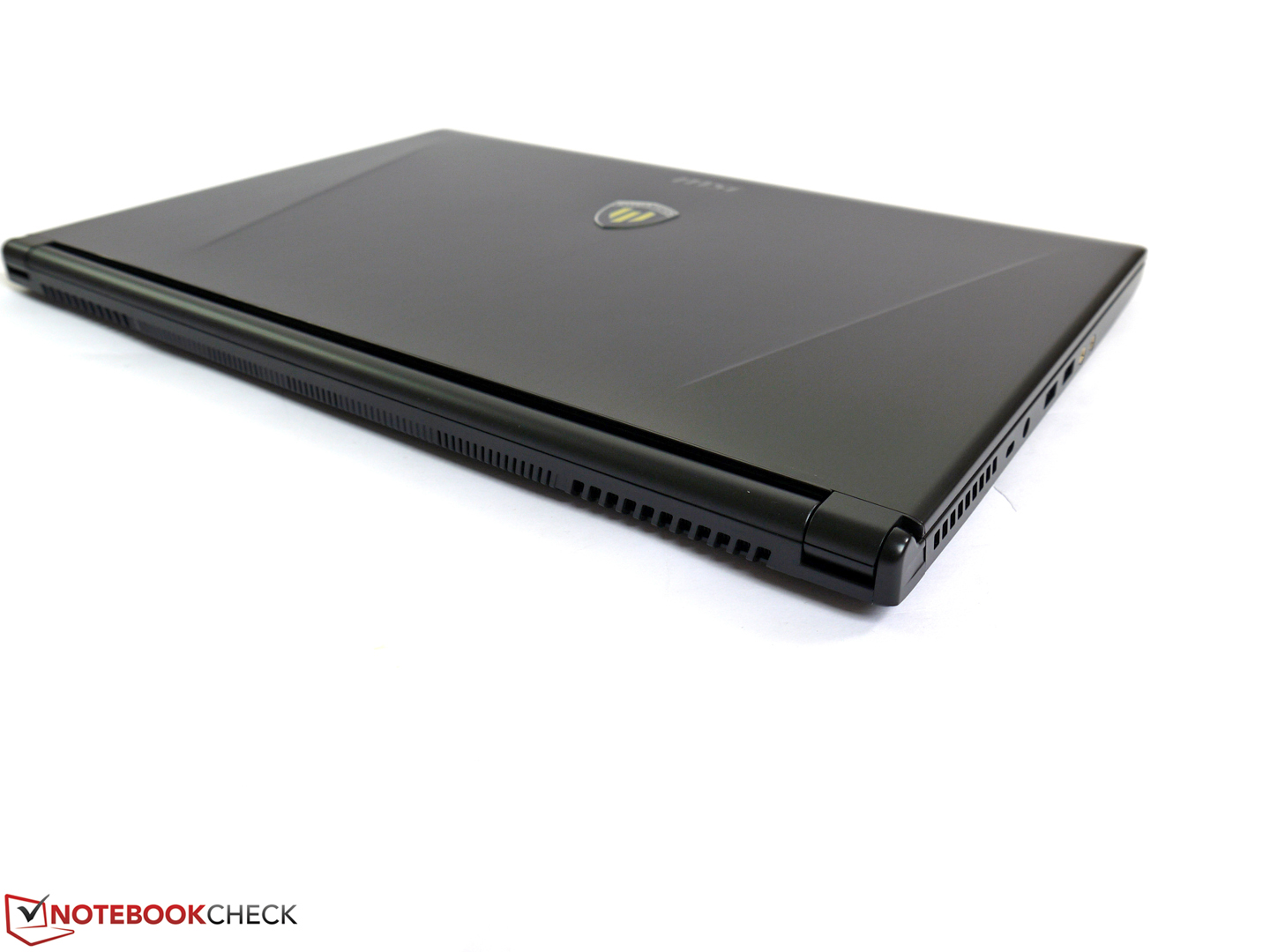

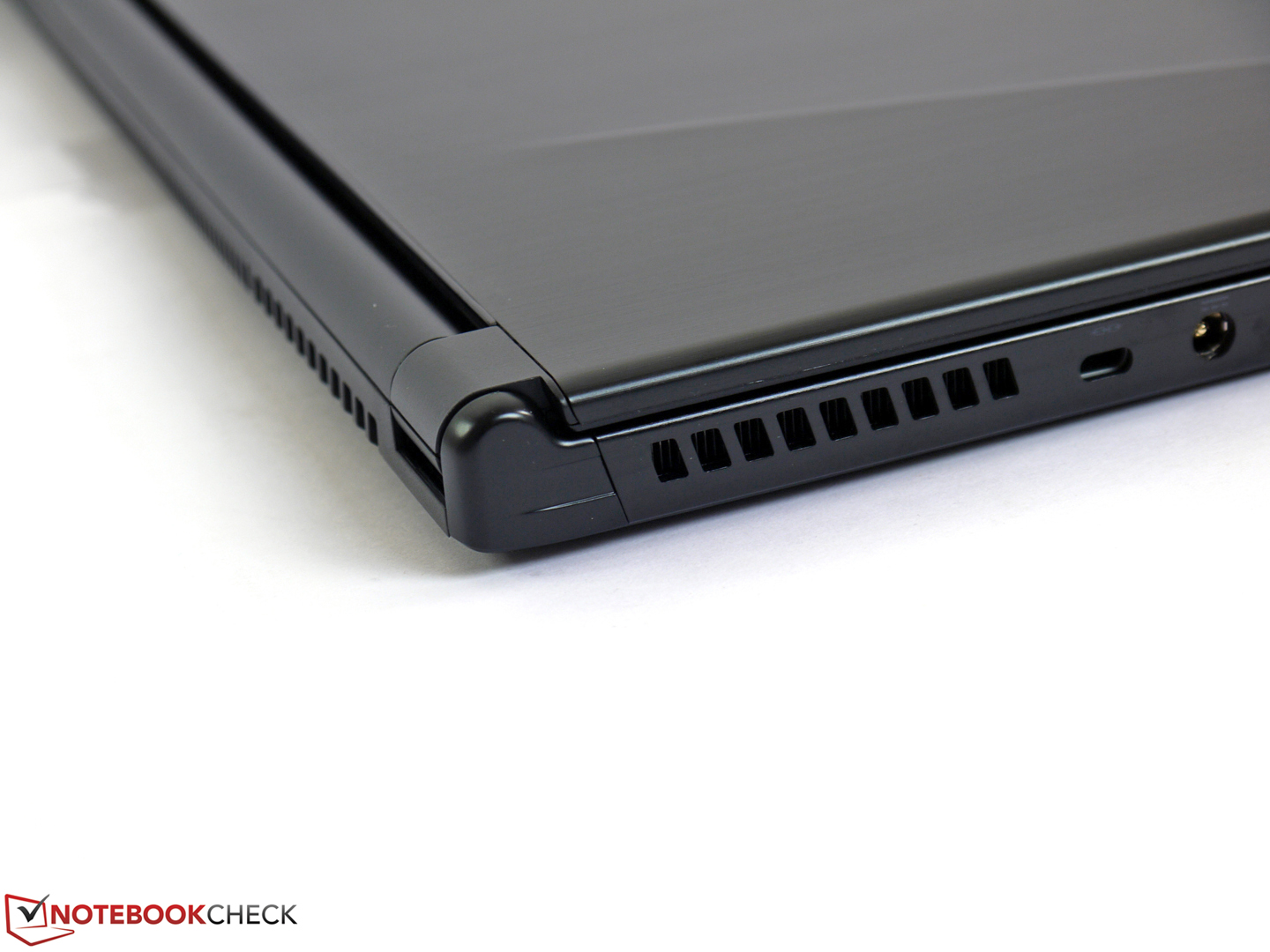

Çift soğutma çözümü arkada yer alıyor
Çift soğutma çözümü arkada yer alıyor
Kasanın yapım kalitesi ve stabilitesi oldukça iyi
Kasanın yapım kalitesi ve stabilitesi oldukça iyi
Emisyonlar ise kısıtlanmış
Emisyonlar ise kısıtlanmış

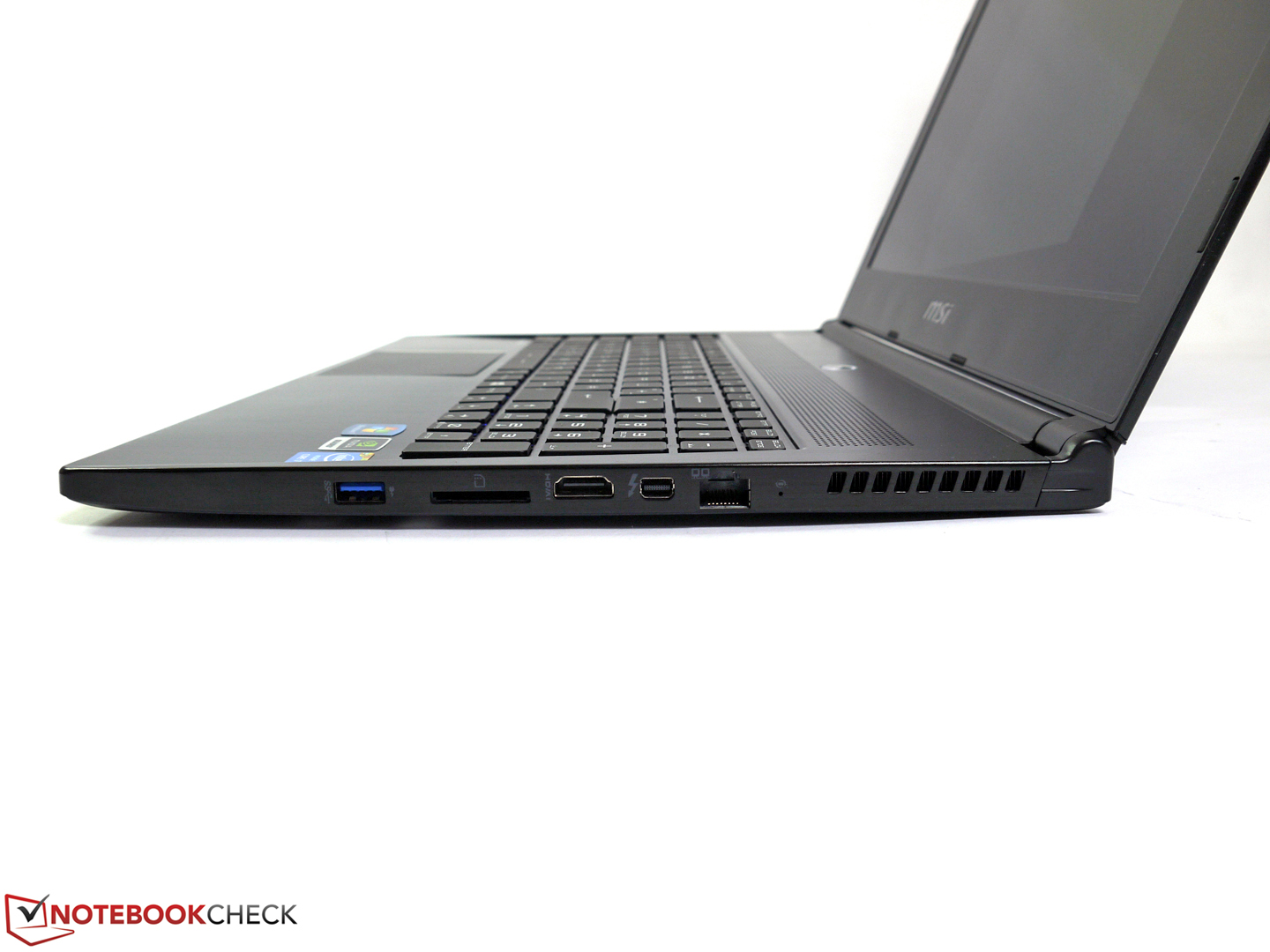

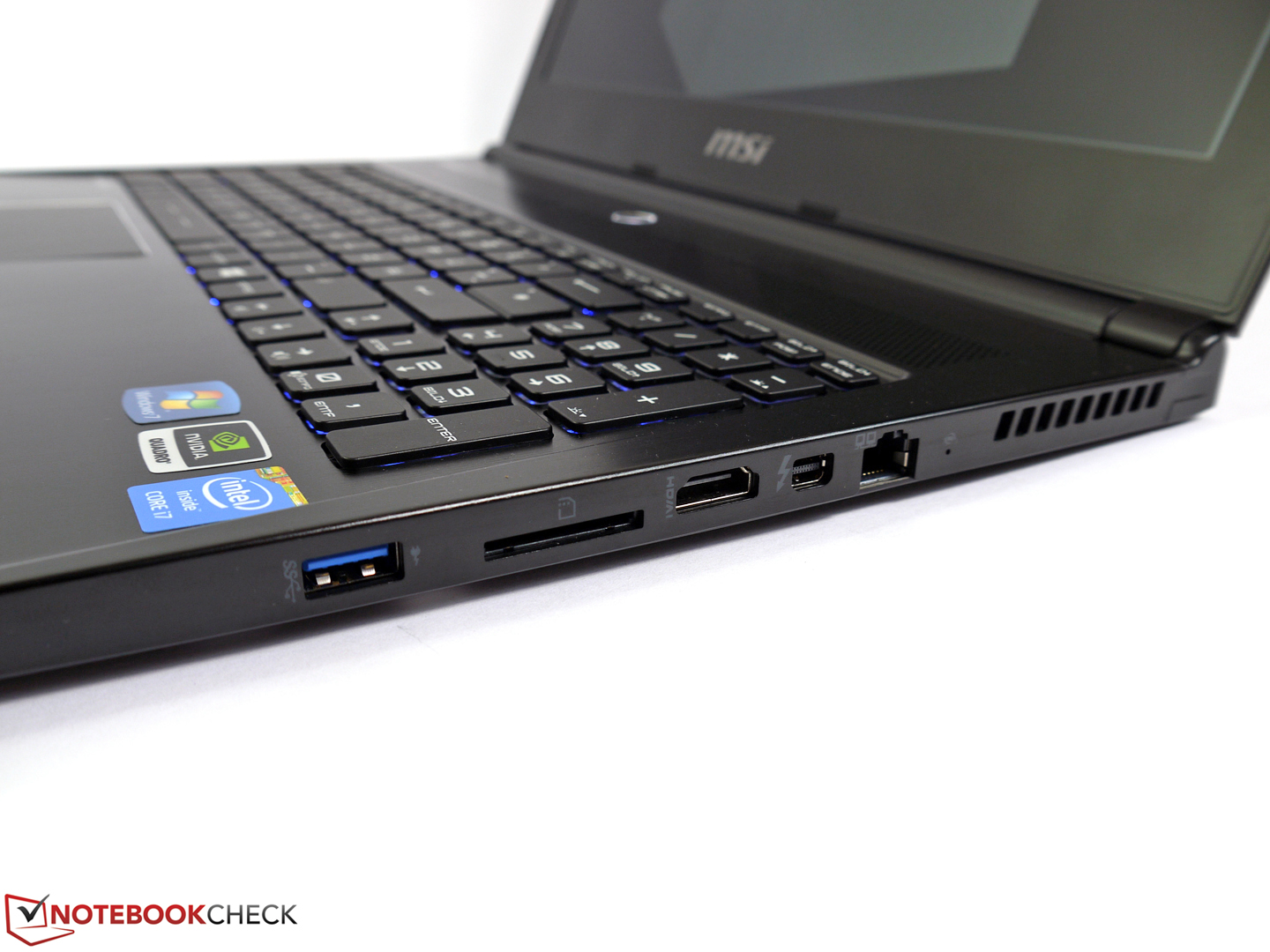

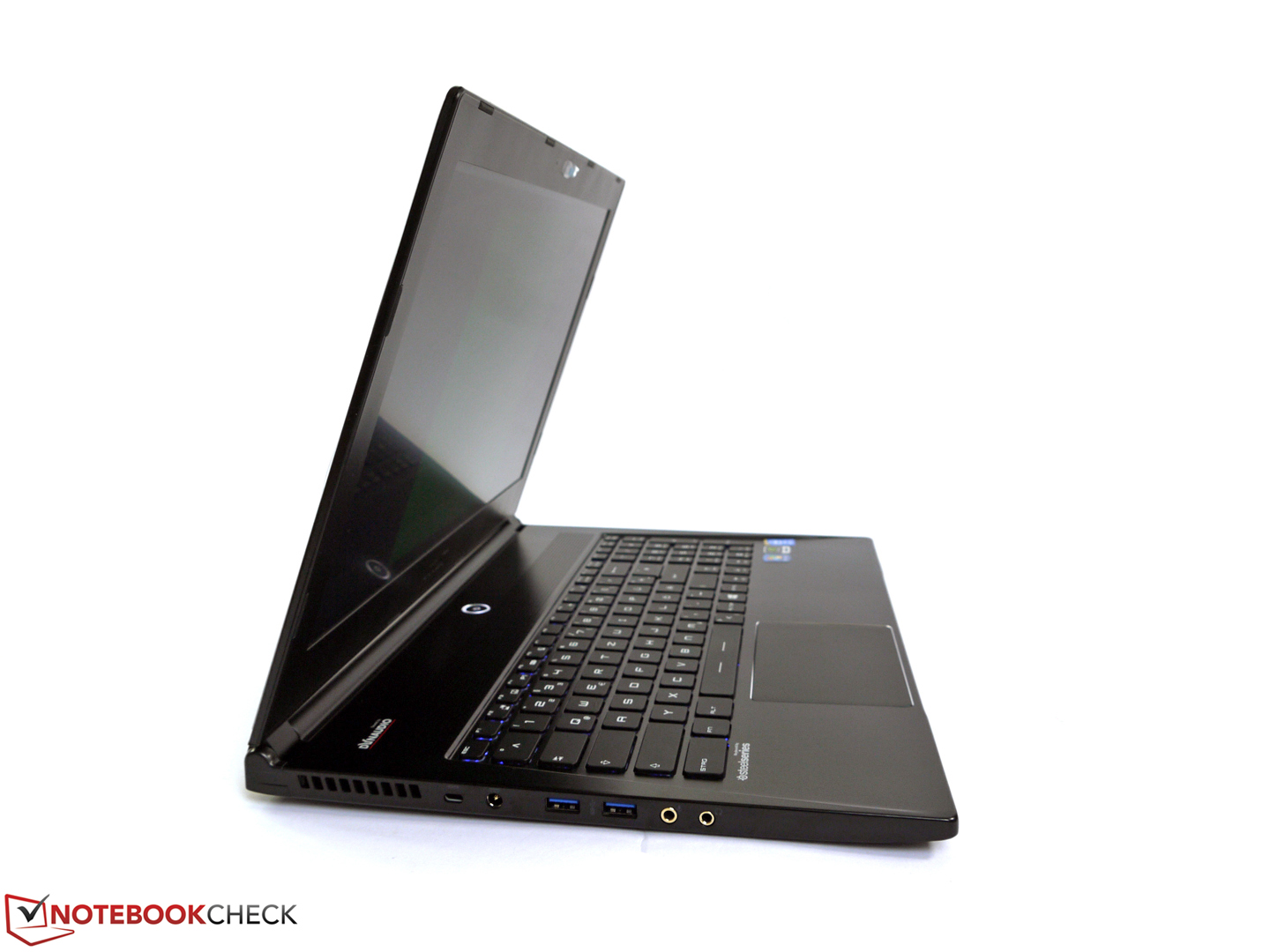

Konsept yüzünden tüm portlar kenarlarda yer alıyor
Konsept yüzünden tüm portlar kenarlarda yer alıyor
Bu da kablolarla biraz sorun yaşanmasına sebep oluyor
Bu da kablolarla biraz sorun yaşanmasına sebep oluyor

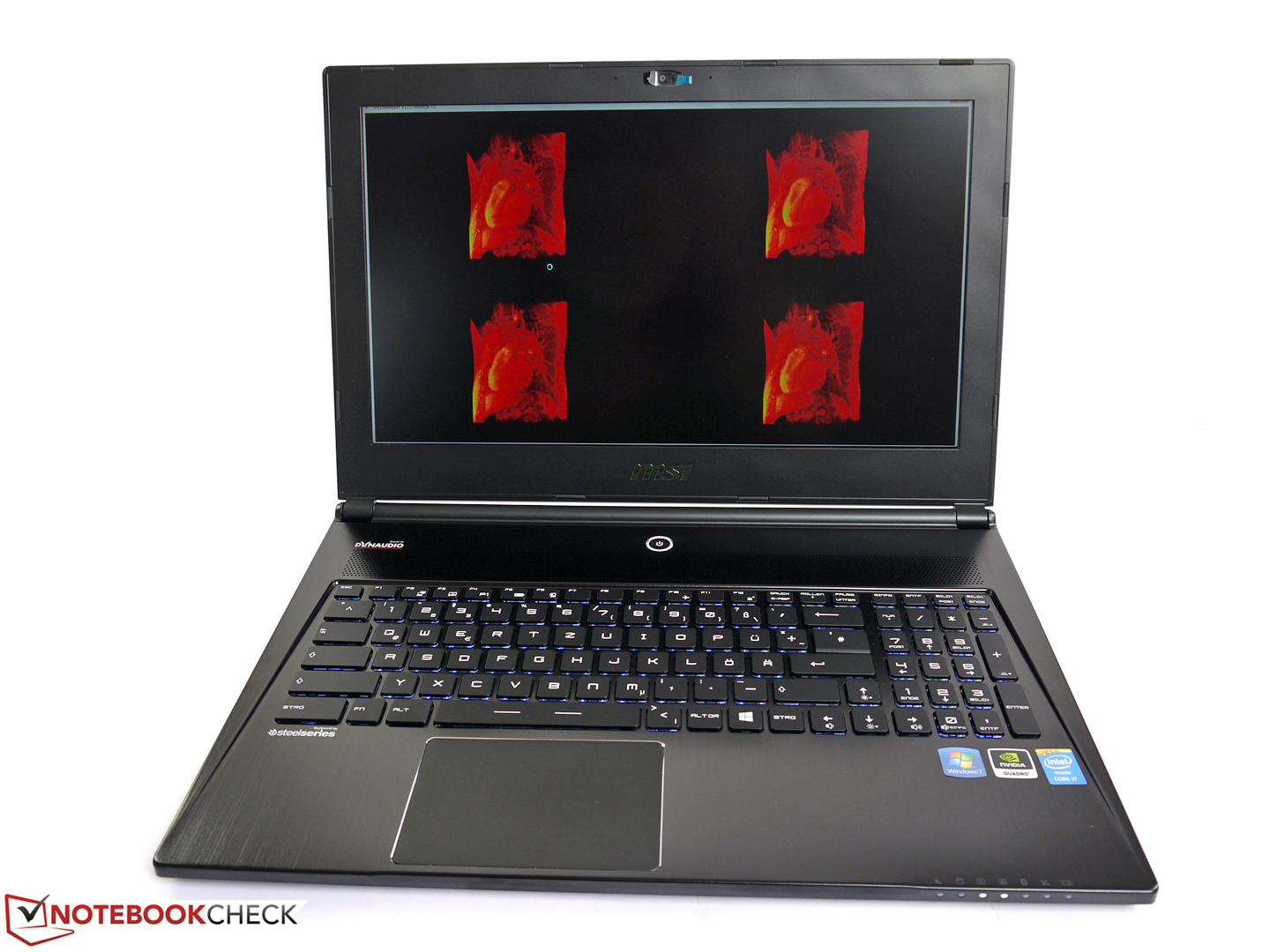

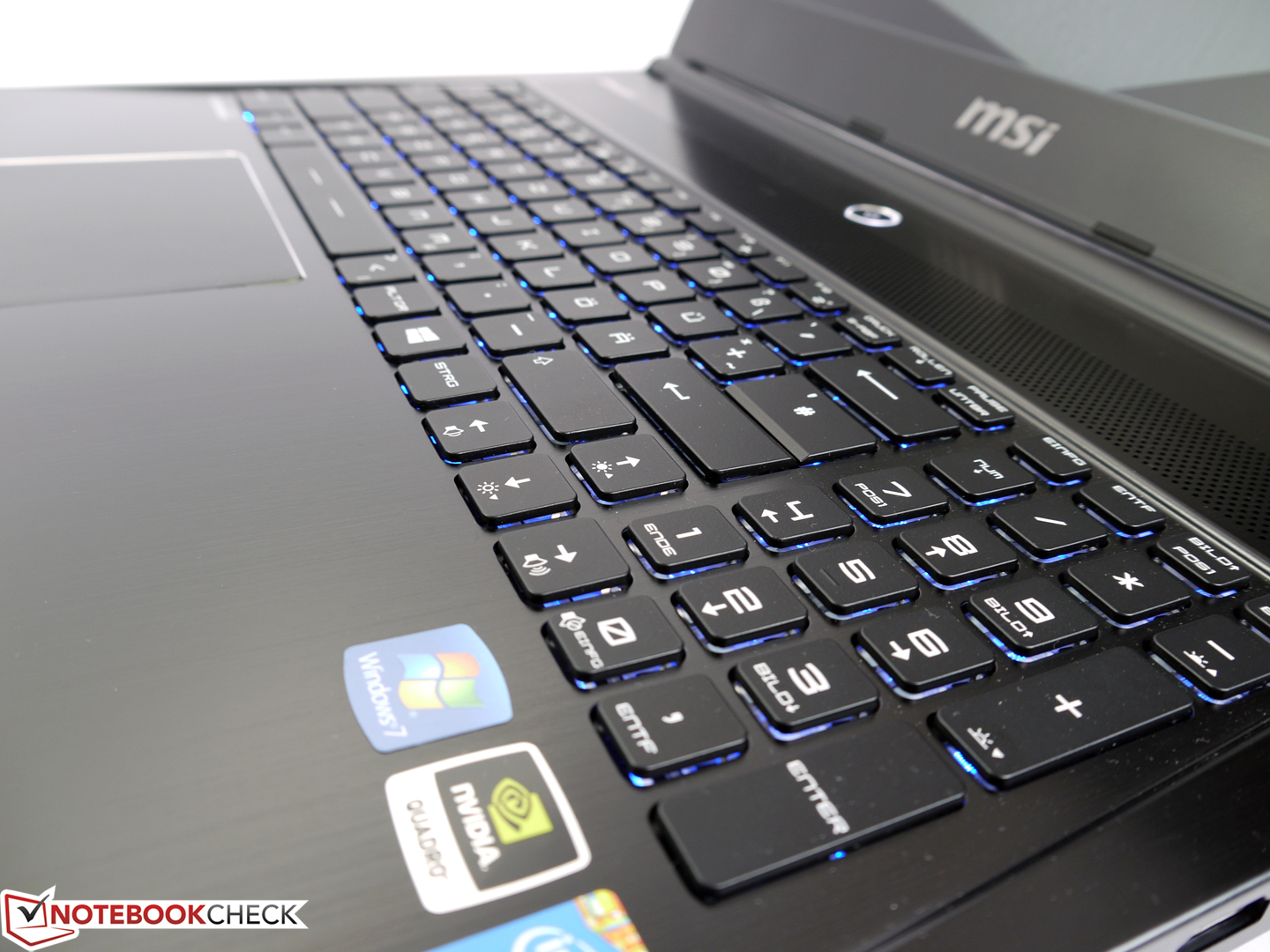

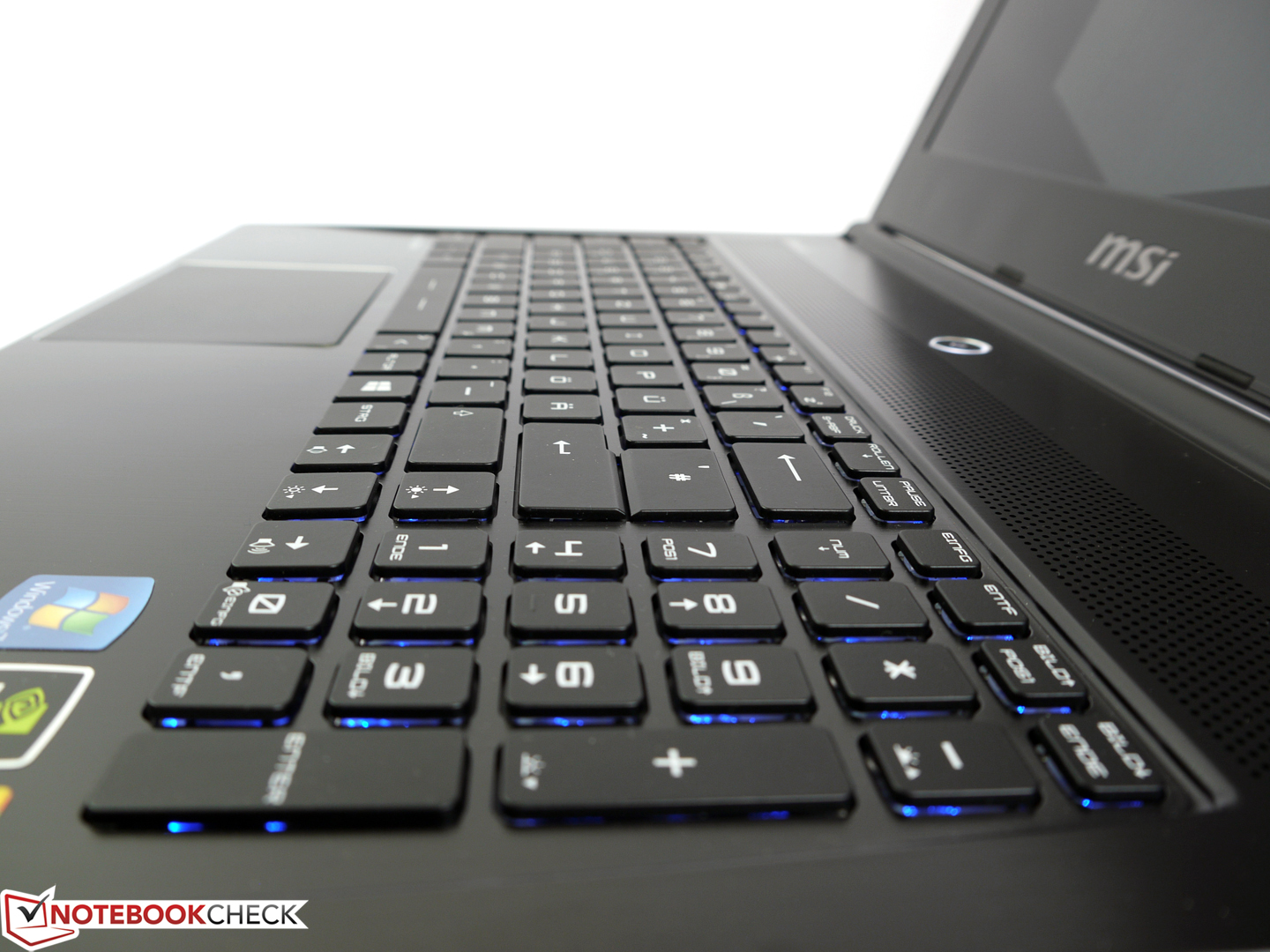

Klavye genel olarak iyi bir izlenim bıraksa da dizilişi biraz alışılmadık
Klavye genel olarak iyi bir izlenim bıraksa da dizilişi biraz alışılmadık
Webcam 1920x1080 piksel destekliyor ama bunun dışında oldukça standart
Webcam 1920x1080 piksel destekliyor ama bunun dışında oldukça standart
Logo bazı çalışanlar için sıkıntı olabilir
Logo bazı çalışanlar için sıkıntı olabilir

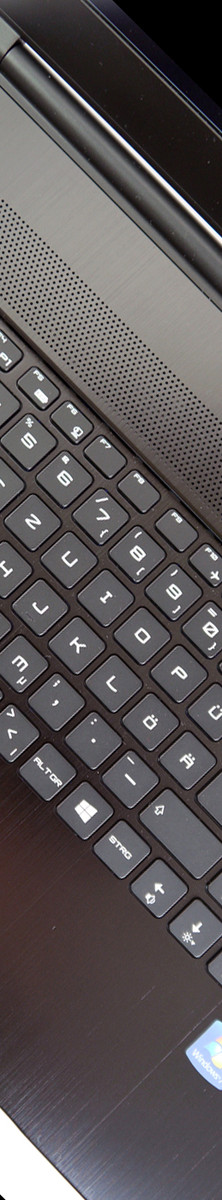

Klavyenin aydınlatması renklendirme de dahil olmak üzere ayarlanabilir
Klavyenin aydınlatması renklendirme de dahil olmak üzere ayarlanabilir
Alt kısım açılabiliyor ancak bellek ve M.2 derinlere gizlenmiş
Alt kısım açılabiliyor ancak bellek ve M.2 derinlere gizlenmiş
En yüksek sıcaklıklar merkezde ve arka alt kısımda ölçülüyor
En yüksek sıcaklıklar merkezde ve arka alt kısımda ölçülüyor

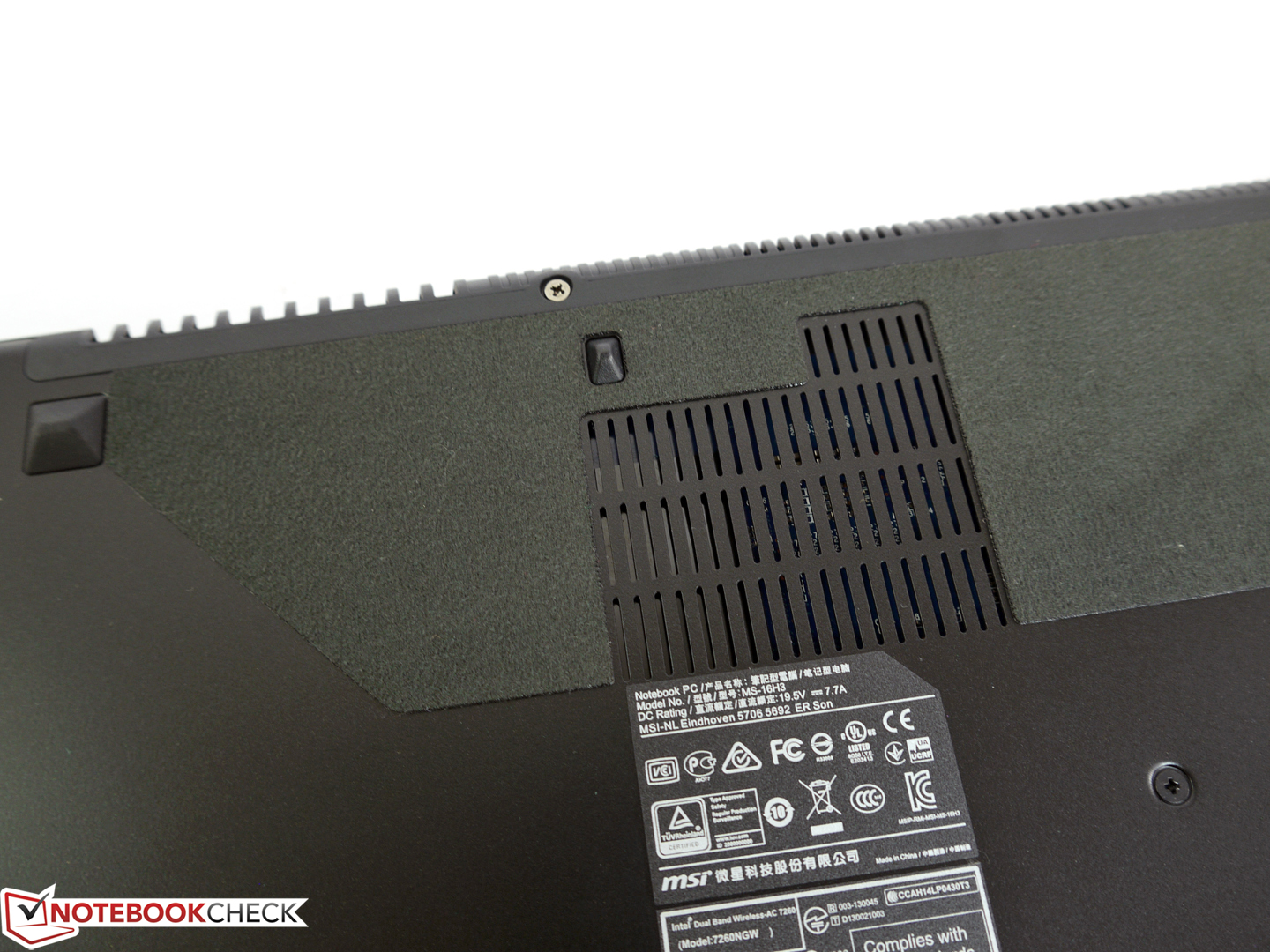

Kauçuk tabanlar cihazı sabit tutuyor
Kauçuk tabanlar cihazı sabit tutuyor
MSI'a göre aynı anda 2 ekrana çıkış vermek mümkün
MSI'a göre aynı anda 2 ekrana çıkış vermek mümkün

Please share our article, every link counts!

Notebook özellikleri

MSI WS60 2OJ8H11W7P (WS60 Seri)
İşlemci
Intel Core i7-4710HQ 4 x 2.5 - 3.5 GHz, Haswell
Grafik kartı
NVIDIA Quadro K2100M - 2048 MB VRAM, Çekirdek: 667 MHz, Bellek: 752 MHz, GDDR5, nvlddmkm 9.18.13.3311 Win7/ 64, Nvidia Optimus + Intel HD Graphics 4600
Bellek
8 GB
, 1x 8 GB PC3-12800 DDR3 (Kingston), 1 slot free
Görüntü
15.60 inç 16:9, 1920 x 1080 pixel, Samsung SDC324C, 156HL01-102, IPS LED, parlak: hayır
Anakart
Intel HM87 (Lynx Point)
Harddisk
Toshiba HG6 THNSNJ128G8NU, 128 GB
, + 1 TB Hitachi HGST HTS721010A9E630
Ses kartı
Realtek ALC283 @ Intel Lynx Point PCH - High Definition Audio Controller
Bağlantılar
3 USB 3.0, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Ses çıkışları: Audio in/out, separate connectors, Kart okuyucular: SD, SDHC, SDXC
Network
Intel I218-LM Gigabit (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Boyut
yükseklik x genişlik x derinlik (mm): 20 x 390 x 266
Batarya
52 Wh Lithium-Polymer, 6 cells, integrated
İşletim sistemi
Microsoft Windows 7 Professional 64 Bit
Camera
Webcam: FHD
Ek özellikler
Hoparlörler: Dynaudio sound system, Klavye: Chiclet with numpad, Steelseries, multi-colored illumination, Klavye ışığı: evet, 36 Ay Garanti
Ağırlık
1.98 kg, Güç kaynağı: 650 g
Fiyat
1800 Euro



Aynı Ekran boyutunda ve/veya ağırlıkta laptoplar

MSI WE76 İncelemede: Mobil iş istasyonu maksimum performansı hedefliyor
RTX A5000 Laptop GPU, Tiger Lake i9-11980HK, 17.30", 2.922 kg
Kısa inceleme: MSI WT72-6QME Workstation
Quadro M5000M, Xeon E3-1505M v5, 17.30", 3.852 kg

Aynı üreticiden laptoplar

MSI Vector 16 HX dizüstü bilgisayar incelemesi: Titan fiyatı olmadan Titan performansı
NVIDIA GeForce RTX 4080 Laptop GPU, Raptor Lake-HX i9-14900HX, 16.00", 2.657 kg
MSI Titan 18 HX A14VIG dizüstü bilgisayar incelemesi: Ejderha yılı
NVIDIA GeForce RTX 4090 Laptop GPU, Raptor Lake-HX i9-14900HX, 18.00", 3.632 kg
MSI Prestige 16 B1MG dizüstü bilgisayar incelemesi: Core i7 Xe'den Core Ultra 7 Arc'a
Arc 8-Cores, Intel Meteor Lake-H Ultra 7 155H, 16.00", 1.557 kg

Artılar

+Kasa
+Ağırlık
+Ekran
+İşlemci performansı
+CAD performansı
+Arayüzler
+Fiyat/Performans
+Thunderbol 2


Eksiler

-İş portları yok
-Port dağılımı
-Dahili batarya
-Fan sürekli çalışıyor
-Bellek ve M.2 SSD'ye ulaşım

MSI WS60 2OJ8H11W7P - 03/17/2016 v5(old)
Tobias Winkler

İşcilik
86 / 98 → 87%
Klavye
75%
Mouse
94%
Bağlanılabilirlik
70 / 81 → 86%
Ağırlık
63 / 10-66 → 95%
Batarya
84%
Görüntü
90%
Oyun performansı
83%
Uygulama performansı
90%
Isınma
90 / 95 → 95%
Ses
89 / 90 → 99%
Audio
82%
Camera
40 / 85 → 47%
Ortalama
78%
80%
Workstation - Ortalama Ağırlık
> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Kısa inceleme: MSI WS60 Workstation
Tobias Winkler, 2014-11-25 (Update: 2014-11-25)
