Kısa inceleme: Lenovo IdeaPad Miix 310-10ICR dönüştürülebilir model

Name: Lenovo IdeaPad MIIX 310-10ICR
Brand: Lenovo

Karışık paket. Lenovo'nun 10.1 inçlik IdeaPad Miix 310 modeli Windows cihazınızın yerine geçmek için geliyor. Performans gündelik işler için ideal, ekran parlaklığı biraz daha iyi olabilirdi.

Bernhard Pechlaner, Published 07/30/2016 🇺🇸 🇨🇳 ...

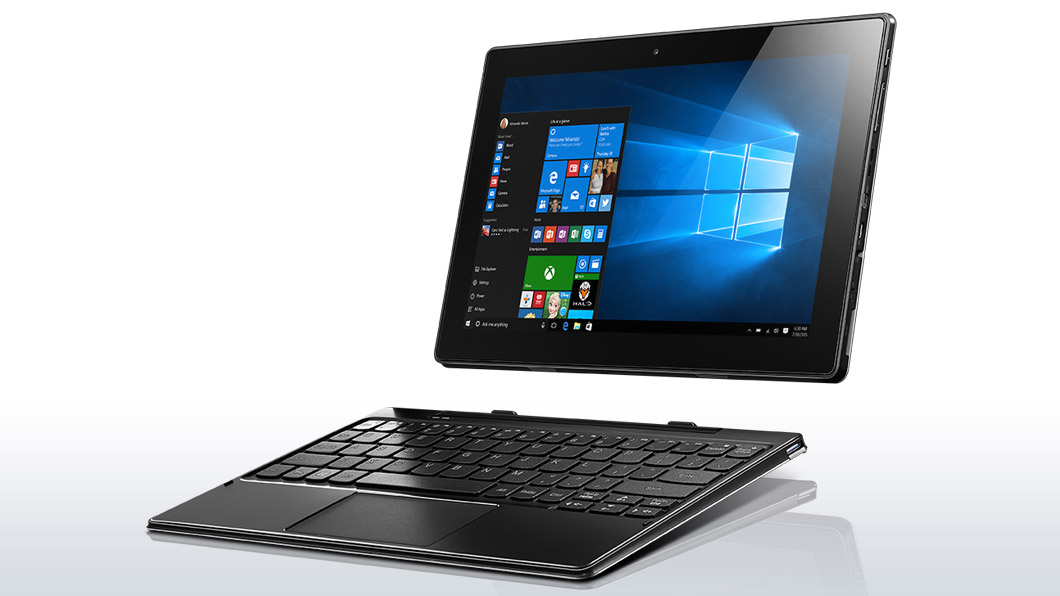

Convertible / 2-in-1 Touchscreen Tablet Windows

Download your licensed rating image as PNG / SVG

Lenovo IdeaPad MIIX 310-10ICR (Miix Seri)

İşlemci

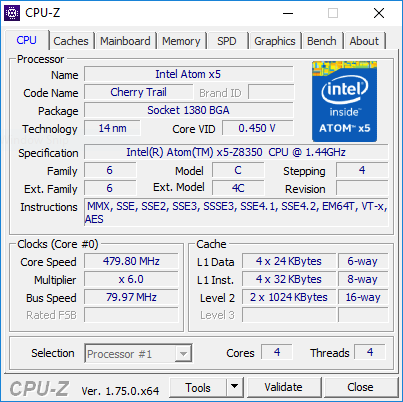

Intel Atom x5-Z8350 4 x 1.4 - 1.9 GHz, Cherry Trail

Grafik kartı

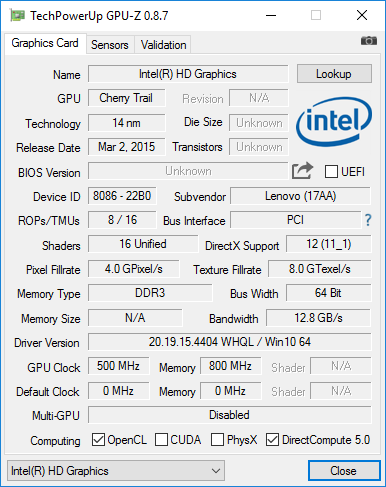

Intel HD Graphics (Cherry Trail), Çekirdek: 500 MHz, 20.19.15.4404

Bellek

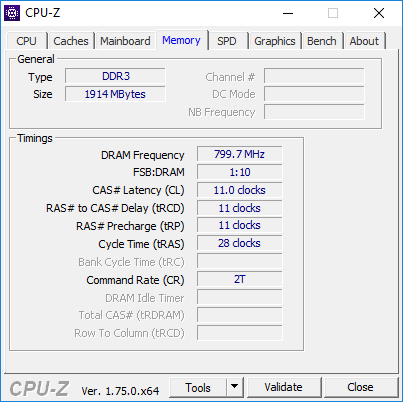

2048 MB

, DDR3L 1600

Görüntü

10.10 inç 16:10, 1280 x 800 pixel 149 PPI, yes, IPS, detachable screen

Anakart

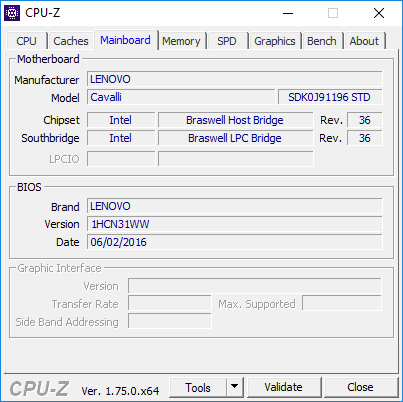

Intel Cherry Trail

Harddisk

64 GB eMMC Flash, 64 GB

Ses kartı

Intel SST Audio Device

Bağlantılar

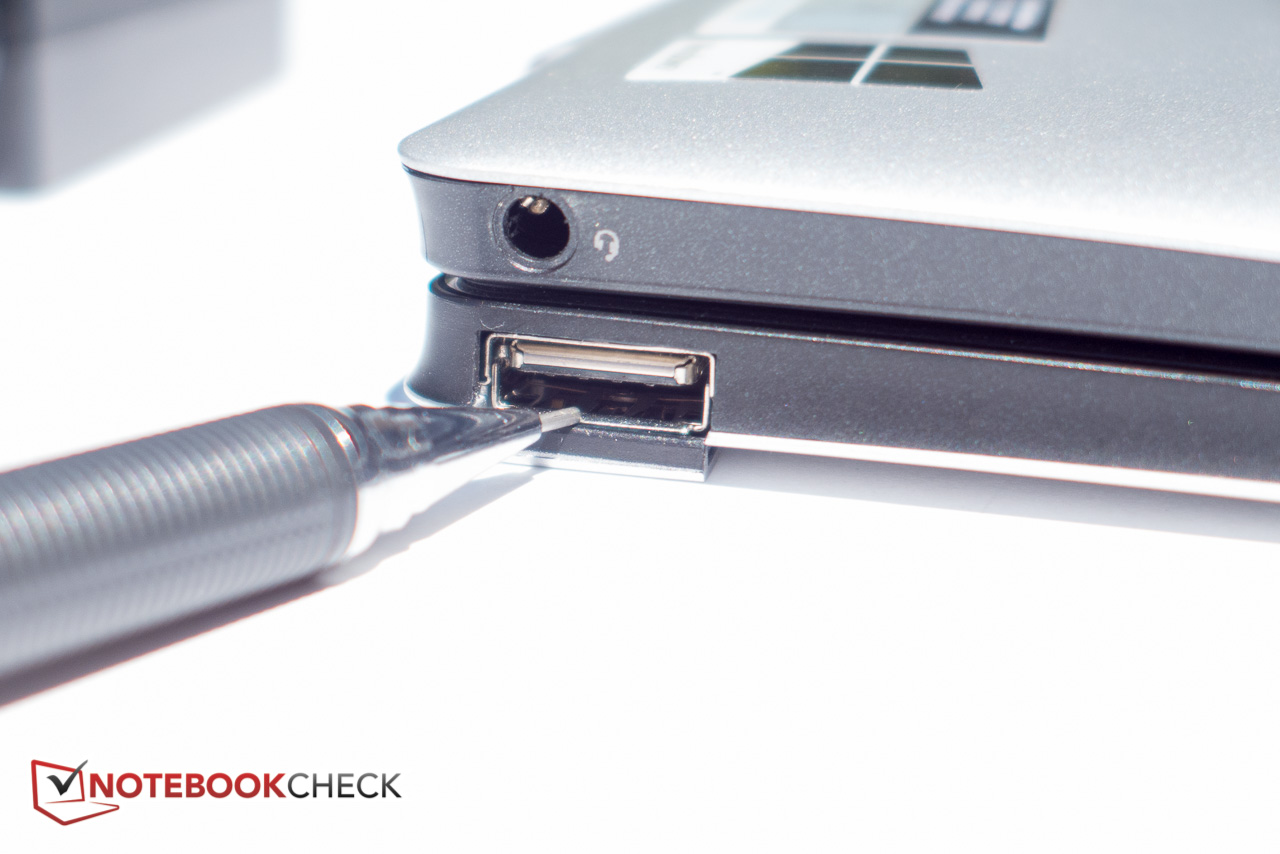

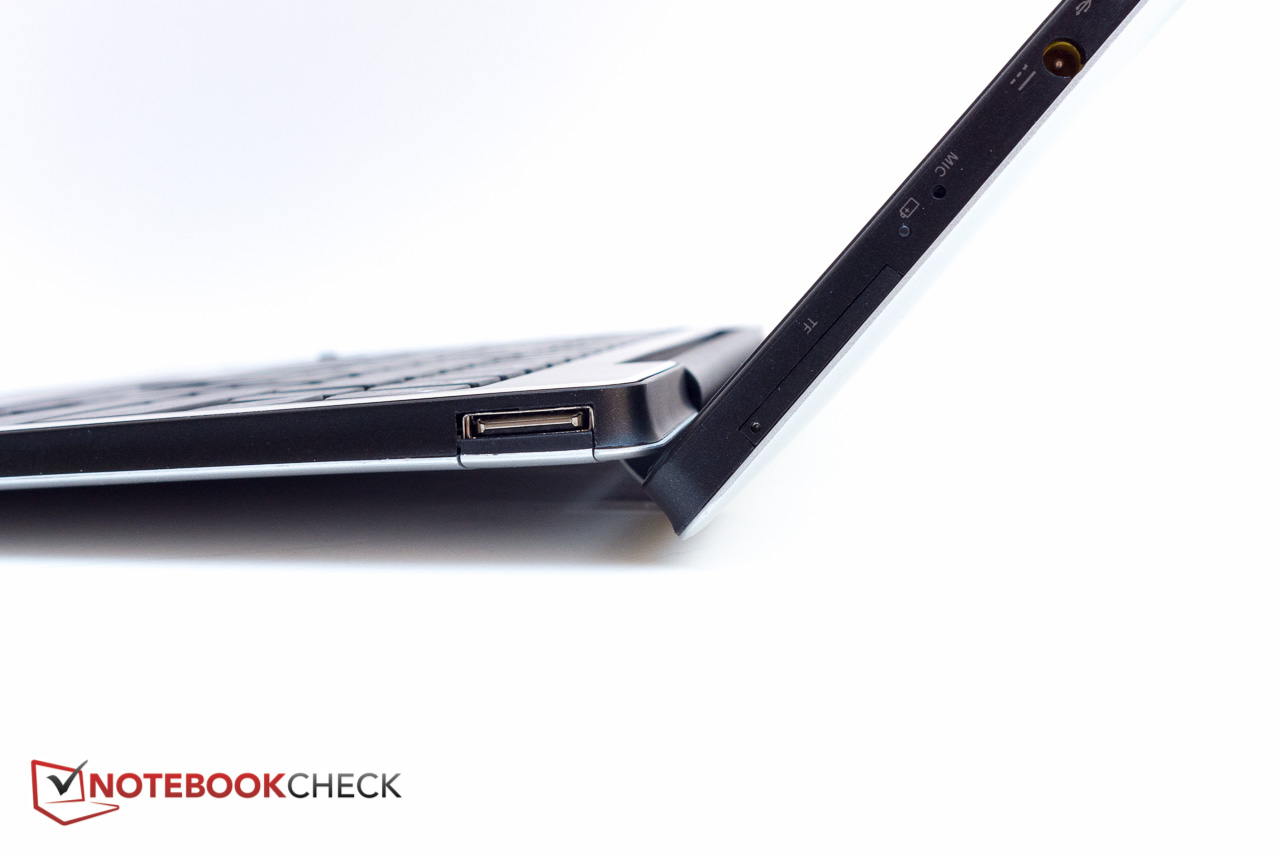

3 USB 2.0, 1 HDMI, Ses çıkışları: Kombostecker, Kart okuyucular: microSD, Alıcılar: accelerometer

Network

Realtek RTL8723BS (b/g/n = Wi-Fi 4/), Bluetooth 4.0

Boyut

yükseklik x genişlik x derinlik (mm): 18.2 x 246 x 173

Batarya

33 Wh Lithium-Polymer, 2-cell, Batarya kullanım süresi (üreticiye göre): 10 h

İşletim sistemi

Microsoft Windows 10 Home 64 Bit

Camera

Webcam: 2 MP
Primary Camera: 5 MPix

Ek özellikler

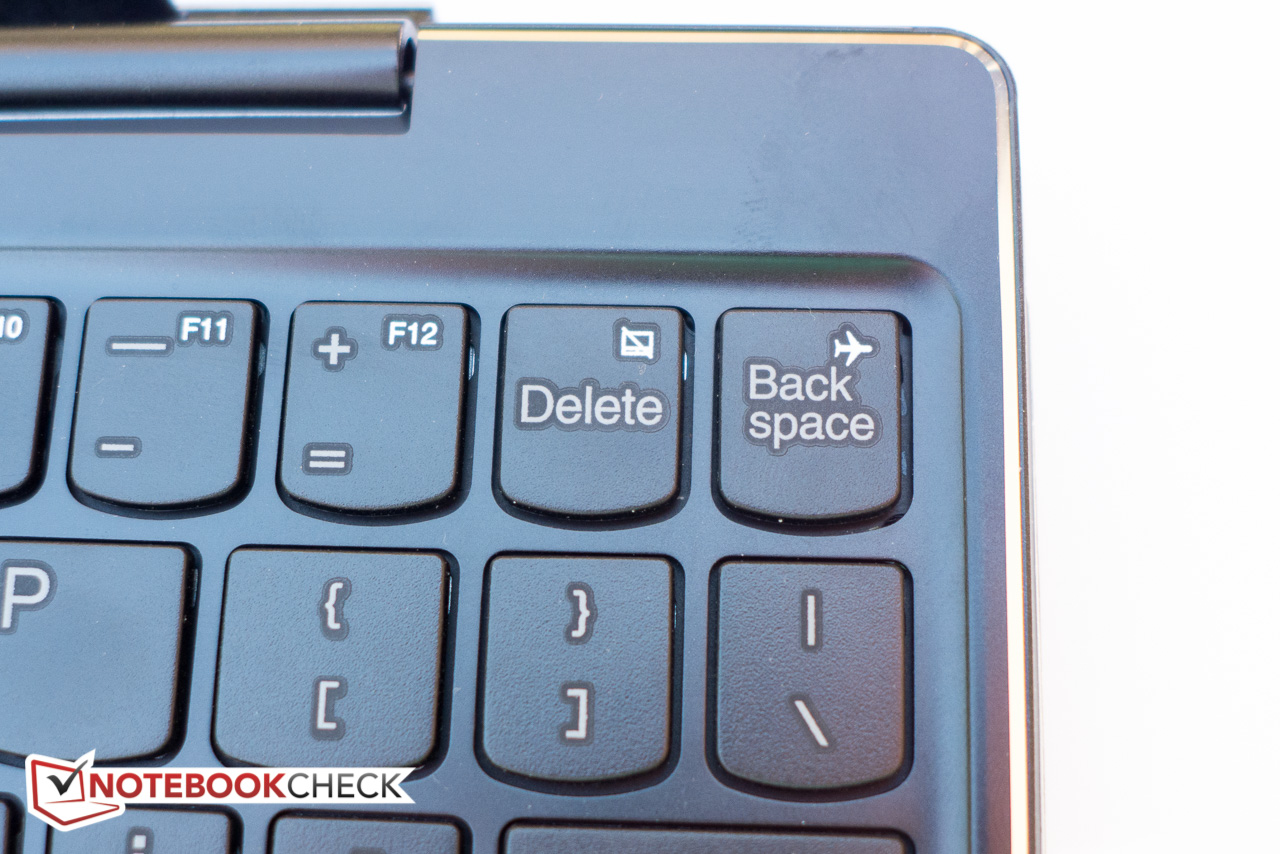

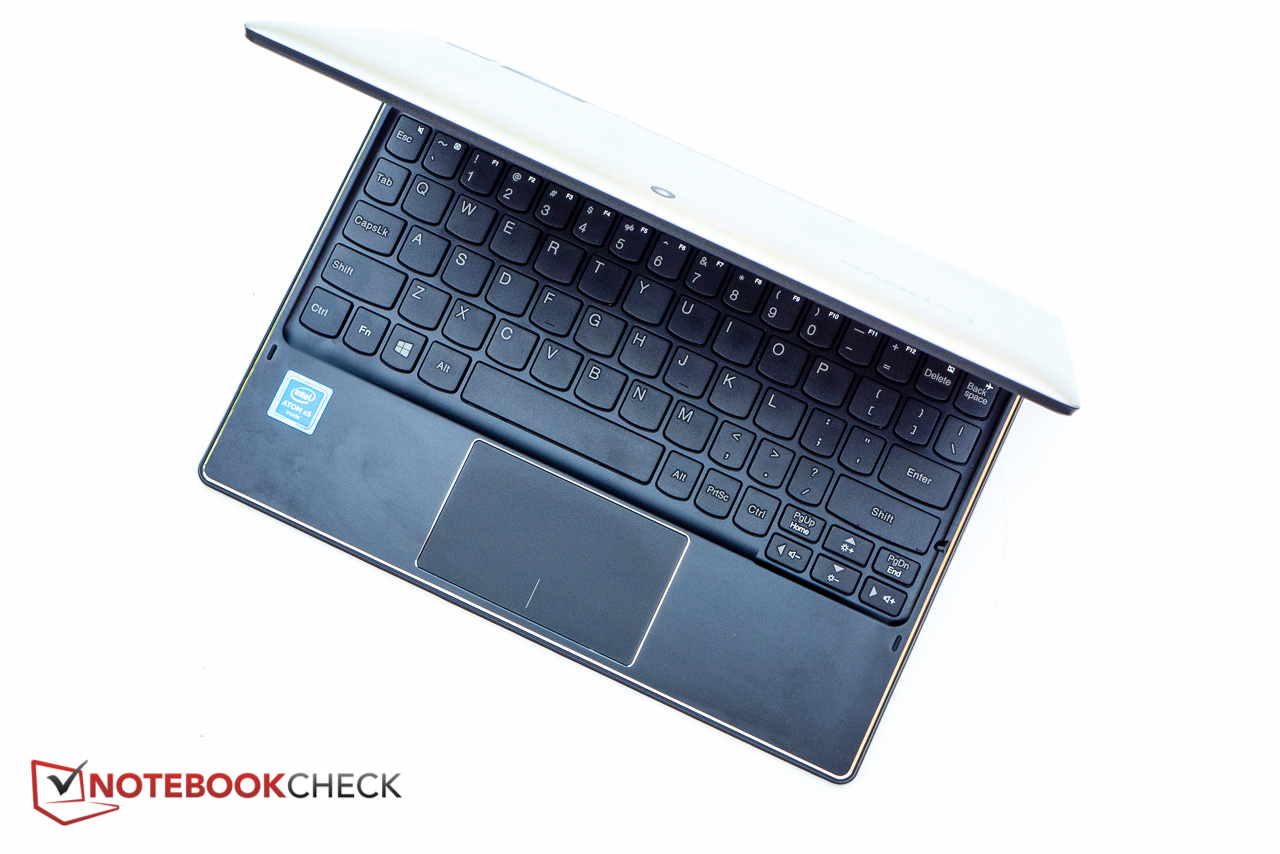

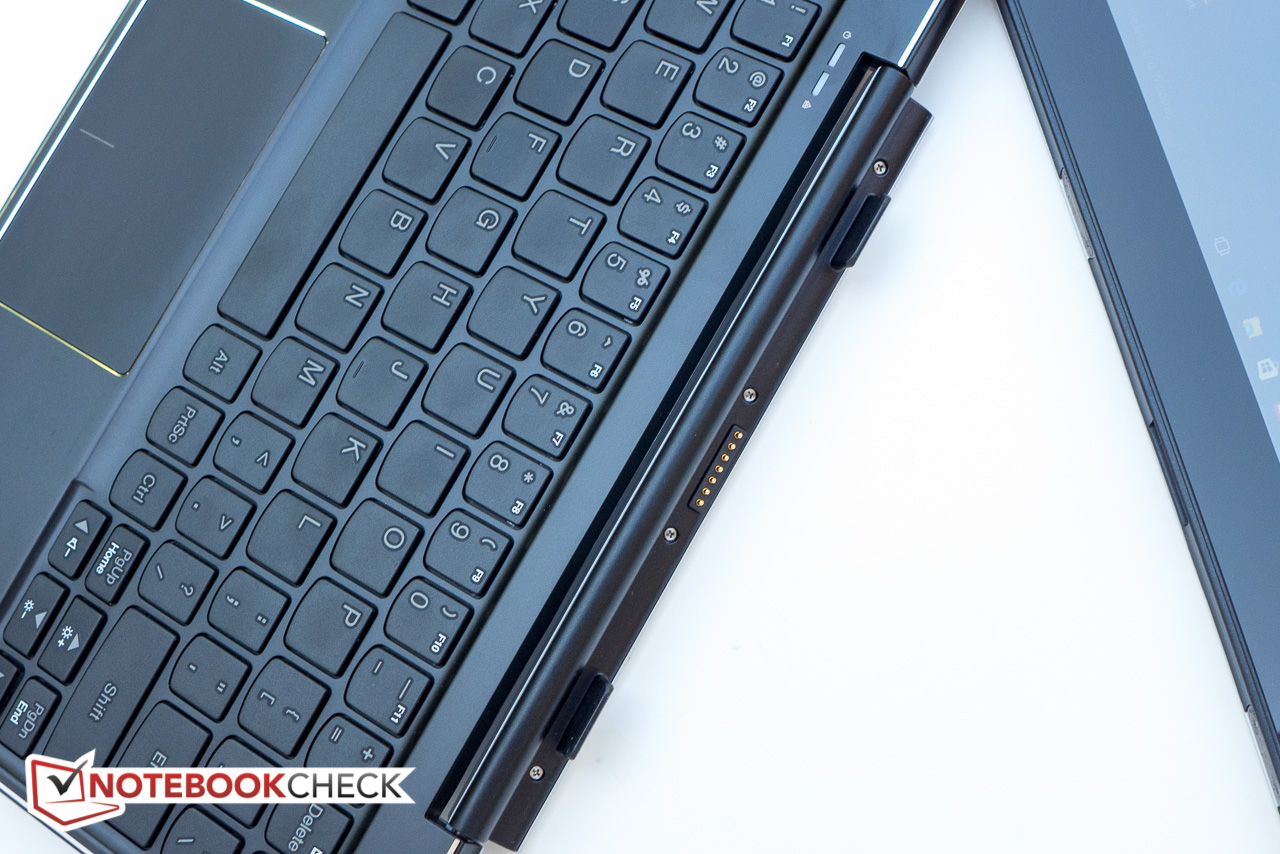

Hoparlörler: mono, Klavye: chiclet, Klavye ışığı: hayır, 12 Ay Garanti, fanless

Ağırlık

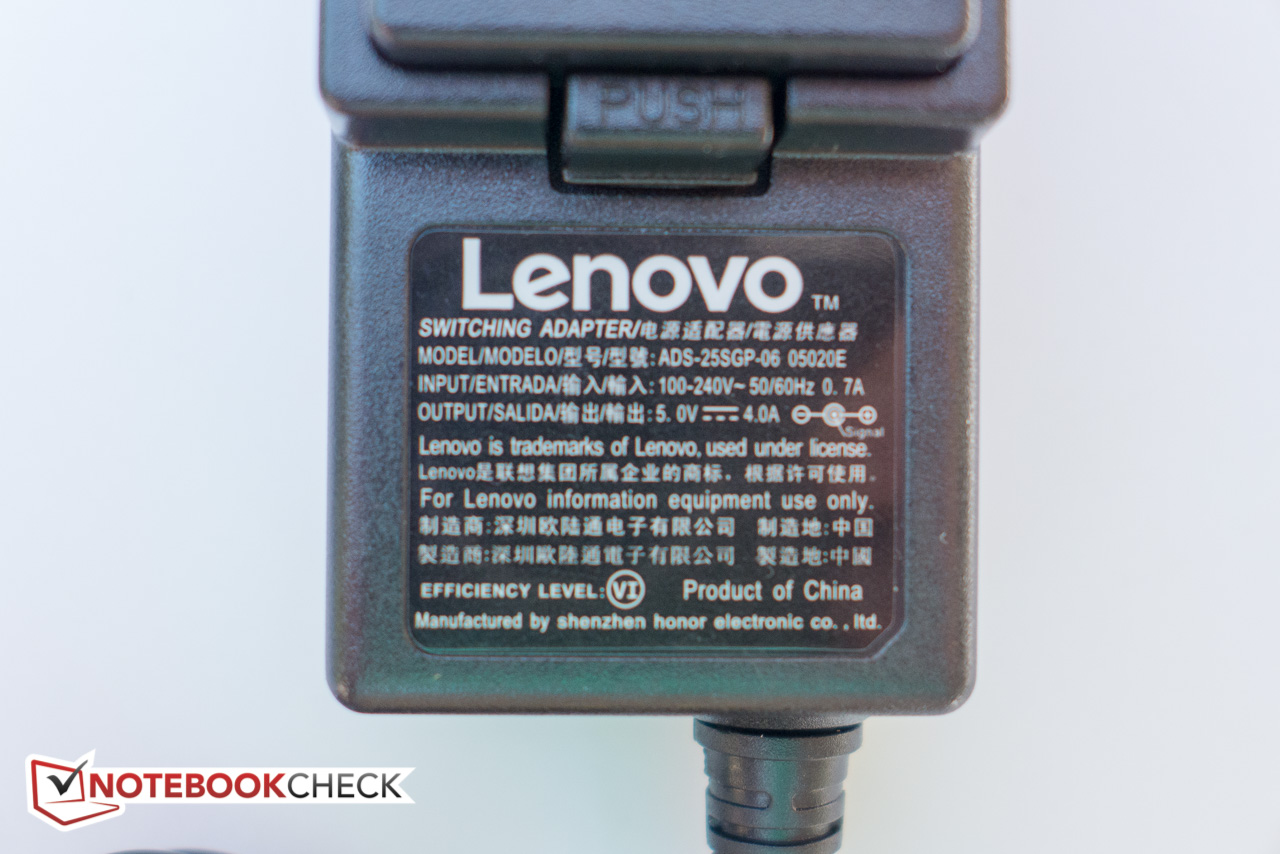

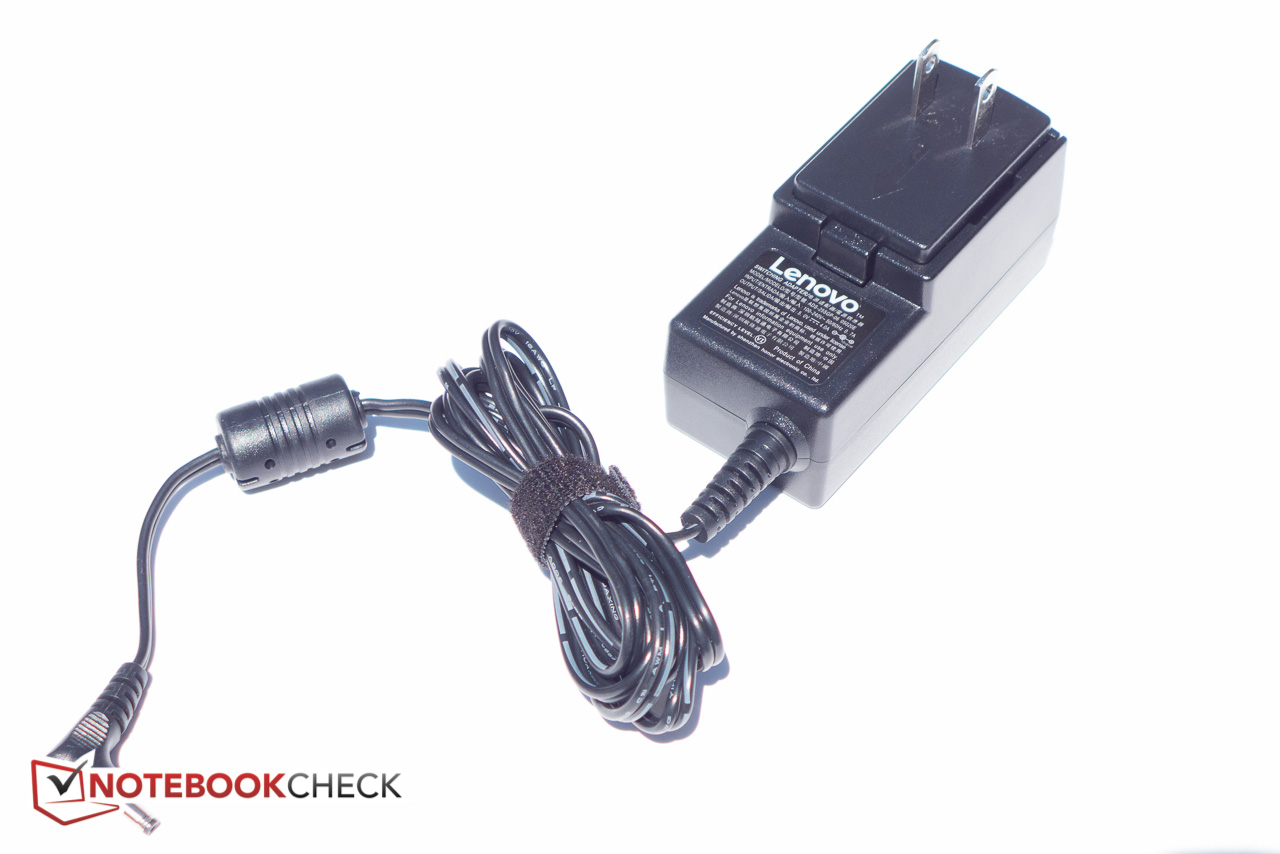

1.1 kg, Güç kaynağı: 156 g

Fiyat

299 USD

Bağlantılar

Lenovo anasayfa

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Asus Transformer Book T100HA-C4-GR Acer Aspire Switch 10E SW3-013 Toshiba Satellite Click 10 LX0W-C-104 Microsoft Surface 3 Lenovo IdeaPad MIIX 310-10ICR HP Pavilion x2 10-n013dx DIN A4 ❌

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Lenovo IdeaPad MIIX 310-10ICR	41.21 MB/s
maximum AS SSD Seq Read Test (1GB)
Lenovo IdeaPad MIIX 310-10ICR	85.6 MB/s

Networking
iperf Server (receive) TCP 1 m
Lenovo IdeaPad MIIX 310-10ICR Realtek RTL8723BS	34.95 MBit/s
iperf Client (transmit) TCP 1 m
Lenovo IdeaPad MIIX 310-10ICR Realtek RTL8723BS	37.44 MBit/s


238.1 cd/m²	241.1 cd/m²	209.2 cd/m²
234.5 cd/m²	251.9 cd/m²	217.6 cd/m²
233.9 cd/m²	244.9 cd/m²	226.5 cd/m²

Parlaklığın yayılımı

tested with X-Rite i1Pro 2

Maksimum: 251.9 cd/m² (Nits) Ortalama: 233.1 cd/m² Minimum: 23.7 cd/m²
Aydınlatma: 83 %
Batarya modunda parlaklık: 251.9 cd/m²
Kontrast: 724:1 (Siyah: 0.348 cd/m²)
ΔE Color 6.35 | 0.5-29.43 Ø5
ΔE Greyscale 7.09 | 0.57-98 Ø5.3
75.23% sRGB (Calman 2D)
52.69% AdobeRGB 1998 (Argyll 1.6.3 3D)
52.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
75.2% sRGB (Argyll 2.2.0 3D)
51.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.02

Download ICC Dosyası (X-Rite i1Pro 2)

	Lenovo IdeaPad MIIX 310-10ICR IPS, 10.10, 1280x800	Asus Transformer Book T100HA-C4-GR AUO20D4, IPS, 10.10, 1280x800	Toshiba Satellite Click 10 LX0W-C-104 MS_9001, IPS, 10.10, 1920x1200	Acer Aspire Switch 10E SW3-013 AU Optronics AUO15D4, IPS, 10.10, 1280x800	HP Pavilion x2 10-n013dx HP Display MS_9001, IPS, 10.10, 1280x800	Microsoft Surface 3 Panasonic MEI9001, IPS, 10.80, 1920x1280
Display		0%	-17%	-11%	-16%	33%
Display P3 Coverage	51.1	52.8 3%	42.25 -17%	45.18 -12%	42.71 -16%	68.8 35%
sRGB Coverage	75.2	73 -3%	63.5 -16%	67.2 -11%	64.1 -15%	98.7 31%
AdobeRGB 1998 Coverage	52.7	53.3 1%	43.67 -17%	46.73 -11%	44.13 -16%	70.4 34%
Response Times			204%
Response Time Grey 50% / Grey 80% *	31.6 ?(13.6, 18)		92 ?(42, 50, hills) -191%
Response Time Black / White *	24.8 ?(6, 28.8)		114 ?(85, 29, hills) -360%
PWM Frequency	69.4		877 ?(75) 1164%
Screen		50%	10%	14%	12%	36%
Brightness middle	251.9	480.2 91%	308 22%	337 34%	316.1 25%	399 58%
Brightness	233	455 95%	288 24%	327 40%	294 26%	380 63%
Brightness Distribution	83	85 2%	87 5%	86 4%	85 2%	90 8%
Black Level *	0.348	0.324 7%	0.43 -24%	0.35 -1%	0.327 6%	0.49 -41%
Contrast	724	1482 105%	716 -1%	963 33%	967 34%	814 12%
Colorchecker dE 2000 *	6.35	3.45 46%	4.68 26%	6.24 2%	6.18 3%	1.66 74%
Colorchecker dE 2000 max. *	11.15					3.24 71%
Greyscale dE 2000 *	7.09	2.67 62%	3.4 52%	5.74 19%	5.51 22%	2.75 61%
Gamma	2.02 ^109%	2.34 ^94%	2.72 ^81%	2.26 ^97%	2.01 ^109%	2.22 ^99%
CCT	8590 ^76%	6164 ^105%	6803 ^96%	7214 ^90%	6510 ^100%	6358 ^102%
Color Space (Percent of AdobeRGB 1998)	52.69	47.28 -10%	40 -24%	43 -18%	40 -24%	64.4 22%
Color Space (Percent of sRGB)		84.38	64	67	64	98.8
Total Average (Program / Settings)		25% / 36%	66% / 46%	2% / 7%	-2% / 4%	35% / 36%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

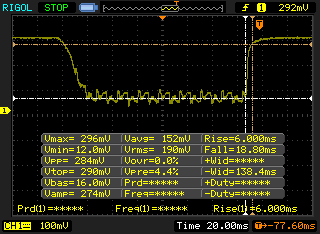

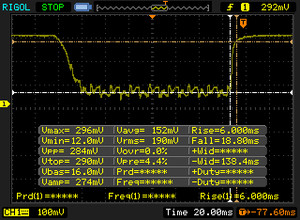

↔ Response Time Black to White
24.8 ms ... rise ↗ and fall ↘ combined	↗ 6 ms rise
24.8 ms ... rise ↗ and fall ↘ combined	↘ 28.8 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 52 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21.5 ms).

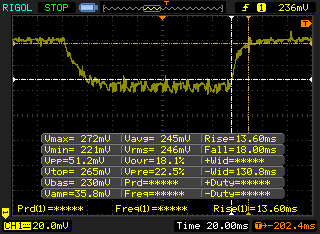

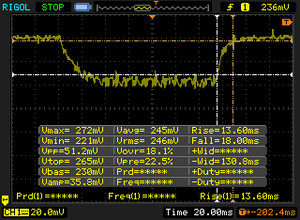

↔ Response Time 50% Grey to 80% Grey
31.6 ms ... rise ↗ and fall ↘ combined	↗ 13.6 ms rise
31.6 ms ... rise ↗ and fall ↘ combined	↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 36 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (33.7 ms).

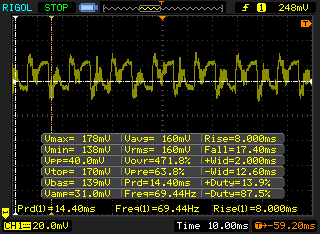

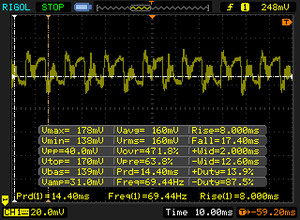

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

69.4 Hz

The display backlight flickers at 69.4 Hz (worst case, e.g., utilizing PWM) .

The frequency of 69.4 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17900 (minimum: 5 - maximum: 3846000) Hz was measured.

Cinebench R10
Rendering Multiple CPUs 32Bit (sort by value)
Lenovo IdeaPad MIIX 310-10ICR Intel Atom x5-Z8350	2575 Points
Asus Transformer Book T100HA-C4-GR Intel Atom x5-Z8500	4107 Points +59%
Toshiba Satellite Click 10 LX0W-C-104 Intel Atom x5-Z8300	2911 Points +13%
Acer Aspire Switch 10E SW3-013 Intel Atom Z3735F	2898 Points +13%
HP Pavilion x2 10-n013dx Intel Atom Z3736F	2309 Points -10%
Microsoft Surface 3 Intel Atom x7-Z8700	4356 Points +69%
Rendering Single 32Bit (sort by value)
Lenovo IdeaPad MIIX 310-10ICR Intel Atom x5-Z8350	884 Points
Asus Transformer Book T100HA-C4-GR Intel Atom x5-Z8500	1168 Points +32%
Toshiba Satellite Click 10 LX0W-C-104 Intel Atom x5-Z8300	948 Points +7%
Acer Aspire Switch 10E SW3-013 Intel Atom Z3735F	946 Points +7%
HP Pavilion x2 10-n013dx Intel Atom Z3736F	713 Points -19%
Microsoft Surface 3 Intel Atom x7-Z8700	1225 Points +39%

Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo IdeaPad MIIX 310-10ICR Intel Atom x5-Z8350	0.36 Points
Asus Transformer Book T100HA-C4-GR Intel Atom x5-Z8500	0.43 Points +19%
Toshiba Satellite Click 10 LX0W-C-104 Intel Atom x5-Z8300	0.35 Points -3%
Acer Aspire Switch 10E SW3-013 Intel Atom Z3735F	0.31 Points -14%
Microsoft Surface 3 Intel Atom x7-Z8700	0.46 Points +28%
CPU Multi 64Bit (sort by value)
Lenovo IdeaPad MIIX 310-10ICR Intel Atom x5-Z8350	1.18 Points
Asus Transformer Book T100HA-C4-GR Intel Atom x5-Z8500	1.63 Points +38%
Toshiba Satellite Click 10 LX0W-C-104 Intel Atom x5-Z8300	1.17 Points -1%
Acer Aspire Switch 10E SW3-013 Intel Atom Z3735F	1.07 Points -9%
Microsoft Surface 3 Intel Atom x7-Z8700	1.79 Points +52%

Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo IdeaPad MIIX 310-10ICR Intel Atom x5-Z8350	29 Points
Asus Transformer Book T100HA-C4-GR Intel Atom x5-Z8500	36 Points +24%
Toshiba Satellite Click 10 LX0W-C-104 Intel Atom x5-Z8300	27 Points -7%
Microsoft Surface 3 Intel Atom x7-Z8700	38 Points +31%
CPU Multi 64Bit (sort by value)
Lenovo IdeaPad MIIX 310-10ICR Intel Atom x5-Z8350	94 Points
Asus Transformer Book T100HA-C4-GR Intel Atom x5-Z8500	127 Points +35%
Toshiba Satellite Click 10 LX0W-C-104 Intel Atom x5-Z8300	94 Points 0%
Microsoft Surface 3 Intel Atom x7-Z8700	134 Points +43%

wPrime 2.10 - 1024m (sort by value)
Lenovo IdeaPad MIIX 310-10ICR Intel Atom x5-Z8350	1108 s *
HP Pavilion x2 10-n013dx Intel Atom Z3736F	1193 s * -8%

Mozilla Kraken 1.1 - Total (sort by value)
Lenovo IdeaPad MIIX 310-10ICR Intel Atom x5-Z8350	6122 ms *
Asus Transformer Book T100HA-C4-GR Intel Atom x5-Z8500	5142 ms * +16%
Toshiba Satellite Click 10 LX0W-C-104 Intel Atom x5-Z8300	5895 ms * +4%
HP Pavilion x2 10-n013dx Intel Atom Z3736F	5863 ms * +4%

Octane V2 - Total Score (sort by value)
Lenovo IdeaPad MIIX 310-10ICR Intel Atom x5-Z8350	6343 Points
Toshiba Satellite Click 10 LX0W-C-104 Intel Atom x5-Z8300	6506 Points +3%
HP Pavilion x2 10-n013dx Intel Atom Z3736F	6002 Points -5%

* ... smaller is better

Cinebench R10 Shading 32Bit

1829

Cinebench R10 Rendering Multiple CPUs 32Bit

2575

Cinebench R10 Rendering Single 32Bit

884

Cinebench R11.5 OpenGL 64Bit

7.35 fps

Cinebench R11.5 CPU Multi 64Bit

1.18 Points

Cinebench R11.5 CPU Single 64Bit

0.36 Points

Cinebench R15 Ref. Match 64Bit

98 %

Cinebench R15 OpenGL 64Bit

9.09 fps

Cinebench R15 CPU Multi 64Bit

94 Points

Cinebench R15 CPU Single 64Bit

29 Points

Yardım

... kıyaslama

PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo IdeaPad MIIX 310-10ICR HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	1419 Points
Asus Transformer Book T100HA-C4-GR HD Graphics (Cherry Trail), Z8500, Samsung CGND3R eMMC	1697 Points +20%
Toshiba Satellite Click 10 LX0W-C-104 HD Graphics (Cherry Trail), Z8300, 32 GB eMMC Flash	1294 Points -9%
Microsoft Surface 3 HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash	1677 Points +18%
Work Score Accelerated v2 (sort by value)
Lenovo IdeaPad MIIX 310-10ICR HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	1224 Points
Asus Transformer Book T100HA-C4-GR HD Graphics (Cherry Trail), Z8500, Samsung CGND3R eMMC	1372 Points +12%
Toshiba Satellite Click 10 LX0W-C-104 HD Graphics (Cherry Trail), Z8300, 32 GB eMMC Flash	1044 Points -15%

PCMark 8 Home Score Accelerated v2		1419 puan
PCMark 8 Work Score Accelerated v2		1224 puan
Yardım

	Lenovo IdeaPad MIIX 310-10ICR 64 GB eMMC Flash	Asus Transformer Book T100HA-C4-GR Samsung CGND3R eMMC	Toshiba Satellite Click 10 LX0W-C-104 32 GB eMMC Flash	Acer Aspire Switch 10E SW3-013 32 GB eMMC Flash	HP Pavilion x2 10-n013dx	Microsoft Surface 3 128 GB eMMC Flash
CrystalDiskMark 3.0		30%	-16%	2%	1%	-11%
Read Seq	151.9	139.2 -8%	128.6 -15%	167.6 10% 90.7 -40%	120.5 -21%	149.3 -2%
Write Seq	87.3	87.6 0%	43.99 -50%	88.4 1% 54.7 -37%	64.1 -27%	47.99 -45%
Read 512	144.5	127.8 -12%	97.3 -33%	150.6 4% 83.9 -42%	107.5 -26%	133.7 -7%
Write 512	58	71.6 23%	30.47 -47%	66.4 14% 46.4 -20%	67.2 16%	39.9 -31%
Read 4k	9.35	14.98 60%	13.25 42%	16.49 76% 15.56 66%	15.2 63%	12.64 35%
Write 4k	12.26	17.59 43%	11.54 -6%	9.46 -23% 8.37 -32%	10.69 -13%	9.52 -22%
Read 4k QD32	29	33.16 14%	20.93 -28%	42.66 47% 39.38 36%	34.34 18%	27.94 -4%
Write 4k QD32	13.18	29.03 120%	14.46 10%	11.16 -15% 10.38 -21%	12.85 -3%	11.2 -15%

CrystalDiskMark 3.0

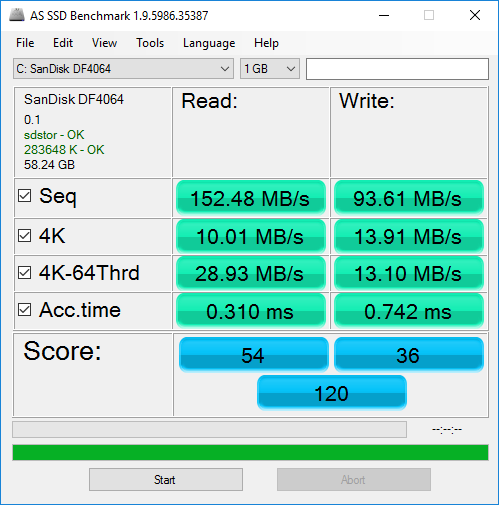

AS SSD

64 GB eMMC Flash

Sequential Read: 151.9 MB/s

Sequential Write: 87.3 MB/s

512K Read: 144.5 MB/s

512K Write: 58 MB/s

4K Read: 9.35 MB/s

4K Write: 12.26 MB/s

4K QD32 Read: 29 MB/s

4K QD32 Write: 13.18 MB/s

3DMark 11
1280x720 Performance GPU (sort by value)
Lenovo IdeaPad MIIX 310-10ICR Intel HD Graphics (Cherry Trail), Z8350	298 Points
Asus Transformer Book T100HA-C4-GR Intel HD Graphics (Cherry Trail), Z8500	367 Points +23%
Toshiba Satellite Click 10 LX0W-C-104 Intel HD Graphics (Cherry Trail), Z8300	342 Points +15%
Acer Aspire Switch 10E SW3-013 Intel HD Graphics (Bay Trail), Z3735F	181 Points -39%
HP Pavilion x2 10-n013dx Intel HD Graphics (Bay Trail), Z3736F	181 Points -39%
Microsoft Surface 3 Intel HD Graphics (Cherry Trail), Z8700	494 Points +66%
1280x720 Performance Combined (sort by value)
Lenovo IdeaPad MIIX 310-10ICR Intel HD Graphics (Cherry Trail), Z8350	352 Points
Asus Transformer Book T100HA-C4-GR Intel HD Graphics (Cherry Trail), Z8500	433 Points +23%
Toshiba Satellite Click 10 LX0W-C-104 Intel HD Graphics (Cherry Trail), Z8300	361 Points +3%
Acer Aspire Switch 10E SW3-013 Intel HD Graphics (Bay Trail), Z3735F	221 Points -37%
HP Pavilion x2 10-n013dx Intel HD Graphics (Bay Trail), Z3736F	214 Points -39%
Microsoft Surface 3 Intel HD Graphics (Cherry Trail), Z8700	554 Points +57%

3DMark 11 Performance		344 puan
Yardım

... kıyaslama

Maksimum yük

Bekleme


30.4 °C	33.6 °C	42.4 °C
30.6 °C	34.2 °C	42.4 °C
30.2 °C	34 °C	39.8 °C

Maksimum: 42.4 °C
Ortalama: 35.3 °C


36.6 °C	31.6 °C	29.2 °C
35.6 °C	31 °C	28.6 °C
34 °C	30.6 °C	28.6 °C

Maksimum: 36.6 °C
Ortalama: 31.8 °C

Güç kaynağı 37 °C | Oda sıcaklığı 22 °C | Raytek Raynger ST

(±) The average temperature for the upper side under maximal load is 35.3 °C / 96 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 42.4 °C / 108 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 36.6 °C / 98 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27.8 °C / 82 F, compared to the device average of 30.2 °C / 86 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 39.8 °C / 103.6 F.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-11.7 °C / -21 F).

Anlık tüketim

Kapalı / Bekleme modu	3 / 3.1 Watt
Boşta	5.14 / 7.6 / 8.28 Watt
Çalışırken	11.33 / 15.36 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Lenovo IdeaPad MIIX 310-10ICR Z8350, HD Graphics (Cherry Trail), 64 GB eMMC Flash, IPS, 1280x800, 10.10	Toshiba Satellite Click 10 LX0W-C-104 Z8300, HD Graphics (Cherry Trail), 32 GB eMMC Flash, IPS, 1920x1200, 10.10	Acer Aspire Switch 10E SW3-013 Z3735F, HD Graphics (Bay Trail), 32 GB eMMC Flash, IPS, 1280x800, 10.10	Microsoft Surface 3 Z8700, HD Graphics (Cherry Trail), 128 GB eMMC Flash, IPS, 1920x1280, 10.80
Power Consumption		-0%	34%	16%
Idle Minimum *	5.14	4.3 16%	2.1 59%	2.5 51%
Idle Average *	7.6	7.8 -3%	4.2 45%	7 8%
Idle Maximum *	8.28	8.5 -3%	5.1 38%	8.4 -1%
Load Average *	11.33	13.4 -18%	11 3%	11.2 1%
Load Maximum *	15.36	14.3 7%	11.3 26%	12.4 19%

* ... smaller is better

Batarya ömrü


WiFi Websurfing		10h 43min

	Lenovo IdeaPad MIIX 310-10ICR Z8350, HD Graphics (Cherry Trail), 33 Wh	Asus Transformer Book T100HA-C4-GR Z8500, HD Graphics (Cherry Trail), 30 Wh	Toshiba Satellite Click 10 LX0W-C-104 Z8300, HD Graphics (Cherry Trail), 46 Wh	Acer Aspire Switch 10E SW3-013 Z3735F, HD Graphics (Bay Trail), 30 Wh	HP Pavilion x2 10-n013dx Z3736F, HD Graphics (Bay Trail), 33 Wh	Microsoft Surface 3 Z8700, HD Graphics (Cherry Trail), 28 Wh
Battery Runtime		-16%	3%	-39%	-28%	-32%
WiFi v1.3	643	541 -16%	662 3%	390 -39%	460 -28%	437 -32%
Reader / Idle		1460		943	509	828
Load		246			219	173
WiFi						425

Artılar

+ Ufak

+ Uzun batarya ömrü

+ İyi renkler

+ Makul klavye bağlantısı

Eksiler

- Ekran çok karanlık

- Bazen takılabiliyor

- USB bağlantılarında sıkıntı

- Tablet kullanımı çok rahat değil

Ideapad Miix 310, courtesy of Lenovo US.

Lenovo Ideapad Miix 319, 10.1 inçlik ayrıştırılabilir bir model. Çok ufak, hafif ve sessiz çalışan cihaz basit işlemler için ideal. Batarya kullanımı bir günü çıkarmak için yeterli. IPS ekran şaşırtıcı şekilde tutarlı ve yeterli kontastı sunuyor. Ancak malesef çok yansıtmalı bir yüzeye sahip ve düşük parlaklıkla beraber dış mekan kullanımı çok iyi değil. Klavye düzenine alışmak da biraz zaman alabilir.

Ucuz bir tablet / laptop karışımına ihtiyaç duyan kullanıcılar Miix 310 ile mutlu olabilirler, elbette çok sık dışarı çıkmamaları koşulu ile.

Yazının orjinali için tıklayın.

Lenovo IdeaPad MIIX 310-10ICR - 2016-07-22 07/22/2016 v5.1^(old)
Bernhard Pechlaner

İşcilik

66 / 98 → 67%

Klavye

73%

Mouse

78%

Bağlanılabilirlik

29 / 80 → 37%

Ağırlık

74 / 35-78 → 91%

Batarya

93%

Görüntü

80%

Oyun performansı

31 / 68 → 46%

Uygulama performansı

40 / 87 → 46%

Isınma

90%

Ses

100%

Audio

25 / 91 → 27%

Camera

42 / 85 → 50%

Ortalama

63%

78%

Convertible - Ortalama Ağırlık

Pricecompare

Editor of the original article: Bernie Pechlaner - Senior Tech Writer - 276 articles published on Notebookcheck since 2012

Please share our article, every link counts!

> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Kısa inceleme: Lenovo IdeaPad Miix 310-10ICR dönüştürülebilir model

Bernhard Pechlaner, 2016-07-30 (Update: 2016-07-30)
