Acemagic AD15 Mini PC incelemesi: Intel Core i7-11800H ile güçlü NUC alternatifi

Name: Acemagic AD15
Brand: Acemagic

Siyah plastik parçası! Intel Core i7-11800H'li Acemagic AD15 testimizde iyi bir günlük arkadaş olduğunu kanıtlayacak mı? Bu noktada üç yıldan daha eski olan SoC'den neler beklenebileceğine ayrıntılı bir şekilde bakıyoruz. Çok sayıda ölçüm ve kıyaslama kullanarak Acemagic AD15'in performansını rakiplerine karşı değerlendiriyoruz ve burada avantajlarını ve dezavantajlarını ortaya koyacağız.

Sebastian Bade (Çeviren DeepL / Ninh Duy), Published 09/25/2023 🇺🇸 🇩🇪 ...

Mini PC Desktop Intel Tiger Lake

"AD15", Acemagic'in çok sayıda testten geçirerek ayrıntılı olarak değerlendirdiğimiz küçük bir mini bilgisayarının etiketidir. Her ne kadarIntel Core i7-11800Hburada yalnızca eski bir SoC'ye sahip oluyorsunuz, işlemcinin şu anda günlük kullanımda ne kadar iyi performans gösterdiğine hala şaşırıyoruz. Intel Core i7-11800H'ye ek olarak, 400$ karşılığında 16 GB RAM ve Windows 11 Professional dahil 512 GB SSD de alıyorsunuz. Kısa bir araştırmadan sonra, Acemagic'i şu özelliklere sahip olarak da bulabilirsiniz Intel Core i5-12450Hancak bunun için 500 Euro (~ 533 $) ödemeniz gerekecek.

Bu incelemede, Acemagic AD15'i daha önce ayrıntılı olarak incelediğimiz bazı bilinen rakiplerle karşılaştırıyoruz. Fiyatları 350 ila 600 Euro (~373 - 639 $) arasında değişiyor ve test ünitemiz bu aralığın ortasında yer alıyor. Aşağıdaki tablo, bu inceleme için karşılaştırma cihazlarına genel bir bakış sunmaktadır.

Test device courtesy of www.acemagic.com

Download your licensed rating image as PNG / SVG

AD15, i7-11800H

İşlemci

Intel Core i7-11800H 8 x 2.3 - 4.6 GHz, 65 W PL2 / Short Burst, 45 W PL1 / Sustained, Tiger Lake-H

Grafik kartı

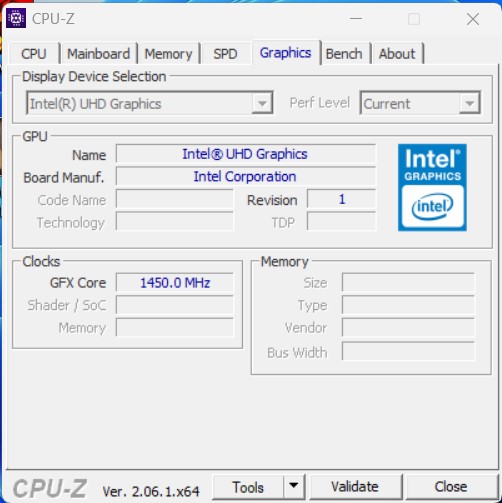

Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Çekirdek: 1400 MHz, 31.0.151.4575 DCH

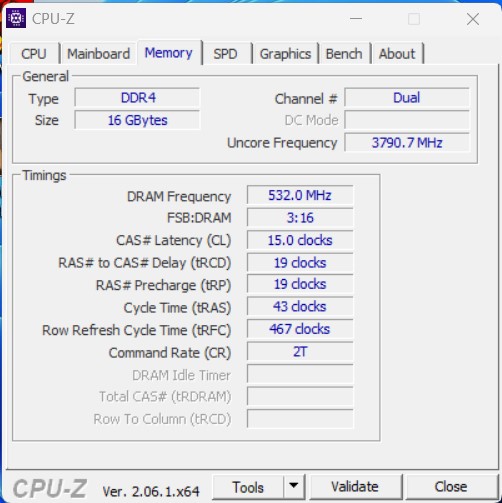

Bellek

16 GB

, DDR4-2666, 2 of 2 slots occupied, max 64 GB

Anakart

Intel HM570

Harddisk

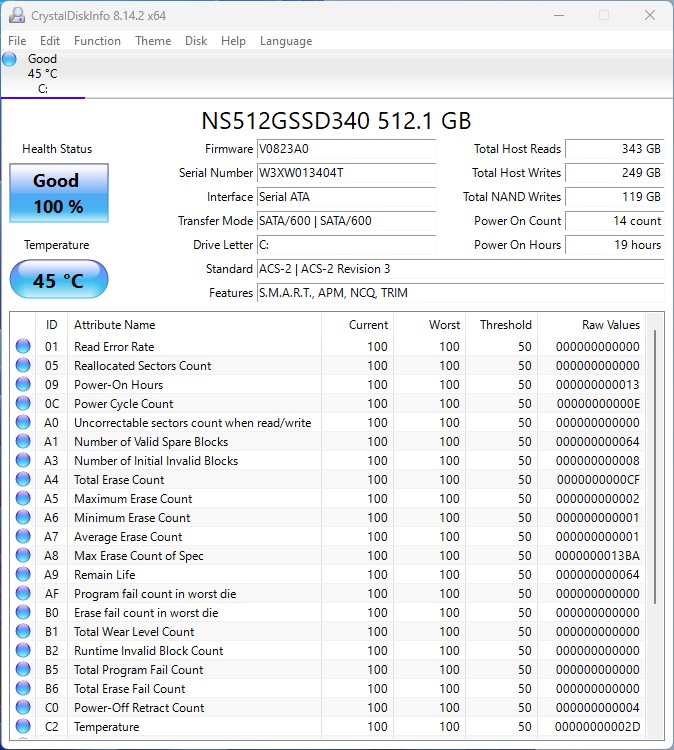

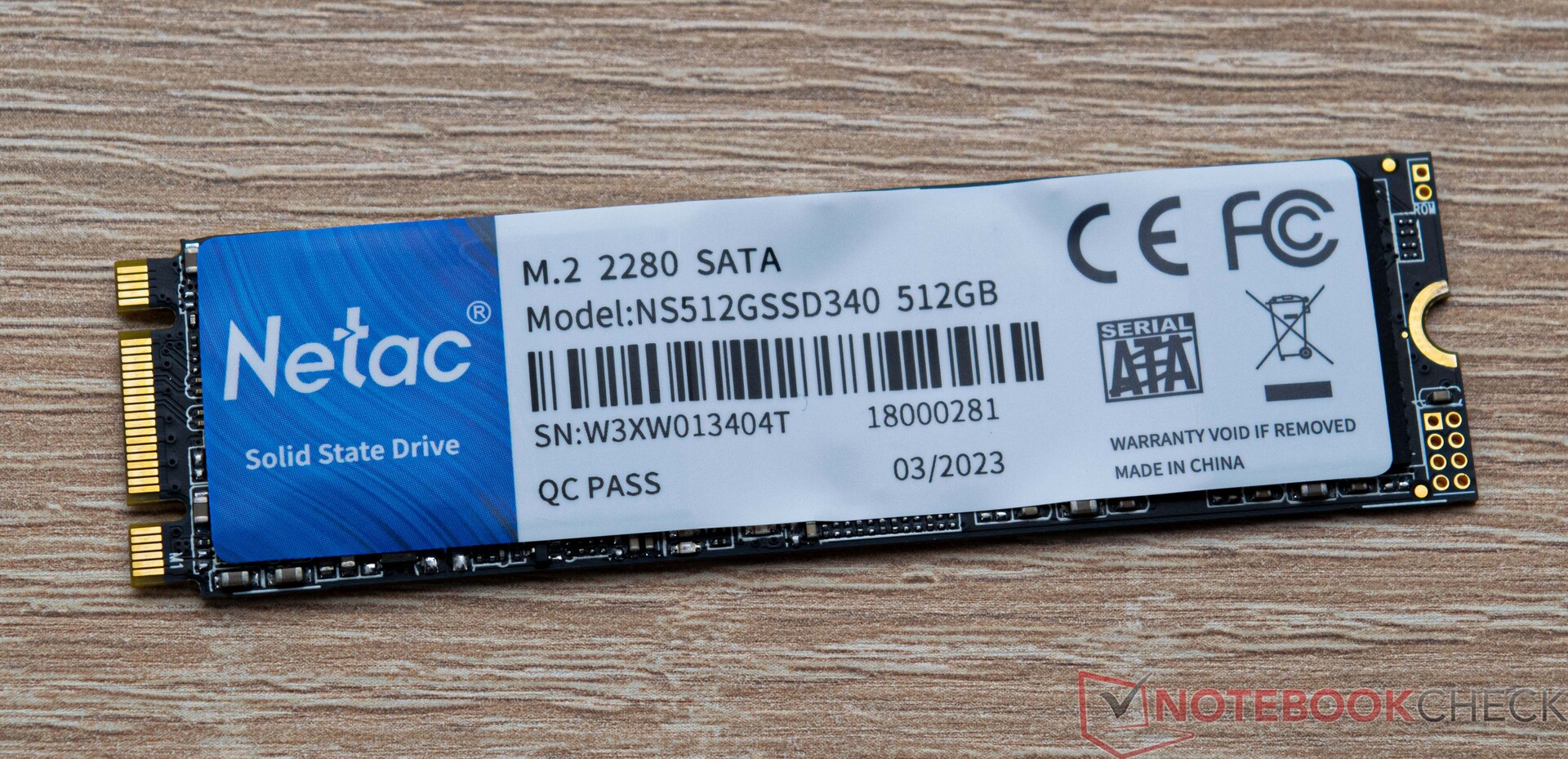

Netac NS512GSSD340, 512 GB

, M.2 SSD, 450 GB Boş

Ses kartı

Intel Tiger Lake PCH-H - cAVS (Audio, Voice, Speech)

Bağlantılar

4 USB 3.0, 1 USB 3.1 Gen2, 2 HDMI, 1 DisplayPort, 1 Kensington Lock, Ses çıkışları: 3.5 mm audio port

Network

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Boyut

yükseklik x genişlik x derinlik (mm): 76 x 184 x 150

İşletim sistemi

Microsoft Windows 11 Pro

Ağırlık

765 g, Güç kaynağı: 479 g

Fiyat

399 USD

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Karşılaştırmalı olarak olası rakipler

Rating	Date	Model	Weight	Height
77.8 %	09/2023	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	765 g	76 mm
83.7 %		Morefine M600, 6600U R5 6600U, Radeon 660M	768 g	40.6 mm
81.7 %		Minisforum Venus Series UM560 XT R5 5600H, Vega 7	652 g	48 mm
80.6 %		Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	536 g	48 mm
73.8 %		Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	678 g	75.5 mm
73.4 %		ACEMagician ACE-CK10-8259U i5-8259U, Iris Plus Graphics 655	449 g	50 mm
70.9 %		Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	468 g	50 mm
		Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm

Acemagic AD15 Ayrıntılı Olarak

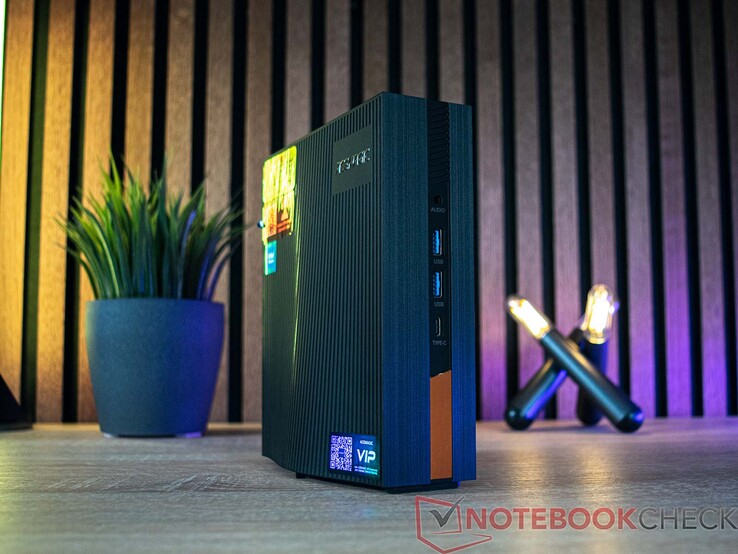

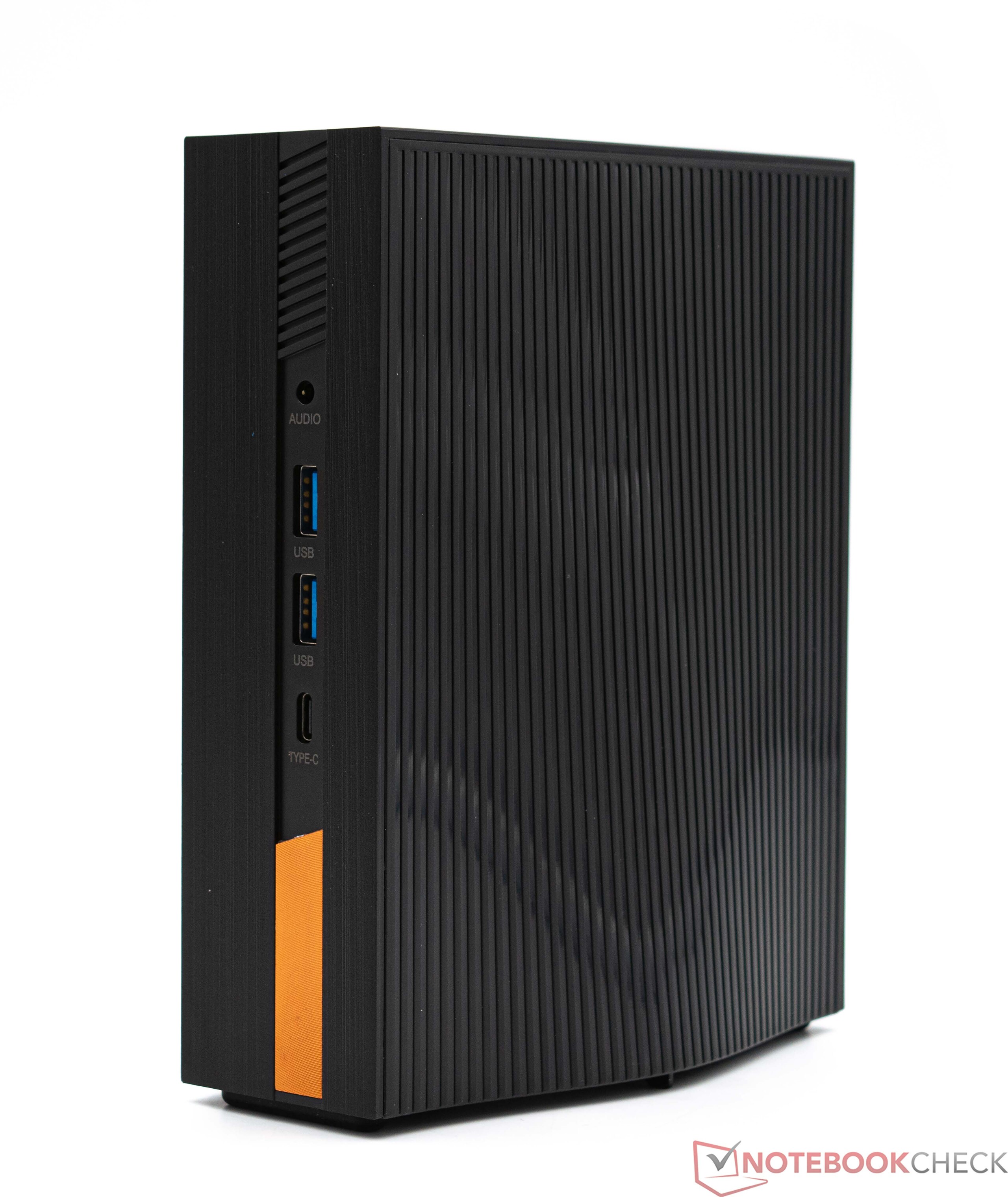

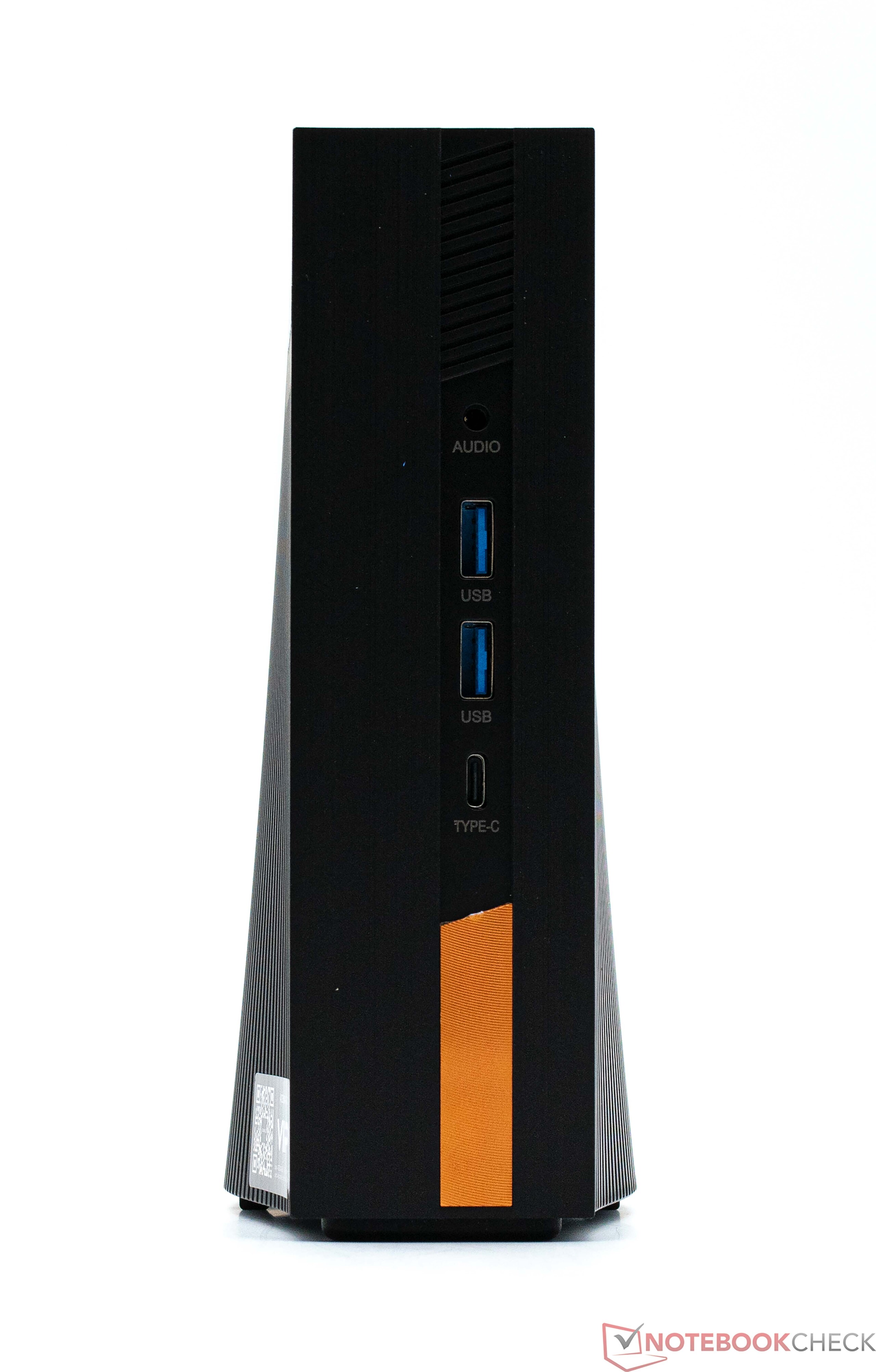

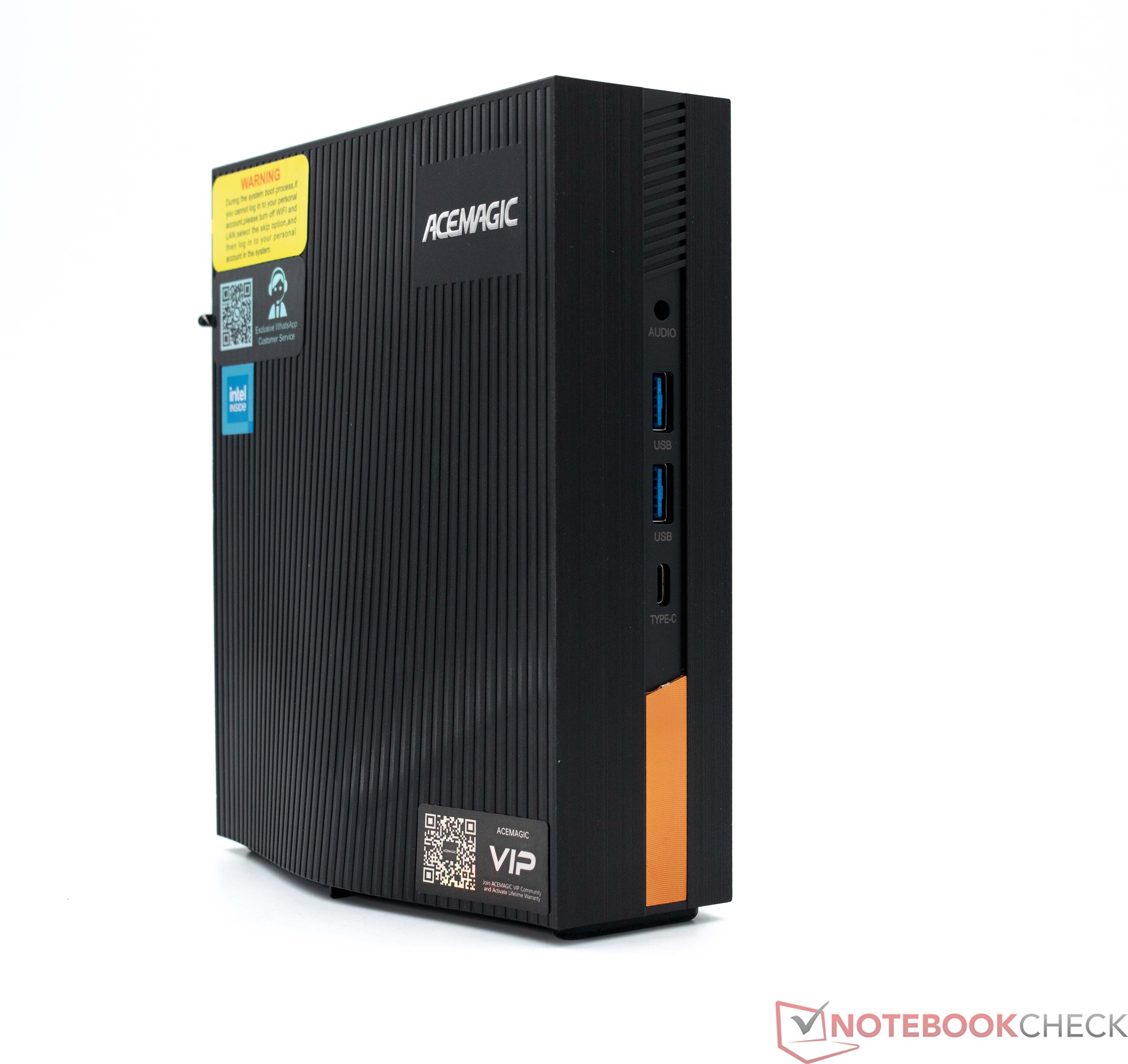

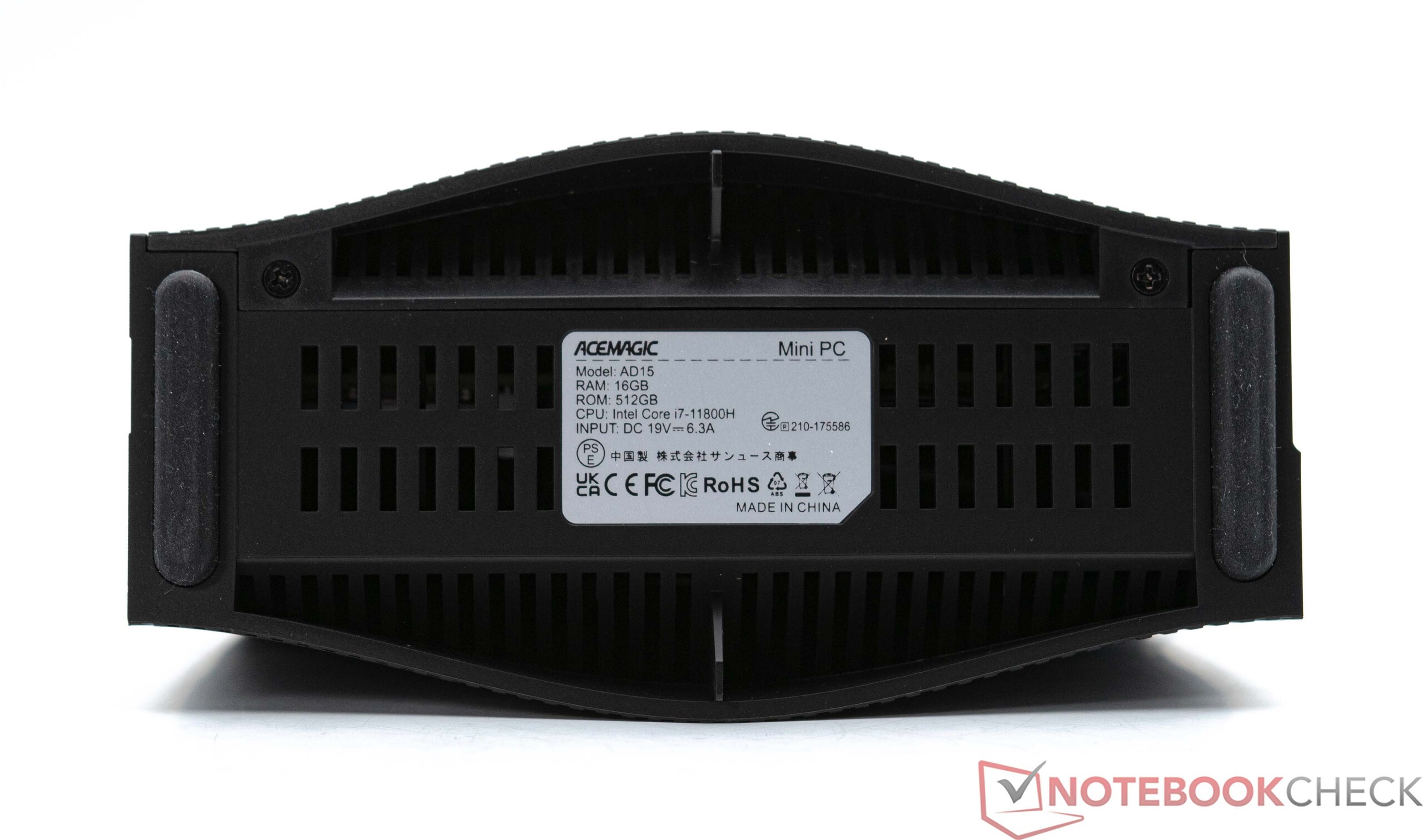

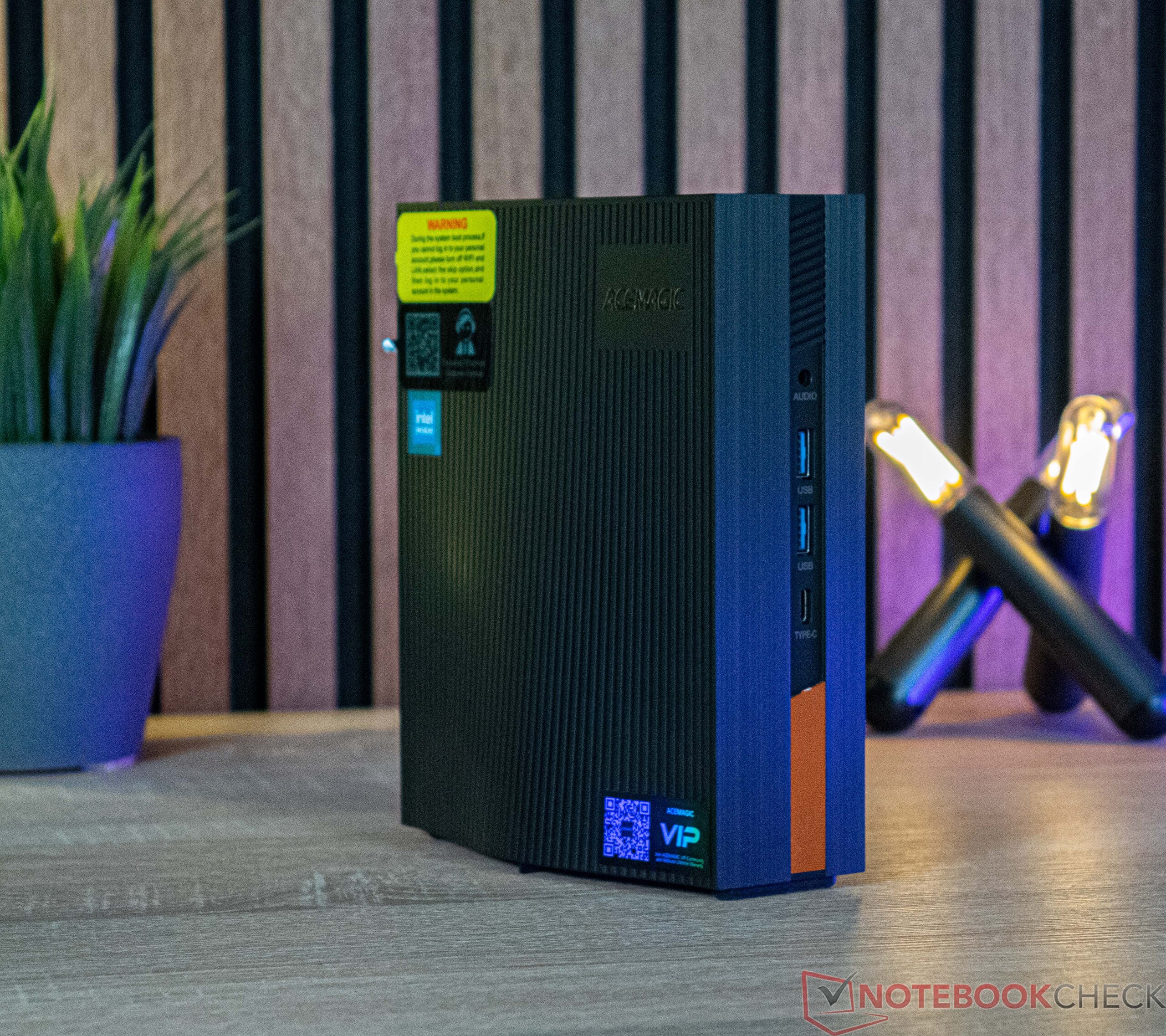

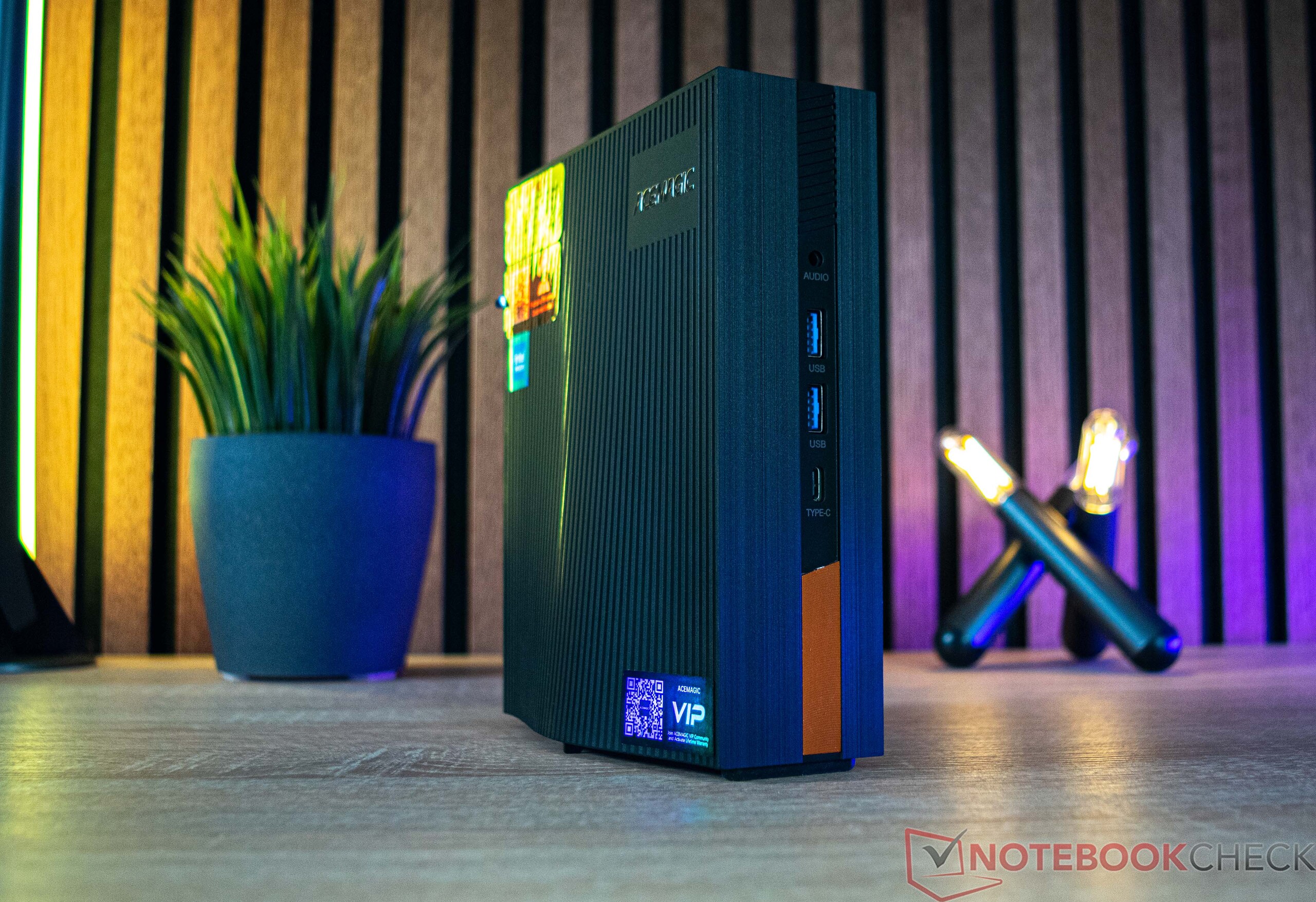

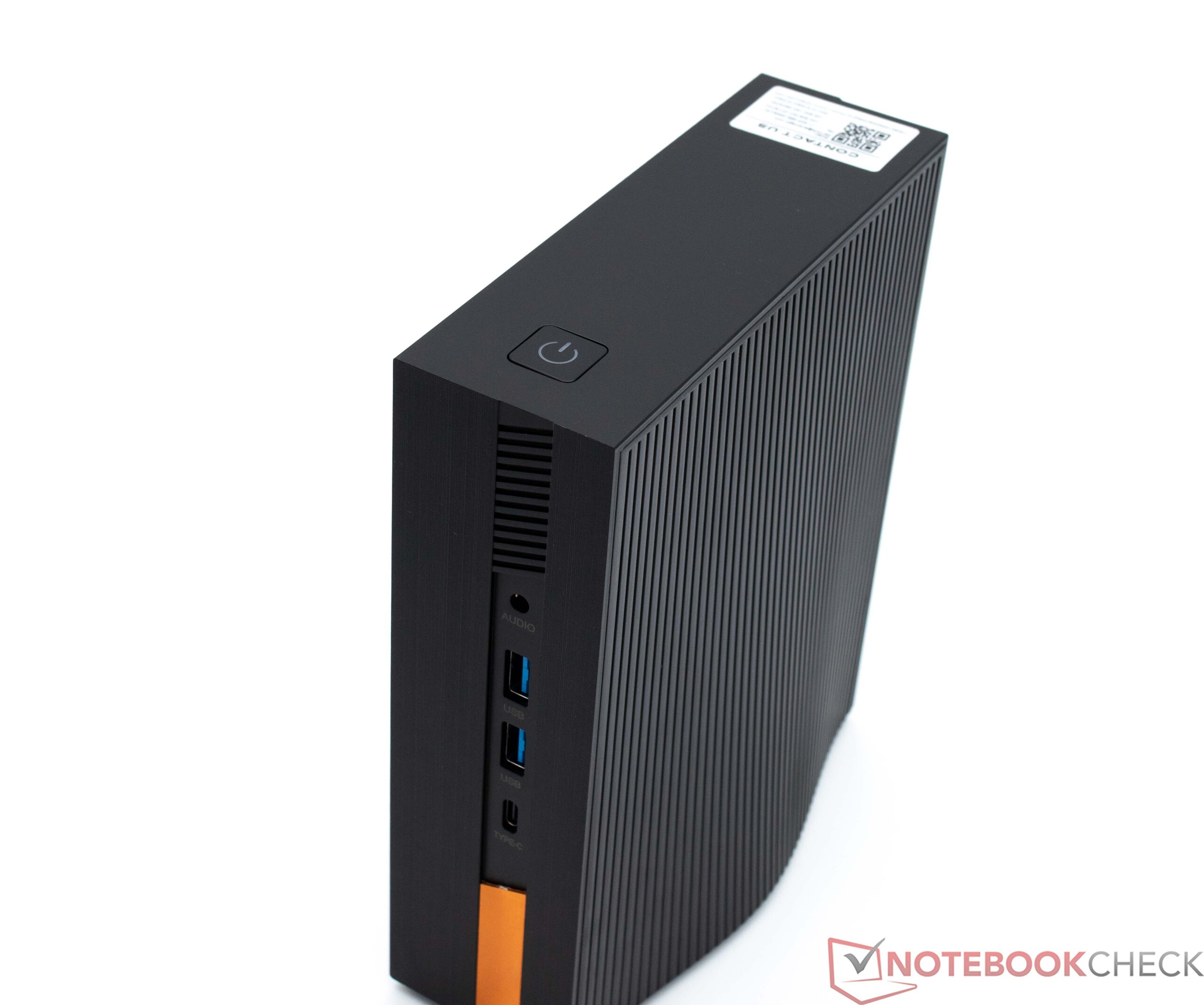

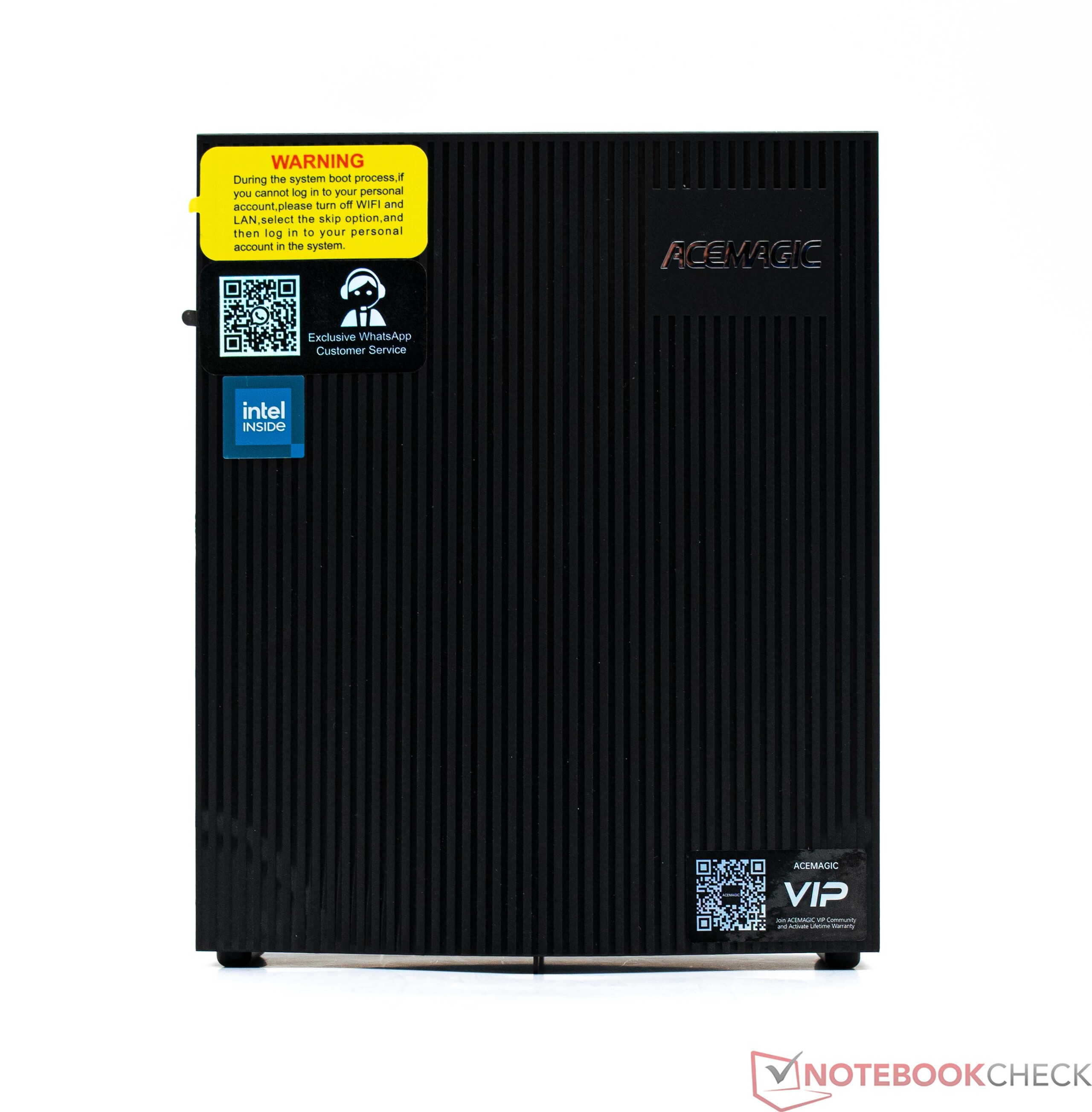

Kasa - Çok fazla plastik ve biraz metal

Acemagic AD15, çok fazla hile yapmadan idare eden basit bir cihazdır. Bilgisayar kasası göze çarpmıyor ve tamamen plastikten yapılmış. Blackview MP200 ile yakın zamanda burada çok daha iyi sonuç veren benzer bir cihazı test etmiş olsak da, cihazın haptikleri fiyatına karşılık geliyor. Bununla birlikte, işçilik hala iyi ve gözle görülür boşluklar yok.

Masadaki alan ihtiyacı açısından cihaz, rakiplerinden biraz daha büyük görünmesine neden olsa da dikey yapısından yararlanıyor. Blackview MP200 de dikey olarak yerleştirilebilir. Plastik yapısına rağmen Acemagic AD15 hala 765 gram (~1,7 lb) ağırlığında ve bu da test ünitemizi Morefine M600 cihazından sonra mevcut karşılaştırmamızdaki en ağır ikinci cihaz yapıyor.

Boyut ve ağırlık karşılaştırması

Acemagic AD15 Blackview MP200 Minipc Union Ace Magician TK11-A0 Morefine M600, 6600U ACEMagician ACE-CK10-8259U Minipc Union NiPoGi CK10 - 10810U Minisforum Venus Series UM560 XT Geekom Mini IT11, i7-11390H DIN A4 ❌

Ekipman - Günlük işler için yeterli ve uygun

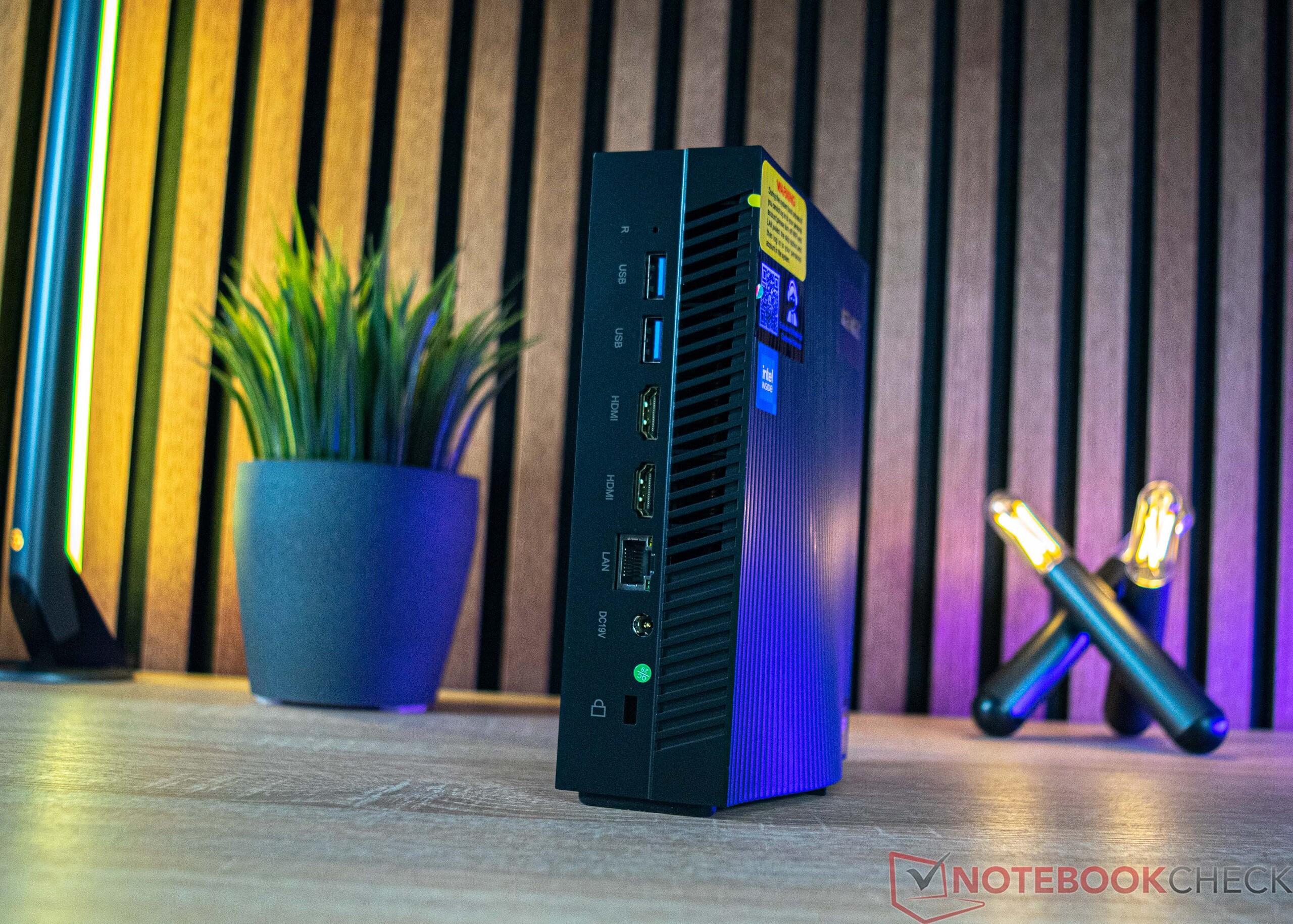

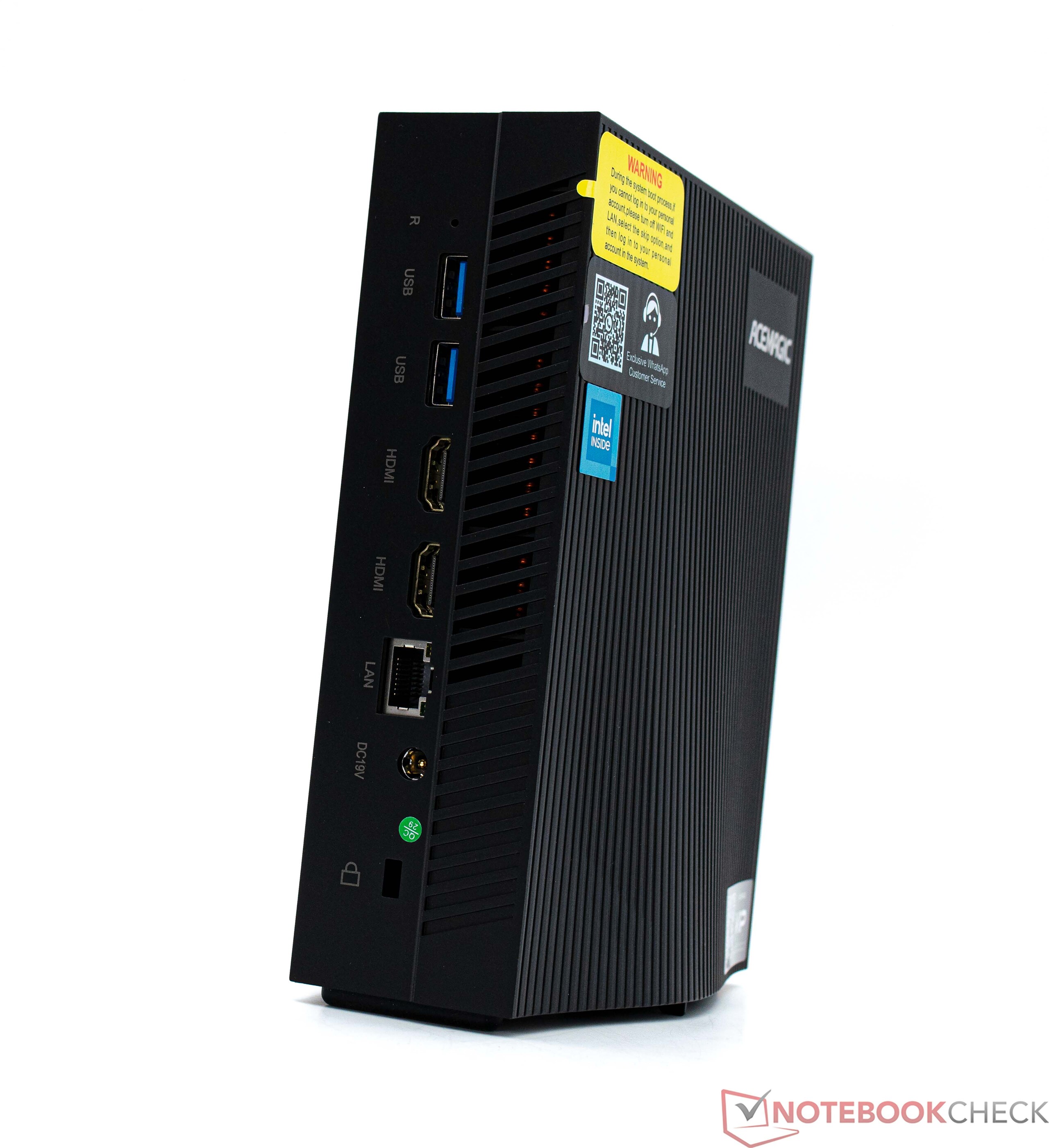

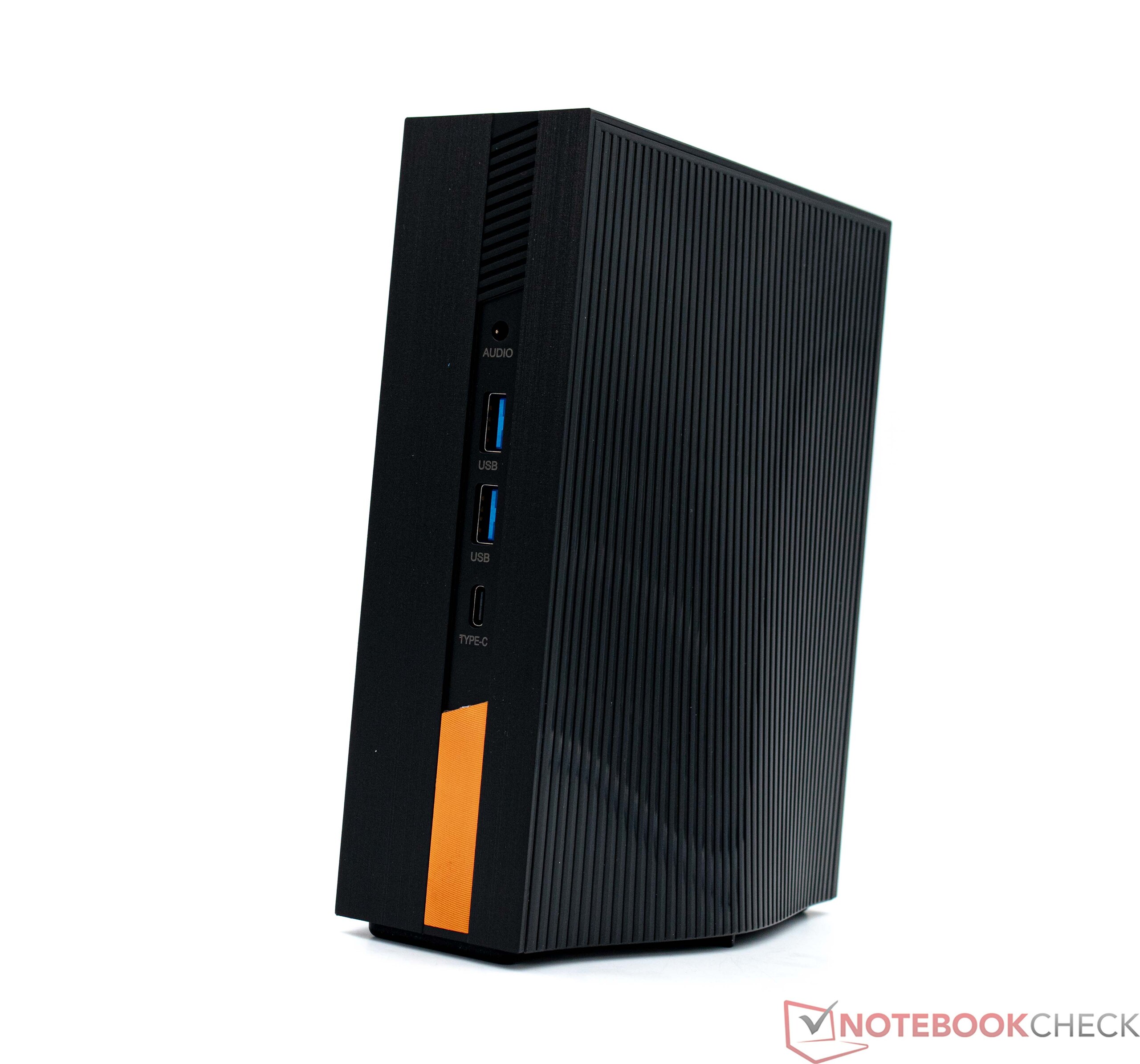

Acemagic AD15'in bağlantı donanımı alışılagelmiş standartlara uygun. Biri Type-C bağlantı noktası olarak görüntü çıkışını da destekleyen toplam beş USB bağlantısı sayıyoruz. Mevcut iki HDMI bağlantısıyla birlikte, bu aynı anda üç ekran bağlamanıza izin verecektir.

Acemagic AD15'in dış bağlantıları (kaynak: Acemagic)

İletişim

Burada kullanılan WLAN modülü Realtek'ten gelmektedir. En iyi durumda 5 GHz frekans bandında iletişim kurar ve 2,4 GHz aralığı ile de uyumludur. Testimizde olağanüstü sonuçlar görmesek de, bağlantı günlük kullanım için yeterlidir ve testimizdeki sabit kararlılığı kayda değerdir. Bu testte Asus ROG Rapture GT-AXE11000 yönlendiricimizi kullandık. Alternatif olarak, RJ45 bağlantı noktasını kullanarak kablolu bir bağlantı da oluşturabilirsiniz.

Networking
iperf3 receive AXE11000
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	958 (941^min - 967^max) MBit/s +33%
Blackview MP200 Intel Wi-Fi 6 AX201	953 (859^min - 970^max) MBit/s +32%
Morefine M600, 6600U MediaTek RZ608	948 (934^min - 957^max) MBit/s +31%
Average of class Mini PC (192.9 - 1796, n=88, last 2 years)	902 MBit/s +25%
Minisforum Venus Series UM560 XT MediaTek RZ608	890 (851^min - 908^max) MBit/s +23%
Average Realtek RTL8852BE (455 - 984, n=36)	833 MBit/s +16%
Acemagic AD15 Realtek RTL8852BE	721 (696^min - 743^max) MBit/s
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s -46%
ACEMagician ACE-CK10-8259U RealTek Semiconductor, Device ID: C821	349 (175^min - 353^max) MBit/s -52%
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	192.9 (95^min - 196^max) MBit/s -73%
iperf3 transmit AXE11000
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	845 (818^min - 879^max) MBit/s +16%
Average of class Mini PC (184.1 - 1776, n=88, last 2 years)	832 MBit/s +14%
Minisforum Venus Series UM560 XT MediaTek RZ608	829 (775^min - 889^max) MBit/s +14%
Blackview MP200 Intel Wi-Fi 6 AX201	825 (426^min - 867^max) MBit/s +13%
Average Realtek RTL8852BE (536 - 925, n=35)	786 MBit/s +8%
Morefine M600, 6600U MediaTek RZ608	784 (381^min - 874^max) MBit/s +7%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s +2%
Acemagic AD15 Realtek RTL8852BE	730 (707^min - 753^max) MBit/s
Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821	343 (170^min - 362^max) MBit/s -53%
ACEMagician ACE-CK10-8259U RealTek Semiconductor, Device ID: C821	272 (263^min - 279^max) MBit/s -63%

Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø733 (381-876)

Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø389 (322-478)

Acemagic AD15 Realtek RTL8852BE; iperf3 receive AXE11000; iperf 3.1.3: Ø720 (696-743)

Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821; iperf3 receive AXE11000; iperf 3.1.3: Ø189.3 (95-196)

Acemagic AD15 Realtek RTL8852BE; iperf3 transmit AXE11000; iperf 3.1.3: Ø730 (707-753)

Minipc Union NiPoGi CK10 - 10810U RealTek Semiconductor, Device ID: C821; iperf3 transmit AXE11000; iperf 3.1.3: Ø337 (170-362)

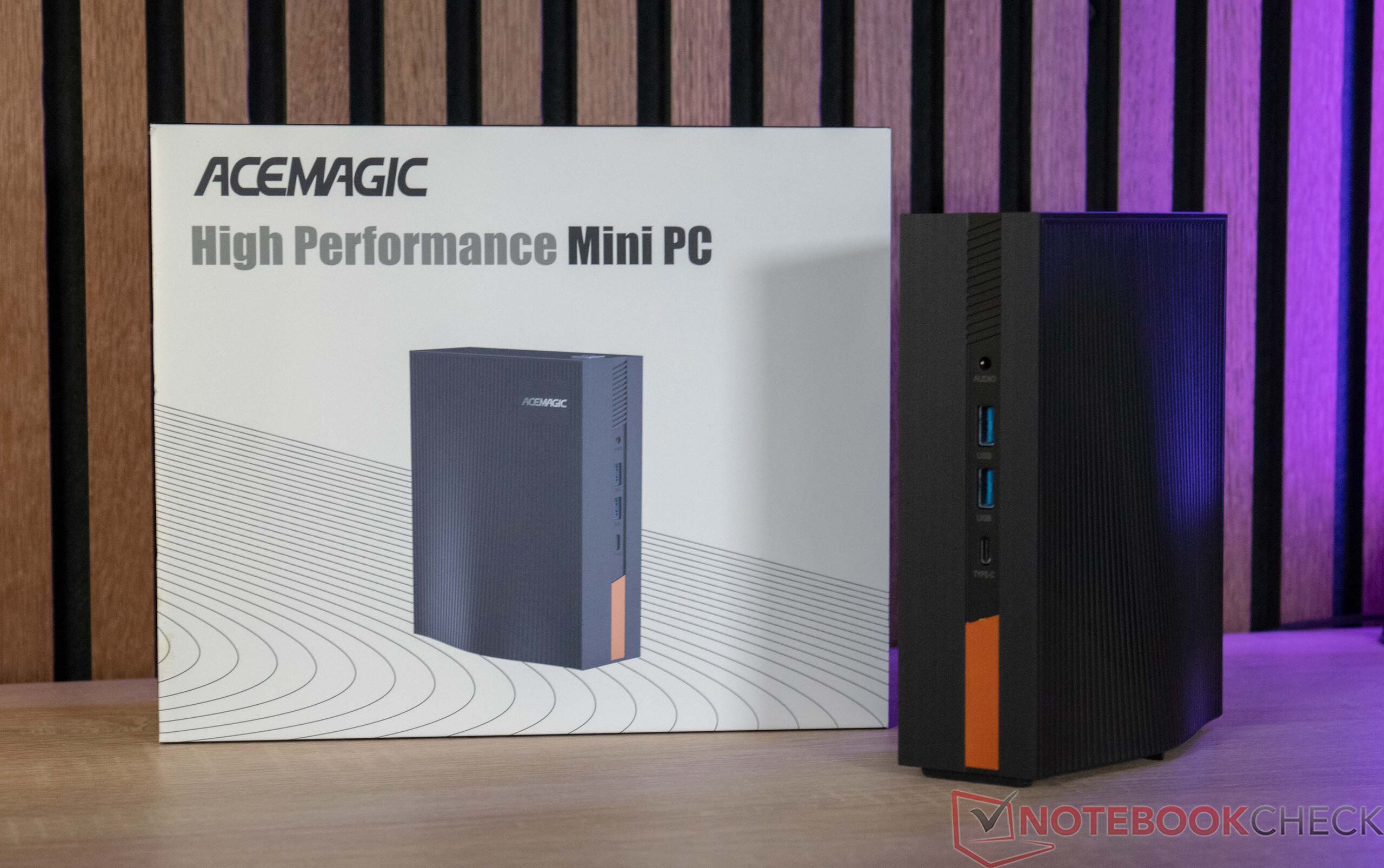

Aksesuarlar

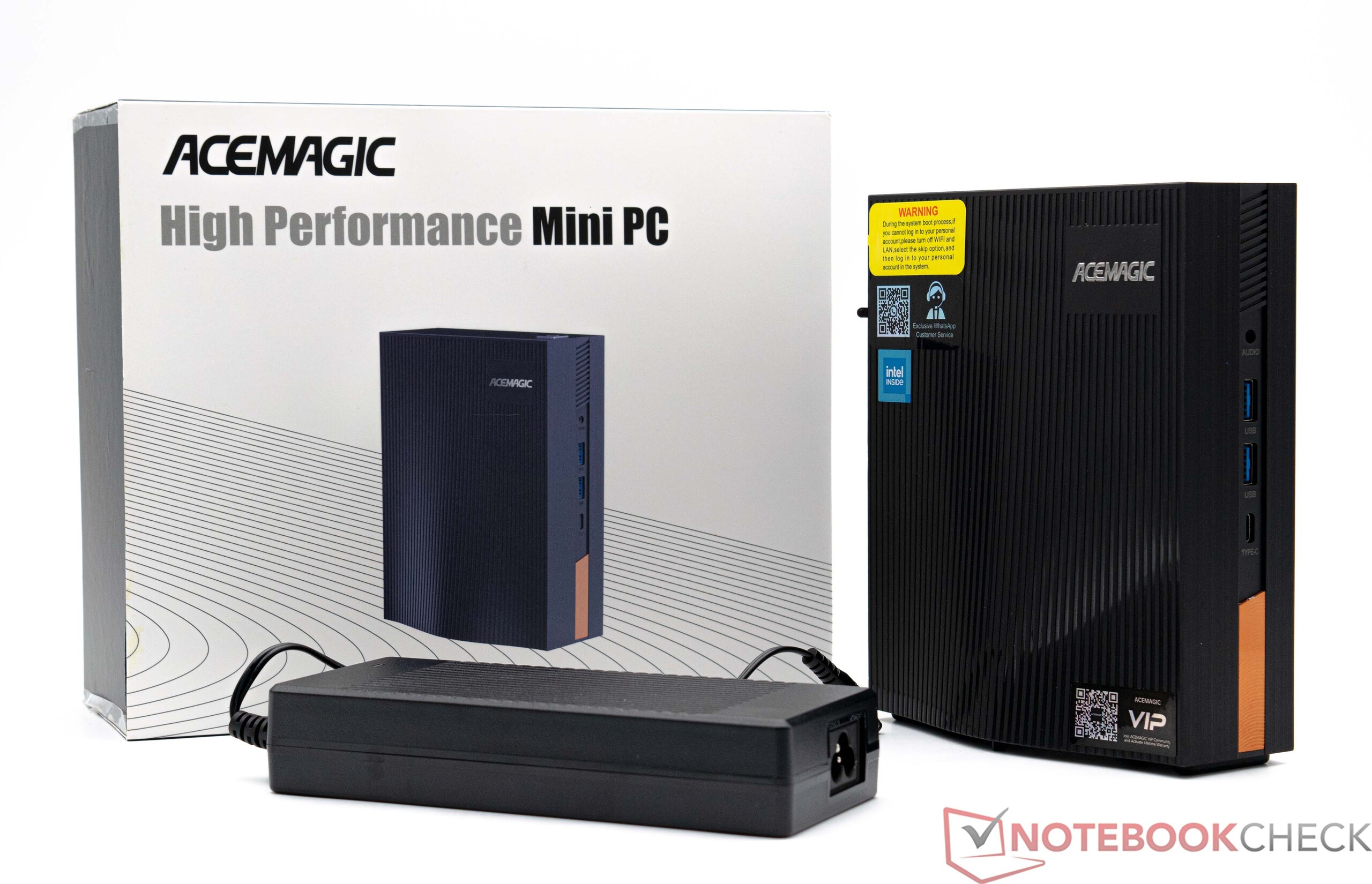

Kutu, 120 Watt'lık güç kaynağı gibi cihazı çalıştırmak için önemli olan her şeyi içeriyor. Acemagic AD15 ayrıca bir HDMI kablosu da içeriyor.

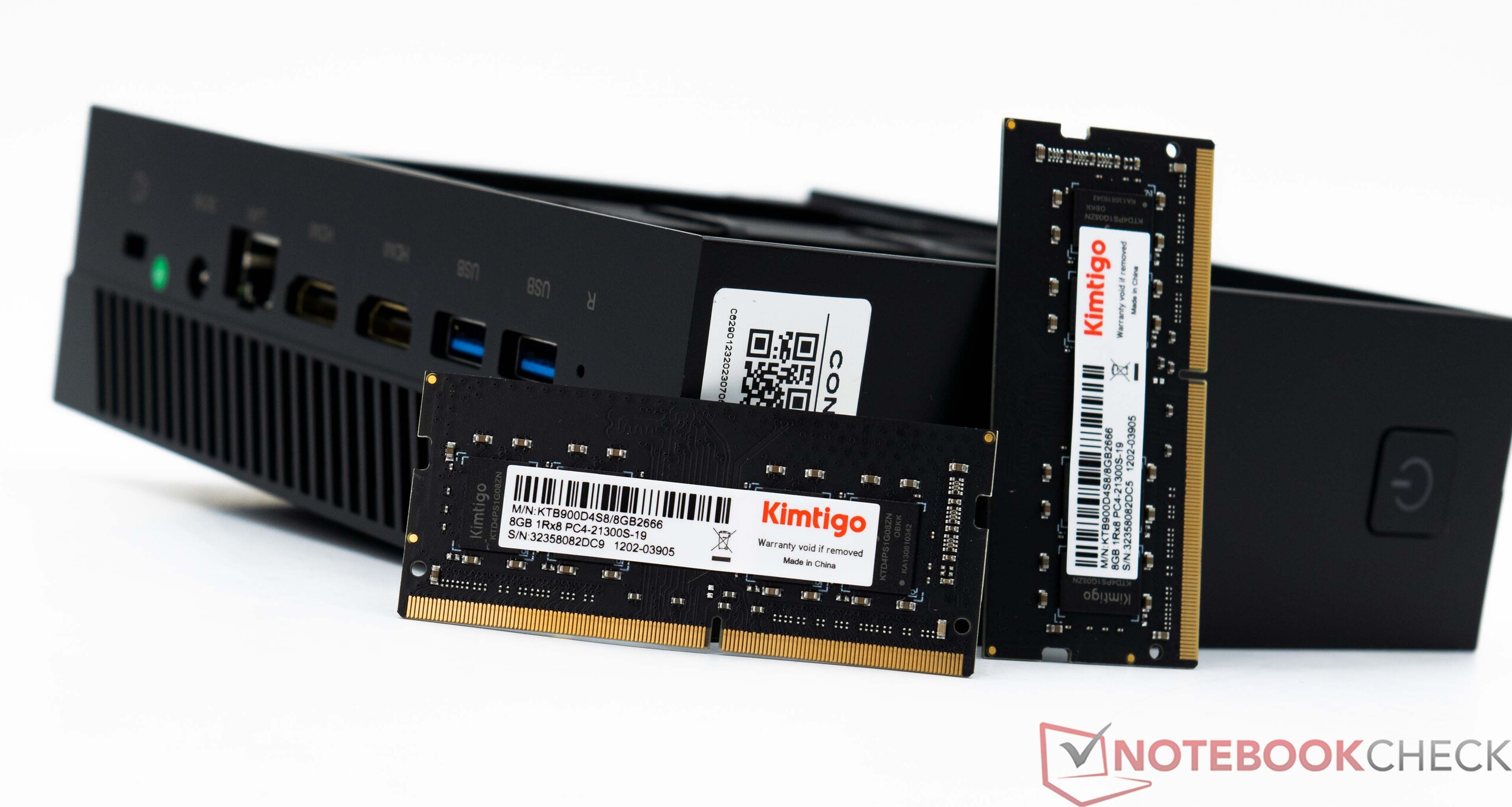

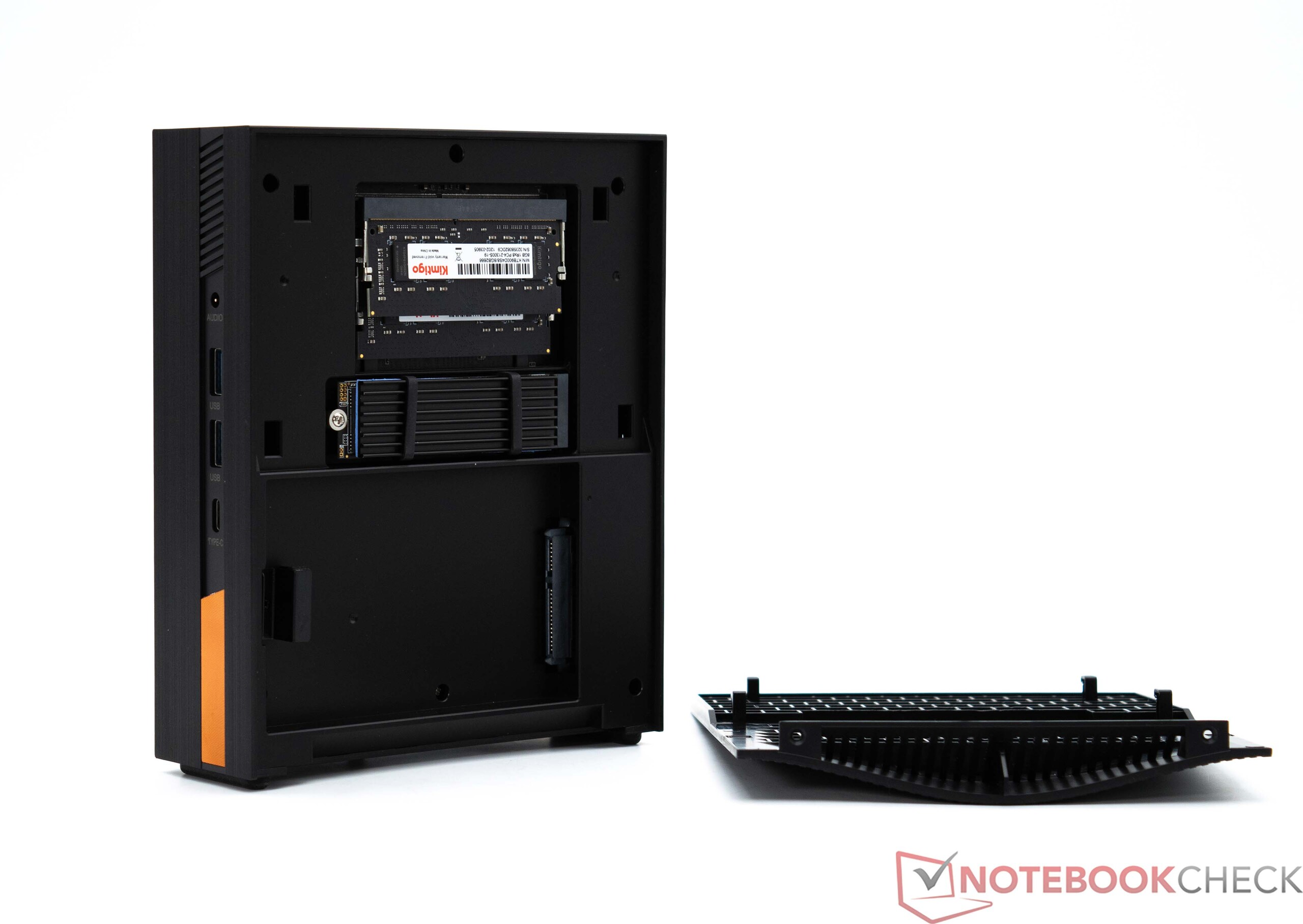

Bakım

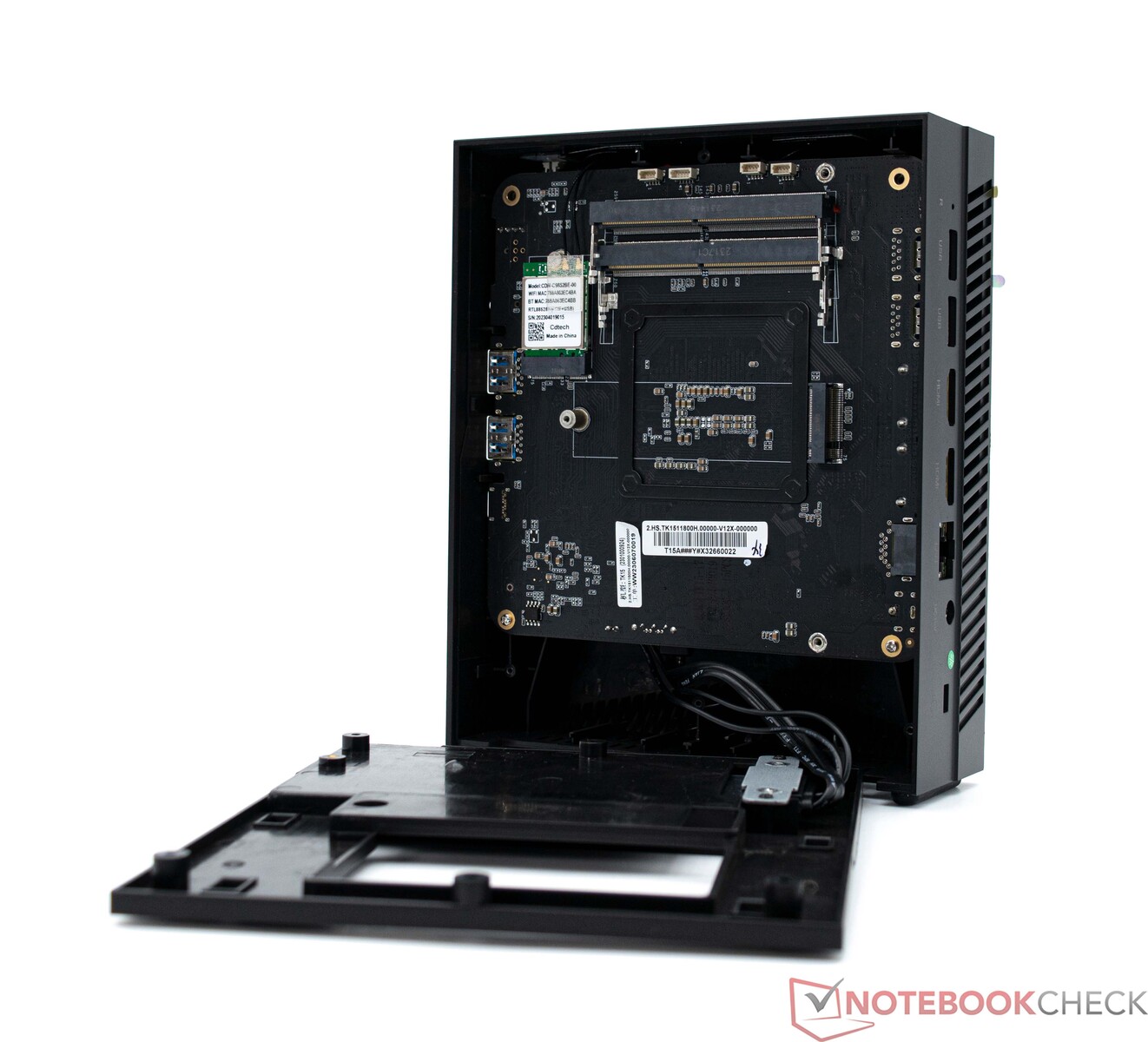

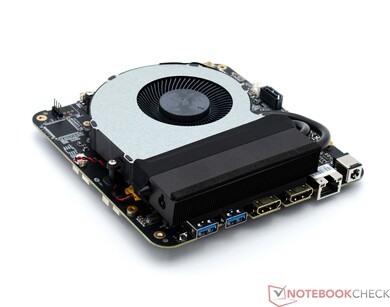

Uygun aletler kullanılarak Acemagic AD15 sorunsuz bir şekilde açılabilir. Önden bakıldığında, sağ taraf altta bazı vidalarla sabitlenmiştir. Bunları çıkardıktan sonra, yan kapak basitçe aşağıya doğru kaydırılarak çıkarılabilir. Ancak bu size henüz çok fazla seçenek sunmuyor ve WLAN modülüne erişmek veya fanı temizlemek istiyorsanız cihazı daha fazla açmanız gerekiyor. Ancak biraz beceri kullanırsanız bu bile çok fazla sorun olmayacaktır.

Performans - Intel Core i5-11800H 8 çekirdek ve 16 iş parçacığı sunar

BuIntel Core i7-11800HTiger Lake serisinden geliyor ve günlük görevler için hala yeterli bir performans sağlıyor. Buna ek olarak, 8 çekirdekli işlemci bazı zorlu uygulamaların üstesinden kolaylıkla gelebilir. Temel olarakIntel Core i5-12450HaD15 ayrıca daha güncel bir SoC ile de mevcuttur.

Test Koşulları

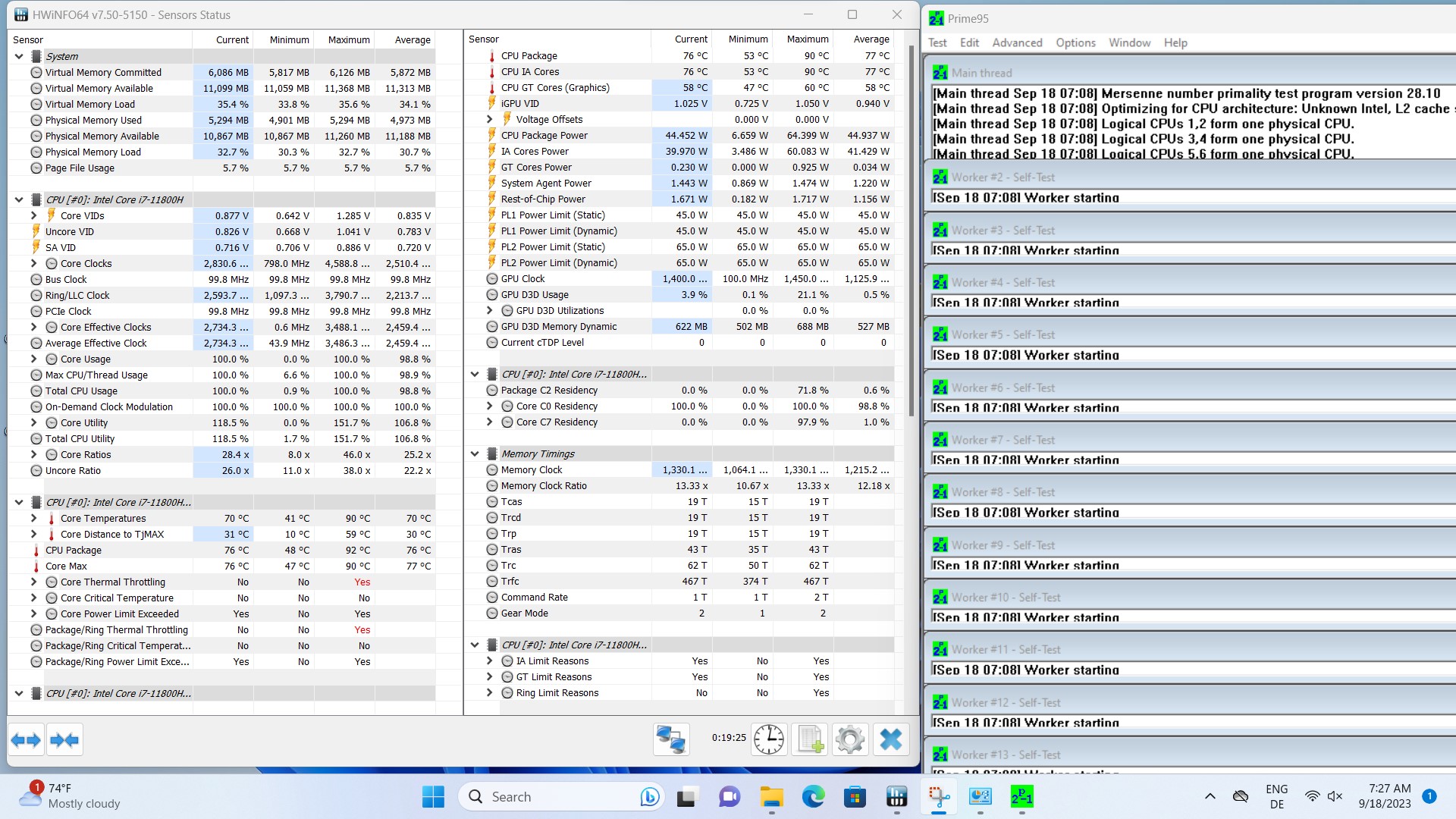

Tüm performans testlerini "En Yüksek Performans" güç profilini kullanarak gerçekleştirdik. BIOS'taki varsayılan ayarları bırakarak SoC'nin performansını değiştirmedik. Test kriterlerimize göre, güç tüketimi ve gürültü seviyesi ölçümlerimizde yalnızca diğer güç profili ayarlarını kullandık.

İşlemci

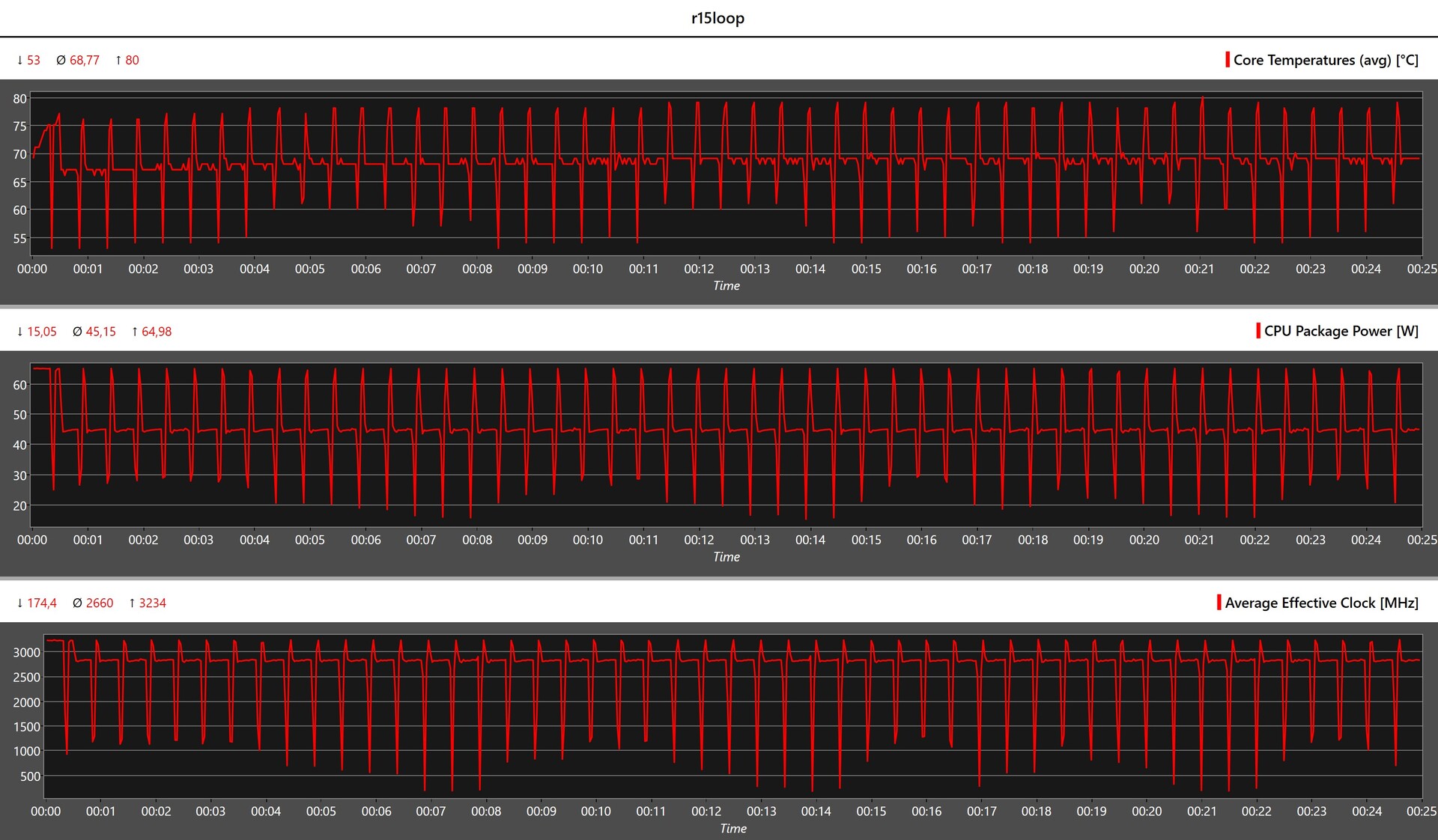

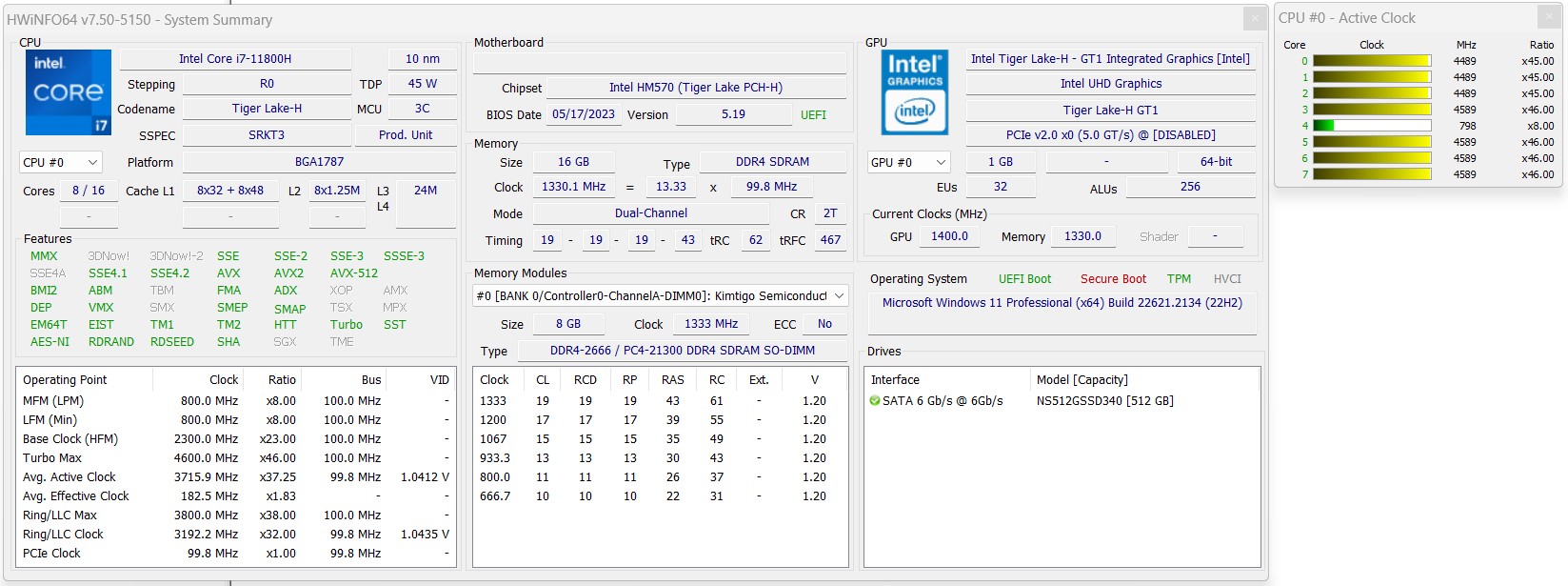

Daha önce de belirtildiği gibi Acemagic, AD15'te Intel Core i7-11800H kullanıyor. SoC, iyi tek çekirdek performansına ek olarak, 8 çekirdeği ve 16 iş parçacığı ile mükemmel bir çoklu iş parçacığı performansı da sunuyor. Karşılaştırmamızda, test ünitemizin çok az bir farkla kazanabildiği birincilik için sıkı bir yarış görüyoruz. Güç tüketimi açısından, tam güç limitlerinin mükemmel bir şekilde kullanıldığını tespit ediyoruz. SoC kısa süreliğine 65 watt kullanabiliyor ve buna da her zaman ulaşılıyor. Daha uzun bir süre boyunca, 45 watt da kolayca korunuyor ve bu da iyi bir soğutma ünitesine işaret ediyor.

AIDA64 testlerinde, test ünitesinin Minisforum Venus Series UM560 XT 'yi 6 puan farkla geçerek yine ilk sırada yer aldığını görüyoruz. Tüm CPU testlerinde Acemagic AD15, SoC'nin çok zayıf bir soğutma ünitesi tarafından sınırlandırılmadan performansını tam olarak kullanabildiği mükemmel bir performans gelişimi gösteriyor. Tüm mini PC'ler sınırlı boyut yapılarıyla bunu başaramaz ve bu da bazı kısıtlamalar yaratır.

Ek karşılaştırmaları ve kıyaslamaları şurada bulabilirsiniz CPU karşılaştırma tablosu.

Performance Rating - Percent
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	44.5 pt
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	43.4 pt
Morefine M600, 6600U AMD Ryzen 5 6600U	43 pt
Blackview MP200 Intel Core i5-11400H	41.1 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	40.3 pt
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	35.4 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	33 pt
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	31.8 pt

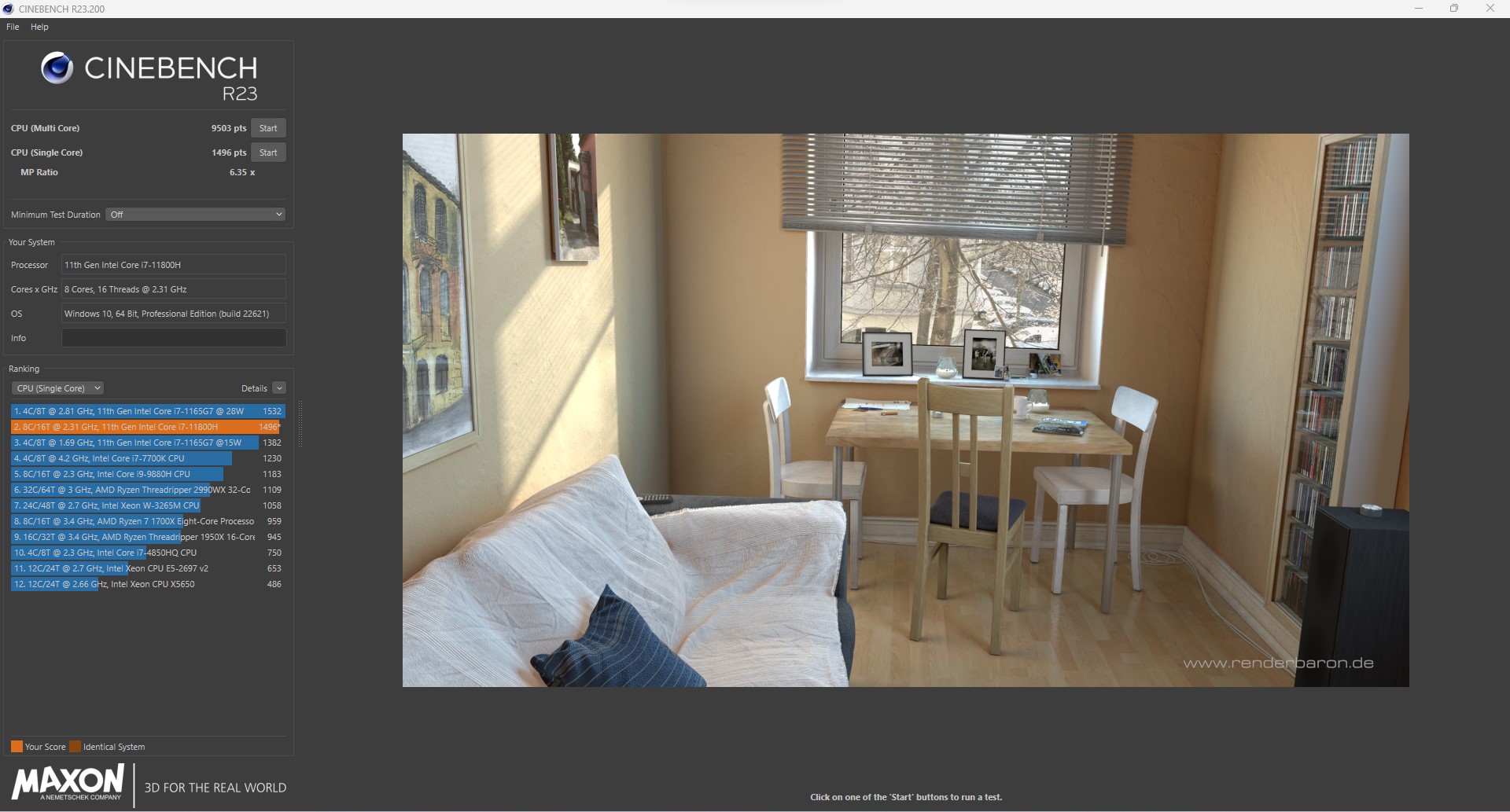

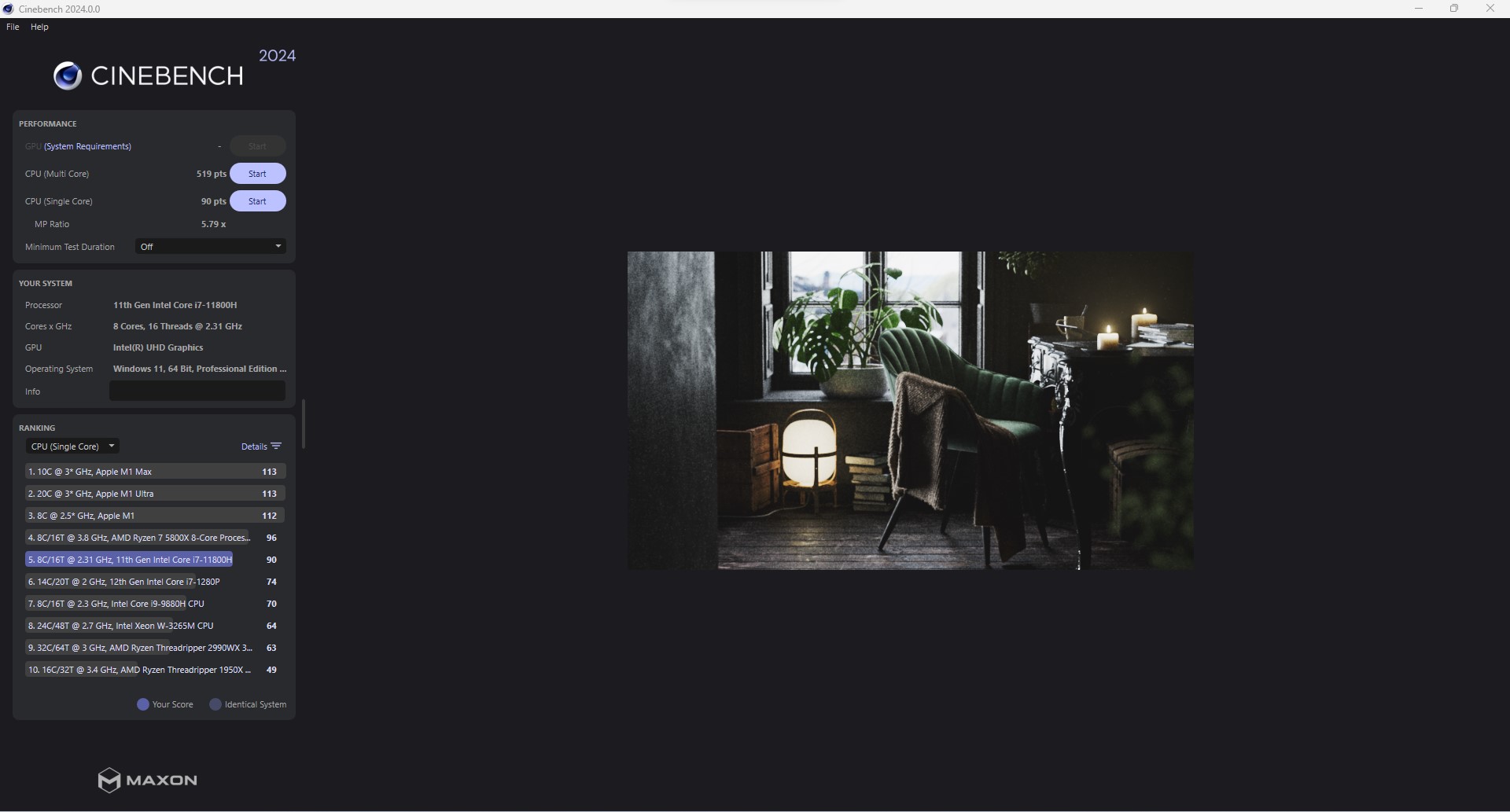

Cinebench R23
Multi Core
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	9564 Points +1%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	9503 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	8491 Points -11%
Blackview MP200 Intel Core i5-11400H	8451 Points -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5917 Points -38%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	4025 Points -58%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3867 Points -59%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	3721 Points -61%
Single Core
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1602 Points +7%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	1496 Points
Blackview MP200 Intel Core i5-11400H	1462 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U	1420 Points -5%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1375 Points -8%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	1346 Points -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1082 Points -28%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	959 Points -36%

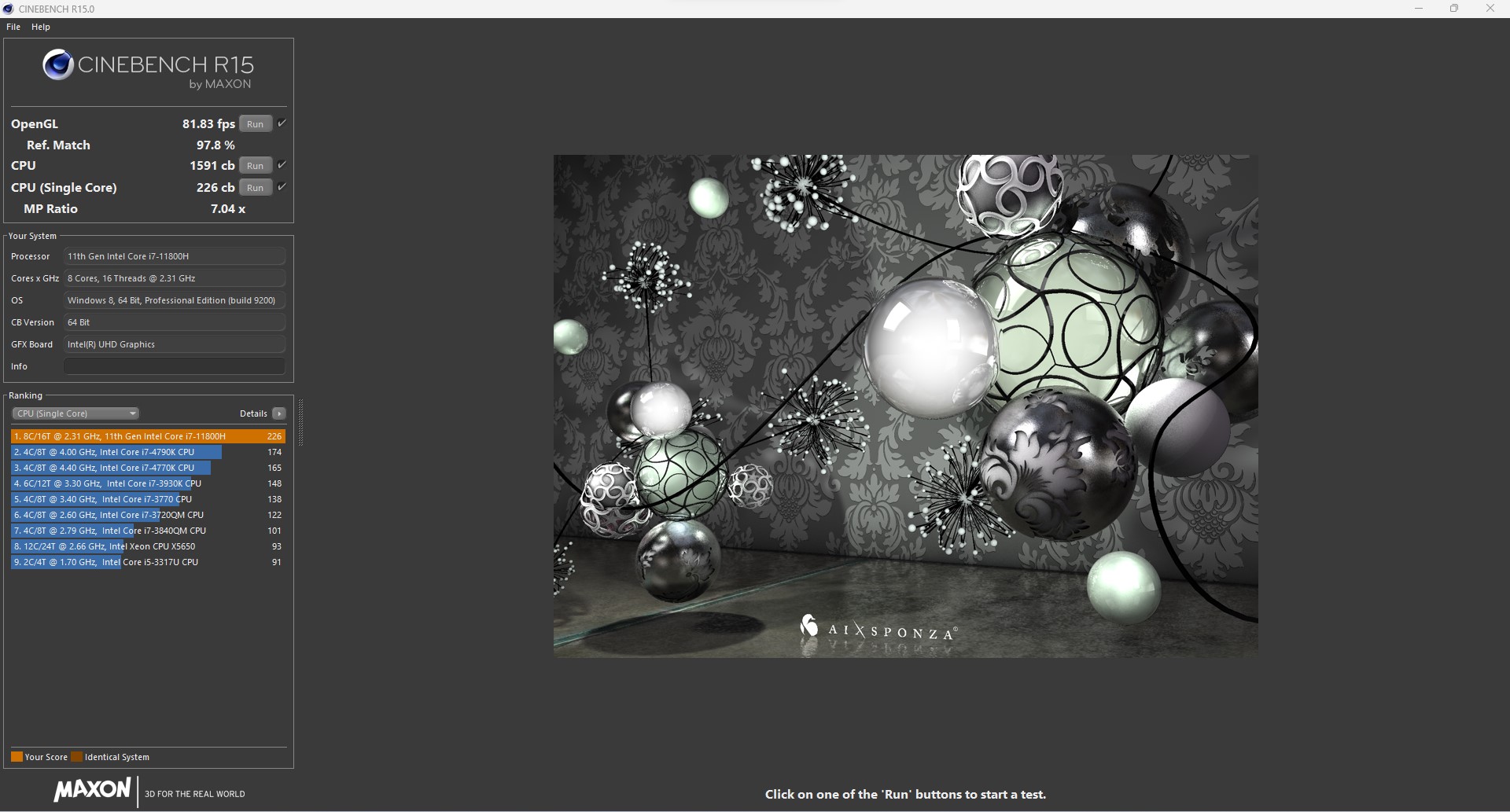

Cinebench R15
CPU Single 64Bit
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	232 Points +3%
Morefine M600, 6600U AMD Ryzen 5 6600U	227 Points 0%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	226 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	225 Points 0%
Blackview MP200 Intel Core i5-11400H	218 Points -4%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	197 Points -13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	170 Points -25%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	146 Points -35%
CPU Multi 64Bit
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1596 Points 0%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	1591 Points
Blackview MP200 Intel Core i5-11400H	1378 Points -13%
Morefine M600, 6600U AMD Ryzen 5 6600U	1361 Points -14%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	953 Points -40%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	634 Points -60%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	623 Points -61%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	560 Points -65%

Cinebench R20
CPU (Single Core)
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	620 Points +8%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	574 Points
Blackview MP200 Intel Core i5-11400H	560 Points -2%
Morefine M600, 6600U AMD Ryzen 5 6600U	558 Points -3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	533 Points -7%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	517 Points -10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	415 Points -28%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	372 Points -35%
CPU (Multi Core)
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	3779 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	3768 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U	3419 Points -10%
Blackview MP200 Intel Core i5-11400H	3283 Points -13%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	2284 Points -40%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	1567 Points -59%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1498 Points -60%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	1440 Points -62%

Cinebench R11.5
CPU Single 64Bit
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	2.78 Points +6%
Morefine M600, 6600U AMD Ryzen 5 6600U	2.73 Points +4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	2.63 Points 0%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	2.62 Points
Blackview MP200 Intel Core i5-11400H	2.55 Points -3%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	2.31 Points -12%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1.95 Points -26%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	1.67 Points -36%
CPU Multi 64Bit
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	18.68 Points +5%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	17.87 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	17.15 Points -4%
Blackview MP200 Intel Core i5-11400H	15.97 Points -11%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	10.68 Points -40%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	7.07 Points -60%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	6.98 Points -61%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	6.37 Points -64%

Cinebench R10
Rendering Single CPUs 64Bit
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	12516 Points +6%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	11860 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	11685 Points -1%
Blackview MP200 Intel Core i5-11400H	11530 Points -3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	11201 Points -6%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	10395 Points -12%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	8591 Points -28%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	7397 Points -38%
Rendering Multiple CPUs 64Bit
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	59479 Points +2%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	58173 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	54792 Points -6%
Blackview MP200 Intel Core i5-11400H	54687 Points -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	39426 Points -32%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	27377 Points -53%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	24499 Points -58%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	23491 Points -60%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	750 Seconds * -135%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	694 Seconds * -118%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	688 Seconds * -116%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	513 Seconds * -61%
Morefine M600, 6600U AMD Ryzen 5 6600U	415 Seconds * -30%
Blackview MP200 Intel Core i5-11400H	373 Seconds * -17%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	319 Seconds * -0%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	319 Seconds *

wPrime 2.10
32m
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	7.479 s * -88%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	6.952 s * -75%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	6.799 s * -71%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	6.518 s * -64%
Morefine M600, 6600U AMD Ryzen 5 6600U	4.688 s * -18%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	4.552 s * -15%
Blackview MP200 Intel Core i5-11400H	4.498 s * -13%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	3.969 s *
1024m
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	286.835 s * -137%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	267.369 s * -121%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	248.619 s * -105%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	196.909 s * -63%
Morefine M600, 6600U AMD Ryzen 5 6600U	146.553 s * -21%
Blackview MP200 Intel Core i5-11400H	140.674 s * -16%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	129.204 s * -7%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	121.132 s *

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	251.21 fps +4%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	242 (239^min - 245^max) fps
Blackview MP200 Intel Core i5-11400H	226.5 (210^min - 228^max) fps -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	214.5 (213^min - 216^max) fps -11%
Morefine M600, 6600U AMD Ryzen 5 6600U	212 (206^min - 224^max) fps -12%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	167.95 (167.5^min - 172.9^max) fps -31%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	165.55 (163.6^min - 204^max) fps -32%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	141.6 (140.9^min - 163.1^max) fps -41%
Pass 2
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	95.18 fps +10%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	86.25 (83.2^min - 94.6^max) fps
Blackview MP200 Intel Core i5-11400H	77.85 (69.8^min - 82.6^max) fps -10%
Morefine M600, 6600U AMD Ryzen 5 6600U	71.45 (70.2^min - 76.6^max) fps -17%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	55.2 (54.6^min - 55.9^max) fps -36%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	40.5 (39.6^min - 43.1^max) fps -53%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	39.15 (39.1^min - 42.7^max) fps -55%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	36.7 (36.7^min - 37.6^max) fps -57%

WinRAR - Result
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	8569 KB/s
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	7497 KB/s -13%
Morefine M600, 6600U AMD Ryzen 5 6600U	6937 KB/s -19%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	6144 KB/s -28%
Blackview MP200 Intel Core i5-11400H	5477 KB/s -36%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	5348 KB/s -38%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	4747 KB/s -45%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	4185 KB/s -51%

TrueCrypt
AES Mean 100MB
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	9.7 GB/s
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	9.4 GB/s -3%
Morefine M600, 6600U AMD Ryzen 5 6600U	9.3 GB/s -4%
Blackview MP200 Intel Core i5-11400H	8.4 GB/s -13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	5.9 GB/s -39%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5.4 GB/s -44%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	5.3 GB/s -45%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	4.1 GB/s -58%
Twofish Mean 100MB
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	1.5 GB/s
Morefine M600, 6600U AMD Ryzen 5 6600U	1.3 GB/s -13%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1.3 GB/s -13%
Blackview MP200 Intel Core i5-11400H	1.3 GB/s -13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1 GB/s -33%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	0.838 GB/s -44%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	0.755 GB/s -50%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	0.753 GB/s -50%
Serpent Mean 100MB
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	1 GB/s
Morefine M600, 6600U AMD Ryzen 5 6600U	0.857 GB/s -14%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	0.857 GB/s -14%
Blackview MP200 Intel Core i5-11400H	0.815 GB/s -18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	0.566 GB/s -43%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	0.509 GB/s -49%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	0.454 GB/s -55%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	0.448 GB/s -55%

Geekbench 5.5
Multi-Core
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	7976 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	7658 Points -4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	7253 Points -9%
Blackview MP200 Intel Core i5-11400H	6006 Points -25%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5091 Points -36%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	4898 Points -39%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3934 Points -51%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	3839 Points -52%
Single-Core
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1669 Points +4%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	1603 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	1504 Points -6%
Blackview MP200 Intel Core i5-11400H	1465 Points -9%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1443 Points -10%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	1391 Points -13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1219 Points -24%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	948 Points -41%

Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6600U AMD Ryzen 5 6600U	10249 Points +30%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	7879 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	7128 Points -10%
Blackview MP200 Intel Core i5-11400H	5961 Points -24%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5025 Points -36%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	4841 Points -39%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3924 Points -50%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	3811 Points -52%
5.0 Single-Core
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1655 Points +5%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	1570 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	1557 Points -1%
Blackview MP200 Intel Core i5-11400H	1461 Points -7%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1393 Points -11%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	1385 Points -12%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1220 Points -22%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	944 Points -40%

Geekbench 4.4
64 Bit Single-Core Score
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	7146 Points +6%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	6747 Points
Morefine M600, 6600U AMD Ryzen 5 6600U	6698 Points -1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	6117 Points -9%
Blackview MP200 Intel Core i5-11400H	6110 Points -9%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	5911 Points -12%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	4762 Points -29%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	4211 Points -38%
64 Bit Multi-Core Score
Morefine M600, 6600U AMD Ryzen 5 6600U	39852 Points +24%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	32181 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	28997 Points -10%
Blackview MP200 Intel Core i5-11400H	24947 Points -22%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	20385 Points -37%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	19324 Points -40%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	19288 Points -40%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	14984 Points -53%

3DMark 11 - 1280x720 Performance Physics
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	14645 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	14496 Points -1%
Morefine M600, 6600U AMD Ryzen 5 6600U	11630 Points -21%
Blackview MP200 Intel Core i5-11400H	10999 Points -25%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	10536 Points -28%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	8666 Points -41%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	7792 Points -47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	6537 Points -55%

7-Zip 18.03
7z b 4
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	46562 MIPS +8%
Morefine M600, 6600U AMD Ryzen 5 6600U	44320 MIPS +3%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	43146 MIPS
Blackview MP200 Intel Core i5-11400H	34660 MIPS -20%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	25876 MIPS -40%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	20163 MIPS -53%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	18729 MIPS -57%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	17636 MIPS -59%
7z b 4 -mmt1
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5895 MIPS +3%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	5732 MIPS
Morefine M600, 6600U AMD Ryzen 5 6600U	5486 MIPS -4%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	5369 MIPS -6%
Blackview MP200 Intel Core i5-11400H	5343 MIPS -7%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	4788 MIPS -16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	4638 MIPS -19%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	3753 MIPS -35%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	12.4 fps +3%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	12 fps
Morefine M600, 6600U AMD Ryzen 5 6600U	11.7 fps -2%
Blackview MP200 Intel Core i5-11400H	10.2 fps -15%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	7.61 fps -37%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	5.49 fps -54%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	5.26 fps -56%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	5.2 fps -57%

R Benchmark 2.5 - Overall mean
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	0.818 sec * -46%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	0.7 sec * -25%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	0.639 sec * -14%
Blackview MP200 Intel Core i5-11400H	0.581 sec * -4%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	0.559 sec *
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	0.543 sec * +3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	0.526 sec * +6%
Morefine M600, 6600U AMD Ryzen 5 6600U	0.511 sec * +9%

LibreOffice - 20 Documents To PDF
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	68.2 s * -47%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	62.7 s * -35%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	56.7 s * -22%
Morefine M600, 6600U AMD Ryzen 5 6600U	53 s * -14%
Blackview MP200 Intel Core i5-11400H	53 s * -14%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	52 s * -12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	47.2 s * -2%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	46.3 s *

WebXPRT 3 - Overall
Morefine M600, 6600U AMD Ryzen 5 6600U	274 Points +1%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	270 Points 0%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	270 Points
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	261 Points -3%
Blackview MP200 Intel Core i5-11400H	247 Points -9%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	236 Points -13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	205 Points -24%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	182.4 Points -32%

Mozilla Kraken 1.1 - Total
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	1088 ms * -70%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	968 ms * -51%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	724 ms * -13%
Blackview MP200 Intel Core i5-11400H	660 ms * -3%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	651 ms * -2%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	644 ms * -0%
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	641 ms *
Morefine M600, 6600U AMD Ryzen 5 6600U	619 ms * +3%

3DMark
3840x2160 Fire Strike Ultra Physics
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	21176 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	21110 Points 0%
Morefine M600, 6600U AMD Ryzen 5 6600U	18599 Points -12%
Blackview MP200 Intel Core i5-11400H	16258 Points -23%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	11557 Points -45%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	10500 Points -50%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	9561 Points -55%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	8470 Points -60%
1920x1080 Fire Strike Physics
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	21928 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	21025 Points -4%
Blackview MP200 Intel Core i5-11400H	16949 Points -23%
Morefine M600, 6600U AMD Ryzen 5 6600U	15934 Points -27%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	11883 Points -46%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	10860 Points -50%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	9354 Points -57%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	9003 Points -59%
2560x1440 Time Spy CPU
Acemagic AD15 AD15, i7-11800H, Intel Core i7-11800H	8744 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	6767 Points -23%
Blackview MP200 Intel Core i5-11400H	5160 Points -41%
Morefine M600, 6600U AMD Ryzen 5 6600U	5114 Points -42%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	4598 Points -47%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U	3346 Points -62%
Minipc Union Ace Magician TK11-A0 Ace Magician TK11-A0, Intel Core i5-1135G7	2867 Points -67%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	2728 Points -69%

* ... smaller is better

Performance Rating
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	92.6 pt
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	87.7 pt
Average of class Mini PC	77.7 pt
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	77.4 pt
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	76.7 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	54.6 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	49.4 pt
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	40.6 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	38.8 pt

AIDA64 / FP32 Ray-Trace
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	12240 KRay/s
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	11347 KRay/s -7%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	10552 KRay/s -14%
Average of class Mini PC (561 - 27538, n=100, last 2 years)	10040 KRay/s -18%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	9518 KRay/s -22%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	6633 KRay/s -46%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -54%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	5247 KRay/s -57%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4654 KRay/s -62%

AIDA64 / FPU Julia
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	70782 Points +34%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	59704 Points +13%
Average of class Mini PC (3604 - 116903, n=100, last 2 years)	52860 Points 0%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	52677 Points
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	44789 Points -15%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	27788 Points -47%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	26251 Points -50%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	26145 Points -50%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -54%

AIDA64 / CPU SHA3
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	3501 MB/s
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	3103 MB/s -11%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	2360 MB/s -33%
Average of class Mini PC (225 - 5096, n=100, last 2 years)	2314 MB/s -34%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	1997 MB/s -43%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	1841 MB/s -47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -53%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	1367 MB/s -61%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	1052 MB/s -70%

AIDA64 / CPU Queen
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	85233 Points
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75724 Points -11%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	75248 Points -12%
Average of class Mini PC (8172 - 119569, n=100, last 2 years)	69760 Points -18%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	69756 Points -18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	56561 Points -34%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49399 Points -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -45%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	43072 Points -49%

AIDA64 / FPU SinJulia
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	8952 Points +5%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	8738 Points +3%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	8510 Points
Average of class Mini PC (408 - 15525, n=100, last 2 years)	7358 Points -14%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	7186 Points -16%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	4648 Points -45%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	4529 Points -47%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	4310 Points -49%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -53%

AIDA64 / FPU Mandel
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	38989 Points +23%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	32465 Points +3%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	31628 Points
Average of class Mini PC (1958 - 62378, n=100, last 2 years)	27950 Points -12%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	26798 Points -15%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	16652 Points -47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -53%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	12914 Points -59%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	12560 Points -60%

AIDA64 / CPU AES
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	122812 MB/s
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	99449 MB/s -19%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	95057 MB/s -23%
Average of class Mini PC (3691 - 177158, n=100, last 2 years)	76101 MB/s -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s -52%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57644 MB/s -53%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	39680 MB/s -68%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	17907 MB/s -85%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	16354 MB/s -87%

AIDA64 / CPU ZLib
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	687 MB/s
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	614 MB/s -11%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	591 MB/s -14%
Average of class Mini PC (74.8 - 1183, n=100, last 2 years)	589 MB/s -14%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	530 MB/s -23%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	372 MB/s -46%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	316 MB/s -54%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	292 MB/s -57%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -61%

AIDA64 / FP64 Ray-Trace
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	6651 KRay/s
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	5777 KRay/s -13%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	5743 KRay/s -14%
Average of class Mini PC (308 - 14722, n=100, last 2 years)	5364 KRay/s -19%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	5058 KRay/s -24%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	3668 KRay/s -45%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -55%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	2771 KRay/s -58%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	2527 KRay/s -62%

AIDA64 / CPU PhotoWorxx
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	27456 MPixel/s +33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s +31%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	25453 MPixel/s +23%
Average of class Mini PC (4408 - 44996, n=100, last 2 years)	24866 MPixel/s +20%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	20652 MPixel/s
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	20410 MPixel/s -1%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	14986 MPixel/s -27%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	12248 MPixel/s -41%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	10107 MPixel/s -51%

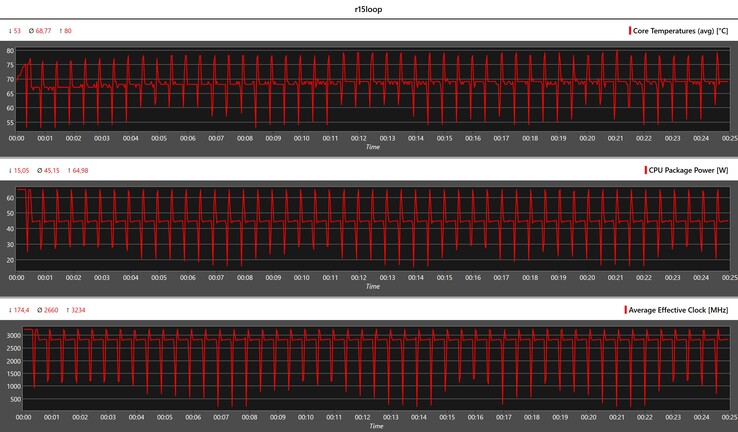

Acemagic AD15 vs Cinebench R15 Çoklu Döngü

Bu noktada, Cinebench R15 sabit döngü testi, işlemcinin güç hedefi ile birlikte soğutma sisteminin verimliliği hakkında bize iyi bir ilk izlenim veriyor. CPU testlerinin mükemmel sonuçları burada tekrarlanamasa da, Acemagic AD15 hala Cinebench R15'in arkasında iyi bir ikinci sırada yer alıyor Minisforum Venüs Serisi UM560 XT. Intel Core i7-11800H, 50 çalıştırma sonrasında 1.470 puan ile kabul edilebilir bir sonuç elde ediyor.

Cinebench R15 döngüsü sırasında CPU ölçümleri

Acemagic AD15 Intel Core i7-11800H, Intel Core i7-11800H: Ø1470 (1424.65-1647.85)

Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)

Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Ryzen 5 5600H: Ø1586 (1574.56-1611.34)

Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Core i7-11390H: Ø946 (931.81-953.22)

Blackview MP200 Intel Core i5-11400H, Intel Core i5-11400H: Ø1208 (1178.24-1384.8)

ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Intel Core i5-8259U: Ø621 (611.68-659.87)

Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel Core i7-10810U: Ø612 (604.67-652.86)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Sistem Performansı

Sentetik kıyaslamalarda Acemagic AD15 kendini göstermekte biraz daha zorlanıyor. Mini PC, PCMark10'da performans gösteremiyor ve AMD işlemcili iki cihazın ilk iki sıraya yerleşmesine neden oluyor. Crossmark'ta da performans sadece üçüncülük için yeterli olsa da Morefine M600'ün dezavantajı önemli ölçüde azalıyor. Acemagic AD15'in zayıf noktası olarak RAM donanımını görüyoruz. Üretici temelde olumlu olan iki modül kullansa da, bunlar yalnızca 2,666 MT/s saat hızına sahip ve bu da test ünitemizin RAM testlerinde test alanımızın yalnızca alt orta kısmında yer almasına neden oluyor. Burada 3.200 MT/s saat hızına sahip bir çalışma belleği kullanmak daha uygun olacaktır.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	6189 Points +23%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	5872 Points +17%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	5036 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	4914 Points -2%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	4525 Points -10%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points -10%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	4132 Points -18%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	3884 Points -23%

PCMark 10 / Essentials
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	10503 Points +8%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9820 Points +1%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	9694 Points
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	9649 Points 0%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	9513 Points -2%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -8%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	8215 Points -15%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	7469 Points -23%

PCMark 10 / Productivity
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	9642 Points +43%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	9031 Points +34%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	6788 Points +1%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	6723 Points
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	6657 Points -1%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	6495 Points -3%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -5%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	5976 Points -11%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1517 Points +7%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1438 Points +1%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1423 Points
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1346 Points -5%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1285 Points -10%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -13%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1018 Points -28%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	954 Points -33%

CrossMark / Responsiveness
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1434 Points +38%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1238 Points +19%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points +18%
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1197 Points +15%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1079 Points +4%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1038 Points
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	796 Points -23%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	779 Points -25%

CrossMark / Creativity
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1652 Points +3%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1598 Points
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1377 Points -14%
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1359 Points -15%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1309 Points -18%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -25%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1038 Points -35%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	1027 Points -36%

CrossMark / Productivity
Geekom Mini IT11, i7-11390H, Intel Core i7-11390H Intel Iris Xe Graphics G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG	1523 Points +8%
Morefine M600, 6600U, AMD Ryzen 5 6600U AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S	1491 Points +6%
Acemagic AD15, Intel Core i7-11800H Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Netac NS512GSSD340	1408 Points
Minisforum Venus Series UM560 XT, AMD Ryzen 5 5600H AMD Radeon RX Vega 7, ESO512GYLCT	1368 Points -3%
Blackview MP200, Intel Core i5-11400H Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Foresee XP1000F512G	1336 Points -5%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -7%
Minipc Union NiPoGi CK10 - 10810U, Intel Core i7-10810U Intel UHD Graphics 620, FPT310M8SSD512G	1092 Points -22%
ACEMagician ACE-CK10-8259U, Intel Core i5-8259U Intel Iris Plus Graphics 655, FPT330M8SSD512G	943 Points -33%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	47711 MB/s +26%
Average of class Mini PC (6481 - 70620, n=100, last 2 years)	43193 MB/s +14%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	41953 MB/s +11%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	41732 MB/s +10%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	37992 MB/s 0%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	37807 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -6%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22181 MB/s -41%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18973 MB/s -50%

AIDA64 / Memory Read
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	47290 MB/s +12%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	46963 MB/s +11%
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	46084 MB/s +9%
Average of class Mini PC (6914 - 73633, n=100, last 2 years)	43916 MB/s +4%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	42236 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -4%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	35415 MB/s -16%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	25003 MB/s -41%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	19621 MB/s -54%

AIDA64 / Memory Write
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	49353 MB/s +27%
Average of class Mini PC (6862 - 89318, n=100, last 2 years)	46870 MB/s +20%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	46860 MB/s +20%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	44872 MB/s +15%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	43598 MB/s +12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s +1%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	38930 MB/s
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	22892 MB/s -41%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	18296 MB/s -53%

AIDA64 / Memory Latency
Morefine M600, 6600U AMD Ryzen 5 6600U, Radeon 660M	94 ns * -19%
Average of class Mini PC (44.9 - 154.6, n=100, last 2 years)	87.8 ns * -12%
Acemagic AD15 Intel Core i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	78.7 ns *
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, Vega 7	75.5 ns * +4%
Blackview MP200 Intel Core i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	73.3 ns * +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +12%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns * +16%
ACEMagician ACE-CK10-8259U Intel Core i5-8259U, Iris Plus Graphics 655	60.3 ns * +23%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, UHD Graphics 620	60.2 ns * +24%

* ... smaller is better

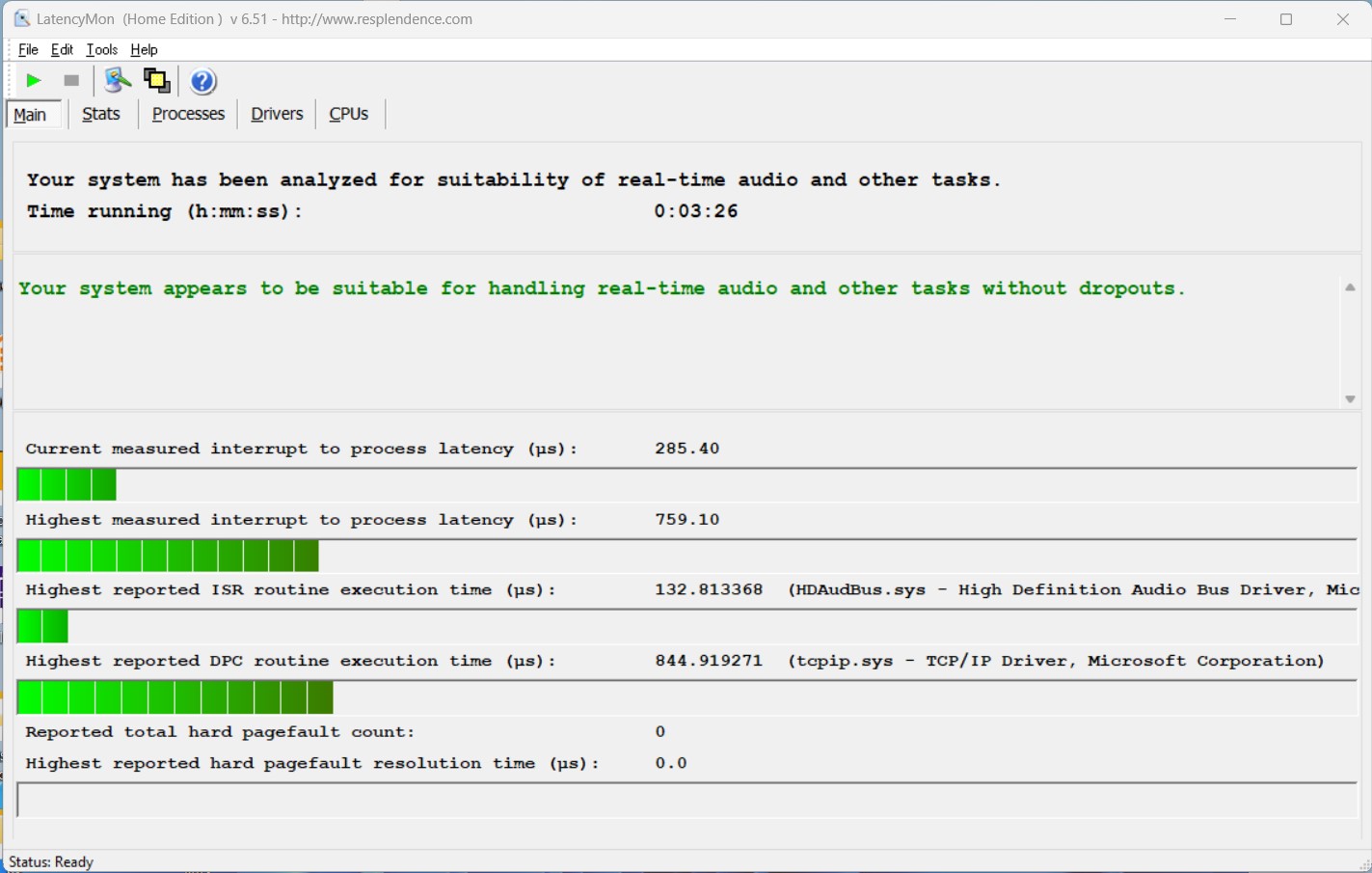

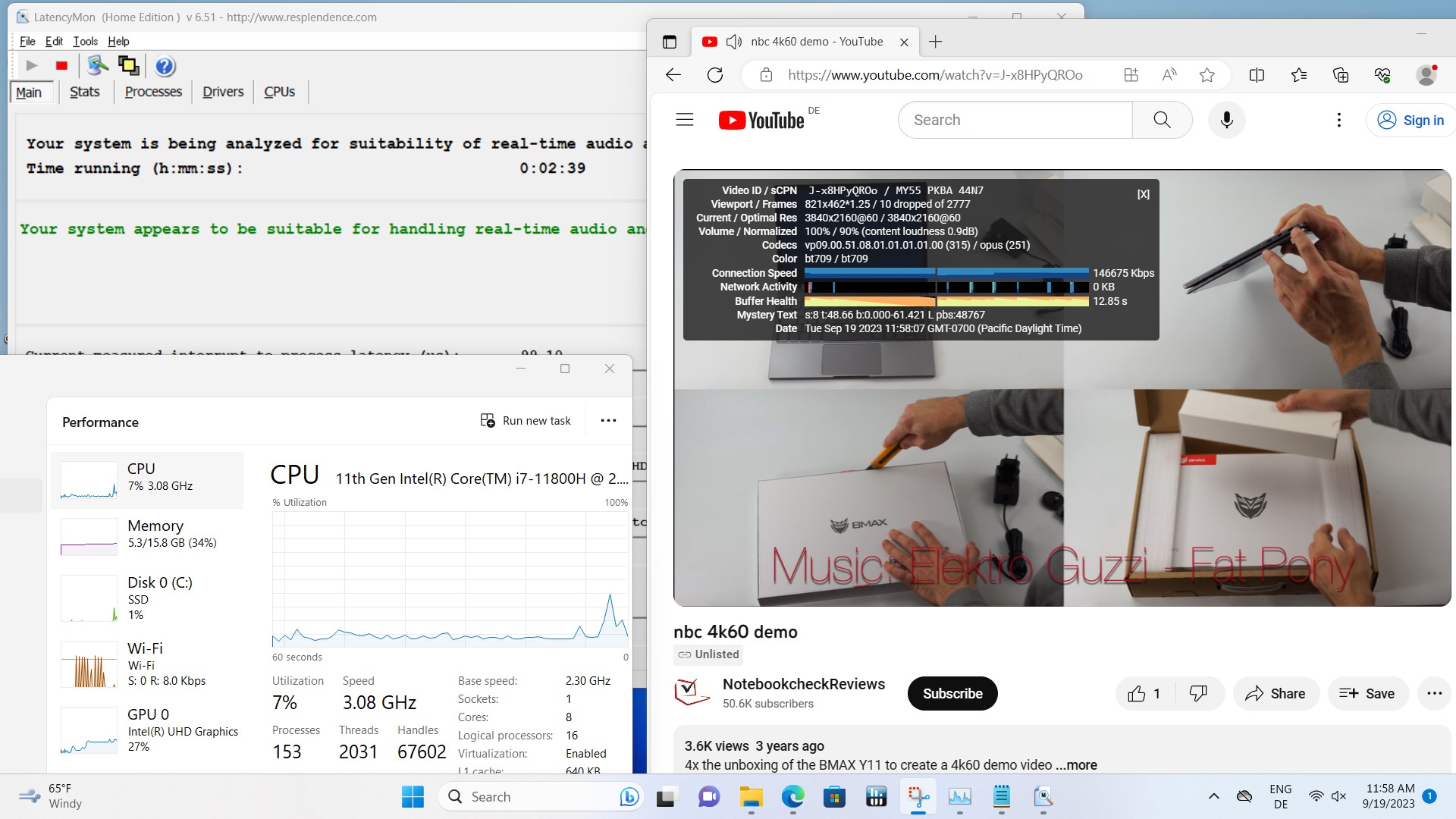

DPC Gecikmeleri

Acemagic AD15 yüksek çözünürlüklü videoları oynatmak için kullanılabiliyor. Sistem test videomuzu sorunsuz bir şekilde oynatmasına rağmen, başlangıçta 10 karenin düştüğünü fark ettik. IGPU %27'ye kadar yükleniyor, böylece işlemcinin bir miktar yükünü alıyor, bu da gecikmelerin her zaman yeşil aralıkta kalmasına neden oluyor. Sistem, birkaç tarayıcı sekmesi açmanın ve Prime95 ile tam CPU yükünün üstesinden düşük gecikmelerle gelebiliyor.

Bu testte Blackview MP200 iyi sonuçlar gösteriyor. Edge tarayıcısında birden fazla sekme açarken ve 4K test videomuzu oynatırken, herhangi bir kritik gecikme görmüyoruz. Sadece Prime95'i başlatırken biraz yükseliyorlar, ancak daha sonra gecikmeler daha fazla artmıyor.

Birkaç tarayıcı sekmesi açarken ve 4K video materyali oynatırken maksimum gecikme süresi

Prime95'in 10 saniyesinden sonra maksimum gecikme

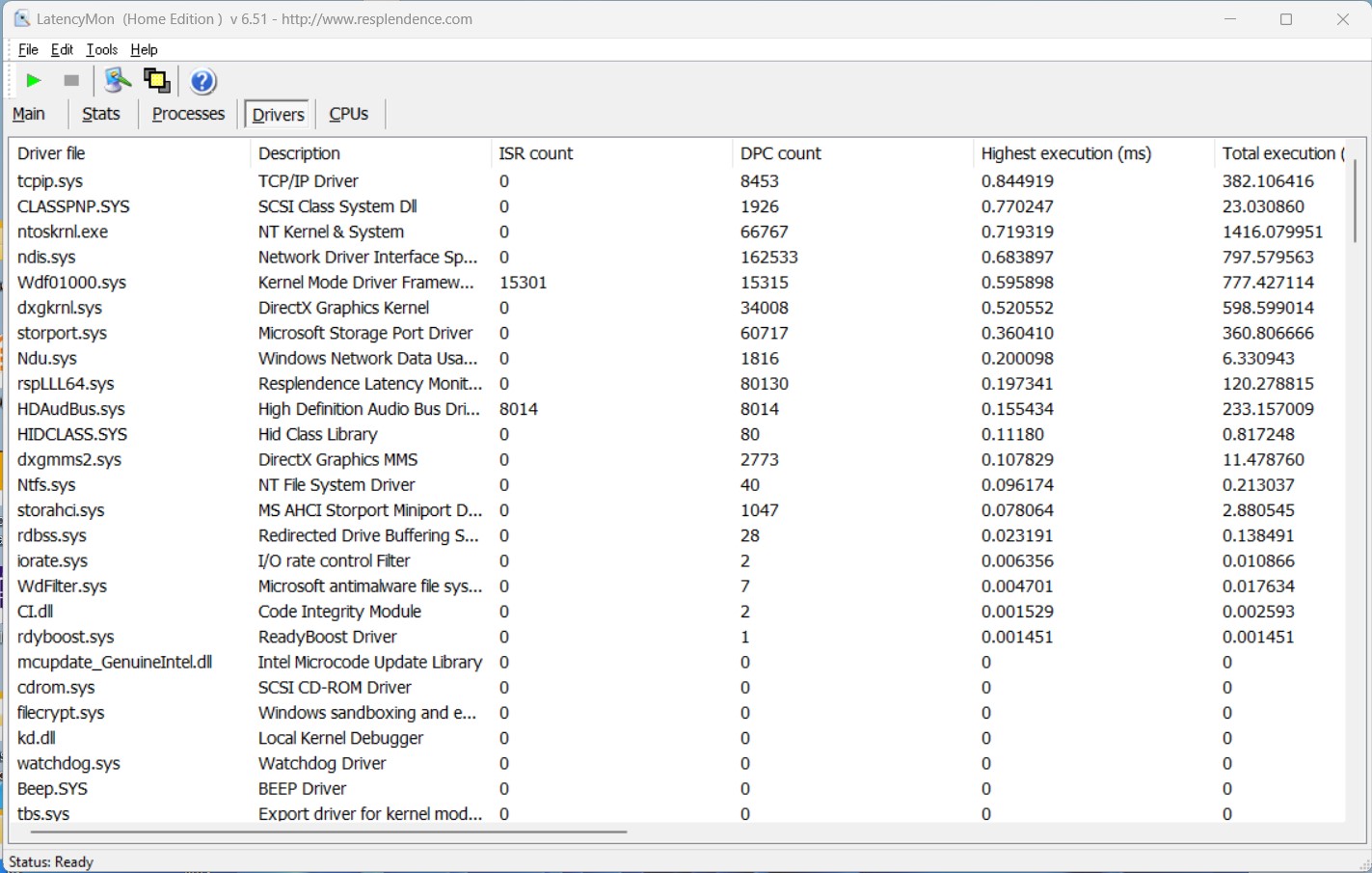

En uzun yürütme süresine göre sıralanmış sürücüler

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	7414 μs * -778%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	3247 μs * -284%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	1411 μs * -67%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1016.7 μs * -20%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	940.27 μs * -11%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	844.9 μs *
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	659.1 μs * +22%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	466 μs * +45%

* ... smaller is better

Depolama Çözümü

Acemagic AD15, Netac'ın 512 GB SSD'sini kullanmaktadır. Depolama birimi yalnızca SATA hızına sahiptir ve bu da rakipler genellikle NVMe SSD'lerle donatıldığından rakiplerle karşılaştırmamızda olumsuz bir etkiye sahiptir. Bu dezavantaj kıyaslamalarda çok açık olsa da günlük kullanımda neredeyse hiç fark edilmiyor. Sistem hızlı bir şekilde açılıyor ve kullanıma hazır hale geliyor ve test programlarımızı ve oyunlarımızı yüklemek de sorunsuz bir şekilde çalışıyor. Ölçümlerimiz bir SATA SSD için uygun sonuçlar göstermektedir. Bu bağlantı zaten daha yüksek aktarım hızlarına izin vermiyor. Acemagic AD15 iki depolama çözümü ile donatılabilir. M.2 SSD'ye ek olarak, maksimum 2 TB'a kadar kapasiteye sahip ikinci bir SSD veya HDD için alan sunan mevcut bir 2,5 inçlik yuva da vardır.

Ek karşılaştırmalar ve kıyaslamalar için

karşılaştırma tablosu.

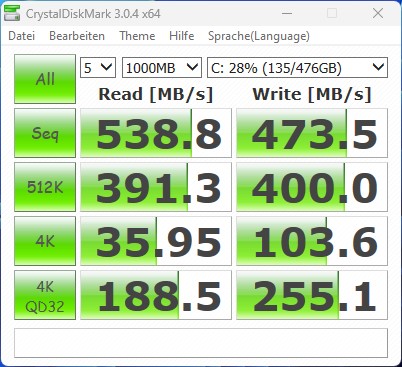

CrystalDiskMark 3.0

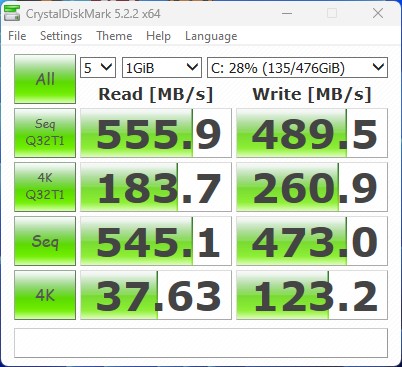

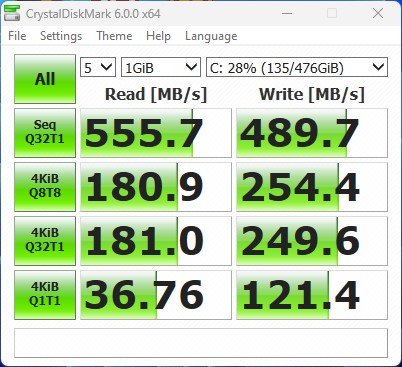

CrystalDiskMark 5.2 / 6

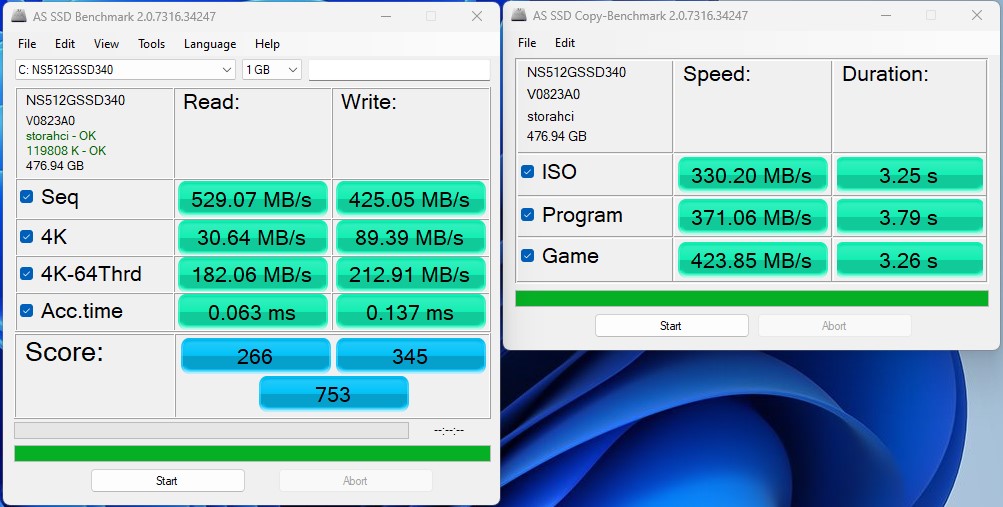

AS SSD

DiskSpd

Netac NS512GSSD340

Sequential Read: 538.8 MB/s

Sequential Write: 473.5 MB/s

512K Read: 391.3 MB/s

512K Write: 400 MB/s

4K Read: 35.95 MB/s

4K Write: 103.6 MB/s

4K QD32 Read: 188.5 MB/s

4K QD32 Write: 255.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	82.6 pt
Minisforum Venus Series UM560 XT ESO512GYLCT	78.6 pt
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	75.5 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	71.9 pt
Blackview MP200 Foresee XP1000F512G	71.1 pt
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	59 pt
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	29.9 pt
Acemagic AD15 Netac NS512GSSD340	26.4 pt
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	24.5 pt

DiskSpd
seq read
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +315%
Blackview MP200 Foresee XP1000F512G	2089 (1961.74^min - 2088.97^max) MB/s +297%
Average of class Mini PC (233 - 4168, n=99, last 2 years)	2046 MB/s +289%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1720 (1344.24^min - 1720.17^max) MB/s +227%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1684 (1646.89^min - 1684.01^max) MB/s +220%
Minisforum Venus Series UM560 XT ESO512GYLCT	1645 (1636.91^min - 1645.01^max) MB/s +213%
Acemagic AD15 Netac NS512GSSD340	526 (524.71^min - 525.97^max) MB/s
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	464 (407.92^min - 464.01^max) MB/s -12%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	311 (298.22^min - 311.01^max) MB/s -41%
seq write
Blackview MP200 Foresee XP1000F512G	2395 (2371.88^min - 2394.91^max) MB/s +416%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2298 (1081.92^min - 2298.06^max) MB/s +395%
Average of class Mini PC (222 - 5595, n=99, last 2 years)	2087 MB/s +350%
Minisforum Venus Series UM560 XT ESO512GYLCT	1877 (1870.87^min - 1877.35^max) MB/s +305%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s +286%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1075 (545.51^min - 1075.26^max) MB/s +132%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	502 (311.64^min - 502.31^max) MB/s +8%
Acemagic AD15 Netac NS512GSSD340	464 (461.79^min - 463.68^max) MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	439 (396.15^min - 438.89^max) MB/s -5%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=99, last 2 years)	3204 MB/s +488%
Blackview MP200 Foresee XP1000F512G	3034 (2493.77^min - 3034.37^max) MB/s +457%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s +363%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2522 (2230.32^min - 2522.44^max) MB/s +363%
Minisforum Venus Series UM560 XT ESO512GYLCT	2360 (2078.7^min - 2359.72^max) MB/s +333%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2223 (1765.77^min - 2223.4^max) MB/s +308%
Acemagic AD15 Netac NS512GSSD340	545 (387.49^min - 544.63^max) MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	444 (287.73^min - 443.55^max) MB/s -19%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	236 (35.65^min - 236.35^max) MB/s -57%
seq q8 t1 write
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2494 (2222.35^min - 2493.51^max) MB/s +416%
Blackview MP200 Foresee XP1000F512G	2412 (2365.59^min - 2411.72^max) MB/s +399%
Average of class Mini PC (228 - 6669, n=99, last 2 years)	2266 MB/s +369%
Minisforum Venus Series UM560 XT ESO512GYLCT	1946 (1938.09^min - 1945.74^max) MB/s +303%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s +271%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	1599 (266.87^min - 1599.24^max) MB/s +231%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	512 (493.73^min - 511.73^max) MB/s +6%
Acemagic AD15 Netac NS512GSSD340	483 (480.04^min - 483.18^max) MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	461 (421.95^min - 460.95^max) MB/s -5%
4k q1 t1 read
Blackview MP200 Foresee XP1000F512G	53.7 (53.3^min - 53.65^max) MB/s +56%
Average of class Mini PC (5.67 - 86.6, n=99, last 2 years)	52.1 MB/s +51%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s +31%
Minisforum Venus Series UM560 XT ESO512GYLCT	44.8 (44.42^min - 44.77^max) MB/s +30%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	40.3 (36.8^min - 40.3^max) MB/s +17%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	38.8 (38.52^min - 38.82^max) MB/s +13%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	38.1 (37.92^min - 38.07^max) MB/s +11%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	38.1 (35.61^min - 38.07^max) MB/s +11%
Acemagic AD15 Netac NS512GSSD340	34.4 (34.22^min - 34.41^max) MB/s
4k q1 t1 write
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	229 (165.03^min - 229.29^max) MB/s +145%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s +110%
Average of class Mini PC (22 - 435, n=99, last 2 years)	190.6 MB/s +104%
Minisforum Venus Series UM560 XT ESO512GYLCT	168.4 (166.77^min - 168.37^max) MB/s +80%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	120 (112.79^min - 120.03^max) MB/s +29%
Blackview MP200 Foresee XP1000F512G	105.3 (104.05^min - 105.3^max) MB/s +13%
Acemagic AD15 Netac NS512GSSD340	93.3 (91.37^min - 93.31^max) MB/s
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	90.9 (89.44^min - 90.91^max) MB/s -3%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	81.9 (80.7^min - 81.87^max) MB/s -12%
4k q32 t16 read
Average of class Mini PC (26.1 - 2967, n=99, last 2 years)	1129 MB/s +497%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +431%
Minisforum Venus Series UM560 XT ESO512GYLCT	831 (807.33^min - 831.01^max) MB/s +339%
Blackview MP200 Foresee XP1000F512G	731 (727.82^min - 730.52^max) MB/s +286%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	639 (421.15^min - 639.47^max) MB/s +238%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	561 (475.29^min - 560.56^max) MB/s +197%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	338 (299.48^min - 338.25^max) MB/s +79%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	296 (283.25^min - 295.59^max) MB/s +56%
Acemagic AD15 Netac NS512GSSD340	189.2 (184.89^min - 189.2^max) MB/s
4k q32 t16 write
Minisforum Venus Series UM560 XT ESO512GYLCT	1611 (1590.22^min - 1610.86^max) MB/s +603%
Average of class Mini PC (30.2 - 3983, n=99, last 2 years)	1128 MB/s +393%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +238%
Blackview MP200 Foresee XP1000F512G	754 (743.45^min - 754.38^max) MB/s +229%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	544 (355.98^min - 544.47^max) MB/s +138%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	350 (206.15^min - 349.79^max) MB/s +53%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	329 (317.87^min - 329.01^max) MB/s +44%
Acemagic AD15 Netac NS512GSSD340	229 (222.72^min - 229.28^max) MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	176.1 (168.14^min - 176.06^max) MB/s -23%

AS SSD
Score Total
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	3887 Points +416%
Average of class Mini PC (151.3 - 9030, n=97, last 2 years)	3616 Points +380%
Blackview MP200 Foresee XP1000F512G	3153 Points +319%
Minisforum Venus Series UM560 XT ESO512GYLCT	3139 Points +317%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points +283%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	1048 Points +39%
Acemagic AD15 Netac NS512GSSD340	753 Points
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	748.83 Points -1%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	181.49 (344^min) Points -76%
Score Read
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1513 Points +469%
Average of class Mini PC (61 - 3635, n=97, last 2 years)	1375 Points +417%
Blackview MP200 Foresee XP1000F512G	1276 Points +380%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points +333%
Minisforum Venus Series UM560 XT ESO512GYLCT	954 Points +259%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	661 Points +148%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	420 Points +58%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	382 Points +44%
Acemagic AD15 Netac NS512GSSD340	266 Points
Score Write
Minisforum Venus Series UM560 XT ESO512GYLCT	1702 Points +393%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1632 Points +373%
Average of class Mini PC (88 - 4185, n=97, last 2 years)	1588 Points +360%
Blackview MP200 Foresee XP1000F512G	1235 Points +258%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points +239%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	700 Points +103%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	403 Points +17%
Acemagic AD15 Netac NS512GSSD340	345 Points
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	173 Points -50%
Seq Read
Blackview MP200 Foresee XP1000F512G	2930 MB/s +454%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	2844 MB/s +438%
Average of class Mini PC (291 - 6620, n=97, last 2 years)	2822 MB/s +433%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2268 MB/s +329%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s +317%
Minisforum Venus Series UM560 XT ESO512GYLCT	2193 MB/s +315%
Acemagic AD15 Netac NS512GSSD340	529 MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	490 MB/s -7%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	486 MB/s -8%
Seq Write
Blackview MP200 Foresee XP1000F512G	2478 MB/s +483%
Average of class Mini PC (240 - 5783, n=97, last 2 years)	1981 MB/s +366%
Minisforum Venus Series UM560 XT ESO512GYLCT	1762 MB/s +315%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s +277%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1318 MB/s +210%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	524 MB/s +23%
Acemagic AD15 Netac NS512GSSD340	425 MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	400 MB/s -6%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	330 MB/s -22%
4K Read
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	63.4 MB/s +107%
Average of class Mini PC (6.08 - 104.3, n=97, last 2 years)	56.4 MB/s +84%
Minisforum Venus Series UM560 XT ESO512GYLCT	55.3 MB/s +81%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	53.5 MB/s +75%
Blackview MP200 Foresee XP1000F512G	52.2 MB/s +71%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	46.8 MB/s +53%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	42.04 MB/s +37%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s +30%
Acemagic AD15 Netac NS512GSSD340	30.6 MB/s
4K Write
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	225 MB/s +152%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	185.4 MB/s +107%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s +107%
Average of class Mini PC (30.9 - 366, n=97, last 2 years)	171.3 MB/s +92%
Minisforum Venus Series UM560 XT ESO512GYLCT	151.8 MB/s +70%
Blackview MP200 Foresee XP1000F512G	103.1 MB/s +15%
Acemagic AD15 Netac NS512GSSD340	89.4 MB/s
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	87.1 MB/s -3%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	39.4 MB/s -56%
4K-64 Read
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1223 MB/s +572%
Average of class Mini PC (23.4 - 3035, n=97, last 2 years)	1036 MB/s +469%
Blackview MP200 Foresee XP1000F512G	931 MB/s +411%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s +390%
Minisforum Venus Series UM560 XT ESO512GYLCT	679 MB/s +273%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	324 MB/s +78%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	323 MB/s +77%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	291.36 MB/s +60%
Acemagic AD15 Netac NS512GSSD340	182.1 MB/s
4K-64 Write
Minisforum Venus Series UM560 XT ESO512GYLCT	1374 MB/s +545%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1276 MB/s +499%
Average of class Mini PC (32.8 - 3598, n=97, last 2 years)	1219 MB/s +472%
Blackview MP200 Foresee XP1000F512G	884 MB/s +315%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s +287%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	462 MB/s +117%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	283 MB/s +33%
Acemagic AD15 Netac NS512GSSD340	213 MB/s
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	93.65 MB/s -56%
Access Time Read
Blackview MP200 Foresee XP1000F512G	0.158 ms * -151%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.112 ms * -78%
Average of class Mini PC (0.022 - 0.489, n=97, last 2 years)	0.1014 ms * -61%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.1 ms * -59%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	0.083 ms * -32%
Acemagic AD15 Netac NS512GSSD340	0.063 ms *
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +5%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.06 ms * +5%
Minisforum Venus Series UM560 XT ESO512GYLCT	0.044 ms * +30%
Access Time Write
Blackview MP200 Foresee XP1000F512G	0.16 ms * -17%
Acemagic AD15 Netac NS512GSSD340	0.137 ms *
Average of class Mini PC (0.016 - 0.765, n=97, last 2 years)	0.1277 ms * +7%
ACEMagician ACE-CK10-8259U FPT330M8SSD512G	0.127 ms * +7%
Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G	0.113 ms * +18%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * +25%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.087 ms * +36%
Minisforum Venus Series UM560 XT ESO512GYLCT	0.024 ms * +82%
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S	0.023 ms * +83%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Acemagic AD15 Netac NS512GSSD340: Ø540 (386.44-542.74)

Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Minisforum Venus Series UM560 XT ESO512GYLCT: Ø2347 (2148.11-2354.15)

Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG: Ø1246 (674.65-1585.03)

Blackview MP200 Foresee XP1000F512G: Ø3033 (2552.65-3092.67)

ACEMagician ACE-CK10-8259U FPT330M8SSD512G: Ø330 (164.21-394.73)

Minipc Union NiPoGi CK10 - 10810U FPT310M8SSD512G: Ø453 (292.09-461.16)

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Grafik Kartı

32 EU sunan Intel UHD Graphics Xe ile Acemagic AD15 yalnızca basit bir iGPU kullanıyor ve buna bağlı olarak test ünitemiz test alanımızın yalnızca ortasında yer alıyor. AMD'nin Radeon RX Vega 7 veya Radeon 660M gibi iGPU çözümleri çok daha ileride ve gözle görülür şekilde daha yüksek bir performans sunuyor.

Ek karşılaştırmalar ve kıyaslamalar için

G PU karşılaştırma tablosu.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	97.4 pt
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	90 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	83.4 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	79.7 pt
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	51.1 pt
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	44.7 pt
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	25.8 pt
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	25.3 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points +92%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	5634 Points +78%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points +76%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points +71%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	3168 Points
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	2888 Points -9%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points -48%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1654 Points -48%

3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	29927 Points +91%
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	28159 Points +80%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points +30%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	19240 Points +23%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	15662 Points
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	13739 Points -12%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	8164 Points -48%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	7779 Points -50%
1920x1080 Fire Strike Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	4621 Points +85%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points +62%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	3971 Points +59%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points +49%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	2495 Points
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	1987 Points -20%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	1203 Points -52%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points -57%
2560x1440 Time Spy Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	1430 Points +117%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points +98%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points +90%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points +69%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	658 Points
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	633 Points -4%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	365 Points -45%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	348 Points -47%
Fire Strike Extreme Graphics
Morefine M600, 6600U AMD Radeon 660M, AMD Ryzen 5 6600U	2149 Points +95%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1833 Points +66%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1735 Points +58%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1654 Points +50%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	1101 Points
ACEMagician ACE-CK10-8259U Intel Iris Plus Graphics 655, Intel Core i5-8259U	916 Points -17%
Blackview MP200 Intel UHD Graphics Xe 16EUs (Tiger Lake-H), Intel Core i5-11400H	544 Points -51%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	491 Points -55%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | Unigine Superposition

Performance Rating - Percent
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	96.9 pt
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	93.5 pt
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	80.1 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	79.5 pt
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	53.9 pt
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	49.6 pt
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	29.2 pt
Minipc Union NiPoGi CK10 - 10810U ^-1! UHD Graphics 620, i7-10810U, FPT310M8SSD512G	26.9 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	20.9 fps +57%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.4 fps +53%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.7 fps +33%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps +30%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	13.3 fps
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	10.5 fps -21%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.5 fps -44%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.4 fps -59%
Extreme Preset DX11
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	20.9 fps +49%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	19.8 fps +41%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	17.9 fps +28%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps +26%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	14 fps
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	11.2 fps -20%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7.7 fps -45%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5.7 fps -59%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.2 fps +50%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps +31%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.3 fps +28%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	10.9 fps +24%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	8.8 fps
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	8.2 fps -7%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.1 fps -42%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	3.9 fps -56%
1920x1080 Extreme HD Preset OpenGL AA:x8
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps +36%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	13.5 fps +34%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	11.7 fps +16%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	11.6 fps +15%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	10.1 fps
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	7.6 fps -25%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	5.4 fps -47%

ComputeMark v2.1
1024x600 Normal, Score
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	3439 Points +142%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	3244 Points +128%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	2766 Points +95%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points +89%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	1584 Points +11%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	1422 Points
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	899 Points -37%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	745 Points -48%
1024x600 Normal, Fluid 3DTex
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	318 Points +75%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	272 Points +49%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	223 Points +23%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points +2%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	182 Points
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	146 Points -20%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	118 Points -35%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	86 Points -53%
1024x600 Normal, Fluid 2DTexArr
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	340 Points +100%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	260 Points +53%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	230 Points +35%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points +20%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	170 Points
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	118 Points -31%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	109 Points -36%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	84 Points -51%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	948 Points +273%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	933 Points +267%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	598 Points +135%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points +120%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	291 Points +15%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	254 Points
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	177 Points -30%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	144 Points -43%
1024x600 Normal, Mandel Scalar
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	885 Points +134%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	884 Points +134%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	779 Points +106%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	751 Points +99%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	453 Points +20%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	378 Points
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	200 Points -47%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	141 Points -63%
1024x600 Normal, QJuliaRayTrace
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points +118%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	963 Points +111%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	936 Points +105%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	880 Points +93%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	577 Points +26%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	457 Points
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	352 Points -23%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	233 Points -49%

Unigine Superposition
1280x720 720p Low
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	7862 Points +94%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	7180 Points +78%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	4433 Points +10%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	4362 Points +8%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	4043 Points
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	3783 Points -6%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	2151 Points -47%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	2027 Points -50%
1920x1080 1080p High
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	1800 Points +77%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	1664 Points +63%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1530 Points +50%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1522 Points +50%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	1018 Points
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	1008 Points -1%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	511 Points -50%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	507 Points -50%
1920x1080 1080p Extreme
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	801 Points +72%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	776 Points +67%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	768 Points +65%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	752 Points +62%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	465 Points
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	424 Points -9%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	243 Points -48%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	231 Points -50%

3DMark 05 Standard		32116 puan
3DMark 06 Standard Score		19728 puan
3DMark Vantage P Result		13730 puan
3DMark 11 Performance		3632 puan
3DMark Ice Storm Standard Score		82221 puan
3DMark Cloud Gate Standard Score		15413 puan
3DMark Fire Strike Score		2356 puan
3DMark Fire Strike Extreme Score		1104 puan
3DMark Time Spy Score		763 puan
Yardım

... kıyaslama

Oyun Performansı

Tarafından sunulan düşük 3D performansı nedeniyle Intel UHD Graphics Xeacemagic AD15 sadece basit oyun uygulamaları için uygundur. Zorlu oyunlar iGPU'yu hızlı bir şekilde aşırı yorar ve oynanabilir kare hızlarına yalnızca en düşük ayrıntı seviyelerinde ve çok düşük çözünürlükte ulaşılabilir. 3D performansı daha yüksek bir mini PC arayanlar aşağıdaki özelliklere sahip modellere göz atmalıdır AMD Ryzen 9 6900HX. Bu tür sistemlere örnek olarak Geekom AS 6, theMorefine M600veya Ace Magican AM08 Pro.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	76.8 fps +62%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	75.4 fps +59%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps +39%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	63.3 fps +34%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	47.3 (4.78^min, 19.9^P0.1, 25.3^P1) fps
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	27.9 fps -41%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	24.5 fps -48%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	23.7 (1.923^min, 13.5^P0.1, 19.7^P1) fps +47%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	23 fps +43%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	22.6 fps +40%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	22.2 fps +38%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	16.1 (8.34^min, 8.6^P0.1, 8.83^P1) fps
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	10.1 fps -37%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	8.3 fps -48%

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	66.4 fps +171%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	49 fps +100%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	36.6 fps +49%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	33.9 fps +38%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	24.5 fps
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	22.5 fps -8%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	14.9 fps -39%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	13.4 fps -45%
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	15.6 fps +150%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps +118%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	10.5 fps +69%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	10.5 fps +69%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	6.65 fps +7%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	6.23 fps
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	3.69 fps -41%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	3.3 fps -47%

GTA V
1024x768 Lowest Settings possible
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	142.9 (1.358^min, 71.4^P1) fps +42%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	140.7 (5.04^min, 90.9^P1) fps +40%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	100.8 (23.7^min, 71.4^P1) fps
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	97.7 (25.6^min, 55.6^P1) fps -3%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	68.3 (18.7^min, 45.5^P1) fps -32%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	59.3 (9.5^min, 33.3^P1) fps -41%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	57 (12.6^min, 32.3^P1) fps -43%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	33.9 (12.8^min, 19.2^P1) fps -66%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	33.9 (1.094^min, 20.4^P1) fps +147%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	31.7 (15.9^min, 23.3^P1) fps +131%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	20.5 (8.17^min, 14.5^P1) fps +50%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16.4 (5.82^min, 11.9^P1) fps +20%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	14.3 (9.08^min, 10.6^P1) fps +4%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	13.7 (7.54^min, 9.71^P1) fps
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	8.59 (3.34^min, 6.21^P1) fps -37%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	6.56 (3.2^min, 4.55^P1) fps -52%

Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	62 (49^min) fps +107%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	57 (51^min) fps +90%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	40 (35^min) fps +33%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	30 (26^min) fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	25 (19^min) fps -17%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	22 (19^min) fps -27%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	16 (14^min) fps -47%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	11 (10^min) fps -63%
1920x1080 High Preset AA:T
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (25^min) fps +142%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	25 (22^min) fps +108%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	19 (17^min) fps +58%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	16 (13^min) fps +33%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	12 (10^min) fps
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	10 (8^min) fps -17%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7 (6^min) fps -42%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5 (4^min) fps -58%

Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	58 (42^min) fps +115%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	52 (39^min) fps +93%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	36 (24^min) fps +33%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	29 (19^min) fps +7%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	27 (17^min) fps
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	21 (16^min) fps -22%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	15 (11^min) fps -44%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	11 (8^min) fps -59%
1920x1080 High Preset
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	29 (23^min) fps +123%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	24 (20^min) fps +85%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	18 (14^min) fps +38%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	15 (12^min) fps +15%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	13 (9^min) fps
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	10 (9^min) fps -23%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	7 (5^min) fps -46%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	5 (4^min) fps -62%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	137.7 (114.5^min) fps +19%
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	135.9 (121.4^min) fps +17%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	116 (101.7^min) fps
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	98.7 (85.5^min) fps -15%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	95.8 (84.4^min) fps -17%
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	86.8 (75.1^min) fps -25%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	79.1 (53.9^min) fps -32%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	72.8 (60.3^min) fps -37%
1920x1080 high (2/3)
Morefine M600, 6600U Radeon 660M, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S	64.9 (56.8^min) fps +75%
Minisforum Venus Series UM560 XT Vega 7, R5 5600H, ESO512GYLCT	62.1 (57.1^min) fps +67%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	45.2 (38.5^min) fps +22%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	43.4 (31.3^min) fps +17%
Acemagic AD15 UHD Graphics Xe 32EUs (Tiger Lake-H), i7-11800H, Netac NS512GSSD340	37.1 (33.3^min) fps
ACEMagician ACE-CK10-8259U Iris Plus Graphics 655, i5-8259U, FPT330M8SSD512G	34.5 (31.9^min) fps -7%
Blackview MP200 UHD Graphics Xe 16EUs (Tiger Lake-H), i5-11400H, Foresee XP1000F512G	22.6 (20.6^min) fps -39%
Minipc Union NiPoGi CK10 - 10810U UHD Graphics 620, i7-10810U, FPT310M8SSD512G	18.4 (17^min) fps -50%

	düşük	orta	yüksek	ultra
GTA V (2015)	100.8	89.6	13.7
The Witcher 3 (2015)	47.3		16.1	8.22
Dota 2 Reborn (2015)	116	73.6	37.1	33.8
Final Fantasy XV Benchmark (2018)	23.6	12.4	8.57
X-Plane 11.11 (2018)	38.4	25.8	22.5
Far Cry 5 (2018)	30	13	12	12
Strange Brigade (2018)	55.6	21.6	16.6	15.6
Shadow of the Tomb Raider (2018)	33.2	13.2	12.1	10
Far Cry New Dawn (2019)	27	14	13
Borderlands 3 (2019)	24.5	10.7	6.23
F1 2020 (2020)	48.5	22.3	16.5	10.3
F1 2021 (2021)	56.8	25.3	20.1	12.9
GRID Legends (2022)	32	24.9	18.2
Tiny Tina's Wonderlands (2022)	13.1	9.82	6.35
F1 22 (2022)	21.8	19.6	13.8	10.6
F1 23 (2023)	19.1	17.1	11.5

Emisyonlar - Hoş bir şekilde sessiz kalan istikrarlı bir performans

Gürültü Seviyeleri

Gürültü ölçümlerimizde, Acemagic AD15'in davranışı başlangıçta çok göze çarpmamaktadır. Cihaz yüksüz olarak sadece 26 ila 27,3 dB(A) gibi düşük bir gürültü seviyesinde çalışıyor. Ortalama yük altında bu seviye çok az artarak 30,8 dB(A)'ya çıkıyor. Ancak, stres testi sırasında ölçüm ekipmanımız 37,5 dB(A) göstererek test ünitemizin rakiplerinden daha yüksek ses çıkardığını ortaya koydu. Öznel olarak, Acemagic AD15 daha sessiz çalışıyor, bu da fanın daha rahat bir şekilde vınlama sesinden kaynaklanıyor.

Ses yüksekliği

Boşta		26.2 / 26.5 / 27.3 dB
Çalışırken		30.8 / 37.5 dB

	30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü
min: , med: , max: Earthworks M23R (15 cm uzaklık) environment noise: 25.4 dB(A)

	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	Morefine M600, 6600U R5 6600U, Radeon 660M	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	ACEMagician ACE-CK10-8259U i5-8259U, Iris Plus Graphics 655	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs
Noise		-4%	-9%	-7%	-12%	-8%	-9%	-17%
off / environment *	25.4	29.4 -16%	30 -18%	29.7 -17%	25.1 1%	29.6 -17%	30.4 -20%	30.28 -19%
Idle Minimum *	26.2	29.4 -12%	30.3 -16%	30.2 -15%	25.3 3%	29.7 -13%	30.8 -18%	31.82 -21%
Idle Average *	26.5	29.4 -11%	30.5 -15%	30.2 -14%	25.3 5%	29.8 -12%	30.9 -17%	32.27 -22%
Idle Maximum *	27.3	29.5 -8%	30.6 -12%	30.2 -11%	25.3 7%	29.8 -9%	30.9 -13%	33.17 -22%
Load Average *	30.8	29.6 4%	32.5 -6%	30.6 1%	46 -49%	33.5 -9%	31 -1%	35.82 -16%
Witcher 3 ultra *	32.6			30.5 6%
Load Maximum *	37.5	29.6 21%	33.2 11%	36.4 3%	51.8 -38%	33.6 10%	31 17%	37.1 1%

* ... smaller is better

Sıcaklıklar

Acemagic AD15 hiçbir zaman yüksek sıcaklıklarla ilgili herhangi bir sorun yaşamıyor. Kasa sadece hafifçe ısınıyor ve sadece arkadaki fan deliği bölgesinde daha yüksek sıcaklıklar görüyoruz. KasaIntel Core i7-11800Hprime95 ile stres testi sırasında en yüksek sıcaklığa ulaşır ve 90 °C (194 °F) ölçeriz, bu nedenle SoC hiçbir zaman üretici tarafından belirtilen maksimum değere ulaşmaz. PL1 ve PL2 olarak tanımlanan güç sınırlarına ulaşılır ve özellikle PL1 değeri sürekli olarak 45 watt'ta tutulabilir. Maksimum sıcaklık da yalnızca SoC'nin bu durumda 65 watt tüketebildiği kısa süreyle ilgilidir. Daha uzun sürelere bakıldığında, işlemci sıcaklığı 70 °C (158 °F) seviyesindedir.

Stres testi sırasında Acemagic AD15 (Prime95)

Maksimum yük

Bekleme


37.4 °C	37.1 °C	34.2 °C
39.4 °C	31.6 °C	30.9 °C
27.1 °C	27.1 °C	27 °C

Maksimum: 39.4 °C
Ortalama: 32.4 °C


31.8 °C	36.5 °C	35.1 °C
31.7 °C	30.9 °C	32.7 °C
28.7 °C	26.5 °C	26.3 °C

Maksimum: 36.5 °C
Ortalama: 31.1 °C

Güç kaynağı 44.3 °C | Oda sıcaklığı 23 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 32.4 °C / 90 F, compared to the average of 32.1 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 39.4 °C / 103 F, compared to the average of 35.4 °C / 96 F, ranging from 26 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 36.5 °C / 98 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 31.8 °C / 89 F, compared to the device average of 32.1 °C / 90 F.

Güç Tüketimi

Mini PC'ler genellikle son derece verimlidir ve bu konuda normal masaüstü PC'lerden önemli ölçüde ileridedir. Temel olarak, Acemagic AD15 de buradaki rakipleri için herhangi bir tehlike oluşturmasa bile verimlidir. Karşılaştırıldığında Blackview MP200benzer bir güç tüketimi görüyoruz. Tiger Lake mimarisi nedeniyle, bu modellerin her ikisi de test alanımızda hafif bir dezavantaja sahiptir ve genellikle daha modern cihazlar, daha güncel CPU mimarileri nedeniyle burada daha iyi performans gösterebilir. Ortalama yük altında yaklaşık 50 watt ile test ünitemizin tüketimi hala kabul edilebilir sınırlar içinde kalmaktadır. SoC kısa bir süreliğine boost hızından tam olarak yararlanabildiğinde neredeyse 98 watt ölçtük. Ürünle birlikte verilen 120 Watt'lık güç kaynağı her zaman yeterli gücü sağlıyor.

Anlık tüketim

Kapalı / Bekleme modu	0.79 / 0.85 Watt
Boşta	8.7 / 14.9 / 18.9 Watt
Çalışırken	49.6 / 97.7 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	Morefine M600, 6600U R5 6600U, Radeon 660M	Minisforum Venus Series UM560 XT R5 5600H, Vega 7	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	Blackview MP200 i5-11400H, UHD Graphics Xe 16EUs (Tiger Lake-H)	ACEMagician ACE-CK10-8259U i5-8259U, Iris Plus Graphics 655	Minipc Union NiPoGi CK10 - 10810U i7-10810U, UHD Graphics 620	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Average Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	Average of class Mini PC
Power Consumption		22%	35%	40%	12%	27%	56%	48%	-2%	7%
Idle Minimum *	8.7	8 8%	6.6 24%	7.3 16%	9 -3%	8.1 7%	4.8 45%	3.4 61%	10 ?(5.4 - 15.2, n=4) -15%	9.83 ?(1.9 - 46.5, n=94, last 2 years) -13%
Idle Average *	14.9	8.7 42%	6.8 54%	7.8 48%	10.6 29%	8.4 44%	4.9 67%	5.7 62%	14.1 ?(9.8 - 17.2, n=4) 5%	11.7 ?(1.9 - 63, n=93, last 2 years) 21%
Idle Maximum *	18.9	8.8 53%	7.2 62%	8.4 56%	19.9 -5%	13.8 27%	5.5 71%	7 63%	20.2 ?(14 - 30.5, n=4) -7%	14.8 ?(2.6 - 68.9, n=94, last 2 years) 22%
Load Average *	49.6	54.6 -10%	45.1 9%	28.7 42%	30.9 38%	43.1 13%	23 54%	36.5 26%	45.7 ?(40 - 49.6, n=4) 8%	52.6 ?(11.3 - 158.7, n=94, last 2 years) -6%
Load Maximum *	97.7	83.2 15%	73.4 25%	61.1 37%	97.8 -0%	55.9 43%	54 45%	68 30%	96.6 ?(76.8 - 112.8, n=4) 1%	86.6 ?(18.1 - 271, n=94, last 2 years) 11%
Witcher 3 ultra *					44.8

* ... smaller is better

Power Consumption With External Monitor

Acemagic AD15; Prime95 V2810 Stress (external Monitor): Ø72.8 (66.3-97.7)

Acemagic AD15; Cinebench R15 Multi (external Monitor): Ø93.7 (93.4-94.2)

Acemagic AD15; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø40.9 (36.5-49.9)

Acemagic AD15; 1920x1080 The Witcher 3 ultra (external Monitor): Ø52 (50.7-64.6)

Acemagic AD15; Idle 1min (external Monitor): Ø18.9 (17.6-24.1)

Acemagic AD15; Cinebench R23 Single (external Monitor): Ø46.3 (43.3-80.9)

Acemagic AD15; Cinebench R23 Multi (external Monitor): Ø75.5 (61.5-92.5)

Artılar

+ 8 çekirdekli ve 16 iş parçacıklı SoC

+ iyi günlük performans

+ kolay açılır

+ birçok USB bağlantısı

+ sağlam kasa

+ iyi soğutma ünitesi

+ istikrarlı CPU performansı

+ düşük DPC gecikme süreleri

Eksiler

- düşük 3D performansı

- yavaş çalışan bellek

- ucuz görünümlü çanta

Karar - Önemli olan içsel değerlerdir

Acemagic AD15 incelemesi - test ünitesi Acemagic tarafından sağlanmıştır

Küçük ve güçlü bir mini PC olarak Acemagic AD15 ikna edici bir performans sergileyebiliyor. Intel Core i7-11800H'ye rağmen, küçük bilgisayar iyi bir günlük performans sunmayı başarıyor. Ancak üreticinin neden daha hızlı çalışan bellek kullanmadığı hala bazı sorulara yol açıyor ve bizim için bir gizem olarak kalıyor. Bu, performans üzerinde küçük bir maliyeti temsil etse de, iGPU'ya fayda sağlayabilirdi. Bu noktada, mimari neredeyse üç yaşında ve bu da çeşitli ölçümlerde fark ediliyor. Burada özellikle Acemagic AD15'in çıtayı biraz ıskaladığı güç tüketiminden bahsedebiliriz, ancak bu satın almamayı tavsiye etmek için bir neden olmayacaktır.

Acemagic AD15, kabul edilebilir bir fiyata mükemmel bir performans ile ikna eder.

Görsel olarak Acemagic AD15 dikkat çekici bir özellik sunmuyor, ancak bilgisayarın günlük kullanımda çalışması gerektiğinden birçok kullanıcı bunu önemsemeyebilir. Uzak Doğu'dan gelen bu mini bilgisayar tam da bunu yapıyor ve hatta oldukça da iyi yapıyor. Tüm ekipman paketi fiyatına göre uygun ve şu anda 400 dolara mini formatta güçlü bir masaüstü bilgisayar alıyorsunuz. Thunderbolt'a bağımlı olmayanlar, mini bilgisayarı herhangi bir endişe duymadan satın alabilirler. Günlük kullanımdaki düşük gürültü seviyesi de burada olumlu bir şekilde bahsedilmeyi hak ediyor.

Fiyat ve Bulunabilirlik

Acemagic AD15'i doğrudan üreticinin çevrimiçi mağazasından sipariş edebilirsiniz, fiyatı şu anda 449 dolardır. Ancak bu teklif yalnızca ABD ve İngiltere'de geçerli. Almanya için üretici, Intel Core i5-12450H tabanlı aynı modeli 499 Euro (~ 532 $) karşılığında sunuyor. Amazon şu anda Acemagic AD15'i 399$ karşılığında sunuyor.

Acemagic AD15 - 2024-02-20 02/20/2024 v7
Sebastian Bade

İşcilik

64 / 98 → 66%

Bağlanılabilirlik

58 / 81 → 72%

Ağırlık

79%

Oyun performansı

59%

Uygulama performansı

90%

Isınma

92%

Ses

93%

Ortalama

73%

78%

Mini PC - Ortalama Ağırlık

Acemagic AD15 Mini PC incelemesi: Intel Core i7-11800H ile güçlü NUC alternatifi

Karşılaştırmalı olarak olası rakipler

Acemagic AD15 Ayrıntılı Olarak

Kasa - Çok fazla plastik ve biraz metal

Boyut ve ağırlık karşılaştırması

Ekipman - Günlük işler için yeterli ve uygun

İletişim

Aksesuarlar

Bakım

Performans - Intel Core i5-11800H 8 çekirdek ve 16 iş parçacığı sunar

Test Koşulları

İşlemci

Acemagic AD15 vs Cinebench R15 Çoklu Döngü

Sistem Performansı

DPC Gecikmeleri

Depolama Çözümü

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Grafik Kartı

Oyun Performansı

Emisyonlar - Hoş bir şekilde sessiz kalan istikrarlı bir performans

Gürültü Seviyeleri

Sıcaklıklar

Güç Tüketimi

Power Consumption With External Monitor

Artılar

Eksiler

Karar - Önemli olan içsel değerlerdir

Fiyat ve Bulunabilirlik

More articles related to this device

Transparency
