Huawei MateBook D 14 incelem esi: AMD Ryzen 5 3500U ile

Performance well implemented. MateBook D 15'in adımlarını takiben, daha küçük MateBook D 14 bir kez daha yük altında CPU performansını düşürmek için hiçbir neden olmadığını kanıtlıyor. İncelememizde Huawei'nin not defterinin diğer özelliklerini neler sunduğunu öğrenin.

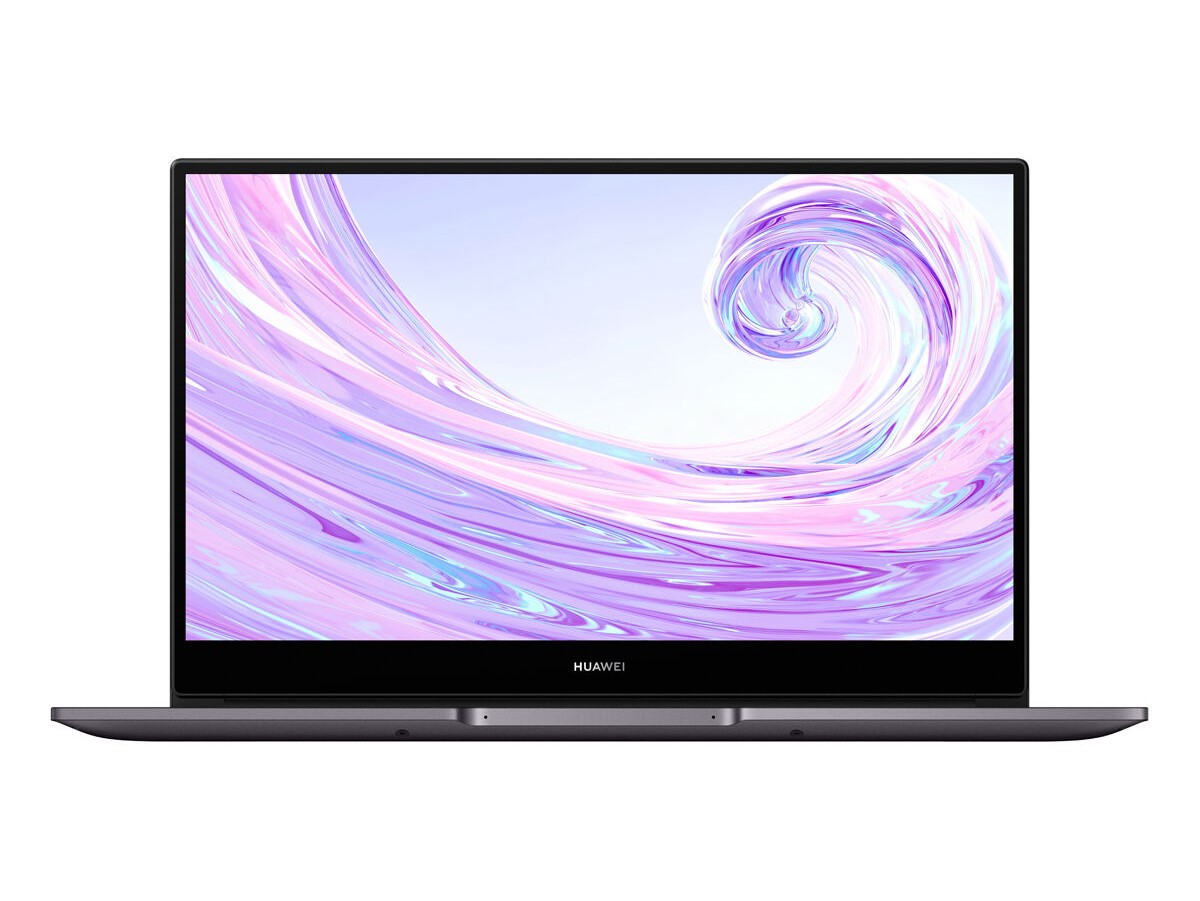

Huawei MateBook D 14 AMD

Huawei'nin Huawei MateBook D 15 incelememiz, Çinli üreticinin dizüstü bilgisayar donanımı üzerinde büyük bir kontrole sahip olduğunu gösterdi. MateBook D14 ile AMD'nin Ryzen 5 3500U, D15 için 650 $ 'a kıyasla 700 $ civarında bir fiyat noktasında daha küçük bir cihaza girdi. Ne tasarım ne de bağlantı öncekine kıyasla belirgin bir şekilde değişmediğinden, Ryzen 5 2500U incelemesi ile MateBook D 14'e hoş geldiniz.

Huawei MateBook D 14-53010TVS (MateBook D Seri)
Grafik kartı
AMD Radeon RX Vega 8
Bellek
8192 MB
, Dual-Channel
Görüntü
14 inç 16:9, 1920 x 1080 pixel 157 PPI, Chi Mei CMN1404, IPS, parlak: hayır
Anakart
AMD Promontory/Bixby FCH
Harddisk
WDC PC SN730 SDBPNTY-512G, 512 GB
, 428 GB Boş
Ses kartı
AMD Raven - Audio Processor - HD Audio Controller
Bağlantılar
1 USB 2.0, 2 USB 3.0, 1 HDMI, Ses çıkışları: 3.5-mm combo, 1 Parmak izi okuyucu, Alıcılar: accelerometer, hall effect sensor
Network
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 5.0
Boyut
yükseklik x genişlik x derinlik (mm): 16 x 322 x 215
Batarya
56 Wh Lithium-Ion
İşletim sistemi
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 0.9, 16:9 (1280x720)
Ek özellikler
Hoparlörler: 2 speakers, Klavye: chiclet, Klavye ışığı: hayır, USB charger, USB Type-C cable, Huawei PC Manager, Monitor Manager, 24 Ay Garanti
Ağırlık
1.382 kg, Güç kaynağı: 198 g
Fiyat
700 Euro
Bağlantılar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
87 %
03/2020
Huawei MateBook D 14-53010TVS
R5 3500U, Vega 8
1.4 kg16 mm14"1920x1080
Acer Swift 3 SF314-41G-R491
R5 3500U, Radeon 540X
1.5 kg17.95 mm14"1920x1080
81 %
02/2020
Asus ZenBook 14 UM431DA-AM020T
R7 3700U, Vega 10
1.4 kg16 mm14"1920x1080
75 %
Dell Inspiron 14 3493-4KWCF
i7-1065G7, GeForce MX230
1.8 kg21 mm14"1920x1080
85 %
03/2020
Huawei MateBook D 15-53010TUY
R5 3500U, Vega 8
1.5 kg16.9 mm15.6"1920x1080
85 %
03/2019
Huawei MateBook D 14 W00D-53010GXL
R5 2500U, Vega 8
1.5 kg16 mm14"1920x1080
87 %
06/2019
Huawei MateBook D 14 W50F
i5-8250U, UHD Graphics 620
1.5 kg16 mm14"1920x1080

Çanta - Sağlam 14 inç Dizüstü Bilgisayar

MateBook D 14'ün metal kasası eskisi kadar ince ve minimalist. İnce çerçeveler sayesinde, web kamerası klavyenin altında gizli kalır ve parmak izi okuyucusu güç düğmesine sorunsuz ve görünmez bir şekilde entegre edilir. 1,4 kg ağırlığında ve sadece 16 mm kalınlığında test grubumuzdaki en hafif ve en ince cihazlardan biridir.

Huawei MateBook D 14 AMD
Huawei MateBook D 14 AMD
Huawei MateBook D 14 AMD
Huawei MateBook D 14 AMD
Huawei MateBook D 14 AMD

Boyut Karşılaştırma

339 mm 242 mm 21 mm 1.8 kg323 mm 228 mm 17.95 mm 1.5 kg324 mm 212 mm 16 mm 1.4 kg322 mm 215 mm 16 mm 1.4 kg

Bağlantı - MateBook D 14'te Kart Okuyucu Yok

MateBook D 15 ile karşılaştırıldığında, kullanıcılar bir USB Type-A bağlantı noktasıyla daha az yapmak zorunda kalacaklar. Ek olarak, şarj sırasında USB-C bağlantı noktası kullanılamaz.

Left: 1x USB 3.1 Gen 1 Type-C (also power port), 1x USB 3.0, HDMI
Left: 1x USB 3.1 Gen 1 Type-C (also power port), 1x USB 3.0, HDMI
Right: 3.5-mm combo jack, 1x USB 2.0
Right: 3.5-mm combo jack, 1x USB 2.0

İletişim

Netgear Nighthawk RAX1200 referans yönlendiricimize bağlandığında uygun aktarım hızlarına ulaşmayı başardık. Selefi ile karşılaştırıldığında, TX oranları daha da iyileşirken, RX oranları korunmuştur. Wi-Fi 5 modemi ve 2x2 MIMO antenleri ile MateBook D 14 sadece MateBook D 15 tarafından daha iyi performans gösterdi.

Networking
iperf3 Client (receive) TCP 1 m 4M x10
Huawei MateBook D 15-53010TUY
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
653 (min: 593, max: 667) MBit/s ∼100% +2%
Huawei MateBook D 14-53010TVS
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
643 (min: 619, max: 656) MBit/s ∼98%
Huawei MateBook D 14 W00D-53010GXL
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
635 MBit/s ∼97% -1%
Average of class Subnotebook
  (30.9 - 1460, n=147)
570 MBit/s ∼87% -11%
Huawei MateBook D 14 W50F
Intel Dual Band Wireless-AC 8265
502 (min: 323, max: 535) MBit/s ∼77% -22%
Asus ZenBook 14 UM431DA-AM020T
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
416 (min: 375, max: 465) MBit/s ∼64% -35%
Dell Inspiron 14 3493-4KWCF
Qualcomm Atheros QCA9377 Wireless Network Adapter
333 (min: 322, max: 341) MBit/s ∼51% -48%
iperf3 Client (transmit) TCP 1 m 4M x10
Huawei MateBook D 15-53010TUY
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
690 (min: 335, max: 729) MBit/s ∼100% +5%
Huawei MateBook D 14-53010TVS
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
656 (min: 332, max: 675) MBit/s ∼95%
Asus ZenBook 14 UM431DA-AM020T
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
598 (min: 519, max: 628) MBit/s ∼87% -9%
Huawei MateBook D 14 W50F
Intel Dual Band Wireless-AC 8265
590 (min: 528, max: 688) MBit/s ∼86% -10%
Average of class Subnotebook
  (36 - 1416, n=147)
559 MBit/s ∼81% -15%
Huawei MateBook D 14 W00D-53010GXL
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
514 MBit/s ∼74% -22%
Dell Inspiron 14 3493-4KWCF
Qualcomm Atheros QCA9377 Wireless Network Adapter
305 (min: 288, max: 327) MBit/s ∼44% -54%
0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730Tooltip
Huawei MateBook D 14-53010TVS Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø642 (619-656)
Asus ZenBook 14 UM431DA-AM020T Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø415 (375-465)
Dell Inspiron 14 3493-4KWCF Qualcomm Atheros QCA9377 Wireless Network Adapter; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø333 (322-341)
Huawei MateBook D 15-53010TUY Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø652 (593-667)
Huawei MateBook D 14 W50F Intel Dual Band Wireless-AC 8265; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø502 (323-535)
Huawei MateBook D 14-53010TVS Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø645 (332-675)
Asus ZenBook 14 UM431DA-AM020T Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø598 (519-628)
Dell Inspiron 14 3493-4KWCF Qualcomm Atheros QCA9377 Wireless Network Adapter; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø305 (288-327)
Huawei MateBook D 15-53010TUY Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø679 (335-729)
Huawei MateBook D 14 W50F Intel Dual Band Wireless-AC 8265; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø591 (528-688)

Web kamerası

MateBook D 14'ün web kamerası, F6 ve F7 tuşları arasında ekstra bir anahtarın altında gizlidir ve dizüstü bilgisayarın önünde bir kurbağa gözü görünümü sunar. 0,9 MP boyutunda kalitesi, şu anda mevcut olan diğer tüm dizüstü bilgisayarlarda olduğu kadar düşüktür.

Huawei MateBook D 14 - Webcam
Huawei MateBook D 14 - Webcam
Huawei MateBook D 14 - Webcam
Huawei MateBook D 14 - Webcam

Güvenlik

TPM'ye ek olarak, dizüstü bilgisayar güç düğmesine entegre edilmiş bir parmak izi okuyucusu sunar, bu sayede MateBook D 14 gecikmeden çok hızlı ve güvenilir bir şekilde açılabilir.

Aksesuarlar

Kutunun içinde MateBook D 14'ün kendisini ve eşleşen USB C Tipi kabloya sahip bir USB şarj cihazı buluyoruz. Huawei, MateBook için özel olarak tasarlanmış ek aksesuarlar yapmaz.

Bakım

Dahili donanıma erişmek için alt paneli yerinde tutan tüm vidaların çıkarılması gerekir. Kaldırıldıktan sonra SSD ve Wi-Fi modemi değiştirebilirsiniz. Boş RAM yuvaları veya SATA yuvası görülecek bir yer değildir.

Huawei MateBook D 14 - maintenance
Huawei MateBook D 14 - maintenance

Garanti

Satın alındığı ülkeye bağlı olarak MateBook D 14, 12 ila 24 ay garantilidir.

Giriş Aygıtları - Arkadan Aydınlatmalı Klavyeli Huawei MateBook

MateBook D 14'ün klavyesi, iyi tanımlanmış ve sağlam geri bildirimle sığ tuş hareketi sunar. Kapsamlı yazma oturumları için çok uygundur. Ayrıca, kullanıcıyı gereksiz yere kör etmeden karanlıkta klavyeyi aydınlatan iki aşamalı bir arkadan aydınlatmaya sahiptir.

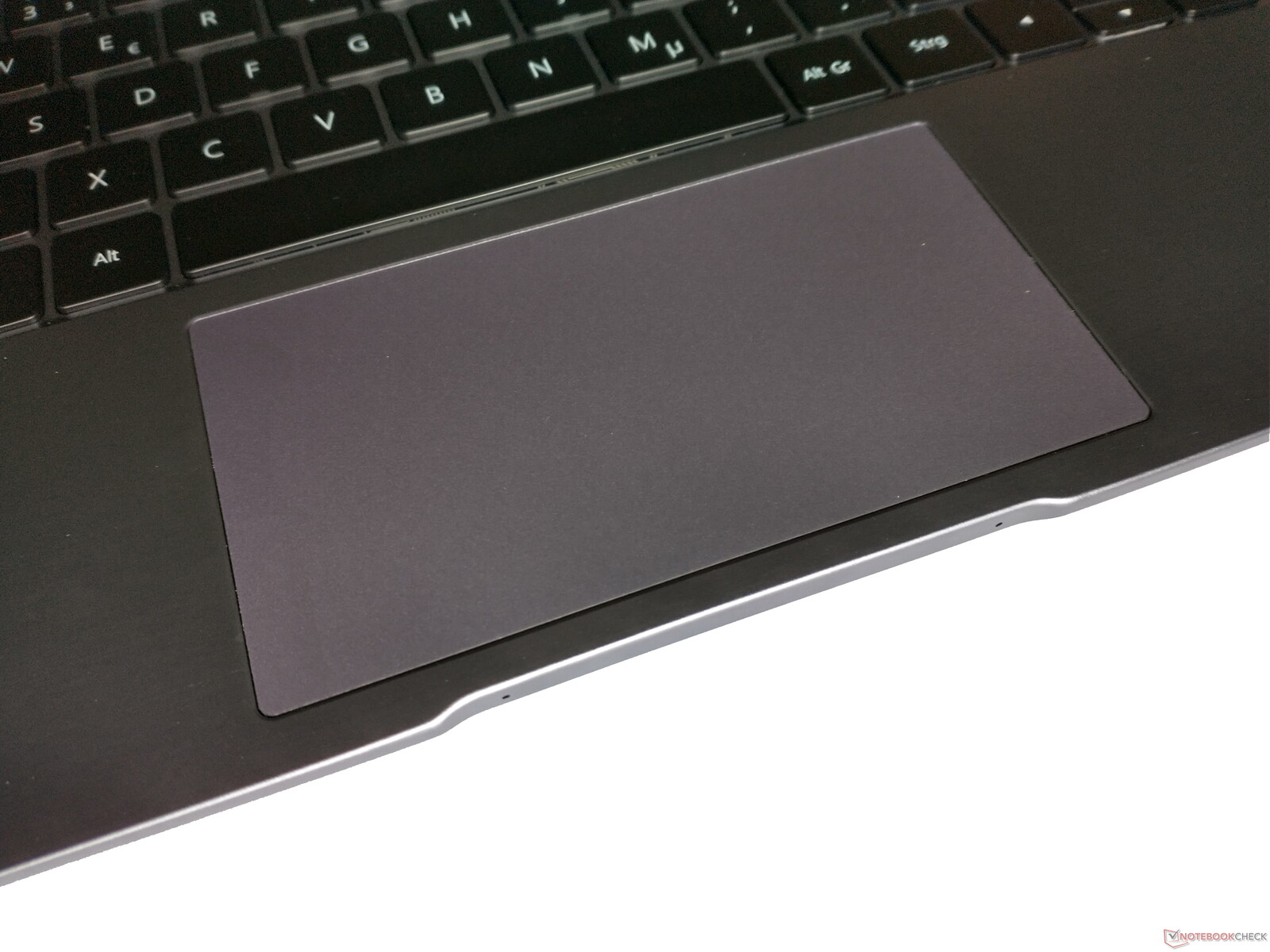

Dokunmatik

ClickPad doğru fare işaretçisi gezinmesine izin verir. Sürüklemek

Huawei MateBook D 14 - input devices
Huawei MateBook D 14 - input devices
Huawei MateBook D 14 - ClickPad
Huawei MateBook D 14 - ClickPad
Huawei MateBook D 14 - keyboard backlight
Huawei MateBook D 14 - keyboard backlight

Ekran - İyi kalibre edilmiş IPS Paneli

Subpixel array
Subpixel array
Screen bleeding (massively overexposed)
Screen bleeding (massively overexposed)

MateBook D 14'ün 14 inç IPS paneli 1920x1080 çözünürlüğünde çalışıyor. Ortadaki maksimum parlaklığı% 94 parlaklık dağılımı ile 250 nit'de ölçülmüştür. İkincisi selefine göre iyileşti; eski maalesef biraz azaldı. Günlük kullanımda, ekran kanaması sağdaki resimden beklenenden çok daha az sorun.% 30 ve altındaki parlaklık seviyelerinde 25.000 Hz frekansında titreşen PWM bulduk. Bu frekans, hassas kullanıcılarda göz ağrısını ve diğer sorunları önlemek için yeterince yüksektir. Diğer ekran seçenekleri mevcut değildir.

241
cd/m²
248
cd/m²
244
cd/m²
240
cd/m²
250
cd/m²
237
cd/m²
234
cd/m²
242
cd/m²
234
cd/m²
Parlaklığın yayılımı
Chi Mei CMN1404
X-Rite i1Pro 2
Maksimum: 250 cd/m² Ortalama: 241.1 cd/m² Minimum: 3 cd/m²
Aydınlatma: 94 %
Batarya modunda parlaklık: 251 cd/m²
Kontrast: 1136:1 (Siyah: 0.22 cd/m²)
ΔE Color 4.4 | 0.6-29.43 Ø5.9, calibrated: 4.2
ΔE Greyscale 2.9 | 0.64-98 Ø6.1
69.6% sRGB (Argyll 3D) 44.3% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.3
Huawei MateBook D 14-53010TVS
Chi Mei CMN1404, IPS, 1920x1080, 14
Asus ZenBook 14 UM431DA-AM020T
CEC PA LM140LF-3L03, IPS, 1920x1080, 14
Dell Inspiron 14 3493-4KWCF
Chi Mei 140HCA, IPS, 1920x1080, 14
Huawei MateBook D 15-53010TUY
AU Optronics AUO28ED, IPS, 1920x1080, 15.6
Huawei MateBook D 14 W00D-53010GXL
BOE083C, IPS, 1920x1080, 14
Response Times
-26%
-33%
-7%
-39%
Response Time Grey 50% / Grey 80% *
41.2 (21.2, 20)
36 (19, 17)
13%
41 (23, 18)
-0%
43.6 (20.4, 23.2)
-6%
42.4 (22.8, 19.6)
-3%
Response Time Black / White *
28.8 (16.4, 12.4)
26 (15, 11)
10%
31 (18, 13)
-8%
31.2 (18, 13.2)
-8%
32.8 (18, 14.8)
-14%
PWM Frequency
25000 (30)
44 (20)
-100%
2500 (20)
-90%
198.4 (99)
-99%
Screen
-10%
-5%
9%
-4%
Brightness middle
250
253
1%
226
-10%
271
8%
287
15%
Brightness
241
245
2%
214
-11%
256
6%
276
15%
Brightness Distribution
94
78
-17%
92
-2%
90
-4%
86
-9%
Black Level *
0.22
0.225
-2%
0.17
23%
0.15
32%
0.25
-14%
Contrast
1136
1124
-1%
1329
17%
1807
59%
1148
1%
Colorchecker DeltaE2000 *
4.4
8.89
-102%
5.21
-18%
4.7
-7%
5.4
-23%
Colorchecker DeltaE2000 max. *
19.7
4.56
77%
22.15
-12%
20.4
-4%
18.1
8%
Colorchecker DeltaE2000 calibrated *
4.2
4.9
-17%
4.43
-5%
4.6
-10%
5
-19%
Greyscale DeltaE2000 *
2.9
6.33
-118%
3.27
-13%
1.6
45%
3.1
-7%
Gamma
2.3 96%
2.52 87%
2.36 93%
2.17 101%
1.99 111%
CCT
7045 92%
6745 96%
6538 99%
6649 98%
6769 96%
Color Space (Percent of AdobeRGB 1998)
44.3
60
35%
40
-10%
38.5
-13%
41.8
-6%
Color Space (Percent of sRGB)
69.6
91
31%
62
-11%
60.6
-13%
64.6
-7%
Total Average (Program / Settings)
-18% / -13%
-19% / -11%
1% / 7%
-22% / -12%

* ... smaller is better

Color-space coverage (sRGB) - 69.9%
Color-space coverage (sRGB) - 69.9%
Color-space coverage (AdobeRGB) - 44.3%
Color-space coverage (AdobeRGB) - 44.3%

Laboratuarda, Huawei'nin dizüstü bilgisayarını iyi bir kontrast oranı 1.136: 1 ve çok iyi bir siyah seviyesi sadece 0.22 nit ile kanıtlayabildik. Buna göre, MateBook D 14 kendi öncülünün veya rakiplerinin üstüne çıkamazdı. Aynı şey, yalnızca% 70 sRGB ve% 44 AdobeRGB'de en iyi vasat olan renk alanı kapsamı için de söylenmelidir. CalMAN analizimiz, nispeten iyi dengelenmiş bir ekranı kutunun dışına çıkardı. Sonuç olarak, i1 Pro 2 spektrofotometre kalibrasyonumuzla renk doğruluğunu biraz iyileştirebildik.

CalMAN - color accuracy
CalMAN - color accuracy
CalMAN - grayscale
CalMAN - grayscale
CalMAN - saturation
CalMAN - saturation
CalMAN - color accuracy (calibrated)
CalMAN - color accuracy (calibrated)
CalMAN - grayscale (calibrated)
CalMAN - grayscale (calibrated)
CalMAN - saturation (calibrated)
CalMAN - saturation (calibrated)

Dış mekanda kullanılabilirlik iyi ve ekran yandan güneş parlıyor olsa bile ekran içeriği okunabilir kaldı.

Huawei MateBook D 14 - outdoors
Huawei MateBook D 14 - outdoors
Huawei MateBook D 14 - outdoors
Huawei MateBook D 14 - outdoors

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
28.8 ms ... rise ↗ and fall ↘ combined↗ 16.4 ms rise
↘ 12.4 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 66 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.8 ms).
       Response Time 50% Grey to 80% Grey
41.2 ms ... rise ↗ and fall ↘ combined↗ 21.2 ms rise
↘ 20 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 53 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (39.4 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 25000 Hz ≤ 30 % brightness setting

The display backlight flickers at 25000 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 30 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 25000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18312 (minimum: 5 - maximum: 2500000) Hz was measured.

Görüş açıları genel olarak çok geniştir. Ekran içeriği, herhangi bir bozulma veya renk kayması olmadan tüm açılardan okunabildi.

Huawei MateBook D 14 - viewing angles
Huawei MateBook D 14 - viewing angles

Performans - AMD Ryzen 5 3500U Çıktı

MateBook D 14 öncelikle ofis kullanıcılarına ve daha zorlu uygulamalar çalıştıranlara yöneliktir. Oyun amaçları için özellikle uygun değildir. İncelenenin dışındaki SKU'lar şu anda mevcut değildir.



İşlemci

Ryzen 5 2500U donanımlı önceki modeline kıyasla AMD Ryzen 5 3500U önemli ölçüde daha yüksek bir performans sunmalıdır. 2.1 ve 3.7 GHz arasındaki saat hızlarında aynı anda sekiz iş parçacığında çalışabilir. CPU'nun güç tüketimi 22 W'da ölçüldü ve bu nedenle MateBook D 15'in 25 W'sından biraz daha düşüktü. Cinebench R15 sonuçları çok iyiydi ve MateBook D 14, Intel Core i7-1065G7'den bile daha iyi performans göstermeyi başardı. Ek olarak, yük testimiz Huawei'nin Ryzen 5 3500U'yu evcilleştirmeyi başardığını gösterdi. Diğer mevcut dizüstü bilgisayarların aksine, ne kısa bir yükleme süresinden sonra ne de pilden sonra ani bir performans düşüşü yaşamadık.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680Tooltip
Huawei MateBook D 14-53010TVS AMD Ryzen 5 3500U, AMD Ryzen 5 3500U: Ø661 (656.73-674.67)
Acer Swift 3 SF314-41G-R491 AMD Ryzen 5 3500U, AMD Ryzen 5 3500U: Ø411 (394.45-481.96)
Asus ZenBook 14 UM431DA-AM020T AMD Ryzen 7 3700U, AMD Ryzen 7 3700U: Ø512 (499.03-642.87)
Dell Inspiron 14 3493-4KWCF Intel Core i7-1065G7, Intel Core i7-1065G7: Ø585 (569.39-649.92)
Huawei MateBook D 15-53010TUY AMD Ryzen 5 3500U, AMD Ryzen 5 3500U: Ø669 (662.73-672.62)
Huawei MateBook D 14 W00D-53010GXL AMD Ryzen 5 2500U, AMD Ryzen 5 2500U: Ø583 (578.22-612.26)
Huawei MateBook D 14 W50F Intel Core i5-8250U, Intel Core i5-8250U: Ø525 (518.44-565)
Cinebench R15
CPU Single 64Bit
Dell Inspiron 14 3493-4KWCF
Intel Core i7-1065G7
182 Points ∼100% +26%
Huawei MateBook D 15-53010TUY
AMD Ryzen 5 3500U
144.02 Points ∼79% 0%
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U
144 Points ∼79%
Huawei MateBook D 14 W50F
Intel Core i5-8250U
143 Points ∼79% -1%
Acer Swift 3 SF314-41G-R491
AMD Ryzen 5 3500U
142 Points ∼78% -1%
Average AMD Ryzen 5 3500U
  (131 - 147, n=15)
142 Points ∼78% -1%
Huawei MateBook D 14 W00D-53010GXL
AMD Ryzen 5 2500U
139 Points ∼76% -3%
Asus ZenBook 14 UM431DA-AM020T
AMD Ryzen 7 3700U
133 Points ∼73% -8%
Average of class Subnotebook
  (20 - 185, n=302)
118 Points ∼65% -18%
CPU Multi 64Bit
Huawei MateBook D 15-53010TUY
AMD Ryzen 5 3500U
677.84 (min: 671.21, max: 677.84) Points ∼100% +1%
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U
674 (min: 644.06, max: 673.71) Points ∼99%
Dell Inspiron 14 3493-4KWCF
Intel Core i7-1065G7
650 Points ∼96% -4%
Asus ZenBook 14 UM431DA-AM020T
AMD Ryzen 7 3700U
642 Points ∼95% -5%
Average AMD Ryzen 5 3500U
  (482 - 682, n=16)
637 Points ∼94% -5%
Huawei MateBook D 14 W00D-53010GXL
AMD Ryzen 5 2500U
615 (min: 576.4, max: 616.38) Points ∼91% -9%
Huawei MateBook D 14 W50F
Intel Core i5-8250U
565 Points ∼83% -16%
Acer Swift 3 SF314-41G-R491
AMD Ryzen 5 3500U
482 Points ∼71% -28%
Average of class Subnotebook
  (32 - 1051, n=314)
357 Points ∼53% -47%
Cinebench R15 CPU Multi 64Bit
674 Points
Cinebench R15 OpenGL 64Bit
49.9 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
144 Points
Yardım

Sistem performansı

PCMark karşılaştırma sonuçları da iyiydi ve bireysel test puanları bu donanımdan beklenen düzeyde idi. MateBook D 14, PCMark 10'un Dijital İçerik Oluşturma ve PCMark 8'in Ev Puanı kriterlerinde liderliği bile başardı.Günlük kullanımda dizüstü bilgisayar her zaman pürüzsüz ve çabuk hissetti. Test grubumuzdaki diğer sistemlerin CPU karşılaştırma sayfamızda ne kadar iyi veya kötü olduğunu öğrenin.

PCMark 10
Digital Content Creation
Huawei MateBook D 14-53010TVS
Vega 8, R5 3500U, WDC PC SN730 SDBPNTY-512G
3467 Points ∼100%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
3466 Points ∼100% 0%
Huawei MateBook D 15-53010TUY
Vega 8, R5 3500U, Samsung SSD PM981 MZVLB256HAHQ
3344 Points ∼96% -4%
Average AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
  (2989 - 3494, n=13)
3300 Points ∼95% -5%
Huawei MateBook D 14 W00D-53010GXL
Vega 8, R5 2500U, SK Hynix SC313 HFS256G39TNF
3269 Points ∼94% -6%
Acer Swift 3 SF314-41G-R491
Radeon 540X, R5 3500U, WDC PC SN520 SDAPNUW-512G
3040 Points ∼88% -12%
Huawei MateBook D 14 W50F
UHD Graphics 620, i5-8250U, SanDisk SD9SN8W256G1027
2804 Points ∼81% -19%
Dell Inspiron 14 3493-4KWCF
GeForce MX230, i7-1065G7, Toshiba KBG40ZNS512G NVMe
2706 Points ∼78% -22%
Average of class Subnotebook
  (405 - 4338, n=116)
2545 Points ∼73% -27%
Productivity
Dell Inspiron 14 3493-4KWCF
GeForce MX230, i7-1065G7, Toshiba KBG40ZNS512G NVMe
6868 Points ∼100% +20%
Acer Swift 3 SF314-41G-R491
Radeon 540X, R5 3500U, WDC PC SN520 SDAPNUW-512G
5981 Points ∼87% +4%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
5823 Points ∼85% +2%
Average AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
  (5456 - 6074, n=13)
5762 Points ∼84% 0%
Huawei MateBook D 14 W50F
UHD Graphics 620, i5-8250U, SanDisk SD9SN8W256G1027
5758 Points ∼84% 0%
Huawei MateBook D 14-53010TVS
Vega 8, R5 3500U, WDC PC SN730 SDBPNTY-512G
5734 Points ∼83%
Huawei MateBook D 15-53010TUY
Vega 8, R5 3500U, Samsung SSD PM981 MZVLB256HAHQ
5603 Points ∼82% -2%
Huawei MateBook D 14 W00D-53010GXL
Vega 8, R5 2500U, SK Hynix SC313 HFS256G39TNF
5425 Points ∼79% -5%
Average of class Subnotebook
  (1014 - 7334, n=116)
5256 Points ∼77% -8%
Essentials
Dell Inspiron 14 3493-4KWCF
GeForce MX230, i7-1065G7, Toshiba KBG40ZNS512G NVMe
8415 Points ∼100% +11%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
7685 Points ∼91% +1%
Huawei MateBook D 15-53010TUY
Vega 8, R5 3500U, Samsung SSD PM981 MZVLB256HAHQ
7600 Points ∼90% 0%
Huawei MateBook D 14-53010TVS
Vega 8, R5 3500U, WDC PC SN730 SDBPNTY-512G
7596 Points ∼90%
Average AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
  (6690 - 8300, n=13)
7499 Points ∼89% -1%
Huawei MateBook D 14 W50F
UHD Graphics 620, i5-8250U, SanDisk SD9SN8W256G1027
7373 Points ∼88% -3%
Acer Swift 3 SF314-41G-R491
Radeon 540X, R5 3500U, WDC PC SN520 SDAPNUW-512G
7283 Points ∼87% -4%
Average of class Subnotebook
  (2062 - 9664, n=116)
6926 Points ∼82% -9%
Huawei MateBook D 14 W00D-53010GXL
Vega 8, R5 2500U, SK Hynix SC313 HFS256G39TNF
6756 Points ∼80% -11%
Score
Dell Inspiron 14 3493-4KWCF
GeForce MX230, i7-1065G7, Toshiba KBG40ZNS512G NVMe
3862 Points ∼100% +1%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
3851 Points ∼100% +1%
Huawei MateBook D 14-53010TVS
Vega 8, R5 3500U, WDC PC SN730 SDBPNTY-512G
3818 Points ∼99%
Average AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
  (3485 - 3972, n=13)
3744 Points ∼97% -2%
Huawei MateBook D 15-53010TUY
Vega 8, R5 3500U, Samsung SSD PM981 MZVLB256HAHQ
3743 Points ∼97% -2%
Acer Swift 3 SF314-41G-R491
Radeon 540X, R5 3500U, WDC PC SN520 SDAPNUW-512G
3654 Points ∼95% -4%
Huawei MateBook D 14 W00D-53010GXL
Vega 8, R5 2500U, SK Hynix SC313 HFS256G39TNF
3534 Points ∼92% -7%
Huawei MateBook D 14 W50F
UHD Graphics 620, i5-8250U, SanDisk SD9SN8W256G1027
3526 Points ∼91% -8%
Average of class Subnotebook
  (743 - 4609, n=119)
3210 Points ∼83% -16%
PCMark 8
Work Score Accelerated v2
Dell Inspiron 14 3493-4KWCF
GeForce MX230, i7-1065G7, Toshiba KBG40ZNS512G NVMe
4955 Points ∼100% +4%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
4842 Points ∼98% +1%
Huawei MateBook D 14-53010TVS
Vega 8, R5 3500U, WDC PC SN730 SDBPNTY-512G
4772 Points ∼96%
Average AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
  (4559 - 5039, n=9)
4740 Points ∼96% -1%
Huawei MateBook D 15-53010TUY
Vega 8, R5 3500U, Samsung SSD PM981 MZVLB256HAHQ
4699 Points ∼95% -2%
Huawei MateBook D 14 W00D-53010GXL
Vega 8, R5 2500U, SK Hynix SC313 HFS256G39TNF
4420 Points ∼89% -7%
Average of class Subnotebook
  (1283 - 5363, n=233)
4092 Points ∼83% -14%
Home Score Accelerated v2
Huawei MateBook D 14-53010TVS
Vega 8, R5 3500U, WDC PC SN730 SDBPNTY-512G
3669 Points ∼100%
Huawei MateBook D 15-53010TUY
Vega 8, R5 3500U, Samsung SSD PM981 MZVLB256HAHQ
3641 Points ∼99% -1%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
3604 Points ∼98% -2%
Average AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
  (3316 - 4235, n=10)
3573 Points ∼97% -3%
Huawei MateBook D 14 W00D-53010GXL
Vega 8, R5 2500U, SK Hynix SC313 HFS256G39TNF
3420 Points ∼93% -7%
Dell Inspiron 14 3493-4KWCF
GeForce MX230, i7-1065G7, Toshiba KBG40ZNS512G NVMe
3355 Points ∼91% -9%
Average of class Subnotebook
  (1027 - 4235, n=262)
3067 Points ∼84% -16%
PCMark 8 Home Score Accelerated v2
3669 puan
PCMark 8 Work Score Accelerated v2
4772 puan
Yardım

Depolama aygıtları

MateBook D 14'ün 512 GB SSD'si Western Digital tarafından üretildi. Testlerimizde iyi sonuçlar elde etti ve şu anda mevcut olan daha hızlı SSD'lere bile ayak uydurabildi. Daha fazla ayrıntı ve karşılaştırma için özel SSD / HDD test sayfamıza bakın.

Huawei MateBook D 14-53010TVS
WDC PC SN730 SDBPNTY-512G
Asus ZenBook 14 UM431DA-AM020T
SK hynix BC501 HFM512GDHTNG-8310A
Dell Inspiron 14 3493-4KWCF
Toshiba KBG40ZNS512G NVMe
Huawei MateBook D 15-53010TUY
Samsung SSD PM981 MZVLB256HAHQ
Average WDC PC SN730 SDBPNTY-512G

CrystalDiskMark 5.2 / 6
-34%
2%
-7%
16%
Write 4K
145.4
118.8
-18%
159.6
10%
134.8
-7%
168 (145 - 208, n=3)
16%
Read 4K
46.25
41.62
-10%
53.45
16%
41.68
-10%
47.7 (45.8 - 51, n=3)
3%
Write Seq
2583
795.7
-69%
1174
-55%
1651
-36%
2443 (2060 - 2687, n=3)
-5%
Read Seq
2141
1101
-49%
1648
-23%
2300
7%
2094 (1973 - 2168, n=3)
-2%
Write 4K Q32T1
239.5
234.7
-2%
420.8
76%
260
9%
406 (240 - 490, n=3)
70%
Read 4K Q32T1
340
313.8
-8%
563.6
66%
335.1
-1%
442 (340 - 600, n=3)
30%
Write Seq Q32T1
2701
842.3
-69%
1231
-54%
1641
-39%
2701 (2699 - 2703, n=3)
0%
Read Seq Q32T1
2871
1645
-43%
2274
-21%
3452
20%
3207 (2871 - 3376, n=3)
12%
AS SSD
-25%
-93%
-4%
-10%
Access Time Write *
0.039
0.045
-15%
0.263
-574%
0.042
-8%
0.063 (0.039 - 0.076, n=3)
-62%
Access Time Read *
0.074
0.047
36%
0.081
-9%
0.062
16%
0.0647 (0.058 - 0.074, n=3)
13%
4K-64 Write
1223.72
747.86
-39%
383.45
-69%
1274.96
4%
1043 (950 - 1224, n=3)
-15%
4K-64 Read
1282.07
739.73
-42%
1264.88
-1%
748.18
-42%
1070 (885 - 1282, n=3)
-17%
4K Write
116.94
80.08
-32%
101.25
-13%
111.64
-5%
134 (117 - 148, n=3)
15%
4K Read
40.36
37.03
-8%
37.81
-6%
47.15
17%
44.6 (40.4 - 47.5, n=3)
11%
Seq Write
2254.85
781.17
-65%
775.17
-66%
1549.06
-31%
1985 (1259 - 2442, n=3)
-12%
Seq Read
2262.77
1417.21
-37%
2074
-8%
2612.65
15%
2044 (1786 - 2263, n=3)
-10%
Total Average (Program / Settings)
-30% / -29%
-46% / -46%
-6% / -6%
3% / 3%

* ... smaller is better

WDC PC SN730 SDBPNTY-512G
CDM 5/6 Read Seq Q32T1: 2871 MB/s
CDM 5/6 Write Seq Q32T1: 2701 MB/s
CDM 5/6 Read 4K Q32T1: 340 MB/s
CDM 5/6 Write 4K Q32T1: 239.5 MB/s
CDM 5 Read Seq: 2141 MB/s
CDM 5 Write Seq: 2583 MB/s
CDM 5/6 Read 4K: 46.25 MB/s
CDM 5/6 Write 4K: 145.4 MB/s

GPU Performansı

Her şey grafik bir AMD Radeon RX Vega 8 tarafından işlenir. Çok miktarda RAM'den ve hatta çift kanallı yapılandırmasından daha da fazla yararlanır. Sonuç olarak, 3DMark karşılaştırma sonuçları bizim tarafımızdan kıyaslanan bu GPU ile tüm dizüstü bilgisayarların ortalamasının% 28'inden daha fazladır. AMD Radeon RX Vega 8 ve diğerlerine kıyasla ne kadar iyi performans gösterdiğini öğrenmek için GPU kıyaslama sayfamıza bakın. GPU'lar.

3DMark 11 - 1280x720 Performance GPU
Acer Swift 3 SF314-41G-R491
AMD Radeon 540X, AMD Ryzen 5 3500U
4097 Points ∼100% +5%
Huawei MateBook D 14-53010TVS
AMD Radeon RX Vega 8, AMD Ryzen 5 3500U
3908 Points ∼95%
Huawei MateBook D 15-53010TUY
AMD Radeon RX Vega 8, AMD Ryzen 5 3500U
3837 Points ∼94% -2%
Huawei MateBook D 14 W00D-53010GXL
AMD Radeon RX Vega 8, AMD Ryzen 5 2500U
3565 Points ∼87% -9%
Asus ZenBook 14 UM431DA-AM020T
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
3389 Points ∼83% -13%
Average AMD Radeon RX Vega 8
  (1668 - 4317, n=34)
3383 Points ∼83% -13%
Dell Inspiron 14 3493-4KWCF
NVIDIA GeForce MX230, Intel Core i7-1065G7
3180 Points ∼78% -19%
Huawei MateBook D 14 W50F
Intel UHD Graphics 620, Intel Core i5-8250U
1776 Points ∼43% -55%
Average of class Subnotebook
  (230 - 10699, n=387)
1408 Points ∼34% -64%
3DMark
2560x1440 Time Spy Graphics
Acer Swift 3 SF314-41G-R491
AMD Radeon 540X, AMD Ryzen 5 3500U
797 Points ∼100%
Dell Inspiron 14 3493-4KWCF
NVIDIA GeForce MX230, Intel Core i7-1065G7
698 Points ∼88%
Average AMD Radeon RX Vega 8
  (523 - 788, n=14)
657 Points ∼82%
Average of class Subnotebook
  (85 - 2840, n=55)
583 Points ∼73%
1920x1080 Fire Strike Graphics
Acer Swift 3 SF314-41G-R491
AMD Radeon 540X, AMD Ryzen 5 3500U
2779 Points ∼100% +7%
Huawei MateBook D 14-53010TVS
AMD Radeon RX Vega 8, AMD Ryzen 5 3500U
2598 Points ∼93%
Huawei MateBook D 15-53010TUY
AMD Radeon RX Vega 8, AMD Ryzen 5 3500U
2557 Points ∼92% -2%
Huawei MateBook D 14 W00D-53010GXL
AMD Radeon RX Vega 8, AMD Ryzen 5 2500U
2381 Points ∼86% -8%
Asus ZenBook 14 UM431DA-AM020T
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
2272 Points ∼82% -13%
Average AMD Radeon RX Vega 8
  (1095 - 2901, n=31)
2169 Points ∼78% -17%
Dell Inspiron 14 3493-4KWCF
NVIDIA GeForce MX230, Intel Core i7-1065G7
2168 Points ∼78% -17%
Huawei MateBook D 14 W50F
Intel UHD Graphics 620, Intel Core i5-8250U
1245 Points ∼45% -52%
Average of class Subnotebook
  (222 - 3726, n=268)
1124 Points ∼40% -57%
1280x720 Cloud Gate Standard Graphics
Huawei MateBook D 14-53010TVS
AMD Radeon RX Vega 8, AMD Ryzen 5 3500U
18850 Points ∼100%
Huawei MateBook D 15-53010TUY
AMD Radeon RX Vega 8, AMD Ryzen 5 3500U
18491 Points ∼98% -2%
Huawei MateBook D 14 W00D-53010GXL
AMD Radeon RX Vega 8, AMD Ryzen 5 2500U
17661 Points ∼94% -6%
Asus ZenBook 14 UM431DA-AM020T
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
16048 Points ∼85% -15%
Acer Swift 3 SF314-41G-R491
AMD Radeon 540X, AMD Ryzen 5 3500U
15167 Points ∼80% -20%
Average AMD Radeon RX Vega 8
  (7309 - 19351, n=27)
14696 Points ∼78% -22%
Dell Inspiron 14 3493-4KWCF
NVIDIA GeForce MX230, Intel Core i7-1065G7
13376 Points ∼71% -29%
Huawei MateBook D 14 W50F
Intel UHD Graphics 620, Intel Core i5-8250U
9730 Points ∼52% -48%
Average of class Subnotebook
  (1484 - 22615, n=288)
8017 Points ∼43% -57%
3DMark 11 Performance
4013 puan
3DMark Cloud Gate Standard Score
13711 puan
3DMark Fire Strike Score
2372 puan
Yardım

Oyun Performansı

AMD Radeon RX Vega 8, birçok eski oyunu orta seviyelerde sorunsuz bir şekilde çalıştırabilir. Modern bir oyunun sorunsuz bir şekilde oynanıp oynanmayacağı, ne kadar zorlu olduğuna bağlıdır. Çoğu zaman ekran çözünürlüğünü ve ayrıntılarını düşürmeniz gerekecek. Güncel gişe rekorları kıran oyunlar genellikle oynatılamaz. Vega 8'in GPU oyun kıyaslama sayfamızdaki oyunlarda ne kadar iyi performans gösterdiğini öğrenin.

BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF)
Dell Inspiron 14 3493-4KWCF
Intel Core i7-1065G7, NVIDIA GeForce MX230
26.2 fps ∼100% +24%
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
21.05 fps ∼80%
Huawei MateBook D 15-53010TUY
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
21.01 fps ∼80% 0%
Huawei MateBook D 14 W00D-53010GXL
AMD Ryzen 5 2500U, AMD Radeon RX Vega 8
19.84 fps ∼76% -6%
Asus ZenBook 14 UM431DA-AM020T
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
17.4 fps ∼66% -17%
Average AMD Radeon RX Vega 8
  (7.6 - 21.2, n=26)
16.8 fps ∼64% -20%
Average of class Subnotebook
  (2.8 - 70.3, n=152)
11.9 fps ∼45% -43%
Huawei MateBook D 14 W50F
Intel Core i5-8250U, Intel UHD Graphics 620
9.9 fps ∼38% -53%
1280x720 Very Low Preset
Dell Inspiron 14 3493-4KWCF
Intel Core i7-1065G7, NVIDIA GeForce MX230
148.5 fps ∼100% +24%
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
120 fps ∼81%
Huawei MateBook D 15-53010TUY
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
118.85 fps ∼80% -1%
Average AMD Radeon RX Vega 8
  (68.9 - 123, n=25)
98.4 fps ∼66% -18%
Asus ZenBook 14 UM431DA-AM020T
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
93.78 fps ∼63% -22%
Huawei MateBook D 14 W50F
Intel Core i5-8250U, Intel UHD Graphics 620
70.5 fps ∼47% -41%
Average of class Subnotebook
  (16.9 - 231, n=206)
59.9 fps ∼40% -50%
Dota 2 Reborn - 1920x1080 high (2/3)
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
39 (min: 35.8) fps ∼100%
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
39 (min: 35.8) fps ∼100% 0%
Huawei MateBook D 15-53010TUY
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
38.8 (min: 35.7) fps ∼99% -1%
Asus ZenBook 14 UM431DA-AM020T
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
36 (min: 30.5) fps ∼92% -8%
Average AMD Radeon RX Vega 8
  (26.9 - 47.8, n=18)
35.5 fps ∼91% -9%
Huawei MateBook D 14 W00D-53010GXL
AMD Ryzen 5 2500U, AMD Radeon RX Vega 8
34.8 (min: 32.1) fps ∼89% -11%
Average of class Subnotebook
  (6.5 - 68.4, n=39)
29.5 fps ∼76% -24%
X-Plane 11.11
1920x1080 high (fps_test=3)
Average of class Subnotebook
  (3.09 - 42.1, n=24)
18.9 fps ∼100% +11%
Huawei MateBook D 14 W00D-53010GXL
AMD Ryzen 5 2500U, AMD Radeon RX Vega 8
18.2 fps ∼96% +6%
Average AMD Radeon RX Vega 8
  (15.2 - 27.3, n=14)
17.8 fps ∼94% +4%
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
17.1 fps ∼90%
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
17.1 fps ∼90% 0%
Huawei MateBook D 15-53010TUY
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
16.3 fps ∼86% -5%
1920x1080 med (fps_test=2)
Average of class Subnotebook
  (3.42 - 48.3, n=26)
20.7 fps ∼100% +2%
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
20.2 fps ∼98%
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
20.2 fps ∼98% 0%
Average AMD Radeon RX Vega 8
  (14.5 - 31, n=15)
19.7 fps ∼95% -2%
Huawei MateBook D 14 W00D-53010GXL
AMD Ryzen 5 2500U, AMD Radeon RX Vega 8
19.4 fps ∼94% -4%
Huawei MateBook D 15-53010TUY
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
19.4 fps ∼94% -4%
1280x720 low (fps_test=1)
Average of class Subnotebook
  (5.04 - 59.8, n=28)
27.6 fps ∼100% +4%
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
26.6 fps ∼96%
Huawei MateBook D 14-53010TVS
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
26.6 fps ∼96% 0%
Huawei MateBook D 14 W00D-53010GXL
AMD Ryzen 5 2500U, AMD Radeon RX Vega 8
26.5 fps ∼96% 0%
Average AMD Radeon RX Vega 8
  (19.2 - 39.9, n=15)
26.4 fps ∼96% -1%
Huawei MateBook D 15-53010TUY
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8
26.3 fps ∼95% -1%
düşük orta yüksek ultra
BioShock Infinite (2013) 120 21.05 fps
Dota 2 Reborn (2015) 70.9 63.7 39 36.3 fps
X-Plane 11.11 (2018) 26.6 20.2 17.1 fps

Emisyonlar - Sessiz Fanlar ve Kullanılabilir Hoparlörler

System Noise

The MateBook D 14 remained quiet even under load. The fans were inconspicuous overall and never became too obnoxious. Our review unit did not emit any other noises such as coil whine.

Ses yüksekliği

Boşta
29.6 / 29.6 / 29.6 dB
Çalışırken
30.7 / 33.3 dB
  red to green bar


30 dB
sessiz
40 dB(A)
duyulabilirlik
50 dB(A)
gürültülü

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm uzaklık)   environment noise: 29.6 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.135.734.333.835.42525.327.7282728.33130.433.232.732.236.94029.8333229.833.85032.131.93234.233.96324.524.525.725.529.18024.424.224.423.525.810029.430.930.527.628.712525.626.325.426.326.916026.131.527.227.529.120024.927.124.724.726.825024.125.725.92426.631522.622.723.721.723.940022.421.722.221.223.150021.821.421.120.723.163020.619.819.519.721.680020.119.619.318.621100020.619.619.118.521.5125019.918.21817.420.7160019.517.917.416.821.1200020.31817.216.622.3250021.3181715.923.4315018.816.916.415.620.840001816.21615.419.2500018.51615.915.620.5630016.715.815.915.618.3800015.815.615.815.516.41000015.715.815.715.515.71250015.615.615.515.415.61600015.415.315.315.215.4SPL31.830.730.329.633.3N1.61.51.41.31.9median 20.3median 18.2median 18median 17.4median 21.5Delta2.53.84.13.41.9hearing rangehide median Fan NoiseHuawei MateBook D 14-53010TVS

Temperature

Under load, the MateBook D 14’s surface temperatures peaked at 44.2 °C with a hot spot in the rear left-hand side corner. The palm rests only warmed up slightly, which means the notebook remained usable at all times.

Shortly after starting our one-hour stress test the CPU ran at a frequency of around 2 GHz and a temperature of 62 °C. It managed to maintain both temperature and clock speed throughout the remainder of the test. Given that our stress test is an extreme load scenario that is very unlikely to occur during everyday use you will not be faced with any sort of limitations caused by high temperatures.

Huawei MateBook D 14 - stress test (beginning)
Huawei MateBook D 14 - stress test (beginning)
Huawei MateBook D 14 - stress test (end)
Huawei MateBook D 14 - stress test (end)
Maksimum yük
 39.7 °C38.4 °C29.8 °C
 38 °C37.3 °C26.6 °C
 30.9 °C27.6 °C25.1 °C
Maksimum: 39.7 °C
Ortalama: 32.6 °C
29.4 °C42.2 °C44.2 °C
25.5 °C40.2 °C40.1 °C
25.1 °C32.4 °C31.8 °C
Maksimum: 44.2 °C
Ortalama: 34.5 °C
Güç kaynağı  41.7 °C | Oda sıcaklığı 19.8 °C | Voltcraft IR-900
(±) The average temperature for the upper side under maximal load is 32.6 °C / 91 F, compared to the average of 30.6 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 39.7 °C / 103 F, compared to the average of 35.8 °C / 96 F, ranging from 22 to 57 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 44.2 °C / 112 F, compared to the average of 39.8 °C / 104 F
(+) In idle usage, the average temperature for the upper side is 23.6 °C / 74 F, compared to the device average of 30.6 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.9 °C / 87.6 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.5 °C / 83.3 F (-2.4 °C / -4.3 F).
Heat map under load - top
Heat map under load - top
Heat map under load - bottom
Heat map under load - bottom

Speakers

The MateBook D 14’s speakers offer average maximum volume and a soundscape that is heavily geared towards mids. They are thus suited for occasional media consumption. Nevertheless, we advise you to use external headphones or speakers for an improved audio experience.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.834.7252729.83132.233.14029.832.45034.235.56325.526.18023.524.410027.629.912526.329.516027.540.720024.747.82502453.331521.756.140021.259.650020.75963019.764.180018.666.8100018.566.1125017.467.3160016.863.9200016.660.5250015.959.6315015.657.1400015.458.1500015.657.5630015.655.4800015.553.41000015.549.61250015.447.61600015.246.5SPL29.674.1N1.332median 17.4median 57.1Delta3.46.233.733.733.735.534.135.530.830.930.830.82930.828.72928.728.427.228.431.326.431.341.524.241.547.124.547.148.324.548.345.822.545.85321.75361.820.261.865.619.265.665.318.565.363.318.863.365.11865.166.417.466.466.917.366.969.51769.568.917.168.963.716.963.760.117.260.16017.46057.717.657.757.517.757.554.217.854.25117.75151.617.551.653.917.553.976.729.976.737.31.337.3median 60median 17.7median 6071.67hearing rangehide median Pink NoiseHuawei MateBook D 14-53010TVSAsus ZenBook 14 UM431DA-AM020T
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Huawei MateBook D 14-53010TVS audio analysis

(±) | speaker loudness is average but good (74.1 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.3% lower than median
(±) | linearity of bass is average (13.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.3% higher than median
(+) | mids are linear (6.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.4% away from median
(+) | highs are linear (4.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.9% difference to median)
Compared to same class
» 53% of all tested devices in this class were better, 9% similar, 38% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 35% of all tested devices were better, 7% similar, 58% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Asus ZenBook 14 UM431DA-AM020T audio analysis

(-) | not very loud speakers (69.45 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11% lower than median
(±) | linearity of bass is average (14% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.4% higher than median
(+) | mids are linear (3.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.3% away from median
(+) | highs are linear (6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.9% difference to median)
Compared to same class
» 28% of all tested devices in this class were better, 8% similar, 64% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 18% of all tested devices were better, 4% similar, 77% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Energy Management – MateBook D 14 offers Great Battery Life

Power Consumption

Average power consumption was somewhere in the middle of our test group, and it was appropriate when compared directly to similarly equipped notebooks.

The included USB power supply is rated at 65 W and thus sufficiently dimensioned to properly supply the MateBook with energy.

Anlık tüketim
Kapalı / Bekleme modudarklight 0.37 / 0.66 Watt
Boştadarkmidlight 5.2 / 7.7 / 8.7 Watt
Çalışırken midlight 35.4 / 48.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Huawei MateBook D 14-53010TVS
R5 3500U, Vega 8, WDC PC SN730 SDBPNTY-512G, IPS, 1920x1080, 14
Asus ZenBook 14 UM431DA-AM020T
R7 3700U, Vega 10, SK hynix BC501 HFM512GDHTNG-8310A, IPS, 1920x1080, 14
Dell Inspiron 14 3493-4KWCF
i7-1065G7, GeForce MX230, Toshiba KBG40ZNS512G NVMe, IPS, 1920x1080, 14
Huawei MateBook D 15-53010TUY
R5 3500U, Vega 8, Samsung SSD PM981 MZVLB256HAHQ, IPS, 1920x1080, 15.6
Huawei MateBook D 14 W00D-53010GXL
R5 2500U, Vega 8, SK Hynix SC313 HFS256G39TNF, IPS, 1920x1080, 14
Huawei MateBook D 14 W50F
i5-8250U, UHD Graphics 620, SanDisk SD9SN8W256G1027, IPS, 1920x1080, 14
Average AMD Radeon RX Vega 8

Average of class Subnotebook

Power Consumption
2%
-5%
-8%
-1%
17%
-4%
-13%
Idle Minimum *
5.2
3.6
31%
4.7
10%
5.2
-0%
5.3
-2%
3.7
29%
5.25 (3.7 - 7.6, n=33)
-1%
6.51 (1 - 36, n=626)
-25%
Idle Average *
7.7
7.2
6%
6.6
14%
8.8
-14%
7.8
-1%
6.9
10%
8.17 (5.86 - 12.9, n=33)
-6%
9.71 (2.06 - 39, n=626)
-26%
Idle Maximum *
8.7
10.8
-24%
5.9
32%
10.2
-17%
8.46
3%
8.4
3%
9.74 (6.36 - 13.7, n=33)
-12%
12 (3.9 - 55, n=626)
-38%
Load Average *
35.4
38
-7%
56
-58%
37.5
-6%
36.9
-4%
32
10%
37.3 (24.1 - 50.6, n=33)
-5%
33.4 (6.3 - 75, n=616)
6%
Load Maximum *
48.3
45.2
6%
60.2
-25%
50.9
-5%
49.4
-2%
32.6
33%
45.4 (26.5 - 63.6, n=33)
6%
40.5 (7.6 - 111, n=619)
16%

* ... smaller is better

Battery Life

Inside the MateBook D 14 we find a 56 Wh battery that supplied the laptop with slightly over 14 hours of energy in our real-world Wi-Fi test. This means that the D 14 placed first in our test group, and it shows that battery life has improved significantly over its AMD Ryzen 5 2500U-equipped predecessor.

Charging the battery with the included power supply from near empty to full takes around 3.5 hours.

Batarya ömrü
NBC WiFi Websurfing Battery Test 1.3
14h 22min
NBC WiFi Websurfing Battery Test 1.3 max Brightness
9h 03min
Big Buck Bunny H.264 1080p
11h 14min
Çalışırken (maksimum parlaklık)
1h 53min
Huawei MateBook D 14-53010TVS
R5 3500U, Vega 8, 56 Wh
Asus ZenBook 14 UM431DA-AM020T
R7 3700U, Vega 10, 47 Wh
Dell Inspiron 14 3493-4KWCF
i7-1065G7, GeForce MX230, 42 Wh
Huawei MateBook D 15-53010TUY
R5 3500U, Vega 8, 42 Wh
Huawei MateBook D 14 W00D-53010GXL
R5 2500U, Vega 8, 57.4 Wh
Huawei MateBook D 14 W50F
i5-8250U, UHD Graphics 620, 57 Wh
Average of class Subnotebook

Battery Runtime
-21%
-34%
-40%
-24%
-9%
-18%
WiFi v1.3
862
404
-53%
390
-55%
470
-45%
542
-37%
597
-31%
489 (206 - 991, n=246)
-43%
Load
113
125
11%
98
-13%
75
-34%
101
-11%
129
14%
122 (40 - 347, n=570)
8%

Artılar

+ CPU yük altında kısıtlanmadı
+ harika pil ömrü
+ iyi giriş aygıtları
+ kompakt ve sağlam kasa

Eksiler

- neredeyse hiç bakım seçeneği yok
- renk alanı kapsamı daha iyi olabilir
- kurbağa gözü ile web kamerası
- ev ve son düğmesi yok

Verdict – Huawei Did Many Things Right with the MateBook D 14

In review: Huawei MateBook D 14. Test unit provided by Huawei Germany
In review: Huawei MateBook D 14. Test unit provided by Huawei Germany

Huawei’s MateBook D 14 is yet another example proving that a well-thought out notebook does not necessarily have to be expensive. Its largest benefit is its consistent CPU performance that remained unthrottled under load and on battery. Another benefit is the cooling system that managed to tame the internal components and maintain low overall temperatures without sacrificing quietness at the same time. Thanks to this combination the 14-inch notebook is not only powerful but also well-suited for noise-sensitive environments.

Once again Huawei remains in full control over the MateBook D 14’s temperatures, resulting in unthrottled maximum performance.

Just like on the D15 our only gripes with the D 14 are the webcam’s frog eye’s view, the laptop’s limited maintenance options, and the lack of home and end keys on the keyboard. However, given the laptop’s overall performance and its low price it is easy to get over, particularly considering that not everybody will be equally affected by these restrictions.

Huawei MateBook D 14-53010TVS - 03/08/2020 v7
Mike Wobker

İşcilik
84 / 98 → 86%
Klavye
87%
Mouse
91%
Bağlanılabilirlik
46 / 75 → 62%
Ağırlık
70 / 20-75 → 92%
Batarya
90%
Görüntü
83%
Oyun performansı
60 / 78 → 76%
Uygulama performansı
81 / 85 → 95%
Isınma
92%
Ses
98%
Audio
67 / 91 → 74%
Ortalama
79%
87%
Subnotebook - Ortalama Ağırlık

Pricecompare

></div></div>
</div>

<div id=
Please share our article, every link counts!
> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Huawei MateBook D 14 incelem esi: AMD Ryzen 5 3500U ile
Mike Wobker, 2020-03-28 (Update: 2020-03-28)
