Kısa inceleme: Aorus X3 Plus v3 Notebook

Name: Aorus X3 Plus v3
Brand: Aorus

Boyut farketmez. 14 inçten küçük olabilir ancak Aorus X3 birçok büyük oyun cihazı kadar iyi performans sunuyor.

Allen Ngo, Published 05/22/2015 🇺🇸 🇵🇱 ...

Gaming Haswell Laptop / Notebook Windows

Test device courtesy of Aorus

Download your licensed rating image as PNG / SVG

Aorus X3 Plus v3 (X3 Seri)

İşlemci

Intel Core i7-4710HQ 4 x 2.5 - 3.5 GHz, Haswell

Grafik kartı

NVIDIA GeForce GTX 970M - 6 GB VRAM, Çekirdek: 924 MHz, Bellek: 5010 MHz, 344.42, Optimus

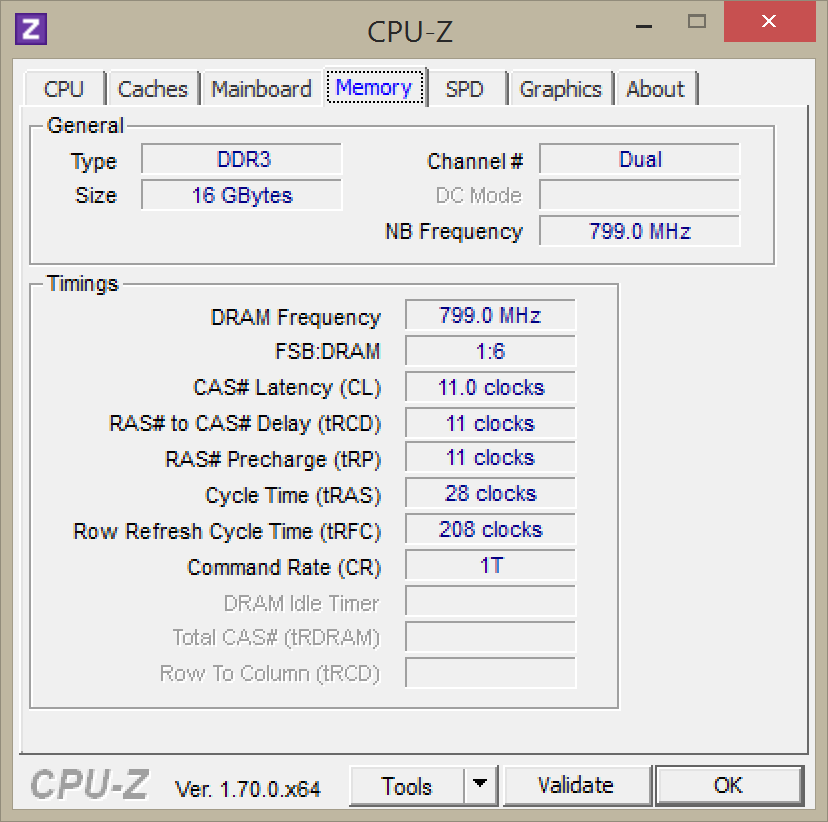

Bellek

16 GB

, 800 MHz, 11-11-11-28, Dual-Channel

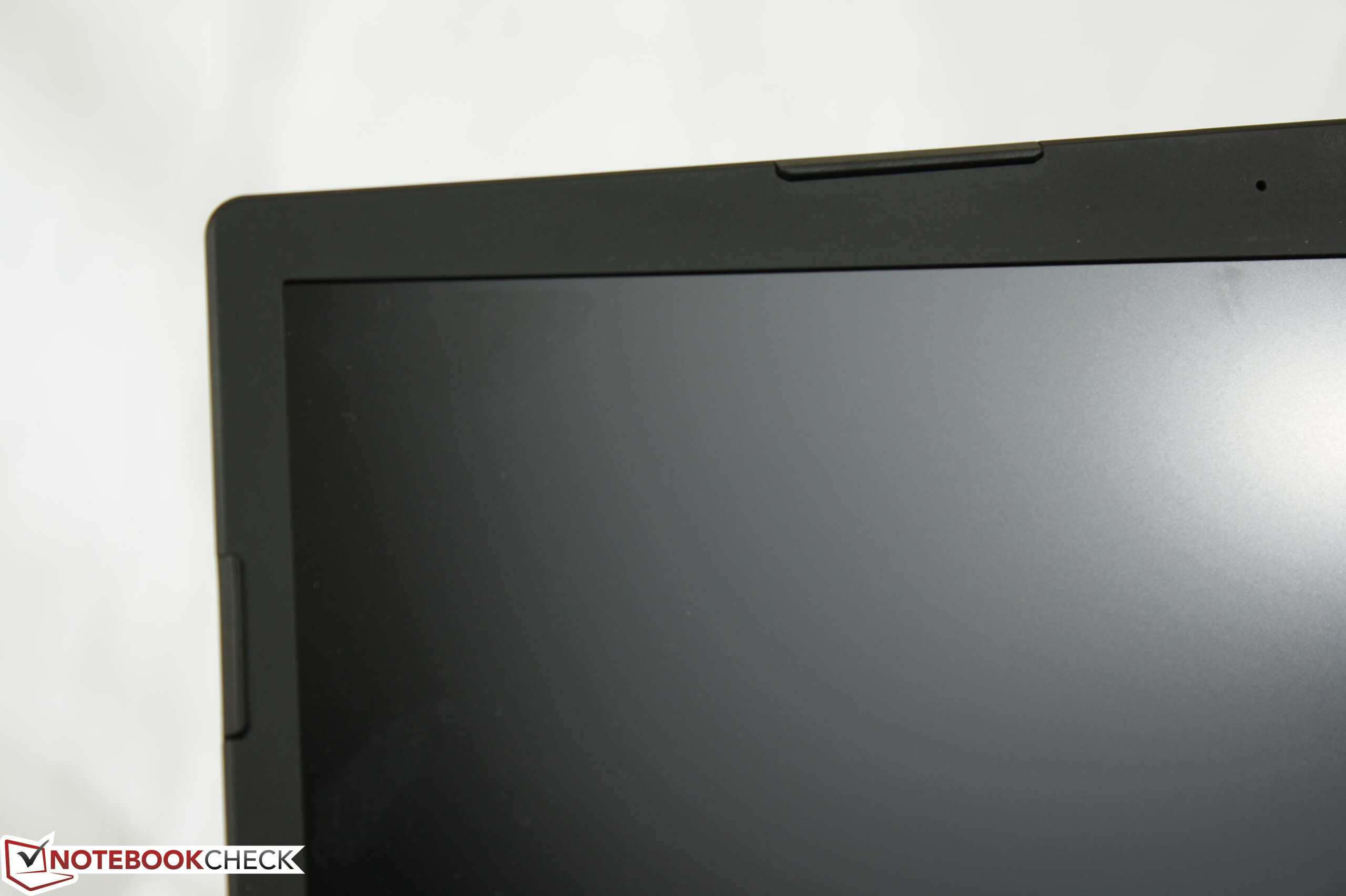

Görüntü

13.90 inç 16:9, 3200 x 1800 pixel, IPS, Manufacturer: Sharp, ID: SHP1401, Name: LQ140Z1JW01, parlak: hayır

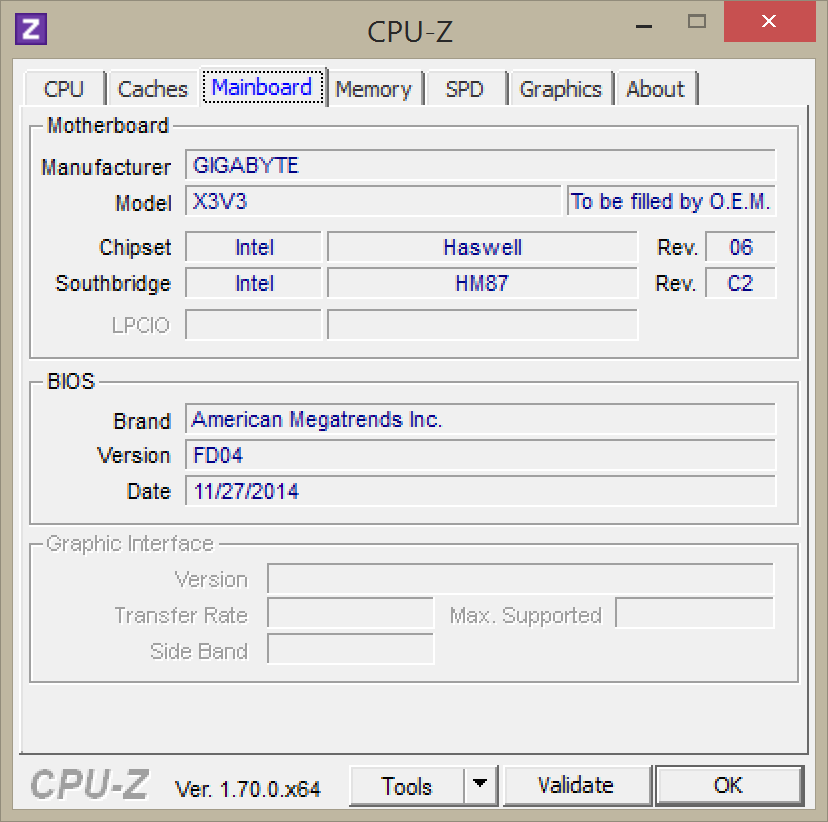

Anakart

Intel HM87 (Lynx Point)

Harddisk

2x Lite-On LMT-256L9M (RAID 0) , 512 GB

Ses kartı

Intel Lynx Point PCH - High Definition Audio Controller

Bağlantılar

3 USB 3.0, 1 HDMI, 1 DisplayPort, Ses çıkışları: 3.5 mm mic, 3.5 mm earphones , Kart okuyucular: SD reader

Network

Qualcomm Killer e2200 PCI-E Gigabit Ethernet Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Boyut

yükseklik x genişlik x derinlik (mm): 22.9 x 330 x 263.5

Batarya

73 Wh Lithium-Polymer

İşletim sistemi

Microsoft Windows 8.1 64 Bit

Camera

Webcam: HD camera

Ek özellikler

Hoparlörler: 2 Watt stereo, Klavye: Chiclet, Klavye ışığı: evet, MacroHub, Command & Control, Power Switch, 24 Ay Garanti

Ağırlık

1.8 kg, Güç kaynağı: 560 g

Fiyat

2400 Euro

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Lenovo Y40-59423035 Asus G46VW-BHI5N43 Razer Blade 14 2015 SCHENKER XMG C405 Gigabyte P34W V3 Lenovo ThinkPad Yoga 14 Aorus X3 Plus v3 DIN A4 ❌


319 cd/m²	319.3 cd/m²	306.4 cd/m²
308.2 cd/m²	312.4 cd/m²	302.2 cd/m²
308.2 cd/m²	290.1 cd/m²	291.2 cd/m²

Parlaklığın yayılımı

tested with X-Rite i1Pro Basic 2

Maksimum: 319.3 cd/m² (Nits) Ortalama: 306.3 cd/m²
Aydınlatma: 91 %
Batarya modunda parlaklık: 312.4 cd/m²
Kontrast: 620:1 (Siyah: 0.504 cd/m²)
ΔE Color 4.17 | 0.5-29.43 Ø5
ΔE Greyscale 4.4 | 0.57-98 Ø5.3
62% AdobeRGB 1998 (Argyll 1.6.3 3D)
69% AdobeRGB 1998 (Argyll 2.2.0 3D)
93.2% sRGB (Argyll 2.2.0 3D)
67.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.26

Download ICC Dosyası (X-Rite i1Display 2)

	Aorus X3 Plus v3	Lenovo Y40-59423035	Razer Blade 14 2015	Gigabyte P34W V3	SCHENKER XMG C405
Display		-42%	4%	0%	-3%
Display P3 Coverage	67.6	37.92 -44%	70.3 4%	69.4 3%	66.8 -1%
sRGB Coverage	93.2	55.7 -40%	97.1 4%	92.6 -1%	89.6 -4%
AdobeRGB 1998 Coverage	69	39.23 -43%	71.1 3%	67.4 -2%	65.6 -5%
Screen		-77%	3%	-1%	-1%
Brightness middle	312.4	211.5 -32%	318.4 2%	305.4 -2%	280 -10%
Brightness	306	195 -36%	311 2%	277 -9%	267 -13%
Brightness Distribution	91	78 -14%	78 -14%	84 -8%	85 -7%
Black Level *	0.504	0.815 -62%	0.416 17%	0.72 -43%	0.32 37%
Contrast	620	260 -58%	765 23%	424 -32%	875 41%
Colorchecker dE 2000 *	4.17	11.81 -183%	3.67 12%	2.81 33%	4.75 -14%
Greyscale dE 2000 *	4.4	12.73 -189%	5.41 -23%	1.92 56%	5.91 -34%
Gamma	2.26 ^97%	2.17 ^101%	2.26 ^97%	2.21 ^100%	2.52 ^87%
CCT	6925 ^94%	17141 ^38%	7118 ^91%	6384 ^102%	5742 ^113%
Color Space (Percent of AdobeRGB 1998)	62	35.29 -43%	64.64 4%	60.4 -3%	59 -5%
Total Average (Program / Settings)		-60% / -68%	4% / 3%	-1% / -1%	-2% / -1%

* ... smaller is better

Cinebench R10 Shading 64Bit

6510 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

24459 Points

Cinebench R10 Rendering Single CPUs 64Bit

6610 Points

Cinebench R10 Shading 32Bit

6631

Cinebench R10 Rendering Multiple CPUs 32Bit

18911

Cinebench R10 Rendering Single 32Bit

5014

Cinebench R11.5 OpenGL 64Bit

59 fps

Cinebench R11.5 CPU Multi 64Bit

6.73 Points

Cinebench R11.5 CPU Single 64Bit

1.55 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

93.3 fps

Cinebench R15 CPU Multi 64Bit

608 Points

Cinebench R15 CPU Single 64Bit

135 Points

Yardım

... kıyaslama

Cinebench R11.5 | Cinebench R15 | Cinebench R10 | wPrime 2.10 | Super Pi Mod 1.5 XS 32M

Cinebench R11.5
CPU Single 64Bit (sort by value)
Aorus X3 Plus v3	1.55 Points
Gigabyte P34W V3	1.47 Points -5%
Lenovo IdeaPad Y50	1.46 Points -6%
Eurocom X8	1.77 Points +14%
CPU Multi 64Bit (sort by value)
Aorus X3 Plus v3	6.73 Points
Gigabyte P34W V3	6 Points -11%
Lenovo IdeaPad Y50	5.29 Points -21%
Eurocom X8	7.64 Points +14%
OpenGL 64Bit (sort by value)
Aorus X3 Plus v3	59 fps
Gigabyte P34W V3	59.6 fps +1%
Lenovo IdeaPad Y50	56 fps -5%
Eurocom X8	74.9 fps +27%

Cinebench R15
CPU Single 64Bit (sort by value)
Aorus X3 Plus v3	135 Points
Gigabyte P34W V3	130 Points -4%
Lenovo IdeaPad Y50	125 Points -7%
Eurocom X8	157 Points +16%
CPU Multi 64Bit (sort by value)
Aorus X3 Plus v3	608 Points
Gigabyte P34W V3	636 Points +5%
Lenovo IdeaPad Y50	490 Points -19%
Eurocom X8	708 Points +16%
Ref. Match 64Bit (sort by value)
Aorus X3 Plus v3	99.6 %
Gigabyte P34W V3	99.6 % 0%
Lenovo IdeaPad Y50	99.6 % 0%
Eurocom X8	99.6 % 0%
OpenGL 64Bit (sort by value)
Aorus X3 Plus v3	93.3 fps
Gigabyte P34W V3	110.2 fps +18%
Lenovo IdeaPad Y50	95.6 fps +2%
Eurocom X8	128.9 fps +38%

Cinebench R10
Shading 64Bit (sort by value)
Aorus X3 Plus v3	6510 Points
Gigabyte P34W V3	6849 Points +5%
Lenovo IdeaPad Y50	6759 Points +4%
Eurocom X8	12173 Points +87%
Rendering Multiple CPUs 64Bit (sort by value)
Aorus X3 Plus v3	24459 Points
Gigabyte P34W V3	25825 Points +6%
Lenovo IdeaPad Y50	18887 Points -23%
Eurocom X8	26547 Points +9%
Rendering Single CPUs 64Bit (sort by value)
Aorus X3 Plus v3	6610 Points
Gigabyte P34W V3	6611 Points 0%
Lenovo IdeaPad Y50	6493 Points -2%
Eurocom X8	7696 Points +16%
Shading 32Bit (sort by value)
Aorus X3 Plus v3	6631 Points
Gigabyte P34W V3	6848 Points +3%
Lenovo IdeaPad Y50	6738 Points +2%
Eurocom X8	11857 Points +79%
Rendering Multiple CPUs 32Bit (sort by value)
Aorus X3 Plus v3	18911 Points
Gigabyte P34W V3	19447 Points +3%
Lenovo IdeaPad Y50	14329 Points -24%
Eurocom X8	21022 Points +11%
Rendering Single 32Bit (sort by value)
Aorus X3 Plus v3	5014 Points
Gigabyte P34W V3	5080 Points +1%
Lenovo IdeaPad Y50	4999 Points 0%
Eurocom X8	5853 Points +17%

wPrime 2.10
1024m (sort by value)
Aorus X3 Plus v3	246 s *
Gigabyte P34W V3	238.4 s * +3%
Lenovo IdeaPad Y50	323 s * -31%
Eurocom X8	218.6 s * +11%
32m (sort by value)
Aorus X3 Plus v3	7.533 s *
Gigabyte P34W V3	7.206 s * +4%
Lenovo IdeaPad Y50	7.813 s * -4%
Eurocom X8	7.004 s * +7%

Super Pi Mod 1.5 XS 32M - 32M (sort by value)
Aorus X3 Plus v3	576 s *
Gigabyte P34W V3	564 s * +2%
Lenovo IdeaPad Y50	569 s * +1%
Eurocom X8	491.5 s * +15%

Legend

Aorus X3 Plus v3 Intel Core i7-4710HQ, NVIDIA GeForce GTX 970M, 2x Lite-On LMT-256L9M (RAID 0)

Gigabyte P34W V3 Intel Core i7-4720HQ, NVIDIA GeForce GTX 970M, Lite-On LMT-128L9M

Lenovo IdeaPad Y50 Intel Core i7-4700HQ, NVIDIA GeForce GTX 860M, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache

Eurocom X8 Intel Core i7-4940MX, NVIDIA GeForce GTX 980M SLI, Samsung SSD 840 EVO 120GB mSATA

* ... smaller is better

PCMark 7 Score		6078 puan
Yardım

... kıyaslama

HD Tune

CrystalDiskMark 3.0

AS SSD

2x Lite-On LMT-256L9M (RAID 0)

Maksimum transfer hızı: 694 MB/s

Minimum transfer hızı: 994 MB/s

Ortlama transfer hızı: 964 MB/s

Erişim hızı: 0.1 ms

Yakma hızı: 1695 MB/s

İşlemci kullanımı: 8.1 %

3DMark 06 Standard Score		26947 puan
3DMark 11 Performance		9203 puan
3DMark Ice Storm Standard Score		76306 puan
3DMark Cloud Gate Standard Score		18084 puan
3DMark Fire Strike Score		6514 puan
3DMark Fire Strike Extreme Score		3315 puan
Yardım

... kıyaslama

	düşük	orta	yüksek	ultra
Sleeping Dogs (2012)			133.2	45.1
Guild Wars 2 (2012)			60.6	51.7
Tomb Raider (2013)			186.1	79.3
StarCraft II: Heart of the Swarm (2013)			116.6	79.3
BioShock Infinite (2013)			154.7	72
Metro: Last Light (2013)			93.6	52.6
Thief (2014)			67.9	47.4
Middle-earth: Shadow of Mordor (2014)			65.7	52.5
Ryse: Son of Rome (2014)			48.8	45.3
F1 2014 (2014)			111	97

Sleeping Dogs
1920x1080 Extreme Preset AA:Extreme (sort by value)
Aorus X3 Plus v3	45.1 fps
Razer Blade Pro 17 inch 2015	24.3 fps -46%
Lenovo Y70 DU004HUS	20 fps -56%
Eurocom P5 Pro Extreme	56.5 fps +25%
1366x768 High Preset AA:High (sort by value)
Aorus X3 Plus v3	133.2 fps
Razer Blade Pro 17 inch 2015	93.1 fps -30%
Lenovo Y70 DU004HUS	70 fps -47%
Eurocom P5 Pro Extreme	162.3 fps +22%

Guild Wars 2
1920x1080 All Maximum / On AA:FX (sort by value)
Aorus X3 Plus v3	51.7 fps
Razer Blade Pro 17 inch 2015	36 fps -30%
Lenovo Y70 DU004HUS	34 fps -34%
Eurocom P5 Pro Extreme	68.4 fps +32%
1366x768 Best Appearance Preset AA:FX (sort by value)
Aorus X3 Plus v3	60.6 fps
Razer Blade Pro 17 inch 2015	62.6 fps +3%
Lenovo Y70 DU004HUS	48 fps -21%
Eurocom P5 Pro Extreme	81.7 fps +35%

Tomb Raider
1920x1080 Ultra Preset AA:FX AF:16x (sort by value)
Aorus X3 Plus v3	79.3 fps
Razer Blade Pro 17 inch 2015	50.8 fps -36%
Lenovo Y70 DU004HUS	44 fps -45%
Eurocom P5 Pro Extreme	102.6 fps +29%
1366x768 High Preset AA:FX AF:8x (sort by value)
Aorus X3 Plus v3	186.1 fps
Razer Blade Pro 17 inch 2015	113.2 fps -39%
Lenovo Y70 DU004HUS	97 fps -48%
Eurocom P5 Pro Extreme	241.8 fps +30%

StarCraft II: Heart of the Swarm
1920x1080 Ultra / Extreme AA:on (sort by value)
Aorus X3 Plus v3	79.3 fps
Razer Blade Pro 17 inch 2015	55.1 fps -31%
Lenovo Y70 DU004HUS	56 fps -29%
Eurocom P5 Pro Extreme	101.5 fps +28%
1366x768 High AA:on (sort by value)
Aorus X3 Plus v3	116.6 fps
Razer Blade Pro 17 inch 2015	127.8 fps +10%
Lenovo Y70 DU004HUS	97 fps -17%
Eurocom P5 Pro Extreme	123 fps +5%

BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Aorus X3 Plus v3	72 fps
Razer Blade Pro 17 inch 2015	46.8 fps -35%
Lenovo Y70 DU004HUS	41 fps -43%
Eurocom P5 Pro Extreme	85.8 fps +19%
1366x768 High Preset (sort by value)
Aorus X3 Plus v3	154.7 fps
Razer Blade Pro 17 inch 2015	120 fps -22%
Lenovo Y70 DU004HUS	102 fps -34%
Eurocom P5 Pro Extreme	217.8 fps +41%

Metro: Last Light
1920x1080 Very High (DX11) AF:16x (sort by value)
Aorus X3 Plus v3	52.6 fps
Razer Blade Pro 17 inch 2015	32.2 fps -39%
Lenovo Y70 DU004HUS	28 fps -47%
Eurocom P5 Pro Extreme	65 fps +24%
1366x768 High (DX11) AF:16x (sort by value)
Aorus X3 Plus v3	93.6 fps
Razer Blade Pro 17 inch 2015	61.9 fps -34%
Lenovo Y70 DU004HUS	52 fps -44%
Eurocom P5 Pro Extreme	117.5 fps +26%

Thief
1920x1080 Very High Preset AA:FXAA & High SS AF:8x (sort by value)
Aorus X3 Plus v3	47.4 fps
Razer Blade Pro 17 inch 2015	28.3 fps -40%
Lenovo Y70 DU004HUS	24 fps -49%
Eurocom P5 Pro Extreme	62.5 fps +32%
1366x768 High Preset AA:FXAA & Low SS AF:4x (sort by value)
Aorus X3 Plus v3	67.9 fps
Razer Blade Pro 17 inch 2015	54.1 fps -20%
Lenovo Y70 DU004HUS	43 fps -37%
Eurocom P5 Pro Extreme	101 fps +49%

Middle-earth: Shadow of Mordor
1920x1080 Ultra Preset (HD Package) (sort by value)
Aorus X3 Plus v3	52.5 fps
Razer Blade Pro 17 inch 2015	31 fps -41%
Eurocom P5 Pro Extreme	66.6 fps +27%
1920x1080 High Preset (sort by value)
Aorus X3 Plus v3	65.7 fps
Razer Blade Pro 17 inch 2015	40.1 fps -39%
Eurocom P5 Pro Extreme	90.7 fps +38%

Ryse: Son of Rome
1920x1080 Very High Texture Res. + High Graphics Quality (Motion Blur & Temporal AA On, Rest Off/Disabled) AF:8x (sort by value)
Aorus X3 Plus v3	45.3 fps
Razer Blade Pro 17 inch 2015	28.2 fps -38%
Eurocom P5 Pro Extreme	56.6 fps +25%
1920x1080 High Texture Res. + High Graphics Quality (Rest Off/Disabled) AF:8x (sort by value)
Aorus X3 Plus v3	48.8 fps
Razer Blade Pro 17 inch 2015	30.5 fps -37%
Lenovo Y70 DU004HUS	23 fps -53%
Eurocom P5 Pro Extreme	58 fps +19%
1366x768 Medium Texture Res. + Normal Graphics Quality (Rest Off/Disabled) AF:4x (sort by value)
Lenovo Y70 DU004HUS	47 fps

F1 2014
1920x1080 Ultra Preset AA:4x MS (sort by value)
Aorus X3 Plus v3	97 fps
Razer Blade Pro 17 inch 2015	94 fps -3%
Lenovo Y70 DU004HUS	77 fps -21%
Eurocom P5 Pro Extreme	116 fps +20%
1920x1080 High Preset (sort by value)
Aorus X3 Plus v3	111 fps
Razer Blade Pro 17 inch 2015	113 fps +2%
Lenovo Y70 DU004HUS	96 fps -14%
Eurocom P5 Pro Extreme	118 fps +6%

Legend

Aorus X3 Plus v3 Intel Core i7-4710HQ, NVIDIA GeForce GTX 970M, 2x Lite-On LMT-256L9M (RAID 0)

Razer Blade Pro 17 inch 2015 Intel Core i7-4720HQ, NVIDIA GeForce GTX 960M, Samsung PM851 Series MZMTE256HMHP

Lenovo Y70 DU004HUS Intel Core i7-4710HQ, NVIDIA GeForce GTX 860M, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache

Eurocom P5 Pro Extreme Intel Core i7-4790K, NVIDIA GeForce GTX 980M, 2x Micron M600 MTFDDAV128MBF (RAID 0)

Ses yüksekliği

Boşta		30.9 / 31 / 31.1 dB
Çalışırken		36.7 / 60 dB

	30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü
min: , med: , max: BK Precision 732A (15 cm uzaklık)

Maksimum yük

Bekleme


28.8 °C	44.4 °C	36.2 °C
31.4 °C	45.2 °C	40 °C
30.8 °C	29.6 °C	33.8 °C

Maksimum: 45.2 °C
Ortalama: 35.6 °C


32.2 °C	53.2 °C	35 °C
39.4 °C	49.2 °C	36.2 °C
34.8 °C	34.6 °C	33.2 °C

Maksimum: 53.2 °C
Ortalama: 38.6 °C

Güç kaynağı 53.4 °C | Oda sıcaklığı 22 °C | Fluke 62 Mini IR Thermometer

(±) The average temperature for the upper side under maximal load is 35.6 °C / 96 F, compared to the average of 33.8 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 45.2 °C / 113 F, compared to the average of 40.4 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 53.2 °C / 128 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 28.8 °C / 84 F, compared to the device average of 33.8 °C / 93 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.8 °C / 92.8 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-4.9 °C / -8.8 F).

Batarya ömrü

Boşta (WLAN kapalı, minimum parlaklık)		7h 03min
WiFi Websurfing		4h 18min
Çalışırken (maksimum parlaklık)		1h 36min

	Aorus X3 Plus v3	Lenovo Y40-59423035	Razer Blade 14 2015	Gigabyte P34W V3	SCHENKER C404
Battery Runtime		49%	-18%	4%	-15%
Reader / Idle	423	800 89%	380 -10%	522 23%	326 -23%
WiFi v1.3	258		222 -14%
Load	96	105 9%	66 -31%	82 -15%	90 -6%
WiFi		513		284	248

Artılar

+ Harika tasarım

+ Full aluminyum kasa ve güçlü temel ünite

+ Yüksek kalite QHD IPS ekran

+ Kolay kullanım imkanı sunan Aorus yazılımı

Eksiler

- Ekran menteşelerinden çıkan sesler

- Zayıf ekran kapağı

- Oyun oynarken fan sesi

- 2.5 inç SATA genişletmesi yok

- Bataryadayken düşen performans

- Küçük klavye boyutu

- Biraz pahalı

In review: Aorus X3 Plus v3. Test model provided by Aorus

17 inçlik oyun laptoplarında birden fazla seçeneği olan kullanıcılara Aous X7 Pro modelini önermek biraz zor. Ama X3 Plus modeli biraz daha iyi bir şansa sahip gibi. Tasarım hoş, mat QHD+ ekran yüksek kaliteli, tamamen aluminyum kasa da oldukça sağlam. Performans tıkanması yaşanmıyor. 3x mSATA slotu belki biraz fazla, en azından oyunları yüklemek için 2.5 inçlik bir SATA slotu fena olmazdı.

Farkedilir eksiklikleri ise yüksek fan sesi, yüzey sıcaklıkları ve ortalama hoparlörleri olarak listelenebilir. Ancak 14 inçlik bir cihazdan da harika sıcaklık değerleri ve ses çıkışı beklemek belki biraz hayal ürünü.

Yazının orjinali için tıklayın.

Aorus X3 Plus v3 - 2015-05-18 05/18/2015 v4^(old)
Allen Ngo

İşcilik

78 / 98 → 80%

Klavye

84%

Mouse

76%

Bağlanılabilirlik

66 / 81 → 81%

Ağırlık

65 / 10-66 → 98%

Batarya

84%

Görüntü

86%

Oyun performansı

95%

Uygulama performansı

94%

Isınma

84 / 95 → 88%

Ses

74 / 90 → 82%

Audio

78%

Ortalama

80%

85%

Gaming - Ortalama Ağırlık

Pricecompare

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5190 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Kısa inceleme: Aorus X3 Plus v3 Notebook

Allen Ngo, 2015-05-22 (Update: 2020-06- 8)
