Kısa inceleme: Lenovo ThinkPad E460 (Core i5, Radeon R7 M360) Notebook

Name: Lenovo ThinkPad E460-20EUS00000
Brand: Lenovo

Gelecek jenerasyon. İlk defa giriş seviyesi bir ThinkPad modelinde yüksek kalite IPS ekran görüyoruz. Harika arayüzler, hızlı SSD ve Intel'in en son işlemcisi ile E460 öğrenciler için harika bir seçenek olabilir.

Till Schönborn, ✓ Stefanie Voigt, Published 12/24/2015 🇺🇸 🇩🇪 ...

Laptop / Notebook Business Skylake Windows AMD

Test device courtesy of campuspoint.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad E460-20EUS00000

İşlemci

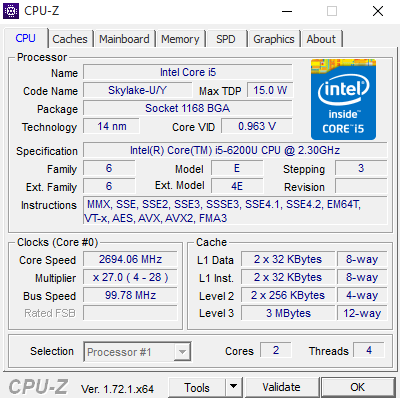

Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake

Grafik kartı

AMD Radeon R7 M360 - 2048 MB VRAM, Çekirdek: 980 MHz, Bellek: 900 MHz, DDR3, Catalyst 15.7.1, Enduro

Bellek

8 GB

, 1x 8 GB DDR3L-1600, 1 of 2 slots filled

Görüntü

14.00 inç 16:9, 1920 x 1080 pixel, LG LP140WF6-SPB2, IPS panel, LED backlight, parlak: hayır

Anakart

Intel Skylake-U Premium PCH

Harddisk

Samsung CM871 MZ7LF192HCGS, 192 GB

, 158 GB Boş

Ses kartı

Intel Skylake-U/Y PCH - High Definition Audio

Bağlantılar

3 USB 3.0, 1 HDMI, 1 Kensington Lock, 1 Docking Station Portu, Ses çıkışları: headset jack (3.5 millimeter), Kart okuyucular: SD/MMC

Network

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Boyut

yükseklik x genişlik x derinlik (mm): 24 x 339 x 239

Batarya

47 Wh Lithium-Ion, 6 cells

İşletim sistemi

FreeDos

Camera

Webcam: 0.9 megapixels

Ek özellikler

Hoparlörler: stereo, Klavye: chiclet, Klavye ışığı: hayır, 65 watt power supply

Ağırlık

1.82 kg

Fiyat

730 Euro

Bağlantılar

Lenovo anasayfa

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Left: Kensington lock, vent, USB 3.0, headset jack

Right: 2x USB 3.0, HDMI, GBit LAN, power socket/OneLink

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17942 (minimum: 5 - maximum: 3846000) Hz was measured.


234 cd/m²	227 cd/m²	226 cd/m²
220 cd/m²	233 cd/m²	220 cd/m²
213 cd/m²	205 cd/m²	207 cd/m²

Parlaklığın yayılımı

LG LP140WF6-SPB2 tested with X-Rite i1Pro 2

Maksimum: 234 cd/m² (Nits) Ortalama: 220.6 cd/m²
Aydınlatma: 88 %
Batarya modunda parlaklık: 234 cd/m²
Kontrast: 777:1 (Siyah: 0.3 cd/m²)
ΔE Color 4.43 | 0.5-29.43 Ø5
ΔE Greyscale 3.78 | 0.57-98 Ø5.3
58.7% sRGB (Argyll 1.6.3 3D)
37.3% AdobeRGB 1998 (Argyll 1.6.3 3D)
40.41% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.8% sRGB (Argyll 2.2.0 3D)
39.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.31

Download ICC Dosyası (X-Rite i1Pro 2)

	Lenovo ThinkPad E460-20EUS00000 1.920 x 1.080 IPS-Panel	Dell Latitude 3450-9723 1.920 x 1.080 IPS-Panel	Acer TravelMate P246-M-598B 1.366 x 768 TN-Panel	Lenovo ThinkPad E450 20DDS01E00 1.920 x 1.080 TN-Panel	Lenovo ThinkPad T450s-20BWS1UT00 1.920 x 1.080 IPS-Panel
Display		66%	2%	3%	53%
Display P3 Coverage	39.1	66.3 70%	39.9 2%	40.37 3%	64.8 66%
sRGB Coverage	58.8	93.4 59%	59.9 2%	60.8 3%	83.8 43%
AdobeRGB 1998 Coverage	40.41	67.9 68%	41.24 2%	41.71 3%	61.2 51%
Response Times
Response Time Grey 50% / Grey 80% *	40 ?(17, 23)
Response Time Black / White *	23.2 ?(6.8, 16.4)
PWM Frequency
Screen		-2%	-64%	-58%	18%
Brightness middle	233	303 30%	238 2%	218 -6%	288 24%
Brightness	221	273 24%	222 0%	211 -5%	281 27%
Brightness Distribution	88	83 -6%	83 -6%	76 -14%	94 7%
Black Level *	0.3	0.445 -48%	0.56 -87%	0.53 -77%	0.286 5%
Contrast	777	681 -12%	425 -45%	411 -47%	1007 30%
Colorchecker dE 2000 *	4.43	3.94 11%	11.33 -156%	11.16 -152%	4.35 2%
Greyscale dE 2000 *	3.78	4.28 -13%	12.13 -221%	12.58 -233%	3.7 2%
Gamma	2.31 ^95%	2.5 ^88%	2.37 ^93%	2.34 ^94%	2.68 ^82%
CCT	7171 ^91%	7325 ^89%	15853 ^41%	14940 ^44%	6076 ^107%
Color Space (Percent of AdobeRGB 1998)	37.3		38 2%	39 5%	54.7 47%
Color Space (Percent of sRGB)	58.7			61 4%
Total Average (Program / Settings)		32% / 18%	-31% / -46%	-28% / -43%	36% / 28%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

↔ Response Time Black to White
23.2 ms ... rise ↗ and fall ↘ combined	↗ 6.8 ms rise
23.2 ms ... rise ↗ and fall ↘ combined	↘ 16.4 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 47 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (21.5 ms).
↔ Response Time 50% Grey to 80% Grey
40 ms ... rise ↗ and fall ↘ combined	↗ 17 ms rise
40 ms ... rise ↗ and fall ↘ combined	↘ 23 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 56 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (33.8 ms).

Cinebench R15 | Cinebench R11.5 | X264 HD Benchmark 4.0

Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	114 Points
Microsoft Surface Book Core i5 Intel Core i5-6300U	122 Points +7%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	130 Points +14%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	123 Points +8%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	108 Points -5%
Dell Latitude 3450-9723 Intel Core i5-5200U	105 Points -8%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	290 Points
Microsoft Surface Book Core i5 Intel Core i5-6300U	305 Points +5%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	302 Points +4%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	282 Points -3%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	258 Points -11%
Dell Latitude 3450-9723 Intel Core i5-5200U	260 Points -10%

Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	1.3 Points
Microsoft Surface Book Core i5 Intel Core i5-6300U	1.41 Points +8%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	1.51 Points +16%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	1.42 Points +9%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	1.24 Points -5%
Dell Latitude 3450-9723 Intel Core i5-5200U	1.23 Points -5%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	3.23 Points
Microsoft Surface Book Core i5 Intel Core i5-6300U	3.42 Points +6%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	3.31 Points +2%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	3.13 Points -3%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	2.83 Points -12%
Dell Latitude 3450-9723 Intel Core i5-5200U	2.74 Points -15%

X264 HD Benchmark 4.0
Pass 1 (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	97.6 fps
Microsoft Surface Book Core i5 Intel Core i5-6300U	107.5 fps +10%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	102.4 fps +5%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	89.6 fps -8%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	83 fps -15%
Pass 2 (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	18.97 fps
Microsoft Surface Book Core i5 Intel Core i5-6300U	20.38 fps +7%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	18.72 fps -1%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	17.31 fps -9%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	16 fps -16%

Cinebench R10 Shading 32Bit

7326

Cinebench R10 Rendering Multiple CPUs 32Bit

9926

Cinebench R10 Rendering Single 32Bit

4396

Cinebench R10 Shading 64Bit

7215 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

12637 Points

Cinebench R10 Rendering Single CPUs 64Bit

5665 Points

Cinebench R11.5 CPU Single 64Bit

1.3 Points

Cinebench R11.5 OpenGL 64Bit

25.39 fps

Cinebench R11.5 CPU Multi 64Bit

3.23 Points

Cinebench R15 OpenGL 64Bit

34.29 fps

Cinebench R15 CPU Multi 64Bit

290 Points

Cinebench R15 CPU Single 64Bit

114 Points

Cinebench R15 Ref. Match 64Bit

98 %

Yardım

... kıyaslama

	Lenovo ThinkPad E460-20EUS00000 Samsung CM871 MZ7LF192HCGS	Acer TravelMate P645-S-58HK Kingston RBU-SNS8100S3256GD	Lenovo ThinkPad T450 20BVG733PB Samsung SSD 850 EVO 250GB	Lenovo ThinkPad X1 Carbon 2015 Samsung SSD SM951 512 GB MZHPV512HDGL	HP ProBook 470 G2 K9W25EA Samsung SSD 840 EVO 250GB
AS SSD		128%	269%	441%	269%
Seq Read	496.4	502 1%	513 3%	1339 170%	513 3%
Seq Write	172.8	324.6 88%	490.9 184%	1209 600%	497.8 188%
4K Read	17.47	31.82 82%	45.81 162%	39.9 128%	44.14 153%
4K Write	35.37	58 64%	121.8 244%	91.3 158%	120.6 241%
4K-64 Read	83.3	194.7 134%	374.8 350%	510 512%	374.6 350%
4K-64 Write	34.09	169.2 396%	262.9 671%	402.2 1080%	265.3 678%

HD Tune

CrystalDiskMark 3.0

AS SSD

Samsung CM871 MZ7LF192HCGS

Maksimum transfer hızı: 364 MB/s

Minimum transfer hızı: 394.9 MB/s

Ortlama transfer hızı: 389.9 MB/s

Erişim hızı: 0.1 ms

Yakma hızı: 127 MB/s

İşlemci kullanımı: 3.6 %

PCMark 7 | PCMark 8

PCMark 7 - Score (sort by value)
Lenovo ThinkPad E460-20EUS00000 Radeon R7 M360, 6200U, Samsung CM871 MZ7LF192HCGS	4852 Points
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	4797 Points -1%
Lenovo ThinkPad E450 20DDS01E00 Radeon R7 M260, 5200U, Samsung CM871 MZ7LF192HCGS	4797 Points -1%
Dell Latitude 3450-9723 HD Graphics 5500, 5200U, Toshiba MQ01ABD100	2856 Points -41%
Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	2819 Points -42%

PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo ThinkPad E460-20EUS00000 Radeon R7 M360, 6200U, Samsung CM871 MZ7LF192HCGS	3415 Points
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	3270 Points -4%
Lenovo ThinkPad E450 20DDS01E00 Radeon R7 M260, 5200U, Samsung CM871 MZ7LF192HCGS	3299 Points -3%
Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	3960 Points +16%
Creative Score Accelerated v2 (sort by value)
Lenovo ThinkPad E460-20EUS00000 Radeon R7 M360, 6200U, Samsung CM871 MZ7LF192HCGS	4098 Points
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	3613 Points -12%
Work Score Accelerated v2 (sort by value)
Lenovo ThinkPad E460-20EUS00000 Radeon R7 M360, 6200U, Samsung CM871 MZ7LF192HCGS	4415 Points
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	4394 Points 0%
Lenovo ThinkPad E450 20DDS01E00 Radeon R7 M260, 5200U, Samsung CM871 MZ7LF192HCGS	4186 Points -5%
Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	4020 Points -9%

PCMark 7 Score		4852 puan
PCMark 8 Home Score Accelerated v2		3415 puan
PCMark 8 Creative Score Accelerated v2		4098 puan
PCMark 8 Work Score Accelerated v2		4415 puan
Yardım

... kıyaslama

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	1989 Points
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	2313 Points +16%
Lenovo ThinkPad E450 20DDS01E00 Intel Core i5-5200U, AMD Radeon R7 M260	1956 Points -2%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	1961 Points -1%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	1318 Points -34%
Dell Latitude 3450-9723 Intel Core i5-5200U, Intel HD Graphics 5500	983 Points -51%

3DMark - 1920x1080 Fire Strike Graphics (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	1109 Points
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	1627 Points +47%
Lenovo ThinkPad E450 20DDS01E00 Intel Core i5-5200U, AMD Radeon R7 M260	1164 Points +5%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	1360 Points +23%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	861 Points -22%
Dell Latitude 3450-9723 Intel Core i5-5200U, Intel HD Graphics 5500	748 Points -33%

3DMark 06 Standard Score		8225 puan
3DMark 11 Performance		2091 puan
3DMark Ice Storm Standard Score		30550 puan
3DMark Cloud Gate Standard Score		4583 puan
3DMark Fire Strike Score		1003 puan
Yardım

... kıyaslama

	düşük	orta	yüksek	ultra
Tomb Raider (2013)	73.2	38.7	29.7	14.8
Dirt Rally (2015)	91.8	34	18.4	12.5
World of Warships (2015)	46.5	36.7	17.2	12.6
Call of Duty: Black Ops 3 (2015)	33.9	20.6	8.5
Fallout 4 (2015)	21.4	14.5	7.5
Star Wars Battlefront (2015)	23.5	16.5	8.9	8.2
Assassin's Creed Syndicate (2015)	12	10	5.9

Ses yüksekliği

Boşta		29 / 29 / 29 dB
Çalışırken		33.1 / 35.6 dB

	30 dB sessiz 40 dB(A) duyulabilirlik 50 dB(A) gürültülü
min: , med: , max: Voltcraft SL-451 (15 cm uzaklık)

Maksimum yük

Bekleme


27.6 °C	28.1 °C	27.1 °C
28.6 °C	27.4 °C	26.7 °C
24.9 °C	25.2 °C	25.4 °C

Maksimum: 28.6 °C
Ortalama: 26.8 °C


28.2 °C	30.6 °C	30.1 °C
27.3 °C	29.9 °C	30.2 °C
26.5 °C	26.4 °C	26.1 °C

Maksimum: 30.6 °C
Ortalama: 28.4 °C

Güç kaynağı 33.2 °C | Oda sıcaklığı 21 °C | Fluke 62 Max

(±) The average temperature for the upper side under maximal load is 35.7 °C / 96 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(-) The maximum temperature on the upper side is 47.8 °C / 118 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 48.3 °C / 119 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28 °C / 82.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-0.3 °C / -0.5 F).

Anlık tüketim

Kapalı / Bekleme modu	0.2 / 0.5 Watt
Boşta	4.1 / 8 / 8.9 Watt
Çalışırken	39.3 / 52.2 Watt


Key: min: , med: , max: Metrahit Energy Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

	Lenovo ThinkPad E460-20EUS00000 47 Wh	Lenovo ThinkPad E450 20DDS01E00 47 Wh	Dell Latitude 3450-9723 58 Wh	Lenovo ThinkPad T450s-20BWS03F00 48 Wh	Acer TravelMate P645-S-58HK 54 Wh
Battery Runtime		26%	66%	-11%	41%
Reader / Idle	736	999 36%		774 5%	1143 55%
H.264	425			322 -24%	525 24%
WiFi v1.3	292	409 40%	484 66%	276 -5%	535 83%
Load	112	115 3%		88 -21%	113 1%
WiFi				336

Batarya ömrü

Boşta (WLAN kapalı, minimum parlaklık)		12h 16min
WiFi Websurfing		4h 52min
Big Buck Bunny H.264 1080p		7h 05min
Çalışırken (maksimum parlaklık)		1h 52min

Artılar

+ Makul kasa kalitesi

+ Harik klavye

+ Opsiyonel docking istasyonu

+ Bakış açıları stabil, yüksek kontrastlı ve çözünürlüklü IPS ekran

+ Yüksek uygulama performansı

+ Düşük ses üretimi

+ Harika fiyat/performans oranı

Eksiler

- Ekranın ortalama parlaklığı

- Batarya çıkarılamıyor

- Limitli güncelleme olanakları

- Sadece 12 ay garanti

Lenovo'nun yeni ThinkPad E460 modeli gibi makul fiyata sahip olan tatmin edici performanslı bir ofis cihazını çok sık görmüyoruz. Kullanıcı sadece harika arayüzlere sahip olan bir ofis cihazı değil aynı zamanda birçok konuda iş görebilecek yeteneklere sahip bir cihaza sahip oluyor. SSD ve Skylake işlemci ile ThinkPad birçok performans gerektiren uygulamayı da kolayca çalıştırıyor. Hatta, güncel oyunların bir kısmı da en düşük ayarlarda oynanabilir. Üretici detaylar konusunda da eli sıkı davranmamış. Bu fiyat aralığında bu denli iyi bir IPS ekran kullanımı oldukça iyi bir özellik.

Elbette cihazın bazı eksiklikleri de var, en azından büyük sorunlar değil. Cihazın bakımı veya güncellenmesi biraz zor. Batarya ömrü daha iyi olabilirmiş ve 12 aylık garanti biraz düşündürücü. Yine de bu fiyat seviyesinde böylesine özellik sunan bir model yok. Sadece bu paketin sadece gençler, öğrenciler ve öğretmenler için sunuluyor olması diğer müşteriler için biraz kötü.

Yazının orjinali için tıklayın.

Lenovo ThinkPad E460-20EUS00000 - 2015-11-22 11/22/2015 v4^(old)
Till Schönborn

İşcilik

79 / 98 → 81%

Klavye

87%

Mouse

83%

Bağlanılabilirlik

64 / 80 → 80%

Ağırlık

65 / 20-67 → 96%

Batarya

87%

Görüntü

86%

Oyun performansı

74 / 68 → 100%

Uygulama performansı

86 / 92 → 93%

Isınma

86%

Ses

95%

Audio

69%

Camera

58 / 85 → 68%

Ortalama

78%

85%

Office - Ortalama Ağırlık

Pricecompare

Please share our article, every link counts!

> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Kısa inceleme: Lenovo ThinkPad E460 (Core i5, Radeon R7 M360) Notebook

Till Schönborn, 2015-12-24 (Update: 2015-12-24)
