Kısa inceleme: Lenovo Yoga 2 13

İstedğin gibi çevir. Lenovo Yoga serisinin akıllı bir menteşe tasarımı var ve katlanmayı oldukça kolaylaştırıyor. Yoga ve Yoga 2 Pro modelleri oldukça popülerdi ve şimdi de Lenovo, Yoga 2 13 modelini sunuyor.
232
cd/m²
240
cd/m²
232
cd/m²
258
cd/m²
269
cd/m²
248
cd/m²
267
cd/m²
249
cd/m²
242
cd/m²
Parlaklığın yayılımı
tested with X-Rite i1Pro 2
Maksimum: 269 cd/m² (Nits) Ortalama: 248.6 cd/m²
Aydınlatma: 86 %
Batarya modunda parlaklık: 269 cd/m²
Kontrast: 673:1 (Siyah: 0.4 cd/m²)
ΔE Color 2.95 | 0.5-29.43 Ø5
ΔE Greyscale 4.19 | 0.57-98 Ø5.3
62.1% AdobeRGB 1998 (Argyll 1.6.3 3D)
67.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
96.2% sRGB (Argyll 2.2.0 3D)
65.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.5
Cinebench R10 Shading 64Bit
5120 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
5629 Points
Cinebench R10 Rendering Single CPUs 64Bit
2529 Points
Cinebench R11.5 CPU Multi 64Bit
1.83 Points
Cinebench R11.5 CPU Single 64Bit
0.73 Points
Cinebench R11.5 OpenGL 64Bit
19.53 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
24.52 fps
Cinebench R15 CPU Multi 64Bit
170 Points
Cinebench R15 CPU Single 64Bit
59 Points
Yardım
Cinebench R10
Rendering Single CPUs 64Bit (sort by value)
Lenovo Yoga 2 13
2529 Points
Lenovo Yoga 2 Pro
4975 Points +97%
Toshiba Satellite W30t-A-101
2940 Points +16%
Asus Transformer Book T300LA-C4006H
4955 Points +96%
HP Spectre 13-h205eg x2
3890 Points +54%
Sony Vaio Duo 13 SVD1321M2E
5001 Points +98%
Rendering Multiple CPUs 64Bit (sort by value)
Lenovo Yoga 2 13
5629 Points
Lenovo Yoga 2 Pro
9940 Points +77%
Toshiba Satellite W30t-A-101
6503 Points +16%
Asus Transformer Book T300LA-C4006H
9779 Points +74%
HP Spectre 13-h205eg x2
7188 Points +28%
Sony Vaio Duo 13 SVD1321M2E
9937 Points +77%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo Yoga 2 13
0.73 Points
Lenovo Yoga 2 Pro
1.13 Points +55%
Toshiba Satellite W30t-A-101
0.67 Points -8%
Asus Transformer Book T300LA-C4006H
1.12 Points +53%
HP Spectre 13-h205eg x2
0.88 Points +21%
Sony Vaio Duo 13 SVD1321M2E
1.15 Points +58%
CPU Multi 64Bit (sort by value)
Lenovo Yoga 2 13
1.83 Points
Lenovo Yoga 2 Pro
2.39 Points +31%
Toshiba Satellite W30t-A-101
1.63 Points -11%
Asus Transformer Book T300LA-C4006H
2.37 Points +30%
HP Spectre 13-h205eg x2
1.85 Points +1%
Sony Vaio Duo 13 SVD1321M2E
2.47 Points +35%
Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo Yoga 2 13
59 Points
Toshiba Satellite W30t-A-101
60 Points +2%
Asus Transformer Book T300LA-C4006H
92 Points +56%
HP Spectre 13-h205eg x2
77 Points +31%
CPU Multi 64Bit (sort by value)
Lenovo Yoga 2 13
170 Points
Toshiba Satellite W30t-A-101
152 Points -11%
Asus Transformer Book T300LA-C4006H
214 Points +26%
HP Spectre 13-h205eg x2
171 Points +1%

Legend


Lenovo Yoga 2 13 Intel Core i3-4010U, Intel HD Graphics 4400, WD Blue UltraSlim WD5000MPCK-22AWHT0

Lenovo Yoga 2 Pro Intel Core i5-4200U, Intel HD Graphics 4400, Samsung SSD PM841 MZMTD128HAFV mSATA

Toshiba Satellite W30t-A-101 Intel Core i3-4020Y, Intel HD Graphics 4200, WD Blue UltraSlim WD5000MPCK-22AWHT0

Asus Transformer Book T300LA-C4006H Intel Core i5-4200U, Intel HD Graphics 4400, SanDisk SD6SB1M128G1002

HP Spectre 13-h205eg x2 Intel Core i5-4202Y, Intel HD Graphics 4200, Samsung SSD PM841 MZMTD128HAFV mSATA

Sony Vaio Duo 13 SVD1321M2E Intel Core i5-4200U, Intel HD Graphics 4400, Samsung SSD PM841 MZMTD128HAGN mSATA
PCMark 7 Score
2180 puan
Yardım
PCMark 7 - Score (sort by value)
Lenovo Yoga 2 13
2180 Points
Lenovo Yoga 2 Pro
4670 Points +114%
Toshiba Satellite W30t-A-101
2399 Points +10%
Asus Transformer Book T300LA-C4006H
4357 Points +100%
HP Spectre 13-h205eg x2
4139 Points +90%
Sony Vaio Duo 13 SVD1321M2E
4594 Points +111%
WD Blue UltraSlim WD5000MPCK-22AWHT0
Sequential Read: 100.7MB/s
Sequential Write: 95.8MB/s
4K Read: 0.46MB/s
4K Write: 1.14MB/s
4K-64 Read: 1.09MB/s
4K-64 Write: 1.06MB/s
Access Time Read: 19ms
Access Time Write: 15ms
Score Read: 12Points
Score Write: 12Points
Score Total: 29Points
AS SSD
Seq Read (sort by value)
Lenovo Yoga 2 13
100.7 MB/s
Lenovo Yoga 2 Pro
501 MB/s +398%
Asus Transformer Book T300LA-C4006H
470.6 MB/s +367%
HP Spectre 13-h205eg x2
502 MB/s +399%
Sony Vaio Duo 13 SVD1321M2E
471.7 MB/s +368%
Seq Write (sort by value)
Lenovo Yoga 2 13
95.8 MB/s
Lenovo Yoga 2 Pro
129.7 MB/s +35%
Asus Transformer Book T300LA-C4006H
271.8 MB/s +184%
HP Spectre 13-h205eg x2
131.8 MB/s +38%
Sony Vaio Duo 13 SVD1321M2E
104.2 MB/s +9%
4K Read (sort by value)
Lenovo Yoga 2 13
0.46 MB/s
Lenovo Yoga 2 Pro
25.47 MB/s +5437%
Asus Transformer Book T300LA-C4006H
28.2 MB/s +6030%
HP Spectre 13-h205eg x2
24.19 MB/s +5159%
Sony Vaio Duo 13 SVD1321M2E
17.49 MB/s +3702%
4K Write (sort by value)
Lenovo Yoga 2 13
1.14 MB/s
Lenovo Yoga 2 Pro
58.7 MB/s +5049%
Asus Transformer Book T300LA-C4006H
76.2 MB/s +6584%
HP Spectre 13-h205eg x2
51.6 MB/s +4426%
Sony Vaio Duo 13 SVD1321M2E
41.72 MB/s +3560%
4K-64 Read (sort by value)
Lenovo Yoga 2 13
1.09 MB/s
Lenovo Yoga 2 Pro
295.5 MB/s +27010%
Asus Transformer Book T300LA-C4006H
315.1 MB/s +28808%
HP Spectre 13-h205eg x2
308.4 MB/s +28194%
Sony Vaio Duo 13 SVD1321M2E
263.1 MB/s +24038%
4K-64 Write (sort by value)
Lenovo Yoga 2 13
1.06 MB/s
Lenovo Yoga 2 Pro
109.3 MB/s +10211%
Asus Transformer Book T300LA-C4006H
157.4 MB/s +14749%
HP Spectre 13-h205eg x2
115.4 MB/s +10787%
Sony Vaio Duo 13 SVD1321M2E
81.5 MB/s +7589%
Access Time Read (sort by value)
Lenovo Yoga 2 13
19 ms *
Lenovo Yoga 2 Pro
0.101 ms * +99%
Asus Transformer Book T300LA-C4006H
0.114 ms * +99%
HP Spectre 13-h205eg x2
0.115 ms * +99%
Sony Vaio Duo 13 SVD1321M2E
0.165 ms * +99%
Access Time Write (sort by value)
Lenovo Yoga 2 13
15 ms *
Lenovo Yoga 2 Pro
0.058 ms * +100%
Asus Transformer Book T300LA-C4006H
0.054 ms * +100%
HP Spectre 13-h205eg x2
0.069 ms * +100%
Sony Vaio Duo 13 SVD1321M2E
0.093 ms * +99%
Score Read (sort by value)
Lenovo Yoga 2 13
12 Points
Lenovo Yoga 2 Pro
371 Points +2992%
Asus Transformer Book T300LA-C4006H
390 Points +3150%
HP Spectre 13-h205eg x2
383 Points +3092%
Sony Vaio Duo 13 SVD1321M2E
328 Points +2633%
Score Write (sort by value)
Lenovo Yoga 2 13
12 Points
Lenovo Yoga 2 Pro
181 Points +1408%
Asus Transformer Book T300LA-C4006H
261 Points +2075%
HP Spectre 13-h205eg x2
180 Points +1400%
Sony Vaio Duo 13 SVD1321M2E
134 Points +1017%
Score Total (sort by value)
Lenovo Yoga 2 13
29 Points
Lenovo Yoga 2 Pro
732 Points +2424%
Asus Transformer Book T300LA-C4006H
851 Points +2834%
HP Spectre 13-h205eg x2
748 Points +2479%
Sony Vaio Duo 13 SVD1321M2E
616 Points +2024%

* ... smaller is better

3DMark 11 Performance
912 puan
3DMark Ice Storm Standard Score
32412 puan
3DMark Cloud Gate Standard Score
3597 puan
3DMark Fire Strike Score
590 puan
Yardım
3DMark 11 - 1280x720 Performance (sort by value)
Lenovo Yoga 2 13
912 Points
Lenovo Yoga 2 Pro
897 Points -2%
Toshiba Satellite W30t-A-101
828 Points -9%
Asus Transformer Book T300LA-C4006H
703 Points -23%
HP Spectre 13-h205eg x2
721 Points -21%
Sony Vaio Duo 13 SVD1321M2E
967 Points +6%
3DMark
1920x1080 Fire Strike Score (sort by value)
Lenovo Yoga 2 13
590 Points
Toshiba Satellite W30t-A-101
512 Points -13%
Asus Transformer Book T300LA-C4006H
439 Points -26%
HP Spectre 13-h205eg x2
450 Points -24%
Sony Vaio Duo 13 SVD1321M2E
665 Points +13%
1280x720 Cloud Gate Standard Score (sort by value)
Lenovo Yoga 2 13
3597 Points
Toshiba Satellite W30t-A-101
3449 Points -4%
Asus Transformer Book T300LA-C4006H
3499 Points -3%
HP Spectre 13-h205eg x2
3230 Points -10%
Sony Vaio Duo 13 SVD1321M2E
4389 Points +22%
1280x720 Ice Storm Standard Score (sort by value)
Lenovo Yoga 2 13
32412 Points
Toshiba Satellite W30t-A-101
34297 Points +6%
Asus Transformer Book T300LA-C4006H
26490 Points -18%
HP Spectre 13-h205eg x2
29562 Points -9%
Sony Vaio Duo 13 SVD1321M2E
37709 Points +16%
düşük orta yüksek ultra
Anno 2070 (2011) 45.2 27.3 13.9 5.9
Diablo III (2012) 43.2 31.6 27.6 13.8
Thief (2014) 11.3 7.9 5.9 3.9

Ses yüksekliği

Boşta
28.9 / 28.9 / 28.9 dB
HDD
29.8 dB
Çalışırken
37.8 / 39.6 dB
  red to green bar


30 dB
sessiz
40 dB(A)
duyulabilirlik
50 dB(A)
gürültülü

min: dark, med: mid, max: light   PCE-322A (15 cm uzaklık)
Maksimum yük
 28.3 °C37.1 °C43.8 °C
 26.9 °C33.5 °C44.2 °C
 26.5 °C26.7 °C28.4 °C
Maksimum: 44.2 °C
Ortalama: 32.8 °C
47.8 °C41 °C30.4 °C
42.2 °C37.4 °C27.3 °C
29.1 °C28.4 °C26.9 °C
Maksimum: 47.8 °C
Ortalama: 34.5 °C
Güç kaynağı  45.8 °C | Oda sıcaklığı 20.2 °C | Fennel Firt 550
(±) The average temperature for the upper side under maximal load is 32.8 °C / 91 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 44.2 °C / 112 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 47.8 °C / 118 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.9 °C / 84 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.4 °C / 83.1 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-0.3 °C / -0.5 F).
Anlık tüketim
Kapalı / Bekleme modudarklight 0.3 / 0.5 Watt
Boştadarkmidlight 5.1 / 8.8 / 9.8 Watt
Çalışırken midlight 35.9 / 42.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 870 Iso kalibriert
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Batarya ömrü
Boşta (WLAN kapalı, minimum parlaklık)
7h 06min
WLAN açıkken
5h 02min
Big Buck Bunny H.264 1080p
4h 36min
Çalışırken (maksimum parlaklık)
1h 37min
In review: Lenovo Yoga 2 13.
In review: Lenovo Yoga 2 13.

Görünüşe göre 2014 yılı üreticilerin müşterileri inovatif ve hayran bırakıcı teknolojilerle etkileyiciği yıl olmayacak. Aksine üretim fiyatlarını azaltmak için çıkarılan özelliklerden daha çok bahsedecekmişiz gibi.

Bu trend Lenovo'nun Yoga 2 13 modelinde de belirgin. Yoga 2 Pro modelinde yumuşak dokulu yüzeyler kaliteyi arttırmak için eklenmişken Yoga 2 13 modelinde basit plastik kullanılmış. Yine keza batarya kullanım süreleri ve sıcaklık üretim değerleri de önceki modele göre daha kötü.

Genel olarak Yoga 2 13 modeli iyi bir izlenim yaratıyor. Anlaşıldığı kadarıyla Lenovo daha pahalı Yoga 2 Pro modeliyle daha belirgin bir ayrım yaratmak istemiş.

Yazının orjinali için tıklayın.

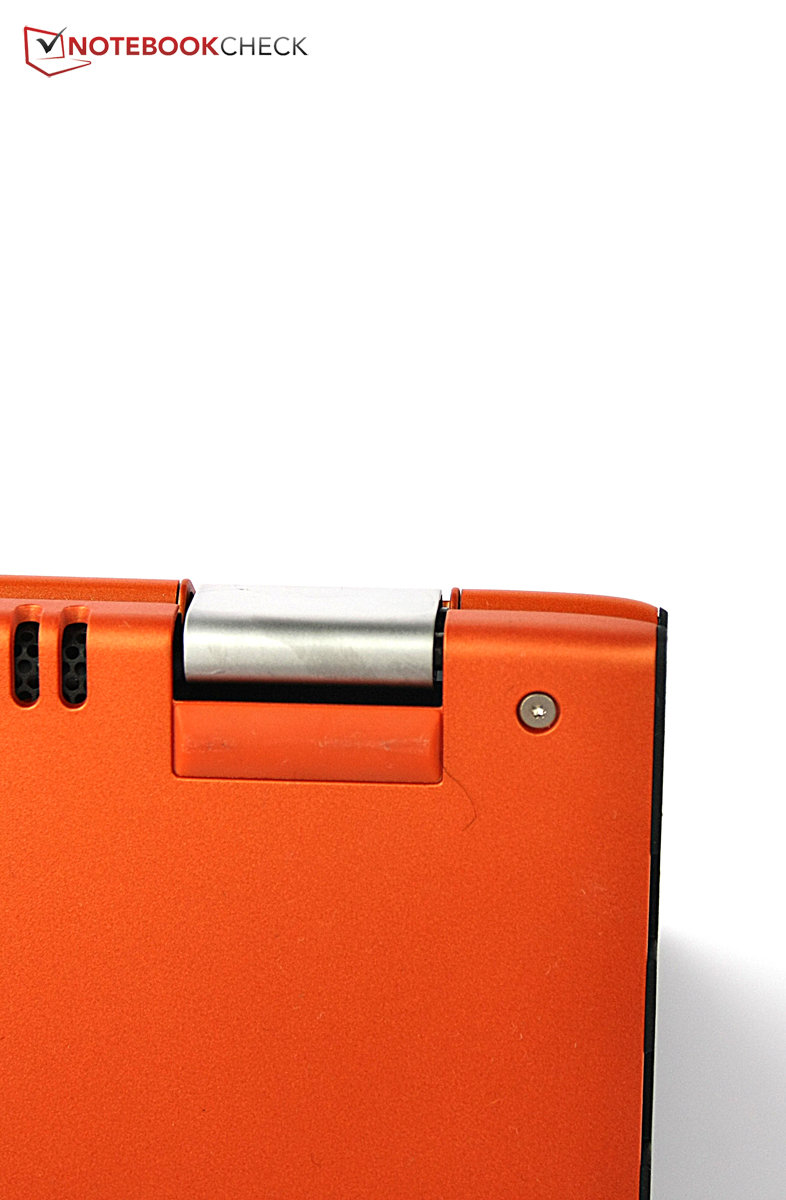

Yoga 2 13 modelinin menteşe tasarımı biraz özel:
Yoga 2 13 modelinin menteşe tasarımı biraz özel:
Ekran aynı zamanda arkaya kapanabildği için birçok farklı kullanım seçeneği ortaya çıkıyor
Ekran aynı zamanda arkaya kapanabildği için birçok farklı kullanım seçeneği ortaya çıkıyor
Ve menteşeler de bu rahat kullanıma olanak sağlıyor
Ve menteşeler de bu rahat kullanıma olanak sağlıyor
Dönüştürülebilirin kullanım seçenekleri kolayca değiştirilebilir
Dönüştürülebilirin kullanım seçenekleri kolayca değiştirilebilir
Malesef yumuşak alanlar basit plastikle değiştirilmiş
Malesef yumuşak alanlar basit plastikle değiştirilmiş
En azından parlak turuncu aynı kalmış
En azından parlak turuncu aynı kalmış
İç kısımda ise siyah hakim
İç kısımda ise siyah hakim
Klavye aydınlatmalı ve stil bir görünüme sahip
Klavye aydınlatmalı ve stil bir görünüme sahip
Yoga 2 13, Yoga 2 Pro modeline göre biraz daha ağır
Yoga 2 13, Yoga 2 Pro modeline göre biraz daha ağır
Halen tablet modunda tek elle tutulabilir ancak gerçek tabletler kadar rahat değil
Halen tablet modunda tek elle tutulabilir ancak gerçek tabletler kadar rahat değil
Klavyeyi sehpa olarak kullanmak mümkün
Klavyeyi sehpa olarak kullanmak mümkün
Lenovo bu konsepti çok iyi kucakladı.
Lenovo bu konsepti çok iyi kucakladı.
ClickPad biraz küçük kalmış.
ClickPad biraz küçük kalmış.
Doğal olarak windows 8.1
Doğal olarak windows 8.1
Dönüştürülebilir sistemler için en uygun işletim sistemi
Dönüştürülebilir sistemler için en uygun işletim sistemi
Intel Core i3 işlemci
Intel Core i3 işlemci
Bağlantı seçenekleri iyi
Bağlantı seçenekleri iyi
Hoparlörler iyi ancak ses çıkışı çok iyi değil
Hoparlörler iyi ancak ses çıkışı çok iyi değil
Webcam sadece video konferansları için uygun
Webcam sadece video konferansları için uygun
Yıldız vidaların çıkarılması ile donanıma ulaşmak mümkün
Yıldız vidaların çıkarılması ile donanıma ulaşmak mümkün



Please share our article, every link counts!

Notebook özellikleri

Lenovo Yoga 2 13 (yoga Seri)
İşlemci
Intel Core i3-4010U 2 x 1.7 GHz, Haswell
Grafik kartı
Intel HD Graphics 4400, Çekirdek: 1000 MHz
Bellek
4 GB
, 2 modules, dual-channel, DDR3-1600
Görüntü
13.30 inç 16:9, 1920 x 1080 pixel, 10 finger, capacitive touchscreen, IPS, parlak: evet
Anakart
Intel Lynx Point-LP
Harddisk
WD Blue UltraSlim WD5000MPCK-22AWHT0, 500 GB
, 5400 rpm, 426 GB Boş
Ses kartı
Intel Lynx Point-LP - High Definition Audio Controller
Bağlantılar
1 USB 2.0, 1 USB 3.0, 1 HDMI, Ses çıkışları: 3.5 mm headset jack, Kart okuyucular: SD card reader
Network
802.11 b/g/n (b/g/n = Wi-Fi 4/), Bluetooth 4.0
Boyut
yükseklik x genişlik x derinlik (mm): 15.5 x 330 x 220
Batarya
50 Wh Lithium-Polymer, 4 cells, Batarya kullanım süresi (üreticiye göre): 8 h
İşletim sistemi
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 1.0 megapixels
Ek özellikler
Hoparlörler: stereo speakers w/ Dolby Advanced Theater, Klavye: "Accu-Type" chiclet keyboard, Lenovo Smart Voice, Lenovo Transition, Lenovo VeriFace Pro, Motion Control, Yoga Picks, 24 Ay Garanti
Ağırlık
1.56 kg, Güç kaynağı: 292 g
Fiyat
949 Euro
Bağlantılar



Farklı bir üreticiden benzer notebooklar ve/veya farklı bir CPU ile

Kısa inceleme: HP Pavilion 13-a000ng x360
HD Graphics 4400, Core i3 4030U

aynı GPU’lu laptoplar

Kısa inceleme: Lenovo Horizon 2s-F0AT0003US AIO
HD Graphics 4400, Core i5 4210U, 19.50", 2.478 kg
Kısa inceleme: Toshiba Satellite Radius P50W-BST2N01
HD Graphics 4400, Core i5 4210U, 15.60", 2.168 kg

Artılar

+Akıllı menteşe tasarımı
+Sağlam yapı
+Alışılmadık tasarım
+Klavye aydınlatması
+Tutarlı dokunmatik ekran
+Makul bağlantı seçenekleri
+Kasa açılabiliyor
+Ekranın iyi renk tutarlılığı
+Tatmin edici hoparlörler


Eksiler

-Sadece ortalama batarya süresi
-Yüksek güç tüketimi
-Yoğun kullanımda yüksek sıcaklıklar
-Tam odaklanmamış PenTile ekran
-Yumuşak dokunuşlu yüzeylerin eksikliği
-Yavaş sabit disk

Lenovo Yoga 2 13 - 07/12/2014 v4(old)
Florian Wimmer

İşcilik
78 / 98 → 80%
Klavye
75%
Mouse
86%
Bağlanılabilirlik
51 / 80 → 64%
Ağırlık
68 / 35-78 → 77%
Batarya
85%
Görüntü
80%
Oyun performansı
55 / 68 → 81%
Uygulama performansı
60 / 87 → 69%
Isınma
87%
Ses
93%
Audio
65 / 91 → 71%
Camera
64 / 85 → 75%
Ortalama
73%
79%
Convertible - Ortalama Ağırlık
> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Kısa inceleme: Lenovo Yoga 2 13
Florian Wimmer (Update: 2014-07-31)
