Lenovo IdeaPad 5 14ARE05: Kompakt bir kasada çok fazla işlem gücü

Long-lasting subnotebook. Lenovo'nun 14 inçlik mobil dizüstü bilgisayarı güçlü bir APU, NVMe SSD ve başarılı bir klavye (arkadan aydınlatmalı) ile puan kazanıyor. Pil ömrü de çok iyi.
Sascha Mölck, 👁 Sebastian Jentsch, Felicitas Krohn,

IdeaPad 5 14ARE05 ile Lenovo, Ryzen 5 4500U APU tarafından desteklenen 14 inçlik bir alt not defteri sunar. Rakipler arasında Acer Swift 3 SF314-42, HP 14s, Honor MagicBook 14, Asus ZenBook 14 UM431DA ve Dell Inspiron 14 3493 gibi cihazlar yer alıyor.

Lenovo IdeaPad 5 14ARE05 (IdeaPad 5 Seri)
İşlemci
AMD Ryzen 5 4500U 6 x 2.3 - 4 GHz, Renoir (Zen 2)
Grafik kartı
AMD Radeon RX Vega 6 (Ryzen 4000), Çekirdek: 1500 MHz, dual-channel, 27.20.1017.1011 (Adrenalin 20.5.1)
Bellek
8192 MB
, DDR4 3200, dual-channel, soldered, no memory slots
Görüntü
14 inç 16:9, 1920 x 1080 pixel 157 PPI, AU Optronics B140HAN04.E, IPS, parlak: hayır, 60 Hz
Anakart
AMD Promontory/Bixby FCH
Harddisk
Samsung PM991 MZALQ512HALU, 512 GB
, 1x M.2 2242 slot (occupied), 1x M.2 2280 slot (free), 439 GB Boş
Ses kartı
Realtek ALC257 @ AMD K17.6 - Audio Processor - High Definition Audio Controller
Bağlantılar
3 USB 3.0, 1 HDMI, 1 DisplayPort, Ses çıkışları: combo audio, Kart okuyucular: SD, SDHC, SDXC, MMC, 1 Parmak izi okuyucu, TPM 2.0
Network
Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5
Boyut
yükseklik x genişlik x derinlik (mm): 16.9 x 321.57 x 211.59
Batarya
56.5 Wh, 4955 mAh Lithium-Ion, 11.52 V
Charging
fast charging / Quickcharge
İşletim sistemi
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Primary Camera: 0.9 MPix
Ek özellikler
Hoparlörler: stereo, Klavye: chiclet, Klavye ışığı: evet, McAfee LiveSafe (trial version), MS Office 365 (trial version), 24 Ay Garanti
Ağırlık
1.38 kg, Güç kaynağı: 364 g
Fiyat
699 Euro
Bağlantılar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
86 %
07/2020
Lenovo IdeaPad 5 14ARE05
R5 4500U, Vega 6 R4000
1.4 kg16.9 mm14"1920x1080
85 %
09/2020
Acer Swift 3 SF314-42-R27B
R3 4300U, Vega 5
1.2 kg16.55 mm14"1920x1080
79 %
HP 14s-dq1431ng
i5-1035G1, UHD Graphics G1 (Ice Lake 32 EU)
1.5 kg18 mm14"1920x1080
87 %
03/2020
Honor Magicbook 14
R5 3500U, Vega 8
1.4 kg16 mm14"1920x1080
81 %
02/2020
Asus ZenBook 14 UM431DA-AM020T
R7 3700U, Vega 10
1.4 kg16 mm14"1920x1080
75 %
06/2020
Dell Inspiron 14 3493-4KWCF
i7-1065G7, GeForce MX230
1.8 kg21 mm14"1920x1080

Kasa ve bağlantı - IdeaPad 5 için süslü metal kasa

IdeaPad'in şık, ince alüminyum kasası koyu gri tonda (Grafit Gri) geliyor. Herhangi bir imalat hatası göstermez. Ana ünite ve kapak daha sert olabilir. Pil cihaza sıkıca yerleştirilmiştir. Bakım kapağı yoktur, bu nedenle alt kapağın çıkarılmasıyla içeriye erişilir. 14 inçlik iki USB Tip A bağlantı noktası, USB 3.2 Gen 1 standardına göre çalışır. Dizüstü bilgisayara USB C Tipi bağlantı noktası (USB 3.2 Gen 1) üzerinden güç sağlanır. USB-C üzerinden DisplayPort desteklenir. Bu şekilde, IdeaPad'in HDMI bağlantısıyla birlikte iki video çıkışı vardır. Dahili bellek kartı okuyucusu 78 MB / s aktarım hızlarında (her biri yaklaşık 5 MB'lık 250 jpg görüntü dosyasının aktarımı) daha hızlı modellere aittir ve Sırasıyla 86.5 MB / s (büyük veri bloklarının kopyalanması). Bellek kartı okuyucularını bir referans kartı (64 GB Toshiba Exceria Pro SDXC UHS-II) kullanarak test ediyoruz. WLAN yongası (Intel Wi-Fi 6 AX200) 802.11a / b / g / n / ac / ax WLAN standartlarını destekliyor. Ayrıca, optimum koşullar altında belirlenen aktarım hızları (yakınlarda başka WLAN aygıtı yok, dizüstü bilgisayar ve sunucu PC arasındaki kısa mesafe) iyi. Testimizi Netgear Nighthawk AX12 Wi-Fi 6 üç bantlı yönlendirici ile yapıyoruz.

Boyut karşılaştırması

339 mm 242 mm 21 mm 1.8 kg324 mm 225 mm 18 mm 1.5 kg324 mm 212 mm 16 mm 1.4 kg323.4 mm 218.9 mm 16.55 mm 1.2 kg323 mm 227 mm 15.9 mm 1.4 kg322.5 mm 214.8 mm 16 mm 1.4 kg321.57 mm 211.59 mm 16.9 mm 1.4 kg

Bağlantı noktası yapılandırması

Right side: Memory card reader; 2x USB 3.2 Gen 1 (Type-A)
Right side: Memory card reader; 2x USB 3.2 Gen 1 (Type-A)
Left side: USB 3.2 Gen 1 (Type-C, DisplayPort, Power Delivery), HDMI, combo audio
Left side: USB 3.2 Gen 1 (Type-C, DisplayPort, Power Delivery), HDMI, combo audio
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Lenovo IdeaPad S540-14IWL
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
82.9 MB/s ∼100% +6%
Lenovo IdeaPad 5 14ARE05
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
78 MB/s ∼94%
Average of class Subnotebook
  (8 - 186, n=146)
64 MB/s ∼77% -18%
HP 14s-dq1431ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
36.4 MB/s ∼44% -53%
Asus ZenBook 14 UM431DA-AM020T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
26.4 MB/s ∼32% -66%
maximum AS SSD Seq Read Test (1GB)
Lenovo IdeaPad S540-14IWL
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
89.9 MB/s ∼100% +4%
Lenovo IdeaPad 5 14ARE05
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
86.5 MB/s ∼96%
Average of class Subnotebook
  (17.7 - 251, n=147)
80.2 MB/s ∼89% -7%
HP 14s-dq1431ng
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
38.7 MB/s ∼43% -55%
Asus ZenBook 14 UM431DA-AM020T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
37.1 MB/s ∼41% -57%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Average Intel Wi-Fi 6 AX200
  (523 - 1640, n=57)
1130 MBit/s ∼100% +29%
Acer Swift 3 SF314-42-R27B
Intel Wi-Fi 6 AX200
898 (695min - 935max) MBit/s ∼79% +3%
Lenovo IdeaPad 5 14ARE05
Intel Wi-Fi 6 AX200
873 (819min - 899max) MBit/s ∼77%
Honor Magicbook 14
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
685 (640min - 694max) MBit/s ∼61% -22%
HP 14s-dq1431ng
RealTek Semiconductor, Device ID: C821
632 (615min - 642max) MBit/s ∼56% -28%
Lenovo IdeaPad S540-14IWL
Intel Wireless-AC 9560
587 MBit/s ∼52% -33%
Asus ZenBook 14 UM431DA-AM020T
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
416 (375min - 465max) MBit/s ∼37% -52%
Dell Inspiron 14 3493-4KWCF
Qualcomm Atheros QCA9377 Wireless Network Adapter
333 (322min - 341max) MBit/s ∼29% -62%
iperf3 Client (transmit) TCP 1 m 4M x10
Average Intel Wi-Fi 6 AX200
  (553 - 1645, n=56)
1049 MBit/s ∼100% +69%
Lenovo IdeaPad S540-14IWL
Intel Wireless-AC 9560
672 MBit/s ∼64% +9%
HP 14s-dq1431ng
RealTek Semiconductor, Device ID: C821
663 (431min - 696max) MBit/s ∼63% +7%
Honor Magicbook 14
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
646 (583min - 663max) MBit/s ∼62% +4%
Lenovo IdeaPad 5 14ARE05
Intel Wi-Fi 6 AX200
619 (590min - 645max) MBit/s ∼59%
Acer Swift 3 SF314-42-R27B
Intel Wi-Fi 6 AX200
615 (580min - 641max) MBit/s ∼59% -1%
Asus ZenBook 14 UM431DA-AM020T
Intel 8265 Tri-Band WiFi (Oak Peak) Network Adapter
598 (519min - 628max) MBit/s ∼57% -3%
Dell Inspiron 14 3493-4KWCF
Qualcomm Atheros QCA9377 Wireless Network Adapter
305 (288min - 327max) MBit/s ∼29% -51%
050100150200250300350400450500550600650700750800850900Tooltip
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000); iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø872 (819-899)
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U, AMD Radeon RX Vega 5; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø897 (695-935)
HP 14s-dq1431ng Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU); iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø631 (615-642)
Honor Magicbook 14 AMD Ryzen 5 3500U, AMD Radeon RX Vega 8 (Ryzen 2000/3000); iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø685 (640-694)
Asus ZenBook 14 UM431DA-AM020T AMD Ryzen 7 3700U, AMD Radeon RX Vega 10; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø415 (375-465)
Dell Inspiron 14 3493-4KWCF Intel Core i7-1065G7, NVIDIA GeForce MX230; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø333 (322-341)
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000); iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø619 (590-645)
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U, AMD Radeon RX Vega 5; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø615 (580-641)
HP 14s-dq1431ng Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU); iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø663 (431-696)
Honor Magicbook 14 AMD Ryzen 5 3500U, AMD Radeon RX Vega 8 (Ryzen 2000/3000); iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø646 (583-663)
Asus ZenBook 14 UM431DA-AM020T AMD Ryzen 7 3700U, AMD Radeon RX Vega 10; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø598 (519-628)
Dell Inspiron 14 3493-4KWCF Intel Core i7-1065G7, NVIDIA GeForce MX230; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø305 (288-327)
ColorChecker
35.6 ∆E
28.3 ∆E
37.8 ∆E
36.1 ∆E
36.1 ∆E
29.1 ∆E
38 ∆E
39 ∆E
35.1 ∆E
40 ∆E
28.6 ∆E
25.9 ∆E
38.9 ∆E
30.3 ∆E
35.4 ∆E
24.5 ∆E
35.1 ∆E
33.9 ∆E
2.3 ∆E
11.8 ∆E
22.8 ∆E
31.8 ∆E
36 ∆E
15.2 ∆E
ColorChecker Lenovo IdeaPad 5 14ARE05: 30.32 ∆E min: 2.33 - max: 40.03 ∆E
ColorChecker
18.1 ∆E
21.1 ∆E
24.7 ∆E
15.7 ∆E
30.3 ∆E
17.5 ∆E
13.8 ∆E
30.9 ∆E
19 ∆E
17.3 ∆E
14.9 ∆E
15.2 ∆E
23.3 ∆E
14.4 ∆E
18.5 ∆E
9.5 ∆E
23.4 ∆E
22.8 ∆E
2.5 ∆E
13.6 ∆E
23 ∆E
20.2 ∆E
16.1 ∆E
13.8 ∆E
ColorChecker Honor Magicbook 14: 18.32 ∆E min: 2.53 - max: 30.88 ∆E
ColorChecker
11.2 ∆E
9.9 ∆E
16.8 ∆E
14.6 ∆E
16.8 ∆E
8.6 ∆E
10 ∆E
23.3 ∆E
14.6 ∆E
14.1 ∆E
10.9 ∆E
8.1 ∆E
16.3 ∆E
12.3 ∆E
17.3 ∆E
7.8 ∆E
16.8 ∆E
12.8 ∆E
2.3 ∆E
9.9 ∆E
12.9 ∆E
13.3 ∆E
10.7 ∆E
2.5 ∆E
ColorChecker HP 14s-dq1431ng: 12.24 ∆E min: 2.33 - max: 23.27 ∆E

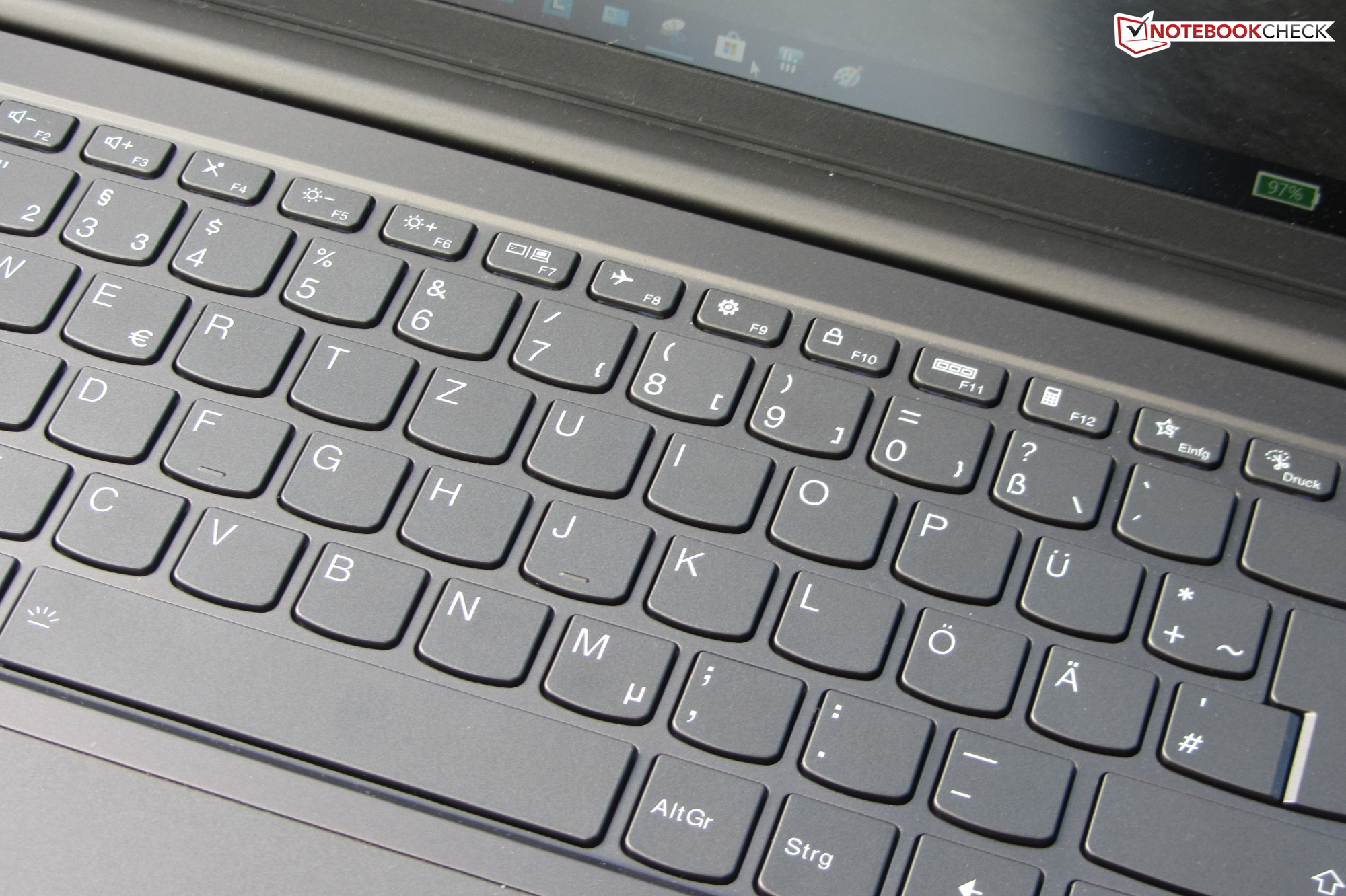

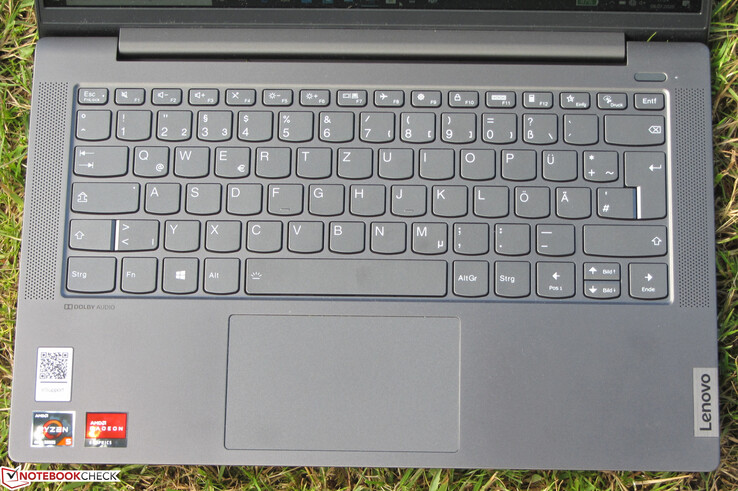

Giriş aygıtları - Yerleşik klavye arka aydınlatması

Arkadan aydınlatmalı (iki parlaklık seviyesi) chiclet klavyenin düz tuşları kısa bir seyahat ve net bir basınç noktası sunar. Anahtarların sağladığı sağlam direnci seviyoruz. Dahası, klavye yazma sırasında biraz verim veriyor, ancak bunun sinir bozucu olduğu kanıtlanmadı. Lenovo, burada günlük kullanım için uygun olan ve düzenli yazma görevleri için de uygun bir klavye sunar. Çoklu dokunma özelliğine sahip ClickPad, yaklaşık 10,5 x 6,3 cm (~ 4,1 x 2,5 inç) bir alanı kaplar. Pürüzsüz ped yüzeyi parmakların kaymasını kolaylaştırır. Ek olarak, ped ayrıca köşelerdeki girişlere tepki verir. Kısa bir hareketi ve açık bir basınç noktası vardır.

IdeaPad 5 input devices
IdeaPad 5 input devices

Ekran - Düşük renk alanı kapsamına sahip IPS

Pixel grid
Pixel grid

14 inçlik mat ekran 1920x1080 piksel doğal çözünürlükte çalışır. İyi bir maksimum parlaklık (317.4 cd / m²) sunar, ancak kontrast (878: 1) çok düşüktür. 1000: 1'in üzerindeki değerlerin iyi olduğunu düşünüyoruz. Pozitif: Ekranda PWM titremesi görünmüyor.

310
cd/m²
311
cd/m²
299
cd/m²
333
cd/m²
360
cd/m²
319
cd/m²
310
cd/m²
321
cd/m²
294
cd/m²
Parlaklığın yayılımı
AU Optronics B140HAN04.E
X-Rite i1Pro 2
Maksimum: 360 cd/m² Ortalama: 317.4 cd/m² Minimum: 4.1 cd/m²
Aydınlatma: 82 %
Batarya modunda parlaklık: 350 cd/m²
Kontrast: 878:1 (Siyah: 0.41 cd/m²)
ΔE Color 4.75 | 0.6-29.43 Ø5.8, calibrated: 4.86
ΔE Greyscale 3.75 | 0.64-98 Ø6
56% sRGB (Argyll 3D) 36% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.32
Lenovo IdeaPad 5 14ARE05
AU Optronics B140HAN04.E, IPS, 1920x1080, 14
Acer Swift 3 SF314-42-R27B
AU Optronics B140HAN04.0, IPS, 1920x1080, 14
HP 14s-dq1431ng
AUO403D, IPS, 1920x1080, 14
Honor Magicbook 14
BOE CQ TV140FHM-NH1, IPS, 1920x1080, 14
Asus ZenBook 14 UM431DA-AM020T
CEC PA LM140LF-3L03, IPS, 1920x1080, 14
Dell Inspiron 14 3493-4KWCF
Chi Mei 140HCA, IPS, 1920x1080, 14
Lenovo IdeaPad S540-14IWL
NV140FHM-N48, IPS, 1920x1080, 14
Response Times
-1%
6%
-15%
10%
-6%
-6%
Response Time Grey 50% / Grey 80% *
41 (20, 21)
42 (20, 22)
-2%
41 (20, 21)
-0%
44.8 (24.4, 20.4)
-9%
36 (19, 17)
12%
41 (23, 18)
-0%
39.6 (21.6, 18)
3%
Response Time Black / White *
28 (16, 12)
28 (16, 12)
-0%
25 (14, 11)
11%
34 (19.2, 14.8)
-21%
26 (15, 11)
7%
31 (18, 13)
-11%
32 (18, 14)
-14%
PWM Frequency
5952 (99)
44 (20)
2500 (20)
352.1 (99)
Screen
-8%
-2%
4%
2%
-10%
-6%
Brightness middle
360
256
-29%
305
-15%
311
-14%
253
-30%
226
-37%
316
-12%
Brightness
317
237
-25%
264
-17%
296
-7%
245
-23%
214
-32%
301
-5%
Brightness Distribution
82
81
-1%
81
-1%
92
12%
78
-5%
92
12%
88
7%
Black Level *
0.41
0.17
59%
0.16
61%
0.18
56%
0.225
45%
0.17
59%
0.28
32%
Contrast
878
1506
72%
1906
117%
1728
97%
1124
28%
1329
51%
1129
29%
Colorchecker DeltaE2000 *
4.75
5.43
-14%
5.44
-15%
5.3
-12%
8.89
-87%
5.21
-10%
5.3
-12%
Colorchecker DeltaE2000 max. *
7.4
19.73
-167%
20.42
-176%
18.5
-150%
4.56
38%
22.15
-199%
18.5
-150%
Colorchecker DeltaE2000 calibrated *
4.86
4.8
1%
4.72
3%
4.2
14%
4.9
-1%
4.43
9%
4.8
1%
Greyscale DeltaE2000 *
3.75
3.29
12%
3.23
14%
3.5
7%
6.33
-69%
3.27
13%
2.4
36%
Gamma
2.32 95%
2.52 87%
2.45 90%
2.1 105%
2.52 87%
2.36 93%
2.05 107%
CCT
6543 99%
6840 95%
7035 92%
7078 92%
6745 96%
6538 99%
6644 98%
Color Space (Percent of AdobeRGB 1998)
36
36
0%
37
3%
42.5
18%
60
67%
40
11%
37.6
4%
Color Space (Percent of sRGB)
56
57
2%
58
4%
65.8
18%
91
63%
62
11%
58.3
4%
Total Average (Program / Settings)
-5% / -7%
2% / -1%
-6% / 1%
6% / 3%
-8% / -9%
-6% / -6%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
28 ms ... rise ↗ and fall ↘ combined↗ 16 ms rise
↘ 12 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 60 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.4 ms).
       Response Time 50% Grey to 80% Grey
41 ms ... rise ↗ and fall ↘ combined↗ 20 ms rise
↘ 21 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 636 (maximum) ms. » 51 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (38.7 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17507 (minimum: 5 - maximum: 2500000) Hz was measured.

Kutunun dışında, ekran oldukça iyi bir renk üretimi gösteriyor. Ancak Delta E 2000 renk sapması neredeyse 5 olduğunda hedef (Delta E 3'ten küçük) kaçırılır. Ekranda mavi renk tonu görülmüyor. Ayrıca, kalibrasyon ile renk reprodüksiyonunda sadece minimal bir iyileşme elde edilebilir. AdobeRGB (% 36) ve sRGB (% 56) renk uzayları tam olarak eşlenmemiştir.

CalMAN - ColorChecker
CalMAN - ColorChecker
CalMAN - Grayscales
CalMAN - Grayscales
CalMAN - Color saturation
CalMAN - Color saturation
CalMAN - ColorChecker (calibrated)
CalMAN - ColorChecker (calibrated)
CalMAN - Grayscales (calibrated)
CalMAN - Grayscales (calibrated)
CalMAN - Color saturation (calibrated)
CalMAN - Color saturation (calibrated)

Lenovo, 14 inçlik ekranı görüş açısına dayanıklı IPS paneliyle donatıyor. Sonuç olarak, ekran herhangi bir konumdan kullanılabilir. Ekran kesinlikle açık havada okunabilir - güneş çok parlak parlamazsa.

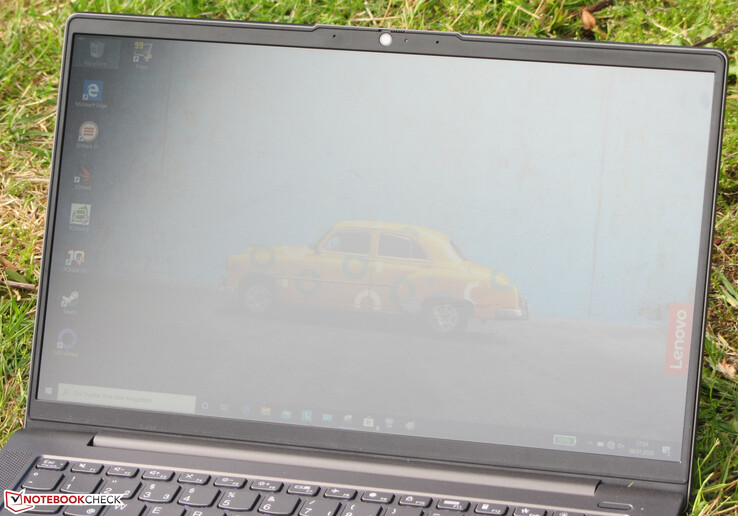

The IdeaPad outdoors (shot in an overcast sky)
The IdeaPad outdoors (shot in an overcast sky)

Performans - İyi performans gelişimi ile Ryzen 5

IdeaPad 5 14ARE05 ile Lenovo, ürün yelpazesinde ofis ve İnternet uygulamaları için fazlasıyla bilgi işlem gücü sunan 14 inçlik bir dizüstü bilgisayara sahiptir. Test cihazımız yaklaşık 650 Euro'dur (~ 743 $). Ayrıca, başka yapılandırma varyantları da mevcuttur.

Test koşulları

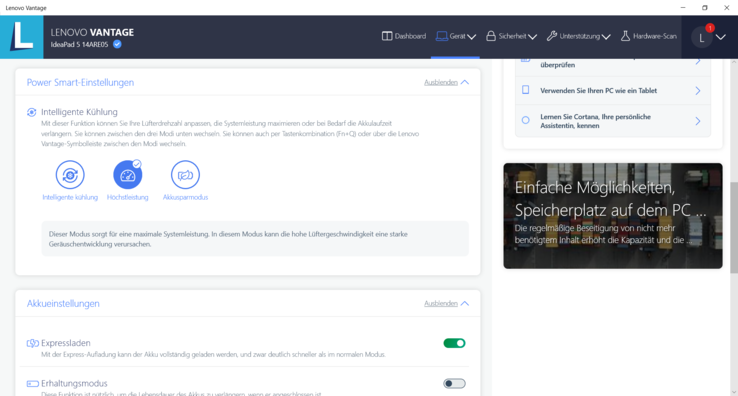

Önceden yüklenmiş Lenovo Vantage yazılımı, performans modunun seçilmesini sağlar. Testimizi "Yüksek Performans" modu etkinken gerçekleştirdik. Ayrıca her üç modda da bazı karşılaştırmalar yaptık; bunu uygun yerlere işaret edeceğiz.

Lenovo Vantage
Lenovo Vantage

İşlemci

IdeaPad, Ryzen 5 4500U (Renoir) APU tarafından desteklenmektedir. APU'nun CPU kısmı, 2,3 GHz temel hızında çalışan altıgen çekirdekli bir işlemciden oluşur. Turbo, hızı 4 GHz'e kadar artırmak için kullanılabilir. Eş zamanlı çoklu iş parçacığı (çekirdek başına iki iş parçacığı işlenebilir) desteklenmez. Cinebench testlerinin CPU testleri sırasıyla 3.8 ila 4 GHz (çok iş parçacığı) ve 1.4 ila 4 GHz'de (tek iş parçacığı) gerçekleştirilir. Pil gücünde, CPU takıldığında ulaşılan saat hızlarına uyması için başlangıçta sırasıyla 2,4 GHz (çok iş parçacıklı) ve 1,4 ila 2,4 GHz (tek iplik) hızında çalışır.

CPU-Z
CPU-Z

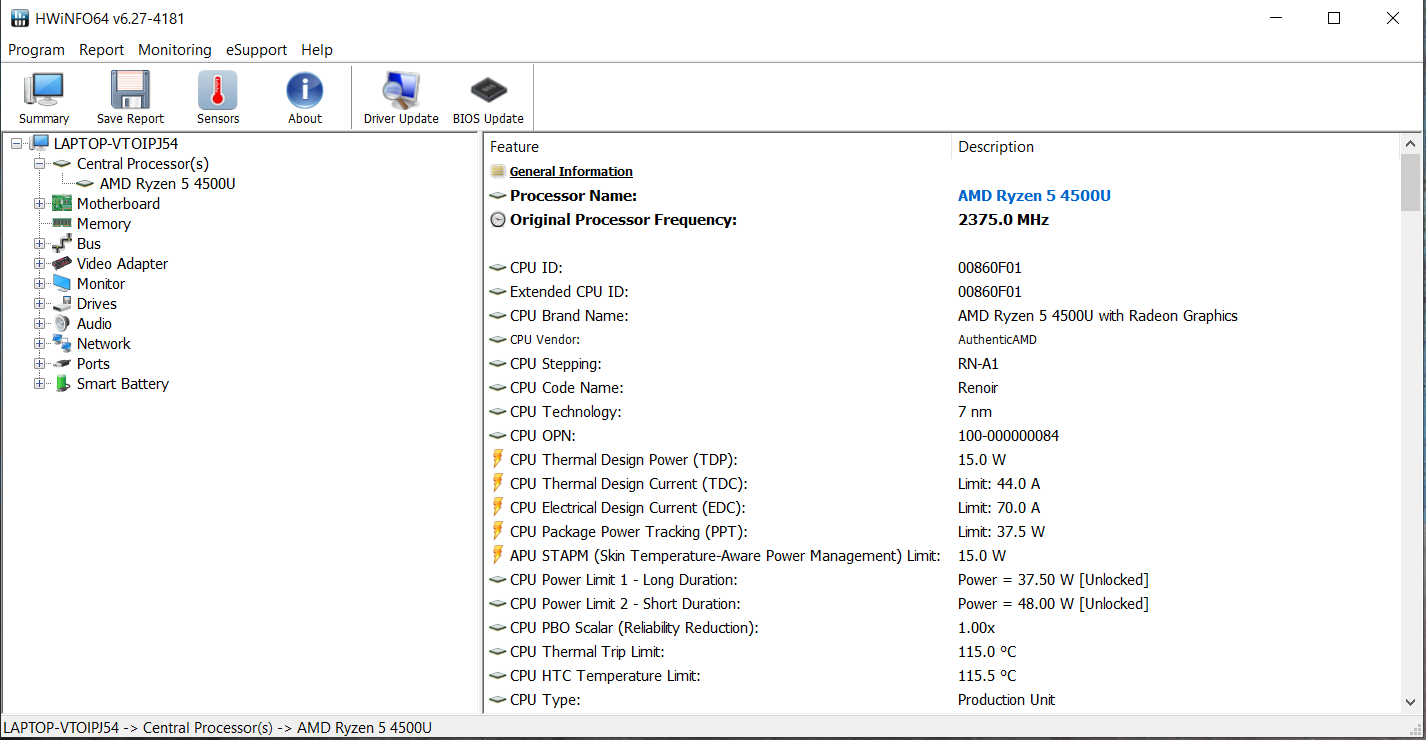

HWiNFO
HWiNFO
HWiNFO
HWiNFO

Cinebench R15 benchmark'ın çoklu testini en az 30 dakika boyunca sürekli bir döngüde çalıştırarak, CPU Turbo'nun fişe takılıyken de sürekli olarak kullanılıp kullanılmadığını doğrularız. Sonuçlar 890 ile 973 arasında değişmektedir. Dengeli bir performans gelişimi için, Lenovo Vantage yazılımında "Akıllı Soğutma" modunun seçilmesi gerekir. Pil tasarrufu modu bunu da başarır, ancak önemli ölçüde daha düşük bir seviyede.

010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040Tooltip
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U, AMD Ryzen 5 4500U: Ø930 (892.46-973.11)
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U, AMD Ryzen 5 4500U; Akkusparmodus: Ø667 (656.64-715.51)
Lenovo IdeaPad 5 14ARE05 AMD Ryzen 5 4500U, AMD Ryzen 5 4500U; Intelligente Kühlung: Ø841 (826.1-975.75)
Acer Swift 3 SF314-42-R27B AMD Ryzen 3 4300U, AMD Ryzen 3 4300U: Ø560 (552.29-579.95)
HP 14s-dq1431ng Intel Core i5-1035G1, Intel Core i5-1035G1: Ø406 (322.23-606.88)
Honor Magicbook 14 AMD Ryzen 5 3500U, AMD Ryzen 5 3500U: Ø651 (646.48-668.95)
Asus ZenBook 14 UM431DA-AM020T AMD Ryzen 7 3700U, AMD Ryzen 7 3700U: Ø512 (499.03-642.87)
Dell Inspiron 14 3493-4KWCF Intel Core i7-1065G7, Intel Core i7-1065G7: Ø585 (569.39-649.92)
Lenovo IdeaPad S540-14IWL Intel Core i5-8265U, Intel Core i5-8265U: Ø548 (543.22-613.69)
Acer Swift 3 SF314-42-R4XJ AMD Ryzen 7 4700U, AMD Ryzen 7 4700U: Ø932 (907.83-1035.01)
CPU clock speeds while running the CB15 loop (High Performance)
CPU clock speeds while running the CB15 loop (High Performance)
CPU clock speeds while running the CB15 loop (Intelligent Cooling)
CPU clock speeds while running the CB15 loop (Intelligent Cooling)

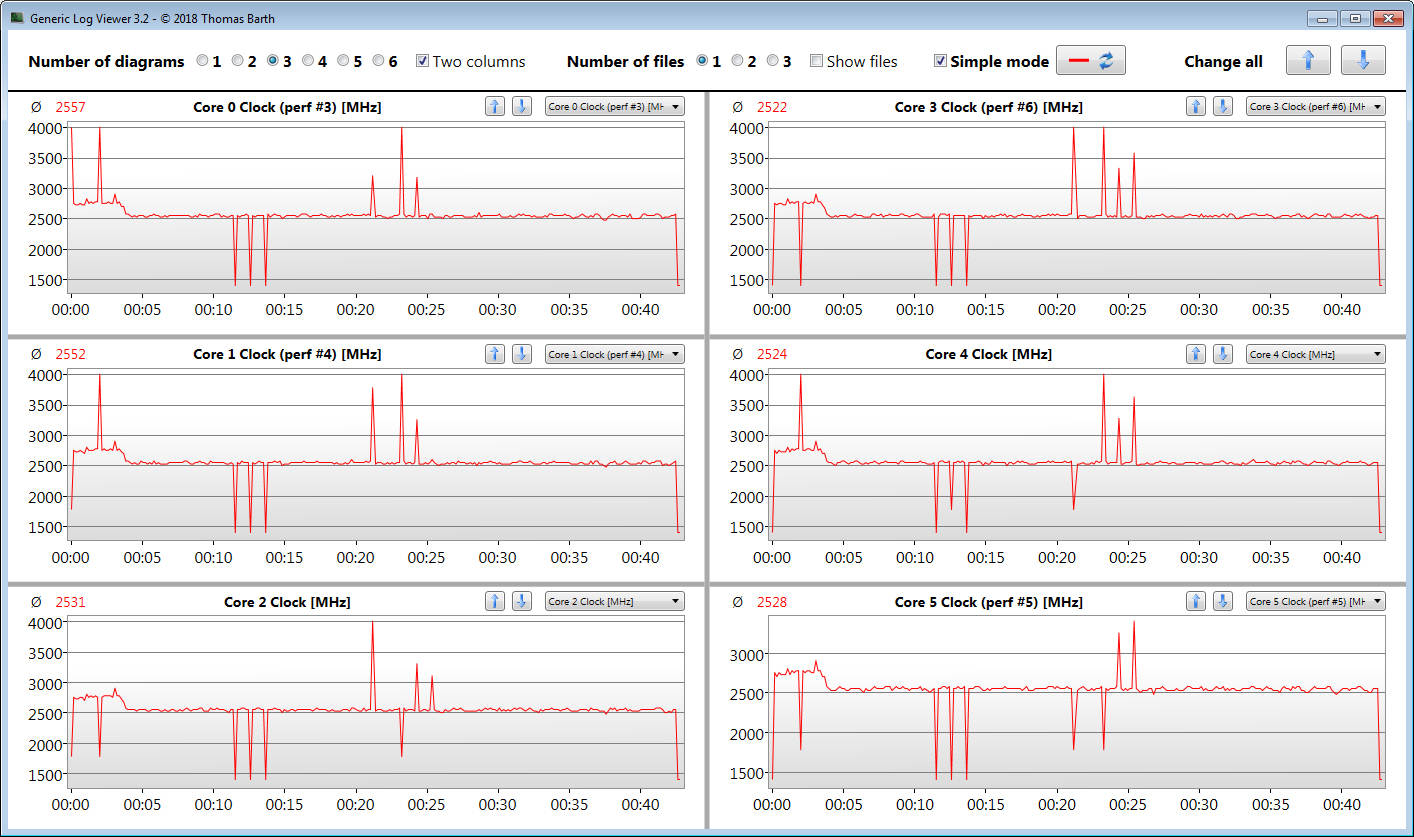

CPU clock speeds while running the CB15 loop (battery-saving mode)
CPU clock speeds while running the CB15 loop (battery-saving mode)
Cinebench R15 CPU Single 64Bit
174 Points
Cinebench R15 CPU Multi 64Bit
973 Points
Cinebench R15 OpenGL 64Bit
65.79 fps
Cinebench R15 Ref. Match 64Bit
98 %
Yardım
Cinebench R15
CPU Single 64Bit
Dell Inspiron 14 3493-4KWCF
Intel Core i7-1065G7
182 Points ∼100% +5%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
180 Points ∼99% +3%
Lenovo IdeaPad 5 14ARE05
AMD Ryzen 5 4500U
174 Points ∼96%
Average AMD Ryzen 5 4500U
  (156 - 177, n=10)
173 Points ∼95% -1%
HP 14s-dq1431ng
Intel Core i5-1035G1
170 Points ∼93% -2%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
165 Points ∼91% -5%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
152 Points ∼84% -13%
Honor Magicbook 14
AMD Ryzen 5 3500U
145 Points ∼80% -17%
Asus ZenBook 14 UM431DA-AM020T
AMD Ryzen 7 3700U
133 Points ∼73% -24%
Average of class Subnotebook
  (20 - 210, n=328)
122 Points ∼67% -30%
CPU Multi 64Bit
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
1035 Points ∼100% +6%
Lenovo IdeaPad 5 14ARE05
AMD Ryzen 5 4500U
973 Points ∼94%
Average AMD Ryzen 5 4500U
  (715 - 1007, n=15)
890 Points ∼86% -9%
Honor Magicbook 14
AMD Ryzen 5 3500U
668 (646.48min - 668.95max) Points ∼65% -31%
Dell Inspiron 14 3493-4KWCF
Intel Core i7-1065G7
650 Points ∼63% -33%
Asus ZenBook 14 UM431DA-AM020T
AMD Ryzen 7 3700U
642 Points ∼62% -34%
HP 14s-dq1431ng
Intel Core i5-1035G1
606 Points ∼59% -38%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
600 (548.41min - 619.74max) Points ∼58% -38%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
580 Points ∼56% -40%
Average of class Subnotebook
  (32 - 1287, n=343)
385 Points ∼37% -60%
Blender 2.79 - BMW27 CPU
Average of class Subnotebook
  (4.2 - 6277, n=61)
1234 Seconds * ∼100% -108%
HP 14s-dq1431ng
Intel Core i5-1035G1
1002 Seconds * ∼81% -69%
HP 14s-dq1431ng
Intel Core i5-1035G1
1001.7 Seconds * ∼81% -69%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
907 Seconds * ∼74% -53%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
793 Seconds * ∼64% -34%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
792.9 Seconds * ∼64% -34%
Honor Magicbook 14
AMD Ryzen 5 3500U
703 Seconds * ∼57% -18%
Average AMD Ryzen 5 4500U
  (533 - 748, n=7)
611 Seconds * ∼50% -3%
Lenovo IdeaPad 5 14ARE05
AMD Ryzen 5 4500U
593.4 Seconds * ∼48%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
523.9 Seconds * ∼42% +12%
7-Zip 18.03
7z b 4
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
26652 MIPS ∼100% +13%
Average AMD Ryzen 5 4500U
  (23237 - 25891, n=7)
24162 MIPS ∼91% +2%
Lenovo IdeaPad 5 14ARE05
AMD Ryzen 5 4500U
23610 MIPS ∼89%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
17606 MIPS ∼66% -25%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
17606 MIPS ∼66% -25%
Honor Magicbook 14
AMD Ryzen 5 3500U
17508 MIPS ∼66% -26%
Average of class Subnotebook
  (2692 - 37081, n=56)
15627 MIPS ∼59% -34%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
15043 MIPS ∼56% -36%
HP 14s-dq1431ng
Intel Core i5-1035G1
13236 MIPS ∼50% -44%
HP 14s-dq1431ng
Intel Core i5-1035G1
13236 MIPS ∼50% -44%
7z b 4 -mmt1
Average AMD Ryzen 5 4500U
  (4278 - 4338, n=7)
4300 MIPS ∼100% 0%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
4292 MIPS ∼100% 0%
Lenovo IdeaPad 5 14ARE05
AMD Ryzen 5 4500U
4288 MIPS ∼100%
HP 14s-dq1431ng
Intel Core i5-1035G1
4231 MIPS ∼98% -1%
HP 14s-dq1431ng
Intel Core i5-1035G1
4231 MIPS ∼98% -1%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
4193 MIPS ∼98% -2%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
4193 MIPS ∼98% -2%
Average of class Subnotebook
  (1653 - 15198, n=56)
4072 MIPS ∼95% -5%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
4014 MIPS ∼93% -6%
Honor Magicbook 14
AMD Ryzen 5 3500U
3555 MIPS ∼83% -17%
Cinebench R20
CPU (Single Core)
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
466 Points ∼100% +4%
Lenovo IdeaPad 5 14ARE05
AMD Ryzen 5 4500U
447 Points ∼96%
Average AMD Ryzen 5 4500U
  (424 - 453, n=9)
446 Points ∼96% 0%
HP 14s-dq1431ng
Intel Core i5-1035G1
428 Points ∼92% -4%
HP 14s-dq1431ng
Intel Core i5-1035G1
428 Points ∼92% -4%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
427 Points ∼92% -4%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
401 Points ∼86% -10%
Dell Inspiron 14 3493-4KWCF
Intel Core i7-1065G7
385 Points ∼83% -14%
Honor Magicbook 14
AMD Ryzen 5 3500U
369 Points ∼79% -17%
Average of class Subnotebook
  (73 - 583, n=69)
363 Points ∼78% -19%
CPU (Multi Core)
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
2401 Points ∼100% 0%
Lenovo IdeaPad 5 14ARE05
AMD Ryzen 5 4500U
2401 Points ∼100%
Average AMD Ryzen 5 4500U
  (1843 - 2530, n=10)
2208 Points ∼92% -8%
Honor Magicbook 14
AMD Ryzen 5 3500U
1492 Points ∼62% -38%
Dell Inspiron 14 3493-4KWCF
Intel Core i7-1065G7
1448 Points ∼60% -40%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
1432 Points ∼60% -40%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
1367 Points ∼57% -43%
Average of class Subnotebook
  (110 - 2935, n=70)
1229 Points ∼51% -49%
HP 14s-dq1431ng
Intel Core i5-1035G1
1210 Points ∼50% -50%
HP 14s-dq1431ng
Intel Core i5-1035G1
1210 Points ∼50% -50%
Geekbench 5.1 / 5.2
64 Bit Multi-Core Score
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
4792 Points ∼100% +3%
Lenovo IdeaPad 5 14ARE05
AMD Ryzen 5 4500U
4646 Points ∼97%
Average AMD Ryzen 5 4500U
  (4352 - 5091, n=7)
4623 Points ∼96% 0%
HP 14s-dq1431ng
Intel Core i5-1035G1
3858 Points ∼81% -17%
HP 14s-dq1431ng
Intel Core i5-1035G1
3858 Points ∼81% -17%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
3330 Points ∼69% -28%
Average of class Subnotebook
  (591 - 5926, n=52)
3158 Points ∼66% -32%
Honor Magicbook 14
AMD Ryzen 5 3500U
3154 Points ∼66% -32%
64 Bit Single-Core Score
HP 14s-dq1431ng
Intel Core i5-1035G1
1219 Points ∼100% +11%
HP 14s-dq1431ng
Intel Core i5-1035G1
1219 Points ∼100% +11%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
1101 Points ∼90% 0%
Lenovo IdeaPad 5 14ARE05
AMD Ryzen 5 4500U
1098 Points ∼90%
Average AMD Ryzen 5 4500U
  (1082 - 1108, n=7)
1098 Points ∼90% 0%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
1027 Points ∼84% -6%
Average of class Subnotebook
  (310 - 1575, n=52)
990 Points ∼81% -10%
Honor Magicbook 14
AMD Ryzen 5 3500U
904 Points ∼74% -18%
HWBOT x265 Benchmark v2.2 - 4k Preset
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
7.81 fps ∼100% +16%
Average AMD Ryzen 5 4500U
  (5.86 - 7.16, n=6)
6.73 fps ∼86% 0%
Lenovo IdeaPad 5 14ARE05
AMD Ryzen 5 4500U
6.72 fps ∼86%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
4.7 fps ∼60% -30%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U
4.69 fps ∼60% -30%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
4.37 fps ∼56% -35%
Average of class Subnotebook
  (0.63 - 8.33, n=56)
4.02 fps ∼51% -40%
Honor Magicbook 14
AMD Ryzen 5 3500U
3.99 fps ∼51% -41%
HP 14s-dq1431ng
Intel Core i5-1035G1
3.32 fps ∼43% -51%
HP 14s-dq1431ng
Intel Core i5-1035G1
3.32 fps ∼43% -51%
LibreOffice - 20 Documents To PDF
Average of class Subnotebook
  (32.3 - 281, n=41)
83.9 s ∼100% +44%
HP 14s-dq1431ng
Intel Core i5-1035G1
70.9 s ∼85% +22%
HP 14s-dq1431ng
Intel Core i5-1035G1
70.88 s ∼84% +22%
Average AMD Ryzen 5 4500U
  (58.2 - 78, n=7)
67.3 s ∼80% +16%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
62.2 s ∼74% +7%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
59.83 s ∼71% +3%
Lenovo IdeaPad 5 14ARE05
AMD Ryzen 5 4500U
58.19 s ∼69%
Honor Magicbook 14
AMD Ryzen 5 3500U
0 s ∼0% -100%
R Benchmark 2.5 - Overall mean
Average of class Subnotebook
  (0.554 - 2.43, n=46)
0.893 sec * ∼100% -40%
HP 14s-dq1431ng
Intel Core i5-1035G1
0.736 sec * ∼82% -15%
HP 14s-dq1431ng
Intel Core i5-1035G1
0.736 sec * ∼82% -15%
Honor Magicbook 14
AMD Ryzen 5 3500U
0.734 sec * ∼82% -15%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U
0.686 sec * ∼77% -7%
Lenovo IdeaPad 5 14ARE05
AMD Ryzen 5 4500U
0.639 sec * ∼72%
Average AMD Ryzen 5 4500U
  (0.614 - 0.654, n=6)
0.635 sec * ∼71% +1%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
0.629 sec * ∼70% +2%

* ... smaller is better

Sistem performansı

Dahili donanım hızlı ve sorunsuz bir sistem sağlar. CPU, ofis ve Internet uygulamaları için fazlasıyla işlem gücü sağlar. Ayrıca, iGPU bilgisayar oyunlarının sınırlı ölçüde kullanılmasına izin verir. Bu, PCMark kriterlerindeki iyi sonuçlarla da tamamlanmaktadır.

PCMark 10
PCMark 10
PCMark 8 Home Score Accelerated v2
4215 puan
PCMark 8 Creative Score Accelerated v2
4239 puan
PCMark 8 Work Score Accelerated v2
5277 puan
PCMark 10 Score
4682 puan
Yardım
PCMark 10
Digital Content Creation
Lenovo IdeaPad 5 14ARE05
Vega 6 R4000, R5 4500U, Samsung PM991 MZALQ512HALU
4728 Points ∼37%
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000)
  (4189 - 4791, n=7)
4486 Points ∼35% -5%
Acer Swift 3 SF314-42-R27B
Vega 5, R3 4300U, SK hynix BC511 HFM256GDJTNI-82A0
3926 Points ∼30% -17%
Lenovo IdeaPad S540-14IWL
GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
3637 Points ∼28% -23%
Honor Magicbook 14
Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ
3494 Points ∼27% -26%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
3466 Points ∼27% -27%
HP 14s-dq1431ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
2954 Points ∼23% -38%
Dell Inspiron 14 3493-4KWCF
GeForce MX230, i7-1065G7, Toshiba KBG40ZNS512G NVMe
2706 Points ∼21% -43%
Average of class Subnotebook
  (405 - 4905, n=142)
2675 Points ∼21% -43%
Productivity
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000)
  (6400 - 7752, n=7)
6908 Points ∼66% +4%
Dell Inspiron 14 3493-4KWCF
GeForce MX230, i7-1065G7, Toshiba KBG40ZNS512G NVMe
6868 Points ∼66% +3%
Lenovo IdeaPad S540-14IWL
GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
6654 Points ∼64% 0%
Lenovo IdeaPad 5 14ARE05
Vega 6 R4000, R5 4500U, Samsung PM991 MZALQ512HALU
6636 Points ∼64%
Acer Swift 3 SF314-42-R27B
Vega 5, R3 4300U, SK hynix BC511 HFM256GDJTNI-82A0
6489 Points ∼62% -2%
Honor Magicbook 14
Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ
5931 Points ∼57% -11%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
5823 Points ∼56% -12%
HP 14s-dq1431ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
5483 Points ∼53% -17%
Average of class Subnotebook
  (1014 - 7676, n=142)
5411 Points ∼52% -18%
Essentials
Lenovo IdeaPad 5 14ARE05
Vega 6 R4000, R5 4500U, Samsung PM991 MZALQ512HALU
8876 Points ∼77%
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000)
  (8327 - 9124, n=7)
8721 Points ∼76% -2%
Acer Swift 3 SF314-42-R27B
Vega 5, R3 4300U, SK hynix BC511 HFM256GDJTNI-82A0
8600 Points ∼75% -3%
Dell Inspiron 14 3493-4KWCF
GeForce MX230, i7-1065G7, Toshiba KBG40ZNS512G NVMe
8415 Points ∼73% -5%
HP 14s-dq1431ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
8322 Points ∼73% -6%
Lenovo IdeaPad S540-14IWL
GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
8264 Points ∼72% -7%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
7685 Points ∼67% -13%
Honor Magicbook 14
Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ
7544 Points ∼66% -15%
Average of class Subnotebook
  (2062 - 10113, n=142)
7146 Points ∼62% -19%
Score
Lenovo IdeaPad 5 14ARE05
Vega 6 R4000, R5 4500U, Samsung PM991 MZALQ512HALU
4682 Points ∼58%
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000)
  (4393 - 5024, n=8)
4681 Points ∼58% 0%
Acer Swift 3 SF314-42-R27B
Vega 5, R3 4300U, SK hynix BC511 HFM256GDJTNI-82A0
4322 Points ∼53% -8%
Lenovo IdeaPad S540-14IWL
GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
4192 Points ∼52% -10%
Dell Inspiron 14 3493-4KWCF
GeForce MX230, i7-1065G7, Toshiba KBG40ZNS512G NVMe
3862 Points ∼48% -18%
Honor Magicbook 14
Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ
3862 Points ∼48% -18%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
3851 Points ∼47% -18%
HP 14s-dq1431ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
3676 Points ∼45% -21%
Average of class Subnotebook
  (743 - 4972, n=145)
3331 Points ∼41% -29%
PCMark 8 - Home Score Accelerated v2
Average AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000)
  (3889 - 4658, n=8)
4252 Points ∼70% +1%
Honor Magicbook 14
Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ
4235 Points ∼70% 0%
Lenovo IdeaPad S540-14IWL
GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ
4220 Points ∼69% 0%
Lenovo IdeaPad 5 14ARE05
Vega 6 R4000, R5 4500U, Samsung PM991 MZALQ512HALU
4215 Points ∼69%
Acer Swift 3 SF314-42-R27B
Vega 5, R3 4300U, SK hynix BC511 HFM256GDJTNI-82A0
3841 Points ∼63% -9%
Asus ZenBook 14 UM431DA-AM020T
Vega 10, R7 3700U, SK hynix BC501 HFM512GDHTNG-8310A
3604 Points ∼59% -14%
HP 14s-dq1431ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
3545 Points ∼58% -16%
Dell Inspiron 14 3493-4KWCF
GeForce MX230, i7-1065G7, Toshiba KBG40ZNS512G NVMe
3355 Points ∼55% -20%
Average of class Subnotebook
  (1027 - 4349, n=284)
3102 Points ∼51% -26%

DPC gecikmeleri

Standart lansman monitör testimizde (web'de sörf, 4K video oynatma, yüksek yüklü Prime95) yüksek DPC gecikmelerini gözlemleyebiliriz. Bu nedenle sistem, gerçek zamanlı video ve ses düzenleme için uygun değildir.

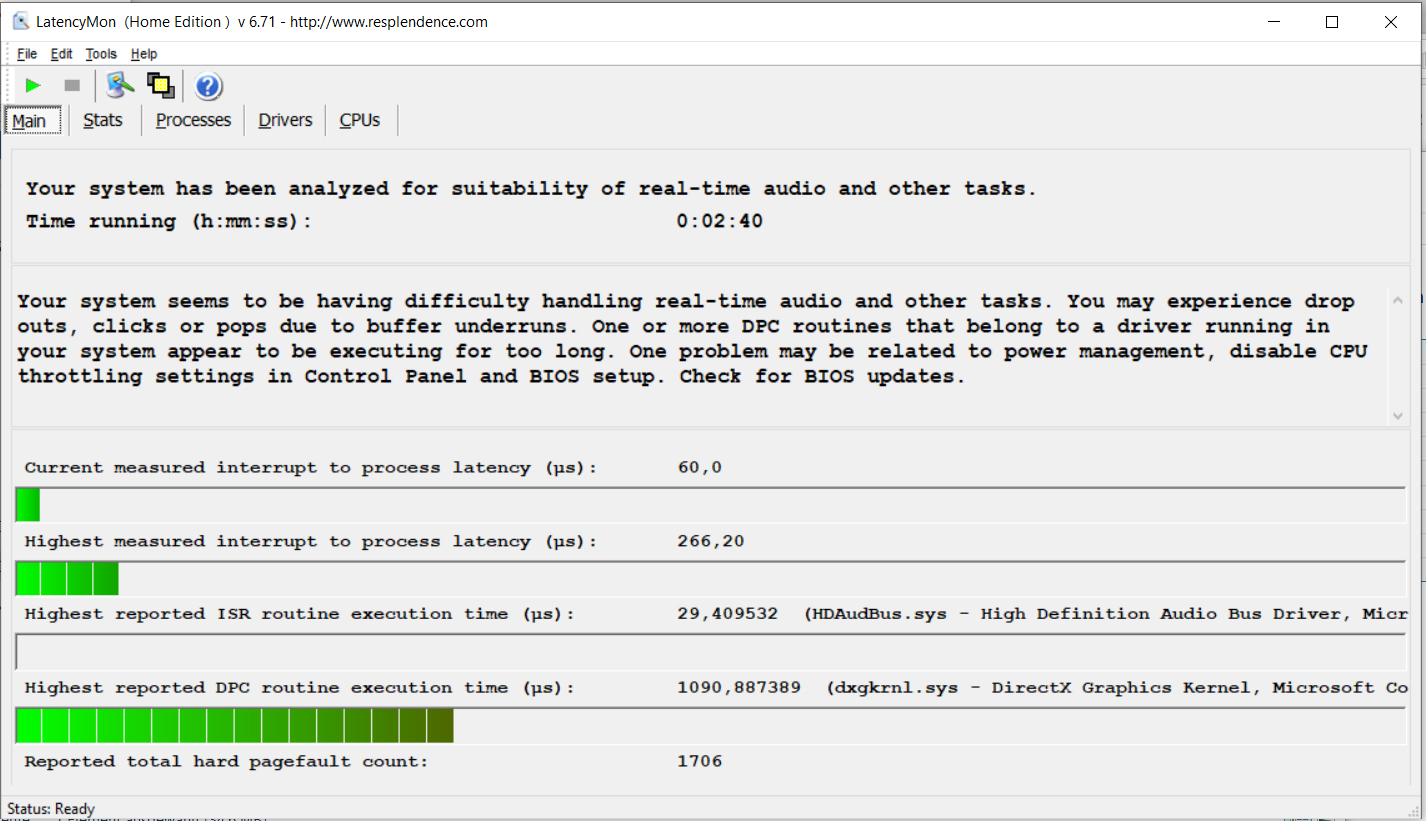

Latency Monitor
Latency Monitor
Latency Monitor
Latency Monitor
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Honor Magicbook 14
Vega 8, R5 3500U, Samsung SSD PM981a MZVLB256HBHQ
1519.3 μs * ∼100% -471%
Acer Swift 3 SF314-42-R4XJ
Vega 7, R7 4700U, Samsung PM991 MZVLQ1T0HALB
1086.5 μs * ∼72% -308%
HP 14s-dq1431ng
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
887.3 μs * ∼58% -233%
Acer Swift 3 SF314-42-R27B
Vega 5, R3 4300U, SK hynix BC511 HFM256GDJTNI-82A0
800.1 μs * ∼53% -201%
Lenovo IdeaPad 5 14ARE05
Vega 6 R4000, R5 4500U, Samsung PM991 MZALQ512HALU
266.2 μs * ∼18%

* ... smaller is better

Depolama

Samsung'dan iyi aktarım hızları sağlayan 512 GB'lık bir NVMe SSD (M.2 2242) sistem sürücüsü olarak işlev görür. İkinci bir NVMe SSD (M.2 2280) de takabilirsiniz.

An NVMe SSD serves as system drive
An NVMe SSD serves as system drive
There is room for a second NVMe SSD in the M.2 2280 format
There is room for a second NVMe SSD in the M.2 2280 format
Samsung PM991 MZALQ512HALU
CDM 5/6 Read Seq Q32T1: 2085 MB/s
CDM 5/6 Write Seq Q32T1: 1456 MB/s
CDM 5/6 Read 4K Q32T1: 474.1 MB/s
CDM 5/6 Write 4K Q32T1: 441 MB/s
CDM 5 Read Seq: 1434 MB/s
CDM 5 Write Seq: 1255 MB/s
CDM 5/6 Read 4K: 45.48 MB/s
CDM 5/6 Write 4K: 102.8 MB/s
Lenovo IdeaPad 5 14ARE05
Samsung PM991 MZALQ512HALU
Acer Swift 3 SF314-42-R27B
SK hynix BC511 HFM256GDJTNI-82A0
HP 14s-dq1431ng
Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH
Honor Magicbook 14
Samsung SSD PM981a MZVLB256HBHQ
Asus ZenBook 14 UM431DA-AM020T
SK hynix BC501 HFM512GDHTNG-8310A
Dell Inspiron 14 3493-4KWCF
Toshiba KBG40ZNS512G NVMe
Lenovo IdeaPad S540-14IWL
Samsung SSD PM981 MZVLB512HAJQ
Average Samsung PM991 MZALQ512HALU

Average of class Subnotebook

CrystalDiskMark 5.2 / 6
-14%
16%
31%
-25%
11%
15%
4%
-11%
Write 4K
102.8
96.28
-6%
142.8
39%
137.66
34%
118.8
16%
159.6
55%
157.6
53%
124 (103 - 145, n=4)
21%
102 (3.23 - 196, n=147)
-1%
Read 4K
45.48
35.06
-23%
167.4
268%
42.49
-7%
41.62
-8%
53.45
18%
46.39
2%
49 (45.5 - 52.3, n=4)
8%
61.4 (5.37 - 3738, n=147)
35%
Write Seq
1255
1001
-20%
232.1
-82%
2340.76
87%
795.7
-37%
1174
-6%
1214
-3%
1135 (946 - 1333, n=4)
-10%
968 (37.3 - 2730, n=146)
-23%
Read Seq
1434
1072
-25%
1128
-21%
2435.95
70%
1101
-23%
1648
15%
1295
-10%
1438 (1145 - 1608, n=4)
0%
1214 (142 - 2760, n=146)
-15%
Write 4K Q32T1
441
423.9
-4%
438
-1%
260.96
-41%
234.7
-47%
420.8
-5%
370.7
-16%
485 (437 - 592, n=4)
10%
303 (3.6 - 868, n=147)
-31%
Read 4K Q32T1
474.1
464.7
-2%
491.2
4%
335.39
-29%
313.8
-34%
563.6
19%
461.1
-3%
475 (398 - 528, n=4)
0%
343 (9.66 - 1580, n=147)
-28%
Write Seq Q32T1
1456
967.1
-34%
621.7
-57%
2342.9
61%
842.3
-42%
1231
-15%
1887.9
30%
1379 (1315 - 1456, n=4)
-5%
1151 (16.7 - 3007, n=147)
-21%
Read Seq Q32T1
2085
2179
5%
1566
-25%
3568.5
71%
1645
-21%
2274
9%
3540.2
70%
2254 (2085 - 2340, n=4)
8%
1984 (113 - 3569, n=147)
-5%
AS SSD
-21%
-50%
-7%
-19%
-62%
30%
3%
-295%
Copy Game MB/s
681.1
391.55
-43%
484.81
-29%
736.27
8%
868 (681 - 1113, n=4)
27%
345 (10.9 - 1584, n=266)
-49%
Copy Program MB/s
276.17
226.5
-18%
335.41
21%
350.42
27%
421 (276 - 529, n=4)
52%
192 (8.56 - 714, n=266)
-30%
Copy ISO MB/s
981.59
691.96
-30%
716.27
-27%
1133.97
16%
1252 (982 - 1481, n=4)
28%
518 (10.1 - 2761, n=273)
-47%
Score Total
2745
2118
-23%
1305
-52%
2168
-21%
2270
-17%
2781
1%
3955
44%
2676 (2545 - 2771, n=4)
-3%
1500 (28 - 5191, n=295)
-45%
Score Write
1108
915
-17%
782
-29%
792
-29%
906
-18%
562
-49%
1645
48%
1054 (968 - 1125, n=4)
-5%
546 (8 - 2379, n=295)
-51%
Score Read
1100
813
-26%
345
-69%
916
-17%
918
-17%
1510
37%
1526
39%
1094 (1072 - 1106, n=4)
-1%
639 (12 - 2339, n=295)
-42%
Access Time Write *
0.032
0.035
-9%
0.065
-103%
0.034
-6%
0.045
-41%
0.263
-722%
0.028
12%
0.0308 (0.025 - 0.036, n=4)
4%
0.798 (0.021 - 30.3, n=358)
-2394%
Access Time Read *
0.065
0.109
-68%
0.075
-15%
0.047
28%
0.081
-25%
0.04
38%
0.0983 (0.065 - 0.117, n=4)
-51%
0.828 (0.04 - 23, n=351)
-1174%
4K-64 Write
859.2
712.84
-17%
638.44
-26%
482.65
-44%
747.86
-13%
383.45
-55%
1330.25
55%
812 (736 - 872, n=4)
-5%
343 (0.22 - 2105, n=368)
-60%
4K-64 Read
855.34
603.26
-29%
219.59
-74%
606.65
-29%
739.73
-14%
1264.88
48%
1271.04
49%
851 (830 - 866, n=4)
-1%
439 (0.41 - 2011, n=368)
-49%
4K Write
121.59
109.06
-10%
124.05
2%
95.71
-21%
80.08
-34%
101.25
-17%
138.94
14%
129 (109 - 152, n=4)
6%
67.8 (0.2 - 180, n=368)
-44%
4K Read
47.13
41.53
-12%
58.12
23%
50.01
6%
37.03
-21%
37.81
-20%
61
29%
46.9 (43.7 - 49.9, n=4)
0%
27.2 (0.35 - 63.8, n=368)
-42%
Seq Write
1268.17
931.13
-27%
194.68
-85%
2133
68%
781.17
-38%
775.17
-39%
1755.35
38%
1132 (802 - 1268, n=4)
-11%
567 (14 - 2564, n=369)
-55%
Seq Read
1970
1682.2
-15%
676.97
-66%
2591
32%
1417.21
-28%
2074
5%
1938.67
-2%
1958 (1918 - 2012, n=4)
-1%
923 (50.5 - 2980, n=369)
-53%
Total Average (Program / Settings)
-18% / -18%
-17% / -22%
12% / 9%
-22% / -22%
-26% / -36%
23% / 24%
4% / 3%
-153% / -192%

* ... smaller is better

Continuous load read: DiskSpd Read Loop, Queue Depth 8

0501001502002503003504004505005506006507007508008509009501000105011001150120012501300135014001450150015501600165017001750180018501900195020002050210021502200225023002350Tooltip
Lenovo IdeaPad 5 14ARE05 Vega 6 R4000, R5 4500U, Samsung PM991 MZALQ512HALU: Ø1763 (1393.14-2358.35)
Acer Swift 3 SF314-42-R27B Vega 5, R3 4300U, SK hynix BC511 HFM256GDJTNI-82A0: Ø2174 (1839.2-2190.45)
HP 14s-dq1431ng UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH: Ø959 (573.78-1363.36)
HP 14s-dq1431ng UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Intel Optane Memory H10 with Solid State Storage 16GB + 256GB HBRPEKNX0101AH: Ø959 (573.78-1363.36)

Grafik kartı

GPU-Z
GPU-Z

AMD'nin entegre Vega 6 grafik çekirdeği DirectX 12'yi destekler ve 1.500 MHz'e kadar hızlara ulaşır. GPU, The Witcher 3 testimizin gösterdiği gibi bu saat hızını uzun süre koruyabilir. Grafik çekirdeği, 3DMark kriterlerinde Ryzen 2000/3000 serisinde bulunan öncekilerden önemli ölçüde daha iyi puanlar. Bu, daha yüksek bir saat hızı ve daha hızlı bellek (DDR4 3200 ve DDR4 2400) ile elde edilir. Lenovo Vantage yazılımının performans modlarının grafik performansı üzerinde neredeyse hiç etkisi yoktur. Yalnızca pil tasarrufu modu etkin olduğunda grafik performansı biraz düşer.

3DMark 11 (High Performance, plugged in)
3DMark 11 (High Performance, plugged in)
3DMark 11 (Intelligent Cooling, plugged in)
3DMark 11 (Intelligent Cooling, plugged in)
3DMark 11 (battery-saving mode, plugged in)
3DMark 11 (battery-saving mode, plugged in)
3DMark 11 (High Performance, battery power)
3DMark 11 (High Performance, battery power)
3DMark 11 Performance
4660 puan
3DMark Ice Storm Standard Score
106965 puan
3DMark Cloud Gate Standard Score
15653 puan
3DMark Fire Strike Score
2607 puan
3DMark Time Spy Score
967 puan
Yardım
3DMark 11 - 1280x720 Performance GPU
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
4942 Points ∼100% +12%
Lenovo IdeaPad 5 14ARE05
AMD Radeon RX Vega 6 (Ryzen 4000), AMD Ryzen 5 4500U
4400 Points ∼89%
Average AMD Radeon RX Vega 6 (Ryzen 4000)
  (3660 - 4713, n=9)
4290 Points ∼87% -2%
Honor Magicbook 14
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3500U
3994 Points ∼81% -9%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
3535 Points ∼72% -20%
Asus ZenBook 14 UM431DA-AM020T
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
3389 Points ∼69% -23%
Dell Inspiron 14 3493-4KWCF
NVIDIA GeForce MX230, Intel Core i7-1065G7
3180 Points ∼64% -28%
HP Pavilion 15-cw1212ng
AMD Radeon RX Vega 6 (Ryzen 2000/3000), AMD Ryzen 3 3300U
2991 Points ∼61% -32%
HP 14s-dq1431ng
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
2443 Points ∼49% -44%
Average of class Subnotebook
  (230 - 11501, n=414)
1528 Points ∼31% -65%
3DMark
2560x1440 Time Spy Graphics
Lenovo IdeaPad 5 14ARE05
AMD Radeon RX Vega 6 (Ryzen 4000), AMD Ryzen 5 4500U
852 Points ∼100%
Average AMD Radeon RX Vega 6 (Ryzen 4000)
  (685 - 932, n=10)
835 Points ∼98% -2%
Honor Magicbook 14
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3500U
788 Points ∼92% -8%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
733 Points ∼86% -14%
Dell Inspiron 14 3493-4KWCF
NVIDIA GeForce MX230, Intel Core i7-1065G7
698 Points ∼82% -18%
Average of class Subnotebook
  (85 - 3098, n=75)
644 Points ∼76% -24%
HP Pavilion 15-cw1212ng
AMD Radeon RX Vega 6 (Ryzen 2000/3000), AMD Ryzen 3 3300U
581 Points ∼68% -32%
1920x1080 Fire Strike Graphics
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
3720 Points ∼100% +29%
Lenovo IdeaPad 5 14ARE05
AMD Radeon RX Vega 6 (Ryzen 4000), AMD Ryzen 5 4500U
2876 Points ∼77%
Average AMD Radeon RX Vega 6 (Ryzen 4000)
  (2228 - 3239, n=10)
2787 Points ∼75% -3%
Honor Magicbook 14
AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3500U
2655 Points ∼71% -8%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
2438 Points ∼66% -15%
HP Pavilion 15-cw1212ng
AMD Radeon RX Vega 6 (Ryzen 2000/3000), AMD Ryzen 3 3300U
2312 Points ∼62% -20%
Asus ZenBook 14 UM431DA-AM020T
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
2272 Points ∼61% -21%
Dell Inspiron 14 3493-4KWCF
NVIDIA GeForce MX230, Intel Core i7-1065G7
2168 Points ∼58% -25%
HP 14s-dq1431ng
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
1550 Points ∼42% -46%
Average of class Subnotebook
  (222 - 8093, n=294)
1227 Points ∼33% -57%
1280x720 Cloud Gate Standard Graphics
Lenovo IdeaPad S540-14IWL
NVIDIA GeForce MX250, Intel Core i5-8265U
23643 Points ∼100% +6%
Lenovo IdeaPad 5 14ARE05
AMD Radeon RX Vega 6 (Ryzen 4000), AMD Ryzen 5 4500U
22247 Points ∼94%
Average AMD Radeon RX Vega 6 (Ryzen 4000)
  (16629 - 24163, n=8)
20915 Points ∼88% -6%
Acer Swift 3 SF314-42-R27B
AMD Radeon RX Vega 5, AMD Ryzen 3 4300U
18282 Points ∼77% -18%
HP Pavilion 15-cw1212ng
AMD Radeon RX Vega 6 (Ryzen 2000/3000), AMD Ryzen 3 3300U
18140 Points ∼77% -18%
Asus ZenBook 14 UM431DA-AM020T
AMD Radeon RX Vega 10, AMD Ryzen 7 3700U
16048 Points ∼68% -28%
Dell Inspiron 14 3493-4KWCF
NVIDIA GeForce MX230, Intel Core i7-1065G7
13376 Points ∼57% -40%
HP 14s-dq1431ng
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
11485 Points ∼49% -48%
Average of class Subnotebook
  (1484 - 31380, n=311)
8551 Points ∼36% -62%

Oyun performansı

Ryzen 5 APU, veritabanımızdaki oyunların çoğunu sorunsuz bir şekilde ekrana getiriyor. Çoğu başlık HD çözünürlükte (1280x720 piksel) ve orta - kısmen yüksek kalite ayarlarında pürüzsüz kare hızlarına ulaşır. Orta derecede donanım gereksinimi olan oyunlar daha fazlasını sağlar. Bazı modern oyunlar donanıma zor zamanlar veriyor. Burada yeterince yüksek kare hızları elde etmek için çözünürlük ve / veya kalite seviyesi önemli ölçüde azaltılmalıdır.

The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Lenovo IdeaPad 5 14ARE05
AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000)
49.7 fps ∼100%
Average AMD Radeon RX Vega 6 (Ryzen 4000)
  (36.1 - 60, n=7)
48 fps ∼97% -3%
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U, NVIDIA GeForce MX250
47.4 fps ∼95% -5%
Honor Magicbook 14
AMD Ryzen 5 3500U, AMD Radeon RX Vega 8 (Ryzen 2000/3000)
47.4 fps ∼95% -5%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U, AMD Radeon RX Vega 5
44.5 fps ∼90% -10%
Average of class Subnotebook
  (7.4 - 160, n=86)
32.5 fps ∼65% -35%
BioShock Infinite - 1366x768 High Preset
Lenovo IdeaPad S540-14IWL
Intel Core i5-8265U, NVIDIA GeForce MX250
96.9 fps ∼100% +32%
Average AMD Radeon RX Vega 6 (Ryzen 4000)
  (73.2 - 82.5, n=2)
77.9 fps ∼80% +6%
Lenovo IdeaPad 5 14ARE05
AMD Ryzen 5 4500U, AMD Radeon RX Vega 6 (Ryzen 4000)
73.2 fps ∼76%
Acer Swift 3 SF314-42-R27B
AMD Ryzen 3 4300U, AMD Radeon RX Vega 5
63 fps ∼65% -14%
Dell Inspiron 14 3493-4KWCF
Intel Core i7-1065G7, NVIDIA GeForce MX230
61.8 fps ∼64% -16%
Asus ZenBook 14 UM431DA-AM020T
AMD Ryzen 7 3700U, AMD Radeon RX Vega 10
49.72 fps ∼51% -32%
Average of class Subnotebook
  (6.96 - 169, n=197)
30.1 fps ∼31% -59%

Kare hızlarının uzun bir süre boyunca bile büyük oranda sabit kalıp kalmadığını doğrulamak için, The Witcher 3 oyununun Full HD çözünürlük ve maksimum kalite ayarlarında yaklaşık 60 dakika çalışmasına izin veriyoruz. Oyuncunun sahip olduğu karakter bu süre boyunca hareket etmez. Kare hızlarında bir düşüş bulunamadı.

05101520Tooltip
Lenovo IdeaPad 5 14ARE05 Vega 6 R4000, R5 4500U, Samsung PM991 MZALQ512HALU: Ø11.1 (7-12)
Acer Swift 3 SF314-42-R27B Vega 5, R3 4300U, SK hynix BC511 HFM256GDJTNI-82A0: Ø8.75 (7-10)
Lenovo IdeaPad S540-14IWL GeForce MX250, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ: Ø10.2 (1-12)
GPU measurements during our The Witcher 3 test
GPU measurements during our The Witcher 3 test
düşük orta yüksek ultra
StarCraft 2 (2010) 282.4 101.5 61.8 41.1 fps
Counter-Strike: GO (2012) 188.7 150.3 98.5 58.7 fps
BioShock Infinite (2013) 115.7 92.4 73.2 25.4 fps
GTA V (2015) 91.4 80.4 22.4 9.3 fps
The Witcher 3 (2015) 49.7 31.7 15.9 11 fps
Dota 2 Reborn (2015) 98.1 77.8 45.6 42.9 fps
Overwatch (2016) 116.8 79.9 44 21.4 fps
Rocket League (2017) 121.4 50.9 32.5 fps
Fortnite (2018) 88.6 36.2 22.4 fps
X-Plane 11.11 (2018) 40.2 30.8 27.4 fps
Far Cry 5 (2018) 35 16 15 14 fps
Shadow of the Tomb Raider (2018) 43 16 14 11 fps
Assassin´s Creed Odyssey (2018) 32 17 13 fps
Battlefield V (2018) 53.5 24.4 20.5 18.8 fps
Farming Simulator 19 (2018) 116.3 57.5 31.8 16.9 fps
Apex Legends (2019) 60.2 22.7 17.5 17.1 fps
Metro Exodus (2019) 31.3 13.7 9.7 fps
Dirt Rally 2.0 (2019) 104.7 33.6 26.7 13.5 fps
The Division 2 (2019) 37 19 13 fps
Anno 1800 (2019) 51.3 16.4 10 fps
Total War: Three Kingdoms (2019) 47.8 14.8 8.9 fps
F1 2019 (2019) 62 26 22 18 fps
Control (2019) 31.9 10.5 7.8 fps
Borderlands 3 (2019) 44.6 17.1 10.6 fps
Ghost Recon Breakpoint (2019) 29 14 12 fps
GRID 2019 (2019) 52.6 26.2 17.2 fps
Call of Duty Modern Warfare 2019 (2019) 34.7 19.9 14 fps
Need for Speed Heat (2019) 38.3 17.5 14.3 fps
Star Wars Jedi Fallen Order (2019) 22.1 16.8 14.4 fps
Red Dead Redemption 2 (2019) 30.9 14.6 fps
Escape from Tarkov (2020) 38.7 17.8 13.6 fps
Hunt Showdown (2020) 36.3 13.5 11.5 fps
Gears Tactics (2020) 72.2 26.6 17 fps

Emisyonlar ve enerji - Lenovo dizüstü bilgisayarda dayanıklılık yok

Gürültü emisyonları

Boşta kullanımda, fan genellikle sessizdir ve sessizlik hakimdir. Ancak, yük altında ortaya çıkar. Sonuç olarak, maksimum 41.3 dB (A) ses basıncı seviyesini ölçüyoruz.

Ses yüksekliği

Boşta
30.7 / 30.7 / 30.7 dB
Çalışırken
41.3 / dB
  red to green bar


30 dB
sessiz
40 dB(A)
duyulabilirlik
50 dB(A)
gürültülü

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm uzaklık)   environment noise: 30.7 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2036.832.132.231.934.136.82543.732.934.331.233.643.73134.129.833.532.333.534.14031.43030.13030.831.45030.229.531.130.23130.26328.929.127.927.528.628.98027.728.326.925.626.727.710027.127.326.426.12527.112527.2
