Acer Nitro 5 AN517-52 incelemede: Makul batarya ömrüyle iyi düşünülmüş oyun laptopu

Light gaming laptop. Acer'ın 17.3 inçlik oyun dizüstü bilgisayarı, en yeni bilgisayar oyunlarını mat 120 Hz IPS ekranda sorunsuz bir şekilde çalıştırıyor. Yapılandırma memnun edici: Bir hexa çekirdekli Comet Lake işlemci, bir GeForce RTX 2060 GPU, 1 TB NVMe SSD ve 16 GB RAM (çift kanal) yerleşik.

Acer Nitro 5 serisi ucuz, giriş seviyesi ve orta sınıf oyun dizüstü bilgisayarlarından yapılmıştır. Cihazlar Acer'ın Predator serisinin altına yerleştirilmiştir. Nitro 5 AN517-52-77DS ile, elimizde Nitro 5 serisinin mevcut 17.3 inçlik en üst modeline sahibiz. Rakipler arasında Asus TUF A17 FA706IU, Schenker XMG Pro 17 PB71RD-G, Lenovo Legion Y540-17IRH ve HP Pavilion Gaming 17 gibi cihazlar yer alıyor.

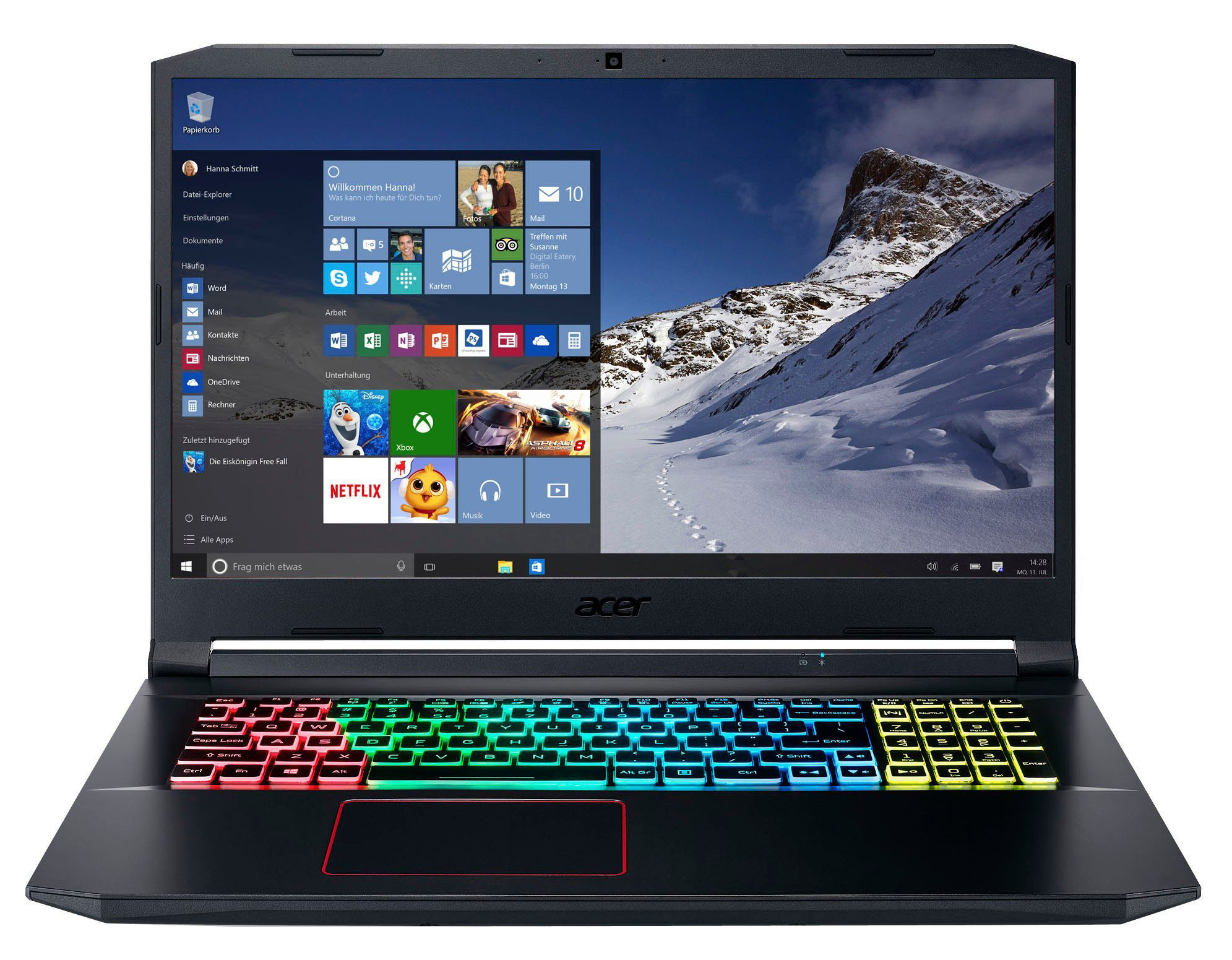

Acer Nitro 5 AN517-52-77DS (Nitro 5 AN517 Seri)
İşlemci
Intel Core i7-10750H 6 x 2.6 - 5 GHz, Comet Lake-H
Grafik kartı
NVIDIA GeForce RTX 2060 Mobile - 6 GB VRAM, Çekirdek: 1350 MHz, Bellek: 1353 MHz, GDDR6, 192-bit memory bus, 26.21.14.4614 (Nvidia 446.14), Optimus
Bellek
16 GB
, DDR4 3200, dual-channel, two memory slots (both occupied)
Görüntü
17.30 inç 16:9, 1920 x 1080 pixel 127 PPI, AU Optronics B173HAN04.7, IPS, parlak: hayır, 120 Hz
Anakart
Intel HM470
Harddisk
WDC PC SN530 SDBPNPZ-1T00, 1024 GB
, 2x M.2 (NVMe), 1x 2.5-inch SATA, 908 GB Boş
Ses kartı
Realtek ALC295 @ Intel Comet Lake PCH-LP - cAVS
Bağlantılar
3 USB 3.0, 1 USB 3.1 Gen2, 1 HDMI, 1 Kensington Lock, Ses çıkışları: combo audio, TPM 2.0
Network
Killer E2600 Gigabit Ethernet Controller (10/100/1000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5
Boyut
yükseklik x genişlik x derinlik (mm): 24.9 x 403.5 x 280
Batarya
57.48 Wh, 3733 mAh Lithium-Ion, 15.4 V
İşletim sistemi
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Primary Camera: 0.9 MPix
Ek özellikler
Hoparlörler: stereo, Klavye: chiclet, Klavye ışığı: evet, SATA port for a 2.5-inch storage device, MS Office 365 (trial version), Norton Security Ultra (trial version), 24 Ay Garanti
Ağırlık
2.2 kg, Güç kaynağı: 582 g
Fiyat
1499 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
80.6 %
06/2020
Acer Nitro 5 AN517-52-77DS
i7-10750H, GeForce RTX 2060 Mobile
2.2 kg24.9 mm17.30"1920x1080
82.9 %
06/2020
Asus TUF A17 FA706IU-AS76
R7 4800H, GeForce GTX 1660 Ti Mobile
2.6 kg26 mm17.30"1920x1080
83.2 %
SCHENKER XMG Pro 17 PB71RD-G
i7-9750H, GeForce RTX 2060 Mobile
2.8 kg30 mm17.30"1920x1080
81.6 %
HP Pavilion Gaming 17-cd0085cl
i7-9750H, GeForce GTX 1660 Ti Max-Q
2.8 kg25 mm17.30"1920x1080
82.3 %
Lenovo Legion Y540-17IRH
i5-9300H, GeForce GTX 1660 Ti Mobile
2.8 kg26.3 mm17.30"1920x1080

Kasa - Acer Nitro için plastik seçti

Nitro 5'in kasası tamamen siyah plastikten yapılmıştır. İki kırmızı eleman (arka havalandırma çıkışları arasındaki alan, dokunmatik yüzeyin etrafındaki halka) renkli vurgular sağlar. Acer neredeyse tamamen pürüzsüz yüzeylere güveniyor. Kapağın arkasının sadece sol ve sağ tarafları fırçalanmış metal taklidi içerir. Dizüstü bilgisayar bakım kapağı sunmuyor. Pil cihaza sıkıca yerleştirilmiştir. Nitro 5 iyi bir işçilik gösterir. Malzeme çıkıntıları fark edilmez ve boşluk boyutları da doğrudur. Öte yandan, istikrar açısından iyileştirme için yer vardır. Bu şekilde, ana birim ve özellikle kapak daha büyük bir sertliğe sahip olmalıdır. Kapağın arkasına baskı uygulamak ekranın içeriğinde değişikliklere yol açmaz. Menteşeler kapağı sıkıca yerinde tutar. Ayrıca, kapağın tek elle açılması da mümkündür.

Acer dizüstü bilgisayar önceki model ile olan ilişkisini inkar edemez. Temel şekil, genişlik ve derinlik büyük ölçüde aynı kaldı. Bununla birlikte, yeni model biraz daha incedir ve yaklaşık 600 gram daha az ağırlığa sahiptir. Yaklaşık 2,2 kg ağırlığında, rakiplerini de altüst ediyor.

Boyut karşılaştırması

405 mm 282 mm 25 mm 2.8 kg403 mm 280 mm 26.9 mm 2.8 kg399 mm 275 mm 30 mm 2.8 kg403.5 mm 280 mm 24.9 mm 2.2 kg399 mm 290 mm 26.3 mm 2.8 kg399 mm 269 mm 26 mm 2.6 kg297 mm 210 mm 1 mm 5.7 g

Bağlantı - Dahili Thunderbolt 3 yok

Acer bilgisayar sınırlı sayıda bağlantı sağlar. Dizüstü bilgisayarda üç adet USB A Tipi bağlantı noktası (USB 3.2 Gen 1) bulunur. USB Type-C bağlantı noktası USB 3.2 Gen 2 standardını destekler. Ayrıca, USB-C üzerinden DisplayPort desteklenmez. Sonuç olarak, HDMI bağlantısı olan yalnızca bir video çıkışı vardır. Bellek kartı okuyucu yok. Bağlantı noktaları sağ ve sol tarafların orta bölümünde bulunur. Bu nedenle, avuç içi dayanağının yanındaki alanlarda kablo bulunmayacaktır.

Right side: UBS 3.2 Gen 2 (Type-C), USB 3.2 Gen 1 (Type-A), HDMI
Right side: UBS 3.2 Gen 2 (Type-C), USB 3.2 Gen 1 (Type-A), HDMI
Left side: cable lock slot, Gigabit Ethernet, 2x USB 3.2 Gen 1 (Type-A), combo audio
Left side: cable lock slot, Gigabit Ethernet, 2x USB 3.2 Gen 1 (Type-A), combo audio
The power supply is located on the back
The power supply is located on the back

İletişim

Dahili WLAN yongası (Intel Wi-Fi 6 AX201) hızlı balta standardını destekler. Optimum koşullar altında elde edilen aktarım hızları (yakındaki başka WLAN aygıtı yok, dizüstü bilgisayar ve sunucu PC arasındaki kısa mesafe) çok iyi. Killer E2600 Gigabit Ethernet denetleyicisi kablolu ağ bağlantılarını yönetir ve işini sorunsuz bir şekilde yapar.

Networking
iperf3 transmit AX12
SCHENKER XMG Pro 17 PB71RD-G
Intel Wi-Fi 6 AX200
1410 MBit/s +117%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1775, n=324)
1161 MBit/s +78%
Average of class Gaming
  (885 - 1412, n=7, last 2 years)
1147 MBit/s +76%
Lenovo Legion Y540-17IRH
Intel Wireless-AC 9560
684 MBit/s +5%
Acer Nitro 5 AN517-52-77DS
Intel Wi-Fi 6 AX201
651 (428min - 683max) MBit/s
HP Pavilion Gaming 17-cd0085cl
Intel Wireless-AC 9560
650 MBit/s 0%
Acer Aspire Nitro 5 AN517-51-7887
Intel Wireless-AC 9560
647 (503min - 692max) MBit/s -1%
Asus TUF A17 FA706IU-AS76
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
623 (577min - 656max) MBit/s -4%
iperf3 receive AX12
SCHENKER XMG Pro 17 PB71RD-G
Intel Wi-Fi 6 AX200
1620 MBit/s +74%
Average of class Gaming
  (881 - 1700, n=7, last 2 years)
1391 MBit/s +49%
Average Intel Wi-Fi 6 AX201
  (136 - 1743, n=324)
1261 MBit/s +35%
Acer Nitro 5 AN517-52-77DS
Intel Wi-Fi 6 AX201
931 (815min - 947max) MBit/s
Lenovo Legion Y540-17IRH
Intel Wireless-AC 9560
680 MBit/s -27%
Acer Aspire Nitro 5 AN517-51-7887
Intel Wireless-AC 9560
664 (612min - 682max) MBit/s -29%
HP Pavilion Gaming 17-cd0085cl
Intel Wireless-AC 9560
655 MBit/s -30%
Asus TUF A17 FA706IU-AS76
Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC
634 (621min - 646max) MBit/s -32%
050100150200250300350400450500550600650700750800850900Tooltip
Acer Nitro 5 AN517-52-77DS Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø929 (815-947)
Asus TUF A17 FA706IU-AS76 Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 receive AX12; iperf 3.1.3: Ø633 (621-646)
Acer Aspire Nitro 5 AN517-51-7887 Intel Wireless-AC 9560; iperf3 receive AX12; iperf 3.1.3: Ø664 (612-682)
Acer Nitro 5 AN517-52-77DS Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø651 (428-683)
Asus TUF A17 FA706IU-AS76 Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 transmit AX12; iperf 3.1.3: Ø623 (577-656)
Acer Aspire Nitro 5 AN517-51-7887 Intel Wireless-AC 9560; iperf3 transmit AX12; iperf 3.1.3: Ø647 (503-692)

Web kamerası

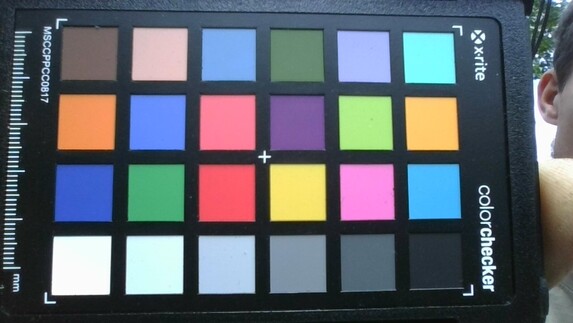

Dahili web kamerası maksimum 1280x720 piksel çözünürlükte görüntü üretir. Sonuçlar biraz soluk görünüyor. Ayrıca, renk doğruluğu eksiktir. Yaklaşık 14'lük bir sapmada, hedef (3'ten küçük Delta E) açıkça gözden kaçar.

ColorChecker
27.9 ∆E
29.8 ∆E
31.2 ∆E
25 ∆E
28.3 ∆E
19.8 ∆E
29.9 ∆E
35.2 ∆E
19 ∆E
16.3 ∆E
19.8 ∆E
22.1 ∆E
25.3 ∆E
27.7 ∆E
23.4 ∆E
13.5 ∆E
19.4 ∆E
26.6 ∆E
2.3 ∆E
11.8 ∆E
23.5 ∆E
22.7 ∆E
11.8 ∆E
12.9 ∆E
ColorChecker SCHENKER XMG Pro 17 PB71RD-G: 21.88 ∆E min: 2.33 - max: 35.16 ∆E
ColorChecker
10.7 ∆E
15.4 ∆E
18.6 ∆E
14.1 ∆E
19.7 ∆E
17.2 ∆E
9.9 ∆E
21.4 ∆E
16.7 ∆E
13.8 ∆E
13.5 ∆E
10.9 ∆E
13.2 ∆E
10.9 ∆E
20.4 ∆E
8.6 ∆E
20.2 ∆E
20.5 ∆E
2.3 ∆E
17 ∆E
18.1 ∆E
14.4 ∆E
12 ∆E
6.8 ∆E
ColorChecker Acer Nitro 5 AN517-52-77DS: 14.42 ∆E min: 2.28 - max: 21.36 ∆E
ColorChecker
5.4 ∆E
7.4 ∆E
11.1 ∆E
9.6 ∆E
11.7 ∆E
8.7 ∆E
6.8 ∆E
8.8 ∆E
8.7 ∆E
3.6 ∆E
7 ∆E
9.1 ∆E
6.1 ∆E
6.8 ∆E
7.7 ∆E
5.6 ∆E
8.5 ∆E
8.7 ∆E
7.4 ∆E
5.6 ∆E
7.3 ∆E
6.5 ∆E
4.5 ∆E
8.2 ∆E
ColorChecker Asus TUF A17 FA706IU-AS76: 7.54 ∆E min: 3.64 - max: 11.75 ∆E

Aksesuarlar

Dizüstü bilgisayarda normal belgeler bulunur: Hızlı başlangıç kılavuzu ve garanti bilgileri. Ayrıca kutuda, 2,5 inçlik bir depolama aygıtının takılması için gerekli olan bir SATA konektörü içeren kısa bir şerit kablo da bulunur.

Bakım

Acer Nitro bakım kapağı sunmuyor. İçeriye erişmek için alt kapağın çıkarılması gerekir. Bunun için ünitenin altındaki tüm vidaların çıkarılması gerekir. Alt kapak daha sonra düz bir spatula veya bir harç bitirme aleti kullanılarak kaldırılabilir. Alt kapağı tutan kelepçeler oldukça sağlam bir tutuşa sahiptir.

The hardware in the Nitro 5
The hardware in the Nitro 5

Garanti

Acer, 17.3 inçlik modeli, pick-up hizmeti de dahil olmak üzere iki yıl garantiyle ödüllendiriyor. Üç yıllık garanti yaklaşık 100 Euro'dur (~ 113 $).

Giriş aygıtları - RGB klavyeli AN517

KeyboardAcer'ın oyun dizüstü bilgisayarı, hafif içbükey bir kavis içeren ana tuşlara (harfler ve sayı satırı) sahip arkadan aydınlatmalı (RGB) chiclet klavye ile birlikte gelir. Kalan tuşlar (fonksiyon tuşları, sayısal tuş takımı) eşit olarak tasarlanmıştır. Tüm tuşlar orta bir hareket ve net bir basınç noktası sunar. Anahtarların sağladığı direnç iyidir. Klavye yazma sırasında biraz verim veriyor, ancak bu rahatsız edici değildi. Genel olarak, Acer burada günlük kullanıma uygun bir klavye sunar.

Dokunmatik

Çoklu dokunma özelliğine sahip ClickPad yaklaşık 10,6 x 7,8 cm'lik bir alanı kaplar. Bu nedenle, hareket kontrollerini kullanmak için çok fazla alan vardır. Pedin pürüzsüz yüzeyi, parmakların üzerinde kaymasını kolaylaştırır. Köşelerdeki girdilere de tepki verir. Ped kısa bir hareket mesafesine ve açık bir basınç noktasına sahiptir.

Acer Nitro 5 input devices
Acer Nitro 5 input devices

Ekran - Acer dizüstü bilgisayar, düşük kontrastlı bir panelle birlikte gelir

Nitro AN517'nin 17,3 inç ekranı, 1920x1080 piksel doğal çözünürlükte çalışır. Parlaklık (246.4 cd / m²) ve kontrast (560: 1) inandırıcı değil. 1.500 Euro (~ 1.697 $) bir dizüstü bilgisayarın ekranı bu konuda daha fazlasını sunmalıdır. Sırasıyla 300 cd / m² ve 1000: 1'in üzerindeki değerlerin iyi olduğunu düşünüyoruz. Pozitif: Ekranda PWM titremesi gösterilmiyor. 120 Hz'lik bir panel olmasına rağmen, yanıt süreleri sadece vasat çıktı. Asus TUF A17'deki 120 Hz ekran, biraz daha iyi tepki süreleri sunar.

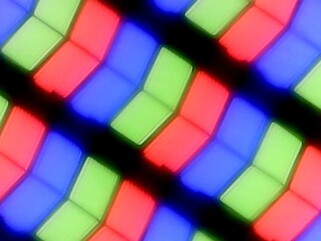

Pixel grid
Pixel grid
Screen bleeding
Screen bleeding
257
cd/m²
257
cd/m²
251
cd/m²
231
cd/m²
263
cd/m²
240
cd/m²
223
cd/m²
257
cd/m²
239
cd/m²
Parlaklığın yayılımı
AU Optronics B173HAN04.7 tested with X-Rite i1Pro 2
Maksimum: 263 cd/m² (Nits) Ortalama: 246.4 cd/m² Minimum: 18.8 cd/m²
Aydınlatma: 85 %
Batarya modunda parlaklık: 263 cd/m²
Kontrast: 560:1 (Siyah: 0.47 cd/m²)
ΔE Color 5.07 | 0.5-29.43 Ø5, calibrated: 4.9
ΔE Greyscale 2.55 | 0.57-98 Ø5.3
59% sRGB (Argyll 1.6.3 3D)
37% AdobeRGB 1998 (Argyll 1.6.3 3D)
40.77% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.9% sRGB (Argyll 2.2.0 3D)
39.47% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.37
Acer Nitro 5 AN517-52-77DS
IPS, 1920x1080, 17.30
Asus TUF A17 FA706IU-AS76
IPS, 1920x1080, 17.30
Lenovo Legion Y540-17IRH
IPS, 1920x1080, 17.30
SCHENKER XMG Pro 17 PB71RD-G
IPS, 1920x1080, 17.30
HP Pavilion Gaming 17-cd0085cl
IPS, 1920x1080, 17.30
Acer Aspire Nitro 5 AN517-51-7887
IPS, 1920x1080, 17.30
Display
2%
72%
56%
57%
57%
Display P3 Coverage
39.47
40.55
3%
69
75%
62.8
59%
63.3
60%
62.7
59%
sRGB Coverage
58.9
59.7
1%
98.3
67%
89.8
52%
90.2
53%
92.5
57%
AdobeRGB 1998 Coverage
40.77
41.89
3%
70.7
73%
64.2
57%
64.3
58%
63.5
56%
Response Times
31%
50%
53%
18%
-3%
Response Time Grey 50% / Grey 80% *
35 ?(17, 18)
22.4 ?(11.6, 10.8)
36%
18 ?(8.4, 9.6)
49%
16.8 ?(8.4, 8.4)
52%
31.6 ?(14, 17.6)
10%
37 ?(19, 18)
-6%
Response Time Black / White *
26 ?(14, 12)
19.2 ?(9.6, 9.6)
26%
12.8 ?(7.6, 5.2)
51%
12 ?(6.8, 5.2)
54%
19.6 ?(10.8, 8.8)
25%
26 ?(16, 10)
-0%
PWM Frequency
Screen
15%
44%
27%
28%
25%
Brightness middle
263
264.8
1%
286
9%
274
4%
299.6
14%
407
55%
Brightness
246
253
3%
282
15%
273
11%
285
16%
364
48%
Brightness Distribution
85
90
6%
87
2%
95
12%
86
1%
84
-1%
Black Level *
0.47
0.31
34%
0.19
60%
0.26
45%
0.33
30%
0.3
36%
Contrast
560
854
53%
1505
169%
1054
88%
908
62%
1357
142%
Colorchecker dE 2000 *
5.07
4.73
7%
3.57
30%
4.62
9%
3.68
27%
4.55
10%
Colorchecker dE 2000 max. *
20.5
18.89
8%
7.5
63%
7.66
63%
8.05
61%
12.44
39%
Colorchecker dE 2000 calibrated *
4.9
4.64
5%
1.31
73%
1.93
61%
3.15
36%
Greyscale dE 2000 *
2.55
1.4
45%
4.51
-77%
5.3
-108%
3.8
-49%
7.61
-198%
Gamma
2.37 93%
2.16 102%
2.36 93%
2.34 94%
2.12 104%
2.51 88%
CCT
6446 101%
6641 98%
7411 88%
7619 85%
7240 90%
7212 90%
Color Space (Percent of AdobeRGB 1998)
37
38.4
4%
64
73%
58
57%
58.1
57%
59
59%
Color Space (Percent of sRGB)
59
59.3
1%
98
66%
90
53%
89.8
52%
92
56%
Total Average (Program / Settings)
16% / 15%
55% / 50%
45% / 36%
34% / 32%
26% / 27%

* ... smaller is better

Kutunun dışında, ekran oldukça iyi bir renk üretimi gösteriyor. Ancak Delta E 2000'in renk sapması 5'in biraz altında olduğunda hedef (Delta E 3'ten küçük) kaçırılır. Ekranda mavi renk tonu görülmüyor. Ayrıca, kalibrasyon sadece küçük iyileştirmeler sağlar. AdobeRGB (% 37) ve sRGB (% 59) renk uzayları tamamen kapsanmamaktadır.

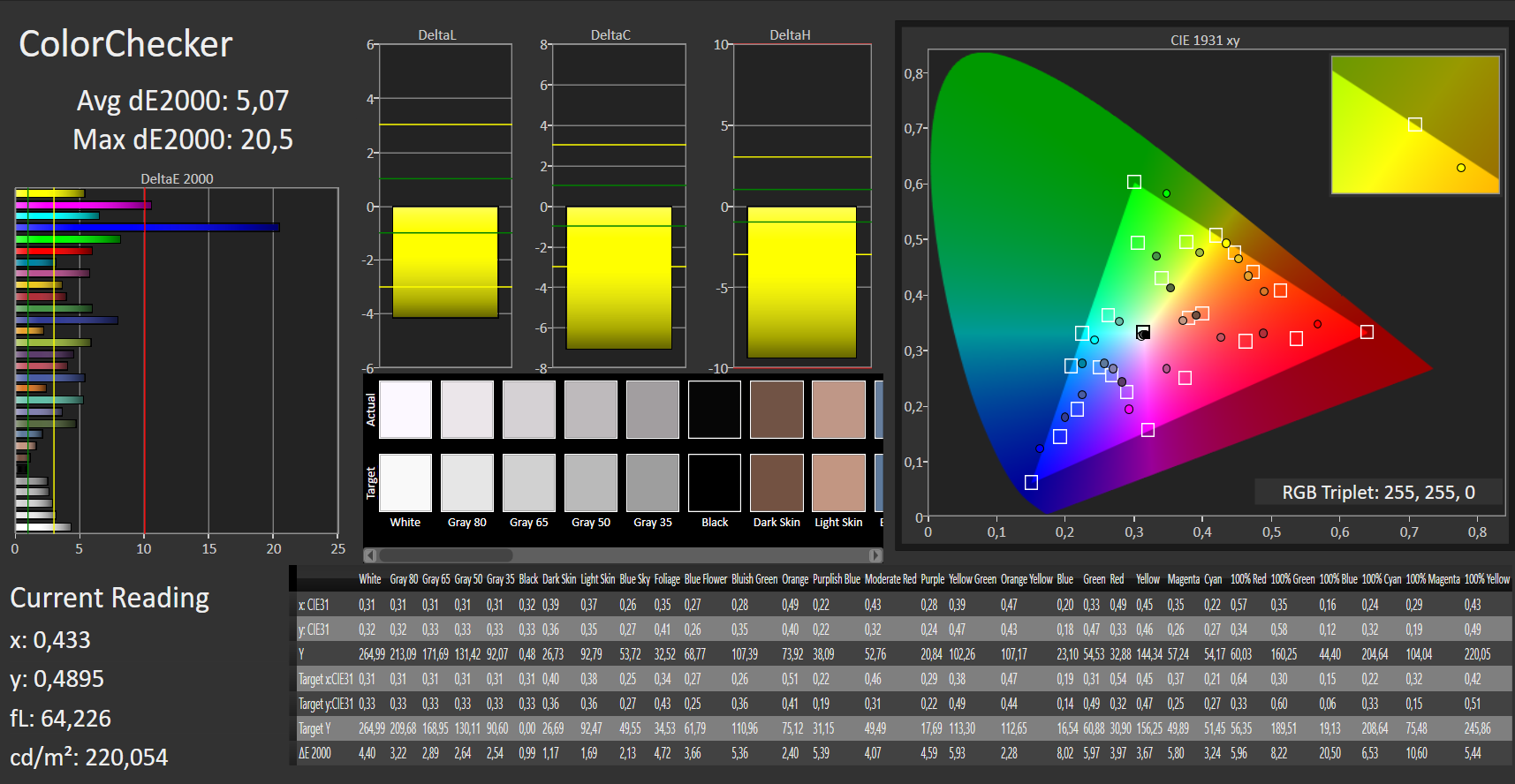

CalMAN - ColorChecker
CalMAN - ColorChecker
CalMAN - Grayscales
CalMAN - Grayscales
CalMAN - Color saturation
CalMAN - Color saturation
CalMAN - ColorChecker (calibrated)
CalMAN - ColorChecker (calibrated)
CalMAN - Grayscales (calibrated)
CalMAN - Grayscales (calibrated)
CalMAN - Color saturation (calibrated)
CalMAN - Color saturation (calibrated)

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
26 ms ... rise ↗ and fall ↘ combined↗ 14 ms rise
↘ 12 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 57 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21.6 ms).

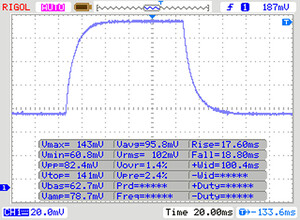

       Response Time 50% Grey to 80% Grey
35 ms ... rise ↗ and fall ↘ combined↗ 17 ms rise
↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 42 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (33.9 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18071 (minimum: 5 - maximum: 3846000) Hz was measured.

Acer dizüstü bilgisayar, görüş açısı açısından kararlı bir IPS panel ile donatılmıştır. Bu nedenle, ekran herhangi bir konumdan okunabilir. Ekranı açık havada okumak ancak güneş çok parlak olmadığında mümkündür.

The Nitro outdoors (photographed in bright sunshine; direct sunlight)
The Nitro outdoors (photographed in bright sunshine; direct sunlight)
Viewing angles
Viewing angles

Performans - Tüm alanlar için yeterli

Acer, Nitro AN517-52 ile ürün yelpazesinde 17,3 inç oyun dizüstü bilgisayarına sahip. Ekranda her modern oyunu sorunsuz bir şekilde çalıştırıyor ve diğer tüm uygulama alanlarında güzel bir rakam kesiyor. Test cihazımız için yaklaşık 1.500 Euro (~ 1.697 $) ödenmelidir. Ayrıca, başka yapılandırma varyantları da mevcuttur. Fiyatlar 900 Euro'dan başlıyor (~ 1.018 $).

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
HWiNFO
HWiNFO
GPU-Z
GPU-Z


Test koşulları

Önceden yüklenmiş NitroSense yazılımı, aralarından seçim yapabileceğiniz çeşitli performans profilleri sunar ve iki hayranı etkilemenize olanak tanır. Tüm kriterleri "maksimum performans" profiliyle gerçekleştirdik ve otomatik fan kontrolünü kullandık.

NitroSense
NitroSense
NitroSense
NitroSense
NitroSense
NitroSense

İşlemci

Dizüstü bilgisayarda 2,6 GHz taban hızında çalışan bir Core i7-10750H altı çekirdekli işlemci (Comet Lake) bulunuyor. Saat hızı, Turbo Boost ile 5 GHz'e (bir çekirdek) yükseltilebilir. Altı çekirdeğin tamamı tam olarak yüklenirse, maksimum 4,3 GHz'dir CPU, Cinebench R15 benchmarkının çok dişli testini 4.2 GHz'de kısa bir süre için işler. Daha sonra saat hızı 3,7 ila 3,9 GHz'e düşer. Tek iplik testi 4,2 ila 4,7 GHz'de tamamlanır. Pil gücünde çalışma hızları sırasıyla 2,6 GHz (çok iş parçacıklı) ve 2,2 ila 2,9 GHz'dir (tek iş parçacıklı).

Multithread (plugged in)
Multithread (plugged in)
Single-thread (plugged in)
Single-thread (plugged in)
Multithread (battery power)
Multithread (battery power)
Single-thread (battery power)
Single-thread (battery power)

Cinebench R15 benchmark'ın çoklu testini en az 30 dakika boyunca sürekli bir döngüde çalıştırarak, CPU Turbo'nun fişe takılıyken de sürekli olarak kullanılıp kullanılmadığını doğrularız. Sonuçlar birinci aşamadan üçüncü aşamaya hafifçe düşer ve daha sonra oldukça sabit bir seviyede stabilize olur. Turbo kullanılır.

095190285380475570665760855950104511401235133014251520161517101805Tooltip
Acer Nitro 5 AN517-52-77DS Intel Core i7-10750H, Intel Core i7-10750H: Ø1205 (1105.06-1307.79)
Asus TUF A17 FA706IU-AS76 AMD Ryzen 7 4800H, AMD Ryzen 7 4800H: Ø1773 (1724.58-1815.79)
SCHENKER XMG Pro 17 PB71RD-G Intel Core i7-9750H, Intel Core i7-9750H: Ø988 (974.99-1115.73)
HP Pavilion Gaming 17-cd0085cl Intel Core i7-9750H, Intel Core i7-9750H: Ø1077 (1065.56-1205.55)
Acer Aspire Nitro 5 AN517-51-7887 Intel Core i7-9750H, Intel Core i7-9750H: Ø946 (926.12-1010.42)
Lenovo Legion Y540-17IRH Intel Core i5-9300H, Intel Core i5-9300H: Ø844 (814.1-850.74)

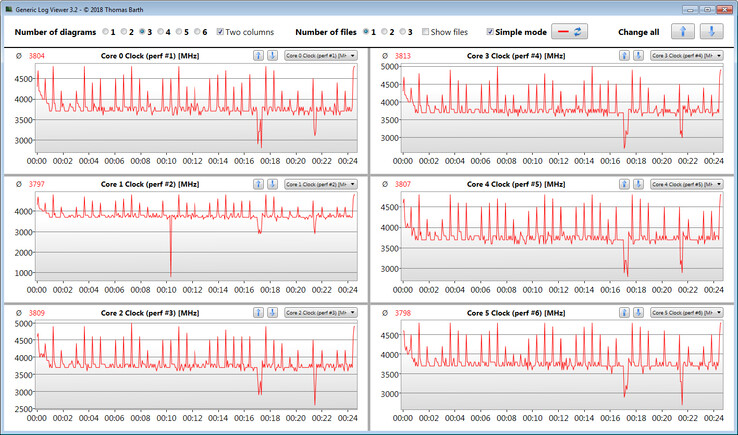

CPU clock speeds during the CB15 loop
CPU clock speeds during the CB15 loop
Cinebench R15 CPU Single 64Bit
195.8 Points
Cinebench R15 CPU Multi 64Bit
1308 Points
Cinebench R15 OpenGL 64Bit
146.3 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Yardım
Cinebench R15
CPU Single 64Bit
Average of class Gaming
  (79.2 - 318, n=241, last 2 years)
266 Points +36%
Average Intel Core i7-10750H
  (184 - 213, n=45)
196.7 Points 0%
Acer Nitro 5 AN517-52-77DS
Intel Core i7-10750H
195.8 Points
HP Pavilion Gaming 17-cd0085cl
Intel Core i7-9750H
193 Points -1%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
189 Points -3%
Acer Aspire Nitro 5 AN517-51-7887
Intel Core i7-9750H
183 Points -7%
SCHENKER XMG Pro 17 PB71RD-G
Intel Core i7-9750H
173 Points -12%
Lenovo Legion Y540-17IRH
Intel Core i5-9300H
171 Points -13%
CPU Multi 64Bit
Average of class Gaming
  (400 - 5663, n=242, last 2 years)
3024 Points +131%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
1816 (1724.58min - 1815.79max) Points +39%
Acer Nitro 5 AN517-52-77DS
Intel Core i7-10750H
1308 Points
Average Intel Core i7-10750H
  (804 - 1418, n=50)
1263 Points -3%
HP Pavilion Gaming 17-cd0085cl
Intel Core i7-9750H
1172 Points -10%
SCHENKER XMG Pro 17 PB71RD-G
Intel Core i7-9750H
1116 (974.99min - 1115.73max) Points -15%
Acer Aspire Nitro 5 AN517-51-7887
Intel Core i7-9750H
1010 Points -23%
Lenovo Legion Y540-17IRH
Intel Core i5-9300H
850 Points -35%
Blender - v2.79 BMW27 CPU
Acer Aspire Nitro 5 AN517-51-7887
Intel Core i7-9750H
486.6 Seconds * -28%
SCHENKER XMG Pro 17 PB71RD-G
Intel Core i7-9750H
466 Seconds * -23%
Average Intel Core i7-10750H
  (322 - 587, n=43)
389 Seconds * -3%
Acer Nitro 5 AN517-52-77DS
Intel Core i7-10750H
379.1 Seconds *
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
271 Seconds * +29%
Average of class Gaming
  (87 - 1259, n=235, last 2 years)
205 Seconds * +46%
7-Zip 18.03
7z b 4 -mmt1
Average of class Gaming
  (2685 - 7581, n=236, last 2 years)
6062 MIPS +19%
Average Intel Core i7-10750H
  (4504 - 5470, n=43)
5114 MIPS +1%
Acer Nitro 5 AN517-52-77DS
Intel Core i7-10750H
5086 MIPS
Acer Aspire Nitro 5 AN517-51-7887
Intel Core i7-9750H
4842 MIPS -5%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
4717 MIPS -7%
SCHENKER XMG Pro 17 PB71RD-G
Intel Core i7-9750H
4580 MIPS -10%
7z b 4
Average of class Gaming
  (11386 - 140932, n=236, last 2 years)
75363 MIPS +133%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
48837 MIPS +51%
Average Intel Core i7-10750H
  (26040 - 37345, n=43)
33946 MIPS +5%
Acer Nitro 5 AN517-52-77DS
Intel Core i7-10750H
32386 MIPS
Acer Aspire Nitro 5 AN517-51-7887
Intel Core i7-9750H
30374 MIPS -6%
SCHENKER XMG Pro 17 PB71RD-G
Intel Core i7-9750H
29342 MIPS -9%
Cinebench R20
CPU (Single Core)
Average of class Gaming
  (169 - 855, n=237, last 2 years)
693 Points +45%
Acer Nitro 5 AN517-52-77DS
Intel Core i7-10750H
478 Points
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
477 Points 0%
Average Intel Core i7-10750H
  (431 - 504, n=43)
473 Points -1%
Acer Aspire Nitro 5 AN517-51-7887
Intel Core i7-9750H
443 Points -7%
Lenovo Legion Y540-17IRH
Intel Core i5-9300H
427 Points -11%
SCHENKER XMG Pro 17 PB71RD-G
Intel Core i7-9750H
421 Points -12%
CPU (Multi Core)
Average of class Gaming
  (930 - 13769, n=237, last 2 years)
7255 Points +151%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
4132 Points +43%
Acer Nitro 5 AN517-52-77DS
Intel Core i7-10750H
2888 Points
Average Intel Core i7-10750H
  (1749 - 3325, n=43)
2848 Points -1%
SCHENKER XMG Pro 17 PB71RD-G
Intel Core i7-9750H
2308 Points -20%
Acer Aspire Nitro 5 AN517-51-7887
Intel Core i7-9750H
2200 Points -24%
Lenovo Legion Y540-17IRH
Intel Core i5-9300H
1877 Points -35%
Geekbench 5.5
Single-Core
Average of class Gaming
  (158 - 2193, n=241, last 2 years)
1795 Points +46%
Average Intel Core i7-10750H
  (1114 - 1333, n=43)
1263 Points +3%
Acer Nitro 5 AN517-52-77DS
Intel Core i7-10750H
1227 Points
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
1189 Points -3%
SCHENKER XMG Pro 17 PB71RD-G
Intel Core i7-9750H
1117 Points -9%
Multi-Core
Average of class Gaming
  (1946 - 22200, n=241, last 2 years)
13326 Points +111%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
7782 Points +23%
Acer Nitro 5 AN517-52-77DS
Intel Core i7-10750H
6317 Points
Average Intel Core i7-10750H
  (4443 - 6674, n=43)
6135 Points -3%
SCHENKER XMG Pro 17 PB71RD-G
Intel Core i7-9750H
4897 Points -22%
HWBOT x265 Benchmark v2.2 - 4k Preset
Average of class Gaming
  (3 - 37.6, n=239, last 2 years)
20.8 fps +121%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
12.2 fps +30%
Average Intel Core i7-10750H
  (5.54 - 11.6, n=43)
9.61 fps +2%
Acer Nitro 5 AN517-52-77DS
Intel Core i7-10750H
9.41 fps
Acer Aspire Nitro 5 AN517-51-7887
Intel Core i7-9750H
8.24 fps -12%
SCHENKER XMG Pro 17 PB71RD-G
Intel Core i7-9750H
8.2 fps -13%
LibreOffice - 20 Documents To PDF
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
61.4 s * -22%
Average Intel Core i7-10750H
  (43.1 - 99.2, n=43)
53.3 s * -6%
Acer Nitro 5 AN517-52-77DS
Intel Core i7-10750H
50.2 s *
Average of class Gaming
  (32.8 - 332, n=233, last 2 years)
49.1 s * +2%
R Benchmark 2.5 - Overall mean
SCHENKER XMG Pro 17 PB71RD-G
Intel Core i7-9750H
0.679 sec * -8%
Acer Nitro 5 AN517-52-77DS
Intel Core i7-10750H
0.626 sec *
Average Intel Core i7-10750H
  (0.578 - 0.708, n=42)
0.611 sec * +2%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H
0.596 sec * +5%
Average of class Gaming
  (0.3609 - 4.47, n=236, last 2 years)
0.4734 sec * +24%

* ... smaller is better

Sistem performansı

Acer'ın 17.3-inçlik bilgisayar gücü yok. Güçlü hexa-core işlemci, çift kanal modunda çalışan RAM ve hızlı NVMe SSD, hızlı ve sorunsuz bir sistem sağlar. Buna bir üst sınıf GPU eklenir. PCMark kriterlerindeki sonuçlar çok iyi.

There are two memory slots available. RAM runs in dual-channel mode.
There are two memory slots available. RAM runs in dual-channel mode.
PCMark 8 Home Score Accelerated v2
3836 puan
PCMark 8 Creative Score Accelerated v2
4075 puan
PCMark 8 Work Score Accelerated v2
5552 puan
PCMark 10 Score
5201 puan
Yardım
PCMark 10
Score
Average of class Gaming
  (5235 - 9852, n=203, last 2 years)
7573 Points +46%
Asus TUF A17 FA706IU-AS76
GeForce GTX 1660 Ti Mobile, R7 4800H, Intel SSD 660p 1TB SSDPEKNW010T8
5617 Points +8%
Lenovo Legion Y540-17IRH
GeForce GTX 1660 Ti Mobile, i5-9300H, WDC PC SN520 SDAPNUW-512G
5613 Points +8%
Acer Aspire Nitro 5 AN517-51-7887
GeForce GTX 1660 Ti Mobile, i7-9750H, WDC PC SN520 SDAPNUW-512G
5519 Points +6%
Average Intel Core i7-10750H, NVIDIA GeForce RTX 2060 Mobile
  (4984 - 6268, n=9)
5455 Points +5%
HP Pavilion Gaming 17-cd0085cl
GeForce GTX 1660 Ti Max-Q, i7-9750H, Samsung SSD PM981 MZVLB256HAHQ
5429 Points +4%
Acer Nitro 5 AN517-52-77DS
GeForce RTX 2060 Mobile, i7-10750H, WDC PC SN530 SDBPNPZ-1T00
5201 Points
SCHENKER XMG Pro 17 PB71RD-G
GeForce RTX 2060 Mobile, i7-9750H, Samsung SSD 970 EVO Plus 500GB
4739 Points -9%
Essentials
Average of class Gaming
  (8300 - 12334, n=202, last 2 years)
10701 Points +11%
Asus TUF A17 FA706IU-AS76
GeForce GTX 1660 Ti Mobile, R7 4800H, Intel SSD 660p 1TB SSDPEKNW010T8
9852 Points +2%
Acer Nitro 5 AN517-52-77DS
GeForce RTX 2060 Mobile, i7-10750H, WDC PC SN530 SDBPNPZ-1T00
9624 Points
Average Intel Core i7-10750H, NVIDIA GeForce RTX 2060 Mobile
  (9029 - 10047, n=9)
9536 Points -1%
Acer Aspire Nitro 5 AN517-51-7887
GeForce GTX 1660 Ti Mobile, i7-9750H, WDC PC SN520 SDAPNUW-512G
9321 Points -3%
HP Pavilion Gaming 17-cd0085cl
GeForce GTX 1660 Ti Max-Q, i7-9750H, Samsung SSD PM981 MZVLB256HAHQ
9320 Points -3%
SCHENKER XMG Pro 17 PB71RD-G
GeForce RTX 2060 Mobile, i7-9750H, Samsung SSD 970 EVO Plus 500GB
9033 Points -6%
Lenovo Legion Y540-17IRH
GeForce GTX 1660 Ti Mobile, i5-9300H, WDC PC SN520 SDAPNUW-512G
8907 Points -7%
Productivity
Average of class Gaming
  (7244 - 11833, n=202, last 2 years)
9729 Points +18%
Acer Nitro 5 AN517-52-77DS
GeForce RTX 2060 Mobile, i7-10750H, WDC PC SN530 SDBPNPZ-1T00
8261 Points
Average Intel Core i7-10750H, NVIDIA GeForce RTX 2060 Mobile
  (7562 - 8261, n=9)
8000 Points -3%
Lenovo Legion Y540-17IRH
GeForce GTX 1660 Ti Mobile, i5-9300H, WDC PC SN520 SDAPNUW-512G
7891 Points -4%
Acer Aspire Nitro 5 AN517-51-7887
GeForce GTX 1660 Ti Mobile, i7-9750H, WDC PC SN520 SDAPNUW-512G
7608 Points -8%
Asus TUF A17 FA706IU-AS76
GeForce GTX 1660 Ti Mobile, R7 4800H, Intel SSD 660p 1TB SSDPEKNW010T8
7587 Points -8%
SCHENKER XMG Pro 17 PB71RD-G
GeForce RTX 2060 Mobile, i7-9750H, Samsung SSD 970 EVO Plus 500GB
7362 Points -11%
HP Pavilion Gaming 17-cd0085cl
GeForce GTX 1660 Ti Max-Q, i7-9750H, Samsung SSD PM981 MZVLB256HAHQ
7165 Points -13%
Digital Content Creation
Average of class Gaming
  (6462 - 18475, n=202, last 2 years)
11407 Points +137%
Lenovo Legion Y540-17IRH
GeForce GTX 1660 Ti Mobile, i5-9300H, WDC PC SN520 SDAPNUW-512G
6829 Points +42%
HP Pavilion Gaming 17-cd0085cl
GeForce GTX 1660 Ti Max-Q, i7-9750H, Samsung SSD PM981 MZVLB256HAHQ
6502 Points +35%
Asus TUF A17 FA706IU-AS76
GeForce GTX 1660 Ti Mobile, R7 4800H, Intel SSD 660p 1TB SSDPEKNW010T8
6436 Points +34%
Acer Aspire Nitro 5 AN517-51-7887
GeForce GTX 1660 Ti Mobile, i7-9750H, WDC PC SN520 SDAPNUW-512G
6433 Points +34%
Average Intel Core i7-10750H, NVIDIA GeForce RTX 2060 Mobile
  (4567 - 8094, n=9)
5879 Points +22%
Acer Nitro 5 AN517-52-77DS
GeForce RTX 2060 Mobile, i7-10750H, WDC PC SN530 SDBPNPZ-1T00
4804 Points
SCHENKER XMG Pro 17 PB71RD-G
GeForce RTX 2060 Mobile, i7-9750H, Samsung SSD 970 EVO Plus 500GB
4344 Points -10%
PCMark 8
Home Score Accelerated v2
Average of class Gaming
  (4166 - 6657, n=36, last 2 years)
5264 Points +37%
Lenovo Legion Y540-17IRH
GeForce GTX 1660 Ti Mobile, i5-9300H, WDC PC SN520 SDAPNUW-512G
4818 Points +26%
Acer Aspire Nitro 5 AN517-51-7887
GeForce GTX 1660 Ti Mobile, i7-9750H, WDC PC SN520 SDAPNUW-512G
4782 Points +25%
Asus TUF A17 FA706IU-AS76
GeForce GTX 1660 Ti Mobile, R7 4800H, Intel SSD 660p 1TB SSDPEKNW010T8
4780 Points +25%
Average Intel Core i7-10750H, NVIDIA GeForce RTX 2060 Mobile
  (3836 - 4539, n=6)
4254 Points +11%
HP Pavilion Gaming 17-cd0085cl
GeForce GTX 1660 Ti Max-Q, i7-9750H, Samsung SSD PM981 MZVLB256HAHQ
4148 Points +8%
Acer Nitro 5 AN517-52-77DS
GeForce RTX 2060 Mobile, i7-10750H, WDC PC SN530 SDBPNPZ-1T00
3836 Points
Work Score Accelerated v2
Average of class Gaming
  (4622 - 7085, n=35, last 2 years)
6098 Points +10%
Asus TUF A17 FA706IU-AS76
GeForce GTX 1660 Ti Mobile, R7 4800H, Intel SSD 660p 1TB SSDPEKNW010T8
5749 Points +4%
Average Intel Core i7-10750H, NVIDIA GeForce RTX 2060 Mobile
  (5405 - 5928, n=6)
5726 Points +3%
Acer Nitro 5 AN517-52-77DS
GeForce RTX 2060 Mobile, i7-10750H, WDC PC SN530 SDBPNPZ-1T00
5552 Points
Acer Aspire Nitro 5 AN517-51-7887
GeForce GTX 1660 Ti Mobile, i7-9750H, WDC PC SN520 SDAPNUW-512G
5361 Points -3%
HP Pavilion Gaming 17-cd0085cl
GeForce GTX 1660 Ti Max-Q, i7-9750H, Samsung SSD PM981 MZVLB256HAHQ
5222 Points -6%
Lenovo Legion Y540-17IRH
GeForce GTX 1660 Ti Mobile, i5-9300H, WDC PC SN520 SDAPNUW-512G
5138 Points -7%

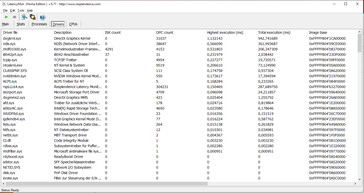

DPC gecikmesi

Standart lansman monitör testimizde (web sörfü, 4K video oynatma, yüksek yüklü Prime95) yüksek DPC gecikmelerini gözlemleyebiliriz. Bu nedenle sistem, gerçek zamanlı video ve ses düzenleme için uygun değildir.

Latency Monitor
Latency Monitor
Latency Monitor
Latency Monitor
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus TUF A17 FA706IU-AS76
GeForce GTX 1660 Ti Mobile, R7 4800H, Intel SSD 660p 1TB SSDPEKNW010T8
8852 μs * -1211%
Acer Nitro 5 AN517-52-77DS
GeForce RTX 2060 Mobile, i7-10750H, WDC PC SN530 SDBPNPZ-1T00
675 μs *

* ... smaller is better

Depolama

Western Digital'den bir NVMe SSD (M.2 2280) sistem sürücüsü olarak kullanılır. 1 TB depolama alanı sağlar ve iyi aktarım hızları sunar. Dizüstü bilgisayar, ikinci bir M.2 2280 SSD (NVMe) ve 2,5 inç depolama aygıtı (SATA yuvası ve vidalar kutuda bulunur; kurulum çerçevesi dizüstü bilgisayarın içinde bulunur).

An NVMe SSD serves as system drive.
An NVMe SSD serves as system drive.
A second NVMe SSD can be installed.
A second NVMe SSD can be installed.
In addition, the laptop offers space for a 2.5-inch storage device. The required SATA slot is found in the box.
In addition, the laptop offers space for a 2.5-inch storage device. The required SATA slot is found in the box.
WDC PC SN530 SDBPNPZ-1T00
CDM 5/6 Read Seq Q32T1: 1927 MB/s
CDM 5/6 Write Seq Q32T1: 1969 MB/s
CDM 5/6 Read 4K Q32T1: 461.9 MB/s
CDM 5/6 Write 4K Q32T1: 398.2 MB/s
CDM 5 Read Seq: 1455 MB/s
CDM 5 Write Seq: 1963 MB/s
CDM 5/6 Read 4K: 49.04 MB/s
CDM 5/6 Write 4K: 140 MB/s
Acer Nitro 5 AN517-52-77DS
WDC PC SN530 SDBPNPZ-1T00
Asus TUF A17 FA706IU-AS76
Intel SSD 660p 1TB SSDPEKNW010T8
Lenovo Legion Y540-17IRH
WDC PC SN520 SDAPNUW-512G
SCHENKER XMG Pro 17 PB71RD-G
Samsung SSD 970 EVO Plus 500GB
HP Pavilion Gaming 17-cd0085cl
Samsung SSD PM981 MZVLB256HAHQ
Acer Aspire Nitro 5 AN517-51-7887
WDC PC SN520 SDAPNUW-512G
Average WDC PC SN530 SDBPNPZ-1T00

CrystalDiskMark 5.2 / 6
10%
-27%
22%
16%
-21%
16%
Write 4K
140
189.7
36%
105.1
-25%
117.5
-16%
135.3
-3%
104.6
-25%
182.7 ?(116.8 - 263, n=6)
31%
Read 4K
49.04
62.3
27%
34.41
-30%
46.47
-5%
63.7
30%
39.76
-19%
48.6 ?(43.9 - 52.4, n=6)
-1%
Write Seq
1963
1681
-14%
1298
-34%
1345
-31%
1337
-32%
1268
-35%
1979 ?(1963 - 2001, n=6)
1%
Read Seq
1455
1608
11%
1099
-24%
2804
93%
1617
11%
1414
-3%
1828 ?(1455 - 2010, n=6)
26%
Write 4K Q32T1
398.2
468.6
18%
335.7
-16%
368.2
-8%
568
43%
287.9
-28%
498 ?(373 - 648, n=6)
25%
Read 4K Q32T1
461.9
541
17%
231.4
-50%
412.9
-11%
645
40%
381.1
-17%
573 ?(461 - 767, n=6)
24%
Write Seq Q32T1
1969
1770
-10%
1454
-26%
3248
65%
1428
-27%
1319
-33%
1980 ?(1965 - 2002, n=6)
1%
Read Seq Q32T1
1927
1898
-2%
1740
-10%
3559
85%
3184
65%
1735
-10%
2336 ?(1927 - 2456, n=6)
21%

Continuous load read: DiskSpd Read Loop, Queue Depth 8

No graph data

Grafik kartı

GeForce RTX 2060 grafik çekirdeği (Turing) GPU üst sınıfına aittir. DirectX 12'yi destekler ve 1.005 MHz temel hızında çalışır. Yükseltildiğinde 1.350 MHz'e kadar bir artış mümkündür. GPU tanımlanmış bir sıcaklık ve / veya enerji eşiğine ulaşmazsa daha yüksek hızlar mümkündür. Bu şekilde maksimum 1.960 MHz kaydediyoruz. The Witcher 3 testimiz ortalama 1.354 MHz hızında gerçekleştirilmektedir. GPU'nun hızlı GDDR6 video belleğine (6.144 MB) erişimi vardır.Çeşitli 3DMark kriterlerindeki sonuçlar, burada kurulu GPU için normal düzeydedir. İşlemciye entegre edilen Intel UHD Graphics 630 GPU etkindir ve dizüstü bilgisayar Nvidia'nın Optimus grafik değiştirme çözümü ile çalışır.

3DMark 11 (plugged in)
3DMark 11 (plugged in)

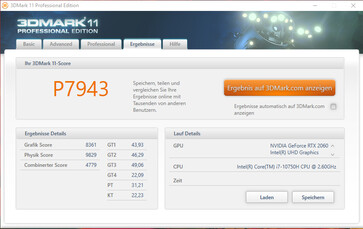

3DMark 11 (battery power)
3DMark 11 (battery power)
3DMark 06 Standard Score
38509 puan
3DMark 11 Performance
18057 puan
3DMark Ice Storm Standard Score
117009 puan
3DMark Cloud Gate Standard Score
31601 puan
3DMark Fire Strike Score
14191 puan
3DMark Time Spy Score
5759 puan
Yardım
3DMark 11 - 1280x720 Performance GPU
Average of class Gaming
  (1029 - 72070, n=241, last 2 years)
39928 Points +95%
Average NVIDIA GeForce RTX 2060 Mobile
  (19143 - 24662, n=40)
21459 Points +5%
SCHENKER XMG Pro 17 PB71RD-G
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-9750H
20863 Points +2%
Asus TUF A17 FA706IU-AS76
NVIDIA GeForce GTX 1660 Ti Mobile, AMD Ryzen 7 4800H
20793 Points +1%
Acer Nitro 5 AN517-52-77DS
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-10750H
20511 Points
Acer Aspire Nitro 5 AN517-51-7887
NVIDIA GeForce GTX 1660 Ti Mobile, Intel Core i7-9750H
20407 Points -1%
Lenovo Legion Y740-17IRH
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-9750H
19971 Points -3%
Lenovo Legion Y540-17IRH
NVIDIA GeForce GTX 1660 Ti Mobile, Intel Core i5-9300H
19733 Points -4%
HP Pavilion Gaming 17-cd0085cl
NVIDIA GeForce GTX 1660 Ti Max-Q, Intel Core i7-9750H
17457 Points -15%
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Gaming
  (15902 - 193851, n=150, last 2 years)
135325 Points +32%
Acer Nitro 5 AN517-52-77DS
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-10750H
102488 Points
Lenovo Legion Y740-17IRH
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-9750H
99060 Points -3%
Acer Aspire Nitro 5 AN517-51-7887
NVIDIA GeForce GTX 1660 Ti Mobile, Intel Core i7-9750H
97845 Points -5%
Average NVIDIA GeForce RTX 2060 Mobile
  (55324 - 116593, n=36)
93235 Points -9%
HP Pavilion Gaming 17-cd0085cl
NVIDIA GeForce GTX 1660 Ti Max-Q, Intel Core i7-9750H
89505 Points -13%
Lenovo Legion Y540-17IRH
NVIDIA GeForce GTX 1660 Ti Mobile, Intel Core i5-9300H
85805 Points -16%
SCHENKER XMG Pro 17 PB71RD-G
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-9750H
76716 Points -25%
Asus TUF A17 FA706IU-AS76
NVIDIA GeForce GTX 1660 Ti Mobile, AMD Ryzen 7 4800H
59839 Points -42%
1920x1080 Fire Strike Graphics
Average of class Gaming
  (781 - 53059, n=245, last 2 years)
29195 Points +87%
SCHENKER XMG Pro 17 PB71RD-G
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-9750H
16353 Points +5%
Average NVIDIA GeForce RTX 2060 Mobile
  (14768 - 18358, n=43)
16301 Points +4%
Lenovo Legion Y740-17IRH
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-9750H
15700 Points 0%
Acer Nitro 5 AN517-52-77DS
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-10750H
15642 Points
Asus TUF A17 FA706IU-AS76
NVIDIA GeForce GTX 1660 Ti Mobile, AMD Ryzen 7 4800H
15334 Points -2%
Acer Aspire Nitro 5 AN517-51-7887
NVIDIA GeForce GTX 1660 Ti Mobile, Intel Core i7-9750H
14509 Points -7%
Lenovo Legion Y540-17IRH
NVIDIA GeForce GTX 1660 Ti Mobile, Intel Core i5-9300H
14186 Points -9%
HP Pavilion Gaming 17-cd0085cl
NVIDIA GeForce GTX 1660 Ti Max-Q, Intel Core i7-9750H
13188 Points -16%
2560x1440 Time Spy Graphics
Average of class Gaming
  (224 - 22547, n=243, last 2 years)
11907 Points +108%
Average NVIDIA GeForce RTX 2060 Mobile
  (5660 - 6910, n=41)
6206 Points +8%
Lenovo Legion Y740-17IRH
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-9750H
6011 Points +5%
SCHENKER XMG Pro 17 PB71RD-G
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-9750H
5923 Points +3%
Asus TUF A17 FA706IU-AS76
NVIDIA GeForce GTX 1660 Ti Mobile, AMD Ryzen 7 4800H
5744 Points 0%
Acer Nitro 5 AN517-52-77DS
NVIDIA GeForce RTX 2060 Mobile, Intel Core i7-10750H
5736 Points
Lenovo Legion Y540-17IRH
NVIDIA GeForce GTX 1660 Ti Mobile, Intel Core i5-9300H
5590 Points -3%
HP Pavilion Gaming 17-cd0085cl
NVIDIA GeForce GTX 1660 Ti Max-Q, Intel Core i7-9750H
5043 Points -12%

Oyun performansı

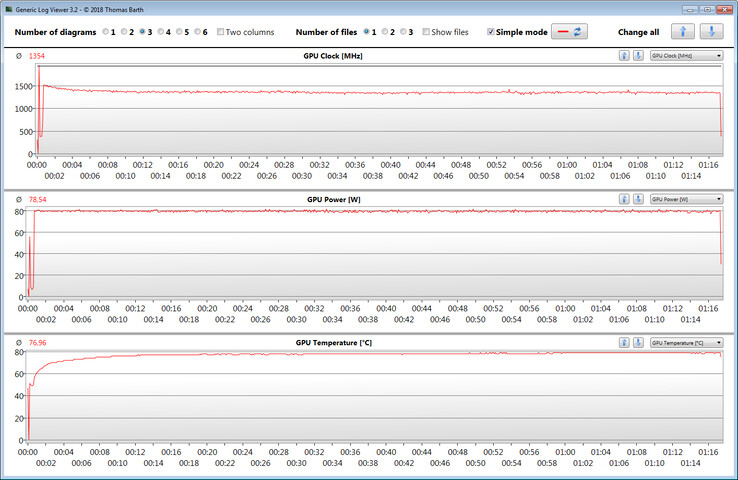

Nitro 5'teki donanım, veritabanımızdaki tüm oyunları sorunsuz bir şekilde çalıştırabilir. Full HD çözünürlük ve yüksek ile maksimum kalite ayarları her zaman seçilebilir. GPU, Full HD'nin ötesinde çözünürlükleri de işleyebilir (karşılık gelen bir monitörün bağlanması gerekir). Ancak, kalite ayarları o zaman daha konservatif olarak seçilmelidir.

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Average of class Gaming
  (8.61 - 216, n=238, last 2 years)
115.1 fps +83%
Acer Nitro 5 AN517-52-77DS
Intel Core i7-10750H, NVIDIA GeForce RTX 2060 Mobile
63 fps
Average NVIDIA GeForce RTX 2060 Mobile
  (50.6 - 74, n=40)
61.1 fps -3%
SCHENKER XMG Pro 17 PB71RD-G
Intel Core i7-9750H, NVIDIA GeForce RTX 2060 Mobile
58.5 (40min) fps -7%
Lenovo Legion Y740-17IRH
Intel Core i7-9750H, NVIDIA GeForce RTX 2060 Mobile
58.4 fps -7%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H, NVIDIA GeForce GTX 1660 Ti Mobile
55.6 (53min - 60max) fps -12%
Acer Aspire Nitro 5 AN517-51-7887
Intel Core i7-9750H, NVIDIA GeForce GTX 1660 Ti Mobile
55.3 (45min - 67max) fps -12%
Lenovo Legion Y540-17IRH
Intel Core i5-9300H, NVIDIA GeForce GTX 1660 Ti Mobile
55.1 fps -13%
HP Pavilion Gaming 17-cd0085cl
Intel Core i7-9750H, NVIDIA GeForce GTX 1660 Ti Max-Q
48.5 fps -23%
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
Lenovo Legion Y740-17IRH
Intel Core i7-9750H, NVIDIA GeForce RTX 2060 Mobile
148.2 fps +7%
Average NVIDIA GeForce RTX 2060 Mobile
  (119 - 156, n=17)
140.3 fps +1%
Acer Nitro 5 AN517-52-77DS
Intel Core i7-10750H, NVIDIA GeForce RTX 2060 Mobile
138.4 fps
Lenovo Legion Y540-17IRH
Intel Core i5-9300H, NVIDIA GeForce GTX 1660 Ti Mobile
138 fps 0%
Acer Aspire Nitro 5 AN517-51-7887
Intel Core i7-9750H, NVIDIA GeForce GTX 1660 Ti Mobile
138 (26min - 384max) fps 0%
HP Pavilion Gaming 17-cd0085cl
Intel Core i7-9750H, NVIDIA GeForce GTX 1660 Ti Max-Q
130 fps -6%
Shadow of the Tomb Raider - 1920x1080 Highest Preset AA:T
Average of class Gaming
  (27 - 271, n=31, last 2 years)
160.3 fps +120%
Lenovo Legion Y740-17IRH
Intel Core i7-9750H, NVIDIA GeForce RTX 2060 Mobile
78 fps +7%
Average NVIDIA GeForce RTX 2060 Mobile
  (54 - 86, n=22)
74.6 fps +2%
Asus TUF A17 FA706IU-AS76
AMD Ryzen 7 4800H, NVIDIA GeForce GTX 1660 Ti Mobile
73 fps 0%
Acer Nitro 5 AN517-52-77DS
Intel Core i7-10750H, NVIDIA GeForce RTX 2060 Mobile
73 fps
HP Pavilion Gaming 17-cd0085cl
Intel Core i7-9750H, NVIDIA GeForce GTX 1660 Ti Max-Q
64 fps -12%

Kare hızlarının uzun bir süre boyunca bile büyük oranda sabit kalıp kalmadığını doğrulamak için, The Witcher 3 oyununun Full HD çözünürlük ve maksimum kalite ayarlarında yaklaşık 60 dakika çalışmasına izin veriyoruz. Oyuncunun sahip olduğu karakter bu süre boyunca hareket etmez. Kare hızlarında bir düşüş bulunamadı.

051015202530354045505560Tooltip
Acer Nitro 5 AN517-52-77DS GeForce RTX 2060 Mobile, i7-10750H, WDC PC SN530 SDBPNPZ-1T00: Ø56.4 (47-63)
SCHENKER XMG Pro 17 PB71RD-G GeForce RTX 2060 Mobile, i7-9750H, Samsung SSD 970 EVO Plus 500GB: Ø59.6 (56-63)
Lenovo Legion Y740-17IRH GeForce RTX 2060 Mobile, i7-9750H, WDC PC SN520 SDAPMUW-128G: Ø60.1 (55-64)
HP Pavilion Gaming 17-cd0085cl GeForce GTX 1660 Ti Max-Q, i7-9750H, Samsung SSD PM981 MZVLB256HAHQ: Ø47.1 (43-51)
Acer Aspire Nitro 5 AN517-51-7887 GeForce GTX 1660 Ti Mobile, i7-9750H, WDC PC SN520 SDAPNUW-512G: Ø52.7 (48-62)
Lenovo Legion Y540-17IRH GeForce GTX 1660 Ti Mobile, i5-9300H, WDC PC SN520 SDAPNUW-512G: Ø55.1 (51-58)
GPU measurements during The Witcher 3 test
GPU measurements during The Witcher 3 test
düşük orta yüksek ultra
BioShock Infinite (2013) 327.4 285.5 263.5 138.4
The Witcher 3 (2015) 277 188.3 108.9 63
Dota 2 Reborn (2015) 146.1 133.9 123.8 116.8
X-Plane 11.11 (2018) 98.3 84.1 75.8
Shadow of the Tomb Raider (2018) 114 89 82 73
Metro Exodus (2019) 142.4 75.9 56.6 44.5
Total War: Three Kingdoms (2019) 229.6 107.4 66.9 46.3
Control (2019) 201.9 74.9 54.6
Borderlands 3 (2019) 133 86.9 62.2 47.7
Call of Duty Modern Warfare 2019 (2019) 133.5 90.2 74.3 65.5
Red Dead Redemption 2 (2019) 116.9 76.1 50.7 32.5
Escape from Tarkov (2020) 121 121 117.5 103.3
Hunt Showdown (2020) 170.6 94.2 75
Doom Eternal (2020) 195.6 125.4 112.4 108.9
Gears Tactics (2020) 236.1 145.6 93.3 60.7

Emisyonlar - Acer oyun dizüstü bilgisayarı normal çalışır

Gürültü emisyonları

AN571-52'deki her iki fan da boşta kullanımda düşük hızlarda çalışır ve zar zor duyulur. Bazen sessizdirler, ancak yük altında ortaya çıkarlar. Bu şekilde sırasıyla 44.6 dB (A) (stres testi) ve 44.5 dB (A) (Witcher 3 testi) ses basıncı seviyelerini kaydediyoruz. Kulaklık olmadan çalmak zevkli değildir.

Ses yüksekliği

Boşta
30.2 / 30.2 / 30.2 dB
Çalışırken
41.5 / 44.6 dB
  red to green bar


30 dB
sessiz
40 dB(A)
duyulabilirlik
50 dB(A)
gürültülü

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm uzaklık)   environment noise: 30.2 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2033.232.233.634.433.22532.43839.64132.43134.333.33742.434.34030.930.530.931.430.95031.431.632.33031.46333.140.228.628.433.18028.630.327.426.728.610025.826.925.42625.812524.826.625.325.124.816025.726.623.62425.720025.226.823.12225.225025.927.721.822.525.931527.630.121.421.227.640025.427.720.420.125.450024.627.419.619.524.663027.629.218.418.927.680028.230.718.318.428.2100030.533.2181830.5125031.735.217.917.531.7160031.834.817.317.431.8200033.336.317.417.633.3250032.433.917.417.532.4315030.435.617.417.630.4400025.93117.917.725.9500024.328.517.81824.3630021.826.117.918.121.8800019.522.718.118.219.51000018.619.917.918.218.61250018.418.717.918.118.41600018.518.41818.218.5SPL41.544.730.230.341.5N3.54.61.41.43.5median 25.8median 27.7median 18median 18.2median 25.8Delta4.231.41.44.2hearing rangehide median Fan NoiseAcer Nitro 5 AN517-52-77DS
Acer Nitro 5 AN517-52-77DS
i7-10750H, GeForce RTX 2060 Mobile
Asus TUF A17 FA706IU-AS76
R7 4800H, GeForce GTX 1660 Ti Mobile
SCHENKER XMG Pro 17 PB71RD-G
i7-9750H, GeForce RTX 2060 Mobile
Lenovo Legion Y540-17IRH
i5-9300H, GeForce GTX 1660 Ti Mobile
HP Pavilion Gaming 17-cd0085cl
i7-9750H, GeForce GTX 1660 Ti Max-Q
Acer Aspire Nitro 5 AN517-51-7887
i7-9750H, GeForce GTX 1660 Ti Mobile
Average NVIDIA GeForce RTX 2060 Mobile

Average of class Gaming

Noise
-5%
-14%
-7%
7%
-3%
-3%
3%
off / environment *
30.2
28.7
5%
30
1%
30
1%
28.2
7%
30
1%
27.9 ?(24 - 31, n=36)
8%
24.1 ?(19.5 - 29.9, n=188, last 2 years)
20%
Idle Minimum *
30.2
28.7
5%
30
1%
30
1%
30.1
-0%
30.2
-0%
29 ?(24 - 34, n=36)
4%
25.7 ?(21.9 - 41.6, n=189, last 2 years)
15%
Idle Average *
30.2
30.5
-1%
32
-6%
32
-6%
30.1
-0%
30.2
-0%
30 ?(25 - 36, n=36)
1%
27.4 ?(21.9 - 42.1, n=189, last 2 years)
9%
Idle Maximum *
30.2
32.5
-8%
39
-29%
34
-13%
30.1
-0%
31
-3%
33 ?(25.2 - 48, n=36)
-9%
30.8 ?(21.9 - 47, n=189, last 2 years)
-2%
Load Average *
41.5
42.5
-2%
51
-23%
44
-6%
34.2
18%
43.4
-5%
44 ?(31.4 - 57, n=36)
-6%
43 ?(25.2 - 62.9, n=189, last 2 years)
-4%
Witcher 3 ultra *
44.5
50.1
-13%
54
-21%
50
-12%
34.2
23%
48.5
-9%
Load Maximum *
44.6
53.4
-20%
54
-21%
52
-17%
43.8
2%
45.5
-2%
51.6 ?(41 - 59, n=36)
-16%
53.3 ?(42.1 - 68.2, n=189, last 2 years)
-20%

* ... smaller is better

Sıcaklık

The Nitro 5 in the stress test.
The Nitro 5 in the stress test.

Acer dizüstü bilgisayar, pil gücüne takıldığında ve takıldığında stres testimizle (Prime95 ve FurMark en az bir saat çalışır) farklı şekillerde çalışır. İşlemci ve grafik çekirdeği kısa bir süre için sırasıyla 3.5 GHz ve 1.140 MHz'de çalışıyor. Daha sonra, saat hızları CPU için 2.5 ila 3.5 GHZ arasında salınırken, GPU için 800 ila 1.200 MHz aralığında değişir. Pil gücünde, hızlar sırasıyla 800 ila 900 MHz (CPU) ve 1.440 MHz'dir (GPU). Stres testi, günlük hayatta meydana gelmeyen aşırı bir senaryoyu temsil eder. Bu testi, sistemin tam yük altında bile kararlı kaldığını doğrulamak için kullanıyoruz.

Genel olarak, bu performans sınıfındaki bir dizüstü bilgisayar için ısı gelişimi iyidir. Stres testi sırasında çeşitli ölçüm noktalarında 50 ° C'nin (~ 122 ° F) biraz üzerinde sıcaklıklar kaydettik. The Witcher 3 testimizi yaparken cihaz biraz daha az ısındı. Günlük kullanımda sıcaklıklar yeşil aralıkta kalır.

Maksimum yük
 40.1 °C50.6 °C47.9 °C
 31.3 °C50.5 °C47.1 °C
 23.6 °C24.6 °C26.1 °C
Maksimum: 50.6 °C
Ortalama: 38 °C
53.8 °C50.1 °C46.6 °C
31.4 °C44.2 °C27.5 °C
27 °C25 °C24 °C
Maksimum: 53.8 °C
Ortalama: 36.6 °C
Güç kaynağı  55.8 °C | Oda sıcaklığı 22.4 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 38 °C / 100 F, compared to the average of 33.8 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 50.6 °C / 123 F, compared to the average of 40.4 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 53.8 °C / 129 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 25 °C / 77 F, compared to the device average of 33.8 °C / 93 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 37.3 °C / 99 F, compared to the device average of 33.8 °C / 93 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.1 °C / 79 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (+2.8 °C / 5 F).
Heat development top (load)
Heat development top (load)
Heat development top (The Witcher 3)
Heat development top (The Witcher 3)
Heat development top (idle)
Heat development top (idle)

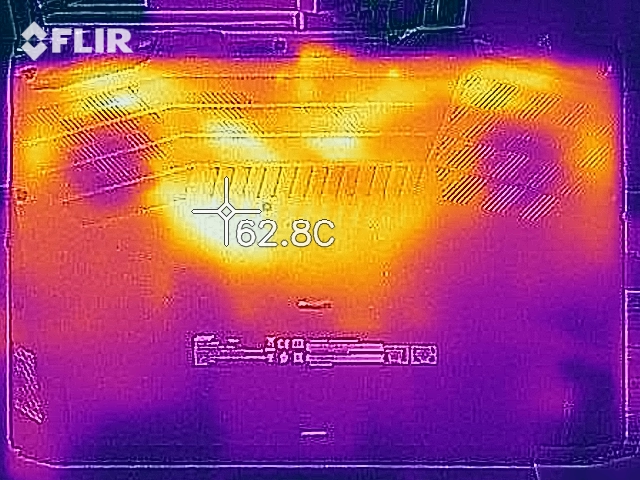

Heat development bottom (load)
Heat development bottom (load)
Heat development bottom (The Witcher 3)
Heat development bottom (The Witcher 3)
Heat development bottom (idle)
Heat development bottom (idle)
Acer Nitro 5 AN517-52-77DS
i7-10750H, GeForce RTX 2060 Mobile
Asus TUF A17 FA706IU-AS76
R7 4800H, GeForce GTX 1660 Ti Mobile
SCHENKER XMG Pro 17 PB71RD-G
i7-9750H, GeForce RTX 2060 Mobile
Lenovo Legion Y740-17IRH
i7-9750H, GeForce RTX 2060 Mobile
HP Pavilion Gaming 17-cd0085cl
i7-9750H, GeForce GTX 1660 Ti Max-Q
Acer Aspire Nitro 5 AN517-51-7887
i7-9750H, GeForce GTX 1660 Ti Mobile
Average NVIDIA GeForce RTX 2060 Mobile

Average of class Gaming

Heat
-4%
-4%
-3%
-11%
-5%
-7%
-5%
Maximum Upper Side *
50.6
47.6
6%
47
7%
43
15%
42.6
16%
51.7
-2%
47.2 ?(38.8 - 55, n=35)
7%
46.3 ?(28.2 - 61, n=190, last 2 years)
8%
Maximum Bottom *
53.8
50.8
6%
48
11%
46
14%
49
9%
55.4
-3%
52.7 ?(44.4 - 65, n=35)
2%
49.7 ?(30 - 66.3, n=190, last 2 years)
8%
Idle Upper Side *
26.6
33
-24%
30
-13%
31
-17%
34
-28%
29.1
-9%
31 ?(24.6 - 40.4, n=35)
-17%
31.5 ?(21.2 - 43, n=190, last 2 years)
-18%
Idle Bottom *
27.8
29
-4%
34
-22%
34
-22%
39.4
-42%
29
-4%
32.9 ?(25 - 42, n=35)
-18%
32.7 ?(22.6 - 45, n=190, last 2 years)
-18%

* ... smaller is better

Hoparlörler

Stereo hoparlörler cihazın alt kısmının ön kısmına yerleştirilir. Basta büyük ölçüde eksik olan iyi bir ses üretiyorlar. Ek olarak, hoparlörler yalnızca düşük bir maksimum sese sahiptir.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.934.431.92536.24136.23136.642.436.64032.231.432.25030.83030.86328.928.428.98028.626.728.610026.12626.112528.225.128.216031243120036.52236.525049.322.549.331553.421.253.440059.720.159.750061.619.561.663067.818.967.880064.818.464.8100066.61866.6125063.817.563.8160065.917.465.9200059.417.659.4250063.217.563.2315062.317.662.3400064.117.764.1500062.61862.6630060.418.160.4800055.818.255.81000059.218.259.21250056.818.156.81600053.618.253.6SPL75.330.375.3N36.41.436.4median 59.7median 18.2median 59.7Delta8.21.48.240.938.840.936.734.436.734.633.634.634.733.434.732.531.832.530.936.130.932.829.932.835.429.635.438.528.538.543.927.343.945.626.445.651.726.551.755.726.355.760.726.560.764.427.364.466.225.966.267.523.867.563.422.463.462.123.662.156.524.756.557.925.457.962.325.762.362.122.662.159.62259.664.221.964.258.822.158.855.922.655.955.822.655.852.422.852.445.222.945.27436.17434.12.634.1median 57.9median 24.7median 57.96.31.96.3hearing rangehide median Pink NoiseAcer Nitro 5 AN517-52-77DSAsus TUF A17 FA706IU-AS76
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Acer Nitro 5 AN517-52-77DS audio analysis

(-) | not very loud speakers (67.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.3% lower than median
(±) | linearity of bass is average (12% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.1% away from median
(±) | linearity of mids is average (9.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.6% away from median
(+) | highs are linear (6.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.4% difference to median)
Compared to same class
» 77% of all tested devices in this class were better, 6% similar, 17% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 60% of all tested devices were better, 6% similar, 33% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Asus TUF A17 FA706IU-AS76 audio analysis

(±) | speaker loudness is average but good (74 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.7% lower than median
(±) | linearity of bass is average (11.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.8% away from median
(±) | linearity of mids is average (9.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.1% away from median
(±) | linearity of highs is average (8.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.5% difference to median)
Compared to same class
» 82% of all tested devices in this class were better, 5% similar, 12% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 65% of all tested devices were better, 7% similar, 28% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Enerji yönetimi - Nitro AN517-52 iyi pil ömrü sağlar

Enerji tüketimi

Boşta kullanımda, 10,9 watt'lık bir maksimum güç tüketimi kaydediyoruz - iyi bir değer. Stres testi, güç tüketiminin birkaç saniye boyunca 193 watt'a kadar yükselmesini sağlar. The Witcher 3 testimizin yürütülmesi sırasında, ortalama 134.3 watt (127.7 ila 152.9 watt) güç tüketimi ölçtük. Ayrıca, güç adaptörünün çıkışı 180 watt'tır.

Anlık tüketim
Kapalı / Bekleme modudarklight 0.2 / 0.3 Watt
Boştadarkmidlight 5.4 / 9.8 / 10.9 Watt
Çalışırken midlight 104 / 193 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Acer Nitro 5 AN517-52-77DS
i7-10750H, GeForce RTX 2060 Mobile
Asus TUF A17 FA706IU-AS76
R7 4800H, GeForce GTX 1660 Ti Mobile
SCHENKER XMG Pro 17 PB71RD-G
i7-9750H, GeForce RTX 2060 Mobile
Lenovo Legion Y540-17IRH
i5-9300H, GeForce GTX 1660 Ti Mobile
HP Pavilion Gaming 17-cd0085cl
i7-9750H, GeForce GTX 1660 Ti Max-Q
Acer Aspire Nitro 5 AN517-51-7887
i7-9750H, GeForce GTX 1660 Ti Mobile
Average NVIDIA GeForce RTX 2060 Mobile

Average of class Gaming

Power Consumption
-15%
-60%
-89%
5%
10%
-61%
-86%
Idle Minimum *
5.4
7.4
-37%
11
-104%
19
-252%
5.4
-0%
3.9
28%
11.5 ?(2.9 - 41, n=36)
-113%
13.8 ?(2 - 64, n=184, last 2 years)
-156%
Idle Average *
9.8
10.5
-7%
18
-84%
22
-124%
9.2
6%
8.9
9%
16.5 ?(5.9 - 45.3, n=36)
-68%
19.1 ?(8 - 67, n=184, last 2 years)
-95%
Idle Maximum *
10.9
17
-56%
28
-157%
30
-175%
13
-19%
12.2
-12%
23.7 ?(8.5 - 47.1, n=36)
-117%
26.6 ?(9 - 101.1, n=184, last 2 years)
-144%
Load Average *
104
103.7
-0%
99
5%
79
24%
85.9
17%
83
20%
107.5 ?(82 - 147, n=37)
-3%
111 ?(32.1 - 202, n=184, last 2 years)
-7%
Witcher 3 ultra *
134.3
128.1
5%
146
-9%
134
-0%
107.9
20%
130
3%
Load Maximum *
193
183.2
5%
210
-9%
201
-4%
182.2
6%
168
13%
199.7 ?(145 - 243, n=37)
-3%
250 ?(64.5 - 418, n=183, last 2 years)
-30%

* ... smaller is better

Pil ömrü

Acer'ın oyun merkezi, pratik WLAN testimizde (komut dosyası kullanarak web sitelerine erişme; enerji profili: Dengeli) 6:36 saatlik bir çalışma süresine ulaşır. 17.3 inçlik video testimizi (enerji profili: Enerji tasarrufu modu) saat 7: 19'dan sonra tamamlar. Big Buck Bunny kısa filminin (H.264 kodlama, 1920x1080 piksel) kesintisiz bir döngüde çalışmasına izin verdik. Enerji tasarrufu işlevleri her iki test sırasında da devre dışı bırakılır ve ekran parlaklığı yaklaşık 150 cd / m²'ye ayarlanır. Video testi yapmak için radyo modülleri de kapatılır.

The battery has a capacity of 57.48 Wh
The battery has a capacity of 57.48 Wh
Batarya ömrü
Boşta (WLAN kapalı, minimum parlaklık)
11h 01min
WiFi Websurfing (Edge 44)
6h 36min
Big Buck Bunny H.264 1080p
7h 19min
Çalışırken (maksimum parlaklık)
2h 00min
Acer Nitro 5 AN517-52-77DS
i7-10750H, GeForce RTX 2060 Mobile, 57.48 Wh
Asus TUF A17 FA706IU-AS76
R7 4800H, GeForce GTX 1660 Ti Mobile, 90 Wh
Lenovo Legion Y540-17IRH
i5-9300H, GeForce GTX 1660 Ti Mobile, 57 Wh
SCHENKER XMG Pro 17 PB71RD-G
i7-9750H, GeForce RTX 2060 Mobile, 62 Wh
HP Pavilion Gaming 17-cd0085cl
i7-9750H, GeForce GTX 1660 Ti Max-Q, 52.5 Wh
Acer Aspire Nitro 5 AN517-51-7887
i7-9750H, GeForce GTX 1660 Ti Mobile, 57 Wh
Average of class Gaming

Battery Runtime
25%
-49%
-42%
-20%
-4%
-17%
Reader / Idle
661
543
-18%
311
-53%
313
-53%
695
5%
806
22%
541 ?(57 - 1290, n=87, last 2 years)
-18%
H.264
439
202
-54%
380
-13%
391 ?(56 - 747, n=95, last 2 years)
-11%
WiFi v1.3
396
512
29%
220
-44%
244
-38%
339
-14%
369
-7%
364 ?(57 - 745, n=188, last 2 years)
-8%
Load
120
196
63%
68
-43%
79
-34%
59
-51%
101
-16%
85.5 ?(36 - 173, n=150, last 2 years)
-29%

Artılar

+ IPS ekran
+ 120 Hz
+ iyi sistem performansı
+ NVMe SSD
+ iki M.2 2280 yuvası (bir boş)
+ inç depolama aygıtı için boş alan
+ arkadan aydınlatmalı klavye (RGB)
+ iyi pil ömrü
+ USB 3.2 Nesil 2

Eksiler

- loş, düşük kontrastlı ekran
- düşük renk alanı kapsamı
- ortalama tepki süreleri
- Thunderbolt 3 yok
- USB-C üzerinden DisplayPort yok
- hafıza kartı okuyucu yok

Verdict

The Acer Nitro 5 AN517-52-77DS. Review device provided by Acer Germany.
The Acer Nitro 5 AN517-52-77DS. Review device provided by Acer Germany.

Acer's 17.3-inch gaming laptop is able to run all the latest games smoothly on the matte Full HD display thanks to the Core i7-10750H processor and the GeForce RTX 2060 GPU. You can usually play at Full HD resolution and high to maximum quality settings here.

The Acer Nitro 5 AN517-52 is a largely well-rounded gaming laptop that deserves a better display.

Enough room for games and other applications is provided by the 1 TB NVMe SSD. Should the storage space ever run out, it could be expanded. The laptop can also accommodate a second M.2 2280 NVMe SSD and a 2.5-inch storage device. Since the computer doesn't have a maintenance hatch, the case would have to be opened for this.

All in all, the 120 Hz IPS display isn't able to convince. Brightness, contrast and color-space coverage are all too low. The response times can only be described as average. A 1,500-Euro (~$1,697) laptop needs to offer more here. Stable viewing angles, a matte surface, and decent color reproduction speak for the display.

The laptop comes with the most necessary ports. You'll look in vain for a Thunderbolt 3 port, though. There's only one USB Type-C 3.2 Gen 2 port, which doesn't support the DisplayPort via USB-C function. The built-in keyboard (with RGB lighting) has proven to be suitable for everyday use. Furthermore, battery life is more than okay for a 17.3-inch gaming laptop.

Currently, the laptop costs just under 1,500 Euros (~$1,697). As a result, it really doesn't represent itself as a bargain. Nevertheless, it does offer a good price-performance ratio.

Acer Nitro 5 AN517-52-77DS - 06/18/2020 v7
Sascha Mölck

İşcilik
77 / 98 → 79%
Klavye
82%
Mouse
89%
Bağlanılabilirlik
53 / 80 → 66%
Ağırlık
62 / 10-66 → 92%
Batarya
72 / 95 → 75%
Görüntü
79%
Oyun performansı
89%
Uygulama performansı
88%
Isınma
86 / 95 → 91%
Ses
87 / 90 → 97%
Audio
55%
Camera
37 / 85 → 44%
Ortalama
74%
81%
Gaming - Ortalama Ağırlık

Pricecompare

Please share our article, every link counts!
> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Acer Nitro 5 AN517-52 incelemede: Makul batarya ömrüyle iyi düşünülmüş oyun laptopu
Sascha Mölck, 2020-06-29 (Update: 2020-06-29)
