Acer Swift 3 SF313 laptop incelemesi: i5 ile iyi bir subnotebook

Glossy 3:2 display. Acer Swift 3 SF313 tam yapılandırmasında iyi bir izlenim bıraktıktan sonra, Intel Core i5 modelinin benzer şekilde iyi bir performans sunup sunamayacağını göstermesi gerekiyor. Bununla birlikte, ilk testte daha önce karşılaştığımız küçük zayıflıkları da miras alır. İncelememizde bunun genel izlenim üzerinde ne ölçüde etkisi olduğunu açıklayacağız.
Mike Wobker, 👁 Sebastian Jentsch,
Acer Swift 3 SF313-52-52AS

900 Euro'nun (~ 1,016 $) biraz altında liste fiyatıyla Intel Core i5-1035G4 ile Acer Swift 3 SF313, tam yapılandırmaya sahip Acer Swift 3 SF313'ten 400 Euro (~ 452 $) daha ucuz. Buna karşılık, alıcılar 8 GB RAM ve 512 GB SSD ile daha küçük bir bellek yapılandırması alıyor, ancak 3: 2 formatında 13.5 inç ekran da var. Daha önceki bir incelemede güçlü yönlerini gösterebildiğinden ve Swift 3 SF313'ün tasarımı da aynı kaldığından, donanımın performansına aşağıda odaklanacağız.Bu amaçla, sadece SF313'ün i5 varyantını yapılandırma, aynı zamanda aşağıda listelenen rakip cihazlarla da. Ayrıca her bölümün altında veritabanımızdan daha fazla dizüstü bilgisayar ekleyebilirsiniz.

Acer Swift 3 SF313-52-52AS (Swift 3 Seri)
İşlemci
Intel Core i5-1035G4 4 x 1.1 - 3.7 GHz, Ice Lake U
Grafik kartı
Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
Bellek
8192 MB
, dual-channel
Görüntü
13.5 inç 3:2, 2256 x 1504 pixel 201 PPI, BOE08BC, IPS, parlak: evet, 60 Hz
Anakart
Intel 495 (Ice Lake-U PCH-LP Premium)
Harddisk
SK Hynix BC501 HFM512GDJTNG, 512 GB
, 480 GB Boş
Ses kartı
Intel Ice Lake-U/Y PCH-LP cAVS
Bağlantılar
1 USB 2.0, 1 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 Kensington Lock, Ses çıkışları: combined 3.5 mm audio jack, 1 Parmak izi okuyucu
Network
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.0
Boyut
yükseklik x genişlik x derinlik (mm): 16.6 x 302 x 234
Batarya
54.5 Wh, 3545 mAh Lithium-Ion
İşletim sistemi
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 0.9 MP, 16:9 (1280x720)
Ek özellikler
Hoparlörler: stereo, Klavye: chiclet, Klavye ışığı: evet, 24 Ay Garanti
Ağırlık
1.19 kg, Güç kaynağı: 310 g
Fiyat
900 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
86 %
06/2020
Acer Swift 3 SF313-52-52AS
i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU)
1.2 kg16.6 mm13.5"2256x1504
87 %
02/2020
Acer Swift 3 SF313-52-71Y7
i7-1065G7, Iris Plus Graphics G7 (Ice Lake 64 EU)
1.2 kg16.6 mm13.5"2256x1504
85 %
HP ProBook 430 G7-8VU53EA
i7-10510U, UHD Graphics 620
1.4 kg18 mm13.3"1920x1080
85 %
07/2020
Lenovo IdeaPad S540-13API
R5 3550H, Vega 8
1.3 kg16 mm13.3"2560x1600
84 %
03/2020
Microsoft Surface Laptop 3 13 Core i5-1035G7
i5-1035G7, Iris Plus Graphics G7 (Ice Lake 64 EU)
1.3 kg14.5 mm13.5"2256x1504

Kasa ve bağlantı - Acer Swift 3 SF313'te daha hızlı WLAN

Acer Swift 3 SF313 - Maintenance
Acer Swift 3 SF313 - Maintenance

Dış izlenimin ayrıntılı bir açıklaması için, aynı şekilde oluşturulmuş Acer Swift 3 SF313-52-71Y7'nin incelenmesine işaret ediyoruz. Taban plakası Core i5 varyantında da çıkarılabilir ve yığın depolama cihazına erişim sağlar. Buna karşılık, RAM lehimlenir, böylece burada genişleme olasılığı yoktur. Netgear Nighthawk AX12 referans yönlendirici ile yapılan WLAN testimizde, test modelimizin daha önce test edilen varyant ile karşılaştırıldığında önemli ölçüde daha yüksek hızı fark edilir. Her ne kadar aynı WLAN adaptörü yerleşik olsa da, SF313-52-52AS veri almak için ortalama 870 Mb / s ve veri göndermek için 696 Mb / s ile önemli ölçüde daha iyi puan alır. Seçilmiş rakiplerimizle doğrudan karşılaştırmada, sonuç orta alanda bir yer için yeterlidir.Web kamerası performansı, sadece 0.9 MP çözünürlüğe sahip kameralara sahip diğer dizüstü bilgisayarlarda gördüğümüz kadar orta düzeydedir. ColorChecker Pasaportunun renkleri olması gerekenden çok daha parlak üretilir ve test tablosu çok iyi aydınlatma koşullarında sadece açıkça tanınabilir.

Acer Swift 3 SF313-52-52AS
Acer Swift 3 SF313-52-52AS
Acer Swift 3 SF313-52-52AS
Acer Swift 3 SF313-52-52AS
Acer Swift 3 SF313-52-52AS

Boyut karşılaştırması

309 mm 231 mm 18 mm 1.4 kg308 mm 223 mm 14.5 mm 1.3 kg302 mm 234 mm 16.6 mm 1.2 kg302 mm 234 mm 16.6 mm 1.2 kg269.9 mm 208.6 mm 16 mm 1.3 kg

Bağlantı noktası yapılandırması

Left side: power supply, HDMI, USB-A 3.0, Thunderbolt 3
Left side: power supply, HDMI, USB-A 3.0, Thunderbolt 3
Right side: 3.5 mm jack, USB-A 2.0, status LEDs, slot for safety lock
Right side: 3.5 mm jack, USB-A 2.0, status LEDs, slot for safety lock
Networking
iperf3 Client (receive) TCP 1 m 4M x10
HP ProBook 430 G7-8VU53EA
Intel Wi-Fi 6 AX201
1722 (min: 1565, max: 1781) MBit/s ∼100% +98%
Microsoft Surface Laptop 3 13 Core i5-1035G7
Intel Wi-Fi 6 AX201
1251 (min: 803, max: 1358) MBit/s ∼73% +44%
Average Intel Wi-Fi 6 AX201
  (289 - 1722, n=45)
1121 MBit/s ∼65% +29%
Acer Swift 3 SF313-52-52AS
Intel Wi-Fi 6 AX201
870 (min: 832, max: 928) MBit/s ∼51%
Lenovo IdeaPad S540-13API
Atheros/Qualcomm QCA6174
501 (min: 257, max: 533) MBit/s ∼29% -42%
Acer Swift 3 SF313-52-71Y7
Intel Wi-Fi 6 AX201
289 (min: 167, max: 328) MBit/s ∼17% -67%
iperf3 Client (transmit) TCP 1 m 4M x10
Microsoft Surface Laptop 3 13 Core i5-1035G7
Intel Wi-Fi 6 AX201
1484 (min: 1342, max: 1614) MBit/s ∼100% +113%
HP ProBook 430 G7-8VU53EA
Intel Wi-Fi 6 AX201
1425 (min: 705, max: 1463) MBit/s ∼96% +105%
Average Intel Wi-Fi 6 AX201
  (49.8 - 1666, n=45)
997 MBit/s ∼67% +43%
Acer Swift 3 SF313-52-52AS
Intel Wi-Fi 6 AX201
696 (min: 679, max: 711) MBit/s ∼47%
Lenovo IdeaPad S540-13API
Atheros/Qualcomm QCA6174
447 (min: 247, max: 510) MBit/s ∼30% -36%
Acer Swift 3 SF313-52-71Y7
Intel Wi-Fi 6 AX201
49.8 (min: 3, max: 102) MBit/s ∼3% -93%
010020030040050060070080090010001100120013001400150016001700Tooltip
Acer Swift 3 SF313-52-52AS Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU); iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø870 (832-928)
Acer Swift 3 SF313-52-71Y7 Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU); iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø289 (167-328)
HP ProBook 430 G7-8VU53EA Intel Core i7-10510U, Intel UHD Graphics 620; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1722 (1565-1781)
Lenovo IdeaPad S540-13API AMD Ryzen 5 3550H, AMD Radeon RX Vega 8; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø493 (257-533)
Microsoft Surface Laptop 3 13 Core i5-1035G7 Intel Core i5-1035G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU); iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø1251 (803-1358)
Acer Swift 3 SF313-52-52AS Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU); iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø696 (679-711)
Acer Swift 3 SF313-52-71Y7 Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU); iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø49.6 (3-102)
HP ProBook 430 G7-8VU53EA Intel Core i7-10510U, Intel UHD Graphics 620; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1401 (705-1463)
Lenovo IdeaPad S540-13API AMD Ryzen 5 3550H, AMD Radeon RX Vega 8; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø438 (247-510)
Microsoft Surface Laptop 3 13 Core i5-1035G7 Intel Core i5-1035G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU); iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø1484 (1342-1614)
ColorChecker
10.1 ∆E
12.1 ∆E
12.6 ∆E
12 ∆E
15.1 ∆E
19.2 ∆E
9.8 ∆E
12.8 ∆E
16.1 ∆E
11.6 ∆E
9.1 ∆E
8.7 ∆E
8.9 ∆E
7.8 ∆E
19.1 ∆E
5.6 ∆E
16.2 ∆E
17 ∆E
2.3 ∆E
14.3 ∆E
14.7 ∆E
16.5 ∆E
15.3 ∆E
11.5 ∆E
ColorChecker Acer Swift 3 SF313-52-52AS: 12.44 ∆E min: 2.28 - max: 19.18 ∆E

Giriş aygıtları - parmak izi tarayıcılı 13 inç dizüstü bilgisayar

Giriş cihazlarının ayrıntılı bir açıklaması Acer Swift 3 SF313-52-71Y7'nin ayrıntılı incelemesinde de bulunabilir.

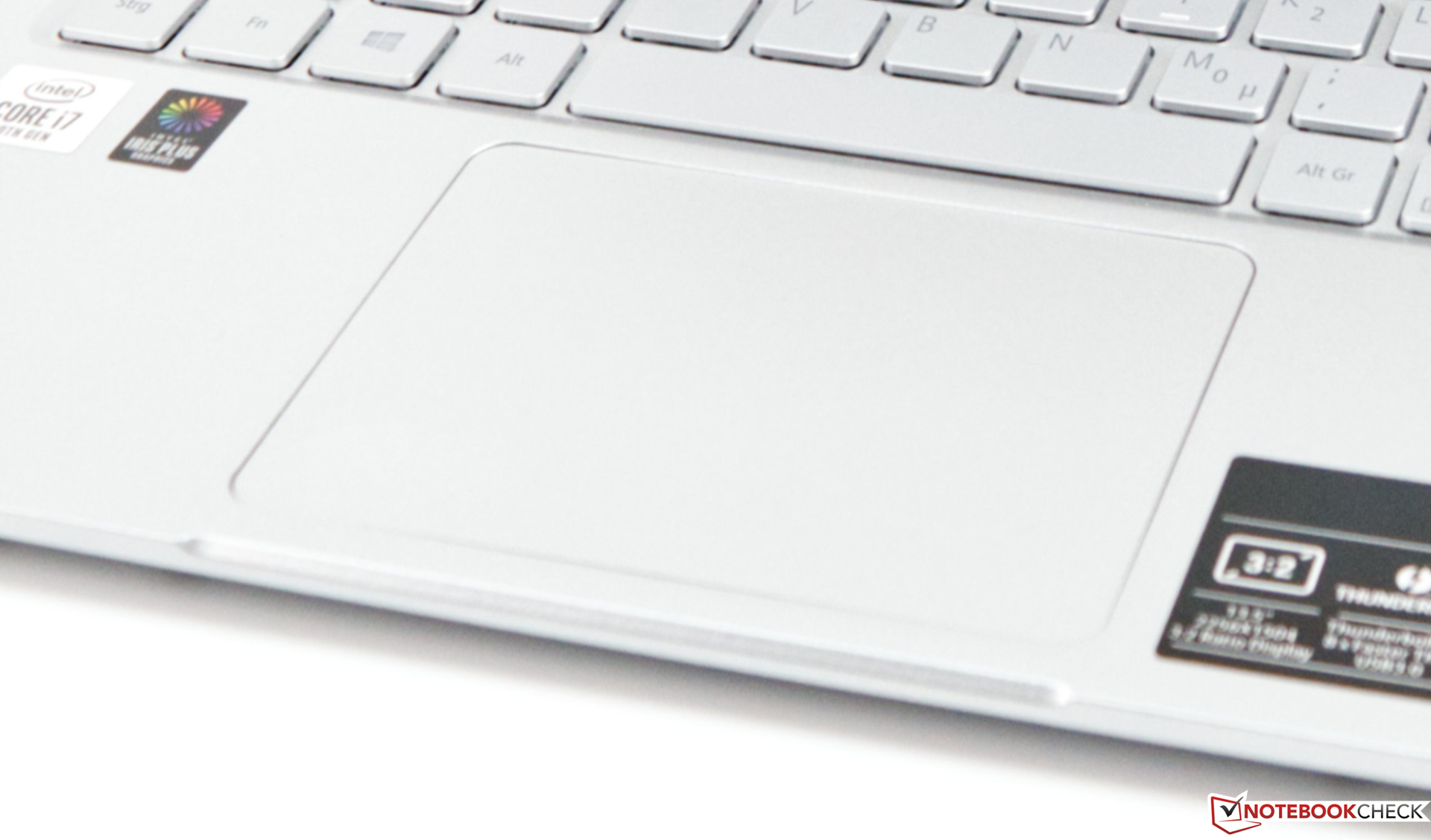

Acer Swift 3 SF313-52-52AS - ClickPad
Acer Swift 3 SF313-52-52AS - ClickPad
Acer Swift 3 SF313-52-52AS - Keyboard
Acer Swift 3 SF313-52-52AS - Keyboard
Acer Swift 3 SF313-52-52AS - Backlighting
Acer Swift 3 SF313-52-52AS - Backlighting

Ekran - 3: 2 formatında parlak ekran

Subpixel
Subpixel

Acer Swift 3 SF313'ün ekranı 3: 2 formatında 13.5 inç IPS panelden oluşuyor ve 2256x1504 piksel çözünürlük sunuyor. Parlaklık ortalama 432 cd / m²'de çok iyi ve aydınlatma% 88'de orta seviyede. Ölçümlerimiz Swift 3'ün% 90'ın altında bir parlaklık seviyesinden başlayarak PWM kullandığını gösteriyor. 192 Hz'de frekans oldukça düşüktür, bu da daha az duyarlı gözleri olan kullanıcılar için bile uzun vadede sorunlara yol açabilir.

444
cd/m²
440
cd/m²
438
cd/m²
444
cd/m²
456
cd/m²
440
cd/m²
423
cd/m²
400
cd/m²
407
cd/m²
Parlaklığın yayılımı
BOE08BC
X-Rite i1Pro 2
Maksimum: 456 cd/m² Ortalama: 432.4 cd/m² Minimum: 31 cd/m²
Aydınlatma: 88 %
Batarya modunda parlaklık: 436 cd/m²
Kontrast: 1425:1 (Siyah: 0.32 cd/m²)
ΔE Color 3.49 | 0.6-29.43 Ø5.9, calibrated: 0.72
ΔE Greyscale 5.53 | 0.64-98 Ø6.1
100% sRGB (Argyll 3D) 65% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.41
Acer Swift 3 SF313-52-52AS
BOE08BC, IPS, 2256x1504, 13.5
Acer Swift 3 SF313-52-71Y7
BOE, NE135FBM-N41, IPS, 2256x1504, 13.5
HP ProBook 430 G7-8VU53EA
BOE08A6, IPS LED, 1920x1080, 13.3
Lenovo IdeaPad S540-13API
CSOT T3 MND307DA1-2, IPS, 2560x1600, 13.3
Microsoft Surface Laptop 3 13 Core i5-1035G7
Sharp LQ135P1JX51, IPS, 2256x1504, 13.5
Response Times
-1%
140%
5%
3724%
Response Time Grey 50% / Grey 80% *
50 (24, 26)
55 (25, 30)
-10%
48.8 (24.4, 24.4)
2%
45.6 (21.6, 24)
9%
59.2 (28.4, 30.8)
-18%
Response Time Black / White *
31 (18, 13)
31 (17, 14)
-0%
32 (16.4, 15.6)
-3%
30.8 (16.8, 14)
1%
41.6 (23.6, 18)
-34%
PWM Frequency
192 (90)
208 (90)
8%
1000 (99)
421%
21740 (51)
11223%
Screen
-15%
-78%
-5%
12%
Brightness middle
456
474
4%
300
-34%
321
-30%
403.4
-12%
Brightness
432
426
-1%
285
-34%
314
-27%
397
-8%
Brightness Distribution
88
82
-7%
90
2%
94
7%
89
1%
Black Level *
0.32
0.29
9%
0.25
22%
0.19
41%
0.34
-6%
Contrast
1425
1634
15%
1200
-16%
1689
19%
1186
-17%
Colorchecker DeltaE2000 *
3.49
2.38
32%
5.9
-69%
3.3
5%
0.94
73%
Colorchecker DeltaE2000 max. *
8.4
5.88
30%
20
-138%
6
29%
2.92
65%
Colorchecker DeltaE2000 calibrated *
0.72
2.69
-274%
4.6
-539%
1.7
-136%
0.99
-38%
Greyscale DeltaE2000 *
5.53
3.75
32%
4
28%
3.5
37%
0.9
84%
Gamma
2.41 91%
2.37 93%
2.23 99%
2.08 106%
2.13 103%
CCT
6675 97%
6466 101%
7154 91%
7245 90%
6620 98%
Color Space (Percent of AdobeRGB 1998)
65
65
0%
40.4
-38%
64.5
-1%
62.3
-4%
Color Space (Percent of sRGB)
100
100
0%
62.4
-38%
98.4
-2%
98.7
-1%
Total Average (Program / Settings)
-8% / -12%
31% / -31%
0% / -4%
1868% / 808%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
31 ms ... rise ↗ and fall ↘ combined↗ 18 ms rise
↘ 13 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 78 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.7 ms).
       Response Time 50% Grey to 80% Grey
50 ms ... rise ↗ and fall ↘ combined↗ 24 ms rise
↘ 26 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 82 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (39.2 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 192 Hz ≤ 90 % brightness setting

The display backlight flickers at 192 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 192 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 50 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18084 (minimum: 5 - maximum: 2500000) Hz was measured.

Color-space coverage (sRGB) - 100%
Color-space coverage (sRGB) - 100%

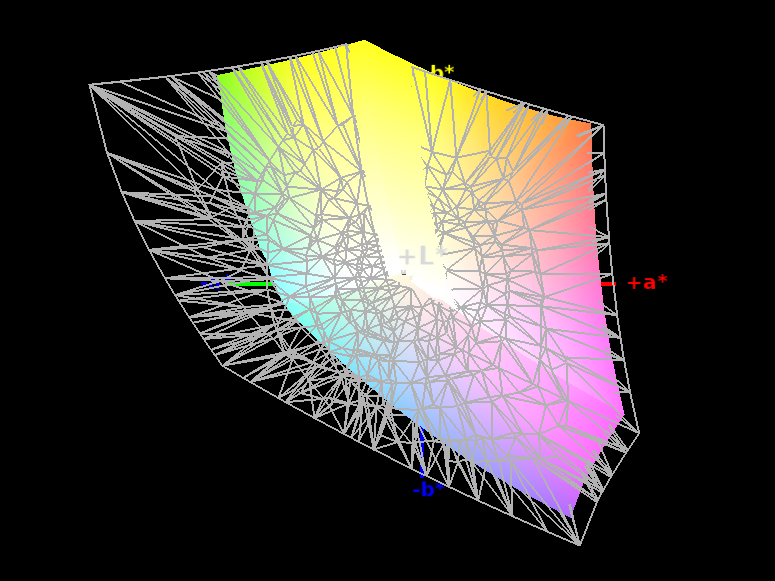

Color-space coverage (AdobeRGB) - 65%
Color-space coverage (AdobeRGB) - 65%

CalMAN analizi, Swift 3 SF313-52-52AS ve SF313-52-71Y7'deki ekranların benzer özelliklere sahip olduğunu göstermektedir. Değerlerin çoğu sadece üretim nedenlerinden dolayı ayrılabilirse de, 1425: 1 kontrast oranı beklenenden düşüktür. Delta E 2000 sapması da önemli ölçüde daha yüksektir, ancak kalibrasyonla daha iyi dengelenebilir. İlgili ICC dosyası, ekranın parlaklık dağıtım grafiğinin sağındaki pencereden indirilebilir. IPS panelinin görüntüleme açısı kararlılığı çok iyidir ve ekran kanaması da olumsuz görünmüyor. Ancak açık havada, yansıtıcı ekran yüzeyi, ekrandaki içeriği çıkarmayı zorlaştıran bazı güçlü yansımalar sağlar.

CalMAN - Color accuracy
CalMAN - Color accuracy
CalMAN - Saturation
CalMAN - Saturation
CalMAN - Grayscales
CalMAN - Grayscales

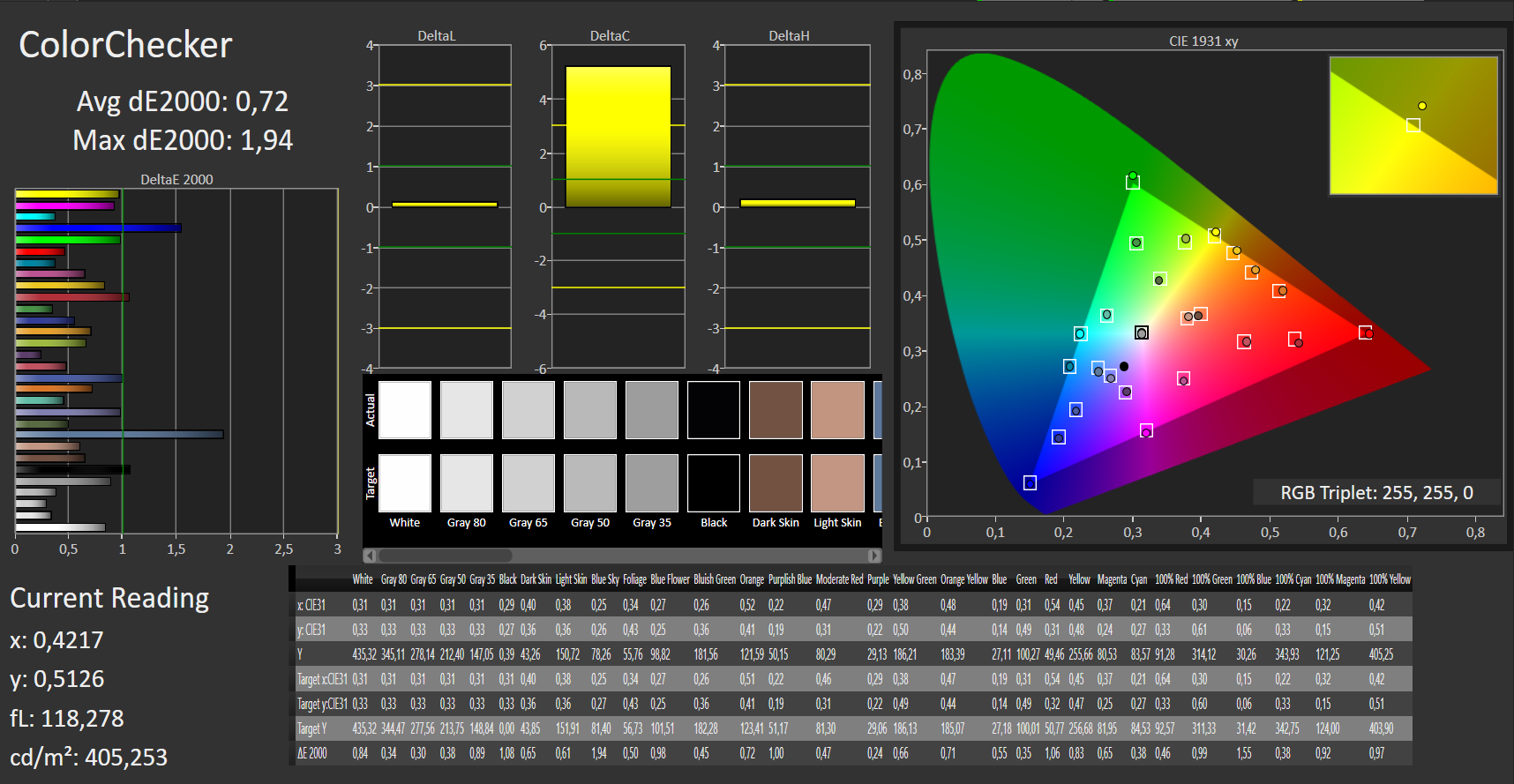

CalMAN - Color accuracy (calibrated)
CalMAN - Color accuracy (calibrated)
CalMAN - Saturation (calibrated)
CalMAN - Saturation (calibrated)
CalMAN - Grayscales (calibrated)
CalMAN - Grayscales (calibrated)
Viewing-angle stability
Viewing-angle stability

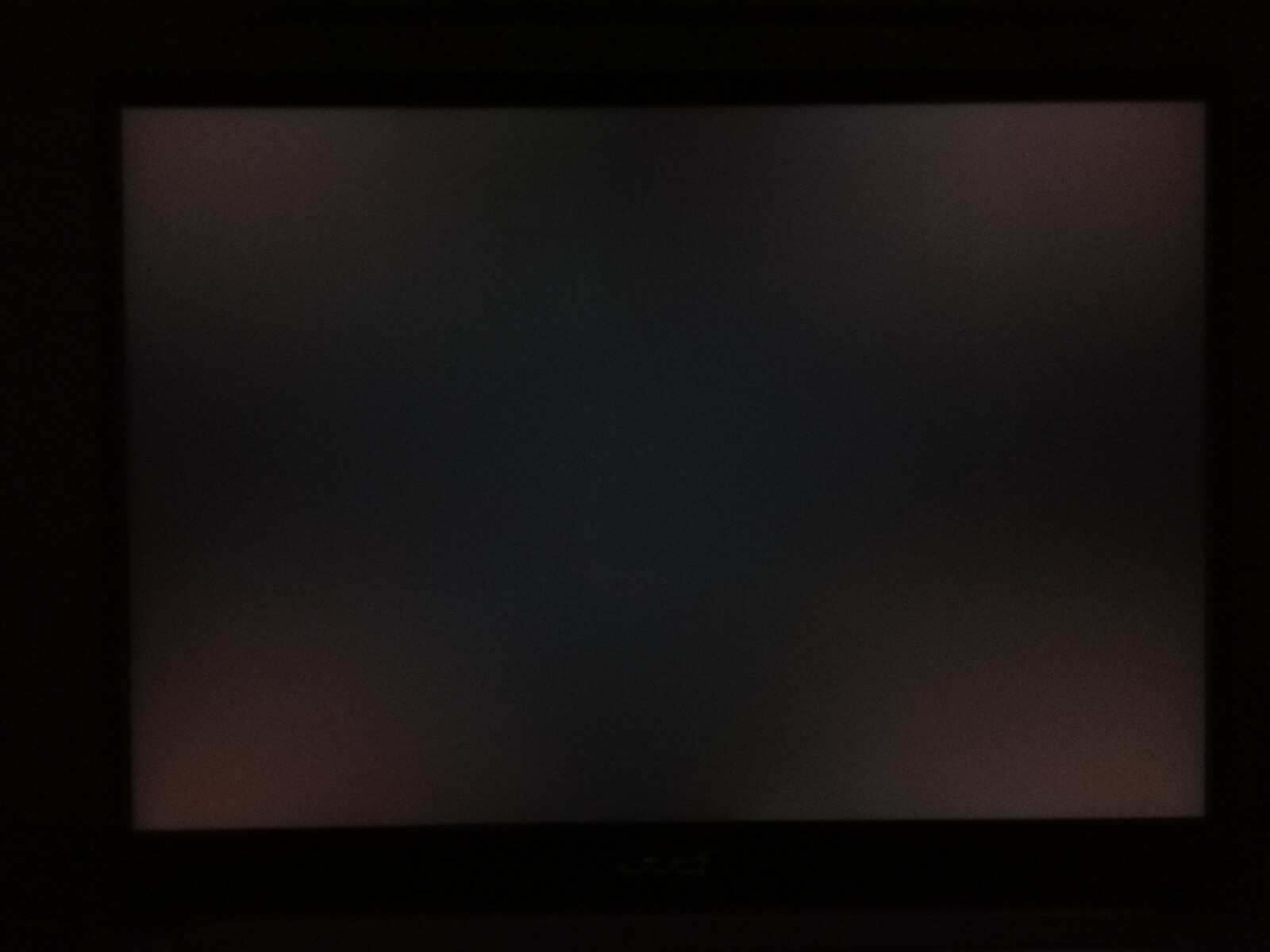

Screen bleeding
Screen bleeding
Outdoor use
Outdoor use

Performans - Intel Core i5 ile tatmin edici performans

Acer ayrıca burada test edilen yapılandırma varyantına ek olarak Intel Core i7-1065G7, 16 GB RAM ve 1 TB SSD özellikli Swift 3 SF313 sunuyor. Her iki modelde de performans ofis kullanıcılarına yöneliktir ve biraz daha zorlu görevler için yeterli gücü sunar. Ancak, yalnızca CPU'nun dahili grafik birimi mevcut olduğundan, kullanıcılar grafik performansı için daha fazla talep olan uygulamalardan kaçınmalıdır.

İşlemci

Buraya takılan Intel Core i5-1035G4, aynı anda sekiz adede kadar iş parçacığını işleyebilen dört çekirdekli bir işlemcidir. Saat hızları 1,1 ila 3,7 GHz arasındadır, böylece maksimum saat hızı soğutma sistemine bağlı olarak sadece daha uzun bir süre boyunca korunabilir. Cinebench R15 sürekli yük çevrimimizde, performans kısa bir süre sonra yaklaşık% 7 azalır, ancak sonraki değer eşit olarak korunabilir.

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740Tooltip
Acer Swift 3 SF313-52-52AS Intel Core i5-1035G4, Intel Core i5-1035G4: Ø457 (453.59-490.1)
Acer Swift 3 SF313-52-71Y7 Intel Core i7-1065G7, Intel Core i7-1065G7: Ø553 (544.51-599.88)
HP ProBook 430 G7-8VU53EA Intel Core i7-10510U, Intel Core i7-10510U: Ø540 (519.71-595.77)
Lenovo IdeaPad S540-13API AMD Ryzen 5 3550H, AMD Ryzen 5 3550H: Ø602 (591.24-642.46)
Microsoft Surface Laptop 3 13 Core i5-1035G7 Intel Core i5-1035G7, Intel Core i5-1035G7: Ø609 (588.11-736)

İ5-1035G4 tek ve çok çekirdekli performans için bireysel disiplinlerde ortalamanın biraz altındadır. Sonuçlar, test ettiğimiz bu CPU ile diğer cihazların ortalamasının% 20'sine kadar çıkıyor. SF313-52-71Y7'deki Core i7-1065G7 ile karşılaştırıldığında, çok çekirdekli değerler yaklaşık% 28 daha düşüktür. Ancak, bu fark günlük kullanımda neredeyse hiç fark edilmez ve örneğin çok büyük Excel dosyalarını yüklerken hızı etkiler.

Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.1 / 5.2: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Single Core) - CPU (Single Core)
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7
441 Points ∼100% +24%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
440 Points ∼100% +23%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
437 Points ∼99% +22%
Microsoft Surface Laptop 3 13 Core i5-1035G7
Intel Core i5-1035G7
439 Points ∼100% +23%
Average Intel Core i5-1035G4
  (357 - 441, n=4)
398 Points ∼90% +11%
Lenovo IdeaPad S540-13API
AMD Ryzen 5 3550H
362 Points ∼82% +1%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
357 Points ∼81%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
357 Points ∼81% 0%
Average of class Subnotebook
  (73 - 466, n=56)
348 Points ∼79% -3%
Cinebench R20 / CPU (Multi Core) - CPU (Multi Core)
Microsoft Surface Laptop 3 13 Core i5-1035G7
Intel Core i5-1035G7
1630 Points ∼100% +83%
Lenovo IdeaPad S540-13API
AMD Ryzen 5 3550H
1424 Points ∼87% +60%
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7
1392 Points ∼85% +56%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
1293 Points ∼79% +45%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
1015 Points ∼62% +14%
Average Intel Core i5-1035G4
  (892 - 1648, n=4)
1211 Points ∼74% +36%
Average of class Subnotebook
  (110 - 2410, n=56)
1166 Points ∼72% +31%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
892 Points ∼55%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
892 Points ∼55% 0%
Cinebench R15 / CPU Single 64Bit - CPU Single 64Bit
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
180 Points ∼100% +23%
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7
175 Points ∼97% +20%
Microsoft Surface Laptop 3 13 Core i5-1035G7
Intel Core i5-1035G7
172 Points ∼96% +18%
Average Intel Core i5-1035G4
  (146 - 172, n=3)
162 Points ∼90% +11%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
146.36 Points ∼81%
Lenovo IdeaPad S540-13API
AMD Ryzen 5 3550H
143 Points ∼79% -2%
Average of class Subnotebook
  (20 - 185, n=315)
120 Points ∼67% -18%
Cinebench R15 / CPU Multi 64Bit - CPU Multi 64Bit
Microsoft Surface Laptop 3 13 Core i5-1035G7
Intel Core i5-1035G7
736 Points ∼100% +50%
Lenovo IdeaPad S540-13API
AMD Ryzen 5 3550H
635 (min: 587.92, max: 641.25) Points ∼86% +30%
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7
615 Points ∼84% +25%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
595.77 (min: 519.71, max: 595.77) Points ∼81% +22%
Average Intel Core i5-1035G4
  (490 - 676, n=4)
587 Points ∼80% +20%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
490.1 (min: 289.98, max: 451.62) Points ∼67%
Average of class Subnotebook
  (32 - 1051, n=327)
371 Points ∼50% -24%
Blender 2.79 / BMW27 CPU - BMW27 CPU
Average of class Subnotebook
  (4.2 - 6277, n=48)
1315 Seconds * ∼100% -29%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
1016.4 Seconds * ∼77%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
1016 Seconds * ∼77% -0%
Average Intel Core i5-1035G4
  (703 - 1016, n=4)
909 Seconds * ∼69% +11%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
852 Seconds * ∼65% +16%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
810.1 Seconds * ∼62% +20%
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7
835 Seconds * ∼63% +18%
Microsoft Surface Laptop 3 13 Core i5-1035G7
Intel Core i5-1035G7
771 Seconds * ∼59% +24%
Lenovo IdeaPad S540-13API
AMD Ryzen 5 3550H
759 Seconds * ∼58% +25%
7-Zip 18.03 / 7z b 4 -mmt1 - 7z b 4 -mmt1
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
4697 MIPS ∼100% +16%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
3747 MIPS ∼80% -7%
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7
4397 MIPS ∼94% +9%
Microsoft Surface Laptop 3 13 Core i5-1035G7
Intel Core i5-1035G7
4252 MIPS ∼91% +5%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
4048 MIPS ∼86%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
4048 MIPS ∼86% 0%
Average of class Subnotebook
  (1653 - 15198, n=43)
4020 MIPS ∼86% -1%
Lenovo IdeaPad S540-13API
AMD Ryzen 5 3550H
3552 MIPS ∼76% -12%
Average Intel Core i5-1035G4
  (1307 - 4190, n=4)
3398 MIPS ∼72% -16%
7-Zip 18.03 / 7z b 4 - 7z b 4
Microsoft Surface Laptop 3 13 Core i5-1035G7
Intel Core i5-1035G7
19168 MIPS ∼100% +47%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
17318 MIPS ∼90% +33%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
17292 MIPS ∼90% +32%
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7
16982 MIPS ∼89% +30%
Lenovo IdeaPad S540-13API
AMD Ryzen 5 3550H
16762 MIPS ∼87% +28%
Average of class Subnotebook
  (2692 - 27115, n=43)
14849 MIPS ∼77% +14%
Average Intel Core i5-1035G4
  (11030 - 19548, n=4)
14173 MIPS ∼74% +9%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
13057 MIPS ∼68%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
13057 MIPS ∼68% 0%
Geekbench 5.1 / 5.2 / 64 Bit Single-Core Score - 64 Bit Single-Core Score
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7
1316 Points ∼100% +22%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
1212 Points ∼92% +12%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
1212 Points ∼92% +12%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
1164 Points ∼88% +8%
Average Intel Core i5-1035G4
  (1081 - 1240, n=3)
1134 Points ∼86% +5%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
1081 Points ∼82%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
1081 Points ∼82% 0%
Average of class Subnotebook
  (310 - 1324, n=38)
937 Points ∼71% -13%
Geekbench 5.1 / 5.2 / 64 Bit Multi-Core Score - 64 Bit Multi-Core Score
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7
4374 Points ∼100% +34%
Average Intel Core i5-1035G4
  (3261 - 4315, n=3)
3612 Points ∼83% +11%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
3261 Points ∼75%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
3261 Points ∼75% 0%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
3247 Points ∼74% 0%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
3247 Points ∼74% 0%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
3175 Points ∼73% -3%
Average of class Subnotebook
  (591 - 4855, n=38)
2954 Points ∼68% -9%
HWBOT x265 Benchmark v2.2 / 4k Preset - 4k Preset
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7
4.66 fps ∼100% +38%
Microsoft Surface Laptop 3 13 Core i5-1035G7
Intel Core i5-1035G7
4.632 fps ∼99% +37%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
4.5 fps ∼97% +34%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
4.11 fps ∼88% +22%
Average Intel Core i5-1035G4
  (3.37 - 5.61, n=4)
4.36 fps ∼94% +29%
Average of class Subnotebook
  (0.63 - 7.81, n=44)
3.85 fps ∼83% +14%
Lenovo IdeaPad S540-13API
AMD Ryzen 5 3550H
3.7 fps ∼79% +10%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
3.37 fps ∼72%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
3.37 fps ∼72% 0%
LibreOffice / 20 Documents To PDF - 20 Documents To PDF
Average of class Subnotebook
  (51.7 - 281, n=28)
93.7 s ∼100% +20%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
78.33 s ∼84%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
78.3 s ∼84% 0%
Average Intel Core i5-1035G4
  (58.4 - 78.3, n=3)
71.7 s ∼77% -8%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
66.6 s ∼71% -15%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
66.5 s ∼71% -15%
R Benchmark 2.5 / Overall mean - Overall mean
Average of class Subnotebook
  (0.629 - 2.43, n=33)
0.939 sec * ∼100% -14%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
0.825 sec * ∼88%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4
0.825 sec * ∼88% -0%
Average Intel Core i5-1035G4
  (0.716 - 0.825, n=3)
0.789 sec * ∼84% +4%
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7
0.691 sec * ∼74% +16%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
0.681 sec * ∼73% +17%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U
0.663 sec * ∼71% +20%

* ... smaller is better

Cinebench R15 CPU Single 64Bit
146.36 Points
Cinebench R15 Ref. Match 64Bit
97.81 %
Cinebench R15 CPU Multi 64Bit
490.1 Points
Cinebench R15 OpenGL 64Bit
47.13 fps
Yardım

Sistem performansı

PCMark 10 karşılaştırmasında Acer Swift 3 SF313-52-52AS, donanım beklentilerinin altında kalan sonuçlar da elde ediyor. Ancak günlük kullanımda, Intel Core i5-1035G4, çift kanal modunda 8 GB RAM ve hızlı bir SSD ile sorunsuz bir sistem çalışması sağlar. Uygulamalar ve klasörler hızlı bir şekilde açıldı ve sistem her zaman sorunsuz bir şekilde çalıştı. Yine de çok sayıda açık tarayıcı sekmesiyle çalışmak isteyen kullanıcılar için RAM biraz fazla kıt olabilir. Testlerimizde diğer dizüstü bilgisayarlar tarafından elde edilen performans CPU Deneyleri makalemizde bulunabilir.

PCMark 10
Digital Content Creation
Microsoft Surface Laptop 3 13 Core i5-1035G7
Iris Plus Graphics G7 (Ice Lake 64 EU), i5-1035G7, SK hynix BC501 HFM256GDGTNG
3817 Points ∼29% +25%
Lenovo IdeaPad S540-13API
Vega 8, R5 3550H, Samsung SSD PM981 MZVLB512HAJQ
3763 Points ∼29% +23%
Acer Swift 3 SF313-52-71Y7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Intel SSD 660p 1TB SSDPEKNW010T8
3260 Points ∼25% +7%
Average Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
  (3048 - 3315, n=2)
3182 Points ∼25% +4%
HP ProBook 430 G7-8VU53EA
UHD Graphics 620, i7-10510U, Toshiba KBG30ZMV256G
3114 Points ∼24% +2%
Acer Swift 3 SF313-52-52AS
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK Hynix BC501 HFM512GDJTNG
3048 Points ∼24%
Average of class Subnotebook
  (405 - 4728, n=128)
2620 Points ∼20% -14%
Productivity
HP ProBook 430 G7-8VU53EA
UHD Graphics 620, i7-10510U, Toshiba KBG30ZMV256G
6982 Points ∼67% +9%
Microsoft Surface Laptop 3 13 Core i5-1035G7
Iris Plus Graphics G7 (Ice Lake 64 EU), i5-1035G7, SK hynix BC501 HFM256GDGTNG
6765 Points ∼65% +5%
Average Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
  (6414 - 6678, n=2)
6546 Points ∼63% +2%
Acer Swift 3 SF313-52-52AS
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK Hynix BC501 HFM512GDJTNG
6414 Points ∼62%
Acer Swift 3 SF313-52-71Y7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Intel SSD 660p 1TB SSDPEKNW010T8
6301 Points ∼60% -2%
Lenovo IdeaPad S540-13API
Vega 8, R5 3550H, Samsung SSD PM981 MZVLB512HAJQ
5995 Points ∼58% -7%
Average of class Subnotebook
  (1014 - 7676, n=128)
5335 Points ∼51% -17%
Essentials
Microsoft Surface Laptop 3 13 Core i5-1035G7
Iris Plus Graphics G7 (Ice Lake 64 EU), i5-1035G7, SK hynix BC501 HFM256GDGTNG
9086 Points ∼79% +20%
Acer Swift 3 SF313-52-71Y7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Intel SSD 660p 1TB SSDPEKNW010T8
8302 Points ∼72% +10%
Average Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
  (7558 - 8847, n=2)
8203 Points ∼72% +9%
HP ProBook 430 G7-8VU53EA
UHD Graphics 620, i7-10510U, Toshiba KBG30ZMV256G
8020 Points ∼70% +6%
Lenovo IdeaPad S540-13API
Vega 8, R5 3550H, Samsung SSD PM981 MZVLB512HAJQ
7872 Points ∼69% +4%
Acer Swift 3 SF313-52-52AS
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK Hynix BC501 HFM512GDJTNG
7558 Points ∼66%
Average of class Subnotebook
  (2062 - 9664, n=128)
7032 Points ∼61% -7%
Score
Microsoft Surface Laptop 3 13 Core i5-1035G7
Iris Plus Graphics G7 (Ice Lake 64 EU), i5-1035G7, SK hynix BC501 HFM256GDGTNG
4421 Points ∼54% +17%
Lenovo IdeaPad S540-13API
Vega 8, R5 3550H, Samsung SSD PM981 MZVLB512HAJQ
4029 Points ∼50% +6%
HP ProBook 430 G7-8VU53EA
UHD Graphics 620, i7-10510U, Toshiba KBG30ZMV256G
4005 Points ∼49% +6%
Average Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
  (3790 - 4163, n=2)
3977 Points ∼49% +5%
Acer Swift 3 SF313-52-71Y7
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Intel SSD 660p 1TB SSDPEKNW010T8
3975 Points ∼49% +5%
Acer Swift 3 SF313-52-52AS
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK Hynix BC501 HFM512GDJTNG
3790 Points ∼47%
Average of class Subnotebook
  (743 - 4886, n=131)
3273 Points ∼40% -14%

» No benchmarks for this notebook found!

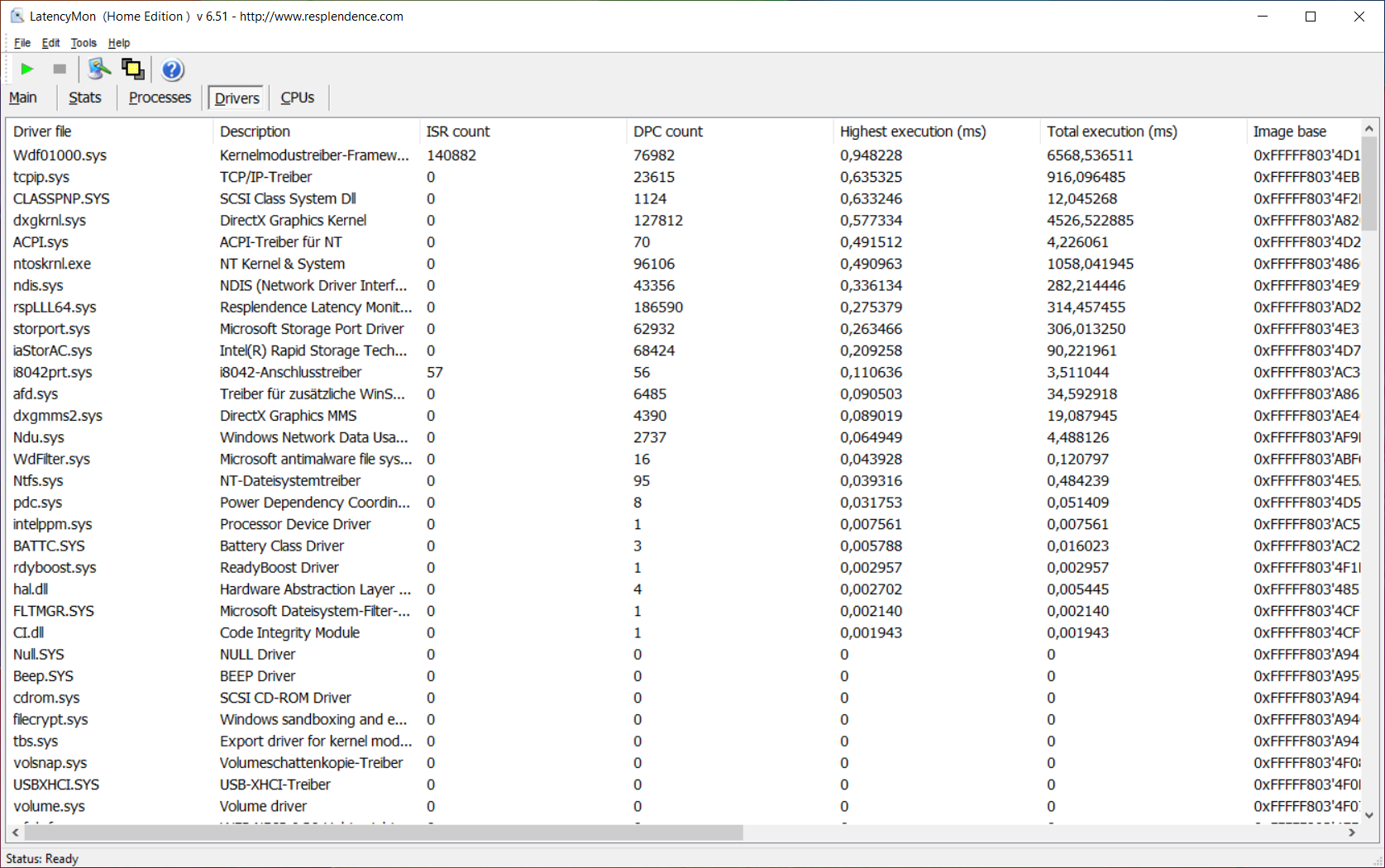

DPC gecikmesi

Testimizde Acer Swift 3 SF313-52-52AS, gecikme testinde herhangi bir sorun göstermedi ve bu nedenle gerçek zamanlı ses ve video içeriğini düzenlemek için uygundur.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
HP ProBook 430 G7-8VU53EA
UHD Graphics 620, i7-10510U, Toshiba KBG30ZMV256G
3941.7 μs * ∼100% -97%
Acer Swift 3 SF313-52-52AS
Iris Plus Graphics G4 (Ice Lake 48 EU), i5-1035G4, SK Hynix BC501 HFM512GDJTNG
1997.3 μs * ∼51%

* ... smaller is better

Depolama

Acer, Swift 3 SF313-52-52AS'a 512 GB SSD taktı ve bunların yaklaşık 480 GB'ı program yüklemek ve kendi dosyalarınızı saklamak için kullanılabilir. Depolama kıyaslamalarında, depolama cihazı ortalama yazma ve okuma hızlarını gösterir; Bu, hızlı dosya erişimine yansır ve daha uzun okuma işlemleri sırasında bile hızlar düşmez. HDD / SSD Deneyleri makalemizde, burada kullanılan SSD ile ilişkili olarak diğer yığın depolama aygıtlarının performansını karşılaştırabilirsiniz.

Acer Swift 3 SF313-52-52AS
SK Hynix BC501 HFM512GDJTNG
Acer Swift 3 SF313-52-71Y7
Intel SSD 660p 1TB SSDPEKNW010T8
HP ProBook 430 G7-8VU53EA
Toshiba KBG30ZMV256G
Lenovo IdeaPad S540-13API
Samsung SSD PM981 MZVLB512HAJQ
Microsoft Surface Laptop 3 13 Core i5-1035G7
SK hynix BC501 HFM256GDGTNG
Average SK Hynix BC501 HFM512GDJTNG

Average of class Subnotebook

CrystalDiskMark 5.2 / 6
41%
-11%
60%
-13%
-18%
-4%
Write 4K
120.6
187.4
55%
124.7
3%
133.9
11%
112.3
-7%
95.5 (48.4 - 130, n=9)
-21%
100 (3.23 - 191, n=134)
-17%
Read 4K
46.88
63.8
36%
48.17
3%
44.98
-4%
42.13
-10%
38.3 (29 - 46.9, n=9)
-18%
63.1 (5.37 - 3738, n=134)
35%
Write Seq
1044
1776
70%
694.4
-33%
2730
161%
630.4
-40%
759 (654 - 1044, n=9)
-27%
920 (37.3 - 2730, n=133)
-12%
Read Seq
1147
1693
48%
757
-34%
2403
110%
1023
-11%
1022 (642 - 1147, n=9)
-11%
1176 (142 - 2760, n=133)
3%
Write 4K Q32T1
332.4
492.3
48%
311
-6%
252.2
-24%
336.6
1%
303 (94.6 - 436, n=9)
-9%
297 (3.6 - 868, n=134)
-11%
Read 4K Q32T1
443.3
539.4
22%
495.5
12%
335.6
-24%
399.6
-10%
317 (243 - 443, n=9)
-28%
341 (9.66 - 1580, n=134)
-23%
Write Seq Q32T1
1052
1769.9
68%
1017
-3%
2983
184%
820.8
-22%
885 (839 - 1052, n=9)
-16%
1085 (16.7 - 3007, n=134)
3%
Read Seq Q32T1
2171
1715
-21%
1530
-30%
3535
63%
2030
-6%
1803 (1557 - 2171, n=9)
-17%
1937 (113 - 3569, n=134)
-11%
Write 4K Q8T8
899.2
306
582 (12.4 - 1273, n=15)
Read 4K Q8T8
630
698
639 (31.7 - 1172, n=15)
AS SSD
9%
-58%
58%
-43%
-12%
-271%
Score Total
2370
2313
-2%
1757
-26%
4054
71%
1520
-36%
2107 (1653 - 2384, n=9)
-11%
1459 (28 - 5191, n=282)
-38%
Score Write
926
1085
17%
522
-44%
1814
96%
525
-43%
830 (657 - 932, n=9)
-10%
520 (8 - 2379, n=282)
-44%
Score Read
958
811
-15%
827
-14%
1486
55%
678
-29%
858 (674 - 977, n=9)
-10%
629 (12 - 2339, n=282)
-34%
Access Time Write *
0.034
0.038
-12%
0.174
-412%
0.043
-26%
0.093
-174%
0.037 (0.033 - 0.048, n=9)
-9%
0.825 (0.021 - 30.3, n=345)
-2326%
Access Time Read *
0.044
0.417
0.069
0.055
0.0607 (0.04 - 0.091, n=7)
0.857 (0.044 - 23, n=338)
4K-64 Write
712.91
783.07
10%
317.29
-55%
1467.66
106%
354.86
-50%
660 (476 - 737, n=9)
-7%
324 (0.22 - 2105, n=355)
-55%
4K-64 Read
769.89
583.98
-24%
643.87
-16%
1159.31
51%
497.4
-35%
686 (488 - 788, n=9)
-11%
432 (0.41 - 2011, n=355)
-44%
4K Write
111.15
164.37
48%
127.65
15%
89.51
-19%
119.96
8%
101 (74.7 - 125, n=9)
-9%
66.1 (0.2 - 180, n=355)
-41%
4K Read
50.81
56.81
12%
48.56
-4%
47.14
-7%
42.35
-17%
40.4 (32.2 - 50.8, n=9)
-20%
26.7 (0.35 - 63.8, n=355)
-47%
Seq Write
1019.09
1373
35%
768.04
-25%
2564.3
152%
503.83
-51%
697 (510 - 1019, n=9)
-32%
547 (14 - 2564, n=356)
-46%
Seq Read
1370.49
1703
24%
1341.59
-2%
2791.8
104%
1387.11
1%
1323 (494 - 1707, n=9)
-3%
888 (50.5 - 2934, n=356)
-35%
Total Average (Program / Settings)
25% / 23%
-35% / -37%
59% / 59%
-28% / -30%
-15% / -15%
-138% / -152%

* ... smaller is better

SK Hynix BC501 HFM512GDJTNG
CDM 5/6 Read Seq Q32T1: 2171 MB/s
CDM 5/6 Write Seq Q32T1: 1052 MB/s
CDM 5/6 Read 4K Q32T1: 443.3 MB/s
CDM 5/6 Write 4K Q32T1: 332.4 MB/s
CDM 5 Read Seq: 1147 MB/s
CDM 5 Write Seq: 1044 MB/s
CDM 5/6 Read 4K: 46.88 MB/s
CDM 5/6 Write 4K: 120.6 MB/s

Continuous load read: DiskSpd Read Loop, Queue Depth 8

0102030405060708090100110120130140150160170180190200210220230240250260270280290300310320330340350360370380390400410420430440450460470480490500510520530540550560570580590600610620630640650660670680690700710720730740750760770780790800810820830840850860870880890900910920930940950960970980990100010101020103010401050106010701080109011001110112011301140115011601170118011901200121012201230124012501260127012801290130013101320133013401350136013701380139014001410142014301440145014601470148014901500151015201530154015501560157015801590160016101620163016401650166016701680169017001710172017301740175017601770178017901800181018201830184018501860187018801890190019101920193019401950196019701980199020002010202020302040205020602070208020902100211021202130214021502160217021802190220022102220223022402250226022702280229023002310Tooltip
: Ø940 (743.84-2301)
: Ø940 (743.84-2301)

Grafik kartı

Acer Swift 3 SF313-52-52AS'de, Intel Iris Plus Graphics G4 dahili grafik birimi görüntü içeriğinin görüntülenmesiyle ilgilenir. Burada kullanılan RAM'in çift kanallı konfigürasyonundan faydalanır ve 3DMark kriterlerinde ortalamanın biraz üzerinde sonuçlar elde eder; bu nedenle, örneğin, basit görüntü düzenleme görevleri sorunsuz bir şekilde gerçekleştirilebilir. Testlerimizde diğer grafik kartlarının performansı GPU Benchmark makalemizde bulunabilir.

3DMark 11 - 1280x720 Performance GPU
Microsoft Surface Laptop 3 13 Core i5-1035G7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i5-1035G7
4279 Points ∼100% +52%
Lenovo IdeaPad S540-13API
AMD Radeon RX Vega 8, AMD Ryzen 5 3550H
4164 Points ∼97% +48%
Acer Swift 3 SF313-52-71Y7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
4138 Points ∼97% +47%
Acer Swift 3 SF313-52-52AS
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
2809 Points ∼66%
Average Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
  (1941 - 3228, n=4)
2800 Points ∼65% 0%
HP ProBook 430 G7-8VU53EA
Intel UHD Graphics 620, Intel Core i7-10510U
1836 Points ∼43% -35%
Average of class Subnotebook
  (230 - 11501, n=401)
1476 Points ∼34% -47%
3DMark - 1920x1080 Fire Strike Graphics
Acer Swift 3 SF313-52-71Y7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
2743 Points ∼100% +37%
Microsoft Surface Laptop 3 13 Core i5-1035G7
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i5-1035G7
2692 Points ∼98% +35%
Lenovo IdeaPad S540-13API
AMD Radeon RX Vega 8, AMD Ryzen 5 3550H
2594 Points ∼95% +30%
Acer Swift 3 SF313-52-52AS
Intel Iris Plus Graphics G4 (Ice Lake 48 EU), Intel Core i5-1035G4
1995 Points ∼73%
Average Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
  (922 - 2230, n=4)
1839 Points ∼67% -8%
Average of class Subnotebook
  (222 - 8093, n=279)
1174 Points ∼43% -41%
HP ProBook 430 G7-8VU53EA
Intel UHD Graphics 620, Intel Core i7-10510U
1115 Points ∼41% -44%
3DMark 11 Performance
3001 puan
3DMark Fire Strike Score
1820 puan
Yardım

Oyun performansı

Intel Iris Plus Graphics G4 dahili grafik birimi, yalnızca eski grafiklere veya grafik performansına olan talebi düşük olan oyunlara uygundur. Dota 2 Reborn başlığını test ettik ve orta grafik ayarlarında bile pürüzsüz kare hızları göstermeye devam ederken, daha zorlu X-Plane 11.11 sadece düşük ayarlarda biraz sorunsuz bir şekilde gerçekleştirilebilir. Intel Iris Plus Graphics G4 için beklenen performans çeşitli oyunlar GPU Oyunları makalemizde bulunabilir.

Dota 2 Reborn
1920x1080 high (2/3)
Lenovo IdeaPad S540-13API
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8
41.2 (min: 37.9) fps ∼100%
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
32.8 (min: 26.7) fps ∼80%
Average of class Subnotebook
  (6.5 - 107, n=51)
30.7 fps ∼75%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U, Intel UHD Graphics 620
18.1 (min: 17) fps ∼44%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U, Intel UHD Graphics 620
17.7 (min: 16.8) fps ∼43%
Average Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
  (12.4 - 14.7, n=2)
13.6 fps ∼33%
1366x768 med (1/3)
Lenovo IdeaPad S540-13API
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8
66 (min: 60.2) fps ∼100% +59%
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
52.7 (min: 39.4) fps ∼80% +27%
Average of class Subnotebook
  (14.3 - 112, n=53)
50.9 fps ∼77% +22%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U, Intel UHD Graphics 620
41.6 (min: 36.7) fps ∼63% 0%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U, Intel UHD Graphics 620
41.5 (min: 33.2) fps ∼63% 0%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
41.6 (min: 34.2) fps ∼63%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
41.6 (min: 34.2) fps ∼63% 0%
Average Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
  (23.4 - 41.6, n=4)
35.2 fps ∼53% -15%
1280x720 min (0/3) fastest
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
82.7 (min: 73.4) fps ∼100% +19%
Lenovo IdeaPad S540-13API
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8
75 (min: 64.4) fps ∼91% +8%
Average Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
  (48.2 - 108, n=4)
73.7 fps ∼89% +6%
Average of class Subnotebook
  (15.9 - 118, n=53)
70.7 fps ∼85% +2%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U, Intel UHD Graphics 620
70.2 (min: 63) fps ∼85% +1%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U, Intel UHD Graphics 620
68.6 (min: 61.1) fps ∼83% -1%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
69.3 (min: 60.5) fps ∼84%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
69.3 (min: 60.5) fps ∼84% 0%
X-Plane 11.11
1920x1080 high (fps_test=3)
Average of class Subnotebook
  (3.09 - 60.5, n=37)
18.7 fps ∼100% +42%
Lenovo IdeaPad S540-13API
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8
17.1 fps ∼91% +30%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
13.2 fps ∼71%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
13.2 fps ∼71% 0%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U, Intel UHD Graphics 620
12.8 fps ∼68% -3%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U, Intel UHD Graphics 620
12.8 fps ∼68% -3%
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
12.1 fps ∼65% -8%
Average Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
  (9.16 - 13.2, n=3)
11.9 fps ∼64% -10%
1920x1080 med (fps_test=2)
Average of class Subnotebook
  (3.42 - 71.5, n=40)
20.3 fps ∼100% +43%
Lenovo IdeaPad S540-13API
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8
19.6 fps ∼97% +38%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U, Intel UHD Graphics 620
14.5 fps ∼71% +2%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U, Intel UHD Graphics 620
14.1 fps ∼69% -1%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
14.2 fps ∼70%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
14.2 fps ∼70% 0%
Average Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
  (9.32 - 14.2, n=3)
12.6 fps ∼62% -11%
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
12.5 fps ∼62% -12%
1280x720 low (fps_test=1)
Acer Swift 3 SF313-52-71Y7
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
28.2 fps ∼100% +7%
Average of class Subnotebook
  (5.04 - 79, n=42)
27.6 fps ∼98% +5%
Lenovo IdeaPad S540-13API
AMD Ryzen 5 3550H, AMD Radeon RX Vega 8
26.3 fps ∼93% 0%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
26.3 fps ∼93%
Acer Swift 3 SF313-52-52AS
Intel Core i5-1035G4, Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
26.3 fps ∼93% 0%
Average Intel Iris Plus Graphics G4 (Ice Lake 48 EU)
  (17.8 - 26.3, n=3)
23.5 fps ∼83% -11%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U, Intel UHD Graphics 620
21.6 fps ∼77% -18%
HP ProBook 430 G7-8VU53EA
Intel Core i7-10510U, Intel UHD Graphics 620
12.8 fps ∼45% -51%
düşük orta yüksek ultra
Dota 2 Reborn (2015) 69.3 41.6 19.6 fps
X-Plane 11.11 (2018) 26.3 14.2 13.2 fps

Emisyonlar ve enerji - Daha az performansla daha uzun pil ömrü

Gürültü emisyonları

Noise
Noise

Acer Swift 3 SF313-52-52AS çoğunlukla günlük kullanımda sessizdir. Basit ofis uygulamaları ve internet tarayıcısı çalıştırılırsa, fanlar çok nadiren başlar. Yük altında sürekli olarak çalışırlar ve duyulabilir ancak rahatsız edici olmayan düzgün bir ses üretir.

Ses yüksekliği

Boşta
31.2 / 31.2 / 31.2 dB
Çalışırken
33.2 / 34.9 dB
  red to green bar


30 dB
sessiz
40 dB(A)
duyulabilirlik
50 dB(A)
gürültülü

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm uzaklık)   environment noise: 31.2 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.335.232.935.131.32532.733.932.329.932.73132.334.132.933.132.34030.430.330.629.130.45030.931.930.33030.96327.829.129.728.527.88027.628.428.228.127.610027.126.926.927.427.112526.226.326.125.826.21602525.124.425.12520024.624.924.22424.62502524.223.4232531523.622.621.82223.640022.421.92121.722.45002221.421.120.82263021.220.619.820.121.280022.321.419.21922.3100022.921.11918.722.9125022.921.218.918.522.9160024.622.418.318.324.6200025.322.418.318.325.3250025.923.118.318.525.9315022.720.318.518.522.7400020.620.118.718.820.6500020.319.71918.820.3630019.719.319.118.919.7800019.419.119.118.919.41000019.219.219.518.919.212500191919.618.8191600019.11919.118.819.1SPL34.933.231.331.234.9N2.21.91.61.62.2median 22.7median 21.4median 19.2median 18.9median 22.7Delta21.921.52hearing rangehide median Fan NoiseAcer Swift 3 SF313-52-52AS

Sıcaklık

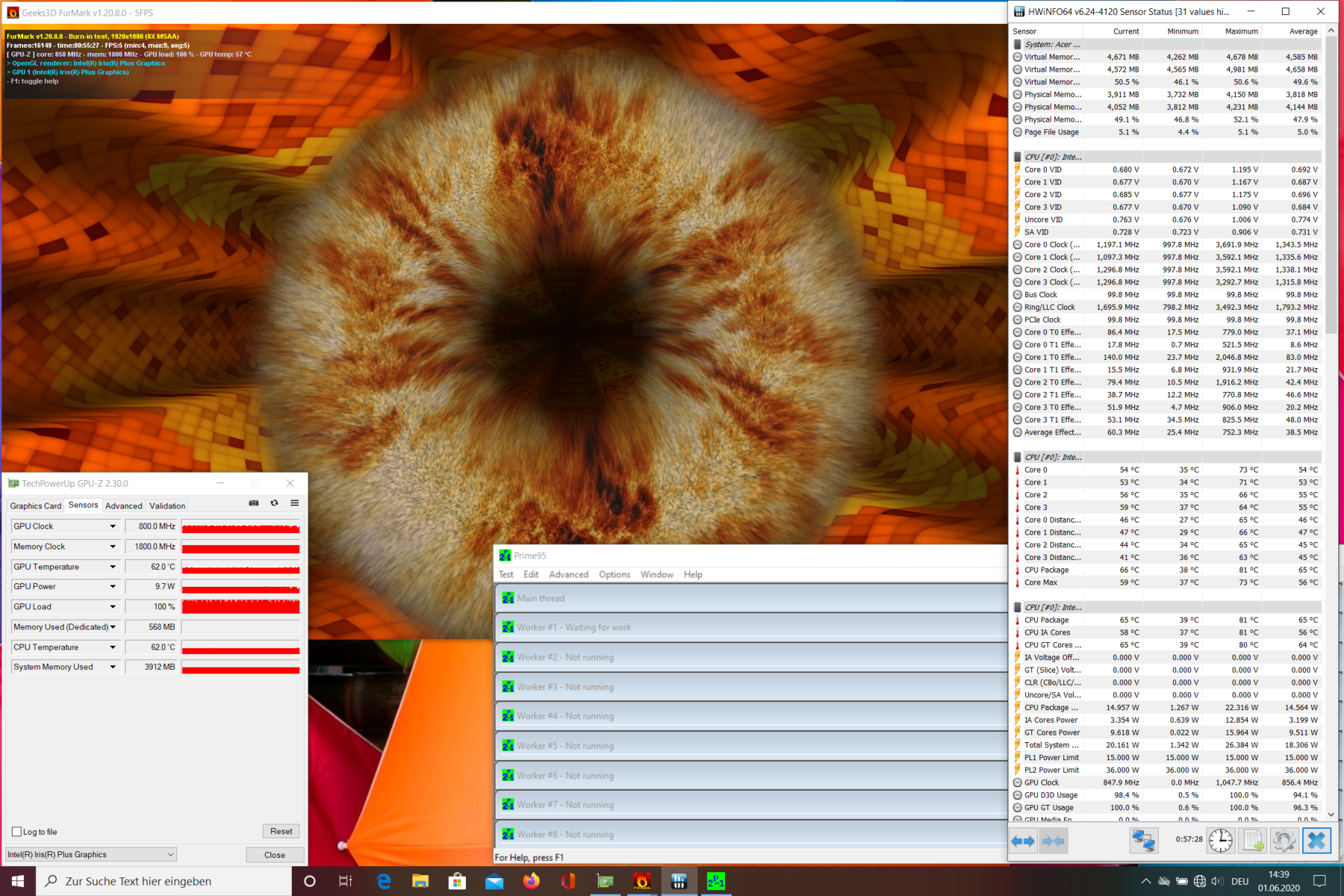

Stress test
Stress test

Testimizde Acer Swift 3 SF313'ün yüzey sıcaklıkları 36,4 ° C'ye (~ 98 ° F) yükseldi; bu nedenle, örneğin, kucağınıza yerleştirmek için asla fazla ısınmamıştır. Yaklaşık bir saatlik stres testimiz sırasında içerideki sıcaklıklar 73 ° C'ye (~ 163 ° F) yükseldi. Saat hızları, taban hızın üzerinde ortalama 1.3 GHz idi. Sonuç olarak, kullanıcılar sıcaklıkların çok yüksek olması nedeniyle kısıtlamalar beklememelidir.

Maksimum yük
 33.1 °C34.7 °C32.3 °C
 32.5 °C34.1 °C29.8 °C
 28.2 °C29.2 °C27.5 °C
Maksimum: 34.7 °C
Ortalama: 31.3 °C
36.4 °C36.3 °C35.7 °C
29.9 °C33.4 °C33 °C
29.1 °C29.9 °C30.3 °C
Maksimum: 36.4 °C
Ortalama: 32.7 °C
Güç kaynağı  37.7 °C | Oda sıcaklığı 23.6 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 31.3 °C / 88 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 34.7 °C / 94 F, compared to the average of 35.7 °C / 96 F, ranging from 22 to 57 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 36.4 °C / 98 F, compared to the average of 39.7 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25.9 °C / 79 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.2 °C / 84.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.5 °C / 83.3 F (-0.7 °C / -1.3 F).
Heat map in idle usage - Top
Heat map in idle usage - Top
Heat map in idle usage - Bottom
Heat map in idle usage - Bottom
Heat map under load - Top
Heat map under load - Top
Heat map under load - Bottom
Heat map under load - Bottom

Hoparlörler

Speakers
Speakers

Acer Swift 3'teki hoparlörler orta ses seviyesi ve daha yüksek ses aralıklarına ayarlanmış bir ses spektrumu sunar. Bu, örneğin konuşma çoğaltması için yeterli olmasını sağlar, ancak medya içeriğinin uzun süreli tüketimi için daha az uygundur.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.135.134.12538.229.938.23151.933.151.9403429.1345031.53031.56329.828.529.88028.528.128.510027.927.427.91252925.82916030.125.130.120033.72433.725042.22342.231547.22247.24005221.7525005520.85563056.820.156.880059.71959.710005318.753125061.718.561.7160069.518.369.5200070.718.370.7250070.318.570.331506818.568400071.318.871.3500072.418.872.4630073.118.973.1800076.318.976.31000077.118.977.11250075.518.875.51600072.718.872.7SPL83.131.283.1N491.649median 61.7median 18.9median 61.7Delta13.31.513.335.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.62.4hearing rangehide median Pink NoiseAcer Swift 3 SF313-52-52ASApple MacBook 12 (Early 2016) 1.1 GHz
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Acer Swift 3 SF313-52-52AS audio analysis

(±) | speaker loudness is average but good (77.13 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 26.7% lower than median
(±) | linearity of bass is average (7.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 6.1% lower than median
(±) | linearity of mids is average (10.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 11% higher than median
(+) | highs are linear (3.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (31.6% difference to median)
Compared to same class
» 90% of all tested devices in this class were better, 3% similar, 7% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 92% of all tested devices were better, 3% similar, 5% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 8%, average was 20%, worst was 50%
Compared to all devices tested
» 1% of all tested devices were better, 0% similar, 98% worse
» The best had a delta of 3%, average was 21%, worst was 65%

Enerji tüketimi

Acer Swift 3 SF313-52-52AS, yük altında maksimum 27,6 watt güç tüketimi ile oldukça enerji tasarruflu bir cihazdır. Birlikte verilen 64 watt'lık güç adaptörü, her zaman güvenli bir güç kaynağını garanti edebilmek için yeterli kapasiteye sahiptir.

Anlık tüketim
Kapalı / Bekleme modudarklight 0.4 / 0.98 Watt
Boştadarkmidlight 3 / 6.1 / 8.4 Watt
Çalışırken midlight 25.7 / 27.6 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy

Battery life

In our practical WLAN test, the laptop from Acer achieves a runtime of 10 h 48 m. In this way, it can make good use of its 54.4 Wh battery and reaches first place in our test field.

The battery is also fully charged again after about two hours with the included charger.

Battery Runtime - WiFi Websurfing 1.3
Acer Swift 3 SF313-52-52AS
i5-1035G4, Iris Plus Graphics G4 (Ice Lake 48 EU), 54.5 Wh
648 min ∼25%
Lenovo IdeaPad S540-13API
R5 3550H, Vega 8, 56 Wh
627 min ∼24% -3%
Acer Swift 3 SF313-52-71Y7
i7-1065G7, Iris Plus Graphics G7 (Ice Lake 64 EU), 54.5 Wh
620 min ∼24% -4%
Microsoft Surface Laptop 3 13 Core i5-1035G7
i5-1035G7, Iris Plus Graphics G7 (Ice Lake 64 EU), 45 Wh
495 min ∼19% -24%
Average of class Subnotebook
  (206 - 991, n=259)
492 min ∼19% -24%
HP ProBook 430 G7-8VU53EA
i7-10510U, UHD Graphics 620, 45 Wh
473 min ∼18% -27%
Batarya ömrü
NBC WiFi Websurfing Battery Test 1.3
10h 48min

Artılar

+ modern, ince tasarım
+ kararlı taban ve iyi malzeme seçimi
+ parlak 3: 2 IPS ekran
+ iyi renk alanı kapsamı
+ parmak izi tarayıcısı
+ DisplayPort destekli USB-C
+ Arkadan aydınlatmalı klavye
+ hızlı 512 GB SSD (NVMe)
+ iyi sistem performansı
+ yük altında çok sessiz
+ uzun pil ömrü

Eksiler

- RAM yükseltilemez
- artık LTE seçeneği yok
- SD kart okuyucusu eksik
- düşük PWM'li ekran
- Turbo'nun düşük kullanımı

Verdict - Good Acer laptop with minor weaknesses only

In review: Acer Swift 3 SF313-52-52AS. Test device provided by Acer Germany
In review: Acer Swift 3 SF313-52-52AS. Test device provided by Acer Germany

After the test, the Acer Swift 3 SF313 with the Intel Core i5 leaves a similar impression to the fully configured Acer Swift 3 SF313 that we reviewed before. The performance is good, and both the display and the case's workmanship are also convincing. We also like the increased WLAN performance very much, since the performance of the stronger model was still far behind the hardware's capabilities. The battery life also deserves a mention, as it increases by about half an hour with the Core i5.

Buyers of the Acer Swift 3 SF313-52-52AS have to live with a somewhat lower performance but pay less for it in return and get longer battery life.

However, the feeling remains that there should have been more inside here. The display in the 3:2 format certainly appeals to some prospective buyers with its high resolution, but it would have also delivered similarly good values with a matte surface. The CPU performance stays a bit below expectations as well but can guarantee a smooth system operation in combination with the other components. Users who are considering a purchase and aren't dependent on the Core i7's performance will, therefore, also get a good laptop with the Acer Swift 3 SF313-52-52AS but at a significantly lower price.

Acer Swift 3 SF313-52-52AS - 06/01/2020 v7
Mike Wobker

İşcilik
80 / 98 → 82%
Klavye
82%
Mouse
88%
Bağlanılabilirlik
53 / 75 → 71%
Ağırlık
73 / 20-75 → 96%
Batarya
89%
Görüntü
85%
Oyun performansı
55 / 78 → 71%
Uygulama performansı
83 / 85 → 97%
Isınma
95%
Ses
97%
Audio
59 / 91 → 65%
Camera
34 / 85 → 40%
Ortalama
75%
86%
Subnotebook - Ortalama Ağırlık
Please share our article, every link counts!
> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Acer Swift 3 SF313 laptop incelemesi: i5 ile iyi bir subnotebook
Mike Wobker, 2020-06-18 (Update: 2020-06-18)
Aslinur Sarica
Translator: Aslinur Sarica - Translator
