Asus ZenBook 15 UX534FTC incelemesi: Batarya ömrünün kralı

Compact and powerful. Asus, ince dizüstü bilgisayarı dört çekirdekli bir işlemci ve özel bir grafik kartı ile donattı. Özellikleri de mükemmel: mat IPS ekran, NVMe SSD, 16 GB RAM (çift kanal modunda), arkadan aydınlatmalı klavye. Bunun da ötesinde, olağanüstü pil ömrü paketin tamamını iyi bir şekilde tamamlar.

Asus ZenBook 15 UX534FTC, işlem gücü olmayan birkaç ince, kompakt, hafif 15,6 inç dizüstü bilgisayardan biridir. Kartta dört çekirdekli Core i7-10510U işlemci ve GeForce GTX 1650 Max-Q grafik kartı var. ZenBook 15 UX534FT'yi aynı ürün ailesinden ve fiziksel olarak selefi ZenBook 15 UX533FD'den zaten test ettik. Rakip cihazlar arasında Acer ConceptD 5 CN515-51, Dell XPS 15 7590 ve Apple MacBook Pro 16 bulunur. Son iki cihaz ZenBook'dan daha ağır ve daha pahalı olsa da, aynı müşteri grubuna yönlendirilirler. 15 model fiziksel olarak aynıdır, bu makaledeki şasiye, özelliklere, giriş cihazlarına veya hoparlörlere odaklanmayacağız. Bu bilgi ZenBook 15 UX533FD incelememizde bulunabilir.

Asus ZenBook 15 UX534FTC-A8190T (ZenBook 15 UX534 Seri)
Grafik kartı
NVIDIA GeForce GTX 1650 Max-Q - 4096 MB, Çekirdek: 1020-1245 MHz, Bellek: 1751 MHz, GDDR5, 128-bit memory interface, Nvidia 442.50, Optimus
Bellek
16384 MB
, LPDDR3-2133, dual-channel, soldered memory, no slots
Görüntü
15.6 inç 16:9, 1920 x 1080 pixel 141 PPI, BOE CQ NV156FHM-N63, IPS, parlak: hayır, 60 Hz
Anakart
Intel Comet Lake-U PCH-LP Premium
Harddisk
Samsung SSD PM981 MZVLB1T0HALR, 1024 GB
, 906 GB Boş
Ses kartı
Realtek ALC294 @ Intel Comet Point-LP PCH - cAVS
Bağlantılar
1 USB 3.0, 2 USB 3.1 Gen2, 1 HDMI, Ses çıkışları: combined audio jack, Kart okuyucular: SD, TPM 2.0
Network
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5
Boyut
yükseklik x genişlik x derinlik (mm): 18.9 x 354 x 220.4
Batarya
71 Wh, 4480 mAh Lithium-Ion, 15.4 V
İşletim sistemi
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD
Primary Camera: 0.9 MPix
Secondary Camera: IR camera
Ek özellikler
Hoparlörler: Stereo, Klavye: Chiclet, Klavye ışığı: evet, McAfee LiveSafe (trial version), MS Office 365 (trial version), 24 Ay Garanti
Ağırlık
1.55 kg, Güç kaynağı: 436 g
Fiyat
1599 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
85 %
03/2020
Asus ZenBook 15 UX534FTC-A8190T
i7-10510U, GeForce GTX 1650 Max-Q
1.6 kg18.9 mm15.6"1920x1080
83 %
Acer ConceptD 5 CN515-51-73Z7
i7-8705G, Vega M GL / 870
1.5 kg17 mm15.6"3840x2160
87 %
08/2019
Dell XPS 15 7590 9980HK GTX 1650
i9-9980HK, GeForce GTX 1650 Mobile
2 kg17 mm15.6"3840x2160
90 %
12/2019
Apple MacBook Pro 16 2019 i9 5500M
i9-9880H, Radeon Pro 5500M
2 kg16.2 mm16"3072x1920

Boyut Karşılaştırma

360 mm 242 mm 17 mm 1.5 kg358 mm 246 mm 16.2 mm 2 kg357 mm 235 mm 17 mm 2 kg354 mm 220.4 mm 18.9 mm 1.6 kg354 mm 220 mm 18 mm 1.6 kg
SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell XPS 15 7590 9980HK GTX 1650
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
172.4 MB/s ∼100% +132%
Asus ZenBook 15 UX534FTC-A8190T
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
74.3 MB/s ∼43%
Asus ZenBook 15 UX534FT-DB77
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
69.2 MB/s ∼40% -7%
Asus ZenBook 15 UX533FD
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
65.6 MB/s ∼38% -12%
Average of class Multimedia
  (11.2 - 190, n=195)
59.2 MB/s ∼34% -20%
Acer ConceptD 5 CN515-51-73Z7
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
21.7 MB/s ∼13% -71%
maximum AS SSD Seq Read Test (1GB)
Dell XPS 15 7590 9980HK GTX 1650
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
192.1 MB/s ∼100%
Asus ZenBook 15 UX534FT-DB77
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
82.2 MB/s ∼43%
Asus ZenBook 15 UX533FD
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
78 MB/s ∼41%
Average of class Multimedia
  (10.2 - 253, n=191)
74.8 MB/s ∼39%
Acer ConceptD 5 CN515-51-73Z7
  (Toshiba Exceria Pro SDXC 64 GB UHS-II)
25.7 MB/s ∼13%
Networking
iperf3 Client (receive) TCP 1 m 4M x10
Asus ZenBook 15 UX534FTC-A8190T
Intel Wi-Fi 6 AX201
902 (min: 707, max: 955) MBit/s ∼100%
Apple MacBook Pro 16 2019 i9 5500M
Broadcom 802.11ac
817 (min: 806, max: 821) MBit/s ∼91% -9%
Asus ZenBook 15 UX534FT-DB77
Intel Wireless-AC 9560
696 MBit/s ∼77% -23%
Dell XPS 15 7590 9980HK GTX 1650
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
674 MBit/s ∼75% -25%
Asus ZenBook 15 UX533FD
Intel Wireless-AC 9560
651 (min: 547, max: 681) MBit/s ∼72% -28%
Average of class Multimedia
  (44 - 1431, n=163)
540 MBit/s ∼60% -40%
Acer ConceptD 5 CN515-51-73Z7
Intel Wireless-AC 7265
388 (min: 364, max: 411) MBit/s ∼43% -57%
iperf3 Client (transmit) TCP 1 m 4M x10
Asus ZenBook 15 UX534FTC-A8190T
Intel Wi-Fi 6 AX201
660 (min: 640, max: 679) MBit/s ∼100%
Asus ZenBook 15 UX533FD
Intel Wireless-AC 9560
644 (min: 499, max: 661) MBit/s ∼98% -2%
Dell XPS 15 7590 9980HK GTX 1650
Killer Wi-Fi 6 AX1650x Wireless Network Adapter (200NGW)
644 MBit/s ∼98% -2%
Asus ZenBook 15 UX534FT-DB77
Intel Wireless-AC 9560
621 MBit/s ∼94% -6%
Apple MacBook Pro 16 2019 i9 5500M
Broadcom 802.11ac
581 (min: 533, max: 616) MBit/s ∼88% -12%
Acer ConceptD 5 CN515-51-73Z7
Intel Wireless-AC 7265
523 (min: 471, max: 572) MBit/s ∼79% -21%
Average of class Multimedia
  (46.1 - 1563, n=162)
519 MBit/s ∼79% -21%
050100150200250300350400450500550600650700750800850900950Tooltip
Asus ZenBook 15 UX534FTC-A8190T Intel Wi-Fi 6 AX201; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø902 (707-955)
Acer ConceptD 5 CN515-51-73Z7 Intel Wireless-AC 7265; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø387 (364-411)
Asus ZenBook 15 UX533FD Intel Wireless-AC 9560; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø650 (547-681)
Apple MacBook Pro 16 2019 i9 5500M Broadcom 802.11ac; iperf3 Client (receive) TCP 1 m 4M x10; iperf 3.1.3: Ø816 (806-821)
Asus ZenBook 15 UX534FTC-A8190T Intel Wi-Fi 6 AX201; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø659 (640-679)
Acer ConceptD 5 CN515-51-73Z7 Intel Wireless-AC 7265; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø524 (471-572)
Asus ZenBook 15 UX533FD Intel Wireless-AC 9560; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø643 (499-661)
Apple MacBook Pro 16 2019 i9 5500M Broadcom 802.11ac; iperf3 Client (transmit) TCP 1 m 4M x10; iperf 3.1.3: Ø582 (533-616)

Web kamerası

Entegre web kamerası maksimum 1280x720 piksel çözünürlükte fotoğraf çeker. Sonuçlar biraz soluk görünüyor. Renk doğruluğu da ciddi şekilde eksik. 18.44 deltaE değeri, işareti (3'ten küçük deltaE) oldukça büyük bir farkla kaçırır.

ColorChecker
22 ∆E
19.1 ∆E
23.1 ∆E
19.8 ∆E
24.5 ∆E
19.8 ∆E
15.5 ∆E
31.5 ∆E
18.8 ∆E
22.6 ∆E
16.9 ∆E
16.2 ∆E
32.2 ∆E
20.4 ∆E
21.9 ∆E
13.2 ∆E
22.6 ∆E
24.5 ∆E
2.3 ∆E
11.8 ∆E
19.5 ∆E
13.6 ∆E
17.1 ∆E
2.4 ∆E
ColorChecker Asus ZenBook 15 UX534FTC-A8190T: 18.81 ∆E min: 2.33 - max: 32.21 ∆E
No screenshots found ()

Ekran - UX534FTC için Mat IPS Paneli

ZenBook 15'in mat 15.6 inçlik ekranı, 1920x1080 piksel doğal çözünürlüğe sahiptir. Kontrast oranı (1.424: 1) iyi olsa da, parlaklık (279.7 cd / m²) istenen bir şey bırakıyor. Bu fiyat aralığındaki bir dizüstü bilgisayar için, daha parlak bir ekran mantıksız bir talep olmaktan uzaktır. 300 cd / m² üzerindeki değerleri iyi değerlendiriyoruz. Pozitif: Ekranda PWM titriyor.

Subpixel array
Subpixel array
Backlight bleeding
Backlight bleeding
265
cd/m²
284
cd/m²
286
cd/m²
266
cd/m²
299
cd/m²
277
cd/m²
276
cd/m²
298
cd/m²
266
cd/m²
Parlaklığın yayılımı
BOE CQ NV156FHM-N63
X-Rite i1Pro 2
Maksimum: 299 cd/m² Ortalama: 279.7 cd/m² Minimum: 15.8 cd/m²
Aydınlatma: 89 %
Batarya modunda parlaklık: 300 cd/m²
Kontrast: 1424:1 (Siyah: 0.21 cd/m²)
ΔE Color 4.76 | 0.6-29.43 Ø5.9
ΔE Greyscale 3.53 | 0.64-98 Ø6.1
86% sRGB (Argyll 3D) 56% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.3
Asus ZenBook 15 UX534FTC-A8190T
IPS, 1920x1080, 15.6
Asus ZenBook 15 UX534FT-DB77
IPS, 1920x1080, 15.6
Asus ZenBook 15 UX533FD
IPS, 1920x1080, 15.6
Acer ConceptD 5 CN515-51-73Z7
LTPS IPS LED, 3840x2160, 15.6
Dell XPS 15 7590 9980HK GTX 1650
OLED, 3840x2160, 15.6
Apple MacBook Pro 16 2019 i9 5500M
IPS, 3072x1920, 16
Response Times
2%
-8%
-33%
94%
-13%
Response Time Grey 50% / Grey 80% *
45 (24, 21)
41.2 (22, 19.2)
8%
45 (21, 24)
-0%
63 (32, 31)
-40%
2.3 (1.1, 1.2)
95%
52.4 (23.9, 28.5)
-16%
Response Time Black / White *
32 (18, 14)
33.2 (19.6, 13.6)
-4%
37 (23, 14)
-16%
40 (24, 16)
-25%
2.4 (1.1, 1.3)
92%
34.9 (17.8, 17.1)
-9%
PWM Frequency
59.52 (100)
131700
Screen
-14%
-6%
5%
15%
27%
Brightness middle
299
312.6
5%
311
4%
350
17%
421.2
41%
519
74%
Brightness
280
290
4%
303
8%
329
18%
417
49%
477
70%
Brightness Distribution
89
85
-4%
81
-9%
86
-3%
94
6%
86
-3%
Black Level *
0.21
0.31
-48%
0.24
-14%
0.265
-26%
0.39
-86%
Contrast
1424
1008
-29%
1296
-9%
1321
-7%
1331
-7%
Colorchecker DeltaE2000 *
4.76
5.78
-21%
5.1
-7%
5.08
-7%
6.06
-27%
2.28
52%
Colorchecker DeltaE2000 max. *
9
8.86
2%
8.91
1%
10.25
-14%
11.89
-32%
6.54
27%
Greyscale DeltaE2000 *
3.53
5.4
-53%
4.93
-40%
3.62
-3%
2.8
21%
0.9
75%
Gamma
2.3 96%
2.21 100%
2.44 90%
2.27 97%
2.15 102%
2145 0%
CCT
7228 90%
7864 83%
7641 85%
6389 102%
6235 104%
6572 99%
Color Space (Percent of AdobeRGB 1998)
56
57.1
2%
58
4%
88
57%
81
45%
78
39%
Color Space (Percent of sRGB)
86
87.4
2%
88
2%
100
16%
99.6
16%
Colorchecker DeltaE2000 calibrated *
3.78
2.48
4.38
0.86
Total Average (Program / Settings)
-6% / -11%
-7% / -6%
-14% / -1%
55% / 31%
7% / 20%

* ... smaller is better

Ekran renkleri fabrika çıkışında oldukça doğru bir şekilde temsil eder. Bununla birlikte, deltaE-2000 renk sapması 4.76 ile işareti (3'ten küçük deltaE) kaçırır. Ekranda mavi renk tonu görülmüyor. Ekran ne AdobeRGB (% 56) ne de sRGB (% 86) renk alanını tam olarak kapsamıyor.

CalMAN - ColorChecker
CalMAN - ColorChecker
CalMAN - Grayscale
CalMAN - Grayscale
CalMAN - Saturation Sweeps
CalMAN - Saturation Sweeps
ZenBook vs. sRGB
ZenBook vs. sRGB
ZenBook vs. AdobeRGB
ZenBook vs. AdobeRGB

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
32 ms ... rise ↗ and fall ↘ combined↗ 18 ms rise
↘ 14 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 81 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.8 ms).
       Response Time 50% Grey to 80% Grey
45 ms ... rise ↗ and fall ↘ combined↗ 24 ms rise
↘ 21 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 69 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (39.3 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 50 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18176 (minimum: 5 - maximum: 2500000) Hz was measured.

Asus, ZenBook'u iyi görüş açılarına sahip bir IPS paneliyle donattı. Sonuç olarak, ekran herhangi bir konumdan okunabilir. Açık havada, güneş çok parlak parlamıyorsa ekran içeriği fark edilebilir.

The ZenBook outdoors (sunny weather; direct sunlight)
The ZenBook outdoors (sunny weather; direct sunlight)
The ZenBook outdoors (sunny weather; indirect sunlight from behind the screen)
The ZenBook outdoors (sunny weather; indirect sunlight from behind the screen)
Viewing angles
Viewing angles

Performans - Çok Performanslı Kompakt ZenBook

ZenBook 15 UX534FTC ile Asus, ofis uygulamaları, web uygulamaları ve daha fazlası için yeterli performansa sahip ince, kompakt 15,6 inç bir dizüstü bilgisayar teslim etti. Özel grafik yongası sayesinde oyun oynamak da mümkün. Test cihazımız yapılandırıldığı gibi yaklaşık 1.600 Euro (~ 1.787 $) karşılığında satın alınabilir. Diğer yapılandırmalar da mevcuttur.

CPU-Z
CPU-Z
CPU-Z
CPU-Z
GPU-Z
HWInfo
LatencyMon


İşlemci

ZenBook, dört çekirdekli Intel Core-i7-10510U CPU'ya sahiptir. ULV modeli Intel'in Comet Lake mimarisini temel alır. İşlemci 1.8 GHz temel saat hızında çalışıyor. Turbo Boost ile CPU, saat hızını 4,3 GHz (dört çekirdeğin tümü), 4,8 GHz (iki çekirdek) veya 4,9 GHz (tek çekirdekli) arttırabilir. Cinebench çok yönlü testlerinde CPU geçici olarak 3,8 ila 4,3 GHz hızında çalışır . Ardından saat hızı 3,8 GHz ila 4 GHz aralığına düşer. Tek iş parçacığı testleri sırasında saat hızı 4,3 GHz ila 4,6 GHz arasında değişir. Yukarıda belirtilen değerler, şebeke elektriğindeki davranışa karşılık gelir. Pil modunda, 1,8 GHz ila 2,2 GHz (çok iş parçacıklı) ve 1,4 GHz - 1,8 GHz (tek iş parçacıklı) saat hızlarına ulaşılabilir.

Multithread (mains)
Multithread (mains)
Single-thread (mains)
Single-thread (mains)
Multithread (battery mode)
Multithread (battery mode)
Single-thread (battery mode)
Single-thread (battery mode)

Cinebench R15'in çok iş parçacıklı karşılaştırmasını en az 30 dakika boyunca bir döngüde çalıştırarak, dizüstü bilgisayar bir prize bağlıyken CPU'nun Turbo Boost özelliğinin sürekli etkin olup olmadığını değerlendiririz. İlk puanlar üçüncü döngü tarafından düşer ve daha sonra nispeten tutarlı bir seviyede kalır. Bu sırada CPU Turbo Boost etkindir.

010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040105010601070108010901100111011201130114011501160117011801190120012101220123012401250126012701280129013001310132013301340135013601370138013901400141014201430144014501460147014801490150015101520153015401550156015701580159016001610Tooltip
Asus ZenBook 15 UX534FTC-A8190T Intel Core i7-10510U, Intel Core i7-10510U: Ø729 (708.72-835.15)
Asus ZenBook 15 UX534FT-DB77 Intel Core i7-8565U, Intel Core i7-8565U: Ø669 (651.9-718.51)
Acer ConceptD 5 CN515-51-73Z7 Intel Core i7-8705G, Intel Core i7-8705G: Ø767 (760-794)
Dell XPS 15 7590 9980HK GTX 1650 Intel Core i9-9980HK, Intel Core i9-9980HK: Ø1314 (1090.6-1600.38)
Asus ZenBook 15 UX533FD Intel Core i7-8565U, Intel Core i7-8565U: Ø704 (683.27-815.1)
Apple MacBook Pro 16 2019 i9 5500M Intel Core i9-9880H, Intel Core i9-9880H; macOS 10.15.1: Ø1407 (1386-1435)
Apple MacBook Pro 16 2019 i9 5500M Intel Core i9-9880H, Intel Core i9-9880H; Win 10: Ø1296 (1268.87-1362.31)

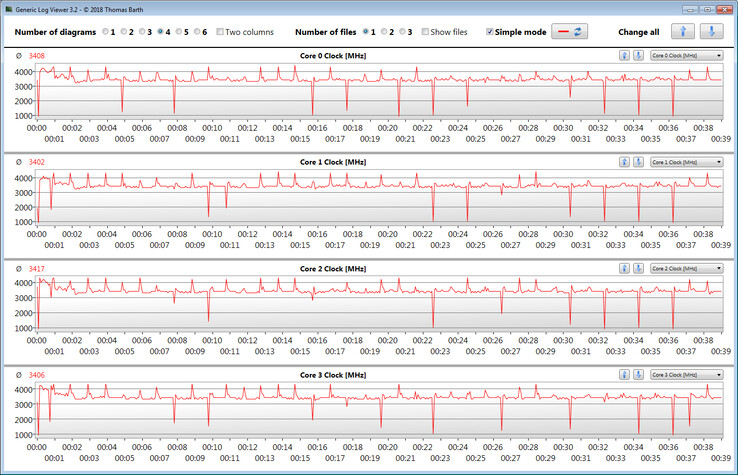

CPU clock rate during the CB15 loop
CPU clock rate during the CB15 loop
Cinebench R10 Rendering Single 32Bit
7268
Cinebench R10 Rendering Multiple CPUs 32Bit
25882
Cinebench R10 Shading 32Bit
6814
Cinebench R15 CPU Single 64Bit
186 Points
Cinebench R15 CPU Multi 64Bit
835 Points
Cinebench R15 OpenGL 64Bit
106.13 fps
Cinebench R15 Ref. Match 64Bit
99.6 %
Yardım
Cinebench R15
CPU Single 64Bit
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK
201 Points ∼100% +8%
Asus ZenBook 15 UX533FD
Intel Core i7-8565U
191 Points ∼95% +3%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U
186 Points ∼93%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H (macOS 10.15.1)
184 Points ∼92% -1%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
184 Points ∼92% -1%
Average Intel Core i7-10510U
  (141 - 202, n=22)
182 Points ∼91% -2%
Asus ZenBook 15 UX534FT-DB77
Intel Core i7-8565U
181 Points ∼90% -3%
Acer ConceptD 5 CN515-51-73Z7
Intel Core i7-8705G
176 Points ∼88% -5%
Average of class Multimedia
  (36 - 201, n=398)
131 Points ∼65% -30%
CPU Multi 64Bit
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H (macOS 10.15.1)
1435 (min: 1401, max: 1435) Points ∼100% +72%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H (Win 10)
1362 (min: 1268.87, max: 1362.31) Points ∼95% +63%
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK
1305 (min: 1090.6, max: 1369.3, 99th percentile: 1367.66) Points ∼91% +56%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U
835 Points ∼58%
Asus ZenBook 15 UX533FD
Intel Core i7-8565U
815 Points ∼57% -2%
Acer ConceptD 5 CN515-51-73Z7
Intel Core i7-8705G
810 (min: 760, max: 810) Points ∼56% -3%
Asus ZenBook 15 UX534FT-DB77
Intel Core i7-8565U
683 Points ∼48% -18%
Average Intel Core i7-10510U
  (458 - 856, n=24)
682 Points ∼48% -18%
Average of class Multimedia
  (72.4 - 1550, n=415)
510 Points ∼36% -39%
Cinebench R10
Rendering Single 32Bit
Average Intel Core i7-10510U
  (7268 - 7748, n=2)
7508 Points ∼100% +3%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U
7268 Points ∼97%
Average of class Multimedia
  (665 - 8906, n=767)
3591 Points ∼48% -51%
Asus ZenBook 15 UX533FD
Intel Core i7-8565U
2682 Points ∼36% -63%
Rendering Multiple CPUs 32Bit
Average Intel Core i7-10510U
  (25882 - 26265, n=2)
26074 Points ∼100% +1%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U
25882 Points ∼99%
Asus ZenBook 15 UX533FD
Intel Core i7-8565U
23118 Points ∼89% -11%
Average of class Multimedia
  (1568 - 34776, n=764)
9627 Points ∼37% -63%
Cinebench R20
CPU (Single Core)
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U
461 Points ∼100%
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK
457 Points ∼99% -1%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
453 Points ∼98% -2%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H (Win 10)
442 Points ∼96% -4%
Asus ZenBook 15 UX534FT-DB77
Intel Core i7-8565U
444 Points ∼96% -4%
Average Intel Core i7-10510U
  (362 - 497, n=17)
439 Points ∼95% -5%
Acer ConceptD 5 CN515-51-73Z7
Intel Core i7-8705G
424 Points ∼92% -8%
Average of class Multimedia
  (62.6 - 481, n=40)
388 Points ∼84% -16%
CPU (Multi Core)
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H
3422 Points ∼100% +87%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H (Win 10)
3057 Points ∼89% +67%
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK
3293 Points ∼96% +80%
Acer ConceptD 5 CN515-51-73Z7
Intel Core i7-8705G
1921 Points ∼56% +5%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U
1827 Points ∼53%
Average of class Multimedia
  (148 - 3422, n=41)
1685 Points ∼49% -8%
Asus ZenBook 15 UX534FT-DB77
Intel Core i7-8565U
1645 Points ∼48% -10%
Average Intel Core i7-10510U
  (1015 - 1897, n=17)
1432 Points ∼42% -22%
Geekbench 3
32 Bit Multi-Core Score
Average Intel Core i7-10510U
  (16742 - 16838, n=2)
16790 Points ∼100% 0%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U
16742 Points ∼100%
Average of class Multimedia
  (2385 - 20831, n=110)
7682 Points ∼46% -54%
32 Bit Single-Core Score
Average Intel Core i7-10510U
  (4369 - 4485, n=2)
4427 Points ∼100% +1%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U
4369 Points ∼99%
Average of class Multimedia
  (445 - 4369, n=110)
2808 Points ∼63% -36%
Geekbench 4.4
64 Bit Multi-Core Score
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H (macOS 10.15.1)
29077 Points ∼100% +66%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H (Win 10)
28192 Points ∼97% +61%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U
17527 Points ∼60%
Average Intel Core i7-10510U
  (13116 - 18364, n=13)
16338 Points ∼56% -7%
Average of class Multimedia
  (1707 - 29077, n=47)
13590 Points ∼47% -22%
64 Bit Single-Core Score
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H (macOS 10.15.1)
5605 Points ∼100% +8%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H (Win 10)
5166 Points ∼92% -1%
Average Intel Core i7-10510U
  (4976 - 5832, n=13)
5415 Points ∼97% +4%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U
5194 Points ∼93%
Average of class Multimedia
  (1024 - 5605, n=47)
4271 Points ∼76% -18%
Geekbench 5
64 Bit Multi-Core Score
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H (Win 10)
7161 Points ∼100% +62%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H (mac OS 15.1.0)
6841 Points ∼96% +55%
Average of class Multimedia
  (1089 - 7267, n=16)
4599 Points ∼64% +4%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U
4421 Points ∼62%
Average Intel Core i7-10510U
  (3143 - 4476, n=11)
3731 Points ∼52% -16%
64 Bit Single-Core Score
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H (mac OS 15.1.0)
1239 Points ∼100% +4%
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H (Win 10)
1186 Points ∼96% 0%
Average Intel Core i7-10510U
  (1118 - 1278, n=11)
1209 Points ∼98% +2%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U
1187 Points ∼96%
Average of class Multimedia
  (378 - 1239, n=16)
1081 Points ∼87% -9%
Mozilla Kraken 1.1 - Total Score
Average of class Multimedia
  (598 - 23050, n=203)
1789 ms * ∼100% -81%
Acer ConceptD 5 CN515-51-73Z7
Intel Core i7-8705G (Edge)
1122.9 ms * ∼63% -14%
Asus ZenBook 15 UX534FT-DB77
Intel Core i7-8565U (Edge 44.17763.1.0)
1072.7 ms * ∼60% -9%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U (Edge 44)
985.7 ms * ∼55%
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK (Edge 44.18362.267.0)
940.5 ms * ∼53% +5%
Average Intel Core i7-10510U
  (742 - 1184, n=16)
929 ms * ∼52% +6%
Asus ZenBook 15 UX533FD
Intel Core i7-8565U
751.5 ms * ∼42% +24%
Octane V2 - Total Score
Asus ZenBook 15 UX533FD
Intel Core i7-8565U
43048 Points ∼100% +17%
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK (Edge 44.18362.267.0)
40981 Points ∼95% +12%
Average Intel Core i7-10510U
  (31505 - 41818, n=11)
37432 Points ∼87% +2%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U (Edge 44)
36731 Points ∼85%
Asus ZenBook 15 UX534FT-DB77
Intel Core i7-8565U (Edge 44.17763.1.0)
35259 Points ∼82% -4%
Acer ConceptD 5 CN515-51-73Z7
Intel Core i7-8705G (Edge)
33885 Points ∼79% -8%
Average of class Multimedia
  (1895 - 52403, n=191)
26751 Points ∼62% -27%
JetStream 1.1 - Total Score
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK (Edge 44.18362.267.0)
284.04 Points ∼100% +5%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U (Edge 44)
270.32 Points ∼95%
Average Intel Core i7-10510U
  (143 - 296, n=13)
249 Points ∼88% -8%
Asus ZenBook 15 UX534FT-DB77
Intel Core i7-8565U (Edge 44.17763.1.0)
246.77 Points ∼87% -9%
Asus ZenBook 15 UX533FD
Intel Core i7-8565U
227.43 Points ∼80% -16%
Average of class Multimedia
  (36.1 - 352, n=164)
218 Points ∼77% -19%

* ... smaller is better

Sistem performansı

ZenBook'umuzla herhangi bir sorunla karşılaşmadık. Sistem duyarlı ve sorunsuz çalışıyor. İşlemci, çoğu kullanım durumunda yeterli olandan daha yüksek bir performans seviyesi sunar. Üstelik özel grafik kartı sayesinde oyun oynamak mümkün. Benzer şekilde, PCMark karşılaştırma sonuçları da iyidir.

PCMark 10
PCMark 10
PCMark 8 Home Score Accelerated v2
3761 puan
PCMark 8 Creative Score Accelerated v2
3959 puan
PCMark 8 Work Score Accelerated v2
5265 puan
Yardım
PCMark 10
Digital Content Creation
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 Mobile, i9-9980HK, Toshiba XG6 KXG60ZNV1T02
6110 Points ∼100% +61%
HP Spectre x360 15-df0126ng
GeForce GTX 1050 Ti Max-Q, i7-8750H, Toshiba XG5-P KXG50PNV2T04
4884 Points ∼80% +29%
Acer ConceptD 5 CN515-51-73Z7
Vega M GL / 870, i7-8705G, WDC PC SN720 SDAPNTW-512G
4833 Points ∼79% +28%
Asus ZenBook 15 UX534FT-DB77
GeForce GTX 1650 Max-Q, i7-8565U, Samsung SSD PM981 MZVLB1T0HALR
4680 Points ∼77% +24%
Asus ZenBook 15 UX533FD
GeForce GTX 1050 Max-Q, i7-8565U, WDC PC SN520 SDAPNUW-512G
4204 Points ∼69% +11%
Lenovo Yoga 730-15IKB
GeForce GTX 1050 Mobile, i5-8550U, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
4042 Points ∼66% +7%
Asus ZenBook 15 UX534FTC-A8190T
GeForce GTX 1650 Max-Q, i7-10510U, Samsung SSD PM981 MZVLB1T0HALR
3786 Points ∼62%
Average Intel Core i7-10510U, NVIDIA GeForce GTX 1650 Max-Q

3786 Points ∼62% 0%
Average of class Multimedia
  (1001 - 7161, n=125)
3747 Points ∼61% -1%
Productivity
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 Mobile, i9-9980HK, Toshiba XG6 KXG60ZNV1T02
7494 Points ∼100% +3%
Asus ZenBook 15 UX534FTC-A8190T
GeForce GTX 1650 Max-Q, i7-10510U, Samsung SSD PM981 MZVLB1T0HALR
7284 Points ∼97%
Average Intel Core i7-10510U, NVIDIA GeForce GTX 1650 Max-Q

7284 Points ∼97% 0%
Asus ZenBook 15 UX534FT-DB77
GeForce GTX 1650 Max-Q, i7-8565U, Samsung SSD PM981 MZVLB1T0HALR
7201 Points ∼96% -1%
Asus ZenBook 15 UX533FD
GeForce GTX 1050 Max-Q, i7-8565U, WDC PC SN520 SDAPNUW-512G
6879 Points ∼92% -6%
Acer ConceptD 5 CN515-51-73Z7
Vega M GL / 870, i7-8705G, WDC PC SN720 SDAPNTW-512G
6815 Points ∼91% -6%
HP Spectre x360 15-df0126ng
GeForce GTX 1050 Ti Max-Q, i7-8750H, Toshiba XG5-P KXG50PNV2T04
6722 Points ∼90% -8%
Lenovo Yoga 730-15IKB
GeForce GTX 1050 Mobile, i5-8550U, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
6678 Points ∼89% -8%
Average of class Multimedia
  (1407 - 8020, n=126)
6298 Points ∼84% -14%
Essentials
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 Mobile, i9-9980HK, Toshiba XG6 KXG60ZNV1T02
9701 Points ∼100% +9%
Asus ZenBook 15 UX534FT-DB77
GeForce GTX 1650 Max-Q, i7-8565U, Samsung SSD PM981 MZVLB1T0HALR
9067 Points ∼93% +2%
Asus ZenBook 15 UX534FTC-A8190T
GeForce GTX 1650 Max-Q, i7-10510U, Samsung SSD PM981 MZVLB1T0HALR
8911 Points ∼92%
Average Intel Core i7-10510U, NVIDIA GeForce GTX 1650 Max-Q

8911 Points ∼92% 0%
Lenovo Yoga 730-15IKB
GeForce GTX 1050 Mobile, i5-8550U, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
8258 Points ∼85% -7%
HP Spectre x360 15-df0126ng
GeForce GTX 1050 Ti Max-Q, i7-8750H, Toshiba XG5-P KXG50PNV2T04
8237 Points ∼85% -8%
Asus ZenBook 15 UX533FD
GeForce GTX 1050 Max-Q, i7-8565U, WDC PC SN520 SDAPNUW-512G
8233 Points ∼85% -8%
Acer ConceptD 5 CN515-51-73Z7
Vega M GL / 870, i7-8705G, WDC PC SN720 SDAPNTW-512G
7936 Points ∼82% -11%
Average of class Multimedia
  (2891 - 10539, n=126)
7747 Points ∼80% -13%
Score
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 Mobile, i9-9980HK, Toshiba XG6 KXG60ZNV1T02
5469 Points ∼100% +22%
Asus ZenBook 15 UX534FT-DB77
GeForce GTX 1650 Max-Q, i7-8565U, Samsung SSD PM981 MZVLB1T0HALR
4828 Points ∼88% +8%
HP Spectre x360 15-df0126ng
GeForce GTX 1050 Ti Max-Q, i7-8750H, Toshiba XG5-P KXG50PNV2T04
4636 Points ∼85% +3%
Acer ConceptD 5 CN515-51-73Z7
Vega M GL / 870, i7-8705G, WDC PC SN720 SDAPNTW-512G
4583 Points ∼84% +2%
Asus ZenBook 15 UX534FTC-A8190T
GeForce GTX 1650 Max-Q, i7-10510U, Samsung SSD PM981 MZVLB1T0HALR
4490 Points ∼82%
Average Intel Core i7-10510U, NVIDIA GeForce GTX 1650 Max-Q

4490 Points ∼82% 0%
Asus ZenBook 15 UX533FD
GeForce GTX 1050 Max-Q, i7-8565U, WDC PC SN520 SDAPNUW-512G
4443 Points ∼81% -1%
Lenovo Yoga 730-15IKB
GeForce GTX 1050 Mobile, i5-8550U, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
4347 Points ∼79% -3%
Average of class Multimedia
  (1144 - 5500, n=127)
4040 Points ∼74% -10%
PCMark 8
Work Score Accelerated v2
Asus ZenBook 15 UX533FD
GeForce GTX 1050 Max-Q, i7-8565U, WDC PC SN520 SDAPNUW-512G
5381 Points ∼100% +2%
Asus ZenBook 15 UX534FTC-A8190T
GeForce GTX 1650 Max-Q, i7-10510U, Samsung SSD PM981 MZVLB1T0HALR
5265 Points ∼98%
Average Intel Core i7-10510U, NVIDIA GeForce GTX 1650 Max-Q

5265 Points ∼98% 0%
Asus ZenBook 15 UX534FT-DB77
GeForce GTX 1650 Max-Q, i7-8565U, Samsung SSD PM981 MZVLB1T0HALR
5132 Points ∼95% -3%
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 Mobile, i9-9980HK, Toshiba XG6 KXG60ZNV1T02
4762 Points ∼88% -10%
Lenovo Yoga 730-15IKB
GeForce GTX 1050 Mobile, i5-8550U, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
4382 Points ∼81% -17%
Acer ConceptD 5 CN515-51-73Z7
Vega M GL / 870, i7-8705G, WDC PC SN720 SDAPNTW-512G
4359 Points ∼81% -17%
Average of class Multimedia
  (2213 - 5651, n=300)
4328 Points ∼80% -18%
HP Spectre x360 15-df0126ng
GeForce GTX 1050 Ti Max-Q, i7-8750H, Toshiba XG5-P KXG50PNV2T04
4316 Points ∼80% -18%
Home Score Accelerated v2
Asus ZenBook 15 UX533FD
GeForce GTX 1050 Max-Q, i7-8565U, WDC PC SN520 SDAPNUW-512G
4052 Points ∼100% +8%
Dell XPS 15 7590 9980HK GTX 1650
GeForce GTX 1650 Mobile, i9-9980HK, Toshiba XG6 KXG60ZNV1T02
3799 Points ∼94% +1%
Asus ZenBook 15 UX534FT-DB77
GeForce GTX 1650 Max-Q, i7-8565U, Samsung SSD PM981 MZVLB1T0HALR
3764 Points ∼93% 0%
Asus ZenBook 15 UX534FTC-A8190T
GeForce GTX 1650 Max-Q, i7-10510U, Samsung SSD PM981 MZVLB1T0HALR
3761 Points ∼93%
Average Intel Core i7-10510U, NVIDIA GeForce GTX 1650 Max-Q

3761 Points ∼93% 0%
Acer ConceptD 5 CN515-51-73Z7
Vega M GL / 870, i7-8705G, WDC PC SN720 SDAPNTW-512G
3551 Points ∼88% -6%
Lenovo Yoga 730-15IKB
GeForce GTX 1050 Mobile, i5-8550U, SK Hynix PC401 512GB M.2 (HFS512GD9TNG)
3505 Points ∼87% -7%
HP Spectre x360 15-df0126ng
GeForce GTX 1050 Ti Max-Q, i7-8750H, Toshiba XG5-P KXG50PNV2T04
3494 Points ∼86% -7%
Average of class Multimedia
  (1371 - 4900, n=321)
3391 Points ∼84% -10%

Depolama Çözümü

Samsung'un 1 TB NVMe SSD'si (M.2-2280) sistem sürücüsü olarak işlev görür ve çok iyi aktarım hızları sunar. Bu dizüstü bilgisayarda ek sürücüler için yer yok.

An NVMe SSD serves as the system drive
An NVMe SSD serves as the system drive
Samsung SSD PM981 MZVLB1T0HALR
Sequential Read: 2428 MB/s
Sequential Write: 2160 MB/s
512K Read: 1697 MB/s
512K Write: 1745 MB/s
4K Read: 60.78 MB/s
4K Write: 139.4 MB/s
4K QD32 Read: 386.2 MB/s
4K QD32 Write: 426.6 MB/s
Asus ZenBook 15 UX534FTC-A8190T
Samsung SSD PM981 MZVLB1T0HALR
Asus ZenBook 15 UX534FT-DB77
Samsung SSD PM981 MZVLB1T0HALR
Acer ConceptD 5 CN515-51-73Z7
WDC PC SN720 SDAPNTW-512G
Dell XPS 15 7590 9980HK GTX 1650
Toshiba XG6 KXG60ZNV1T02
Asus ZenBook 15 UX533FD
WDC PC SN520 SDAPNUW-512G
Apple MacBook Pro 16 2019 i9 5500M
Apple SSD AP1024 7171
Average Samsung SSD PM981 MZVLB1T0HALR

CrystalDiskMark 5.2 / 6
0%
-6%
-5%
-29%
-12%
-7%
Write 4K
138.1
141.6
3%
120.6
-13%
104.3
-24%
126.2
-9%
55.54
-60%
124 (92.4 - 164, n=21)
-10%
Read 4K
45.89
45.28
-1%
41.43
-10%
45.23
-1%
41.2
-10%
16.21
-65%
44.4 (37 - 52.6, n=21)
-3%
Write Seq
2147
1975
-8%
2402
12%
1729
-19%
1055
-51%
1959.24
-9%
1958 (981 - 2377, n=21)
-9%
Read Seq
2188
2272
4%
1997
-9%
1861
-15%
883.8
-60%
1762.83
-19%
1726 (976 - 2543, n=21)
-21%
Write 4K Q32T1
427.8
458.6
7%
335.2
-22%
509.2
19%
445.5
4%
398.51
-7%
389 (205 - 603, n=21)
-9%
Read 4K Q32T1
404
391.4
-3%
381.7
-6%
388.5
-4%
338.8
-16%
648.05
60%
420 (270 - 560, n=21)
4%
Write Seq Q32T1
2396
2393
0%
2553
7%
2813
17%
1453
-39%
2726.7
14%
2344 (1706 - 2404, n=21)
-2%
Read Seq Q32T1
3454
3464
0%
3356
-3%
2906
-16%
1734
-50%
3241.6
-6%
3204 (1758 - 3480, n=21)
-7%

GPU Performansı

GeForce GTX 1650 Max-Q GPU (TDP: 35 watt), daha iyi verimlilik için kesilmiş normal GTX 1650'nin (TDP: 50 watt) bir sürümüdür. RTX 2000 Turing GPU'ların aksine, bu Turing GPU'lardan hiçbiri ışın izleme özellikleri veya tensör çekirdeği sunmaz. GTX 1650 Max-Q'nun temel saati 1.020 MHz'dir. Artırma ile bu 1.245 MHz'e kadar yükseltilebilir. GPU belirli bir sıcaklık ve / veya enerji tüketimi eşiğini geçmediği sürece daha da yüksek hızlar mümkündür. The Witcher 3 testimiz sırasında, örneğin ortalama 1.389 MHz saat hızında çalışır. Maksimum 1.802 MHz saat hızı kaydettik. Ayrıca, GPU'nun hızlı GDDR5 video belleğine (4,096 MB) erişimi vardır. 3DMark karşılaştırma sonuçları, bu GPU için beklentilerimize uygundur. Pil modunda, ham grafik performansı yalnızca% 10 daha düşüktür. Entegre UHD Graphics 620 etkindir ve dizüstü bilgisayar Nvidia'nın grafik değiştirme teknolojisi Optimus'u kullanır.

3DMark 11 (mains)
3DMark 11 (mains)

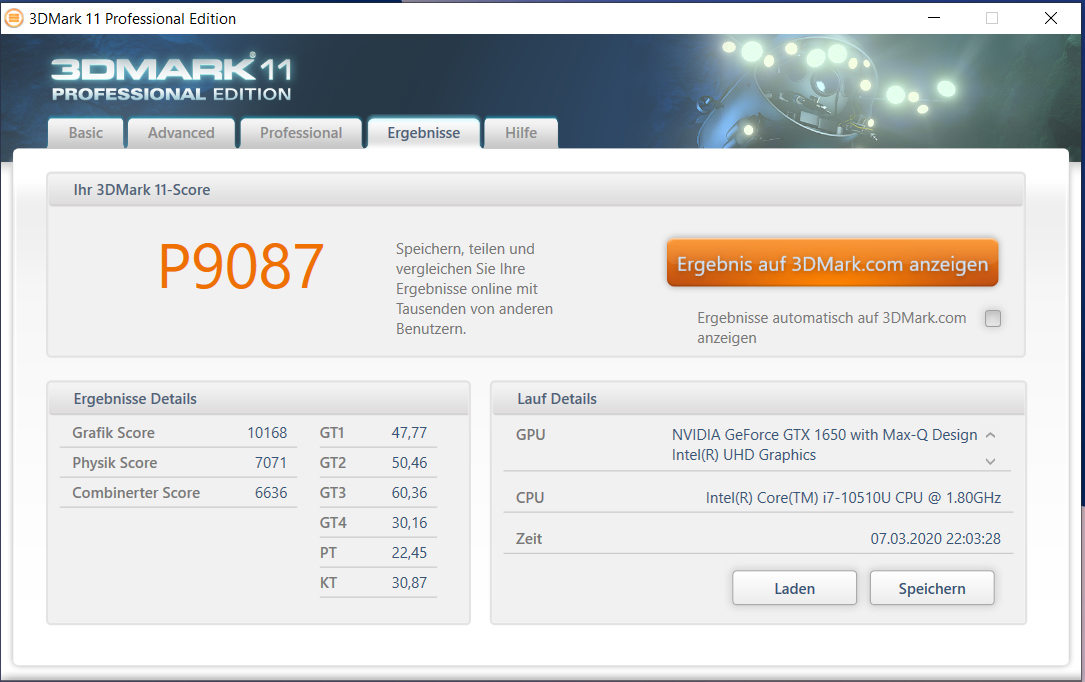

3DMark 11 (battery mode)
3DMark 11 (battery mode)
3DMark 06 Standard
32594 puan
3DMark 11 Performance
10585 puan
3DMark Ice Storm Standard Score
88439 puan
3DMark Cloud Gate Standard Score
22796 puan
3DMark Fire Strike Score
6906 puan
3DMark Time Spy Score
2945 puan
Yardım
3DMark 11 - 1280x720 Performance GPU
Apple MacBook Pro 16 2019 i9 5500M
AMD Radeon Pro 5500M, Intel Core i9-9880H
14725 Points ∼100% +32%
Dell XPS 15 7590 9980HK GTX 1650
NVIDIA GeForce GTX 1650 Mobile, Intel Core i9-9980HK
12388 Points ∼84% +11%
Average NVIDIA GeForce GTX 1650 Max-Q
  (10248 - 12259, n=12)
11228 Points ∼76% +1%
Asus ZenBook 15 UX534FTC-A8190T
NVIDIA GeForce GTX 1650 Max-Q, Intel Core i7-10510U
11119 Points ∼76%
Asus ZenBook 15 UX534FT-DB77
NVIDIA GeForce GTX 1650 Max-Q, Intel Core i7-8565U
10761 Points ∼73% -3%
Acer ConceptD 5 CN515-51-73Z7
AMD Radeon RX Vega M GL / 870, Intel Core i7-8705G
9825 Points ∼67% -12%
Asus ZenBook 15 UX533FD
NVIDIA GeForce GTX 1050 Max-Q, Intel Core i7-8565U
7016 Points ∼48% -37%
Average of class Multimedia
  (352 - 20837, n=661)
3131 Points ∼21% -72%
3DMark
2560x1440 Time Spy Graphics
Apple MacBook Pro 16 2019 i9 5500M
AMD Radeon Pro 5500M, Intel Core i9-9880H
3364 Points ∼100% +17%
Dell XPS 15 7590 9980HK GTX 1650
NVIDIA GeForce GTX 1650 Mobile, Intel Core i9-9980HK
3353 Points ∼100% +16%
Average NVIDIA GeForce GTX 1650 Max-Q
  (2836 - 3238, n=10)
2998 Points ∼89% +4%
Asus ZenBook 15 UX534FTC-A8190T
NVIDIA GeForce GTX 1650 Max-Q, Intel Core i7-10510U
2883 Points ∼86%
Asus ZenBook 15 UX534FT-DB77
NVIDIA GeForce GTX 1650 Max-Q, Intel Core i7-8565U
2836 Points ∼84% -2%
Acer ConceptD 5 CN515-51-73Z7
AMD Radeon RX Vega M GL / 870, Intel Core i7-8705G
2031 Points ∼60% -30%
Average of class Multimedia
  (142 - 4734, n=82)
1572 Points ∼47% -45%
1920x1080 Fire Strike Graphics
Apple MacBook Pro 16 2019 i9 5500M
AMD Radeon Pro 5500M, Intel Core i9-9880H
10399 Points ∼100% +34%
Dell XPS 15 7590 9980HK GTX 1650
NVIDIA GeForce GTX 1650 Mobile, Intel Core i9-9980HK
8532 Points ∼82% +10%
Average NVIDIA GeForce GTX 1650 Max-Q
  (6985 - 8618, n=10)
7848 Points ∼75% +1%
Asus ZenBook 15 UX534FTC-A8190T
NVIDIA GeForce GTX 1650 Max-Q, Intel Core i7-10510U
7784 Points ∼75%
Asus ZenBook 15 UX534FT-DB77
NVIDIA GeForce GTX 1650 Max-Q, Intel Core i7-8565U
7593 Points ∼73% -2%
Acer ConceptD 5 CN515-51-73Z7
AMD Radeon RX Vega M GL / 870, Intel Core i7-8705G
7181 Points ∼69% -8%
Asus ZenBook 15 UX533FD
NVIDIA GeForce GTX 1050 Max-Q, Intel Core i7-8565U
5622 Points ∼54% -28%
Average of class Multimedia
  (337 - 16100, n=438)
3023 Points ∼29% -61%
1280x720 Cloud Gate Standard Graphics
Apple MacBook Pro 16 2019 i9 5500M
AMD Radeon Pro 5500M, Intel Core i9-9880H
65776 Points ∼100% +35%
Asus ZenBook 15 UX534FTC-A8190T
NVIDIA GeForce GTX 1650 Max-Q, Intel Core i7-10510U
48573 Points ∼74%
Asus ZenBook 15 UX534FT-DB77
NVIDIA GeForce GTX 1650 Max-Q, Intel Core i7-8565U
46686 Points ∼71% -4%
Dell XPS 15 7590 9980HK GTX 1650
NVIDIA GeForce GTX 1650 Mobile, Intel Core i9-9980HK
45246 Points ∼69% -7%
Average NVIDIA GeForce GTX 1650 Max-Q
  (21759 - 53981, n=10)
41397 Points ∼63% -15%
Acer ConceptD 5 CN515-51-73Z7
AMD Radeon RX Vega M GL / 870, Intel Core i7-8705G
38812 Points ∼59% -20%
Asus ZenBook 15 UX533FD
NVIDIA GeForce GTX 1050 Max-Q, Intel Core i7-8565U
35858 Points ∼55% -26%
Average of class Multimedia
  (2468 - 77755, n=436)
17414 Points ∼26% -64%

Oyun Performansı

ZenBook teknik olarak bir oyun dizüstü bilgisayarı olmasa da, yüklü donanım veritabanımızdaki tüm oyunları sorunsuz bir şekilde çalıştırabilir. Kullanıcılar genellikle başlıkları Full HD çözünürlükte ve orta ila yüksek grafik ayarlarında çalıştırabilir. Bazı durumlarda, daha yüksek ayarlar bile mümkündür. Ancak, özel GPU, Full HD'den daha yüksek çözünürlükler için tasarlanmamıştır.

BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
Average NVIDIA GeForce GTX 1650 Max-Q
  (70.2 - 84.3, n=7)
75.5 fps ∼100% +4%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U, NVIDIA GeForce GTX 1650 Max-Q
72.7 fps ∼96%
Asus ZenBook 15 UX534FT-DB77
Intel Core i7-8565U, NVIDIA GeForce GTX 1650 Max-Q
72 fps ∼95% -1%
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK, NVIDIA GeForce GTX 1650 Mobile
68.5 fps ∼91% -6%
Acer ConceptD 5 CN515-51-73Z7
Intel Core i7-8705G, AMD Radeon RX Vega M GL / 870
59.85 fps ∼79% -18%
Asus ZenBook 15 UX533FD
Intel Core i7-8565U, NVIDIA GeForce GTX 1050 Max-Q
59 fps ∼78% -19%
Average of class Multimedia
  (3.62 - 149, n=234)
29.1 fps ∼39% -60%
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H, AMD Radeon Pro 5500M
38.8 (min: 34, max: 43) fps ∼100% +38%
Dell XPS 15 7590 9980HK GTX 1650
Intel Core i9-9980HK, NVIDIA GeForce GTX 1650 Mobile
36 fps ∼93% +28%
Average NVIDIA GeForce GTX 1650 Max-Q
  (27.5 - 36.5, n=9)
30.8 fps ∼79% +10%
Asus ZenBook 15 UX534FT-DB77
Intel Core i7-8565U, NVIDIA GeForce GTX 1650 Max-Q
30.7 fps ∼79% +9%
Asus ZenBook 15 UX533FD
Intel Core i7-8565U, NVIDIA GeForce GTX 1050 Max-Q
30 fps ∼77% +7%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U, NVIDIA GeForce GTX 1650 Max-Q
28.1 fps ∼72%
Acer ConceptD 5 CN515-51-73Z7
Intel Core i7-8705G, AMD Radeon RX Vega M GL / 870
24.3 fps ∼63% -14%
Average of class Multimedia
  (2.9 - 80.8, n=115)
20.3 fps ∼52% -28%
Apex Legends - 1920x1080 Maximum Settings AA:TS AF:16x
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H, AMD Radeon Pro 5500M
63 (min: 51, max: 74) fps ∼100% +7%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U, NVIDIA GeForce GTX 1650 Max-Q
59.1 fps ∼94%
Average NVIDIA GeForce GTX 1650 Max-Q
  (54.3 - 59.1, n=3)
56.8 fps ∼90% -4%
Average of class Multimedia
  (12.4 - 63, n=7)
36.3 fps ∼58% -39%
Need for Speed Heat - 1920x1080 High Preset
Apple MacBook Pro 16 2019 i9 5500M
Intel Core i9-9880H, AMD Radeon Pro 5500M
50.9 (min: 43, max: 59) fps ∼100% +16%
Average NVIDIA GeForce GTX 1650 Max-Q
  (44 - 46.8, n=2)
45.4 fps ∼89% +3%
Asus ZenBook 15 UX534FTC-A8190T
Intel Core i7-10510U, NVIDIA GeForce GTX 1650 Max-Q
44 fps ∼86%
Average of class Multimedia
  (14 - 50.9, n=5)
31.3 fps ∼61% -29%

Uzun vadeli kare hızı kararlılığını test etmek için The Witcher 3'ü Full HD çözünürlük ve maksimum grafik ayarlarında yaklaşık 60 dakika boyunca çalıştırdık. Oyuncu tarafından tasvir edilen karakter testin tamamı boyunca taşınmadı. Burada kare hızında düşüş gözlemlemedik.

051015202530354045Tooltip
Asus ZenBook 15 UX534FTC-A8190T GeForce GTX 1650 Max-Q, i7-10510U, Samsung SSD PM981 MZVLB1T0HALR; The Witcher 3: Ø28.7 (25-32)
Asus ZenBook 15 UX533FD GeForce GTX 1050 Max-Q, i7-8565U, WDC PC SN520 SDAPNUW-512G; The Witcher 3: Ø27.5 (26-30)
Apple MacBook Pro 16 2019 i9 5500M Radeon Pro 5500M, i9-9880H, Apple SSD AP1024 7171; The Witcher 3: Ø36.6 (34-40)
GPU readings during our The Witcher 3 test (GPU-Z)
GPU readings during our The Witcher 3 test (GPU-Z)
GPU readings during our The Witcher 3 test (HWiNFO)
GPU readings during our The Witcher 3 test (HWiNFO)
düşük orta yüksek ultra
Counter-Strike: GO (2012) 309.6 294.4 258.6 166.6 fps
Tomb Raider (2013) 367.2 253.9 191.5 92.7 fps
BioShock Infinite (2013) 286.7 208.1 182 72.7 fps
GTA V (2015) 162.7 142.8 76.5 36 fps
The Witcher 3 (2015) 144.6 87.2 48.7 28.1 fps
Batman: Arkham Knight (2015) 121 75 64 38 fps
Dota 2 Reborn (2015) 158.2 130.9 128 101.7 fps
World of Warships (2015) 179 144.1 117.7 104.2 fps
Ashes of the Singularity (2016) 60.3 42.5 36.9 fps
Rocket League (2017) 249.4 193.9 131 fps
World of Tanks enCore (2018) 414.6 160.1 59.4 fps
Far Cry 5 (2018) 91 52 48 45 fps
Forza Horizon 4 (2018) 112 74 69 55 fps
Apex Legends (2019) 143.9 78.7 59.4 59.1 fps
Anthem (2019) 51.3 44.6 40.9 30.3 fps
Total War: Three Kingdoms (2019) 150.1 52.4 31.9 23 fps
Control (2019) 102.8 36.1 26.3 fps
Borderlands 3 (2019) 103.1 50.5 33.2 25.1 fps
FIFA 20 (2019) 198.6 127.9 121.5 117.7 fps
Ghost Recon Breakpoint (2019) 75 43 41 24 fps
GRID 2019 (2019) 121.5 60 47.6 35.2 fps
Call of Duty Modern Warfare 2019 (2019) 85 54.8 44.1 38.4 fps
Need for Speed Heat (2019) 68.9 50.6 44 40.6 fps
Red Dead Redemption 2 (2019) 54.4 40.1 26.5 16.2 fps
Hunt Showdown (2020) 114.8 45.6 35.3 fps

Emisyonları - Orta Isı Geliştirmeli Asus Dizüstü Bilgisayar

Sistem Gürültüsü

Güçlü bileşenlere rağmen, gürültü seviyesi tüm yük senaryolarında makul. Rölantide çalışırken, fanlar sessiz çalışma için de boşta kalır. Yük altında bile oldukça ince kalırlar. Örneğin stres testimizde, 38.2 dB (A) maksimum gürültü seviyesini kaydediyoruz - oldukça iyi bir sonuç.

Ses yüksekliği

Boşta
30.3 / 30.3 / 30.9 dB
Çalışırken
31.3 / 38.2 dB
  red to green bar


30 dB
sessiz
40 dB(A)
duyulabilirlik
50 dB(A)
gürültülü

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm uzaklık)   environment noise: 30.3 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.327.228.729.531.32533.82930.435.133.8312927.432.130.3294026.926.53127.326.9502827.928.426.2286326.725.525.824.726.78023.925.125.42423.910022.425.126.223.622.412523.323.224.72323.316021.82223.722.221.82002221.221.421.22225021.620.721.220.821.631521.121.121.120.221.140020.721.920.919.920.750020.121.520.219.320.163020.422.821.418.820.480019.422.919.218.519.4100019.525.519.718.219.5125019.925191819.9160018.72619.418.218.7200018.829.419.917.818.8250018.327.919.217.918.3315018.228.419.117.818.2400017.927.218.317.817.9500017.92718.217.817.9630017.725.617.817.817.7800017.821.417.717.917.81000017.718.817.617.817.71250017.617.917.617.817.61600017.617.617.617.617.6SPL30.938.231.330.330.9N1.52.71.51.41.5median 19.4median 22.9median 19.4median 18.2median 19.4Delta1.82.31.41.21.8hearing rangehide median Fan NoiseAsus ZenBook 15 UX534FTC-A8190T
Asus ZenBook 15 UX534FTC-A8190T
i7-10510U, GeForce GTX 1650 Max-Q
Asus ZenBook 15 UX534FT-DB77
i7-8565U, GeForce GTX 1650 Max-Q
Acer ConceptD 5 CN515-51-73Z7
i7-8705G, Vega M GL / 870
Dell XPS 15 7590 9980HK GTX 1650
i9-9980HK, GeForce GTX 1650 Mobile
Asus ZenBook 15 UX533FD
i7-8565U, GeForce GTX 1050 Max-Q
Apple MacBook Pro 16 2019 i9 5500M
i9-9880H, Radeon Pro 5500M
Average NVIDIA GeForce GTX 1650 Max-Q

Average of class Multimedia

Noise
1%
-1%
-9%
-7%
-10%
-5%
-7%
off / environment *
30.3
28.4
6%
30.3
-0%
28.2
7%
30.5
-1%
29.8
2%
29.4 (28.4 - 30.3, n=10)
3%
31.1 (22 - 304, n=201)
-3%
Idle Minimum *
30.3
28.4
6%
30.3
-0%
28.2
7%
30.5
-1%
29.9
1%
30.2 (28.4 - 35, n=10)
-0%
31.1 (27.8 - 40.1, n=1002)
-3%
Idle Average *
30.3
28.4
6%
30.3
-0%
28.2
7%
30.5
-1%
29.9
1%
30.4 (28.4 - 36, n=10)
-0%
31.9 (27.8 - 42.2, n=1004)
-5%
Idle Maximum *
30.9
28.4
8%
30.3
2%
30.4
2%
30.5
1%
29.9
3%
30.8 (28.4 - 37, n=10)
-0%
32.5 (27.8 - 47, n=1004)
-5%
Load Average *
31.3
33.9
-8%
32.6
-4%
43.8
-40%
40.8
-30%
43
-37%
38.3 (31.3 - 45, n=10)
-22%
36.4 (28.9 - 51.8, n=1004)
-16%
Witcher 3 ultra *
38.1
39.8
-4%
47.2
-24%
45.4
-19%
Load Maximum *
38.2
40.2
-5%
40.2
-5%
47.2
-24%
41.8
-9%
46.1
-21%
41.9 (34.6 - 47, n=10)
-10%
41.9 (32.5 - 62.7, n=1004)
-10%

* ... smaller is better

Sıcaklık

ZenBook during the stress test
ZenBook during the stress test

Şebeke üzerindeyken işlemci, stres testi sırasında 2,5 ila 2,6 GHz hızında çalışır (Prime95 ve FurMark'ı en az bir saat çalışır). Zamanla, saat hızı 1,7 GHz'e düşer. Bu arada, GPU 900 ila 1.000 MHz'de çalışır. Pil modunda, saat hızları 1.8 GHz ila 2.2 GHz (CPU) ve 600 MHz ila 700 MHz (GPU) arasında değişir. Stres testi, günlük kullanım sırasında meydana gelmeyen aşırı bir senaryoyu temsil eder. Bu testi, sistemin maksimum yük altında bile kararlı olup olmadığını belirlemek için kullanırız.Çok fazla ısı gelişimi yoktur. Stres testi sırasında üç noktada 40 ° C'nin biraz üzerinde sıcaklıklar kaydettik. The Witcher 3 testimizde (oyunu Full HD çözünürlükte ve maksimum detay ayarlarında bir saat boyunca çalıştırmak), sıcaklıktaki artış daha da az dramatiktir. Günlük kullanım sırasında, kullanıcılar sıcaklıklar için de endişe etmek zorunda kalmayacaklar.

Maksimum yük
 40.8 °C41.4 °C36.7 °C
 37.3 °C39.8 °C32.5 °C
 29.5 °C27.6 °C30.1 °C
Maksimum: 41.4 °C
Ortalama: 35.1 °C
38.1 °C39 °C40.3 °C
34.6 °C36.7 °C37.5 °C
31.2 °C31.6 °C31.4 °C
Maksimum: 40.3 °C
Ortalama: 35.6 °C
Güç kaynağı  39.2 °C | Oda sıcaklığı 22.8 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 35.1 °C / 95 F, compared to the average of 30.9 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 41.4 °C / 107 F, compared to the average of 36.5 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 40.3 °C / 105 F, compared to the average of 38.8 °C / 102 F
(+) In idle usage, the average temperature for the upper side is 24.3 °C / 76 F, compared to the device average of 30.9 °C / 88 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 34.3 °C / 94 F, compared to the device average of 30.9 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.2 °C / 86.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 29 °C / 84.2 F (-1.2 °C / -2.2 F).
Heat development top (load)
Heat development top (load)
Heat development top (idle)
Heat development top (idle)
Heat development top (The Witcher 3)
Heat development top (The Witcher 3)
Heat development bottom (load)
Heat development bottom (load)
Heat development bottom (idle)
Heat development bottom (idle)
Heat development bottom (The Witcher 3)
Heat development bottom (The Witcher 3)
Asus ZenBook 15 UX534FTC-A8190T
i7-10510U, GeForce GTX 1650 Max-Q
Asus ZenBook 15 UX534FT-DB77
i7-8565U, GeForce GTX 1650 Max-Q
Acer ConceptD 5 CN515-51-73Z7
i7-8705G, Vega M GL / 870
Dell XPS 15 7590 9980HK GTX 1650
i9-9980HK, GeForce GTX 1650 Mobile
Asus ZenBook 15 UX533FD
i7-8565U, GeForce GTX 1050 Max-Q
Apple MacBook Pro 16 2019 i9 5500M
i9-9880H, Radeon Pro 5500M
Average NVIDIA GeForce GTX 1650 Max-Q

Average of class Multimedia

Heat
-33%
-6%
-30%
-7%
3%
-18%
-12%
Maximum Upper Side *
41.4
45.4
-10%
44.6
-8%
50.4
-22%
47.2
-14%
42
-1%
47.6 (41.4 - 56, n=10)
-15%
41.7 (27.2 - 71, n=960)
-1%
Maximum Bottom *
40.3
51.6
-28%
45.4
-13%
49.2
-22%
43.2
-7%
38
6%
49.7 (40.3 - 60.6, n=10)
-23%
45 (28.5 - 82, n=960)
-12%
Idle Upper Side *
25.7
35.4
-38%
26.1
-2%
34.8
-35%
27.7
-8%
25
3%
29.2 (22.7 - 37, n=10)
-14%
29.6 (21.1 - 40.2, n=812)
-15%
Idle Bottom *
25.8
40
-55%
26.4
-2%
36.4
-41%
25.6
1%
25
3%
30.5 (23 - 41, n=10)
-18%
30.9 (21.5 - 44.4, n=812)
-20%

* ... smaller is better

Speakers

The stereo speakers are located on the bottom of the device. Although they produce audio with a wide sound stage that sounds fairly good overall, they lack bass. The maximum volume could have been higher as well.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2029.429.529.42529.735.129.73130.530.330.54028.427.328.45028.126.228.16325.524.725.58024.82424.810024.723.624.712530.12330.116035.722.235.72003721.23725047.120.847.131555.120.255.140058.919.958.950057.819.357.86305818.85880063.818.563.8100059.818.259.8125060.11860.1160059.718.259.7200061.917.861.9250058.817.958.831505617.856400055.117.855.1500052.717.852.7630052.817.852.8800054.817.954.8100005417.8541250050.217.850.216000
