GMKtec NucBox M3 mini PC incelemesi: Core i5-12450H çok fazla güç tüketiyor

NucBox M3, biraz revize edilmiş kasa tasarımının yanı sıra 11. nesil Tiger Lake Intel Core H CPU'yu 12. nesil Alder Lake seçenekleriyle değiştirerek geçen yılki NucBox M2'nin yerini alıyor. Özel inceleme ünitemiz Core i5-12450H, 32 GB RAM ve 1 TB SSD ile yaklaşık 480 USD'ye yapılandırılmış olarak geliyor, ancak barebone seçenekleri sadece 370 dolardan başlıyor.

NucBox M3'ün alternatifleri arasında aşağıdaki gibi diğer bütçe odaklı mini bilgisayarlar yer alıyor Beelink SER5, Geekom A5veyaBMAX B7.

Daha fazla GMK yorumu:

Rating	Date	Model	Weight	Height	Resolution
78.7 %	11/2023	GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs	440 g	42.4 mm	x
82.8 %	10/2023	GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs	396 g	43.2 mm	x
82.1 %	11/2023	Beelink SER5 R5 5560U, Vega 6	439 g	42 mm	x
73.1 %	10/2023	Beelink Mini S12 Pro N100, UHD Graphics 24EUs (Alder Lake-N)	335 g	39.1 mm	x
81.2 %	10/2023	Geekom A5 R7 5800H, Vega 8	555 g	49.2 mm	x
80.8 %		Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm	x

Dava

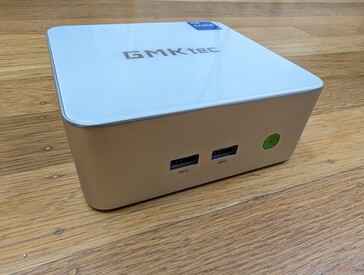

NucBox M3, NucBox K3 Pro'dan daha küçük olmakla birlikte daha yoğun bir his için daha ağırdır. Kasanın yan kısımları metalden, üst ve alt kısımları ise plastikten oluşuyor. Yapı kalitesi sağlam ve ünitemizde gözle görülür bir kusur olmamasına rağmen, plastik üst ve alt kısım, NucBox K3 Pro ile karşılaştırıldığında sistemi ucuz hissettiriyor Intel NUC serisi.

Üst kapak ne yazık ki çıkarılabilir değil

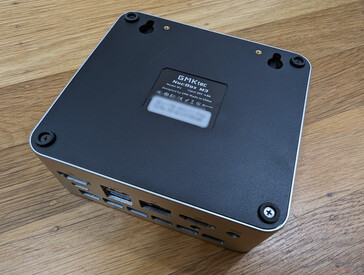

Alt kısımda kauçuk ayaklar ve isteğe bağlı VESA montajı için delikler bulunur

Küçük-orta boy (13 x 5,2 x 3,3 cm) 100 W AC adaptör

Boyut ve ağırlık karşılaştırması

Bağlanabilirlik

Bağlantı noktası seçenekleri iyi olsa da, tek USB-C bağlantı noktasının video çıkışı konusunda sorunları olduğu görülüyor. Üretici USB-C DisplayPort uyumluluğunun reklamını yapıyor ancak USB-C harici monitörlerimizin hiçbiri çalışmadı. Thunderbolt da muhtemelen maliyetten tasarruf etmek için desteklenmiyor.

Arka kısım: AC adaptörü, 3,5 mm kulaklık, 2x HDMI 2.0 (4K60), Gigabit RJ-45, USB-A 2.0, USB-A 3.2, USB-C (PD yok)

İletişim

Model, muhtemelen maliyetten tasarruf etmek için Wi-Fi 6E desteği olmadan gönderilir. Bunun dışında Wi-Fi 6 bağlantısı istikrarlı ve güvenilirdir.

Networking
iperf3 transmit AXE11000
Beelink SER5 Intel Wi-Fi 6 AX200	1278 (649^min - 1345^max) MBit/s +49%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1171 (923^min - 1342^max) MBit/s +36%
GMK NucBox M3 Realtek RTL8852BE	859 (773^min - 924^max) MBit/s
Geekom A5 Realtek RTL8852BE	834 (730^min - 861^max) MBit/s -3%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s -3%
Beelink Mini S12 Pro Intel Wi-Fi 6 AX201	438 (376^min - 489^max) MBit/s -49%
iperf3 receive AXE11000
Beelink SER5 Intel Wi-Fi 6 AX200	1411 (1230^min - 1580^max) MBit/s +64%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1297 (1164^min - 1393^max) MBit/s +51%
Geekom A5 Realtek RTL8852BE	946 (856^min - 970^max) MBit/s +10%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s +9%
GMK NucBox M3 Realtek RTL8852BE	860 (789^min - 895^max) MBit/s
Beelink Mini S12 Pro Intel Wi-Fi 6 AX201	470 (445^min - 491^max) MBit/s -45%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s

GMK NucBox M3; iperf3 transmit AXE11000; iperf 3.1.3: Ø859 (773-924)

GMK NucBox M3; iperf3 receive AXE11000; iperf 3.1.3: Ø860 (789-895)

Bakım

Alt panel, servis kolaylığı için dört Phillips vida ile sabitlenmiştir.

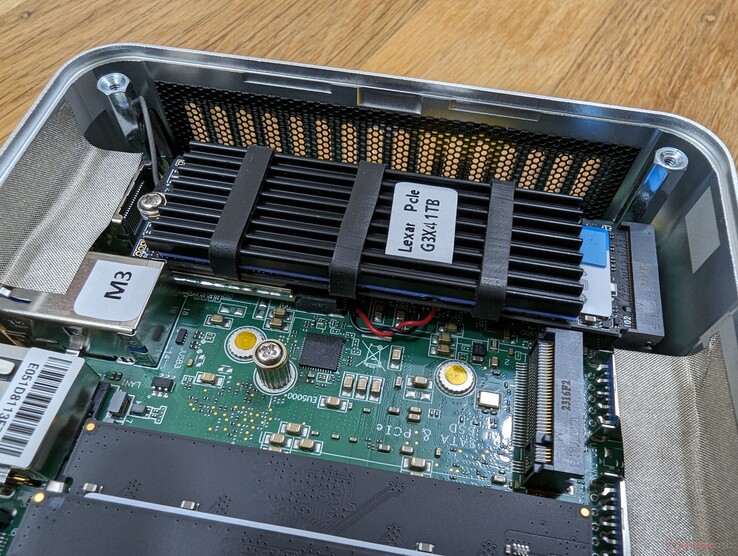

2x SODIMM yuvasına, 1x M.2 2280 SSD yuvasına ve 1x M.2 2242 SSD yuvasına kolay erişim

Aksesuarlar ve Garanti

Perakende kutusunda HDMI kablosu, AC adaptörü, evraklar ve vidalı VESA montaj aparatı bulunur. ABD'de satın alınması halinde normal bir yıllık sınırlı üretici garantisi geçerlidir.

Performans

Test Koşulları

Aşağıdaki kıyaslamaları çalıştırmadan önce Windows'u Performans moduna ayarladık. Üretici, modele özgü herhangi bir özelliği değiştirmek için özel bir yazılım yüklememektedir.

İşlemci

Çoklu iş parçacığı performansımız Core i5-12450H 'den yaklaşık yüzde 25 ila 30 daha yavaştır Core i7-12650H nucBox K3 Pro'da olduğu gibi. Bu açık, işlemcimizi NucBox K3 Pro ile başa baş hale getirmeye yetiyor Ryzen 5 5560U bu da daha ucuz ve güç açısından daha verimli bir alternatif. Core i5-12450H bunun yerine tek iş parçacıklı performansta üstünlük sağlıyor ve bu alanda Core i7-13700H.

Cinebench R15 Multi Loop

GMK NucBox M3 Intel Core i5-12450H: Ø1118 (1101.32-1149.92)

GMK NucBox K3 Pro Intel Core i7-12650H: Ø1420 (1391.69-1691.83)

Beelink SER5 AMD Ryzen 5 5560U: Ø1274 (1263.74-1280.29)

Beelink Mini S12 Pro Intel Processor N100: Ø461 (458.73-467.21)

Geekom A5 AMD Ryzen 7 5800H: Ø1715 (1692.05-1838.74)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Dell OptiPlex Micro Intel Core i7-13700	90.6 pt
Beelink SER7 AMD Ryzen 7 7840HS	83.5 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	77.6 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	73.8 pt
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	73 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	69.1 pt
GMK NucBox K3 Pro Intel Core i7-12650H	67.7 pt
Geekom AS 5 AMD Ryzen 9 5900HX	66 pt
Geekom A5 AMD Ryzen 7 5800H	62.5 pt
Average Intel Core i5-12450H	58.2 pt
GMK NucBox M3 Intel Core i5-12450H	57.4 pt
LG Gram 15Z90Q Intel Core i5-1240P	53.8 pt
Beelink SER5 AMD Ryzen 5 5560U	50.5 pt
BMAX B7 Power G7A2 Intel Core i7-11390H	44.6 pt
Beelink Mini S12 Pro Intel Processor N100	25.5 pt

Cinebench R23 / Multi Core
Dell OptiPlex Micro Intel Core i7-13700	21013 (16514.7^min - 21012.7^max) Points +174%
Beelink SER7 AMD Ryzen 7 7840HS	16105 (15785.6^min - 16105.2^max) Points +110%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	14465 (9293.64^min - 14465.4^max) Points +89%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	14023 Points +83%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	12637 Points +65%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	12486 Points +63%
Geekom AS 5 AMD Ryzen 9 5900HX	11662 Points +52%
Geekom A5 AMD Ryzen 7 5800H	10819 Points +41%
GMK NucBox K3 Pro Intel Core i7-12650H	10691 (9260.68^min - 10691.5^max) Points +40%
Average Intel Core i5-12450H (7662 - 9134, n=4)	8359 Points +9%
LG Gram 15Z90Q Intel Core i5-1240P	8337 Points +9%
Beelink SER5 AMD Ryzen 5 5560U	7667 (7546.82^min - 7667.18^max) Points 0%
GMK NucBox M3 Intel Core i5-12450H	7662 (7500.47^min - 7661.93^max) Points
BMAX B7 Power G7A2 Intel Core i7-11390H	4570 Points -40%
Beelink Mini S12 Pro Intel Processor N100	2916 (2877.53^min - 2916.35^max) Points -62%

Cinebench R23 / Single Core
Dell OptiPlex Micro Intel Core i7-13700	1997 Points +18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1909 Points +13%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1898 Points +12%
GMK NucBox K3 Pro Intel Core i7-12650H	1792 Points +6%
Beelink SER7 AMD Ryzen 7 7840HS	1774 Points +5%
GMK NucBox M3 Intel Core i5-12450H	1688 Points
Average Intel Core i5-12450H (1659 - 1688, n=4)	1669 Points -1%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	1570 Points -7%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1550 Points -8%
LG Gram 15Z90Q Intel Core i5-1240P	1501 Points -11%
Geekom AS 5 AMD Ryzen 9 5900HX	1490 Points -12%
BMAX B7 Power G7A2 Intel Core i7-11390H	1407 Points -17%
Geekom A5 AMD Ryzen 7 5800H	1405 Points -17%
Beelink SER5 AMD Ryzen 5 5560U	1260 Points -25%
Beelink Mini S12 Pro Intel Processor N100	931 Points -45%

Cinebench R20 / CPU (Multi Core)
Dell OptiPlex Micro Intel Core i7-13700	7027 Points +138%
Beelink SER7 AMD Ryzen 7 7840HS	6344 Points +115%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	5800 Points +96%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	5341 Points +81%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	4887 Points +66%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	4776 Points +62%
Geekom AS 5 AMD Ryzen 9 5900HX	4574 Points +55%
Geekom A5 AMD Ryzen 7 5800H	4229 Points +43%
GMK NucBox K3 Pro Intel Core i7-12650H	4058 Points +37%
Average Intel Core i5-12450H (2952 - 3510, n=4)	3242 Points +10%
LG Gram 15Z90Q Intel Core i5-1240P	3175 Points +8%
Beelink SER5 AMD Ryzen 5 5560U	3019 Points +2%
GMK NucBox M3 Intel Core i5-12450H	2952 Points
BMAX B7 Power G7A2 Intel Core i7-11390H	1767 Points -40%
Beelink Mini S12 Pro Intel Processor N100	1115 Points -62%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	736 Points +14%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	721 Points +12%
Dell OptiPlex Micro Intel Core i7-13700	703 Points +9%
Beelink SER7 AMD Ryzen 7 7840HS	698 Points +8%
GMK NucBox K3 Pro Intel Core i7-12650H	691 Points +7%
GMK NucBox M3 Intel Core i5-12450H	646 Points
Average Intel Core i5-12450H (640 - 646, n=4)	643 Points 0%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	613 Points -5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	607 Points -6%
Geekom AS 5 AMD Ryzen 9 5900HX	581 Points -10%
LG Gram 15Z90Q Intel Core i5-1240P	572 Points -11%
Geekom A5 AMD Ryzen 7 5800H	551 Points -15%
BMAX B7 Power G7A2 Intel Core i7-11390H	550 Points -15%
Beelink SER5 AMD Ryzen 5 5560U	498 Points -23%
Beelink Mini S12 Pro Intel Processor N100	357 Points -45%

Cinebench R15 / CPU Multi 64Bit
Dell OptiPlex Micro Intel Core i7-13700	2986 (2348.38^min - 2986.19^max) Points +160%
Beelink SER7 AMD Ryzen 7 7840HS	2565 (2511.62^min - 2564.76^max) Points +123%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	2343 Points +104%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2240 (1862.02^min - 2240.14^max) Points +95%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	2030 Points +77%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	2028 Points +76%
Geekom AS 5 AMD Ryzen 9 5900HX	1928 Points +68%
Geekom A5 AMD Ryzen 7 5800H	1773 Points +54%
GMK NucBox K3 Pro Intel Core i7-12650H	1692 (1391.69^min - 1691.83^max) Points +47%
LG Gram 15Z90Q Intel Core i5-1240P	1479 (718.44^min - 1478.52^max) Points +29%
Beelink SER5 AMD Ryzen 5 5560U	1280 (1263.74^min - 1280.29^max) Points +11%
Average Intel Core i5-12450H (1150 - 1379, n=4)	1265 Points +10%
GMK NucBox M3 Intel Core i5-12450H	1150 (1101.32^min - 1149.92^max) Points
BMAX B7 Power G7A2 Intel Core i7-11390H	775 (685.89^min - 775.39^max) Points -33%
Beelink Mini S12 Pro Intel Processor N100	467 (458.73^min - 467.21^max) Points -59%

Cinebench R15 / CPU Single 64Bit
Beelink SER7 AMD Ryzen 7 7840HS	283 Points +19%
Dell OptiPlex Micro Intel Core i7-13700	279 Points +17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	271 Points +14%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	260 Points +9%
GMK NucBox K3 Pro Intel Core i7-12650H	256 Points +8%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	255 Points +7%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	249 Points +5%
Geekom AS 5 AMD Ryzen 9 5900HX	241 Points +1%
GMK NucBox M3 Intel Core i5-12450H	238 Points
Average Intel Core i5-12450H (238 - 239, n=4)	238 Points 0%
Geekom A5 AMD Ryzen 7 5800H	227 Points -5%
LG Gram 15Z90Q Intel Core i5-1240P	209 Points -12%
BMAX B7 Power G7A2 Intel Core i7-11390H	209 Points -12%
Beelink SER5 AMD Ryzen 5 5560U	202 Points -15%
Beelink Mini S12 Pro Intel Processor N100	153.9 Points -35%

Blender / v2.79 BMW27 CPU
Beelink Mini S12 Pro Intel Processor N100	1048 Seconds * -144%
BMAX B7 Power G7A2 Intel Core i7-11390H	665 Seconds * -55%
LG Gram 15Z90Q Intel Core i5-1240P	477 Seconds * -11%
GMK NucBox M3 Intel Core i5-12450H	429 Seconds *
Average Intel Core i5-12450H (349 - 429, n=5)	398 Seconds * +7%
Beelink SER5 AMD Ryzen 5 5560U	392 Seconds * +9%
GMK NucBox K3 Pro Intel Core i7-12650H	330 Seconds * +23%
Geekom A5 AMD Ryzen 7 5800H	293 Seconds * +32%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	275 Seconds * +36%
Geekom AS 5 AMD Ryzen 9 5900HX	260 Seconds * +39%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	260 Seconds * +39%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	229 Seconds * +47%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	216 Seconds * +50%
Beelink SER7 AMD Ryzen 7 7840HS	196 Seconds * +54%
Dell OptiPlex Micro Intel Core i7-13700	178 Seconds * +59%

7-Zip 18.03 / 7z b 4
Dell OptiPlex Micro Intel Core i7-13700	74475 MIPS +139%
Beelink SER7 AMD Ryzen 7 7840HS	69882 MIPS +125%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	63214 MIPS +103%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	56930 MIPS +83%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	54733 MIPS +76%
Geekom A5 AMD Ryzen 7 5800H	53954 MIPS +73%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	52959 MIPS +70%
Geekom AS 5 AMD Ryzen 9 5900HX	50673 MIPS +63%
GMK NucBox K3 Pro Intel Core i7-12650H	43031 MIPS +38%
Beelink SER5 AMD Ryzen 5 5560U	38281 MIPS +23%
Average Intel Core i5-12450H (31119 - 35191, n=5)	33179 MIPS +7%
GMK NucBox M3 Intel Core i5-12450H	31119 MIPS
LG Gram 15Z90Q Intel Core i5-1240P	28108 MIPS -10%
BMAX B7 Power G7A2 Intel Core i7-11390H	20822 MIPS -33%
Beelink Mini S12 Pro Intel Processor N100	13291 MIPS -57%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink SER7 AMD Ryzen 7 7840HS	6734 MIPS +26%
Dell OptiPlex Micro Intel Core i7-13700	6466 MIPS +21%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	6014 MIPS +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	5961 MIPS +11%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	5807 MIPS +8%
GMK NucBox K3 Pro Intel Core i7-12650H	5772 MIPS +8%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	5721 MIPS +7%
Geekom AS 5 AMD Ryzen 9 5900HX	5653 MIPS +6%
BMAX B7 Power G7A2 Intel Core i7-11390H	5539 MIPS +3%
Geekom A5 AMD Ryzen 7 5800H	5486 MIPS +2%
GMK NucBox M3 Intel Core i5-12450H	5356 MIPS
Average Intel Core i5-12450H (4994 - 5386, n=5)	5205 MIPS -3%
LG Gram 15Z90Q Intel Core i5-1240P	4847 MIPS -10%
Beelink SER5 AMD Ryzen 5 5560U	4740 MIPS -12%
Beelink Mini S12 Pro Intel Processor N100	3958 MIPS -26%

Geekbench 5.5 / Multi-Core
Dell OptiPlex Micro Intel Core i7-13700	15525 Points +122%
Beelink SER7 AMD Ryzen 7 7840HS	11423 Points +63%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	10574 Points +51%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10361 Points +48%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	10126 Points +45%
GMK NucBox K3 Pro Intel Core i7-12650H	9810 Points +40%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	9278 Points +33%
Geekom AS 5 AMD Ryzen 9 5900HX	8826 Points +26%
Geekom A5 AMD Ryzen 7 5800H	8823 Points +26%
LG Gram 15Z90Q Intel Core i5-1240P	8747 Points +25%
Average Intel Core i5-12450H (6804 - 8066, n=5)	7257 Points +4%
GMK NucBox M3 Intel Core i5-12450H	6990 Points
Beelink SER5 AMD Ryzen 5 5560U	5955 Points -15%
BMAX B7 Power G7A2 Intel Core i7-11390H	4457 Points -36%
Beelink Mini S12 Pro Intel Processor N100	2867 Points -59%

Geekbench 5.5 / Single-Core
Beelink SER7 AMD Ryzen 7 7840HS	1983 Points +21%
Dell OptiPlex Micro Intel Core i7-13700	1958 Points +19%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1850 Points +13%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1842 Points +12%
GMK NucBox K3 Pro Intel Core i7-12650H	1790 Points +9%
GMK NucBox M3 Intel Core i5-12450H	1639 Points
Average Intel Core i5-12450H (1581 - 1665, n=5)	1635 Points 0%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	1615 Points -1%
LG Gram 15Z90Q Intel Core i5-1240P	1598 Points -3%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	1586 Points -3%
Geekom AS 5 AMD Ryzen 9 5900HX	1574 Points -4%
Geekom A5 AMD Ryzen 7 5800H	1494 Points -9%
BMAX B7 Power G7A2 Intel Core i7-11390H	1486 Points -9%
Beelink SER5 AMD Ryzen 5 5560U	1318 Points -20%
Beelink Mini S12 Pro Intel Processor N100	1018 Points -38%

HWBOT x265 Benchmark v2.2 / 4k Preset
Dell OptiPlex Micro Intel Core i7-13700	21.4 fps +144%
Beelink SER7 AMD Ryzen 7 7840HS	20.4 fps +132%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	17.7 fps +102%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	17.6 fps +100%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	15.8 fps +80%
Geekom AS 5 AMD Ryzen 9 5900HX	15 fps +71%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	14.2 fps +62%
Geekom A5 AMD Ryzen 7 5800H	13.3 fps +51%
GMK NucBox K3 Pro Intel Core i7-12650H	12.3 fps +40%
Beelink SER5 AMD Ryzen 5 5560U	10 fps +14%
Average Intel Core i5-12450H (8.78 - 10.8, n=4)	9.86 fps +12%
GMK NucBox M3 Intel Core i5-12450H	8.78 fps
LG Gram 15Z90Q Intel Core i5-1240P	7.77 fps -12%
BMAX B7 Power G7A2 Intel Core i7-11390H	5.84 fps -33%
Beelink Mini S12 Pro Intel Processor N100	3.41 fps -61%

LibreOffice / 20 Documents To PDF
Beelink Mini S12 Pro Intel Processor N100	69.6 s * -69%
Beelink SER5 AMD Ryzen 5 5560U	57.1 s * -39%
Geekom A5 AMD Ryzen 7 5800H	54.3 s * -32%
LG Gram 15Z90Q Intel Core i5-1240P	53.6 s * -30%
BMAX B7 Power G7A2 Intel Core i7-11390H	52.6 s * -28%
Geekom AS 5 AMD Ryzen 9 5900HX	50.1 s * -22%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	49.6 s * -21%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	47.1 s * -15%
Average Intel Core i5-12450H (41.1 - 53.2, n=5)	45.4 s * -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	43.7 s * -6%
GMK NucBox M3 Intel Core i5-12450H	41.1 s *
GMK NucBox K3 Pro Intel Core i7-12650H	40 s * +3%
Beelink SER7 AMD Ryzen 7 7840HS	39.7 s * +3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	37.6 s * +9%
Dell OptiPlex Micro Intel Core i7-13700	36.4 s * +11%

R Benchmark 2.5 / Overall mean
Beelink Mini S12 Pro Intel Processor N100	0.822 sec * -66%
Beelink SER5 AMD Ryzen 5 5560U	0.584 sec * -18%
BMAX B7 Power G7A2 Intel Core i7-11390H	0.571 sec * -15%
LG Gram 15Z90Q Intel Core i5-1240P	0.559 sec * -13%
Geekom A5 AMD Ryzen 7 5800H	0.523 sec * -6%
Average Intel Core i5-12450H (0.4949 - 0.527, n=5)	0.512 sec * -3%
Geekom AS 5 AMD Ryzen 9 5900HX	0.506 sec * -2%
GMK NucBox M3 Intel Core i5-12450H	0.4949 sec *
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX	0.4849 sec * +2%
Minisforum Neptune Series HX77G AMD Ryzen 7 7735HS	0.4822 sec * +3%
GMK NucBox K3 Pro Intel Core i7-12650H	0.4701 sec * +5%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	0.4512 sec * +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	0.445 sec * +10%
Beelink SER7 AMD Ryzen 7 7840HS	0.4446 sec * +10%
Dell OptiPlex Micro Intel Core i7-13700	0.423 sec * +15%

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... smaller is better

Performance Rating
Geekom A5 AMD Ryzen 7 5800H, Vega 8	94.3 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	83.6 pt
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	74.8 pt
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	68.8 pt
Average Intel Core i5-12450H	61.7 pt
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	57 pt
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8.2 pt

AIDA64 / FP32 Ray-Trace
Geekom A5 AMD Ryzen 7 5800H, Vega 8	12468 KRay/s +67%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s +48%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	9406 KRay/s +26%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8895 KRay/s +19%
Average Intel Core i5-12450H (7229 - 9129, n=4)	8084 KRay/s +9%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	7448 KRay/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	837 KRay/s -89%

AIDA64 / FPU Julia
Geekom A5 AMD Ryzen 7 5800H, Vega 8	77847 Points +107%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	56914 Points +51%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points +48%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	48790 Points +30%
Average Intel Core i5-12450H (37583 - 46204, n=4)	41425 Points +10%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	37583 Points
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	4395 Points -88%

AIDA64 / CPU SHA3
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s +58%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	2707 MB/s +57%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	2094 MB/s +21%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	1943 MB/s +13%
Average Intel Core i5-12450H (1724 - 2071, n=4)	1889 MB/s +10%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	1724 MB/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	307 MB/s -82%

AIDA64 / CPU Queen
Geekom A5 AMD Ryzen 7 5800H, Vega 8	91846 Points +53%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points +45%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	78091 Points +30%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	67352 Points +12%
Average Intel Core i5-12450H (59539 - 64750, n=4)	62095 Points +4%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	59969 Points
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8691 Points -86%

AIDA64 / FPU SinJulia
Geekom A5 AMD Ryzen 7 5800H, Vega 8	10972 Points +119%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8505 Points +70%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points +45%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	6561 Points +31%
Average Intel Core i5-12450H (5007 - 5985, n=4)	5433 Points +9%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	5007 Points
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	430 Points -91%

AIDA64 / FPU Mandel
Geekom A5 AMD Ryzen 7 5800H, Vega 8	42543 Points +128%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	31339 Points +68%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points +49%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	23640 Points +27%
Average Intel Core i5-12450H (18516 - 22917, n=4)	20278 Points +9%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	18624 Points
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	2217 Points -88%

AIDA64 / CPU AES
Geekom A5 AMD Ryzen 7 5800H, Vega 8	108262 MB/s +66%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s +52%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	82548 MB/s +27%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	78948 MB/s +21%
Average Intel Core i5-12450H (65152 - 78537, n=4)	71678 MB/s +10%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	65152 MB/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8426 MB/s -87%

AIDA64 / CPU ZLib
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s +65%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	700 MB/s +43%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	601 MB/s +23%
Average Intel Core i5-12450H (490 - 592, n=4)	546 MB/s +11%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	509 MB/s +4%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	490 MB/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	81.7 MB/s -83%

AIDA64 / FP64 Ray-Trace
Geekom A5 AMD Ryzen 7 5800H, Vega 8	6380 KRay/s +59%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s +47%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	5237 KRay/s +30%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	4540 KRay/s +13%
Average Intel Core i5-12450H (4025 - 4977, n=4)	4422 KRay/s +10%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	4025 KRay/s
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	465 KRay/s -88%

AIDA64 / CPU PhotoWorxx
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	44164 MPixel/s +67%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s +10%
Average Intel Core i5-12450H (26442 - 28682, n=4)	27388 MPixel/s +3%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	26489 MPixel/s
Geekom A5 AMD Ryzen 7 5800H, Vega 8	25113 MPixel/s -5%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	17917 MPixel/s -32%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	6535 MPixel/s -75%

Sistem Performansı

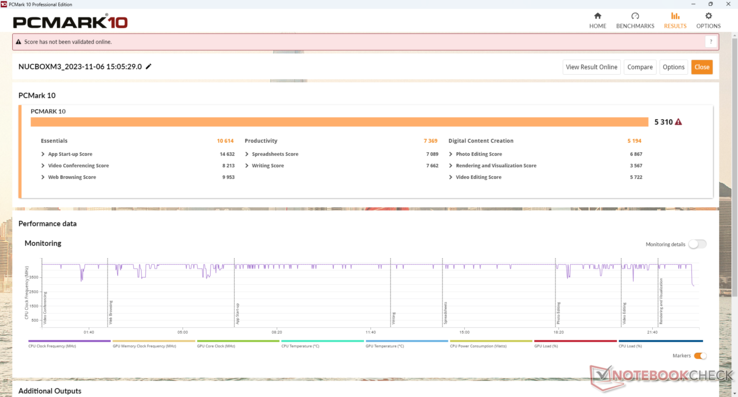

PCMark 10 / Score
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6281 Points +18%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	6149 Points +16%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	5855 Points +10%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5453 Points +3%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	5310 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	5310 Points 0%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	3164 Points -40%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11596 Points +9%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	10797 Points +2%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	10614 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	10614 Points 0%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	10356 Points -2%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	9440 Points -11%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	7295 Points -31%

PCMark 10 / Productivity
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	9311 Points +26%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	8901 Points +21%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7893 Points +7%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	7803 Points +6%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	7369 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	7369 Points 0%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	4764 Points -35%

PCMark 10 / Digital Content Creation
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7348 Points +41%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	6544 Points +26%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	6468 Points +25%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5238 Points +1%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	5194 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	5194 Points 0%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	2476 Points -52%

CrossMark / Overall
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1810 Points +18%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1573 Points +2%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1540 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	1540 Points 0%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1429 Points -7%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1196 Points -22%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	839 Points -46%

CrossMark / Productivity
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1740 Points +11%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1561 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	1561 Points 0%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1503 Points -4%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1408 Points -10%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1259 Points -19%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	905 Points -42%

CrossMark / Creativity
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1970 Points +30%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1753 Points +16%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1523 Points +1%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1510 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	1510 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1153 Points -24%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	773 Points -49%

CrossMark / Responsiveness
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1578 Points 0%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	1572 Points
Average Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	1572 Points 0%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1301 Points -17%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1233 Points -22%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1144 Points -27%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	856 Points -46%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	69735 MB/s +64%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s +6%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	43870 MB/s +3%
Average Intel Core i5-12450H (42484 - 43918, n=4)	43485 MB/s +2%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	42484 MB/s
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	38690 MB/s -9%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	11580 MB/s -73%

AIDA64 / Memory Read
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	67412 MB/s +56%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46241 MB/s +7%
Average Intel Core i5-12450H (43117 - 47555, n=4)	46221 MB/s +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s +5%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	43117 MB/s
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	39794 MB/s -8%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	12488 MB/s -71%

AIDA64 / Memory Write
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	59361 MB/s +27%
Average Intel Core i5-12450H (46529 - 46963, n=4)	46738 MB/s 0%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	46577 MB/s
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46407 MB/s 0%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s -1%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	41162 MB/s -12%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	12305 MB/s -74%

AIDA64 / Memory Latency
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	114.8 ns * -47%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	97.2 ns * -25%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -23%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	93.1 ns * -20%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	81.4 ns * -4%
GMK NucBox M3 Intel Core i5-12450H, UHD Graphics Xe G4 48EUs	77.9 ns *
Average Intel Core i5-12450H (76.5 - 77.9, n=4)	77.2 ns * +1%

* ... smaller is better

DPC Gecikme Süresi

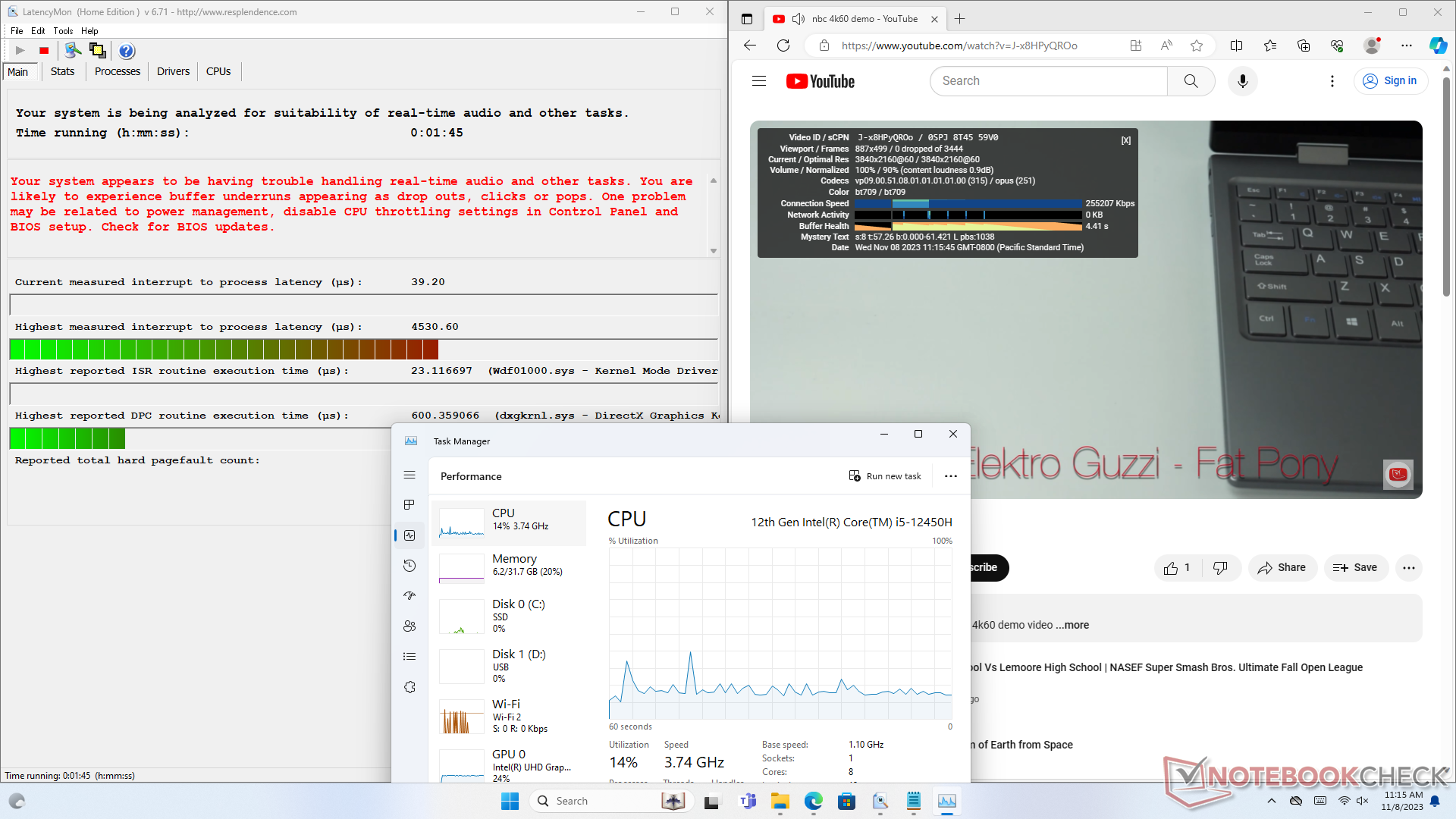

LatencyMon, ana sayfamızın birden fazla tarayıcı sekmesini açarken DPC sorunlarını ortaya çıkarıyor. 60 FPS'de 4K video oynatımı mükemmel ve hiçbir kare düşmesi kaydedilmedi.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	7391.7 μs * -63%
GMK NucBox M3 UHD Graphics Xe G4 48EUs, i5-12450H, Lexar NM610 Pro NM610P001T-HNNNG	4530.6 μs *
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1415.8 μs * +69%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1310.5 μs * +71%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * +76%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	364.6 μs * +92%

* ... smaller is better

Depolama Cihazları

GMK da aynı şekildeLexar NM610 Pro NucBox M3 ve NucBox K3 Pro modelleri için PCIe3 x4 NVMe SSD. Sistem, muhtemelen maliyetten tasarruf etmek için bir PCIe4 SSD ile birlikte gönderilmemektedir.

İkinci bir SSD takılabilir ancak bunun 42 mm veya daha kısa olması gerekir.

İki adede kadar dahili SSD'yi destekler. Şaşırtıcı bir şekilde, birincil SSD, bütçe odaklı fiyat aralığına rağmen kendi özel ısı emicisi ile birlikte gelir

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Lexar NM610 Pro NM610P001T-HNNNG

CDM 5/6 Read Seq Q32T1: 3494 MB/s

CDM 5/6 Write Seq Q32T1: 2430 MB/s

CDM 5/6 Read 4K Q32T1: 864.9 MB/s

CDM 5/6 Write 4K Q32T1: 527.5 MB/s

CDM 5 Read Seq: 2115 MB/s

CDM 5 Write Seq: 2360 MB/s

CDM 5/6 Read 4K: 60.58 MB/s

CDM 5/6 Write 4K: 268 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	84.8 pt
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	75 pt
Geekom A5 Lexar NM620 512GB	66.7 pt
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	66.2 pt
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	53.5 pt
Beelink Mini S12 Pro	37.1 pt

DiskSpd
seq read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +68%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2615 (2607.21^min - 2614.94^max) MB/s +30%
Geekom A5 Lexar NM620 512GB	2371 (2315.68^min - 2370.91^max) MB/s +18%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2011 (1922.53^min - 2010.96^max) MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2003 (1792.88^min - 2003.18^max) MB/s 0%
Beelink Mini S12 Pro	724 (713.03^min - 723.5^max) MB/s -64%
seq write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s +45%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2878 (2868.83^min - 2877.62^max) MB/s +24%
Geekom A5 Lexar NM620 512GB	2668 (292.6^min - 2668^max) MB/s +15%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2317 (2260.73^min - 2317.16^max) MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1919 (1852.07^min - 1919.04^max) MB/s -17%
Beelink Mini S12 Pro	715 (699.61^min - 714.88^max) MB/s -69%
seq q8 t1 read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +93%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3673 (3327.76^min - 3673.17^max) MB/s +6%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3481 (3104.12^min - 3480.68^max) MB/s 0%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	3479 (3183.34^min - 3478.79^max) MB/s
Geekom A5 Lexar NM620 512GB	3444 (2979.63^min - 3443.98^max) MB/s -1%
Beelink Mini S12 Pro	874 (761^min - 873.67^max) MB/s -75%
seq q8 t1 write
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3220 (3120.61^min - 3219.7^max) MB/s +32%
Geekom A5 Lexar NM620 512GB	3117 (3075.4^min - 3117.21^max) MB/s +27%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s +16%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2446 (2381.26^min - 2445.98^max) MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2408 (2336.17^min - 2407.96^max) MB/s -2%
Beelink Mini S12 Pro	867 (858.82^min - 866.96^max) MB/s -65%
4k q1 t1 read
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	59.8 (58.68^min - 59.84^max) MB/s
Geekom A5 Lexar NM620 512GB	54.5 (37.15^min - 54.54^max) MB/s -9%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	52.5 (52.31^min - 52.46^max) MB/s -12%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s -13%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	50.3 (48.8^min - 50.32^max) MB/s -16%
Beelink Mini S12 Pro	50.2 (48.32^min - 50.22^max) MB/s -16%
4k q1 t1 write
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	282 (273.36^min - 281.83^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s -37%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	173.4 (172.45^min - 173.36^max) MB/s -39%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	163.5 (154.58^min - 163.51^max) MB/s -42%
Geekom A5 Lexar NM620 512GB	148.4 (147.43^min - 148.38^max) MB/s -47%
Beelink Mini S12 Pro	131.7 (124.21^min - 131.65^max) MB/s -53%
4k q32 t16 read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2781 (2776.44^min - 2781.48^max) MB/s +51%
Geekom A5 Lexar NM620 512GB	1960 MB/s +7%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1837 (1834.99^min - 1837.44^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s -33%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1132 (1079.47^min - 1132.07^max) MB/s -38%
Beelink Mini S12 Pro	861 (842.97^min - 860.59^max) MB/s -53%
4k q32 t16 write
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2218 (2164.78^min - 2217.8^max) MB/s +88%
Geekom A5 Lexar NM620 512GB	1370 (84.65^min - 1370.23^max) MB/s +16%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1180 (1097.88^min - 1179.87^max) MB/s
Beelink Mini S12 Pro	721 (676.73^min - 721.31^max) MB/s -39%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s -47%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	535 (489.88^min - 535.49^max) MB/s -55%

AS SSD
Score Total
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +51%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	4696 Points +18%
Geekom A5 Lexar NM620 512GB	4006 Points +1%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	3970 Points
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3294 Points -17%
Beelink Mini S12 Pro	2210 Points -44%
Score Read
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1753 Points
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1701 Points -3%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points -5%
Geekom A5 Lexar NM620 512GB	1502 Points -14%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1367 Points -22%
Beelink Mini S12 Pro	920 Points -48%
Score Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +165%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2136 Points +58%
Geekom A5 Lexar NM620 512GB	1739 Points +29%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1349 Points
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1282 Points -5%
Beelink Mini S12 Pro	801 Points -41%
Seq Read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +59%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3157.87 MB/s +5%
Geekom A5 Lexar NM620 512GB	3020 MB/s +1%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	3002.89 MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2968.96 MB/s -1%
Beelink Mini S12 Pro	704.36 MB/s -77%
Seq Write
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2830.61 MB/s +26%
Geekom A5 Lexar NM620 512GB	2714 MB/s +21%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s +9%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	2238.79 MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1698.68 MB/s -24%
Beelink Mini S12 Pro	736.89 MB/s -67%
4K Read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +36%
Geekom A5 Lexar NM620 512GB	57.7 MB/s 0%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	57.59 MB/s
Beelink Mini S12 Pro	55.88 MB/s -3%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	51.31 MB/s -11%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	49.71 MB/s -14%
4K Write
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	224.81 MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s -7%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	205.98 MB/s -8%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	143.94 MB/s -36%
Geekom A5 Lexar NM620 512GB	125.5 MB/s -44%
Beelink Mini S12 Pro	113.72 MB/s -49%
4K-64 Read
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	1395.43 MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1335.88 MB/s -4%
Geekom A5 Lexar NM620 512GB	1143 MB/s -18%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s -20%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1018.3 MB/s -27%
Beelink Mini S12 Pro	793.52 MB/s -43%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +246%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1708.89 MB/s +90%
Geekom A5 Lexar NM620 512GB	1342 MB/s +49%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	906.2 MB/s +1%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	900.48 MB/s
Beelink Mini S12 Pro	613.44 MB/s -32%
Access Time Read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.094 ms * -36%
Beelink Mini S12 Pro	0.086 ms * -25%
Geekom A5 Lexar NM620 512GB	0.08 ms * -16%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.079 ms * -14%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	0.069 ms *
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +35%
Access Time Write
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.367 ms * -8%
GMK NucBox M3 Lexar NM610 Pro NM610P001T-HNNNG	0.339 ms *
Geekom A5 Lexar NM620 512GB	0.13 ms * +62%
Beelink Mini S12 Pro	0.114 ms * +66%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.077 ms * +77%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +94%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox M3: Ø3435 (3058.49-3467.66)

GPU Performansı

Grafik performansı aynı özelliklere sahip ortalama bir bilgisayardan daha hızlıdır Iris Xe 48 EUs çünkü bu entegre GPU genellikle daha yavaş Core U serisi CPU'larla eşleştirilir. Bu durumda, NucBox M3'ümüzdeki daha hızlı Core H sınıfı CPU, genel GPU performansını artırmaya yardımcı oluyor. Bununla birlikte, sistem hala çoğu oyunu yerel olarak çalıştıracak kadar hızlı değil.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink SER7 ^-1! AMD Radeon 780M, AMD Ryzen 7 7840HS	100 pt
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	84.6 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	61.9 pt
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	60.9 pt
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	59.9 pt
Lenovo IdeaCentre Mini 01IRH8 ^-1! Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	55.3 pt
Intel NUC 12 Pro Kit NUC12WSBi5 ^-1! Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	52.5 pt
GMK NucBox K3 Pro ^-1! Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	48.2 pt
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	41.1 pt
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	38.6 pt
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	37.2 pt
Dell OptiPlex Micro ^-1! Intel UHD Graphics 770, Intel Core i7-13700	30.5 pt
Average Intel UHD Graphics Xe G4 48EUs	29.8 pt
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	15.3 pt

3DMark 11 - 1280x720 Performance GPU
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	12845 Points +229%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	10399 Points +166%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7166 Points +83%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points +83%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	7101 Points +82%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	6914 Points +77%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	5631 Points +44%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5566 Points +42%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4770 Points +22%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	4439 Points +14%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	3906 Points
Dell OptiPlex Micro Intel UHD Graphics 770, Intel Core i7-13700	3591 Points -8%
Average Intel UHD Graphics Xe G4 48EUs (2156 - 3906, n=11)	3288 Points -16%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1510 Points -61%

3DMark
1280x720 Cloud Gate Standard Graphics
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	39814 Points +83%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	32875 Points +51%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	31638 Points +45%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points +26%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	24221 Points +11%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	22822 Points +5%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	21778 Points
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	16589 Points -24%
Average Intel UHD Graphics Xe G4 48EUs (11270 - 21778, n=11)	15421 Points -29%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	8965 Points -59%
1920x1080 Fire Strike Graphics
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	8001 Points +156%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6501 Points +108%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points +67%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	4808 Points +54%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4567 Points +46%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	4567 Points +46%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4419 Points +41%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	4227 Points +35%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	3131 Points
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	3056 Points -2%
Dell OptiPlex Micro Intel UHD Graphics 770, Intel Core i7-13700	2900 Points -7%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	2886 Points -8%
Average Intel UHD Graphics Xe G4 48EUs (1602 - 3131, n=11)	2282 Points -27%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1258 Points -60%

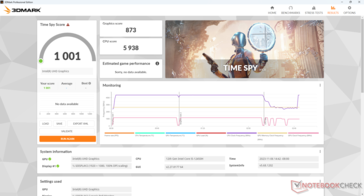

2560x1440 Time Spy Graphics
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	2908 Points +233%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2210 Points +153%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points +92%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1508 Points +73%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1430 Points +64%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1418 Points +62%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1288 Points +48%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	996 Points +14%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	986 Points +13%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	873 Points
Dell OptiPlex Micro Intel UHD Graphics 770, Intel Core i7-13700	793 Points -9%
Average Intel UHD Graphics Xe G4 48EUs (634 - 913, n=9)	763 Points -13%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	328 Points -62%

3DMark Performance Rating | 3DMark 11 | 3DMark

Blender
v3.3 Classroom HIP/AMD
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	675 Seconds *
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	524 Seconds *
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	477 Seconds *
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	347 Seconds *
v3.3 Classroom CPU
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	2052 Seconds * -177%
Average Intel UHD Graphics Xe G4 48EUs (741 - 2408, n=4)	1852 Seconds * -150%
BMAX B7 Power G7A2 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1259 Seconds * -70%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	741 Seconds *
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	677 Seconds * +9%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	590 Seconds * +20%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	570 Seconds * +23%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	513 Seconds * +31%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	464 Seconds * +37%
Geekom AS 5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	463 Seconds * +38%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	451 Seconds * +39%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	441 Seconds * +40%
Dell OptiPlex Micro Intel UHD Graphics 770, Intel Core i7-13700	320 Seconds * +57%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	318 Seconds * +57%

* ... smaller is better

Far Cry 5
1280x720 Low Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	84 (73^min) fps +147%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M	68 (58^min) fps +100%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (56^min) fps +82%
Geekom AS 5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	61 (56^min) fps +79%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	46 (37^min) fps +35%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	46 (41^min) fps +35%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	45 (41^min) fps +32%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	34 (20^min) fps
BMAX B7 Power G7A2 Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	29 fps -15%
Average Intel UHD Graphics Xe G4 48EUs (23 - 34, n=2)	28.5 fps -16%
1920x1080 Medium Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	50 (45^min) fps +194%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Radeon 680M

Cinebench R15 CPU Multi 64 Bit kıyaslama
Toshiba Satellite W30Dt-A-100 (min) A4-1200, Radeon HD 8180	33
...
Lenovo IdeaPad S740-15IRH i7-9750H, GeForce GTX 1650 Max-Q	1138
Lenovo V15 G2 ALC-82KD003XGE R5 5500U, Vega 7	1139
R5 1600, GeForce GTX 1080 Ti	1143
GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs	1150
Lenovo Legion Y540-15IRH-81SX00B2GE i7-9750H, GeForce GTX 1660 Ti Mobile	1155
HP EliteBook 845 G7-23Y60EA R5 PRO 4650U, Vega 6	1162
Asus Zephyrus M GM501 i7-8750H, GeForce GTX 1070 Mobile	1168
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	15842

3DMark 11 Performance		4418 puan
3DMark Cloud Gate Standard Score		17770 puan
3DMark Fire Strike Score		2928 puan
3DMark Time Spy Score		1001 puan
Yardım

3DMark 11 kıyaslama
HP Stream 7 5700ng (min) Z3735G, HD Graphics (Bay Trail)	183
...
Lenovo ThinkPad L14 G2 AMD R7 PRO 5850U, Vega 8	4386
NiPoGi CK10 i5-12450H, UHD Graphics 64EUs	4406
Honor MagicBook 15 4500U R5 4500U, Vega 6	4417
GMK NucBox M3 i5-12450H, UHD Graphics Xe G4 48EUs	4418
Asus NX500JK-DR018H 4712HQ, GeForce GTX 850M	4421
Honor MagicBook 14, Ryzen 5 4500U R5 4500U, Vega 6	4428
Geekom Mini IT12 i5-12450H, UHD Graphics 64EUs	4450
...
(max) i5-14600K, NVIDIA GeForce RTX 4090	66828

GMKtec NucBox M3 mini PC incelemesi: Core i5-12450H çok fazla güç tüketiyor

Karşılaştırmalı olarak olası rakipler

Dava

Boyut ve ağırlık karşılaştırması

Bağlanabilirlik

İletişim

Bakım

Aksesuarlar ve Garanti

Performans

Test Koşulları

İşlemci

Cinebench R15 Multi Loop

Sistem Performansı

DPC Gecikme Süresi

Depolama Cihazları

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU Performansı
