Kısa inceleme: Dell Precision 7710 Workstation

Yüksek performans. Dell, yakın zamanda büyük 17 inçlik çalışma istasyonunu tamamen yneiledi ve yeni yıla birçok inovatif değişiklikle girdi. Yeni kasanın dışında özellikle yeni arayüzler, işlemci, grafik kartı ve ekran ile öne çıkan cihazı test ediyoruz.
Tobias Winkler, Stefanie Voigt,
Dell Precision 7710 (Precision 7000 Seri)
İşlemci
Intel Xeon E3-1535M v5 4 x 2.9 - 3.8 GHz, Skylake
Grafik kartı
AMD FirePro W7170M - 4096 MB, Çekirdek: 720 MHz, Bellek: 1250 MHz, 15.201.1101.1003 WHQL Win7/ 64, AMD Switchable Graphics mit Intel P530
Bellek
16384 MB
, 2x 8192 MB DDR4-2133 Hynix, 2 slots free, no ECC
Görüntü
17.3 inç 16:9, 1920 x 1080 pixel, SDC8151, VHN17_173HL, IPS LED, 97 % sRGB, parlak: hayır
Anakart
Intel Skylake-H
Harddisk
Samsung SM951 MZVPV256HDGL m.2 PCI-e, 256 GB
, in addition a HGST Travelstar 7K1000 HTS721010A9E630, 1 TB, 7200 RPM
Ses kartı
HD Audio

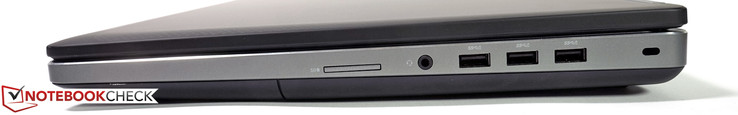

Bağlantılar
4 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Portu, Ses çıkışları: audio combo, Kart okuyucular: Realtek PCIe Cardreader UHS-II, SD, SDHC, SDXC
Network
Intel Ethernet Connection I219-LM (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.0
Boyut
yükseklik x genişlik x derinlik (mm): 35 x 417 x 281
Batarya
72 Wh Lithium-Ion, removeable
İşletim sistemi
Microsoft Windows 7 Professional 64 Bit
Camera
Webcam: HD web cam, 1280 x 720 pixels
Ek özellikler
Hoparlörler: 2 stereo speakers at the bottom of the front side, Klavye: Chiclet with dedicated number block, Klavye ışığı: evet, 36 Ay Garanti
Ağırlık
3.58 kg, Güç kaynağı: 990 g
Fiyat
3730 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



277
cd/m²
308
cd/m²
299
cd/m²
318
cd/m²
332
cd/m²
318
cd/m²
307
cd/m²
295
cd/m²
310
cd/m²
Parlaklığın yayılımı
SDC8151, VHN17_173HL
X-Rite i1Pro 2
Maksimum: 332 cd/m² Ortalama: 307.1 cd/m²
Aydınlatma: 83 %
Batarya modunda parlaklık: 335 cd/m²
Kontrast: 1006:1 (Siyah: 0.33 cd/m²)
ΔE Color 3 | 0.6-29.43 Ø5.9
ΔE Greyscale 4 | 0.64-98 Ø6.1
97% sRGB (Argyll 3D) 62% AdobeRGB 1998 (Argyll 3D)
Gamma: 2
Response Times
Response Time Grey 50% / Grey 80% (sort by value)
Dell Precision 7710 (17, 33)
50 ms * ∼100%
Lenovo ThinkPad P70 (17.2, 26.8)
44 ms * ∼88% +12%
Schenker W706 (17.2, 26.8)
44 ms * ∼88% +12%
MSI WT72-6QM (13, 29)
42 ms * ∼84% +16%
Response Time Black / White (sort by value)
Dell Precision 7710 (11, 25)
36 ms * ∼100%
Lenovo ThinkPad P70 (4.8, 22.8)
27.6 ms * ∼77% +23%
Schenker W706 (8.4, 20.8)
29.2 ms * ∼81% +19%
MSI WT72-6QM (7, 19)
26 ms * ∼72% +28%
PWM Frequency (sort by value)
Dell Precision 7710 (25)
198 Hz ∼87%
Lenovo ThinkPad P70 (95)
228 Hz ∼100% +15%
Schenker W706
0 Hz ∼0% -100%
MSI WT72-6QM (10, 15)
86 Hz ∼38% -57%
Screen
Brightness middle (sort by value)
Dell Precision 7710
332 cd/m² ∼110%
Lenovo ThinkPad P70
365 cd/m² ∼120%
Schenker W706
356 cd/m² ∼117%
MSI WT72-6QM
303 cd/m² ∼100%
Brightness (sort by value)
Dell Precision 7710
307 cd/m² ∼103%
Lenovo ThinkPad P70
341 cd/m² ∼114%
Schenker W706
331 cd/m² ∼111%
MSI WT72-6QM
298 cd/m² ∼100%
Brightness Distribution (sort by value)
Dell Precision 7710
83 % ∼88%
Lenovo ThinkPad P70
85 % ∼90%
Schenker W706
86 % ∼91%
MSI WT72-6QM
94 % ∼100%
Black Level (sort by value)
Dell Precision 7710
0.33 cd/m² * ∼72%
Lenovo ThinkPad P70
0.4 cd/m² * ∼87%
Schenker W706
0.48 cd/m² * ∼104%
MSI WT72-6QM
0.46 cd/m² * ∼100%
Contrast (sort by value)
Dell Precision 7710
1006 :1 ∼153%
Lenovo ThinkPad P70
913 :1 ∼139%
Schenker W706
742 :1 ∼113%
MSI WT72-6QM
659 :1 ∼100%
Colorchecker DeltaE2000 (sort by value)
Dell Precision 7710
3 * ∼52%
Lenovo ThinkPad P70
3.8 * ∼66%
Schenker W706
4.64 * ∼80%
MSI WT72-6QM
5.77 * ∼100%
Greyscale DeltaE2000 (sort by value)
Dell Precision 7710
4 * ∼82%
Lenovo ThinkPad P70
6.09 * ∼125%
Schenker W706
3.65 * ∼75%
MSI WT72-6QM
4.87 * ∼100%
Gamma (sort by value)
Dell Precision 7710
2 ∼101%
Lenovo ThinkPad P70
2.3 ∼116%
Schenker W706
2.02 ∼102%
MSI WT72-6QM
1.99 ∼100%
CCT (sort by value)
Dell Precision 7710
7089 ∼96%
Lenovo ThinkPad P70
6332 ∼86%
Schenker W706
6393 ∼87%
MSI WT72-6QM
7363 ∼100%
Color Space (Percent of AdobeRGB 1998) (sort by value)
Dell Precision 7710
62 % ∼111%
Lenovo ThinkPad P70
76.01 % ∼136%
Schenker W706
55 % ∼98%
MSI WT72-6QM
56.04 % ∼100%
Color Space (Percent of sRGB) (sort by value)
Dell Precision 7710
97 % ∼114%
Lenovo ThinkPad P70
99.97 % ∼117%
Schenker W706
84 % ∼99%
MSI WT72-6QM
85.27 % ∼100%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Schenker W706 Intel Core i7-6700, NVIDIA Quadro M5000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

MSI WT72-6QM Intel Xeon E3-1505M v5, NVIDIA Quadro M5000M, Toshiba NVMe THNSN5256GPU7

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
36 ms ... rise ↗ and fall ↘ combined↗ 11 ms rise
↘ 25 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 91 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (24.6 ms).
       Response Time 50% Grey to 80% Grey
50 ms ... rise ↗ and fall ↘ combined↗ 17 ms rise
↘ 33 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 82 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (39.2 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 198 Hz ≤ 25 % brightness setting

The display backlight flickers at 198 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 25 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 198 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18037 (minimum: 5 - maximum: 2500000) Hz was measured.


Cinebench R15
CPU Single 64Bit (sort by value)
Dell Precision 7710
162 Points ∼100%
Lenovo ThinkPad P70
153 Points ∼94% -6%
Acer Aspire V5-591G-50NC
136 Points ∼84% -16%
CPU Multi 64Bit (sort by value)
Dell Precision 7710
746 Points ∼100%
Lenovo ThinkPad P70
699 Points ∼94% -6%
Acer Aspire V5-591G-50NC
465 Points ∼62% -38%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Acer Aspire V5-591G-50NC Intel Core i5-6300HQ, NVIDIA GeForce GTX 950M, Samsung SSD 850 EVO 250GB
Super Pi Mod 1.5 XS 32M - 32M (sort by value)
Dell Precision 7710
511 s * ∼83%
Lenovo ThinkPad P70
561 s * ∼91% -10%
Acer Aspire V5-591G-50NC
617.799 s * ∼100% -21%
wPrime 2.10 - 1024m (sort by value)
Dell Precision 7710
214.5 s * ∼59%
Lenovo ThinkPad P70
230.77 s * ∼64% -8%
Acer Aspire V5-591G-50NC
361.097 s * ∼100% -68%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Acer Aspire V5-591G-50NC Intel Core i5-6300HQ, NVIDIA GeForce GTX 950M, Samsung SSD 850 EVO 250GB

* ... smaller is better

Cinebench R10 Shading 32Bit
9551
Cinebench R10 Rendering Multiple CPUs 32Bit
22496
Cinebench R10 Rendering Single 32Bit
5837
Cinebench R10 Shading 64Bit
9829 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
29375 Points
Cinebench R10 Rendering Single CPUs 64Bit
7608 Points
Cinebench R11.5 CPU Multi 64Bit
8.24 Points
Cinebench R11.5 OpenGL 64Bit
86.52 fps
Cinebench R11.5 CPU Single 64Bit
1.84 Points
Cinebench R15 CPU Multi 64Bit
746 Points
Cinebench R15 CPU Single 64Bit
162 Points
Cinebench R15 Ref. Match 64Bit
98.01 %
Cinebench R15 OpenGL 64Bit
102.81 fps
Yardım
PCMark 8
Work Score Accelerated v2 (sort by value)
Dell Precision 7710
5417 Points ∼96%
Lenovo ThinkPad P70
4411 Points ∼78% -19%
Schenker W706
5151 Points ∼91% -5%
MSI WT72-6QM
5655 Points ∼100% +4%
Creative Score Accelerated v2 (sort by value)
Dell Precision 7710
5668 Points ∼84%
Schenker W706
6772 Points ∼100% +19%
Home Score Accelerated v2 (sort by value)
Dell Precision 7710
4770 Points ∼97%
Lenovo ThinkPad P70
3345 Points ∼68% -30%
Schenker W706
4914 Points ∼100% +3%
MSI WT72-6QM
4731 Points ∼96% -1%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Schenker W706 Intel Core i7-6700, NVIDIA Quadro M5000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

MSI WT72-6QM Intel Xeon E3-1505M v5, NVIDIA Quadro M5000M, Toshiba NVMe THNSN5256GPU7
PCMark 7 Score
5072 puan
PCMark 8 Home Score Accelerated v2
4770 puan
PCMark 8 Creative Score Accelerated v2
5668 puan
PCMark 8 Work Score Accelerated v2
5417 puan
Yardım
Samsung SM951 MZVPV256HDGL m.2 PCI-e
Sequential Read: 1886MB/s
Sequential Write: 626MB/s
4K Read: 51MB/s
4K Write: 179MB/s
4K-64 Read: 1064MB/s
4K-64 Write: 275MB/s
Access Time Read: 0.069ms
Access Time Write: 0.022ms
Copy ISO: 823MB/s
Copy Program: 196MB/s
Copy Game: 974MB/s
Score Read: 1304Points
Score Write: 517Points
Score Total: 2435Points
SPECviewperf 11
1920x1080 Siemens NX (sort by value)
Dell Precision 7710
49 fps ∼73%
Dell Precision 5510
41 fps ∼61% -16%
Lenovo ThinkPad P70
67.36 fps ∼100% +37%
HP ZBook 17 G2 J8Z55ET
47.84 fps ∼71% -2%
MSI WT72-6QM
61.76 fps ∼92% +26%
1920x1080 Tcvis (sort by value)
Dell Precision 7710
36 fps ∼64%
Dell Precision 5510
40 fps ∼72% +11%
Lenovo ThinkPad P70
41.16 fps ∼74% +14%
HP ZBook 17 G2 J8Z55ET
28.37 fps ∼51% -21%
MSI WT72-6QM
55.94 fps ∼100% +55%
1920x1080 SolidWorks (sort by value)
Dell Precision 7710
74 fps ∼100%
Dell Precision 5510
51 fps ∼69% -31%
Lenovo ThinkPad P70
35.28 fps ∼48% -52%
HP ZBook 17 G2 J8Z55ET
68.72 fps ∼93% -7%
MSI WT72-6QM
49.26 fps ∼67% -33%
1920x1080 Pro/ENGINEER (sort by value)
Dell Precision 7710
11.7 fps ∼56%
Dell Precision 5510
21 fps ∼100% +79%
Lenovo ThinkPad P70
16.08 fps ∼77% +37%
HP ZBook 17 G2 J8Z55ET
10.66 fps ∼51% -9%
MSI WT72-6QM
17.87 fps ∼85% +53%
1920x1080 Maya (sort by value)
Dell Precision 7710
106 fps ∼100%
Dell Precision 5510
56 fps ∼53% -47%
Lenovo ThinkPad P70
85.96 fps ∼81% -19%
HP ZBook 17 G2 J8Z55ET
99.72 fps ∼94% -6%
MSI WT72-6QM
71.59 fps ∼68% -32%
1920x1080 Lightwave (sort by value)
Dell Precision 7710
84 fps ∼100%
Dell Precision 5510
54 fps ∼64% -36%
Lenovo ThinkPad P70
35.34 fps ∼42% -58%
HP ZBook 17 G2 J8Z55ET
77.78 fps ∼93% -7%
MSI WT72-6QM
59.58 fps ∼71% -29%
1920x1080 Ensight (sort by value)
Dell Precision 7710
70 fps ∼95%
Dell Precision 5510
39 fps ∼53% -44%
Lenovo ThinkPad P70
59.49 fps ∼80% -15%
HP ZBook 17 G2 J8Z55ET
55.74 fps ∼75% -20%
MSI WT72-6QM
73.98 fps ∼100% +6%
1920x1080 Catia (sort by value)
Dell Precision 7710
61 fps ∼100%
Dell Precision 5510
54 fps ∼89% -11%
Lenovo ThinkPad P70
43.12 fps ∼71% -29%
HP ZBook 17 G2 J8Z55ET
49.28 fps ∼81% -19%
MSI WT72-6QM
55.25 fps ∼91% -9%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ, AMD FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630

MSI WT72-6QM Intel Xeon E3-1505M v5, NVIDIA Quadro M5000M, Toshiba NVMe THNSN5256GPU7
SPECviewperf 12
1900x1060 Solidworks (sw-03) (sort by value)
Dell Precision 7710
73 fps ∼70%
HP ZBook 17 G2 J8Z55ET
66.53 fps ∼63% -9%
Dell Precision 5510
62 fps ∼59% -15%
Lenovo ThinkPad P70
52.35 fps ∼50% -28%
Schenker W706
105 fps ∼100% +44%
Schenker XMG U716
49.23 fps ∼47% -33%
1900x1060 Siemens NX (snx-02) (sort by value)
Dell Precision 7710
63 fps ∼72%
HP ZBook 17 G2 J8Z55ET
50.73 fps ∼58% -19%
Dell Precision 5510
31 fps ∼35% -51%
Lenovo ThinkPad P70
39.84 fps ∼45% -37%
Schenker W706
88 fps ∼100% +40%
Schenker XMG U716
6.11 fps ∼7% -90%
1900x1060 Showcase (showcase-01) (sort by value)
Dell Precision 7710
37 fps ∼62%
HP ZBook 17 G2 J8Z55ET
26.31 fps ∼44% -29%
Dell Precision 5510
20 fps ∼34% -46%
Lenovo ThinkPad P70
39.81 fps ∼67% +8%
Schenker W706
44 fps ∼74% +19%
Schenker XMG U716
59.31 fps ∼100% +60%
1900x1060 Medical (medical-01) (sort by value)
Dell Precision 7710
27 fps ∼82%
HP ZBook 17 G2 J8Z55ET
16.27 fps ∼49% -40%
Dell Precision 5510
12 fps ∼36% -56%
Lenovo ThinkPad P70
17.46 fps ∼53% -35%
Schenker W706
33 fps ∼100% +22%
Schenker XMG U716
30.94 fps ∼94% +15%
1900x1060 Maya (maya-04) (sort by value)
Dell Precision 7710
46 fps ∼43%
HP ZBook 17 G2 J8Z55ET
39.17 fps ∼37% -15%
Dell Precision 5510
30 fps ∼28% -35%
Lenovo ThinkPad P70
23.08 fps ∼22% -50%
Schenker W706
73 fps ∼68% +59%
Schenker XMG U716
107.02 fps ∼100% +133%
1900x1060 Energy (energy-01) (sort by value)
Dell Precision 7710
3.17 fps ∼43%
HP ZBook 17 G2 J8Z55ET
0.59 fps ∼8% -81%
Dell Precision 5510
0.69 fps ∼9% -78%
Lenovo ThinkPad P70
4.68 fps ∼63% +48%
Schenker W706
7.4 fps ∼100% +133%
Schenker XMG U716
7.17 fps ∼97% +126%
1900x1060 Creo (creo-01) (sort by value)
Dell Precision 7710
50 fps ∼61%
HP ZBook 17 G2 J8Z55ET
42.61 fps ∼52% -15%
Dell Precision 5510
34 fps ∼41% -32%
Lenovo ThinkPad P70
42.17 fps ∼51% -16%
Schenker W706
82 fps ∼100% +64%
Schenker XMG U716
34.82 fps ∼42% -30%
1900x1060 Catia (catia-04) (sort by value)
Dell Precision 7710
58 fps ∼59%
HP ZBook 17 G2 J8Z55ET
44.02 fps ∼44% -24%
Dell Precision 5510
37 fps ∼37% -36%
Lenovo ThinkPad P70
45.24 fps ∼46% -22%
Schenker W706
99 fps ∼100% +71%
Schenker XMG U716
53.61 fps ∼54% -8%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

HP ZBook 17 G2 J8Z55ET Intel Core i7-4710MQ, AMD FirePro M6100, HGST Travelstar 7K1000 HTS721075A9E630

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Schenker W706 Intel Core i7-6700, NVIDIA Quadro M5000M, Samsung SM951 MZVPV512HDGL m.2 PCI-e

Schenker XMG U716 Intel Core i7-6700, NVIDIA GeForce GTX 980 (Laptop), Samsung SM951 MZHPV512HDGL m.2 PCI-e
LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
Dell Precision 7710
782 Samples/s ∼62%
Lenovo ThinkPad P70
1258 Samples/s ∼100% +61%
Dell Precision 5510
534 Samples/s ∼42% -32%
Sala GPUs-only (sort by value)
Dell Precision 7710
1412 Samples/s ∼63%
Lenovo ThinkPad P70
2234 Samples/s ∼100% +58%
Dell Precision 5510
889 Samples/s ∼40% -37%
SiSoft Sandra 2016
Image Processing (sort by value)
Dell Precision 7710
527.4 MPix/s ∼100%
Lenovo ThinkPad P70
367.1 MPix/s ∼70% -30%
Dell Precision 5510
127.5 MPix/s ∼24% -76%
GP Cryptography (Higher Security AES256+SHA2-512) (sort by value)
Dell Precision 7710
12.47 GB/s ∼100%
Lenovo ThinkPad P70
11.12 GB/s ∼89% -11%
Dell Precision 5510
7.38 GB/s ∼59% -41%
GP Financial Analysis (FP High/Double Precision) (sort by value)
Dell Precision 7710
66.36 KOPT/s ∼100%
Lenovo ThinkPad P70
32.97 KOPT/s ∼50% -50%
Dell Precision 5510
17 KOPT/s ∼26% -74%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB
Unigine Heaven 3.0
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Dell Precision 7710
59.3 fps ∼100%
Lenovo ThinkPad P70
43.4 fps ∼73% -27%
Dell Precision 5510
43.4 fps ∼73% -27%
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Dell Precision 7710
76.9 fps ∼97%
Lenovo ThinkPad P70
79.3 fps ∼100% +3%
Dell Precision 5510
44.9 fps ∼57% -42%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8 (sort by value)
Dell Precision 7710
30.7 fps ∼81%
Lenovo ThinkPad P70
37.8 fps ∼100% +23%
Dell Precision 5510
18.7 fps ∼49% -39%
1920x1080 Extreme HD Preset OpenGL AA:x8 (sort by value)
Dell Precision 7710
26.6 fps ∼100%
Lenovo ThinkPad P70
22 fps ∼83% -17%
Dell Precision 5510
16.2 fps ∼61% -39%

Legend


Dell Precision 7710 Intel Xeon E3-1535M v5, AMD FirePro W7170M, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Lenovo ThinkPad P70 Intel Core i7-6820HQ, NVIDIA Quadro M3000M, Samsung SSD PM871 MZNLN512HCJH

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB
3DMark 06 Standard
28430 puan
3DMark Vantage P Result
26345 puan
3DMark 11 Performance
9580 puan
3DMark Ice Storm Standard Score
95675 puan
3DMark Cloud Gate Standard Score
21612 puan
3DMark Fire Strike Score
6180 puan
Yardım
düşük orta yüksek ultra
Tomb Raider (2013) 375 224 167 51 fps
BioShock Infinite (2013) 220 178 158 66 fps
Metro: Last Light (2013) 120 112 94 44 fps
Company of Heroes 2 (2013) 57 56 55 28 fps
Total War: Rome II (2013) 185 162 153 36 fps
Thief (2014) 62 57 57 40 fps
GRID: Autosport (2014) 232 116 99 67 fps
Middle-earth: Shadow of Mordor (2014) 177 126 70 52 fps
Ryse: Son of Rome (2014) 101 93 43 15 fps
F1 2014 (2014) 132 111 95 74 fps
Dirt Rally (2015) 278 187 89 63 fps
The Witcher 3 (2015) 97 72 31 23 fps
Anno 2205 (2015) 146 93 43 20 fps

Ses yüksekliği

Boşta
30 / 30 / 30 dB
HDD
33.2 dB
Çalışırken
43.2 / 47.13 dB
  red to green bar


30 dB
sessiz
40 dB(A)
duyulabilirlik
50 dB(A)
gürültülü

min: dark, med: mid, max: light   Audix TM1 Arta (15 cm uzaklık)   environment noise: 30 dB(A)
Maksimum yük
 32.4 °C33.1 °C32.7 °C
 29.5 °C35.6 °C32.2 °C
 27 °C25.9 °C25.4 °C
Maksimum: 35.6 °C
Ortalama: 30.4 °C
37.1 °C55 °C38.5 °C
28.3 °C38.2 °C33.2 °C
26 °C27.6 °C29.2 °C
Maksimum: 55 °C
Ortalama: 34.8 °C
Güç kaynağı  44.8 °C | Oda sıcaklığı 20 °C | Fennel FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 30.4 °C / 87 F, compared to the average of 31.3 °C / 88 F for the devices in the class Workstation.
(+) The maximum temperature on the upper side is 35.6 °C / 96 F, compared to the average of 37.3 °C / 99 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 55 °C / 131 F, compared to the average of 40.5 °C / 105 F
(+) In idle usage, the average temperature for the upper side is 27 °C / 81 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27 °C / 80.6 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.8 °C / 82 F (+0.8 °C / 1.4 F).
Anlık tüketim
Kapalı / Bekleme modudarklight 0.2 / 0.8 Watt
Boştadarkmidlight 6.04 / 15.2 / 42.3 Watt
Çalışırken midlight 112.8 / 182.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Batarya ömrü
Boşta (WLAN kapalı, minimum parlaklık)
12h 55min
NBC WiFi Websurfing Battery Test 1.3
6h 05min
Big Buck Bunny H.264 1080p
4h 43min
Çalışırken (maksimum parlaklık)
1h 25min

Artılar

+ Çok iyi kasa
+ Çok iyi ekran
+ Yüksek sistem peformansı
+ Çok iyi güncelleme imkanları
+ Birçok farklı konfigrasyon
+ Düşük kullanımda sistme sesi
+ Sıcaklık üretimi
+ Batarya ömrü
+ Arayüzler

Eksiler

- Ekran parlaklığının eşit dağılmayışı
- Düşük parlaklık seviyesinde titremeler
- İşlemci yoğun olarak kullanılıyorken grafik kartının düşen performansı
- Sadece 3 depolama aracı kullanılabiliyor
- Ortalama bağlantı olanakları
Dell Precision 7710
Dell Precision 7710
A very good mobile workstation...
A very good mobile workstation...
...with small weaknesses in detail.
...with small weaknesses in detail.

Dell'in Precision 7710 modeli birçok noktada güncellenerek günümüz standartlarına getirilmiş.

Kullanıcı çok iyi bir performansa sahip, kolay bakım imkanlarına sahip, yüksek kalite Full HD ekrana sahip bir cihaza sahip oluyor.

Diğer Dell modellerinden alışkın olduğumuz gibi birçok farklı konfigrasyon özelliği de sunuluyor.

Ancak bağlantı imkanlarından tam olarak tatmin olduğumuz söylenemez. Özellikle tamamen elden geçen 17 inçlik bir cihaz söz konusuysa. Eski arayüzler çıkartılmış, ancak USB 3.1 Gen.2, Thunderbolt 3.0 (sadece opsiyonel olarka mevcut) veya HDMI 2.0 gibi arayüzler eksik. Bunun üzerine ya optik sürücü ya da 2.5 inçlik sürücü slotundan vazgeçmeniz gerek. Dahası bir test cihazı için yoğun kullanım veya batarya kullanımındayken grafik performansının tıkanması uygun değil. Çalışma istasyonlarının özellikle yoğun kullanım için alındığı düşünülürse bu tür bir davranış kullanımının tersine işaret ediyor.

Dell, bu eksiklikleri düşük sistem sesi ve düşük sıcaklık ile gidermeye çalışmış. Batarya süreleri 72 Wh gibi küçük bir bataryaya sahip olmasına karşın harika.

Yazının orjinali için tıklayın.

Dell Precision 7710 - 03/17/2016 v5(old)
Tobias Winkler

İşcilik
87 / 98 → 88%
Klavye
92%
Mouse
86%
Bağlanılabilirlik
68 / 81 → 84%
Ağırlık
53 / 10-66 → 77%
Batarya
83%
Görüntü
88%
Oyun performansı
97%
Uygulama performansı
98%
Isınma
90 / 95 → 94%
Ses
83 / 90 → 92%
Audio
55%
Camera
40 / 85 → 47%
Ortalama
78%
86%
Workstation - Ortalama Ağırlık

Pricecompare

Please share our article, every link counts!
> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Kısa inceleme: Dell Precision 7710 Workstation
Tobias Winkler, 2016-02- 9 (Update: 2020-06- 8)
