Acer Swift 5 Sneak Peek Önizlemesi: Tiger Lake iGPU Giriş Seviyesi GeForce'a saldırıyor

Does the Iris Graphics Xe wipe the floor with MX350 and Vega 7? Yalnızca 15 mm ince kasadaki sınırlı soğutma kapasitesine rağmen, Intel'in en yeni Tiger Lake işlemcisine sahip Acer Swift 5, Intel'in 10. nesil işlemcisiyle karşılaştırıldığında ileriye doğru dev bir adım gibi görünüyor. Daha da önemlisi, GPU performansı bambaşka bir ligde görünüyor. Özel giriş seviyesi GPU'lara sahip dizüstü bilgisayarların not alması gerekecek.
Sebastian Jentsch, 👁 Sebastian Jentsch,
Intel Tiger Lake with powerful Xe iGPU: i7-1165G7 with Iris Xe G7 graphics card (Gen 12)
Intel Tiger Lake with powerful Xe iGPU: i7-1165G7 with Iris Xe G7 graphics card (Gen 12)

Acer bize Swift 5'in üretim öncesi bir örneğini gönderdi, bu bazı açılardan henüz nihai ürünü tam olarak yansıtmayabilir. Buna göre, aşağıdakiler tam bir inceleme değil, nihai bir derecelendirme olmadan sınırlı bir önizlemedir. Bir üretim modelini alır almaz, onun hızına bakacağız ve size tam bir inceleme sunacağız. Core i7-1185G7'yi test ettikten sonra (kıyaslama testine bakın) Swift 5 bize aşağıya bir bakış sunuyor -dier Tiger Lake Core i7 SKU. Üst düzey model (1185G7), AMD'nin Ryzen hexa çekirdeklerinden bile daha iyi performans göstermeyi başardı ve GeForce MX330 ve MX350 gibi giriş seviyesi GeForce GPU'ları gereksiz hale getirecek entegre bir GPU sundu. Peki ya Acer'ın Swift 5'indeki i7-1165G7, benzer bir başarıya sahip olacak mı? Bu sefer, inceleme örneğimiz Intel tarafından hazırlanan ilk geliştirici örnek dizüstü bilgisayarı değil, Acer tarafından yapılan neredeyse kesinleşmiş bir üretim modelidir. Sonuçların nihai üründen yine de farklı olabileceğini unutmayın. Ancak deneyimlerimiz, üretim öncesi numunelerin ve nihai ürünlerin aynı olmasa da çok benzer performans gösterdiğini göstermektedir.

Acer SF514-55T (Swift 5 Seri)
İşlemci
Intel Core i7-1165G7 4 x 2.8 - 4.7 GHz, Tiger Lake UP3
Grafik kartı
Intel Iris Xe Graphics G7 96EUs, Çekirdek: 400 MHz, Bellek: 1600 MHz, DDR4, 27.20.100.8439
Bellek
16384 MB
, Dual Channel
Görüntü
14 inç 16:9, 1920 x 1080 pixel 157 PPI, AUO B140HAN06.D, IPS, parlak: evet, 60 Hz
Anakart
Intel Tiger Lake-UP3 PCH-LP
Harddisk
SK Hynix BC511 HFM512GDJTNI, 512 GB
, 385 GB Boş
Ses kartı
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Bağlantılar
2 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 Kensington Lock, Ses çıkışları: combo audio, 1 Parmak izi okuyucu
Network
Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.1
Boyut
yükseklik x genişlik x derinlik (mm): 14.95 x 319 x 208
Batarya
56 Wh Lithium-Ion
İşletim sistemi
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p
Ek özellikler
Hoparlörler: Stereo, Klavye: Chiclet, Klavye ışığı: evet, 24 Ay Garanti
Ağırlık
1.029 kg
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Durum

Ön üretim modeli ile Swift 5 nesli (14-54T) önizlemeleri arasında herhangi bir fark tespit edemedik. Panel, sağlam ancak çok ince bir çerçeve içine yerleştirilmiştir. Arkaya baskı uygulamak herhangi bir bozulmaya neden olmaz. Web kamerası ekranın üst kısmında bulunur ve fiziksel bir deklanşörden yoksundur. Menteşe sağlamdır ve kapağı açarken bir elin taban ünitesini tutmasını gerektirir. Buna karşılık, ekran kapağı açıkken etrafta dolaşırken herhangi bir tedirginlik fark edemedik. Plastik malzemesi kolayca tanınabilir olmasına rağmen, ana birimin kendisi inanılmaz derecede sağlamdır.

Yeni CPU bazı ekstra soğutma kanatçıkları ve bu nedenle birkaç gram daha fazla bakır gerektirebileceğinden, ağırlığı selefine göre biraz arttı ve 943 g (2.08 lbs) yerine 1.029 g (2.27 lbs) elde edildi. Rakipleriyle karşılaştırıldığında ağırlığı hala oldukça düşük, ZenBook 14 1,2 kg (2,62 lbs) ile tek istisna. Ayaksız kalınlık, tüm rakipler arasında oldukça tekdüzeydi ve LG Gram 14 grubun en kalın olanıydı.

Boyut Karşılaştırması

323 mm 211 mm 18 mm 994 g323.4 mm 218.9 mm 16.55 mm 1.2 kg323.5 mm 217.1 mm 14.9 mm 1.1 kg320 mm 203 mm 14.9 mm 995 g319 mm 199 mm 15.9 mm 1.2 kg319 mm 208 mm 14.95 mm 1 kg318.7 mm 210.5 mm 14.95 mm 943 g

Bağlantı

Bağlantı tamamen değişmeden kaldı. Hiçbir bağlantı noktası eklenmedi ve mevcut olanların yeri değiştirilmedi. Bu nedenle, Thunderbolt destekli bir HDMI bağlantı noktası ve bir USB Type-C bağlantı noktası elde ediyoruz, ancak bu sefer yeni yonga zaten 4 PCIe 4 şeritli Thunderbolt 4 / USB 4'ü destekliyor. Thunderbolt 3 gibi, Thunderbolt 4 de 40 Gbps'ye kadar veri hızını destekler. Aynısı 4x PCIe 3.0 şeridi (32 Gbps'ye kadar) ve harici GPU'lar için de geçerlidir. Bunlar da Thunderbolt 3 tarafından zaten destekleniyordu. Büyük haber, USB 4 ile uyumluluktur. Desteklenen en hızlı olan, 20 Gbps'de USB 3.2 Gen 2.2 olarak kaldığından, bu daha yüksek USB hızlarına dönüşmek zorunda değildir. Buna karşılık, USB-C aracılığıyla 77,37 Gbps'ye kadar DisplayPort 2.0 yenidir ve sıkıştırılmamış 8K videoyu (7680 x 4320) destekleyebilir.

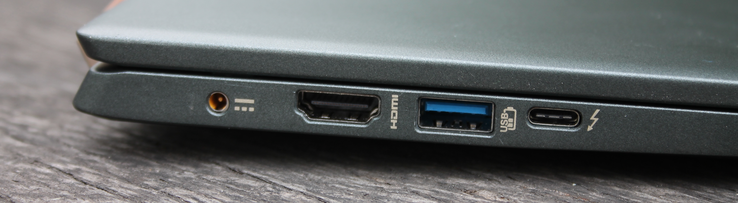

Left: Power, HDMI, USB-A 3.1, USB-C (Thunderbolt)
Left: Power, HDMI, USB-A 3.1, USB-C (Thunderbolt)

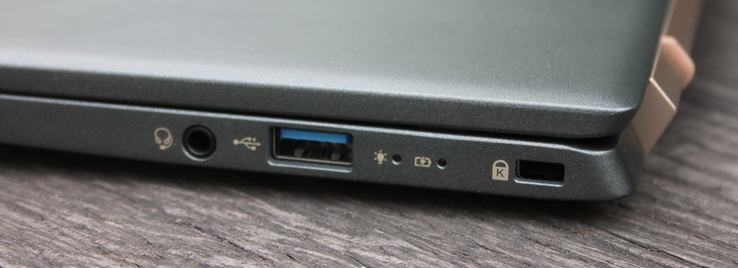

Right: 3.5-mm audio, USB-A 2.0, Kensington lock
Right: 3.5-mm audio, USB-A 2.0, Kensington lock

Verim

Swift 5, birçok subnotebook ve ultra ince cihaz arasında büyük olasılıkla yeni standart haline gelecek bir dizi bileşene sahiptir. İ7-1165G7, dört çekirdek sunar ve 12 ila 28 W arasında bir TDP olarak derecelendirilir. Ayrıca, bir FHD ekran, bir Wi-Fi 6 kartı (Intel AX201), SK Hynix tarafından üretilen 512 GB NVMe SSD ile birlikte gelir ve çok iyi bir 16 GB çift kanallı RAM.

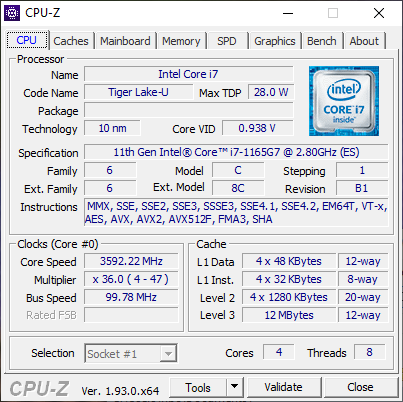

cpu-z: cpu
cpu-z: Cache
cpu-z: Mainboard
cpu-z: Memory
cpu-z: Graphics

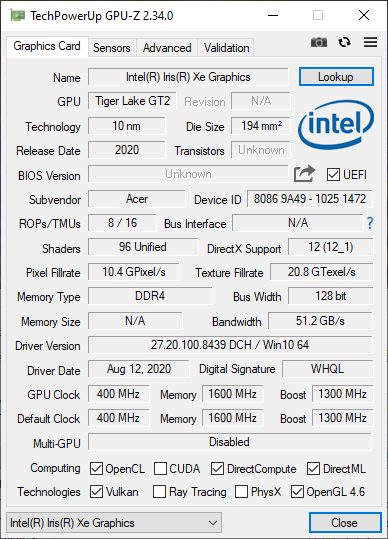

gpu-z
Hwinfo Summary


İşlemci

Önizleme birimimiz, Core i7-1165G7'nin 28 W TDP'sini tam olarak kullanacak şekilde yapılandırıldı. Buna göre, termal güvenli bir çalışma için izin verdiği sürece dört çekirdekte de 4,1 GHz hızında çalışabiliyordu. Ne yazık ki, ilk yinelemeden sonra durum böyleydi ve tekrarlanan beş çalışmadan sonra tüm çekirdekler 4 GHz'den fazla yerine 3'ün altında çalıştı. Bu da işlemcinin 2,8 GHz'lik temel saat hızına çok yakın ve ilk çalıştırmaya kıyasla% 31'lik bir performans kaybını temsil ediyor. Intel'in 1185G7'li referans tasarımı çok farklı ve çok daha iyi performans gösterdi. İlk yinelemeden sonra puanları daha da arttı ve sonraki yüksek performans düzeyini korumayı başardı. R15 Kısa günlük dosyasına baktığımızda, CPU Paket Gücünün ilk 5 saniyede 40 W'ın biraz üzerine çıktığını, bir başkası için sabit kaldığını görüyoruz. 15 saniye ve sonra yavaş yavaş azalır. Dinamik ayar bu çipte devre dışı görünüyor, aksi takdirde kısa süreler için 64 W'a kadar tüketebilirdi. Sonuçlar Prime95'i çalıştırırken aynıydı. Saat hızları üç dakika sonra 2,4-2,5 GHz'e sabitlendi ve sıcaklıklar 65 ° C civarında kaldı. Daha önce olduğu gibi, CPU Paket Gücünün başlangıçta 45 W'tan sona doğru 17 W'a düştüğünü görebiliyorduk. Yalnızca ilk çalıştırmayı hesaba katan Cinebench R20 kıyaslamamızda 1165G7, 1185G7 kardeşinin gerisinde kaldı. % 5. Diğer kıyaslamalar çok farklı sonuçlar üretti. Cinebench R15 ve Blender'da üst model sırasıyla% 39 ve% 17 daha hızlıydı. Bu sonuçlar her şeyden önce bir şeyi gösteriyor: gelecekteki bir dizüstü bilgisayarın performansı, işlemci terminolojisinin çok daha az etkisi ile öncelikle soğutma sistemine bağlı olacaktır.

Logview R15 Loop - frequencies and temperatures short run 3 min
Logview R15 Loop - frequencies and temperatures short run 3 min

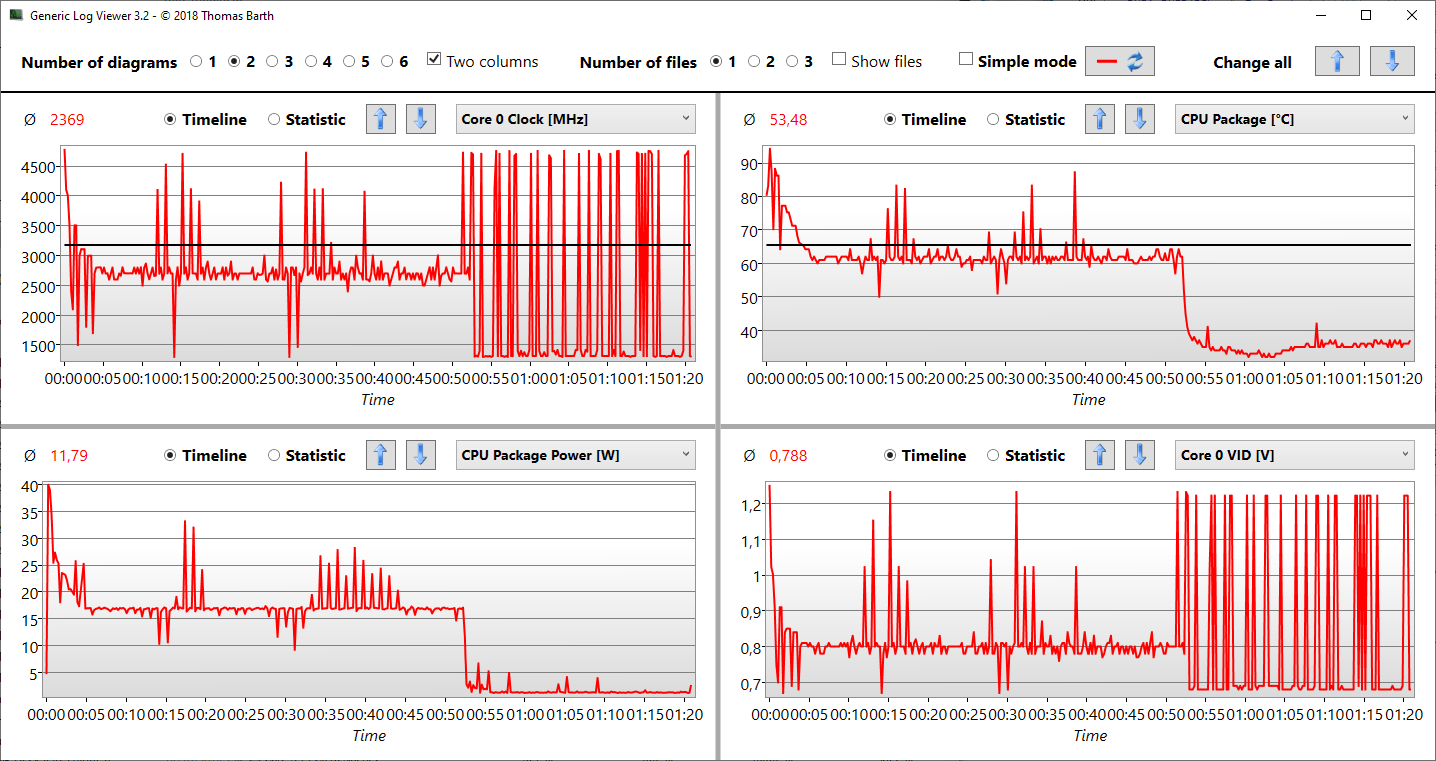

Logview R15 Loop - frequencies and temperatures long run
Logview R15 Loop - frequencies and temperatures long run
Logview Prime95 - frequencies and temperatures
Logview Prime95 - frequencies and temperatures
010203040506070809010011012013014015016017018019020021022023024025026027028029030031032033034035036037038039040041042043044045046047048049050051052053054055056057058059060061062063064065066067068069070071072073074075076077078079080081082083084085086087088089090091092093094095096097098099010001010102010301040Tooltip
Acer SF514-55T Intel Core i7-1165G7, Intel Core i7-1165G7: Ø679 (635.98-959.46)
Intel Reference Design Laptop 28W Intel Core i7-1185G7, Intel Core i7-1185G7: Ø853 (754.55-866.1)
Acer Swift 5 SF514-54T-501U Intel Core i5-1035G1, Intel Core i5-1035G1: Ø494 (437.21-504.69)
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00 Intel Core i7-10510U, Intel Core i7-10510U: Ø594 (493.81-731.25)
LG Gram 14Z90N Intel Core i7-1065G7, Intel Core i7-1065G7: Ø453 (446.17-494.8)
Asus Zenbook 14 UX433FN-A6023T Intel Core i7-8565U, Intel Core i7-8565U: Ø456 (442.93-580.91)
Asus ExpertBook B9450FA, i7-10510U Intel Core i7-10510U, Intel Core i7-10510U: Ø444 (412-561)
Acer Swift 3 SF314-42-R4XJ AMD Ryzen 7 4700U, AMD Ryzen 7 4700U: Ø932 (907.83-1035.01)
Cinebench R20: CPU (Single Core) | CPU (Multi Core)
Cinebench R15: CPU Single 64Bit | CPU Multi 64Bit
Blender 2.79: BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.1 / 5.2: 64 Bit Single-Core Score | 64 Bit Multi-Core Score
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Single Core) - CPU (Single Core)
Acer SF514-55T
Intel Core i7-1165G7
583 Points ∼100%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
580 Points ∼99% -1%
Average Intel Core i7-1165G7
  (480 - 583, n=4)
543 Points ∼93% -7%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
466 Points ∼80% -20%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
441 Points ∼76% -24%
Asus Zenbook 14 UX433FN-A6023T
Intel Core i7-8565U
365 Points ∼63% -37%
Average of class Subnotebook
  (73 - 583, n=68)
363 Points ∼62% -38%
LG Gram 14Z90N
Intel Core i7-1065G7
358 Points ∼61% -39%
Cinebench R20 / CPU (Multi Core) - CPU (Multi Core)
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
2401 Points ∼100% +14%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
2214 Points ∼92% +5%
Acer SF514-55T
Intel Core i7-1165G7
2108 Points ∼88%
Average Intel Core i7-1165G7
  (1285 - 2530, n=4)
1913 Points ∼80% -9%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
1428 Points ∼59% -32%
Average of class Subnotebook
  (110 - 2935, n=69)
1230 Points ∼51% -42%
Asus Zenbook 14 UX433FN-A6023T
Intel Core i7-8565U
1176 Points ∼49% -44%
LG Gram 14Z90N
Intel Core i7-1065G7
1081 Points ∼45% -49%
Cinebench R15 / CPU Single 64Bit - CPU Single 64Bit
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
224 Points ∼100% +7%
Average Intel Core i7-1165G7
  (210 - 220, n=4)
214 Points ∼96% +2%
Acer SF514-55T
Intel Core i7-1165G7
210 Points ∼94%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
183 Points ∼82% -13%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
180 Points ∼80% -14%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
170 Points ∼76% -19%
LG Gram 14Z90N
Intel Core i7-1065G7
166 Points ∼74% -21%
Asus Zenbook 14 UX433FN-A6023T
Intel Core i7-8565U
153 Points ∼68% -27%
Asus ExpertBook B9450FA, i7-10510U
Intel Core i7-10510U
141 Points ∼63% -33%
Average of class Subnotebook
  (20 - 210, n=327)
121 Points ∼54% -42%
Cinebench R15 / CPU Multi 64Bit - CPU Multi 64Bit
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
1035 Points ∼100% +49%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
966 Points ∼93% +39%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
866 (754.55min - 866.1max) Points ∼84% +24%
Average Intel Core i7-1165G7
  (606 - 1020, n=6)
782 Points ∼76% +12%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
731 Points ∼71% +5%
Acer SF514-55T
Intel Core i7-1165G7
696 (672.4min - 695.53max) Points ∼67%
Asus Zenbook 14 UX433FN-A6023T
Intel Core i7-8565U
581 Points ∼56% -17%
Asus ExpertBook B9450FA, i7-10510U
Intel Core i7-10510U
561 Points ∼54% -19%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
518 Points ∼50% -26%
LG Gram 14Z90N
Intel Core i7-1065G7
495 (446.17min - 494.8max) Points ∼48% -29%
Average of class Subnotebook
  (32 - 1287, n=342)
385 Points ∼37% -45%
Blender 2.79 / BMW27 CPU - BMW27 CPU
Average of class Subnotebook
  (4.2 - 6277, n=60)
1239 Seconds * ∼100% -88%
LG Gram 14Z90N
Intel Core i7-1065G7
1023 Seconds * ∼83% -55%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
912.4 Seconds * ∼74% -38%
Average Intel Core i7-1165G7
  (660 - 958, n=3)
771 Seconds * ∼62% -17%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
769 Seconds * ∼62% -17%
Acer SF514-55T
Intel Core i7-1165G7
660 Seconds * ∼53%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
545 Seconds * ∼44% +17%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
523.9 Seconds * ∼42% +21%
7-Zip 18.03 / 7z b 4 -mmt1 - 7z b 4 -mmt1
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
15198 MIPS ∼100% +185%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
5368 MIPS ∼35% +1%
Acer SF514-55T
Intel Core i7-1165G7
5326 MIPS ∼35%
Average Intel Core i7-1165G7
  (4651 - 5326, n=3)
5024 MIPS ∼33% -6%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
4521 MIPS ∼30% -15%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
4292 MIPS ∼28% -19%
LG Gram 14Z90N
Intel Core i7-1065G7
4166 MIPS ∼27% -22%
Average of class Subnotebook
  (1653 - 15198, n=55)
4074 MIPS ∼27% -24%
7-Zip 18.03 / 7z b 4 - 7z b 4
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
26652 MIPS ∼100% +15%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
25086 MIPS ∼94% +9%
Acer SF514-55T
Intel Core i7-1165G7
23087 MIPS ∼87%
Average Intel Core i7-1165G7
  (15556 - 23087, n=3)
19893 MIPS ∼75% -14%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
18187 MIPS ∼68% -21%
Average of class Subnotebook
  (2692 - 37081, n=55)
15662 MIPS ∼59% -32%
LG Gram 14Z90N
Intel Core i7-1065G7
13432 MIPS ∼50% -42%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
3913 MIPS ∼15% -83%
Geekbench 5.1 / 5.2 / 64 Bit Single-Core Score - 64 Bit Single-Core Score
Acer SF514-55T
Intel Core i7-1165G7
1575 Points ∼100%
Average Intel Core i7-1165G7
  (1523 - 1575, n=4)
1559 Points ∼99% -1%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
1211 Points ∼77% -23%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
1101 Points ∼70% -30%
Average of class Subnotebook
  (310 - 1575, n=51)
987 Points ∼63% -37%
LG Gram 14Z90N
Intel Core i7-1065G7
948 Points ∼60% -40%
Geekbench 5.1 / 5.2 / 64 Bit Multi-Core Score - 64 Bit Multi-Core Score
Acer SF514-55T
Intel Core i7-1165G7
5926 Points ∼100%
Average Intel Core i7-1165G7
  (5441 - 5926, n=4)
5667 Points ∼96% -4%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
4792 Points ∼81% -19%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
4122 Points ∼70% -30%
Average of class Subnotebook
  (591 - 5926, n=51)
3151 Points ∼53% -47%
LG Gram 14Z90N
Intel Core i7-1065G7
2464 Points ∼42% -58%
HWBOT x265 Benchmark v2.2 / 4k Preset - 4k Preset
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
7.81 fps ∼100% +40%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
6.46 fps ∼83% +16%
Acer SF514-55T
Intel Core i7-1165G7
5.58 fps ∼71%
Average Intel Core i7-1165G7
  (3.84 - 5.58, n=3)
4.92 fps ∼63% -12%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
4.85 fps ∼62% -13%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
4.15 fps ∼53% -26%
Average of class Subnotebook
  (0.63 - 8.33, n=55)
4.02 fps ∼51% -28%
LG Gram 14Z90N
Intel Core i7-1065G7
3.67 fps ∼47% -34%
LibreOffice / 20 Documents To PDF - 20 Documents To PDF
Average of class Subnotebook
  (32.3 - 281, n=40)
84.4 s ∼100% +71%
LG Gram 14Z90N
Intel Core i7-1065G7
61.5 s ∼73% +24%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
59.83 s ∼71% +21%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
51.7 s ∼61% +5%
Average Intel Core i7-1165G7
  (47.9 - 56.7, n=3)
51.3 s ∼61% +4%
Acer SF514-55T
Intel Core i7-1165G7
49.4 s ∼59%
R Benchmark 2.5 / Overall mean - Overall mean
Average of class Subnotebook
  (0.554 - 2.43, n=45)
0.896 sec * ∼100% -62%
LG Gram 14Z90N
Intel Core i7-1065G7
0.761 sec * ∼85% -37%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U
0.679 sec * ∼76% -23%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U
0.629 sec * ∼70% -14%
Average Intel Core i7-1165G7
  (0.554 - 0.649, n=3)
0.599 sec * ∼67% -8%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7
0.571 sec * ∼64% -3%
Acer SF514-55T
Intel Core i7-1165G7
0.554 sec * ∼62%

* ... smaller is better

Cinebench R10 Shading 64Bit
13142 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
40744 Points
Cinebench R10 Rendering Single CPUs 64Bit
11411 Points
Cinebench R10 Shading 32Bit
15497
Cinebench R10 Rendering Multiple CPUs 32Bit
28753
Cinebench R10 Rendering Single 32Bit
8894
Cinebench R11.5 CPU Multi 32Bit
8.82 Points
Cinebench R11.5 CPU Single 32Bit
2.27 Points
Cinebench R11.5 OpenGL 32Bit
68 fps
Cinebench R11.5 CPU Single 64Bit
2.49 Points
Cinebench R11.5 CPU Multi 64Bit
9.84 Points
Cinebench R11.5 OpenGL 64Bit
68.5 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 OpenGL 64Bit
107 fps
Cinebench R15 CPU Multi 64Bit
696 Points
Cinebench R15 CPU Single 64Bit
210 Points
Yardım

Sistem performansı

Sistem performansı genel olarak çok iyi ve Intel'in 1187G7 referans tasarımının sadece% 11 gerisindeydi. İlgili testler arasındaki farkların çok büyük olduğuna dikkat edin. Örneğin, Intel'in sistemi, büyük olasılıkla daha hızlı Samsung PM981 SSD'ye bağlı olarak Üretkenlikte% 23 daha hızlıydı.

PCMark 10
Digital Content Creation
Intel Reference Design Laptop 28W
Iris Xe G7 96EUs, i7-1185G7, Samsung PM981a MZVLB1T0HBLR
5075 Points ∼100% +4%
Acer SF514-55T
Iris Xe G7 96EUs, i7-1165G7, SK Hynix BC511 HFM512GDJTNI
4891 Points ∼96%
Acer Swift 3 SF314-42-R4XJ
Vega 7, R7 4700U, Samsung PM991 MZVLQ1T0HALB
4709 Points ∼93% -4%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (4083 - 4891, n=3)
4479 Points ∼88% -8%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
3446 Points ∼68% -30%
LG Gram 14Z90N
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung SSD PM981 MZVLB256HAHQ
3285 Points ∼65% -33%
Asus Zenbook 14 UX433FN-A6023T
GeForce MX150, i7-8565U, Intel SSD 660p SSDPEKNW512G8
3194 Points ∼63% -35%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
3076 Points ∼61% -37%
Average of class Subnotebook
  (405 - 4905, n=141)
2673 Points ∼53% -45%
Asus ExpertBook B9450FA, i7-10510U
UHD Graphics 620, i7-10510U, 2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)
2537 Points ∼50% -48%
Productivity
Intel Reference Design Laptop 28W
Iris Xe G7 96EUs, i7-1185G7, Samsung PM981a MZVLB1T0HBLR
8770 Points ∼100% +30%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
7676 Points ∼88% +14%
Acer Swift 3 SF314-42-R4XJ
Vega 7, R7 4700U, Samsung PM991 MZVLQ1T0HALB
7273 Points ∼83% +8%
LG Gram 14Z90N
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung SSD PM981 MZVLB256HAHQ
7057 Points ∼80% +5%
Acer SF514-55T
Iris Xe G7 96EUs, i7-1165G7, SK Hynix BC511 HFM512GDJTNI
6745 Points ∼77%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (6560 - 6745, n=3)
6641 Points ∼76% -2%
Asus ExpertBook B9450FA, i7-10510U
UHD Graphics 620, i7-10510U, 2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)
6554 Points ∼75% -3%
Asus Zenbook 14 UX433FN-A6023T
GeForce MX150, i7-8565U, Intel SSD 660p SSDPEKNW512G8
6072 Points ∼69% -10%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
5740 Points ∼65% -15%
Average of class Subnotebook
  (1014 - 7676, n=141)
5415 Points ∼62% -20%
Essentials
Intel Reference Design Laptop 28W
Iris Xe G7 96EUs, i7-1185G7, Samsung PM981a MZVLB1T0HBLR
10484 Points ∼100% +4%
Acer SF514-55T
Iris Xe G7 96EUs, i7-1165G7, SK Hynix BC511 HFM512GDJTNI
10113 Points ∼96%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (9585 - 10113, n=3)
9857 Points ∼94% -3%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
9524 Points ∼91% -6%
Acer Swift 3 SF314-42-R4XJ
Vega 7, R7 4700U, Samsung PM991 MZVLQ1T0HALB
9244 Points ∼88% -9%
LG Gram 14Z90N
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung SSD PM981 MZVLB256HAHQ
8866 Points ∼85% -12%
Asus ExpertBook B9450FA, i7-10510U
UHD Graphics 620, i7-10510U, 2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)
8839 Points ∼84% -13%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
8482 Points ∼81% -16%
Average of class Subnotebook
  (2062 - 10113, n=141)
7140 Points ∼68% -29%
Asus Zenbook 14 UX433FN-A6023T
GeForce MX150, i7-8565U, Intel SSD 660p SSDPEKNW512G8
7117 Points ∼68% -30%
Score
Intel Reference Design Laptop 28W
Iris Xe G7 96EUs, i7-1185G7, Samsung PM981a MZVLB1T0HBLR
5561 Points ∼100% +12%
Acer SF514-55T
Iris Xe G7 96EUs, i7-1165G7, SK Hynix BC511 HFM512GDJTNI
4972 Points ∼89%
Acer Swift 3 SF314-42-R4XJ
Vega 7, R7 4700U, Samsung PM991 MZVLQ1T0HALB
4886 Points ∼88% -2%
Average Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
  (4601 - 4972, n=3)
4759 Points ∼86% -4%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
UHD Graphics 620, i7-10510U, Samsung SSD PM981a MZVLB512HBJQ
4527 Points ∼81% -9%
LG Gram 14Z90N
Iris Plus Graphics G7 (Ice Lake 64 EU), i7-1065G7, Samsung SSD PM981 MZVLB256HAHQ
4231 Points ∼76% -15%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
3807 Points ∼68% -23%
Asus ExpertBook B9450FA, i7-10510U
UHD Graphics 620, i7-10510U, 2x Samsung SSD PM981 MZVLB1T0HALR (RAID 0)
3783 Points ∼68% -24%
Asus Zenbook 14 UX433FN-A6023T
GeForce MX150, i7-8565U, Intel SSD 660p SSDPEKNW512G8
3704 Points ∼67% -26%
Average of class Subnotebook
  (743 - 4972, n=144)
3330 Points ∼60% -33%

GPU Performance

The Iris Xe G7 GPU (Gen 12) is supposed to perform much better than Intel’s previous generation Iris Plus G7 that Ice Lake CPUs were equipped with. The 1165G7’s Iris Xe features 96 EUs running at 400-1300 MHz. This particular iGPU managed to outperform AMD’s Radeon Vega 7 by a whopping 36 % in Cloud Gate and an even more impressive 84 % in Fire Strike. Compared to last generation’s Iris Plus G7 it was between 200-300 % faster (Time Spy and Fire Strike Graphics), and it even gave Nvidia’s MX350 a run for its money and ran 27 and 33 % faster in Cloud Gate and Fire Strike, respectively. Not bad for an iGPU, not bad indeed.

It looks as if previous entry-level solutions a la MX 330 or MX350 might have a hard time in the future. Accordingly, we expect Nvidia to introduce its new GeForce MX450 entry-level GPU very soon in order to keep up with Intel’s iGPU in the entry-level segment.

3DMark 11 - 1280x720 Performance GPU
Acer SF514-55T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
7001 Points ∼100%
Average Intel Iris Xe Graphics G7 96EUs
  (5018 - 7001, n=4)
6323 Points ∼90% -10%
Lenovo Yoga Slim 7-14IIL05
NVIDIA GeForce MX350, Intel Core i7-1065G7
6232 Points ∼89% -11%
MSI Prestige 14 A10RD
NVIDIA GeForce MX350, Intel Core i7-10510U
6135 Points ∼88% -12%
Acer Swift 3 SF314-42-R4XJ
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
4990 Points ∼71% -29%
MSI Prestige 14 A10RC
NVIDIA GeForce MX330, Intel Core i7-10510U
4829 Points ∼69% -31%
Asus Zenbook 14 UX433FN-A6023T
NVIDIA GeForce MX150, Intel Core i7-8565U
3560 Points ∼51% -49%
LG Gram 14Z90N
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
3150 Points ∼45% -55%
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
2516 Points ∼36% -64%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
1978 Points ∼28% -72%
Asus ExpertBook B9450FA, i7-10510U
Intel UHD Graphics 620, Intel Core i7-10510U
1836 Points ∼26% -74%
Average of class Subnotebook
  (230 - 11501, n=413)
1526 Points ∼22% -78%
3DMark
2560x1440 Time Spy Graphics
Intel Reference Design Laptop 28W
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
1618 Points ∼100% 0%
Acer SF514-55T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1614 Points ∼100%
Average Intel Iris Xe Graphics G7 96EUs
  (1089 - 1618, n=8)
1414 Points ∼87% -12%
Lenovo Yoga Slim 7-14IIL05
NVIDIA GeForce MX350, Intel Core i7-1065G7
1326 Points ∼82% -18%
Acer Swift 3 SF314-42-R4XJ
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
973 Points ∼60% -40%
Asus Zenbook 14 UX433FN-A6023T
NVIDIA GeForce MX150, Intel Core i7-8565U
862 Points ∼53% -47%
Average of class Subnotebook
  (85 - 3098, n=74)
647 Points ∼40% -60%
LG Gram 14Z90N
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
533 Points ∼33% -67%
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
453 Points ∼28% -72%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
432 Points ∼27% -73%
1920x1080 Fire Strike Graphics
Acer SF514-55T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5774 Points ∼100%
Intel Reference Design Laptop 28W
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7
5652 Points ∼98% -2%
Average Intel Iris Xe Graphics G7 96EUs
  (4600 - 5774, n=7)
5213 Points ∼90% -10%
MSI Prestige 14 A10RD
NVIDIA GeForce MX350, Intel Core i7-10510U
4340 Points ∼75% -25%
Lenovo Yoga Slim 7-14IIL05
NVIDIA GeForce MX350, Intel Core i7-1065G7
4332 Points ∼75% -25%
MSI Prestige 14 A10RC
NVIDIA GeForce MX330, Intel Core i7-10510U
3838 Points ∼66% -34%
Acer Swift 3 SF314-42-R4XJ
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
3134 Points ∼54% -46%
Asus Zenbook 14 UX433FN-A6023T
NVIDIA GeForce MX150, Intel Core i7-8565U
2874 Points ∼50% -50%
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
1739 Points ∼30% -70%
LG Gram 14Z90N
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
1487 Points ∼26% -74%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
1366 Points ∼24% -76%
Asus ExpertBook B9450FA, i7-10510U
Intel UHD Graphics 620, Intel Core i7-10510U
1319 Points ∼23% -77%
Average of class Subnotebook
  (222 - 8093, n=293)
1225 Points ∼21% -79%
1280x720 Cloud Gate Standard Graphics
Average Intel Iris Xe Graphics G7 96EUs
  (27289 - 38040, n=3)
32236 Points ∼100% +3%
Acer SF514-55T
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
31380 Points ∼97%
MSI Prestige 14 A10RD
NVIDIA GeForce MX350, Intel Core i7-10510U
24723 Points ∼77% -21%
MSI Prestige 14 A10RC
NVIDIA GeForce MX330, Intel Core i7-10510U
23580 Points ∼73% -25%
Acer Swift 3 SF314-42-R4XJ
AMD Radeon RX Vega 7, AMD Ryzen 7 4700U
22895 Points ∼71% -27%
Asus Zenbook 14 UX433FN-A6023T
NVIDIA GeForce MX150, Intel Core i7-8565U
18633 Points ∼58% -41%
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
11934 Points ∼37% -62%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel UHD Graphics 620, Intel Core i7-10510U
10785 Points ∼33% -66%
Average of class Subnotebook
  (1484 - 31380, n=310)
8540 Points ∼26% -73%
LG Gram 14Z90N
Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7
7045 Points ∼22% -78%
3DMark 06 Score
24558 puan
3DMark Vantage P Result
23981 puan
3DMark 11 Performance
7490 puan
3DMark Ice Storm Standard Score
101475 puan
3DMark Cloud Gate Standard Score
18164 puan
3DMark Fire Strike Score
5283 puan
3DMark Time Spy Score
1775 puan
Yardım

Gaming Performance

In order to fully replace dedicated entry-level GPUs the Iris Xe has to be capable of running real games smoothly as well, and based on our findings with Witcher 3 we are more than hopeful. For the first time ever Witcher 3 ran smoothly in high settings and FHD resolution on an iGPU (30 FPS). Neither AMD’s Radeon Vega 7 (17 FPS) nor Intel’s Whiskey Lake UHD Graphics (7 FPS) were capable of this task.

Looking at Nvidia’s dedicated entry-level GPUs we see 28 FPS for the MX350 (MSI Prestige 14) and a meager 20 FPS for the MX330. Have dedicated entry-level GPUs finally been rendered superfluous? At first glance it seems they might have, and we can’t wait to run additional tests and gaming benchmarks with final production samples.

The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel Reference Design Laptop 28W
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
16 (13min - 19max) fps ∼100% +7%
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
15.8 (14min, 14P1 - 17max) fps ∼99% +5%
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
15.8 (14min, 14P1 - 17max) fps ∼99% +5%
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
15 (6min - 18max) fps ∼94%
Average Intel Iris Xe Graphics G7 96EUs
  (11.9 - 16, n=3)
14.3 fps ∼89% -5%
MSI Prestige 14 A10RD
Intel Core i7-10510U, NVIDIA GeForce MX350
14 (7min - 18max) fps ∼88% -7%
MSI Prestige 14 A10RC
Intel Core i7-10510U, NVIDIA GeForce MX330
11.2 (3min - 14max) fps ∼70% -25%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
10.7 fps ∼67% -29%
Average of class Subnotebook
  (3.1 - 29.8, n=30)
10.2 fps ∼64% -32%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel Reference Design Laptop 28W
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
35.9 (31min - 41max) fps ∼100% +20%
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
30 (25min - 34max) fps ∼84%
MSI Prestige 14 A10RD
Intel Core i7-10510U, NVIDIA GeForce MX350
27.5 (23min - 32max) fps ∼77% -8%
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
27.4 fps ∼76% -9%
Average Intel Iris Xe Graphics G7 96EUs
  (10.6 - 35.9, n=4)
25.5 fps ∼71% -15%
MSI Prestige 14 A10RC
Intel Core i7-10510U, NVIDIA GeForce MX330
19.2 (4min - 25max) fps ∼53% -36%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
16.5 fps ∼46% -45%
Average of class Subnotebook
  (3.8 - 52.6, n=43)
16 fps ∼45% -47%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
7 fps ∼19% -77%
1366x768 Medium Graphics & Postprocessing
Intel Reference Design Laptop 28W
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
65.2 (58min - 72max) fps ∼100% +21%
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
54 (43min - 60max) fps ∼83%
MSI Prestige 14 A10RD
Intel Core i7-10510U, NVIDIA GeForce MX350
47.2 (41min - 53max) fps ∼72% -13%
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
46.5 fps ∼71% -14%
Average Intel Iris Xe Graphics G7 96EUs
  (21.4 - 65.2, n=4)
45.4 fps ∼70% -16%
MSI Prestige 14 A10RC
Intel Core i7-10510U, NVIDIA GeForce MX330
37 (33min - 42max) fps ∼57% -31%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
33.5 fps ∼51% -38%
Average of class Subnotebook
  (5.6 - 92, n=53)
24.5 fps ∼38% -55%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
17.9 fps ∼27% -67%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U, Intel UHD Graphics 620
12.1 fps ∼19% -78%
X-Plane 11.11
3840x2160 high (fps_test=3)
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
38.4 fps ∼100%
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
29.4 fps ∼77% -23%
Average Intel Iris Xe Graphics G7 96EUs
  (12.1 - 38.4, n=2)
25.3 fps ∼66% -34%
Average of class Subnotebook
  (6.59 - 49.2, n=5)
25 fps ∼65% -35%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U, Intel UHD Graphics 620
6.59 fps ∼17% -83%
1920x1080 high (fps_test=3)
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
59.1 fps ∼100% +58%
MSI Prestige 14 A10RD
Intel Core i7-10510U, NVIDIA GeForce MX350
48.1 fps ∼81% +29%
MSI Prestige 14 A10RC
Intel Core i7-10510U, NVIDIA GeForce MX330
44.1 fps ∼75% +18%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
41.7 fps ∼71% +12%
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
37.3 fps ∼63%
Average Intel Iris Xe Graphics G7 96EUs
  (21.8 - 41.7, n=5)
33.3 fps ∼56% -11%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
24.9 fps ∼42% -33%
Average of class Subnotebook
  (3.09 - 60.5, n=49)
18.9 fps ∼32% -49%
LG Gram 14Z90N
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
11.9 fps ∼20% -68%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U, Intel UHD Graphics 620
10.9 fps ∼18% -71%
1920x1080 med (fps_test=2)
Lenovo Yoga Slim 7-14IIL05
Intel Core i7-1065G7, NVIDIA GeForce MX350
65.1 fps ∼100% +56%
MSI Prestige 14 A10RD
Intel Core i7-10510U, NVIDIA GeForce MX350
56.2 fps ∼86% +35%
MSI Prestige 14 A10RC
Intel Core i7-10510U, NVIDIA GeForce MX330
50 fps ∼77% +20%
Intel Reference Design Laptop 28W
Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs
45.6 fps ∼70% +10%
Acer SF514-55T
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
41.6 fps ∼64%
Average Intel Iris Xe Graphics G7 96EUs
  (24.5 - 45.6, n=5)
36.8 fps ∼57% -12%
Acer Swift 3 SF314-42-R4XJ
AMD Ryzen 7 4700U, AMD Radeon RX Vega 7
28.1 fps ∼43% -32%
Average of class Subnotebook
  (3.42 - 71.5, n=52)
20.5 fps ∼31% -51%
LG Gram 14Z90N
Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)
11.7 fps ∼18% -72%
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
Intel Core i7-10510U, Intel UHD Graphics 620
10.3 fps ∼16% -75%
düşük orta yüksek ultra4K
Counter-Strike: GO (2012) 268.2 167.2 155.6 95.9 fps
GTA V (2015) 87.9 74.4 25.2 11.1 fps
The Witcher 3 (2015) 79 54 30 15 fps
Dota 2 Reborn (2015) 86.2 69.2 50 47.7 19.7 fps
Overwatch (2016) 158.9 111.9 57.6 32 fps
Fortnite (2018) 56.9 30.1 21.2 14.7 fps
Final Fantasy XV Benchmark (2018) 44.1 24.7 15.1 fps
X-Plane 11.11 (2018) 55.6 41.6 37.3 38.4 fps
World of Tanks enCore (2018) 317.7 73.8 33.8 fps
Far Cry 5 (2018) 56 28 26 24 fps
Shadow of the Tomb Raider (2018) 56 26 24 21 fps
Assassin´s Creed Odyssey (2018) 32 25 22 14 fps
Battlefield V (2018) 64.8 39.2 34.1 31 fps
Farming Simulator 19 (2018) 144.7 80.3 46 29.1 fps
Apex Legends (2019) 111.2 47.1 34.5 34.7 fps
Far Cry New Dawn (2019) 49 28 27 24 fps
Metro Exodus (2019) 38.7 20 14.5 fps
Dirt Rally 2.0 (2019) 119.2 49.5 38 21.9 fps
The Division 2 (2019) 51 28 21 15 fps
Anno 1800 (2019) 79.2 29.3 15.1 9.1 fps
Rage 2 (2019) 63.9 29.4 23.7 23.1 fps
Total War: Three Kingdoms (2019) 93.7 31.7 19.4 13 fps
Control (2019) 59.7 19.6 13.5 fps
Borderlands 3 (2019) 50.4 24.9 15.6 11.6 fps
FIFA 20 (2019) 184.2 99.8 78.7 63.6 fps
GRID 2019 (2019) 85.3 42.9 34.7 29.7 fps
Call of Duty Modern Warfare 2019 (2019) 40.1 27.3 fps
Need for Speed Heat (2019) 37.1 28.3 25.8 23.2 fps
Star Wars Jedi Fallen Order (2019) 21.8 19 17.2 fps
Red Dead Redemption 2 (2019) 51.9 26.7 15.2 fps
Escape from Tarkov (2020) 77.3 38.2 30.8 29.1 fps
Hunt Showdown (2020) 60 28.3 fps
Doom Eternal (2020) 56.7 30.9 27.5 26.9 fps
Gears Tactics (2020) 142.1 50.1 32.1 19 fps
F1 2020 (2020) 89 47 37 24 fps
Death Stranding (2020) 49.3 30.7 29.3 28.5 fps
Flight Simulator 2020 (2020) 36.9 17.9 12.4 fps
Serious Sam 4 (2020) 63 20.8 17.8 12.3 fps
Mafia Definitive Edition (2020) 37.7 17.9 16.5 fps
Star Wars Squadrons (2020) 105.9 52.3 42.8 38.8 fps

Battery Life

We ran our Wi-Fi battery test at reduced brightness (150 nits) with the keyboard backlight disabled on this pre-production lightweight subnotebook. It managed to run for almost 11 hours, which is impressive considering its battery capacity of just 56 Wh. Nevertheless, the AMD Ryzen-based Acer Swift 3 ran for almost 12 hours and remains untouchable for now. Thanks to fast charging the battery can be charged to 70 % within 50 minutes, which is impressive.

Batarya ömrü
NBC WiFi Websurfing Battery Test 1.3
10h 51min
NBC WiFi Websurfing Battery Test 1.3 max Brightness
9h 21min
Acer SF514-55T
i7-1165G7, Iris Xe G7 96EUs, 56 Wh
Acer Swift 5 SF514-54T-501U
i5-1035G1, UHD Graphics G1 (Ice Lake 32 EU), 56 Wh
Lenovo ThinkPad X1 Carbon 2020-20UAS04T00
i7-10510U, UHD Graphics 620, 51 Wh
LG Gram 14Z90N
i7-1065G7, Iris Plus Graphics G7 (Ice Lake 64 EU), 72 Wh
Asus Zenbook 14 UX433FN-A6023T
i7-8565U, GeForce MX150, 50 Wh
Acer Swift 3 SF314-42-R4XJ
R7 4700U, Vega 7, 48.85 Wh
Average of class Subnotebook

Battery Runtime
-28%
-7%
29%
-23%
10%
-24%
Reader / Idle
885
2735
1392
643 (87 - 2735, n=567)
WiFi v1.3
651
468
-28%
604
-7%
838
29%
499
-23%
715
10%
496 (206 - 991, n=272)
-24%
Load
134
95
211
114
123 (40 - 369, n=588)
H.264
485
770
968
514 (182 - 1312, n=137)

Verdict

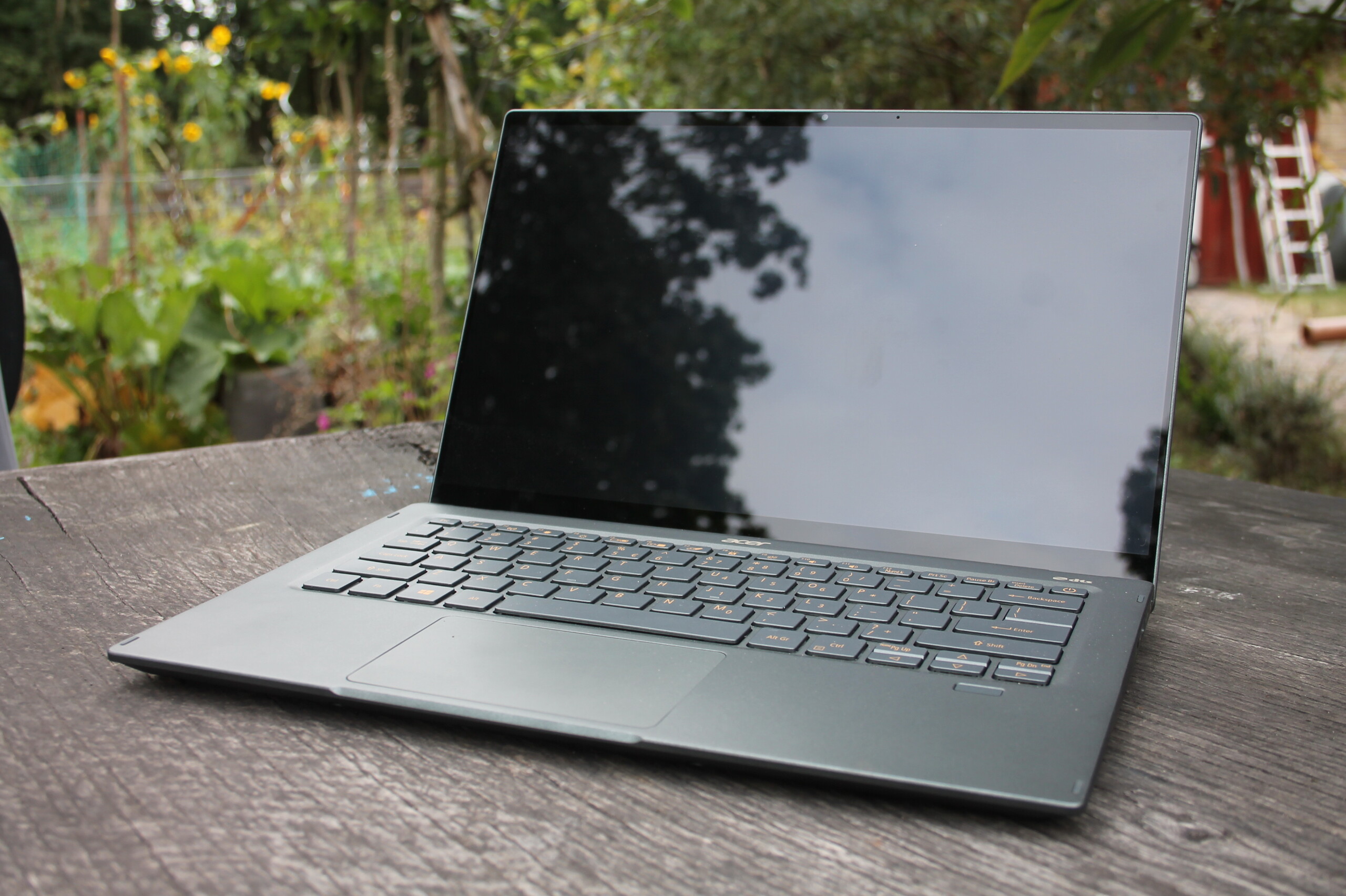

Acers Swift 5 with Intel Tiger Lake: Review model provided by Acer Germany
Acers Swift 5 with Intel Tiger Lake: Review model provided by Acer Germany

Just like its predecessor, the Acer Swift 5 SF514-54T-501U, the new Swift 5 continues the Swift legacy of “as slim as possible, as lightweight as feasible, and as powerful as reasonable”.

In this particular case, reasonable translates to a CPU that performed almost as fast as a Ryzen 7 4700U, one of the fastest ultra-low-voltages chips available for slim and lightweight subnotebooks at the time of writing, in short-term burst load scenarios.

However, sustained load paints a different picture, and the CPU is incapable of maintaining its high turbo boost over long periods of time and loses around 30 % of its peak performance. Even then it is still faster than a 10th generation Core i7, and as such the Tiger Lake i7-1165G7 can be considered a well-made high-performance CPU for ultra-lightweight notebooks. It is, however, not suitable as a workstation SoC.

The integrated GPU raised the bar significantly. The Intel Iris Xe G7 is set to take on the games and benchmarks of a Radeon Vega 7 and Geforce MX330/MX350 graphics solution. For the first time ever, the admittedly old yet very demanding game Witcher 3 ran smoothly in high settings and FHD resolution on an integrated GPU. Who would have thought that would be possible on an Intel GPU a mere two years ago?

The Intel Iris Xe G7 can keep up in first games and benchmarks with a Radeon Vega 7 as well as MX330/MX350 graphics solutions.

Keep in mind that our benchmarks and tests were performed on an Acer Swift 5 pre-production sample that the manufacturer had approved for benchmarks. We do not expect any significant changes, neither for the worse nor for the better, from the final retail product. Its high performance combined with 11 hours of battery life, a bright touch display, a brand-new Thunderbolt 4 port, and its decent input devices make this a very powerful subnotebook for many years to come. If prices remain similar to previous generations, we expect around $1,000 for a device configured similarly to our preview unit – a bargain. Once we have received the final Swift 5 production model, we are going to run it through its paces and provide you with a full and extensive review thereof.

Pricecompare

Please share our article, every link counts!
> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Acer Swift 5 Sneak Peek Önizlemesi: Tiger Lake iGPU Giriş Seviyesi GeForce'a saldırıyor
Sebastian Jentsch, 2020-10- 3 (Update: 2020-10- 3)
Aslinur Sarica
Translator: Aslinur Sarica - Translator
