Kısa inceleme: Acer Aspire S 13 S5-371 Notebook

İnce ve hızlı. Çok yeni bir model ve işte testimizde. Yepyeni Acer Aspire S13 önceki modellerine kıyasla ultra slim notebook segmentinde başarılı bir sonuç veriyor.
Acer Aspire S 13 S5-371-71QZ (Aspire S 13 Seri)
İşlemci
Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake
Bellek
8 GB
Görüntü
13.30 inç 16:9, 1920 x 1080 pixel 166 PPI, AUO B133HAN04.1, IPS, parlak: hayır
Anakart
Intel Skylake-U Premium PCH
Harddisk
LiteOn CV1-8B512, 512 GB
Ses kartı
Intel Skylake-U/Y PCH - High Definition Audio
Bağlantılar
3 USB 3.0, 1 HDMI, Ses çıkışları: 3,5 mm Headset, Kart okuyucular: SD card reader
Network
Qualcomm Atheros QC61x4 Wireless Network Adapter (n = Wi-Fi 4/), Bluetooth 4.0
Boyut
yükseklik x genişlik x derinlik (mm): 14.6 x 327 x 228
Batarya
45 Wh Lithium-Ion
İşletim sistemi
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD Webcam
Ek özellikler
Klavye ışığı: evet, 24 Ay Garanti
Ağırlık
1.27 kg, Güç kaynağı: 110 g
Fiyat
999 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



US power adapter
Size comparison with the MacBook 12 2016
Size comparison with the MacBook 12 2016
Viewing-angle stable IPS panel

Size Comparison

327 mm 228 mm 19.65 mm 1.5 kg323 mm 230 mm 19.3 mm 1.5 kg327 mm 228 mm 14.6 mm 1.3 kg326.5 mm 226 mm 12.6 mm 1.4 kg324 mm 226 mm 12 mm 1.5 kg316 mm 227 mm 17.9 mm 1.2 kg304 mm 200 mm 18.5 mm 1.2 kg297 mm 210 mm 1 mm 5.7 g

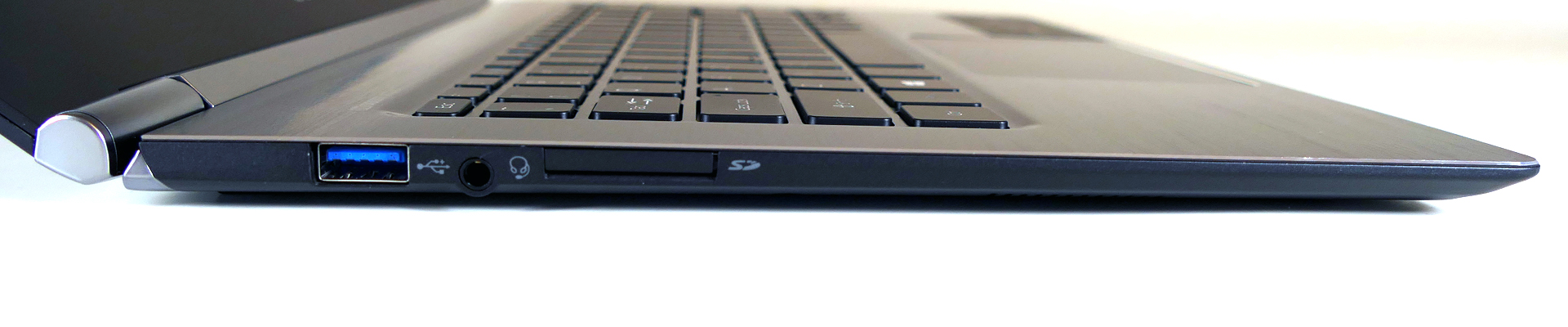

Left: USB 3.0, headset, SD-card reader
Left: USB 3.0, headset, SD-card reader
Right: USB-C Gen.1 (5 Gbit/s), USB 3.0 (with sleep and charge), HDMI 1.4a, indicator LEDs, power-in
Right: USB-C Gen.1 (5 Gbit/s), USB 3.0 (with sleep and charge), HDMI 1.4a, indicator LEDs, power-in
Networking
iperf3 receive AX12
Apple MacBook Pro Retina 13 inch 2013-10 (Klaus I211)
762 MBit/s
Lenovo ThinkPad T460s-20FA003GGE
637 MBit/s
iperf3 transmit AX12
Apple MacBook Pro Retina 13 inch 2013-10 (Klaus I211)
768 MBit/s
Lenovo ThinkPad T460s-20FA003GGE
534 MBit/s
iperf Server (receive) TCP 1 m 512KB
Lenovo ThinkPad T460s-20FA003GGE
672 MBit/s
Dell Latitude 13 7370
634 MBit/s
Toshiba Tecra Z40-C-106
601 MBit/s
Dell Latitude 12 E5270
561 MBit/s
Lenovo ThinkPad 13-20GKS01100
520 MBit/s
iperf Client (transmit) TCP 1 m 512KB
Lenovo ThinkPad T460s-20FA003GGE
515 MBit/s
Dell Latitude 13 7370
466 MBit/s
Dell Latitude 12 E5270
463 MBit/s
Lenovo ThinkPad 13-20GKS01100
401 MBit/s
Toshiba Tecra Z40-C-106
389 MBit/s
iperf Server (receive) TCP 1 m
Apple MacBook Pro Retina 13 inch 2013-10
735 MBit/s +130%
Apple MacBook 12 (Early 2016) 1.1 GHz
570 MBit/s +78%
Acer Aspire S 13 S5-371-71QZ
320 MBit/s
MSI GE72 965M Ti
183 MBit/s -43%
iperf Client (transmit) TCP 1 m
Apple MacBook Pro Retina 13 inch 2013-10 (Hinum)
510 MBit/s +96%
Apple MacBook 12 (Early 2016) 1.1 GHz
397 MBit/s +53%
MSI GE72 965M Ti
304 MBit/s +17%
Acer Aspire S 13 S5-371-71QZ
260 MBit/s
Chuwi Hi12
43 MBit/s -83%

Legend


Acer Aspire S 13 S5-371-71QZ Intel Core i7-6500U, Intel HD Graphics 520, LiteOn CV1-8B512

Lenovo ThinkPad 13-20GKS01100 Intel Core i5-6200U, Intel HD Graphics 520, Samsung SSD PM871 MZNLN256HCHP

Toshiba Tecra Z40-C-106 Intel Core i5-6200U, Intel HD Graphics 520, Toshiba HG6 THNSNJ256G8NY

Dell Latitude 12 E5270 Intel Core i5-6300U, Intel HD Graphics 520, Seagate ST500LM021-1KJ15

Apple MacBook 12 (Early 2016) 1.1 GHz Intel Core m3-6Y30, Intel HD Graphics 515, Apple SSD AP0256

Chuwi Hi12 Intel Atom x5-Z8300, Intel HD Graphics (Cherry Trail), Hynix HCG8E 64 GB

Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)

Dell Latitude 13 7370 Intel Core m5-6Y57, Intel HD Graphics 515, Toshiba NVMe THNSN5256GPU7

MSI GE72 965M Ti Intel Core i7-6700HQ, NVIDIA GeForce GTX 965M,

Apple MacBook Pro Retina 13 inch 2013-10 Intel Core i5-4258U, Intel Iris Graphics 5100, Apple SSD SM0256F
385
cd/m²
371
cd/m²
367
cd/m²
349
cd/m²
375
cd/m²
354
cd/m²
342
cd/m²
334
cd/m²
346
cd/m²
Parlaklığın yayılımı
AUO B133HAN04.1 tested with X-Rite i1Pro 2
Maksimum: 385 cd/m² (Nits) Ortalama: 358.1 cd/m² Minimum: 32 cd/m²
Aydınlatma: 87 %
Batarya modunda parlaklık: 375 cd/m²
Kontrast: 962:1 (Siyah: 0.39 cd/m²)
ΔE Color 4.6 | 0.5-29.43 Ø5
ΔE Greyscale 4 | 0.57-98 Ø5.3
92.2% sRGB (Calman 2D)
88.7% sRGB (Argyll 1.6.3 3D)
57.9% AdobeRGB 1998 (Argyll 1.6.3 3D)
Gamma: 2.34

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
29.6 ms ... rise ↗ and fall ↘ combined↗ 7.6 ms rise
↘ 22 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 76 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21.6 ms).
       Response Time 50% Grey to 80% Grey
50 ms ... rise ↗ and fall ↘ combined↗ 22 ms rise
↘ 28 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 84 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (33.9 ms).

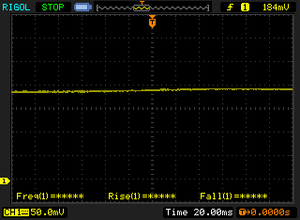

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18110 (minimum: 5 - maximum: 3846000) Hz was measured.

Cinebench R15
CPU Single 64Bit
Acer Aspire S 13 S5-371-71QZ
HD Graphics 520, 6500U, LiteOn CV1-8B512
129 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
128 Points -1%
Asus Zenbook UX303UB-DH74T
GeForce 940M, 6500U, CUK Cyclone SSD 1TB
127 Points -2%
Asus Zenbook UX305UA-FC040T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
123 Points -5%
Razer Blade Stealth UHD i7-6500U
HD Graphics 520, 6500U, Samsung PM951 NVMe MZ-VLV256D
115 Points -11%
Acer Aspire R13 R7-372T-746N
HD Graphics 520, 6500U, Lite-On CV1-8B256
104 Points -19%
CPU Multi 64Bit
Acer Aspire R13 R7-372T-746N
HD Graphics 520, 6500U, Lite-On CV1-8B256
321 Points +10%
Asus Zenbook UX305UA-FC040T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
312 Points +6%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
310 Points +6%
Razer Blade Stealth UHD i7-6500U
HD Graphics 520, 6500U, Samsung PM951 NVMe MZ-VLV256D
293 Points 0%
Acer Aspire S 13 S5-371-71QZ
HD Graphics 520, 6500U, LiteOn CV1-8B512
293 Points
Asus Zenbook UX303UB-DH74T
GeForce 940M, 6500U, CUK Cyclone SSD 1TB
286 Points -2%
Cinebench R11.5 CPU Single 64Bit
1.47 Points
Cinebench R11.5 CPU Multi 64Bit
3.56 Points
Cinebench R11.5 OpenGL 64Bit
39.5 fps
Cinebench R15 CPU Single 64Bit
129 Points
Cinebench R15 CPU Multi 64Bit
293 Points
Cinebench R15 OpenGL 64Bit
42.86 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Yardım
PCMark 8 Home Score Accelerated v2
3386 puan
PCMark 8 Work Score Accelerated v2
4316 puan
Yardım
LiteOn CV1-8B512
Sequential Read: 502 MB/s
Sequential Write: 418.9 MB/s
512K Read: 341.3 MB/s
512K Write: 389.7 MB/s
4K Read: 29.69 MB/s
4K Write: 86.8 MB/s
4K QD32 Read: 301.3 MB/s
4K QD32 Write: 211.2 MB/s
3DMark 2001SE Standard
27228 puan
3DMark 03 Standard
20522 puan
3DMark 05 Standard
15357 puan
3DMark 06 Standard Score
9959 puan
3DMark Vantage P Result
5884 puan
3DMark 11 Performance
1600 puan
3DMark Fire Strike Score
869 puan
Yardım
düşük orta yüksek ultra
BioShock Infinite (2013) 57.9 30.8 25.5 7.6
GTA V (2015) 34 27.1 7
The Witcher 3 (2015) 14.1
World of Warships (2015) 71 46.1 22.3 16.1
Just Cause 3 (2015) 0 game wont start
The Division (2016) 21.1
3DMark 2001SE Standard
27228 puan
3DMark 03 Standard
20522 puan
3DMark 05 Standard
15357 puan
3DMark 06 Standard Score
9959 puan
3DMark Vantage P Result
5884 puan
3DMark 11 Performance
1600 puan
3DMark Fire Strike Score
869 puan
Yardım

Ses yüksekliği

Boşta
31.2 / 31.2 / 31.5 dB
Çalışırken
35.7 / 35.8 dB
  red to green bar


30 dB
sessiz
40 dB(A)
duyulabilirlik
50 dB(A)
gürültülü

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm uzaklık)   environment noise: 31.2 dB(A)
Maksimum yük
 31.9 °C29 °C38.5 °C
 26.6 °C34.2 °C30.7 °C
 25.3 °C25.9 °C26.9 °C
Maksimum: 38.5 °C
Ortalama: 29.9 °C
35.9 °C47.7 °C35.7 °C
31.4 °C35 °C27.6 °C
27.9 °C37.5 °C26.6 °C
Maksimum: 47.7 °C
Ortalama: 33.9 °C
Güç kaynağı  39.2 °C | Oda sıcaklığı 22 °C | Firt 550 Pocket
(+) The average temperature for the upper side under maximal load is 29.9 °C / 86 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 38.5 °C / 101 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(-) The bottom heats up to a maximum of 47.7 °C / 118 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25.8 °C / 78 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.9 °C / 80.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+1.4 °C / 2.5 F).
Anlık tüketim
Kapalı / Bekleme modudarklight 0.3 / 0.2 Watt
Boştadarkmidlight 4.1 / 6.7 / 7.4 Watt
Çalışırken midlight 32.4 / 32.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Batarya ömrü
Boşta (WLAN kapalı, minimum parlaklık)
17h 08min
WiFi Websurfing
7h 52min
Çalışırken (maksimum parlaklık)
1h 39min

Artılar

+ Üst sınıf kasa
+ İyi arayüzler
+ Parlak ve mat ekran
+ Ekran iyi kalibre edilebiliyor
+ İyi sistem performansı
+ İyi batarya ömrü

Eksiler

- Avuç için bölgeleri parmak izine açık
- USB Typce C bağlantısı 1. jenerasyon
- Yüksek frekanslı fan sesi
- Düşük kullanımda bile fan ses çıkarıyor
- Yoğun kullanımda yüksek kasa sıcaklığı

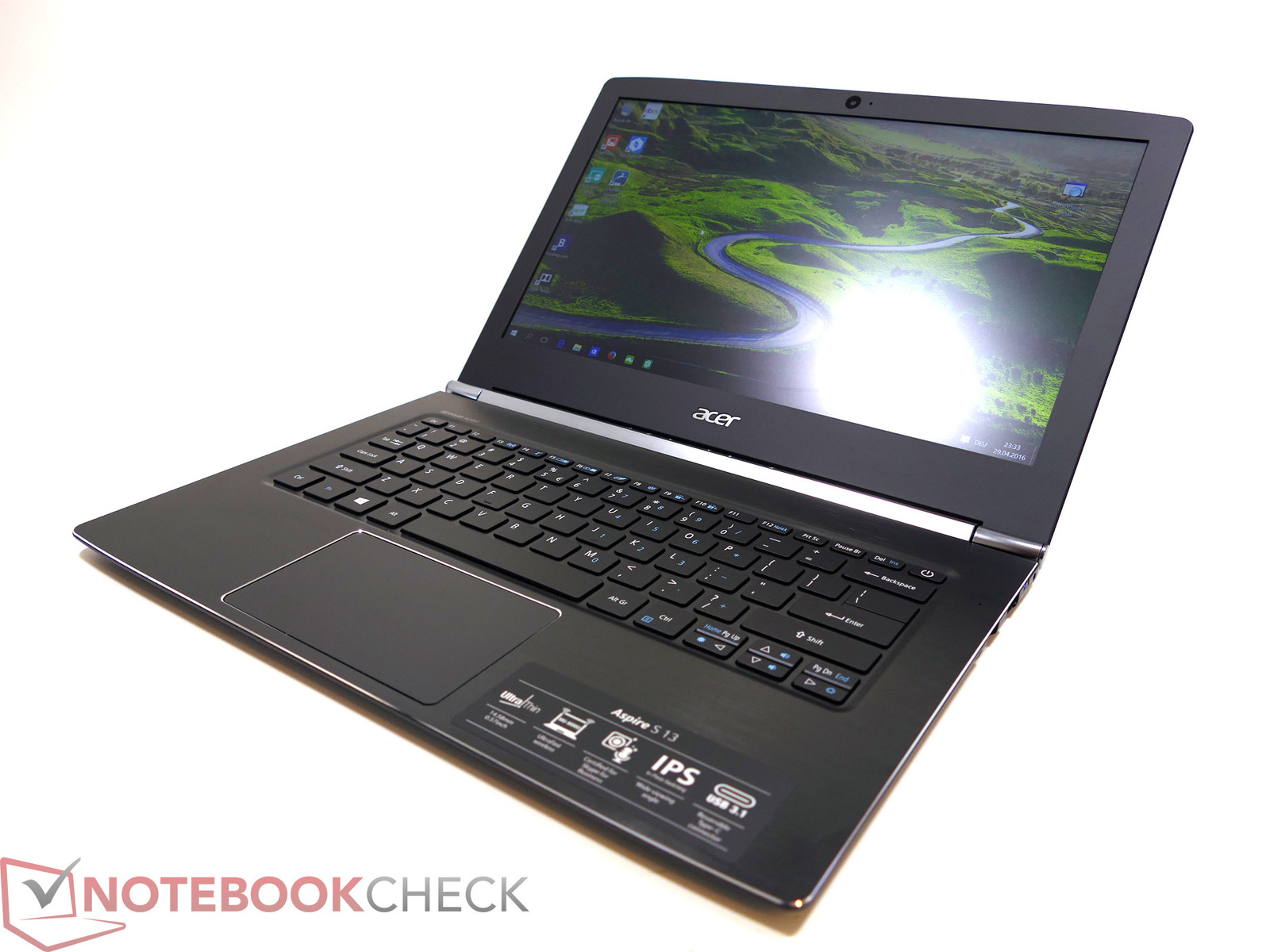

Slim subnotebook with bright and matte IPS display
Slim subnotebook with bright and matte IPS display

Acer Aspire S 13 için ilk izlenimimiz oldukça pozitif ve bu testimiz boyunca da devam ediyor. Kasayı, arayüzleri ve ekranı beğeniyoruz. Mat yüzey ve yüksek parlaklığın birleşimi iyi bir sonuç çıkarıyor.

Fan kullanımını bu test modelimizde çok beğenmiyoruz. BIOS güncellemesi ile giderilebilir bir durum gibi gözüküyor. Düşük kullanımlar da bile hızlanan bir fan çok gerekli olmasa gerek. Acer bu konuda bir çözüm üzerinde çalıştığını belirtiyor, bu durum puanlamamızı %1 oranında arttırabilir de.

Hızlı sistem, parlak ve mat IPS ekran ve iyi batarya ömrü ile Acer, Aspire S 13 modeliyle iyi bir paket sunuyor.

Diğer avantajları arasında iyi performansı ve 7 saatin üzerinde batarya kullanımı göze çarpıyor. Dahası arayüzler de tatmin edici.

Yazının orjinali için tıklayın.

Pricecompare

Please share our article, every link counts!
> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Kısa inceleme: Acer Aspire S 13 S5-371 Notebook
J. Simon Leitner, Klaus Hinum, 2016-05-17 (Update: 2016-05-17)
