Kısa inceleme: Acer Aspire Switch 12 Alpha SA5-271-56HM dönüştürülebilir

Mutlak sessizlik. Dönüştürülebilir bir modelde sıvı soğutma sistmei nasıl olur? Elbette olur! Acer ilk defa sessiz soğutma teknolojisini yüksek performansı bir dönüştürülebilir modelde kullanıyor.

Acer Aspire Switch Alpha 12 SA5-271-56HM (Aspire Switch Seri)

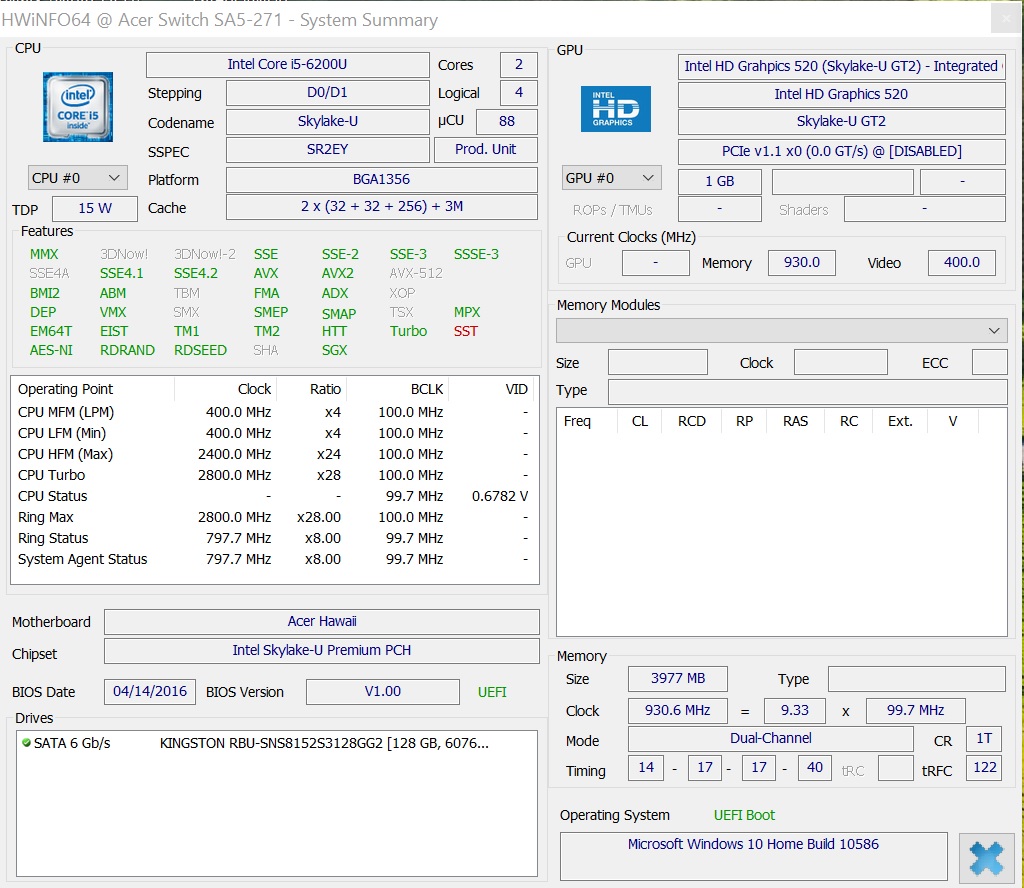

İşlemci
Intel Core i5-6200U, two cores TPM 15 W
Grafik kartı
Intel HD Graphics 520, Çekirdek: 400 MHz, Bellek: 930 MHz, 20.19.15.4454

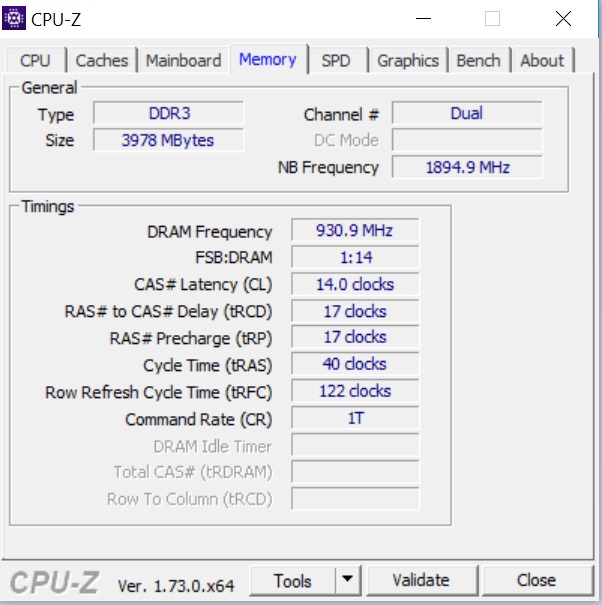

Bellek
4096 MB
, DDR3L
Görüntü
12 inç 16:9, 2160 x 1440 pixel 216 PPI, capacitive, multitouch, native pen support, Panasonic VVX12T041N00, IPS, parlak: evet, detachable screen
Anakart
Intel Skylake-U Premium PCH
Harddisk
Kingston RBU-SNS8152S3256GG2, 256 GB
, 128 GB SATA 3.1
Ses kartı
Intel Skylake-U/Y PCH - High Definition Audio
Bağlantılar
2 USB 3.0, 1 Docking Station Portu, Ses çıkışları: combo audio, Kart okuyucular: micro-SD, Brightness Sensor
Network
Atheros/Qualcomm QCA6174 (a/b/g/n/ac), Bluetooth 4.1
Boyut
yükseklik x genişlik x derinlik (mm): 11 x 291 x 201
Batarya
37 Wh Lithium-Polymer, 2 cells
İşletim sistemi
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 720pSecondary Camera: 1.44 MPix
Ek özellikler
Hoparlörler: stereo speakers, Klavye: chiclet, Klavye ışığı: hayır, keyboard, 12 Ay Garanti, fanless
Ağırlık
1.29 kg, Güç kaynağı: 330 g
Fiyat
800 Euro



With its keyboard unit, Acer's new convertible resembles ...
With its keyboard unit, Acer's new convertible resembles ...
... Microsoft's Surface models.

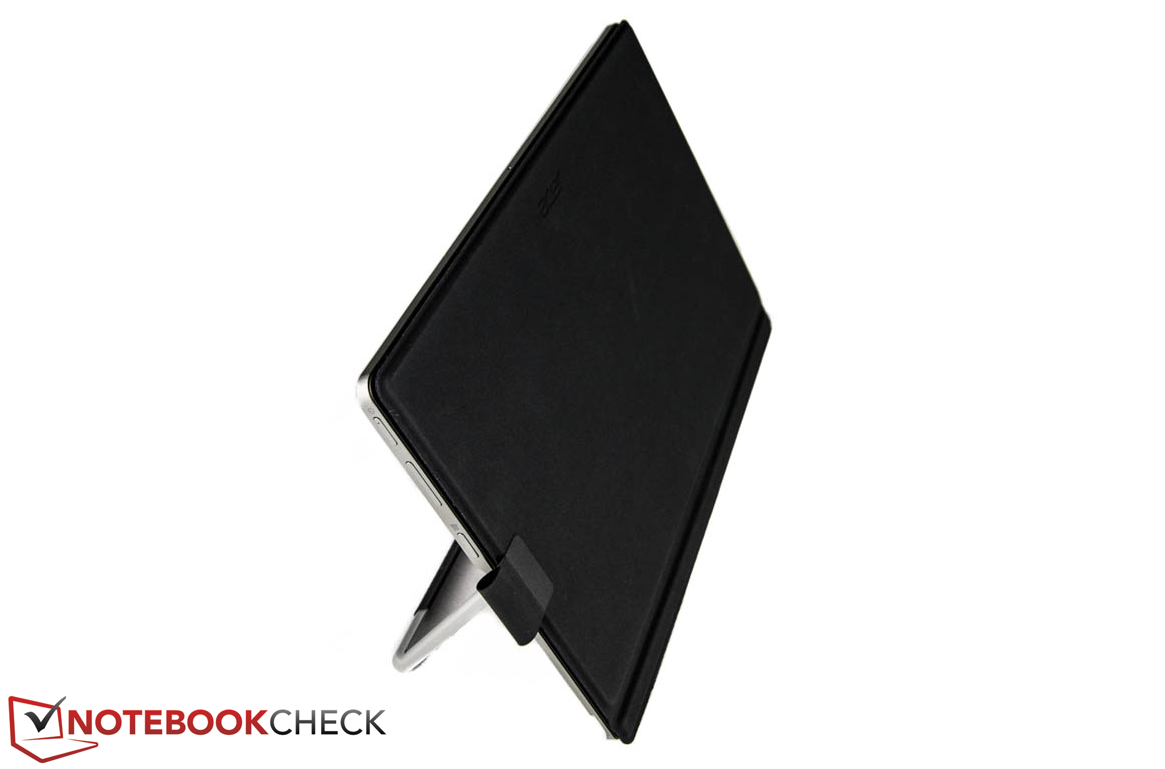

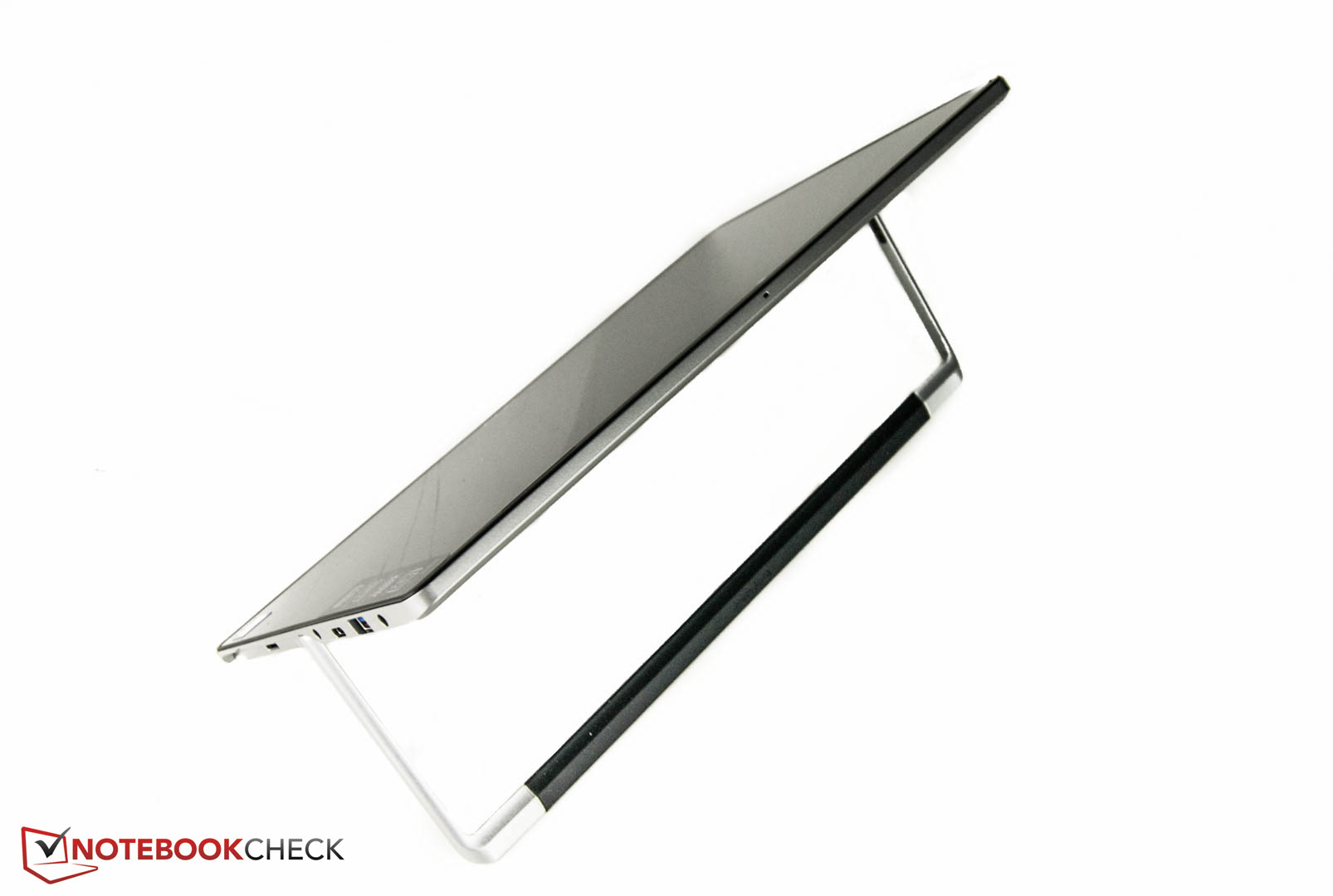

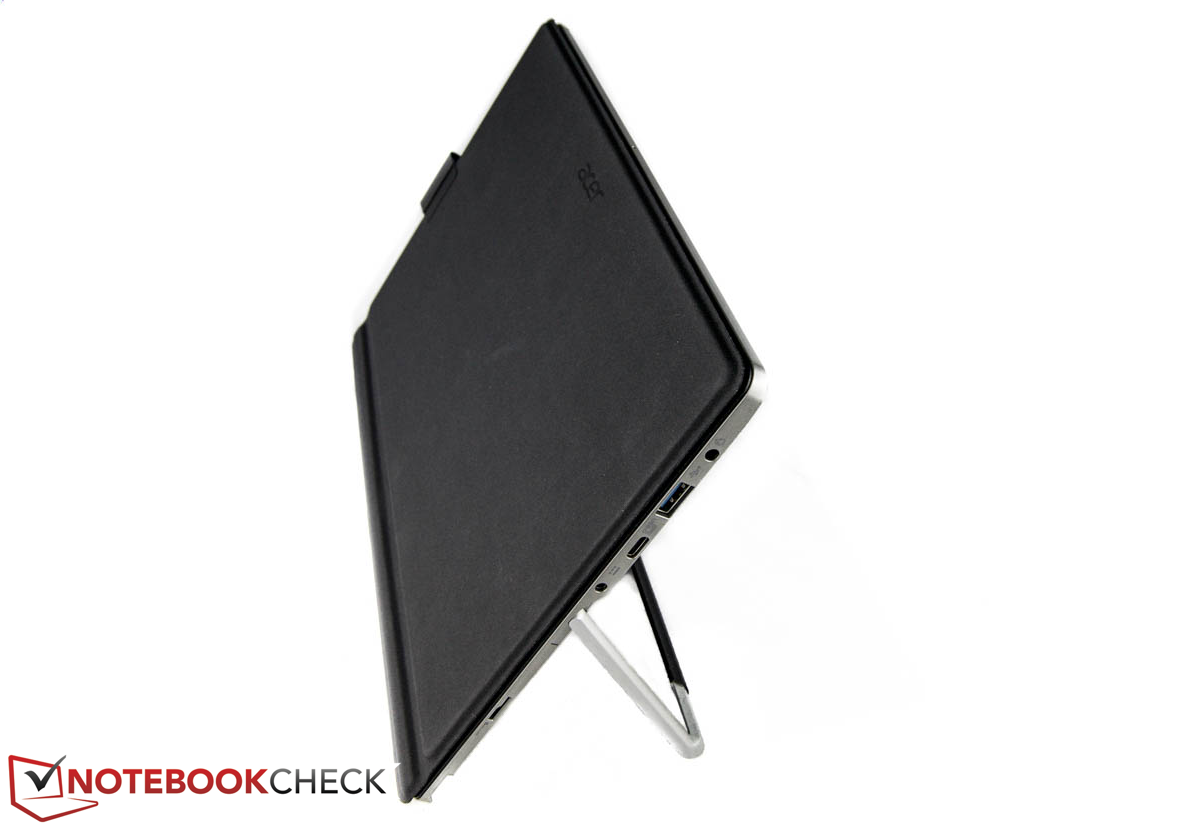

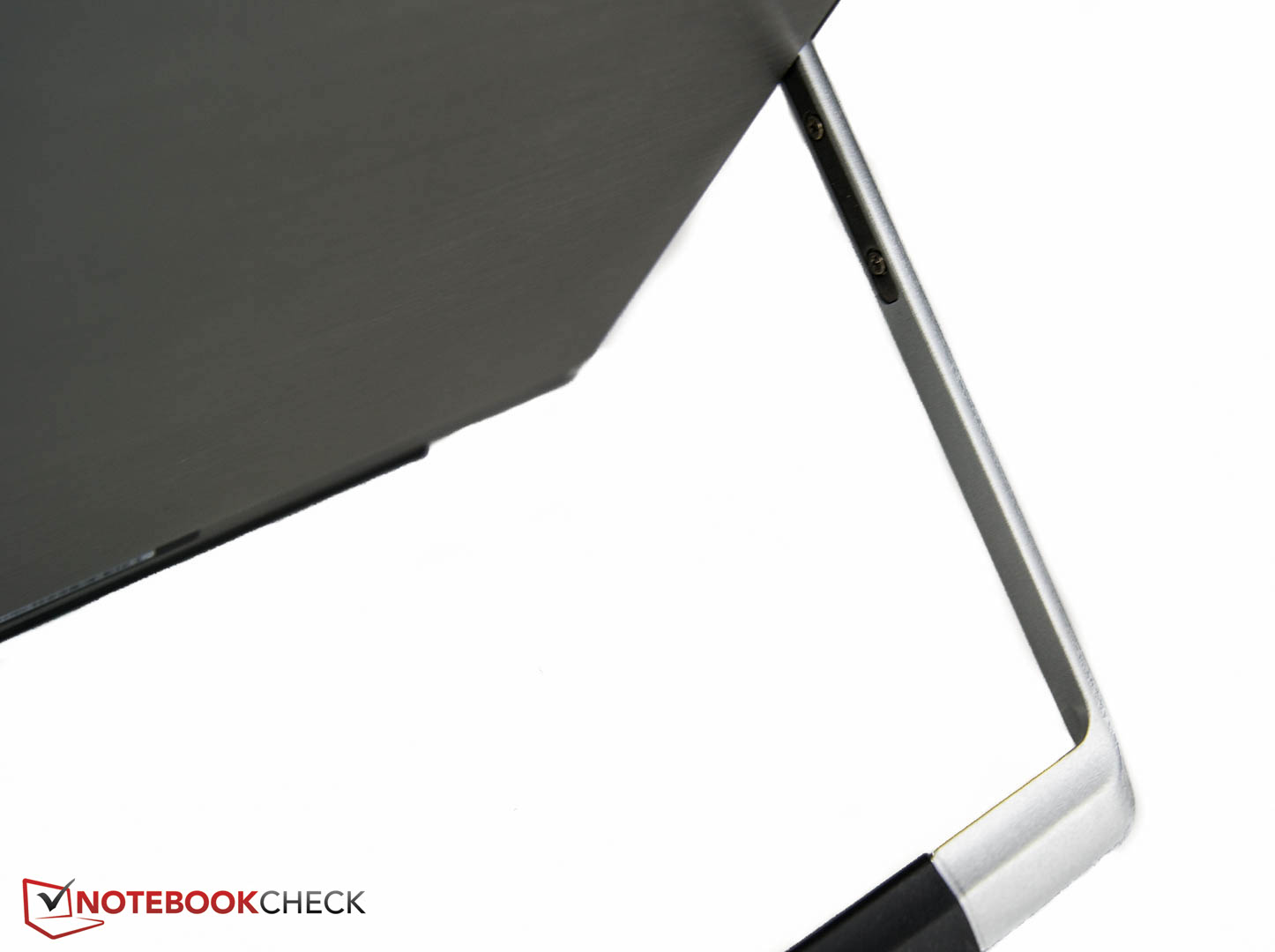

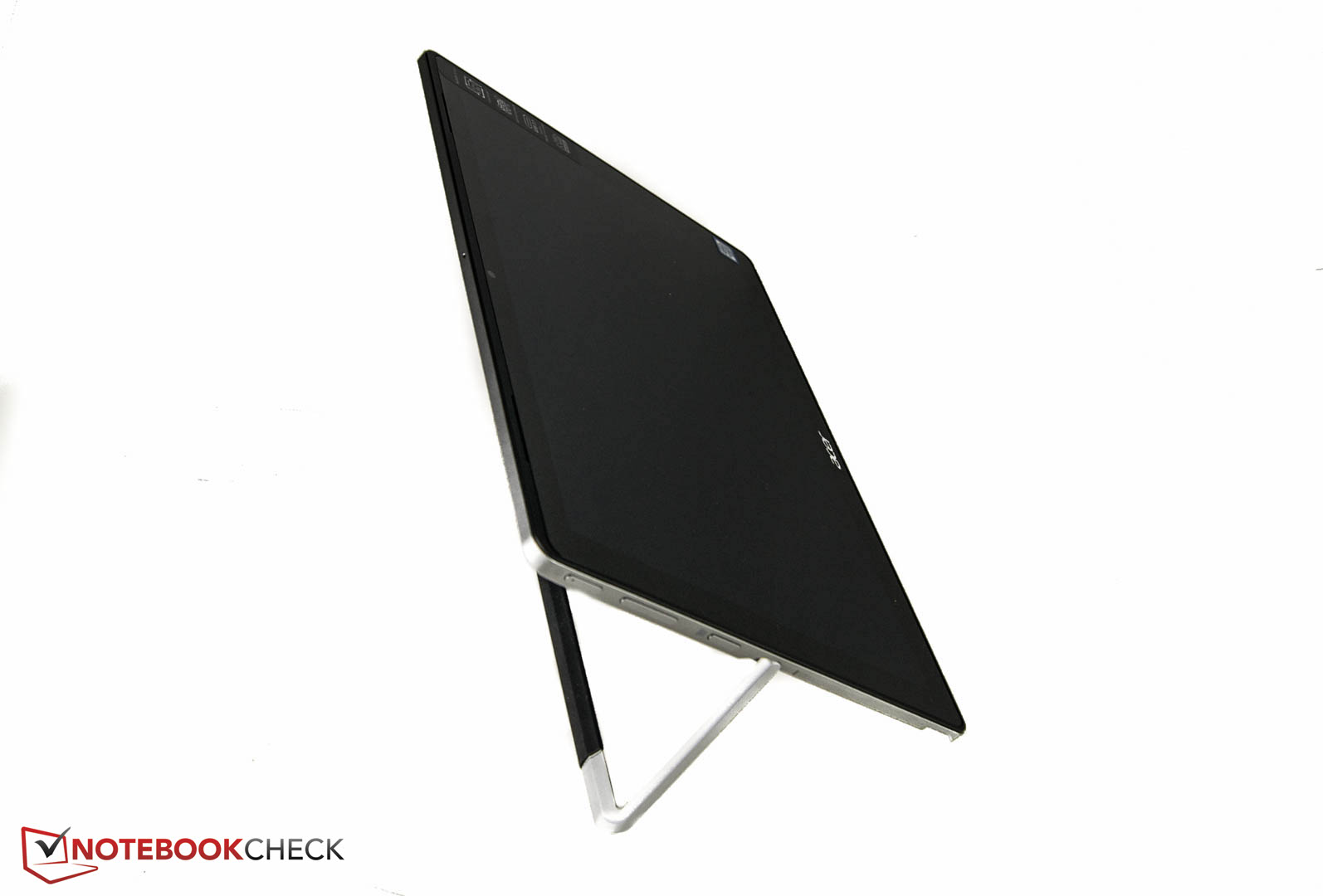

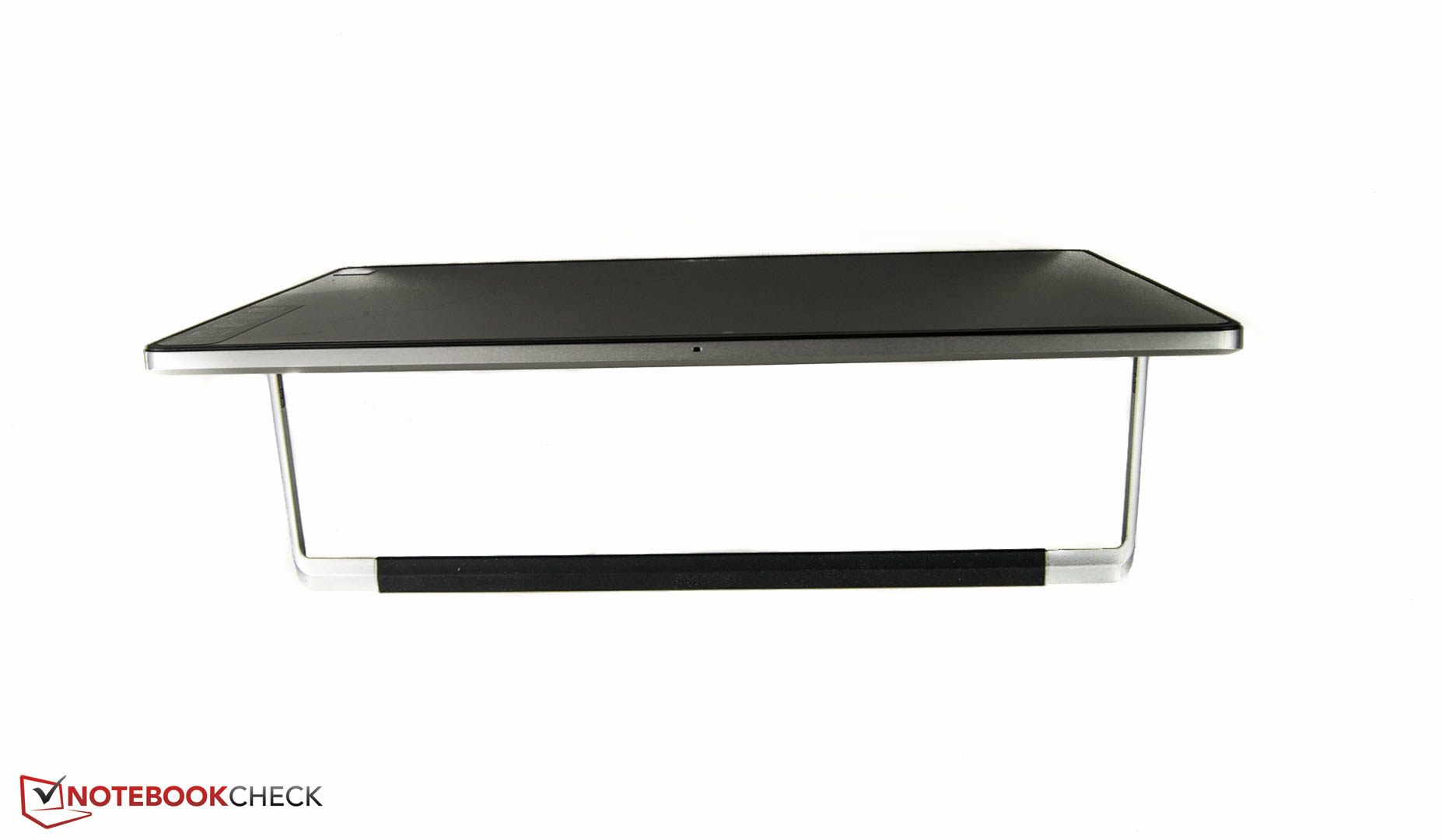

The kickstand is stable enough.

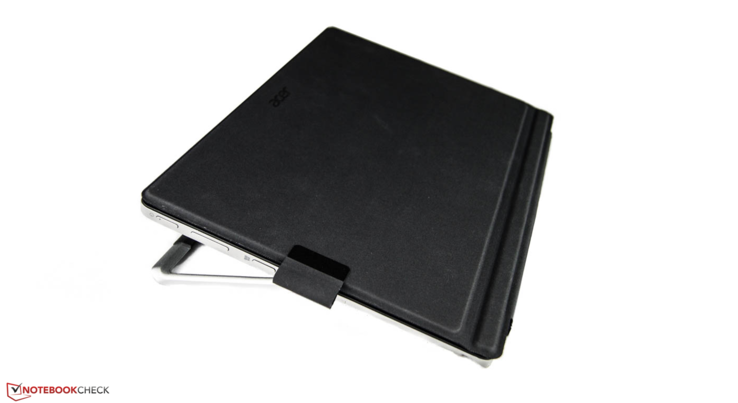

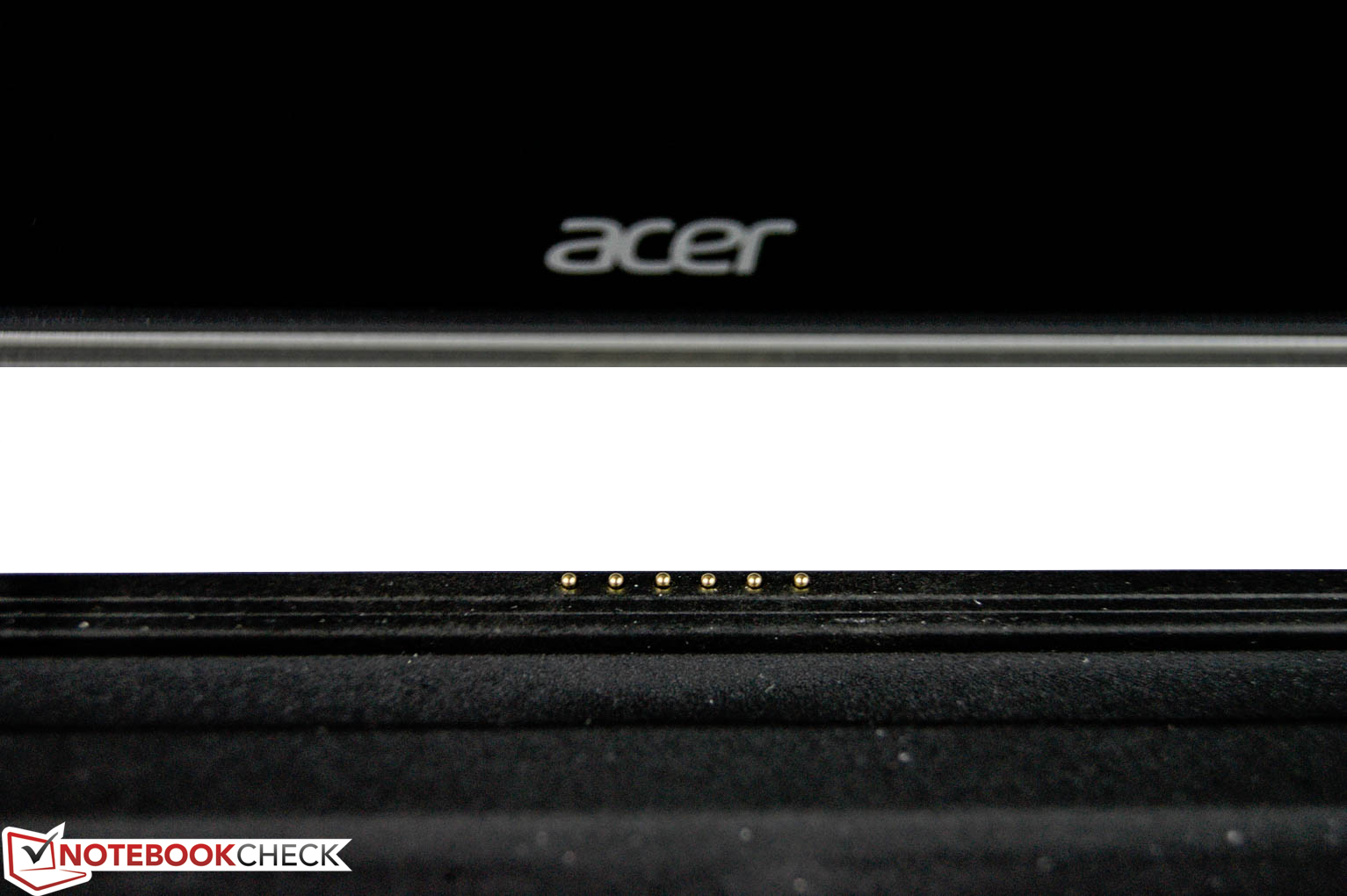

A magnetic lock ...
... holds the keyboard.
Laptop Mode

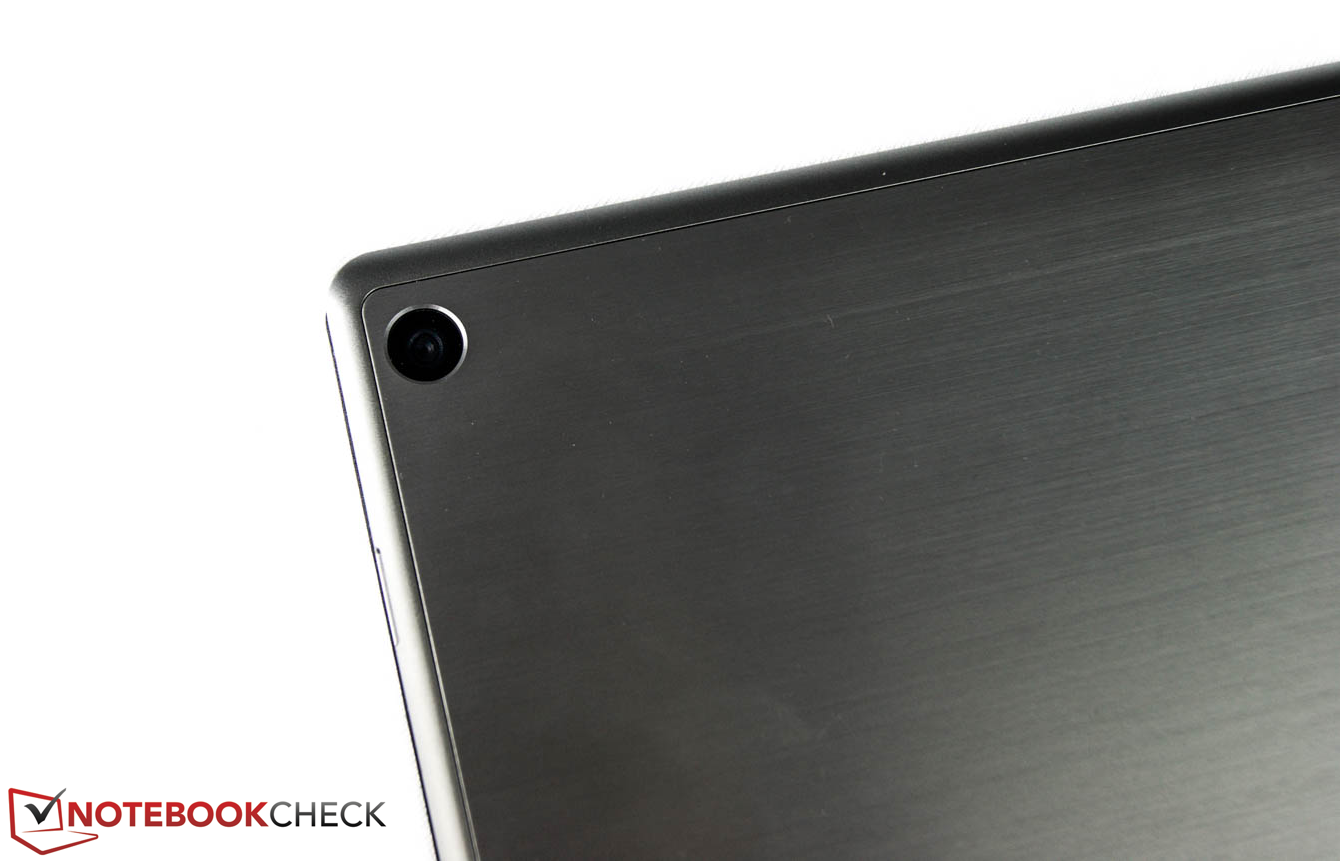

Rear-facing 5 MP camera
Switch Alpha in Tablet Mode

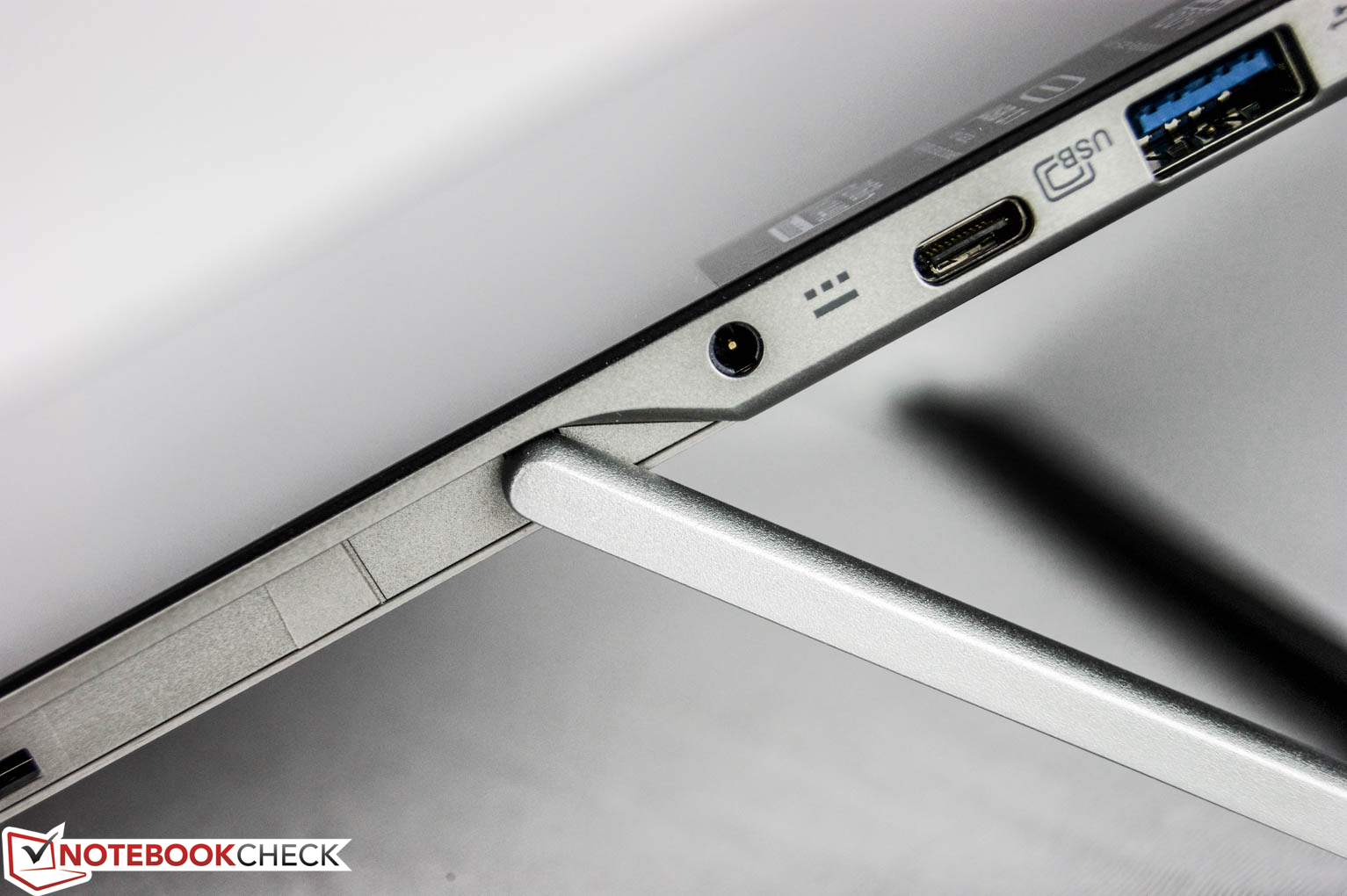

Right: Combo audio, USB 3.0, USB 3.1 Type-C, power-in
Right: Combo audio, USB 3.0, USB 3.1 Type-C, power-in

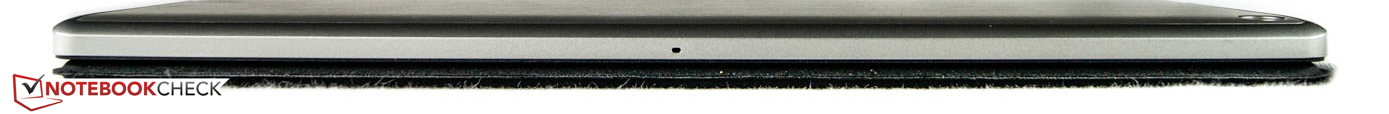

Front
Front

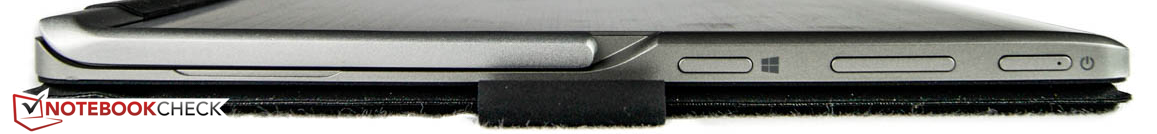

Left
Left

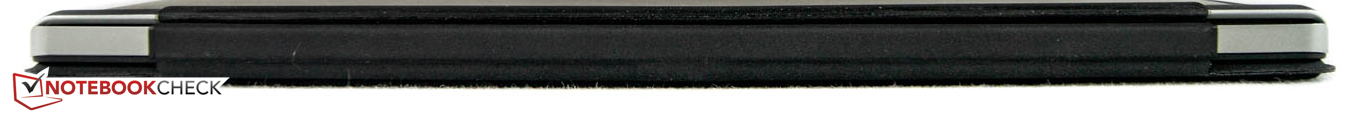

Rear
Rear
314
cd/m²
329
cd/m²
326
cd/m²
323
cd/m²
345
cd/m²
326
cd/m²
323
cd/m²
341
cd/m²
325
cd/m²
Parlaklığın yayılımı
X-Rite i1Pro 2
Maksimum: 345 cd/m² Ortalama: 328 cd/m² Minimum: 18 cd/m²
Aydınlatma: 91 %
Batarya modunda parlaklık: 345 cd/m²
Kontrast: 908:1 (Siyah: 0.38 cd/m²)
ΔE Color 8.4 | 0.8-29.43 Ø6.4
ΔE Greyscale 4.3 | 0.64-98 Ø6.6
96% sRGB (Calman) 62% AdobeRGB 1998 (Argyll)
Gamma: 2.63
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
Response Times
-24%
-17%
-72%
-26%
Response Time Grey 50% / Grey 80% *
20 (5, 15, detail 5 schraffiert)
28.4 (11.2, 17.2)
-42%
33.2 (15.2, 18)
-66%
46 (17.2, 28.8, plateau, spikes in between)
-130%
30 (11, 19)
-50%
Response Time Black / White *
34 (15, 19, [email protected]% mit/ohne PSU)
17.6 (3.6, 14)
48%
22.8 (10.4, 12.4)
33%
31.2 (6, 25.2, Spikes in between)
8%
16 (4.4, 11.6)
53%
PWM Frequency
1000 (100)
222.2 (49)
-78%
50 (50)
-95%
200 (18)
-80%
Screen
-15%
-6%
17%
3%
-7%
Brightness middle
345
342.4
-1%
322
-7%
413
20%
355.3
3%
341
-1%
Brightness
328
315
-4%
319
-3%
396
21%
338
3%
318
-3%
Brightness Distribution
91
85
-7%
97
7%
87
-4%
91
0%
87
-4%
Black Level *
0.38
0.744
-96%
0.42
-11%
0.36
5%
0.33
13%
0.36
5%
Contrast
908
460
-49%
767
-16%
1147
26%
1077
19%
947
4%
Colorchecker DeltaE2000 *
8.4
5.33
37%
6.02
28%
3.09
63%
4.72
44%
6
29%
Colorchecker DeltaE2000 max. *
11.9
9.25
22%
10.06
15%
Greyscale DeltaE2000 *
4.3
5.36
-25%
6.29
-46%
3.92
9%
6.53
-52%
8.12
-89%
Gamma
2.63 91%
2.12 113%
2.4 100%
2.3 104%
2.17 111%
2.23 108%
CCT
7368 88%
7671 85%
7712 84%
7333 89%
6707 97%
7011 93%
Color Space (Percent of AdobeRGB 1998)
62
57
-8%
47.8
-23%
61
-2%
59.37
-4%
63.4
2%
Color Space (Percent of sRGB)
93
73.2
97
97.4
Total Average (Program / Settings)
-20% / -17%
-12% / -8%
-28% / -7%
3% / 3%
-17% / -12%

* ... smaller is better

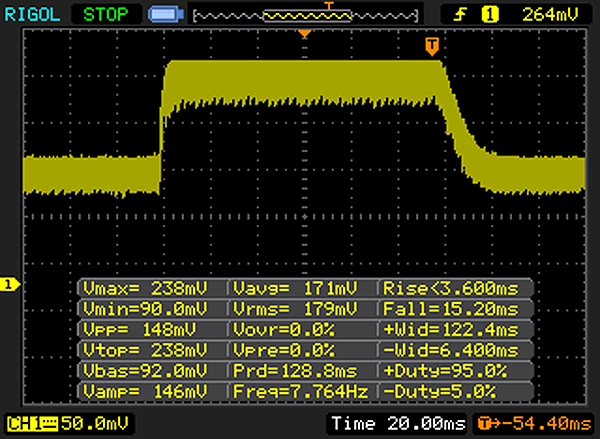

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

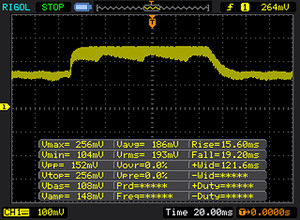

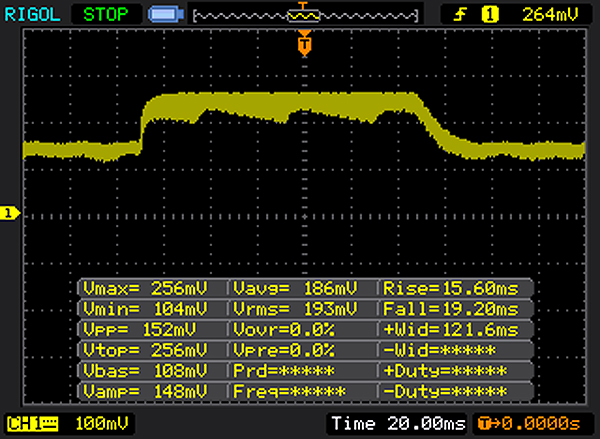

       Response Time Black to White
34 ms ... rise ↗ and fall ↘ combined↗ 15 ms rise
↘ 19 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 87 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (26.3 ms).

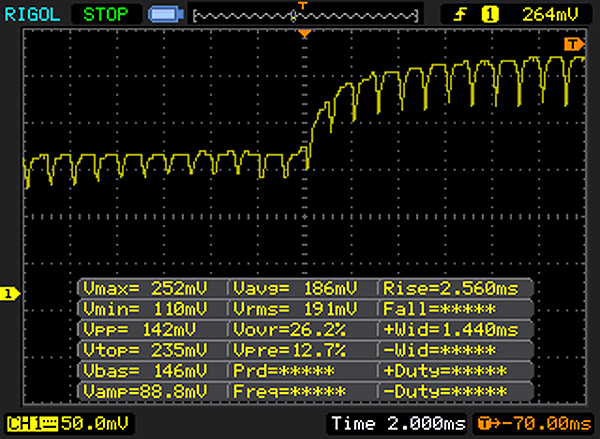

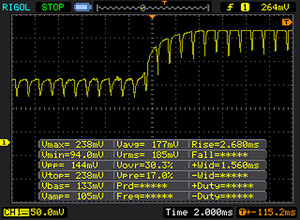

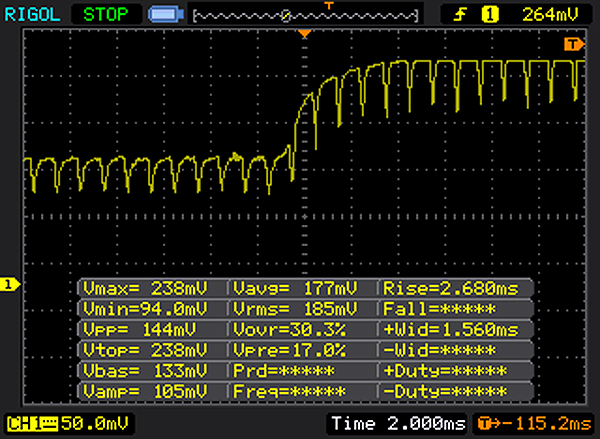

       Response Time 50% Grey to 80% Grey
20 ms ... rise ↗ and fall ↘ combined↗ 5 ms rise
↘ 15 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 5 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (42.1 ms).

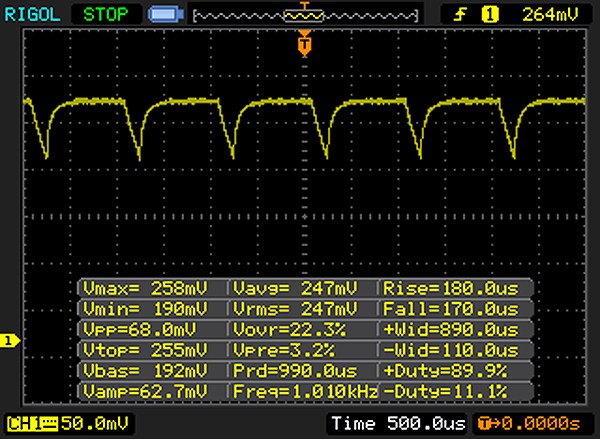

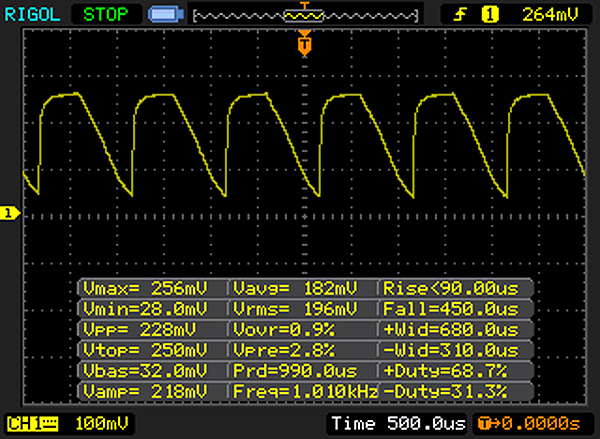

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 1000 Hz ≤ 100 % brightness setting

The display backlight flickers at 1000 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 100 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 1000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 54 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9986 (minimum: 43 - maximum: 588200) Hz was measured.

Cinebench R15 - CPU Multi 64Bit
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
342 Points ∼100% +18%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
306 Points ∼89% +6%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
289 Points ∼85%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
255 Points ∼75% -12%
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
234 Points ∼68% -19%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
206 Points ∼60% -29%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
200 Points ∼58% -31%
HP Spectre x2 12-a003ng K3D42EA
HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006
177 Points ∼52% -39%
Cinebench R15 CPU Single 64Bit
114 Points
Cinebench R15 CPU Multi 64Bit
289 Points
Cinebench R15 OpenGL 64Bit
41.06 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Yardım
PCMark 8
Work Score Accelerated v2
HP Spectre x2 12-a003ng K3D42EA
HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006
4078 Points ∼100% +2%
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
4058 Points ∼100% +2%
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
4052 Points ∼99% +1%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
3996 Points ∼98%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
3932 Points ∼96% -2%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
3837 Points ∼94% -4%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
3697 Points ∼91% -7%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
3186 Points ∼78% -20%
Home Score Accelerated v2
Microsoft Surface Pro 4 Core i7
Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe
3394 Points ∼100% +3%
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
3281 Points ∼97%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
2983 Points ∼88% -9%
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
2976 Points ∼88% -9%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
2770 Points ∼82% -16%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
2733 Points ∼81% -17%
HP Spectre x2 12-a003ng K3D42EA
HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006
2675 Points ∼79% -18%
Microsoft Surface Pro 4, Core m3
HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe
2426 Points ∼71% -26%
PCMark 8 Home Score Accelerated v2
3281 puan
PCMark 8 Work Score Accelerated v2
3996 puan
Yardım
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
HP Spectre x2 12-a003ng K3D42EA
HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
AS SSD
25%
15%
6%
-17%
-0%
Score Total
918
1190
30%
997
9%
864
-6%
722
-21%
913
-1%
Score Write
228
239
5%
316
39%
338
48%
223
-2%
227
0%
Score Read
460
645
40%
450
-2%
351
-24%
333
-28%
459
0%
CrystalDiskMark 3.0
9%
10%
15%
0%
5%
Write 4k
76.83
101.5
32%
73.58
-4%
90.27
17%
53.52
-30%
95.48
24%
Read 4k
29.3
28.51
-3%
32.36
10%
28.31
-3%
27.4
-6%
36.2
24%
Write Seq
199.9
154.2
-23%
305.6
53%
297.2
49%
316
58%
153.5
-23%
Read Seq
518.1
666
29%
420.3
-19%
500.5
-3%
410.1
-21%
497.9
-4%
Total Average (Program / Settings)
17% / 16%
13% / 12%
11% / 11%
-9% / -7%
3% / 3%
Kingston RBU-SNS8152S3256GG2
Sequential Read: 518.1 MB/s
Sequential Write: 199.9 MB/s
512K Read: 374.9 MB/s
512K Write: 201 MB/s
4K Read: 29.3 MB/s
4K Write: 76.83 MB/s
4K QD32 Read: 272 MB/s
4K QD32 Write: 197.1 MB/s
3DMark 11 - 1280x720 Performance
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
1585 Points ∼100%
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
1565 Points ∼99% -1%
HP Spectre x360 15-ap012dx
HD Graphics 520, 6200U, Sandisk X300 SD7SN6S-256G-1006
1565 Points ∼99% -1%
Lenovo ThinkPad 13-20GKS01100
HD Graphics 520, 6200U, Samsung SSD PM871 MZNLN256HCHP
1372 Points ∼87% -13%
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
1334 Points ∼84% -16%
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
1283 Points ∼81% -19%
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
1109 Points ∼70% -30%
HP Spectre x2 12-a003ng K3D42EA
HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006
1098 Points ∼69% -31%
3DMark 11 Performance
1585 puan
3DMark Cloud Gate Standard Score
5608 puan
Yardım
BioShock Infinite - 1366x768 Medium Preset
Microsoft Surface Pro 4 Core i7
49.1 fps ∼100% +72%
Microsoft Surface Pro 4, Core i5, 128GB
30 fps ∼61% +5%
Acer Aspire Switch Alpha 12 SA5-271-56HM
28.6 fps ∼58%
Lenovo ThinkPad X1 Tablet
25 fps ∼51% -13%
HP Elite x2 1012 G1
24.6 fps ∼50% -14%
Lenovo IdeaPad Miix 700
18.5 fps ∼38% -35%

Legend


Acer Aspire Switch Alpha 12 SA5-271-56HM Intel Core i5-6200U, Intel HD Graphics 520, Kingston RBU-SNS8152S3256GG2

Microsoft Surface Pro 4, Core i5, 128GB Intel Core i5-6300U, Intel HD Graphics 520, Samsung MZFLV128 NVMe

Microsoft Surface Pro 4 Core i7 Intel Core i7-6650U, Intel Iris Graphics 540, Samsung MZFLV256 NVMe

Lenovo ThinkPad X1 Tablet Intel Core m7-6Y75, Intel HD Graphics 515, Samsung PM871 MZYLN256HCHP

HP Elite x2 1012 G1 Intel Core m5-6Y54, Intel HD Graphics 515, Liteon L8H-256V2G

HP Spectre x2 12-a003ng K3D42EA Intel Core m7-6Y75, Intel HD Graphics 515, Sandisk X300 SD7SN6S-256G-1006

Lenovo IdeaPad Miix 700 Intel Core m5-6Y54, Intel HD Graphics 515, Samsung MZNLN128HCGR-000L2
düşük orta yüksek ultra
BioShock Infinite (2013) 54.428.624.26.9fps
Battlefield 4 (2013) 45.831.419.76fps
Rise of the Tomb Raider (2016) 1710.86.1fps
Maksimum yük
 33.4 °C43 °C46.7 °C
 34.4 °C44 °C46.2 °C
 37.7 °C43 °C44.4 °C
Maksimum: 46.7 °C
Ortalama: 41.4 °C
47.6 °C43.5 °C37.3 °C
51 °C43.9 °C37.4 °C
48.3 °C43.4 °C37.2 °C
Maksimum: 51 °C
Ortalama: 43.3 °C
Güç kaynağı  44.4 °C | Oda sıcaklığı 22.2 °C | FIRT 550-Pocket
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.32531.73133.44030.45029.56328.98026.210027.212534.516031.220037.925039.531536.640046.750049.363058.680065.4100065.2125059.8160063.2200061.7250064.4315064.8400062.7500063.7630067.2800074.61000068.81250055.41600046.9SPL7868.7N3921.8median 59.8AS Switch Alpha 12Delta10.837.536.637.239.838.639.136.936.639.536.941.746.752.756.261.666.366.164.862.46763.861.562.653.944.646.245.350.355.954.3median 54.3 Lenovo Miix 7008.6hearing rangehide median Pink Noise
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
HP Spectre x2 12-a003ng K3D42EA
HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006
Power Consumption
20%
27%
20%
14%
26%
Idle Minimum *
7.3
4.4
40%
5.87
20%
3.7
49%
4
45%
4.5
38%
Idle Average *
10
9
10%
6.05
39%
6.8
32%
8.6
14%
7.7
23%
Idle Maximum *
10.15
10.7
-5%
6.13
40%
7.6
25%
9.3
8%
8.3
18%
Load Average *
25.2
19.6
22%
21.27
16%
22.5
11%
18.6
26%
19.8
21%
Load Maximum *
29.3
19.9
32%
23.03
21%
34.5
-18%
36.3
-24%
20.6
30%

* ... smaller is better

Anlık tüketim
Kapalı / Bekleme modudarklight 0.3 / 0.4 Watt
Boştadarkmidlight 7.3 / 10 / 10.15 Watt
Çalışırken midlight 25.2 / 29.3 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Acer Aspire Switch Alpha 12 SA5-271-56HM
HD Graphics 520, 6200U, Kingston RBU-SNS8152S3256GG2
Microsoft Surface Pro 4, Core i5, 128GB
HD Graphics 520, 6300U, Samsung MZFLV128 NVMe
Lenovo ThinkPad X1 Tablet
HD Graphics 515, 6Y75, Samsung PM871 MZYLN256HCHP
HP Elite x2 1012 G1
HD Graphics 515, 6Y54, Liteon L8H-256V2G
HP Spectre x2 12-a003ng K3D42EA
HD Graphics 515, 6Y75, Sandisk X300 SD7SN6S-256G-1006
Lenovo IdeaPad Miix 700
HD Graphics 515, 6Y54, Samsung MZNLN128HCGR-000L2
Battery Runtime
WiFi Websurfing 1.3
321
427
33%
300
-7%
443
38%
361
12%
440
37%
Battery Runtime
20%
2%
7%
49%
24%
Reader / Idle
640
899
40%
628
-2%
732
14%
954
49%
861
35%
H.264
468
432
-8%
450
-4%
Load
112
111
-1%
118
5%
130
16%
166
48%
157
40%
Total Average (Program / Settings)
27% / 24%
-3% / -1%
23% / 15%
31% / 36%
31% / 27%
Batarya ömrü
Boşta (WLAN kapalı, minimum parlaklık)
10h 40min
NBC WiFi Websurfing Battery Test 1.3 (Firefox 47.0)
5h 21min
Big Buck Bunny H.264 1080p
7h 48min
Çalışırken (maksimum parlaklık)
1h 52min

Artılar

+ Performans
+ Fansız soğutma
+ İyi arayüzler
+ Sağlam yapım

Eksiler

- Yetersiz hoparlörler
- Batarya ömrü
In review: Acer Switch Alpha 12. Test model courtesy of Acer Germany
In review: Acer Switch Alpha 12. Test model courtesy of Acer Germany

Büyük ses getiren sessiz bir hikaye: Acer'ın Switch Alpha 12 modeli sadece düşük fiyatıyla değil aynı zamanda inovatif soğutma teknolojisi ile de meydan okuyucu. 12 inçlik dönüştürülebilir model iyi bir yapım kalitesine sahip ve neredeyse iki kat pahalı olan rakiplerinin hemen hemen hiç gerisinde değil.

Biraz ağır olmakla beraber, tablet gündelik kullanım için daha hafif olabilirmiş. Arayüzler en pahalı Microsoft modelleri ile aynı seviyede. Acer'ın yeni dönüştürlebilir modelinin ekranı da etkileyici. Fansız performansın iz düşümü elbette merak uyandırıcı. Güçlü Intel Core i5 işlemci fansız rakiplerinin gerisinde kalmıyor. Bu soğutma tasarımı ile üretici tablet ve ince laptoplar için geleceğe dönük bir çözüm sunmuş olabilir. Eğer Acer batarya kullanım sürelerini de arttırabilirse rakiplerini zor duruma sokabilir.

Yazının orjinali için tıklayın.

Acer Aspire Switch Alpha 12 SA5-271-56HM - 08/22/2016 v5.1
Nino Ricchizzi

İşcilik
84 / 98 → 86%
Klavye
85%
Mouse
91%
Bağlanılabilirlik
39 / 80 → 49%
Ağırlık
80 / 35-78 → 100%
Batarya
87%
Görüntü
83%
Oyun performansı
56 / 68 → 83%
Uygulama performansı
82 / 87 → 94%
Isınma
84%
Ses
100%
Audio
30 / 91 → 33%
Camera
47 / 85 → 56%
Ortalama
73%
86%
Convertible - Ortalama Ağırlık

Pricecompare

Please share our article, every link counts!
> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Kısa inceleme: Acer Aspire Switch 12 Alpha SA5-271-56HM dönüştürülebilir
Nino Ricchizzi, 2016-07- 6 (Update: 2016-07- 6)
