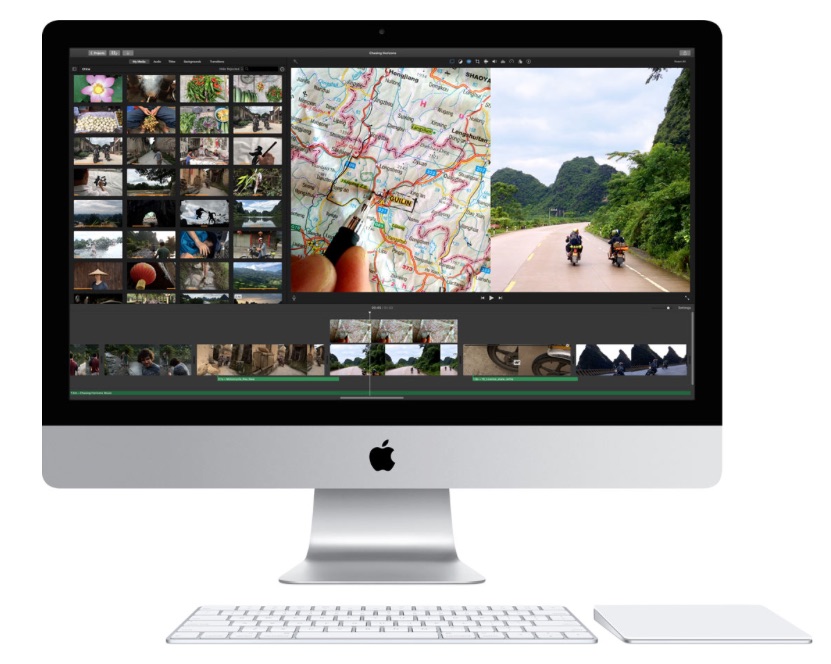

Kısa inceleme: Apple iMac Retina 5K 27-inch M390 (Late 2015) Retina

Klaus Hinum, Nino Ricchizzi, Stefanie Voigt, 12/25/2015

5K ikinci jenerasyonda. Apple, mevcut iMac Retina 5K versiyonunda yeni Skylake işlemcileri ve aynı zamanda AMD'den yeni bir grafik kartı kullanıyor. Harika yapm kalitesi ve güçlü donanım etkileyici bir paket sunabilir, ancak bu paket mükemmel değil.

Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
İşlemci
Intel Core i5-6500
Grafik kartı

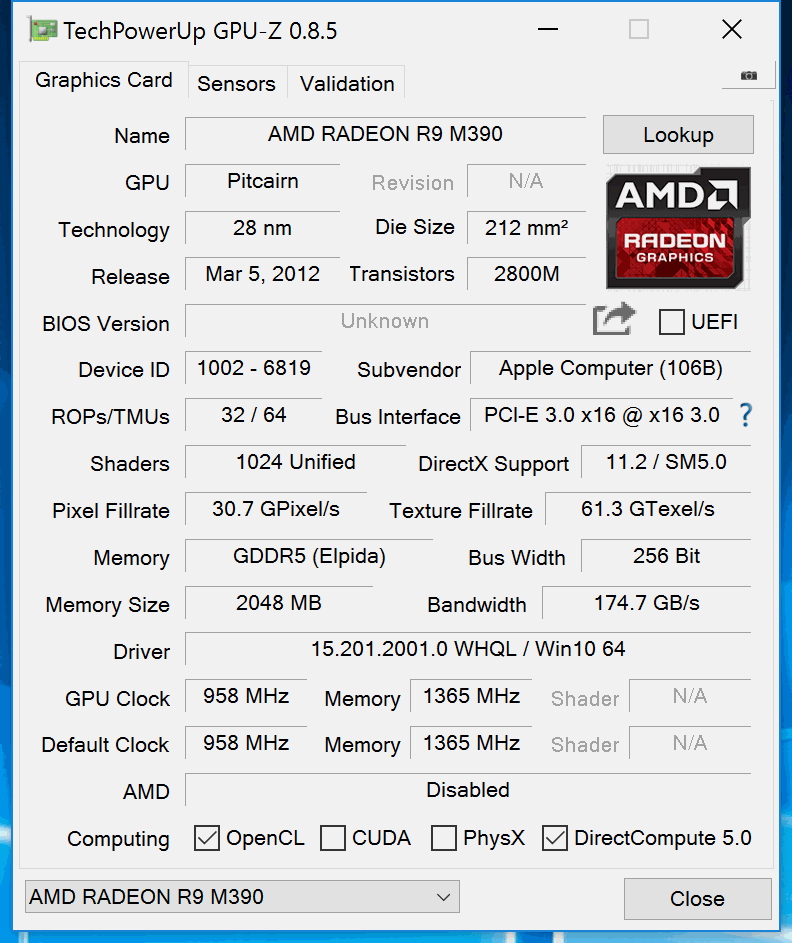

AMD Radeon R9 M390 - 2048 MB, Çekirdek: 958 MHz, Bellek: 1365 MHz, GDDR5
Bellek
8192 MB
, DDR3-1867
Görüntü
27 inç 16:10, 5120 x 2880 pixel, parlak: evet
Anakart
Intel Sunrise Point Z170
Harddisk
Apple Fusion Drive 1TB (24 GB SSD + 1 TB HDD), 1024 GB
Ses kartı
Cirrus Logic CS4206B
Bağlantılar
4 USB 3.0, 2 Thunderbolt, 2 DisplayPort, 1 Kensington Lock, Ses çıkışları: Headset, Kart okuyucular: SD, Alıcılar: Brightness sensor
Network
Broadcom NetXtreme Gigabit Ethernet (10/100/1000/2500/5000MBit/s), Broadcom 802.11ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.0
İşletim sistemi
Apple OS X 10.11 El Capitan
Camera
Webcam: 720p FaceTime HD
Ek özellikler
Hoparlörler: Stereo speakers, Klavye: Chiclet, Klavye ışığı: hayır, 12 Ay Garanti
Ağırlık
9.54 kg
Fiyat
2299 Euro
Bağlantılar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



There is enough space on the big 5K screen.
Ports are only at the rear
Display with anti-reflective coating
FaceTime HD camera with 720p
glossy panel
classic and elegant design
slim construction
The new input devices in review
Heat dissipation underneath the display

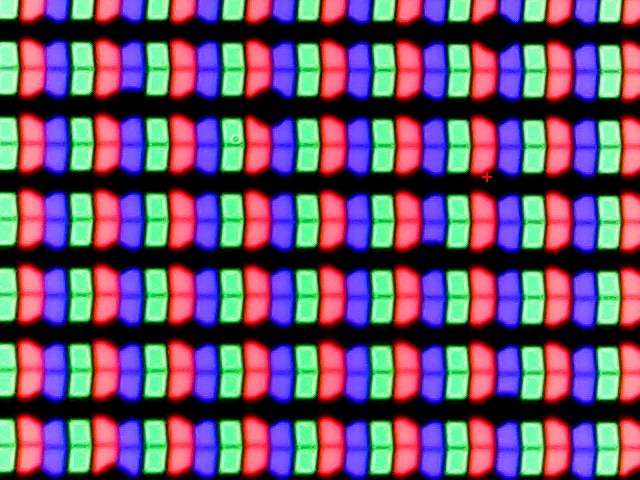

Subpixel array
Subpixel array
small distance between display panel ...
small distance between display panel ...
... and the case
... and the case
Screen bleeding iMac 5K 2015
Screen bleeding iMac 5K 2015
Screen bleeding iMac 5K 2014
Screen bleeding iMac 5K 2014
419
cd/m²
419
cd/m²
422
cd/m²
434
cd/m²
429
cd/m²
432
cd/m²
418
cd/m²
428
cd/m²
412
cd/m²
Parlaklığın yayılımı
X-Rite i1Pro 2 // Gossen Mavo-Monitor
Maksimum: 434 cd/m² Ortalama: 423.7 cd/m²
Aydınlatma: 95 %
Kontrast: 740:1 (Siyah: 0.58 cd/m²)
ΔE Color 2.8 | 0.6-29.43 Ø5.9
ΔE Greyscale 1.97 | 0.64-98 Ø6.1
99.97% sRGB (Argyll 3D) 79% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.13
Grayscale: frontal measurement with a distance of 9 cm
Grayscale: frontal measurement with a distance of 9 cm

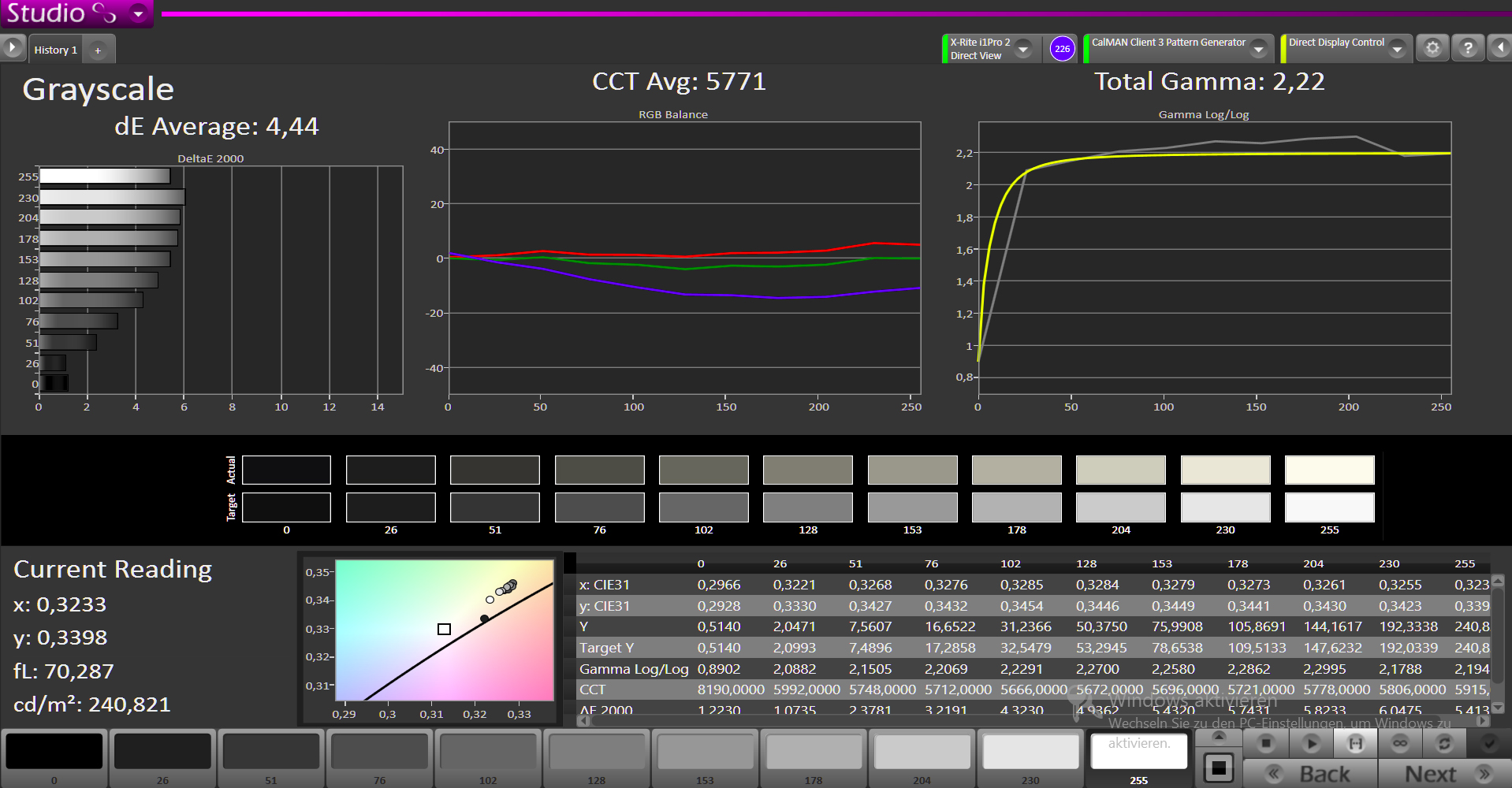

Grayscale: frontal measurement with a distance of 9 cm at an angle of 45 degrees
Grayscale: frontal measurement with a distance of 9 cm at an angle of 45 degrees
Grayscale: pre-calibration with automatic brightness control
Grayscale: pre-calibration with automatic brightness control
Grayscale: maximum brightness
Grayscale: maximum brightness
Grayscale: calibrated
Grayscale: calibrated
Saturation Sweeps: vs. the AdobeRGB color space and the system's AdobeRGB profile
Saturation Sweeps: vs. the AdobeRGB color space and the system's AdobeRGB profile
Saturation Sweeps: with a distance of 9 cm
Saturation Sweeps: with a distance of 9 cm
Saturation Sweeps: frontal measurement with a distance of 15 cm at an angle of 45 degrees - from below
Saturation Sweeps: frontal measurement with a distance of 15 cm at an angle of 45 degrees - from below
ColorChecker: vs. the sRGB color space and the system's sRGB profile
ColorChecker: vs. the sRGB color space and the system's sRGB profile
ColorChecker: At an angle of 45 degrees
ColorChecker: At an angle of 45 degrees
ColorChecker: At an angle of 45 degrees - from below
ColorChecker: At an angle of 45 degrees - from below
ColorChecker: Analysis
ColorChecker: Analysis

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 50 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 17115 (minimum: 5 - maximum: 2500000) Hz was measured.

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

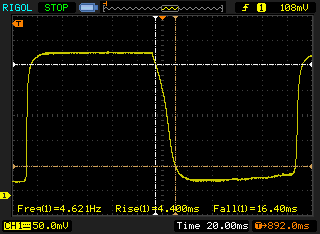

       Response Time Black to White
20.8 ms ... rise ↗ and fall ↘ combined↗ 4.4 ms rise
↘ 16.4 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 25 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (24.9 ms).
       Response Time 50% Grey to 80% Grey
30.4 ms ... rise ↗ and fall ↘ combined↗ 11.6 ms rise
↘ 18.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 20 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (39.6 ms).
Cinebench R15 CPU Single 64Bit
151 Points
Cinebench R15 CPU Multi 64Bit
548 Points
Cinebench R15 OpenGL 64Bit
91.2 fps
Cinebench R15 Ref. Match 64Bit
99.5 %
Yardım
PCMark 8
Work Score Accelerated v2 (sort by value)
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K, Apple SSD SM0128F
4918 Points ∼75%
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
3887 Points ∼59%
Creative Score Accelerated v2 (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
4828 Points ∼44%
Home Score Accelerated v2 (sort by value)
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K, Apple SSD SM0128F
4746 Points ∼78%
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
3568 Points ∼59%
Apple Fusion Drive 1TB (24 GB SSD + 1 TB HDD)
Sequential Read: 152 MB/s
Sequential Write: 139 MB/s
512K Read: 38 MB/s
512K Write: 61 MB/s
4K Read: 0.41 MB/s
4K Write: 0.8 MB/s
4K QD32 Read: 0.9 MB/s
4K QD32 Write: 0.75 MB/s
Unigine Valley 1.0 - 1920x1080 Extreme HD Preset OpenGL AA:x8 (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390
22.2 fps ∼78%
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X
28.6 fps ∼100% +29%
Apple iMac 27 2015 M395X
Radeon R9 M395X
28 fps ∼98% +26%
Apple iMac 27 2015 M395
Radeon R9 M395
27.3 fps ∼95% +23%
Apple iMac 27 5K 2014 M290X i5-4690
Radeon R9 M290X
25.5 fps ∼89% +15%
Apple MacBook Pro Retina 13 inch 2013-10
Iris Graphics 5100
5.8 fps ∼20% -74%
3DMark 11 - 1280x720 Performance (sort by value)
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X
9516 Points ∼100%
Schenker XMG C405
GeForce GTX 965M
7291 Points ∼77%
Medion Erazer X7615-MD99293
GeForce GTX 965M
7099 Points ∼75%
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390
6838 Points ∼72%
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
GeForce GTX 960M
5709 Points ∼60%
Schenker XMG A706
GeForce GTX 960M
5602 Points ∼59%
Alien: Isolation - 1920x1080 Ultra, On, Shadow Map 2048, HDAO AA:2x SM AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
56 fps ∼84%
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K
67 fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
46.6 fps ∼70%
Schenker XMG P705
GeForce GTX 965M, 4720HQ
54.8 fps ∼82%
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
55.2 fps ∼82%
Crysis 3 - 1920x1080 Very High Preset AA:2xSM AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
22.7 (min: 19, max: 30) fps ∼67%
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K
33.9 fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
20.6 fps ∼61%
Schenker XMG P705
GeForce GTX 965M, 4720HQ
23.9 fps ∼71%
Anno 2205 - 1920x1080 High Preset AA:4x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
31.5 (min: 28, max: 34) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
24.6 fps ∼78%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
26.1 (min: 23) fps ∼83%
Metro: Last Light
1920x1080 Very High (DX11) AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
33.8 (min: 9, max: 72) fps ∼87%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
31.9 fps ∼82%
Eurocom Shark 4
GeForce GTX 960M, 4720HQ
32.3 fps ∼83%
Schenker XMG P705
GeForce GTX 965M, 4720HQ
38.7 fps ∼100%
1366x768 High (DX11) AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
67 (min: 10, max: 126) fps ∼90%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
59.9 fps ∼81%
Eurocom Shark 4
GeForce GTX 960M, 4720HQ
59.5 fps ∼80%
Schenker XMG P705
GeForce GTX 965M, 4720HQ
74.4 fps ∼100%
The Witcher 3
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
11.5 (min: 10, max: 13) fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
9.7 (min: 7) fps ∼84%
1920x1080 Ultra Graphics & Postprocessing (HBAO+) (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
17.8 (min: 14, max: 22) fps ∼100%
Nexoc G515 II
GeForce GTX 960M, 6700HQ
14.4 fps ∼81%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
13.7 (min: 11) fps ∼77%
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
16.8 fps ∼94%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
31.1 (min: 26, max: 36) fps ∼100%
Nexoc G515 II
GeForce GTX 960M, 6700HQ
26.6 fps ∼86%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
27.1 (min: 21) fps ∼87%
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
29.2 fps ∼94%
Call of Duty: Black Ops 3
3840x2160 High / On AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
13.4 (min: 10, max: 17) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
10.4 fps ∼78%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
10.4 (min: 5) fps ∼78%
1920x1080 Extra / On AA:T2x SM (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
29.5 (min: 18, max: 43) fps ∼94%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
31.5 fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
29.3 (min: 23) fps ∼93%
1920x1080 High / On AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
40.5 (min: 30, max: 50) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
36.2 fps ∼89%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
34 (min: 24) fps ∼84%
World of Warships
3840 x 2160 Very High Preset AA:High FX AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
24.1 (min: 15, max: 36) fps ∼100%
1920x1080 Very High Preset AA:High FX AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
74 (min: 55, max: 100) fps ∼100%
Schenker XMG A706
GeForce GTX 960M, 6700HQ
69 fps ∼93%
1920x1080 High Preset AF:8x (sort by value)
Schenker XMG A706
GeForce GTX 960M, 6700HQ
98.1 fps ∼100%
Dragon Age: Inquisition
1920x1080 Ultra Graphics Quality AA:2x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
27.1 (min: 22.2) fps ∼77%
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K
35.2 fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
22.5 fps ∼64%
Nexoc G515 II
GeForce GTX 960M, 6700HQ
22.3 fps ∼63%
Schenker XMG P705
GeForce GTX 965M, 4720HQ
27.1 fps ∼77%
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
26.9 fps ∼76%
1920x1080 High Graphics Quality (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
39.4 (min: 28.5) fps ∼77%
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K
51 fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
33.5 fps ∼66%
Nexoc G515 II
GeForce GTX 960M, 6700HQ
33.4 fps ∼65%
Schenker XMG P705
GeForce GTX 965M, 4720HQ
39.2 fps ∼77%
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
38.7 fps ∼76%
1366x768 Medium Graphics Quality (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
71.5 (min: 35.5) fps ∼76%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
59.9 fps ∼64%
Nexoc G515 II
GeForce GTX 960M, 6700HQ
93.7 fps ∼100%
Schenker XMG P705
GeForce GTX 965M, 4720HQ
71.7 fps ∼77%
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
70.9 fps ∼76%
Fallout 4
3840x2160 High Preset AA:T AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
13.8 (min: 10, max: 17) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
10 fps ∼72%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
10.1 (min: 8) fps ∼73%
1920x1080 Ultra Preset AA:T AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
30.3 (min: 24, max: 38) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
24.7 fps ∼82%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
25.3 (min: 20) fps ∼83%
1920x1080 High Preset AA:T AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
38.5 (min: 30, max: 47) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
31.9 fps ∼83%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
31.4 (min: 26) fps ∼82%
FIFA 16
3840x2160 High Preset AA:2x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
54 (min: 51, max: 58) fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
44.5 (min: 42) fps ∼82%
1920x1080 High Preset AA:4x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
111 fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
108.1 (min: 95) fps ∼97%
1366x768 High Preset AA:2x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
190 (min: 164, max: 208) fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
161.8 (min: 148) fps ∼85%
Metal Gear Solid V
3840x2160 High / On (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
21.6 (min: 19, max: 25) fps ∼100%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
15.5 (min: 13) fps ∼72%
1920x1080 Extra High / On (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
39.6 (min: 35, max: 43) fps ∼100%
Schenker XMG A706
GeForce GTX 960M, 6700HQ
37.6 fps ∼95%
Eurocom Shark 4
GeForce GTX 960M, 4720HQ
38.1 fps ∼96%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
36.4 (min: 34) fps ∼92%
1920x1080 High / On (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
60 (min: 59, max: 60) fps ∼100%
Schenker XMG A706
GeForce GTX 960M, 6700HQ
56.3 fps ∼94%
Eurocom Shark 4
GeForce GTX 960M, 4720HQ
58.4 fps ∼97%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
54.2 (min: 53) fps ∼90%
Star Wars Battlefront
3840x2160 High Preset AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
14.9 (min: 12, max: 18) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
11.8 fps ∼79%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
11.6 (min: 9) fps ∼78%
1920x1080 Ultra Preset AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
45.4 (min: 37, max: 54) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
34.4 fps ∼76%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
34.4 (min: 28) fps ∼76%
1920x1080 High Preset AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
54 (min: 45, max: 62) fps ∼100%
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
41.1 fps ∼76%
Schenker XMG A505
GeForce GTX 960M, 4720HQ
40.9 (min: 33) fps ∼76%
düşük orta yüksek ultra4K
Crysis 3 (2013) 62 22.7 fps
Tomb Raider (2013) 195 150 64 fps
BioShock Infinite (2013) 213 147 130 49.5 fps
Metro: Last Light (2013) 100 91 67 33.8 fps
Battlefield 4 (2013) 168 121 91 37.6 19.5 fps
X-Plane 10.25 (2013) 84 52.5 24.7 19.8 fps
Thief (2014) 93 72 63 30.9 fps
Sims 4 (2014) 82 fps
Middle-earth: Shadow of Mordor (2014) 154 92 53 39 fps
Alien: Isolation (2014) 56 fps
Dragon Age: Inquisition (2014) 80.5 71.5 39.4 27.1 fps
Battlefield Hardline (2015) 161 138 56 36.8 fps
GTA V (2015) 54.2 12.8 fps
The Witcher 3 (2015) 82 31.1 17.8 11.5 fps
Metal Gear Solid V (2015) 60 60 60 39.6 21.6 fps
Mad Max (2015) 111 57 48.8 17.6 fps
World of Warships (2015) 74 24.1 fps
FIFA 16 (2015) 233 190 111 54 fps
Anno 2205 (2015) 103 31.5 12 12 fps
Call of Duty: Black Ops 3 (2015) 123 82 40.5 29.5 13.4 fps
Fallout 4 (2015) 38.5 30.3 13.8 fps
Star Wars Battlefront (2015) 161 107 54 45.4 14.9 fps
Assassin's Creed Syndicate (2015) 52 41.2 29.2 fps
Frequency diagram of the system noise. You can already see the integrated HDD while idling (blue curve). The cooling system is audible when the fan hits 1340 rpm, but is still restrained.
Frequency diagram of the system noise. You can already see the integrated HDD while idling (blue curve). The cooling system is audible when the fan hits 1340 rpm, but is still restrained.

Ses yüksekliği

Boşta
32.5 / 32.5 / 32.5 dB
HDD
32.5 dB
Çalışırken
39 / 48.2 dB
  red to green bar


30 dB
sessiz
40 dB(A)
duyulabilirlik
50 dB(A)
gürültülü

min: dark, med: mid, max: light   Arta / Audix TM1 (15 cm uzaklık)   environment noise: 30 dB(A)
Stress test
Stress test
FurMark requires...
FurMark requires...
... the maximum performance of the graphics card.
... the maximum performance of the graphics card.
Maksimum yük
 30 °C33 °C33 °C
 30 °C32 °C33 °C
 27 °C33 °C31 °C
Maksimum: 33 °C
Ortalama: 31.3 °C
31 °C32 °C29 °C
33 °C38 °C31 °C
34 °C39 °C32 °C
Maksimum: 39 °C
Ortalama: 33.2 °C
Oda sıcaklığı 21 °C | Fluke 62 Mini
(+) The average temperature for the upper side under maximal load is 31.3 °C / 88 F, compared to the average of 28 °C / 82 F for the devices in the class Desktop.
(+) The maximum temperature on the upper side is 33 °C / 91 F, compared to the average of 33.8 °C / 93 F, ranging from 25.2 to 47 °C for the class Desktop.
(+) The bottom heats up to a maximum of 39 °C / 102 F, compared to the average of 34 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 26.9 °C / 80 F, compared to the device average of 28 °C / 82 F.
Anlık tüketim
Kapalı / Bekleme modudarklight 0.044 / 0.05 Watt
Boştadarkmidlight 29.5 / 59.2 / 68 Watt
Çalışırken midlight 126 / 231 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy

Artılar

+ Tasarım
+ İnce kasa
+ Yapım kalitesi ve bileşenler
+ Mac OS X sistem performansı
+ Yüksek çözünürlüklü 5K ekran
+ Tekrar şarj edilebilir veri giriş araçları

Eksiler

- Bakım
- Port erişimi
- USB-C yok
- Thunderbolt 3 yok
- FusionDrive ile küçülen SSD depolama alanı
- Magic Mouse 2 de kullanılan şarj mekanizması
In review: Apple iMac retina 5K. Test model courtesy of edustore.
In review: Apple iMac retina 5K. Test model courtesy of edustore.

Bir kez daha Apple'ın Retina 5K cihazı çok iyi bir izlenim bırakıyor. Üretici cihazı yüksek kalite kasa ve elegant tasarım ile üretiyor. Yeni arayüzler ve şarj edilebilir bataryalar ile kullanışlılık arttırılmış. Yine de asıl ilgiyi çeken yüksek çözünürlüklü ekran.

Sistem bileşenleri ise masaüstü ve notebook bileşenlerinin karışımından ibaret ve iyi  bir sistem performansı sunuluyor. Ancak Fusion Drive SSD kapasitesi 128 GB kapasiteden 24 GB kapasiteye indirilmiş. Grafik kartı ve işlemci performansı modern oyunlar için uygun olsa da eski bir çipin kullanımı iyi izlenimimizi biraz etkiliyor. Eğer iMac cihazını öncelikli olarak oyunlar için kullanacaksanız hem daha ucuz hem de daha hızlı sistemler tercih edebilirsiniz.

Sıcaklık ve ses üretimi için eleştirimiz yok. Eski 5K Retina iMac cihazınızı güncellemek için de pek bir sebep gözükmüyor. Cihaz iyi, ancak fiyatı yüksek.

Yazının orjinali için tıklayın.

Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A - 11/28/2015 v4(old)
Klaus Hinum, Nino Ricchizzi

İşcilik
92 / 98 → 94%
Klavye
79%
Mouse
92%
Bağlanılabilirlik
77 / 81 → 95%
Ağırlık
Batarya
Görüntü
89%
Oyun performansı
89%
Uygulama performansı
93%
Isınma
92%
Ses
85%
Audio
90%
Camera
63 / 85 → 74%
Ortalama
86%
89%
Desktop - Ortalama Ağırlık

Pricecompare

Please share our article, every link counts!
> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Kısa inceleme: Apple iMac Retina 5K 27-inch M390 (Late 2015) Retina
Klaus Hinum, Nino Ricchizzi, 2015-12-25 (Update: 2015-12-25)
