Lenovo ThinkPad L14 G2 İncelemesi: Intel versiyonu bile iyi

Yüksek performanslı iş makinesi. ThinkPad L14 G2, Intel'in Tiger Lake işlemcilerine sahip Lenovo'nun giriş seviyesi iş dizüstü bilgisayarıdır. Laptop kalitesi çok üst düzeyde. İş dizüstü bilgisayarı hakkında daha fazla bilgi edinmek için incelememizi okuyun.

AMD işlemcili Lenovo ThinkPad L14 G2'yi daha önce inceledik. Tasarımı, giriş cihazlarını ve diğer özellikleri beğendik. Ancak Wi-Fi hızını, pil ömrünü ve ekranı eleştirdik.

Mevcut inceleme cihazımız Lenovo ThinkPad L14 G2-20X1003WGE olarak biliniyor. Intel Core i5-1135G7, 8 GB RAM ve 256 GB SSD'ye sahiptir. Bu nedenle birçok ofis görevi için uygun olmalıdır. Ayrıca makul miktarda GPU performansı sunar.

Lenovo ThinkPad L14 G2-20X1003WGE (ThinkPad L14 Seri)
İşlemci
Intel Core i5-1135G7 4 x 2.4 - 4.2 GHz, 60 W PL2 / Short Burst, 28 W PL1 / Sustained, Tiger Lake-UP3
Grafik kartı
Intel Iris Xe Graphics G7 80EUs
Bellek
8 GB
, DDR4-3200, 2x SO-DIMM, Tek Kanal
Görüntü
14.00 inç 16:9, 1920 x 1080 pixel, NV140FHM-N48 , IPS, parlak: hayır
Anakart
Intel Tiger Lake-UP3 PCH-LP
Harddisk
Toshiba XG6 KXG6AZNV256G, 256 GB
, 198 GB Boş
Ses kartı
Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)
Bağlantılar
3 USB 3.0, 1 USB 4.0 40 Gbps, 1 Thunderbolt, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Ses çıkışları: birleşik ses jakı, Kart okuyucular: microSD, 1 SmartCard, 1 Parmak izi okuyucu, NFC
Network
Intel Ethernet Connection I219-V (10/100/1000MBit/s), RealTek Semiconductor RTL8852AE (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1, optional
Boyut
yükseklik x genişlik x derinlik (mm): 19 x 331 x 235
Batarya
45 Wh Lithium-Ion
Charging
fast charging / Quickcharge
İşletim sistemi
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 0.9 MP, 16:9 (1280x720)
Ek özellikler
Hoparlörler: Stereo, Klavye: 6 sıra Chiclet, 1,5 mm Seyahat, Tam Boyut, Klavye ışığı: evet, Lenovo Commercial Vantage, 12 Ay Garanti
Ağırlık
1.65 kg, Güç kaynağı: 374 g
Fiyat
1000 Euro
Bağlantılar
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Karşılaştırmada muhtemel rakipleri

Derece
Tarih
Model
Ağırlık
Yükseklik
Boyut
Çözünürlük
En iyi fiyat
85.6 %
03/2022
Lenovo ThinkPad L14 G2-20X1003WGE
i5-1135G7, Iris Xe G7 80EUs
1.7 kg19 mm14.00"1920x1080
86.1 %
08/2021
Lenovo ThinkPad L14 G2 AMD
R7 PRO 5850U, Vega 8
1.7 kg20.4 mm14.00"1920x1080
86.3 %
01/2020
Acer Swift 5 SF514-54T-501U
i5-1035G1, UHD Graphics G1 (Ice Lake 32 EU)
943 g14.95 mm14.00"1920x1080
83.9 %
09/2021
Asus ExpertBook B1 B1400CEAE, i5-1135G7
i5-1135G7, Iris Xe G7 80EUs
1.5 kg19.2 mm14.00"1920x1080
88 %
SCHENKER VIA 14 Late 2020
i5-1135G7, Iris Xe G7 80EUs
1.1 kg16.5 mm14.00"1920x1080

Kasa ve Bağlanabilirlik - Thunderbolt 4’lü Ucuz ThinkPad

Bakım seçenekleri
Bakım seçenekleri

Lenovo ThinkPad L14 G2'nin kasası sağlam plastikten yapılmıştır. Yapı kalitesi üst düzeydedir. Hiçbir yerinde boşluk veya çatlak yoktur. Ekranın açılma açısı 180 derecedir. Ekran kapağı oldukça sert.

Diğer modern dizüstü bilgisayarlarla karşılaştırıldığında, ekran çerçeveleri biraz kalın görünüyor. Yaklaşık 1,7 kg olan ThinkPad L14 G2, bu inceleme için seçtiğimiz diğer tüm rakip cihazlardan daha ağırdır. Lenovo'nun dizüstü bilgisayarı da diğer iş dizüstü bilgisayarlarından daha derin ve biraz daha kalın.

İki USB-C bağlantı noktasından biri şarj için kullanılabilir. Diğer USB-C bağlantı noktası Thunderbolt 4'ü destekler ve ayrıca Lenovo'nun yerleştirme bağlantı noktasını da entegre eder. İsteğe bağlı olarak, L14 G2, bir akıllı kart okuyucusu ve ilgili kart yuvalarının bulunduğu LTE ile mevcuttur.

Lenovo'nun dizüstü bilgisayarındaki microSD kart okuyucu, referans sınıfı bellek kartımız AV Pro V60 ile 73,91 MB/s (yazma) ve 84,92 MB/s (okuma) gibi makul veri aktarım hızlarına ulaşıyor.

Referans sınıfı yönlendiricimiz Netgear Nighthawk AX12 ile yapılan Wi-Fi testinde, Lenovo ThinkPad L14 G2, aktarım sırasında yalnızca 907 MBit/sn ve veri alırken 662 MBit/sn'lik vasat hızlara ulaşır.

L14 G2'nin web kamerası, çoğu güncel dizüstü bilgisayar gibi, yalnızca 0,9 MP çözünürlük sunuyor. Buna göre, görüntü kalitesi kötüdür. İyi aydınlatma koşullarında bile her şey bulanık görünüyor ve renkler kapalı.

Lenovo ThinkPad L14 G2
Lenovo ThinkPad L14 G2
Lenovo ThinkPad L14 G2
Lenovo ThinkPad L14 G2

Boyut Karşılaştırma

331 mm 235 mm 20.4 mm 1.7 kg331 mm 235 mm 19 mm 1.7 kg323.4 mm 215.6 mm 19.2 mm 1.5 kg322 mm 216.8 mm 16.5 mm 1.1 kg318.7 mm 210.5 mm 14.95 mm 943 g297 mm 210 mm 1 mm 5.7 g

Ports

Sol taraf: 1x USB-C 3.2 Gen1 (güç konektörü), 1x Thunderbolt 4, yerleştirme bağlantı noktası, 1x USB-A 3.2 Gen1, HDMI, microSD kart okuyucu, GigabitLAN, akıllı kart okuyucu
Sol taraf: 1x USB-C 3.2 Gen1 (güç konektörü), 1x Thunderbolt 4, yerleştirme bağlantı noktası, 1x USB-A 3.2 Gen1, HDMI, microSD kart okuyucu, GigabitLAN, akıllı kart okuyucu
Sağ taraf: birleşik ses jakı, 1x USB-A 3.2 Gen1, Kensington kilidi
Sağ taraf: birleşik ses jakı, 1x USB-A 3.2 Gen1, Kensington kilidi
SD Card Reader
average JPG Copy Test (av. of 3 runs)
SCHENKER VIA 14 Late 2020
  (Toshiba Exceria Pro M501 UHS-II 64 GB)
77.3 MB/s +5%
Lenovo ThinkPad L14 G2 AMD
  (AV Pro V60)
77 MB/s +4%
Lenovo ThinkPad L14 G2-20X1003WGE
  (AV Pro V60)
73.9 MB/s
Average of class Office
  (8 - 196.8, n=49, last 2 years)
55.8 MB/s -24%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
  (AV Pro V60)
25.3 MB/s -66%
maximum AS SSD Seq Read Test (1GB)
Lenovo ThinkPad L14 G2 AMD
  (AV Pro V60)
87 MB/s +2%
SCHENKER VIA 14 Late 2020
  (Toshiba Exceria Pro M501 UHS-II 64 GB)
86.4 MB/s +2%
Lenovo ThinkPad L14 G2-20X1003WGE
  (AV Pro V60)
84.9 MB/s
Average of class Office
  (25 - 173.2, n=43, last 2 years)
65.6 MB/s -23%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
  (AV Pro V60)
26.6 MB/s -69%
Networking
iperf3 transmit AX12
Acer Swift 5 SF514-54T-501U
Intel Wi-Fi 6 AX201
1416 (1003min - 1801max) MBit/s +56%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Wi-Fi 6 AX201
1333 (699min - 1465max) MBit/s +47%
SCHENKER VIA 14 Late 2020
Intel Wi-Fi 6 AX201
1301 (610min - 1550max) MBit/s +43%
Lenovo ThinkPad L14 G2-20X1003WGE
RealTek Semiconductor RTL8852AE
907 (852min - 954max) MBit/s
Average RealTek Semiconductor RTL8852AE
  (424 - 928, n=20)
787 MBit/s -13%
Lenovo ThinkPad L14 G2 AMD
RealTek Semiconductor RTL8852AE
770 (601min - 880max) MBit/s -15%
iperf3 receive AX12
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Wi-Fi 6 AX201
1480 (1227min - 1597max) MBit/s +124%
SCHENKER VIA 14 Late 2020
Intel Wi-Fi 6 AX201
1451 (1356min - 1506max) MBit/s +119%
Acer Swift 5 SF514-54T-501U
Intel Wi-Fi 6 AX201
968 (860min - 1204max) MBit/s +46%
Lenovo ThinkPad L14 G2 AMD
RealTek Semiconductor RTL8852AE
855 (793min - 890max) MBit/s +29%
Average RealTek Semiconductor RTL8852AE
  (621 - 877, n=20)
745 MBit/s +13%
Lenovo ThinkPad L14 G2-20X1003WGE
RealTek Semiconductor RTL8852AE
662 (569min - 723max) MBit/s
050100150200250300350400450500550600650700750800850900950Tooltip
Lenovo ThinkPad L14 G2-20X1003WGE; iperf3 receive AX12; iperf 3.1.3: Ø661 (569-723)
Lenovo ThinkPad L14 G2-20X1003WGE; iperf3 transmit AX12; iperf 3.1.3: Ø907 (852-954)
ColorChecker
25.2 ∆E
24.3 ∆E
20.4 ∆E
13.5 ∆E
18 ∆E
13.3 ∆E
23.5 ∆E
21.9 ∆E
18.9 ∆E
10.3 ∆E
10.3 ∆E
10.5 ∆E
12.4 ∆E
14 ∆E
17.1 ∆E
11.2 ∆E
13.6 ∆E
13.5 ∆E
2.3 ∆E
12.2 ∆E
15 ∆E
8.9 ∆E
3.2 ∆E
9.3 ∆E
ColorChecker Lenovo ThinkPad L14 G2-20X1003WGE: 14.28 ∆E min: 2.33 - max: 25.19 ∆E

Giriş Birimleri- Arkadan aydınlatmalı klavyeli Lenovo dizüstü bilgisayarı

ThinkPad L14 G2'nin klavyesi, net bir çalıştırma noktası sunar ve uzun yazma oturumları için uygundur. Düzen iyi düşünülmüş. Burada yön tuşları bile çift görev çekmez. İki seviyeli arka ışık, kullanıcıların düşük ışıklı ortamlarda çalışmasına olanak tanır ve tuşları eşit ve parlama olmadan aydınlatır.

Plastik bir ClickPad ve bir TrackPoint, fare yerine geçer. Her iki giriş aygıtı da fare işaretçisinde gezinmek için çok uygundur. Tıklamalar, mekanik ve dokunma yoluyla güvenilir bir şekilde tetiklenir. Lenovo'nun dizüstü bilgisayarındaki parmak izi sensörü, incelememiz sırasında saklanan baskıları da güvenilir bir şekilde tanıdı.

ThinkPad L14 G2 - Giriş birimleri
ThinkPad L14 G2 - Giriş birimleri

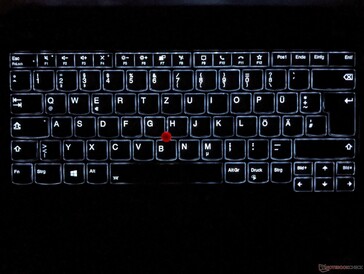

ThinkPad L14 G2 – Aydınlatma
ThinkPad L14 G2 – Aydınlatma

Ekran - ThinkPad L14 G2'de iyi kontrast oranı

Alt piksel
Alt piksel
Işık Sızması
Işık Sızması

Lenovo ThinkPad L14 G2, 1920x1080 piksel doğal çözünürlüğe sahip 14 inç IPS ekrana sahiptir. 294 cd/m²'lik maksimum parlaklık nedeniyle, Lenovo dizüstü bilgisayar karşılaştırma tablomuzun ortasında yer alıyor. Yüzde 90 parlaklık dağılımı çok iyi.

Ayrıca, PWM titremesi yoktur, bu da hassas gözlere sahip kişilerin herhangi bir sorun hakkında endişelenmesine gerek olmadığı anlamına gelir.

271
cd/m²
272
cd/m²
276
cd/m²
276
cd/m²
294
cd/m²
286
cd/m²
283
cd/m²
302
cd/m²
291
cd/m²
Parlaklığın yayılımı
NV140FHM-N48 tested with X-Rite i1Pro 2
Maksimum: 302 cd/m² (Nits) Ortalama: 283.4 cd/m² Minimum: 3.51 cd/m²
Aydınlatma: 90 %
Batarya modunda parlaklık: 294 cd/m²
Kontrast: 1400:1 (Siyah: 0.21 cd/m²)
ΔE Color 5.4 | 0.5-29.43 Ø5, calibrated: 5
ΔE Greyscale 1.5 | 0.57-98 Ø5.3
41.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
59.2% sRGB (Argyll 2.2.0 3D)
39.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.05
Lenovo ThinkPad L14 G2-20X1003WGE
NV140FHM-N48 , IPS, 1920x1080, 14.00
Lenovo ThinkPad L14 G2 AMD
B140HAN04.0, IPS LED, 1920x1080, 14.00
Acer Swift 5 SF514-54T-501U
AU Optronics AUO253D, IPS, CineCrystal, 1920x1080, 14.00
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Chi Mei CMN14D4, IPS, 1920x1080, 14.00
SCHENKER VIA 14 Late 2020
B140HAN06.2, a-Si AHVA-IPS, 1920x1080, 14.00
Display
-6%
67%
7%
72%
Display P3 Coverage
39.9
37.5
-6%
68.6
72%
42.8
7%
70
75%
sRGB Coverage
59.2
56.3
-5%
94.7
60%
63.9
8%
99.7
68%
AdobeRGB 1998 Coverage
41.3
38.7
-6%
69.2
68%
44.3
7%
71.3
73%
Response Times
30%
11%
34%
9%
Response Time Grey 50% / Grey 80% *
52 ?(25, 27)
36 ?(19, 17)
31%
47 ?(21, 26)
10%
35.2 ?(18, 17.2)
32%
53.6 ?(24.4, 29.2)
-3%
Response Time Black / White *
36 ?(21, 15)
26 ?(15, 11)
28%
32 ?(18, 14)
11%
23.2 ?(14, 9.2)
36%
28.4 ?(14.4, 14)
21%
PWM Frequency
25000 ?(20)
Screen
-32%
13%
-31%
41%
Brightness middle
294
278
-5%
319
9%
256
-13%
307
4%
Brightness
283
255
-10%
292
3%
239
-16%
296
5%
Brightness Distribution
90
86
-4%
84
-7%
83
-8%
91
1%
Black Level *
0.21
0.33
-57%
0.23
-10%
0.23
-10%
0.16
24%
Contrast
1400
842
-40%
1387
-1%
1113
-20%
1919
37%
Colorchecker dE 2000 *
5.4
5.9
-9%
2.53
53%
6.2
-15%
1
81%
Colorchecker dE 2000 max. *
20.5
20.2
1%
5.5
73%
18.2
11%
2.4
88%
Colorchecker dE 2000 calibrated *
5
4.5
10%
2.67
47%
3.8
24%
1.1
78%
Greyscale dE 2000 *
1.5
4.1
-173%
2.22
-48%
5
-233%
0.8
47%
Gamma
2.05 107%
2.15 102%
2.54 87%
1.97 112%
2.18 101%
CCT
6562 99%
7224 90%
6381 102%
7364 88%
6492 100%
Color Space (Percent of AdobeRGB 1998)
62
65.1
Color Space (Percent of sRGB)
95
99.6
Total Average (Program / Settings)
-3% / -18%
30% / 24%
3% / -14%
41% / 43%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

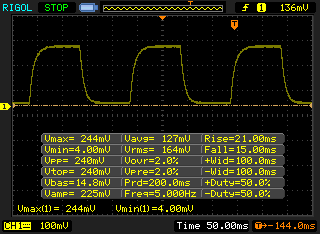

       Response Time Black to White
36 ms ... rise ↗ and fall ↘ combined↗ 21 ms rise
↘ 15 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 93 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21.6 ms).
       Response Time 50% Grey to 80% Grey
52 ms ... rise ↗ and fall ↘ combined↗ 25 ms rise
↘ 27 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.2 (minimum) to 636 (maximum) ms. » 87 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (33.9 ms).

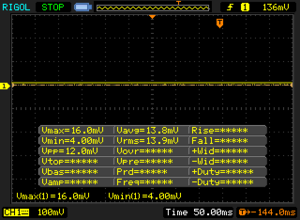

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 18071 (minimum: 5 - maximum: 3846000) Hz was measured.

Ölçümlerimize göre, ekran 1400:1'lik iyi bir kontrast oranı ve 0.21 cd/m²'lik eşit derecede iyi bir siyah değeri sunuyor. Ancak, %59,2'lik (sRGB) renk alanı kapsamı çok düşüktür.

CalMAN analizi, renklerin kutudan çıkar çıkmaz nispeten doğru bir şekilde görüntülendiğini gösteriyor. Ancak renk doğruluğu kalibrasyon yoluyla iyileştirilebilir. ICC profilimiz için indirme bağlantısı, tüm ekran ölçümlerini içeren kutunun altındadır (bu kutu, parlaklık dağılımını gösteren grafiğin solunda bulunur).

Renk alanı kapsamı (sRGB) - yüzde 59,2
Renk alanı kapsamı (sRGB) - yüzde 59,2
Renk alanı kapsamı (AdobeRGB) - yüzde 41,3
Renk alanı kapsamı (AdobeRGB) - yüzde 41,3
Renk alanı kapsamı (P3) - yüzde 39,9
Renk alanı kapsamı (P3) - yüzde 39,9
CalMAN - Renk doğruluğu
CalMAN - Renk doğruluğu
CalMAN - Gri tonlama performansı
CalMAN - Gri tonlama performansı
CalMAN - Doygunluk
CalMAN - Doygunluk
CalMAN - Renk doğruluğu (kalibre edilmiş)
CalMAN - Renk doğruluğu (kalibre edilmiş)
CalMAN - Gri tonlama performansı (kalibre edilmiş)
CalMAN - Gri tonlama performansı (kalibre edilmiş)
CalMAN - Doygunluk (kalibre edilmiş)
CalMAN - Doygunluk (kalibre edilmiş)
ThinkPad L14 G2 - Dış mekan kullanımı
ThinkPad L14 G2 - Dış mekan kullanımı
ThinkPad L14 G2 - Dış mekan kullanımı
ThinkPad L14 G2 - Dış mekan kullanımı
ThinkPad L14 G2 - Görüş açıları
ThinkPad L14 G2 - Görüş açıları

Performans - Tiger-Lake İşlemcisi yük altında güç kısmıyor

Spesifikasyon sayfasına göre ThinkPad L14 G2, Intel Core i7-1165G7 en iyi seçenek olmak üzere farklı işlemcilerle birlikte gelir. Bellek yapılandırması da değişir ve en azından Avrupa'da özel GPU'lu modeller yoktur. Başka yerlerde, L14 G2, GeForce MX450 ile birlikte mevcuttur. İnceleme modelimiz Intel Core i5-1135G7, 8 GB of RAM ve 256 GB SSD ile birlikte gelir ve bu nedenle çeşitli ofis uygulamaları için çok uygundur.

Lenovo ThinkPad L14 G2 - CPUz
CPUz
Lenovo ThinkPad L14 G2 - CPUz
CPUz Anakart
Lenovo ThinkPad L14 G2 - CPUz
CPUz Bellekler
Lenovo ThinkPad L14 G2 - HWInfo
HWInfo
Lenovo ThinkPad L14 G2 - GPUz
GPUz


İşlemci

İnceleme cihazımızdaki Intel Core i5-1135G7, 4 çekirdekli/8 iş parçacıklı bir işlemcidir. Saat hızları 2,4 ve 4,2 GHz arasında değişir, bu nedenle maksimum performans TDP'nin yanı sıra soğutma sistemine de bağlıdır. Burada Lenovo, 60 W (PLA2) kısa vadeli ve 28 W (PL1) uzun vadeli bir değer yapılandırır.

Cinebench R15 stres testimizde ThinkPad L14 G2 performansını yüksek seviyede tutmayı başardı.

Cinebench R15 Multi Stress Test

437.2507.2577.2647.2717.2787.2857.2927.2997.21067.21137.21207.21277.21347.2Tooltip
Lenovo ThinkPad L14 G2-20X1003WGE Intel Core i5-1135G7: Ø841 (834.01-877.19)
Lenovo ThinkPad L14 G2 AMD AMD Ryzen 7 PRO 5850U: Ø1391 (1385.52-1397.87)
Acer Swift 5 SF514-54T-501U Intel Core i5-1035G1: Ø494 (437.21-504.69)
Asus ExpertBook B1 B1400CEAE, i5-1135G7 Intel Core i5-1135G7: Ø734 (723.71-860.22)
SCHENKER VIA 14 Late 2020 Intel Core i5-1135G7: Ø660 (647.22-852.42)

Belirli kriterlerde Lenovo'nun dizüstü bilgisayarı yüksek düzeyde çok çekirdekli performans elde ediyor ve yalnızca AMD Ryzen 7 5850 Pro'ya sahip rakip bunu geçebiliyor. Tek çekirdek performansı, karşılaştırma tablomuzun ortasında bir nokta için yeterli. Düşük Geekbench puanı çarpıcıydı ve ikinci bir kıyaslama çalışmasından sonra bile önemli ölçüde iyileşmedi.

Pil gücünde, pil verimliliği modu etkinleştirildiğinde Cinebench R15'teki çok çekirdekli puan 248 puana düşüyor. Performans modunda, fişe takılı değilken bile 872 puana ulaşılıyor.

Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23 / Multi Core
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
8201 Points +52%
Average of class Office
  (1056 - 15743, n=121, last 2 years)
8030 Points +49%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7
5389 Points
Average Intel Core i5-1135G7
  (2786 - 6136, n=55)
4724 Points -12%
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7
4665 Points -13%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
3619 Points -33%
Cinebench R23 / Single Core
Average of class Office
  (529 - 1995, n=120, last 2 years)
1451 Points +8%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
1405 Points +4%
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7
1351 Points 0%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7
1349 Points
Average Intel Core i5-1135G7
  (1062 - 1373, n=53)
1322 Points -2%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
1065 Points -21%
Cinebench R20 / CPU (Multi Core)
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
3184 Points +55%
Average of class Office
  (356 - 5904, n=119, last 2 years)
3085 Points +50%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7
2054 Points
Average Intel Core i5-1135G7
  (979 - 2382, n=62)
1827 Points -11%
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7
1684 Points -18%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
1548 Points -25%
Cinebench R20 / CPU (Single Core)
Average of class Office
  (181.3 - 764, n=119, last 2 years)
558 Points +8%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
548 Points +6%
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7
518 Points 0%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7
517 Points
Average Intel Core i5-1135G7
  (375 - 527, n=62)
507 Points -2%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
476 Points -8%
Cinebench R15 / CPU Multi 64Bit
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
1398 (1385.52min - 1397.87max) Points +59%
Average of class Office
  (160.8 - 2642, n=119, last 2 years)
1392 Points +59%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7
877 (834.01min - 877.19max) Points
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
860 (723.71min - 860.22max) Points -2%
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7
852 (647.22min - 852.42max) Points -3%
Average Intel Core i5-1135G7
  (431 - 941, n=65)
792 Points -10%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
518 Points -41%
Cinebench R15 / CPU Single 64Bit
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
227 Points +14%
Average of class Office
  (82.6 - 284, n=117, last 2 years)
216 Points +9%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
201 Points +1%
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7
200 Points +1%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7
199 Points
Average Intel Core i5-1135G7
  (141.4 - 205, n=61)
194.4 Points -2%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
170 Points -15%
Blender / v2.79 BMW27 CPU
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
912 Seconds * -62%
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7
672 Seconds * -20%
Average Intel Core i5-1135G7
  (499 - 1044, n=60)
662 Seconds * -18%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
639 Seconds * -14%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7
562 Seconds *
Average of class Office
  (214 - 2844, n=119, last 2 years)
535 Seconds * +5%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
364 Seconds * +35%
7-Zip 18.03 / 7z b 4
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
38553 MIPS +72%
Average of class Office
  (4226 - 62349, n=120, last 2 years)
34626 MIPS +54%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7
22478 MIPS
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7
21900 MIPS -3%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
21582 MIPS -4%
Average Intel Core i5-1135G7
  (14745 - 24873, n=62)
21407 MIPS -5%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
15198 MIPS -32%
7-Zip 18.03 / 7z b 4 -mmt1
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
5050 MIPS +9%
Average of class Office
  (2233 - 6687, n=120, last 2 years)
5007 MIPS +8%
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7
4812 MIPS +4%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
4720 MIPS +2%
Average Intel Core i5-1135G7
  (3924 - 4921, n=62)
4674 MIPS +1%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7
4633 MIPS
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
3913 MIPS -16%
Geekbench 5.5 / Multi-Core
Average of class Office
  (1018 - 11980, n=121, last 2 years)
6590 Points +70%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
5137 Points +33%
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7
4703 Points +22%
Average Intel Core i5-1135G7
  (3475 - 5472, n=58)
4663 Points +21%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
4416 Points +14%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7
3869 Points
Geekbench 5.5 / Single-Core
Average of class Office
  (510 - 1974, n=121, last 2 years)
1468 Points +11%
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7
1399 Points +6%
Average Intel Core i5-1135G7
  (1147 - 1428, n=58)
1373 Points +4%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
1354 Points +2%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
1345 Points +2%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7
1322 Points
HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
9.89 fps +49%
Average of class Office
  (1.55 - 17.4, n=119, last 2 years)
9.18 fps +38%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7
6.65 fps
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
6.03 fps -9%
Average Intel Core i5-1135G7
  (3.57 - 7.6, n=57)
5.93 fps -11%
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7
5.57 fps -16%
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1
4.15 fps -38%
LibreOffice / 20 Documents To PDF
Average of class Office
  (31.3 - 117.5, n=119, last 2 years)
56.7 s * -11%
Average Intel Core i5-1135G7
  (44.2 - 62.9, n=60)
52.8 s * -3%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
51.9 s * -1%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7
51.3 s *
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7
50.7 s * +1%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
44.2 s * +14%
R Benchmark 2.5 / Overall mean
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7
0.647 sec * -0%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7
0.647 sec *
Average Intel Core i5-1135G7
  (0.619 - 0.727, n=59)
0.642 sec * +1%
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7
0.636 sec * +2%
Average of class Office
  (0.4244 - 1.397, n=118, last 2 years)
0.588 sec * +9%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U
0.557 sec * +14%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
877 Points
Cinebench R15 OpenGL 64Bit
64.1 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
199 Points
Yardım

Sistem performansı

PCMark 10'da (sistem performansını değerlendirmek için kıyaslama), ThinkPad L14, yalnızca karşılaştırma tablomuzun ortasındaki bir nokta için yeterli olan genel bir puan elde eder. Hem bu puan hem de alt puanlar bu donanıma sahip diğer notebooklar seviyesinde.

Günlük kullanımda, sistem her zaman duyarlı hissettirdi ve programlar hızlı bir şekilde başladı. Mikro kekemelik veya benzeri bir sorunla karşılaşmadık.

PCMark 10 / Score
Lenovo ThinkPad L14 G2 AMD
Vega 8, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB
5690 Points +26%
Average of class Office
  (2325 - 7157, n=104, last 2 years)
5340 Points +18%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
4738 Points +5%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (4026 - 4952, n=53)
4613 Points +2%
Lenovo ThinkPad L14 G2-20X1003WGE
Iris Xe G7 80EUs, i5-1135G7, Toshiba XG6 KXG6AZNV256G
4530 Points
SCHENKER VIA 14 Late 2020
Iris Xe G7 80EUs, i5-1135G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
4203 Points -7%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
3807 Points -16%
PCMark 10 / Essentials
Lenovo ThinkPad L14 G2 AMD
Vega 8, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB
10221 Points +18%
Average of class Office
  (5095 - 20841, n=104, last 2 years)
9828 Points +14%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
9386 Points +8%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (8149 - 9917, n=53)
9310 Points +8%
SCHENKER VIA 14 Late 2020
Iris Xe G7 80EUs, i5-1135G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
9258 Points +7%
Lenovo ThinkPad L14 G2-20X1003WGE
Iris Xe G7 80EUs, i5-1135G7, Toshiba XG6 KXG6AZNV256G
8652 Points
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
8482 Points -2%
PCMark 10 / Productivity
Lenovo ThinkPad L14 G2 AMD
Vega 8, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB
9512 Points +52%
Average of class Office
  (3041 - 10198, n=104, last 2 years)
7453 Points +19%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
6332 Points +1%
Lenovo ThinkPad L14 G2-20X1003WGE
Iris Xe G7 80EUs, i5-1135G7, Toshiba XG6 KXG6AZNV256G
6252 Points
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (5040 - 6619, n=53)
6218 Points -1%
SCHENKER VIA 14 Late 2020
Iris Xe G7 80EUs, i5-1135G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
6136 Points -2%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
5740 Points -8%
PCMark 10 / Digital Content Creation
Average of class Office
  (1912 - 9056, n=104, last 2 years)
5782 Points +24%
Lenovo ThinkPad L14 G2 AMD
Vega 8, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB
5141 Points +10%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
4858 Points +4%
Lenovo ThinkPad L14 G2-20X1003WGE
Iris Xe G7 80EUs, i5-1135G7, Toshiba XG6 KXG6AZNV256G
4664 Points
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
  (3548 - 5255, n=53)
4612 Points -1%
SCHENKER VIA 14 Late 2020
Iris Xe G7 80EUs, i5-1135G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
3548 Points -24%
Acer Swift 5 SF514-54T-501U
UHD Graphics G1 (Ice Lake 32 EU), i5-1035G1, Kingston RBUSNS8154P3512GJ1
3076 Points -34%
PCMark 10 Score
4530 puan
Yardım

DPC Gecikmeleri

ThinkPad L14 G2 yapılandırmamız, Gecikme Mon Kesinti süreleri ile testte orta düzeyde gecikme artışları gösteriyor. Bu nedenle, herhangi bir gerçek zamanlı uygulama için pek uygun değildir.

LatencyMon - İstatistikler
LatencyMon - İstatistikler
LatencyMon - Sürücüler
LatencyMon - Sürücüler
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Iris Xe G7 80EUs, i5-1135G7, WDC PC SN530 SDBPNPZ-512G
1603 μs * -6%
Lenovo ThinkPad L14 G2-20X1003WGE
Iris Xe G7 80EUs, i5-1135G7, Toshiba XG6 KXG6AZNV256G
1519 μs *
Lenovo ThinkPad L14 G2 AMD
Vega 8, R7 PRO 5850U, WDC PC SN730 SDBQNTY-512GB
974 μs * +36%
SCHENKER VIA 14 Late 2020
Iris Xe G7 80EUs, i5-1135G7, Samsung SSD 980 Pro 500GB MZ-V8P500BW
762 μs * +50%

* ... smaller is better

Depolama aygıtları

Lenovo dizüstü bilgisayardaki SSD, incelememizde iyi okuma ve yazma oranları elde etti. Böylece ThinkBook L14 G2, sınıfındaki diğer cihazlara ayak uydurabiliyor.

İnceleme cihazımızdaki SSD'nin diğer depolama cihazlarına göre nasıl yığıldığını  HDD/SSD Karşılaştırmaları sayfamızdan öğrenebilirsiniz.

Lenovo ThinkPad L14 G2-20X1003WGE
Toshiba XG6 KXG6AZNV256G
Lenovo ThinkPad L14 G2 AMD
WDC PC SN730 SDBQNTY-512GB
Acer Swift 5 SF514-54T-501U
Kingston RBUSNS8154P3512GJ1
Asus ExpertBook B1 B1400CEAE, i5-1135G7
WDC PC SN530 SDBPNPZ-512G
SCHENKER VIA 14 Late 2020
Samsung SSD 980 Pro 500GB MZ-V8P500BW
Average Toshiba XG6 KXG6AZNV256G

Average of class Office

AS SSD
6%
-29%
-10%
56%
0%
4%
Seq Read
2184
2693
23%
1454
-33%
2011
-8%
5167
137%
2184
0%
3148 ?(508 - 5796, n=101, last 2 years)
44%
Seq Write
921
1456
58%
939
2%
961
4%
1339
45%
921
0%
2054 ?(304 - 5880, n=101, last 2 years)
123%
4K Read
52
41.67
-20%
54.6
5%
48.77
-6%
72.3
39%
52
0%
56.3 ?(18.7 - 91.1, n=101, last 2 years)
8%
4K Write
177.1
138.4
-22%
100.8
-43%
221.5
25%
204.9
16%
177.1
0%
158.3 ?(35.4 - 350, n=101, last 2 years)
-11%
4K-64 Read
1086
940
-13%
954
-12%
1015
-7%
1890
74%
1086
0%
1047 ?(182.3 - 2713, n=101, last 2 years)
-4%
4K-64 Write
1371
1933
41%
707
-48%
1170
-15%
2101
53%
1371
0%
1474 ?(132.3 - 3394, n=101, last 2 years)
8%
Access Time Read *
0.087
0.114
-31%
0.062
29%
0.039
55%
0.087
-0%
0.08048 ?(0.022 - 0.295, n=101, last 2 years)
7%
Access Time Write *
0.025
0.027
-8%
0.044
-76%
0.053
-112%
0.025
-0%
0.025
-0%
0.0646 ?(0.017 - 0.619, n=101, last 2 years)
-158%
Score Read
1356
1251
-8%
1154
-15%
1264
-7%
2479
83%
1356
0%
1419 ?(252 - 3364, n=101, last 2 years)
5%
Score Write
1640
2217
35%
902
-45%
1488
-9%
2440
49%
1640
0%
1837 ?(320 - 4111, n=101, last 2 years)
12%
Score Total
3637
4052
11%
2635
-28%
3357
-8%
6004
65%
3637
0%
3939 ?(704 - 9204, n=101, last 2 years)
8%

* ... smaller is better

Toshiba XG6 KXG6AZNV256G
CDM 5/6 Read Seq Q32T1: 3178 MB/s
CDM 5/6 Write Seq Q32T1: 1643 MB/s
CDM 5/6 Read 4K Q32T1: 441.2 MB/s
CDM 5/6 Write 4K Q32T1: 409.2 MB/s
CDM 5 Read Seq: 2189 MB/s
CDM 5 Write Seq: 1625 MB/s
CDM 5/6 Read 4K: 53.6 MB/s
CDM 5/6 Write 4K: 140.7 MB/s

Sürekli yük okuması: DiskSpd Okuma Döngüsü, Sıra uzunluğu 8

2350.22510.22670.22830.22990.2Tooltip
Lenovo ThinkPad L14 G2-20X1003WGE: Ø2738 (2350.16-3127.52)

Ekran kartı

Görüntü işlemeden Intel Iris Xe Graphics G7 80EUs sorumludur. iGPU, burada durum böyle olmayan çift kanal modunda çalışan hızlı RAM'den yararlanır.

İnceleme cihazımızda RAM tek kanal modunda çalıştığı için 3DMark testlerindeki performans bu GPU'lu diğer dizüstü bilgisayarlara göre daha düşüktür. İkinci bir RAM modülü takılarak performansta bir iyileşme sağlanabilir.

Pil gücüyle, 3DMark 11 puanı performans modunda 3787 puan ve verimlilik modunda 2494 puandır. iGPU'nun diğer grafik kartlarıyla nasıl karşılaştırıldığını GPU Karşılaştırmaları sayfamızdan öğrenebilirsiniz.

3DMark 11 - 1280x720 Performance GPU
Average of class Office
  (1474 - 12230, n=113, last 2 years)
5932 Points +54%
SCHENKER VIA 14 Late 2020
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5190 Points +34%
Average Intel Iris Xe Graphics G7 80EUs
  (2246 - 6477, n=105)
5167 Points +34%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
4684 Points +21%
Lenovo ThinkPad L14 G2 AMD
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
4370 Points +13%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3860 Points
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
2516 Points -35%
3DMark
1920x1080 Fire Strike Graphics
Average of class Office
  (712 - 8815, n=115, last 2 years)
4125 Points +102%
Average Intel Iris Xe Graphics G7 80EUs
  (1560 - 5305, n=107)
3782 Points +85%
SCHENKER VIA 14 Late 2020
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
3089 Points +51%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
2723 Points +34%
Lenovo ThinkPad L14 G2 AMD
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
2534 Points +24%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
2039 Points
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
1739 Points -15%
1280x720 Cloud Gate Standard Graphics
Average of class Office
  (5681 - 58068, n=96, last 2 years)
24181 Points +78%
Average Intel Iris Xe Graphics G7 80EUs
  (6361 - 30894, n=92)
21769 Points +60%
SCHENKER VIA 14 Late 2020
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
19051 Points +40%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
17253 Points +27%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
13599 Points
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
11934 Points -12%
2560x1440 Time Spy Graphics
Average of class Office
  (242 - 3186, n=111, last 2 years)
1341 Points +66%
Average Intel Iris Xe Graphics G7 80EUs
  (561 - 1511, n=104)
1170 Points +45%
SCHENKER VIA 14 Late 2020
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1009 Points +25%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
976 Points +21%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
807 Points
Lenovo ThinkPad L14 G2 AMD
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 PRO 5850U
800 Points -1%
Acer Swift 5 SF514-54T-501U
Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1
453 Points -44%
3DMark 11 Performance
3819 puan
3DMark Cloud Gate Standard Score
11843 puan
3DMark Fire Strike Score
1715 puan
3DMark Time Spy Score
909 puan
Yardım

Oyun performansı

Lenovo ThinkPad L14 G2'deki GPU, yalnızca çok basit veya daha eski oyunlar için uygundur. Kıyasladığımız başlıklarda, makul kare hızları elde etmek için çözünürlük ve görsel ayarların düşürülmesi gerekiyordu.

Intel'in iGPU'sundan ne tür bir oyun deneyimi bekleyebileceğinizi öğrenmek için oyun karşılaştırmaları sayfamıza gidin..

The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Average of class Office
  (8.4 - 149, n=101, last 2 years)
72.1 fps +103%
Average Intel Iris Xe Graphics G7 80EUs
  (30.2 - 97.4, n=98)
65.3 fps +84%
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
58.4 fps +65%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
51.5 fps +45%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
40.5 fps +14%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
35.5 fps
Acer Swift 5 SF514-54T-501U
Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)
27 fps -24%
Dota 2 Reborn - 1366x768 med (1/3)
Average of class Office
  (10.9 - 127, n=122, last 2 years)
76.4 fps +55%
Average Intel Iris Xe Graphics G7 80EUs
  (10.9 - 119.5, n=105)
67.8 fps +37%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
66.7 (55.7min) fps +35%
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
56.2 (40min) fps +14%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
54.1 (42.7min) fps +10%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
49.4 (44.7min) fps
Final Fantasy XV Benchmark - 1280x720 Lite Quality
Average of class Office
  (5.42 - 94, n=114, last 2 years)
35.4 fps +115%
Average Intel Iris Xe Graphics G7 80EUs
  (8.32 - 45.6, n=100)
31.5 fps +91%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
24.3 fps +47%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
22.7 fps +38%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
16.5 fps
X-Plane 11.11 - 1280x720 low (fps_test=1)
Average of class Office
  (9.12 - 109.9, n=122, last 2 years)
40.3 fps +28%
Lenovo ThinkPad L14 G2 AMD
AMD Ryzen 7 PRO 5850U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
38.7 fps +22%
SCHENKER VIA 14 Late 2020
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
37.3 fps +18%
Average Intel Iris Xe Graphics G7 80EUs
  (9.12 - 74.4, n=105)
36.4 fps +15%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
35.4 fps +12%
Lenovo ThinkPad L14 G2-20X1003WGE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
31.6 fps
düşük orta yüksek ultra
The Witcher 3 (2015) 35.5 22.6 10.6
Dota 2 Reborn (2015) 82.4 49.4 27.4 25.1
Final Fantasy XV Benchmark (2018) 16.5
X-Plane 11.11 (2018) 31.6 25 22.6

Emisyonlar ve Enerji - Ortalama pil ömrüne sahip Lenovo ThinkPad

Sistem Gürültüsü

ThinkPad L14 G2'nin fanları, ofis uygulamalarını kullanırken ve internette gezinirken günlük kullanımda duyulmuyor ve bu da sessiz çalışmaya neden oluyor. Stres testimizde bile, aktif soğutma sistemi ancak çok geç devreye giriyor ve fanların sabit bir hızda dönmesiyle 41,1 dB(A) maksimum ses basıncı seviyesine ulaşıyor.

Ses yüksekliği

Boşta
24.61 / 24.61 / 24.61 dB
Çalışırken
24.61 / 41.11 dB
  red to green bar


30 dB
sessiz
40 dB(A)
duyulabilirlik
50 dB(A)
gürültülü

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm uzaklık)   environment noise: 24.61 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2027.727.52927.729.42525.92925.92827.73121.125.124.123.621.34027.829.93032.227.45021.226.542.14521.76322.722.623.625.121.38021.424.916.821.922.410020.124.919.422.920.712523.219.718.819.121.616018.819.619.719.419.820020.316.816.717.921.525019.716.917.817.923.631523.216.316.627.130.74002314.916.618.12750022.113.415.313.326.863021.81112.912.527.280021.711.112.711.828.310002110.412.110.827.9125017.91011.210.525.5160017.910.211.110.426.4200016.110.310.810.424.6250019.711.711.11129.6315021.811.411.411.433.9400020.311.611.511.531.750002111.711.711.730.5630017.212.111.811.927.7800015.512.1121227.11000014.912.111.811.922.51250014.11211.911.818.41600026.11211.411.224.6SPL31.92424.625.941.1N1.60.50.60.73.6median 20.3median 12median 12median 11.9median 26.8Delta2.122.63.23.6022.622.926.422.223.226.719.719.320.624.121.727.622.223.424.718.717.826.316.314.820.916.617.321.9161432.420.319.621.114.112.619.118.618.621.715.915.821.816.912.823.614.912.422.115.712.423.814.911.724.614.913.225.114.710.822.913.910.623.81410.523.814.110.925.715.911.42915.31228.21511.927.51412.128.812.812.125.212.412.119.912.412.316.818.111.718.126.824.1380.80.62.9median 14.9median 12.1median 23.811.32.2hearing rangehide median Fan NoiseLenovo ThinkPad L14 G2-20X1003WGELenovo ThinkPad L14 G2 AMD

Sıcaklıklar

Stres testi
Stres testi

Ölçümlerimize göre ThinkPad L14 G2'nin yüzey sıcaklıkları çok ağır yük altında 51,3 °C'ye (124,34 °F) ulaşıyor. En sıcak nokta sağ üst köşededir; bilek dinlenme alanı her zaman nispeten serin hisseder.

Uzun süreli stres testimiz sırasında L14 G2'nin içindeki sıcaklıklar hızla 100 °C'ye (212 °F) ulaştı. Soğutma sistemi sonunda onları 93 °C'ye (199,4 °F) düşürmeyi başardı. Saat hızları kısa bir süre için temel frekansın önemli ölçüde altına düştü, ancak daha sonra 3,8 GHz civarında sabitlendi. Sistem, ağır yüke rağmen hala kullanılabilir. Soğutma çözümü iyi çalıştığından ve stres testi senaryomuzda görülen yükün pratikte meydana gelme olasılığı çok düşük olduğundan, günlük kullanımda herhangi bir termal kısma görmeyi beklemiyoruz.

Maksimum yük
 36.1 °C36.6 °C29.2 °C
 30.7 °C34.6 °C35 °C
 22.4 °C24.5 °C28.6 °C
Maksimum: 36.6 °C
Ortalama: 30.9 °C
51.3 °C42.1 °C43.2 °C
29.6 °C35 °C39.6 °C
27.8 °C23.3 °C23 °C
Maksimum: 51.3 °C
Ortalama: 35 °C
Güç kaynağı  30.3 °C | Oda sıcaklığı 20.4 °C | Fluke 62 Max+
(+) The average temperature for the upper side under maximal load is 30.9 °C / 88 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 36.6 °C / 98 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 51.3 °C / 124 F, compared to the average of 36.7 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 21.7 °C / 71 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.6 °C / 83.5 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-0.9 °C / -1.6 F).
Termal Görüntü - üst taraf
Termal Görüntü - üst taraf
Termal Görüntü - alt taraf
Termal Görüntü - alt taraf

Hoparlörler

Lenovo'nun dizüstü bilgisayarının hoparlörleri sessiz ve teneke gibi. Böylece, çok sessiz ortamlarda medya içeriğinin ara sıra oynatılması mümkündür. Yine de kulaklık veya harici hoparlör kullanmanızı öneririz.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2023.226.12521.623.53118.420.34023.726.25022.323.66319.319.88017.517.71001717.41251518.116021.322.120012.331.225018.438.23151744.840015.946.550011.545.363010.646.280010.246.7100011.253.8125010.462.2160010.158.5200010.559.4250010.955.6315011.557.7400011.952.950001253.4630012.156800011.963.4100001263.31250012.457.91600011.753.1SPL23.970.1N0.523.8median 11.9median 53.1Delta2.19.83334.33333.134.133.136.93636.931.633.831.63132.23129.43129.428.128.228.128.729.328.727.829.327.829.224.329.227.922.427.93922.43946.221.246.25320.4535419.55454.518.754.559.618.359.654.717.754.761.517.761.560.917.160.963.817.463.859.517.459.560.917.660.959.217.759.260.31860.364.21864.261.318.361.361.518.161.569.418.269.469.618.269.673.530.473.530.51.430.5median 59.5median 18.2median 59.58.52.38.5hearing rangehide median Pink NoiseLenovo ThinkPad L14 G2 AMDAcer Swift 5 SF514-54T-501U
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkPad L14 G2 AMD audio analysis

(-) | not very loud speakers (70.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.5% lower than median
(±) | linearity of bass is average (11.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 6.1% lower than median
(±) | linearity of mids is average (7.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.4% away from median
(±) | linearity of highs is average (7.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (27% difference to median)
Compared to same class
» 81% of all tested devices in this class were better, 6% similar, 12% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 80% of all tested devices were better, 4% similar, 16% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Acer Swift 5 SF514-54T-501U audio analysis

(-) | not very loud speakers (69.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 26.4% lower than median
(±) | linearity of bass is average (9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(±) | linearity of mids is average (8.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.6% away from median
(+) | highs are linear (5.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (25.3% difference to median)
Compared to same class
» 82% of all tested devices in this class were better, 4% similar, 14% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 74% of all tested devices were better, 6% similar, 21% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Enerji tüketimi

Boştayken 7 W'lık bir güç çekişi ölçtük. Stres testi sırasında, enerji tüketimi 59 W'a ulaştı. Böylece güç tüketimi, bu donanıma sahip diğer dizüstü bilgisayarlar ile aynı seviyede.

Ürünle birlikte verilen 65 W güç adaptörü, yük altında bile Lenovo dizüstü bilgisayara yeterli güç sağlamakta sorun yaşamaz.

Anlık tüketim
Kapalı / Bekleme modudarklight 0.57 / 1.35 Watt
Boştadarkmidlight 4.01 / 6.99 / 8.06 Watt
Çalışırken midlight 26.1 / 59.32 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Witcher 3 enerji tüketimi / Stress test

0510152025303540455055Tooltip
Lenovo ThinkPad L14 G2-20X1003WGE; Witcher 3 ultra: Ø31.3 (27-38.3)
Lenovo ThinkPad L14 G2-20X1003WGE; 1280x720 Prime95 28.10 and Furmark 1.25: Ø52 (41.1-59.3)

Harici bir monitörle enerji tüketimi

0510152025303540455055Tooltip
Lenovo ThinkPad L14 G2-20X1003WGE; Prime95 V2810 Stress (external Monitor): Ø49.9 (46.5-52.8)
Lenovo ThinkPad L14 G2-20X1003WGE; Cinebench R15 Multi (external Monitor): Ø53.4 (47.9-57.8)
Lenovo ThinkPad L14 G2-20X1003WGE; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø36.7 (34.7-50.3)
Lenovo ThinkPad L14 G2-20X1003WGE; 1920x1080 The Witcher 3 ultra (external Monitor): Ø28.7 (24.2-38.3)

Pil ömrü

Pratik Wi-Fi pil testimizde Lenovo ThinkPad L14 G2, yedi saatin biraz altında bir çalışma süresi elde ediyor. Bu nedenle çalışma zamanı, AMD işlemcili ThinkPad L14'ün altında ve Asus ExpertBook B1 B1400 ile neredeyse eşit .

Battery Runtime - WiFi Websurfing
SCHENKER VIA 14 Late 2020
i5-1135G7, Iris Xe G7 80EUs, 73 Wh
993 min +139%
Average of class Office
  (300 - 1137, n=106, last 2 years)
594 min +43%
Lenovo ThinkPad L14 G2 AMD
R7 PRO 5850U, Vega 8, 45 Wh
469 min +13%
Acer Swift 5 SF514-54T-501U
i5-1035G1, UHD Graphics G1 (Ice Lake 32 EU), 56 Wh
468 min +13%
Asus ExpertBook B1 B1400CEAE, i5-1135G7
i5-1135G7, Iris Xe G7 80EUs, 42 Wh
416 min 0%
Lenovo ThinkPad L14 G2-20X1003WGE
i5-1135G7, Iris Xe G7 80EUs, 45 Wh
415 min
Batarya ömrü
WiFi Websurfing
6h 55min

Artılar

+ İyi bakım ve yükseltme seçenekleri
+ Sağlam gövde
+ İyi giriş cihazları
+ İşlemci güç kısma (Throttle) yapmıyor

Eksiler

- 14 inç dizüstü bilgisayar için nispeten ağır ve büyük
- Sessiz hoparlörler
- Vasat Wi-Fi performansı
- Ortalama pil ömrü
- Sadece 12 ay garanti

Son Görüş - Geliştirme için biraz yeri olan, iyi bir dizüstü bilgisayar

İncelemede: Lenovo ThinkPad L14 G2 . İnceleme örneğini sağlayan: Campus Point
İncelemede: Lenovo ThinkPad L14 G2 . İnceleme örneğini sağlayan: Campus Point

Lenovo'nun ThinkPad'leri iyi ofis dizüstü bilgisayarlarıydı ve hala öyleler. Bu, L serisi ve dolayısıyla ThinkPad L14 G2 için geçerlidir. Performans iyi bir seviyede ve hem sistem hem de uygulamalar yanıt veriyor. RAM'i yükseltme seçeneği, nispeten düşük grafik performansını telafi eder.

Lenovo ThinkPad L14 G2, bir Intel işlemcisi ile bile harika bir günlük arkadaştır, ancak daha uzun pil çalışma süreleri çok takdir edilecektir.

Ancak rekabetin arttığı alanlar da var. Her şeyden önce, ağırlık ve boyut burada belirtilmelidir. Doğrudan bir karşılaştırmada L14 G2, diğer 14 inç dizüstü bilgisayarlardan daha büyük ve daha ağır görünüyor. Ekran ve pil ömrü kesinlikle gelecekte geliştirilebilir.

Özetle, ThinkPad L14 G2 satın almaya değer. Schenker VIA 14Asus ExpertBook B1 B1400 veya Acer Swift 5 SF514 gibi rakipler arasında seçim yapabileceğiniz iyi alternatifler var.

Fiyat ve Stok Durumu

Intel işlemcili Lenovo ThinkPad L14 G2 şu anda Amazon'da mevcuttur.

Lenovo ThinkPad L14 G2-20X1003WGE - 11/23/2021 v7
Mike Wobker

İşcilik
82 / 98 → 83%
Klavye
89%
Mouse
86%
Bağlanılabilirlik
71 / 80 → 88%
Ağırlık
67 / 20-75 → 86%
Batarya
74%
Görüntü
84%
Oyun performansı
56 / 78 → 72%
Uygulama performansı
90 / 95 → 95%
Isınma
92%
Ses
96%
Audio
53%
Camera
22 / 85 → 26%
Ortalama
74%
86%
Office - Ortalama Ağırlık

Pricecompare

Please share our article, every link counts!
> Notebooklar Hakkında Aradığınız Herşey > İnceleme > Lenovo ThinkPad L14 G2 İncelemesi: Intel versiyonu bile iyi
Mike Wobker, 2022-03-12 (Update: 2022-03-12)
